OJ7CTAVC21011022.4GHz 40 Channel Analog Modulation Cordless Phone

Victory Concept Industries Ltd

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Jan 15, 2003
Application Purpose: Original Equipment
Date of Application: Jan 15, 2003
Equipment Note: 2.4GHz 40 Channel Analog Modulation Cordless Phone
Frequency Range: 2473.00000000 - 2476.90000000
Company: Victory Concept Industries Ltd
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

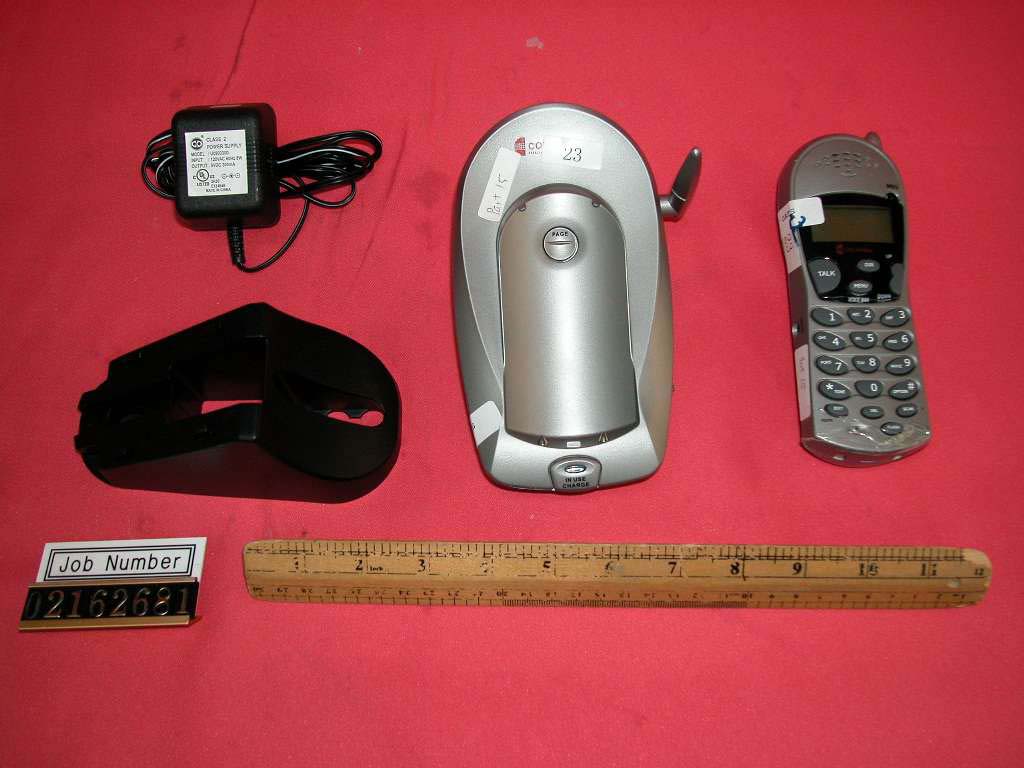

External photos FCC ID: OJ7CTAVC2101102 External photos FCC ID: OJ7CTAVC2101102

Internal Photos

Internal photos FCC ID: OJ7CTAVC2101102 Base assembly (View 1) Base assembly (View 2) Internal photos FCC ID: OJ7CTAVC2101102 Base Main PCB comp side (view 1) Base Main PCB comp side (view 2) Internal photos FCC ID: OJ7CTAVC2101102 Base Main PCB solder side Base Oscillator PCB comp side Internal photos FCC ID: OJ7CTAVC2101102 Base Oscillator PCB solder side Handset assembly Internal photos FCC ID: OJ7CTAVC2101102 Handset Main PCB comp side (View 1) Handset Main PCB comp side (View 2) Internal photos FCC ID: OJ7CTAVC2101102 Handset Main PCB display side Handset Oscillator PCB comp side Internal photos FCC ID: OJ7CTAVC2101102 Handset Oscillator PCB solder side

Test Report

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: OJ7CTAVC2101102 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Victory Concept Industries Ltd. Application For Certification 2.4GHz 40 Channel Analog Modulation Cordless Phone with Caller ID (FCC ID: OJ7CTAVC2101102) WO# 02162681 TL/Ann Choy December 5, 2002 INTERTEK TESTING SERVICES FCC ID: OJ7CTAVC2101102 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Security Code Information INTERTEK TESTING SERVICES FCC ID: OJ7CTAVC2101102 ii MEASUREMENT/TECHNICAL REPORT Victory Concept Industries Ltd. - MODEL: CT-A200, VC210 FCC ID: OJ7CTAVC2101102 This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-18-01 Edition] Provision. Report prepared by: Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: OJ7CTAVC2101102 iii Table of Contents 1.0 General Description.........................................................................................................2 1.1 Product Description.........................................................................................................2 1.2 Related Submittal(s) Grants ............................................................................................3 1.3 Test Methodology ............................................................................................................3 1.4 Test Facility .....................................................................................................................3 2.0 System Test Configuration .................................................................................................5 2.1 Justification ......................................................................................................................5 2.2 EUT Exercising Software................................................................................................5 2.3 Support Equipment List and Description........................................................................6 2.4 Measurement Uncertainty ...............................................................................................7 2.5 Equipment Modification..................................................................................................7 3.0 Emission Results ...................................................................................................................9 3.1 Field Strength Calculation .............................................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit ..........................................11 3.3 Radiated Emission Data - Base Unit .............................................................................12 3.4 Radiated Emission Configuration Photograph - Handset .............................................15 3.5 Radiated Emission Data - Handset................................................................................16 3.6 Radiated Emission on the bandedge..............................................................................19 3.7 Line Conducted Configuration Photograph - Base Unit...............................................21 3.8 Line Conducted Emission Data - Base Unit .................................................................22 4.0 Equipment Photographs ...................................................................................................25 5.0 Product Labelling ...............................................................................................................27 6.0 Technical Specifications ....................................................................................................29 7.0 Instruction Manual ............................................................................................................31 8.0 Security Code Information ...............................................................................................33 INTERTEK TESTING SERVICES FCC ID: OJ7CTAVC2101102 iv List of attached file Exhibit type File Description filename Test Report Test Report report.doc Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission for Base config photos.doc Test Setup Photo Radiated Emission for Handset config photos.doc Test Report Emission Plot emission.pdf Test Setup Photo Conducted Emission config photos.doc Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf User Manual FCC Information fcc information.pdf INTERTEK TESTING SERVICES FCC ID: OJ7CTAVC2101102 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: …

Text truncated - open the document above for the full version.

Test Report

Intertek Testing Services ETL SEMKO Report No.:02162681 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:02162681 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement: x QP Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 dBuV 80 0.45 30 MHz 110 FCC15B Intertek Testing Services ETL SEMKO Report No.:02162681 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:02162681 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement Results: no Results

Test Setup Photos

The Worst Case Configuration Photographs FCC ID: OJ7CTAVC2101102 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: OJ7CTAVC2101102 Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: OJ7CTAVC2101102 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: OJ7CTAVC2101102 Conducted Emission Side View

Test Setup Photos
