OJ7DWST08810ToughSystem Music + Charger

Music + Charger INSTRUCTION MANUAL 1-800-4-DEWALT  www.dewalt.com DWST08810 Premium Sound for the Jobsite 23 EnglishEnglishEnglishEnglish KEY FEATURES • AM/FM-stereo radio with manual/auto scanning and memory preset of stations • Bluetooth audio connectivity • Auxiliary jack for connecting external audio devices • USB power/charging port (5V/1A) • Large LCD display with illumination • Illuminated, soft-touch buttons • Four tweeter drivers and two subwoofers TECHNICAL DATA for rich sound performance • Volume control and sound tone adjustment • Heavy-duty design • Mounts and locks to the DEWALT DWST08210 ToughSystem® L-Cart Carrier • Stackable onto any ToughSystem® unit • Water and dust resistant – IP54 tested Power supply unit (AC/DC power adaptor) Power input100-120VAC 50-60 Hz (Class II) Power output24VDC Current output2A Weight0.3 kg (0.66 lb.) Appliance Power input24VDC Power outputUSB charge (5V/1A) IP ratingIP54* Weight6.9 kg (15.2 lb.) not including battery pack Stacking weight (gross)60 kg (132 lb.) Battery pack charger Battery packs voltage12VDC / 20VDC Battery typeLi-ion (slider) Approx. charging time90-300 min Charge current1.0A Audio characteristics Audio sourceAM/FM, Auxiliary jack (3.5 mm), Bluetooth Sound SPL100dB @ 1 m Sound power40W (class D) Operation time 8 hours (approx.) fully charged premium 20V MAX* 2 Ah Li-ion battery * Protected from work site dust, debris and light rain. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Pay attention and follow all warnings. 4. Follow all instructions. 5. DO NOT use this appliance near water. 6. Read and understand all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. 7. This appliance shall not be exposed to direct water and no objects filled with liquids, such as bottles, shall be placed on the appliance. 8. Clean only with a dry or damp cloth. 9. To protect the appliance from water or dust, always close the top compartment cover, battery pack cover and the rubber cover of the DC power input port. 10. Use in accordance with the manufacturer’s instructions. 11. DO NOT place near any naked flame sources such as lighted candles, heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 12. Protect the power cord from being The DWST08810 ToughSystem® Music + Charger is a combination of an AM/FM radio, Bluetooth and auxiliary music player and a DEWALT battery charger. The DWST08810 will charge most DEWALT slider Li-ion batteries. Batteries sold separately. The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage. IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY DEWALT TOOL, CALL TOLL FREE AT: 1-800-DEWALT (1-800-433-9258) WARNING: To reduce the risk of injury, read the instruction manual. NOTE: Product WARNING label located on the bottom of the appliance. DWST08810 ToughSystem ® Music + Charger walked on or pinched particularly at plugs, convenience receptacles. 13. Only use attachments/accessories specified by the manufacturer. 14. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use CAUTION when moving the cart/apparatus combination to avoid injury from tip-over. 15. The AC/DC power adaptor should only be used as the power source for the appliance and for battery charging. To completely disconnect the appliance, the AC/DC power adaptor, should be disconnected from the outlet. 16. Unplug this appliance during lightning storms or when unused for long periods of time. 17. The AC/DC power adaptor should be easily accessible and not obstructed during intended use. 18. Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any Definitions: Safety Guidelines 45 EnglishEnglish way, such as power-supply cord or plug is damaged, liquid or direct rain has reached the connectors, the appliance has been exposed to extensive moisture, does not operate normally, or has been dr opped and does not operate. 19. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 20. Children should be supervised to ensure that they DO NOT play with the appliance. 21. Use only with specically designated DEWAL T battery packs (see Important Safety Instructions for All Battery Packs below for DEWAL T-approved battery packs). Use of any battery packs other than those approved by DEWAL T may create a risk of injury and re. The lightning ash with arrow head within a triangle is intended to tell the user that parts inside the pr oduct are a risk of electric shock to persons. The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions ar e in the user manual supplied with the appliance. The double insulation symbol (a square within a square) indicates a Class II electrical appliance and is intended to alert qualied service personnel to use only identical replacement parts in this appliance. This device complies with Industry Canada License-exempt RSS-210. Operation is subject to the following two conditions: (1) t…

Text truncated - open the document above for the full version.

EspañolEspañol 1819 CARACTERÍSTICAS PRINCIPALES • Radio AM/FM estéreo con escaneo manual/automático y memoria para emisoras pre sintonizadas • Conectividad de audio Bluetooth • Toma de conexión auxiliar para la conexión de dispositivos de audio externos • Alimentación USB /puerto de carga (5V/1A) • Gran pantalla LCD con iluminación • Botones de control blandos con iluminación INFORMACIÓN TÉCNICA • Cuatro altavoces tweeter y dos altavoces subwoofer para un sonido de alto rendimiento • Control de volumen y ajuste de tono • Diseño de alta resistencia • Sujetadores y pestillos para el Carro L-Cart Carrier ThoughSystem® DWST08210 de DEWALT apilables en cualquier unidad de ToughSystem® • Resistente al agua y el polvo – Testeado IP54 Unidad de Fuente de Alimentación (adaptador de corriente AC/DC) Potencia de entrada100-120VAC 50-60 Hz (Clase II) Potencia de salida24VDC Corriente de salida2A Peso0.3 kg (0.66lb.) Aparato Potencia de entrada24VDC Potencia de salidaCargador USB (5V/1A) Clasificación IPIP54* Peso6.9kg (15.2 lb.) sin batería Peso de apilado (bruto)60 kg (132 lb.) Cargador de baterías Tensión baterías12VDC / 20VDC Tipo de bateríaIones de litio (deslizante) Tiempo de carga aprox90-300 min Corriente de carga1.0A Características de audio Fuente de audioAM/FM, conector auxiliar (3.5 mm), Bluetooth Sonido SPL100dB @ 1m Potencia de sonido40W (clase D) Tiempo de funcionamiento 8 horas (aprox.) Batería 20V MAX* 2 Ah Li-ion completamente cargada *Protegido contra el polvo (sin depósitos nocivos) y contra la entrada de agua. Instrucciones de seguridad importantes 1. Lea estas instrucciones. 2. Conserve estas instrucciones. 3. Preste atención y siga todas las advertencias. 4. Siga todas las instrucciones. 5. No use este aparato cerca del agua. 6. Lea y comprenda todas las advertencias e instrucciones de seguridad. No seguir las advertencias e instrucciones puede resultar en descargas eléctricas, incendios y/o lesiones graves. 7. Este aparato no debe ser expuesto al agua directa y no se deben colocar sobre el aparato objetos llenos de líquido, tales como botellas. 8. Limpie únicamente con un trapo seco o húmedo. 9. Para proteger el aparato del agua o polvo, cierre siempre la tapa del compartimento superior, la tapa de las pilas y la tapa de goma de la entrada de alimentación CC. 10. Use de acuerdo con las instrucciones del fabricante. El aparato ToughSystem® Music + Cargador DWST08810 es una combinación de radio AM/FM, Bluetooth, reproductor de música auxiliar, y un cargador de baterías DEWALT. El DWST08810 cargará casi todas las baterías deslizantes de iones de litio de DEWALT. Las baterías se venden por separado. Definiciones: Normas de seguridad Las siguientes definiciones describen el nivel de gravedad de cada palabra de advertencia. Lea el manual y preste atención a estos símbolos. PELIGRO: Indica una situación de peligro inminente que, si no se evita, provocará la muerte o lesiones graves. ADVERTENCIA: Indica una situación de peligro potencial que, si no se evita, podría provocar la muerte o lesiones graves. PRECAUCIÓN: Indica una situación de peligro potencial que, si no se evita, posiblemente provocaría lesiones leves o moderadas. AVISO: Se refiere a una práctica no relacionada a lesiones corporales que, de no evitarse, puede resultar en daños a la propiedad. DWST08810 ToughSystem® Music + Cargador 11. No instale cerca de fuentes de llama viva como velas encendidas, de fuentes de calor como radiadores, rejillas de calefacción, estufas ni otros aparatos (incluyendo amplificadores) que produzcan calor. 12. Evite que caminen sobre el cable y protéjalo contra aplastamientos, particularmente en la clavija, y las toma de corriente. 13. Utilice únicamente los aditamentos y accesorios especificados por el fabricante. 14. Utilice sólo con un carro, sostén, trípode, soporte o mesa especificados por el fabricante, o vendidos con el aparato. Cuando se utiliza el carro, tenga cuidado al mover la combinación del carro/ aparato para evitar lesions por vuelco. 15. El adaptador de corriente externo de AC/DC (CA/CC) se debe utilizar solamente como fuente de alimentación para el aparato y para la carga de baterías. Para desconectar completamente el aparato, el adaptador de corriente SI TIENE ALGUNA DUDA O ALGÚN COMENTARIO SOBRE ÉSTA U OTRA HERRAMIENTA DEWALT, LLÁMENOS AL NÚMERO GRATUITO: 1-800-DEWALT (1-800-433-9258). ADVERTENCIA: Para reducir el riesgo de lesiones, lea el manual de instrucciones. NOTA: La etiqueta de ADVERTENCIA del producto está situada en la parte inferior del aparato EspañolEspañol 2021 AC/DC debe ser desconectado de la toma de corriente. 16. Desconecte este aparato durante tormentas eléctricas o cuando no vaya a usarlo por períodos prolongados. 17. El adaptador de corriente AC/DC debe ser de fácil acceso y no encontrarse obstruido durante el uso. 18. Deje todo el mantenimiento en manos requiere servicio cuando el aparato se haya dañado de cualquier modo, como por ejemplo si el cable o la clavija se dañan, si se ha derramado líquido o la lluvia directa ha alcanzado los conectores, o si el aparato se ha expuesto a lluvia o humedad, no opera normalmente o se ha caído y no funciona. 19. Este aparato no está diseñado para ser utilizado por personas (incluidos niños) con capacidades físicas, sensoriales o mentales reducidas, o falta de experiencia y conocimiento, a menos que sean supervisados o instruidos acerca del uso del aparato por una persona responsable por su seguridad 20. Se debe supervisar a los niños para asegurar que no jueguen con el aparato. 21. Use solamente con baterías DEWALT especialmente designadas (vea a continuación las Instrucciones de Seguridad Importantes para todas las baterías, para baterías aprobadas D EWALT). El uso de cualquier otra batería que no sea la aprobada por D EWALT puede causar riesgo de lesiones o de incendio. El r dentro de un triángulo indica al usuario que en el interior del producto hay piezas que constituyen un riesgo de descarga eléctrica para las…

Text truncated - open the document above for the full version.

FRANÇAISFRANÇAIS 3637 FONCTIONNALITÉS CLÉS • Radio stéréo AM/FM avec une lecture manuelle / automatique et des stations préinstallées dans la mémoire. • Connectivité audio Bluetooth • Prise auxiliaire pour brancher des appareils audio externes • Port d’alimentation / de chargement USB (5V/1A) • Grand écran LCD avec éclairage • Touches à surface douce éclairées • Quatre tweeter drivers et deux caissons pour une performance sonore de qualité SPÉCIFICATIONS TECHNIQUES • Contrôle du volume et réglage de la sonorité • Conception robuste • Montures et verrous pour le porte-chariot en forme de L de DEWALT, DWST08210 Tough System® • Empilable sur toute unité de Tough System® • Résistant à l’eau et à la poussière – testé IP 54 Unité d’alimentation électrique (adaptateur électrique CA/CC) Puissance absorbée100-120VCA 50-60 Hz (Classe II) Puissance de sortie24VCC Sortie courant2A Poids0,3 kg (0,66 lb.) Appareils Puissance absorbée24VCC Puissance de sortieCharge USB (5V/1A) Indice IPIP54* Poids6,9 kg (15,2 lb.) bloc-piles non inclus Poids de la pile (brut)60 kg (132 lb.) Chargeur du bloc-piles Voltage des blocs-piles12VCC / 20VCC Type de pile Li-ion (glissière) Durée de charge approximative90-300 min Courant de charge1A Caractéristiques audio Source audio AM/FM, prise auxiliaire (3,5 mm), Bluetooth Son (NPA)100dB @ 1 m Puissance acoustique40W (classe D) Durée de fonctionnement 8 heures (approximativement) Pile Li-ion 20V MAX* 2 Ah de qualité supérieure, complètement chargée *Protégée contre la poussière et les débris du lieu de travail et contre les pluies fines. 1. Lire ces instructions. 2. Conserver ces instructions. 3. Prêter attention et observer tous les avertissements. 4. Observer toutes les instructions. 5. Ne pas utiliser cet appareil à proximité de l'eau. 6. Lire tous les avertissements et toutes les consignes de sécurité. Le non-respect de ces avertissements et instructions peut provoquer une électrocution, un incendie et / ou des blessures graves. 7. Cet appareil ne doit pas être en contact direct avec de l’eau et aucun objet rempli d’un liquide, tel que des bouteilles, ne doit être placé ) sur l’appareil. 8. N'utiliser qu'un chiffon sec ou humide pour le nettoyage. 9. Pour protéger l’appareil contre l’eau ou la poussière, toujours fermer le couvercle du compartiment supérieur, le couvercle de la batterie et le revêtement de caoutchouc du port d’alimentation électrique CC. 10. Utiliser conformément aux instructions du DWST08810 Tough System® Musique + Chargeur, est une combinaison de radio AM/FM, Bluetooth, d’un lecteur de musique auxiliaire et d’un chargeur de pile DEWALT. Le DWST08810 chargera la plupart des piles Li-ion à glissière de DEWALT. Les piles sont vendues séparément. Définitions : consignes de sécurité Les définitions ci-dessous décrivent le niveau de danger pour chaque terme d’avertissement employé. Lire le mode d'emploi et porter une attention particulière à ces symboles. DANGER: indique une situation dangereuse imminente qui, si elle n'est pas évitée, entraînera la mort ou des blessures graves. AVERTISSEMENT: indique une situation potentiellement dangereuse qui, si elle n'est pas évitée, pourrait entraîner la mort ou des blessures graves. ATTENTION: indique une situation potentiellement dangereuse qui, si elle n'est pas évitée, peut entraîner des blessures légères ou modérées. AVIS: indique une pratique ne posant aucun risque de dommages corporels, si elle n’est pas évitée, peut poser des risques de dommages matériels. POUR TOUTE QUESTION OU REMARQUE AU SUJET DE CET APPAREIL OU DE TOUT AUTRE OUTIL DEWALT, COMPOSEZ LE NUMÉROGRATUIT: 1-800-DEWALT (1-800-433-9258) AVERTISSEMENT: afin de reduire le risque de blessures, lire le mode d’emploi de l’appareil. AVIS: L’étiquette d’avertissement du produit se trouve en bas de l’appareil. DWST08810 Tough System® Musique + Chargeur fabricant. 11. Ne pas placer à proximité d’une source de flamme nue telle que des bougies allumées, de sources de chaleur, tels que des radiateurs, registres de chaleur, cuisinières ou tout autre appareil (y compris les amplificateurs). 12. Protéger le cordon d'alimentation contre tout piétinement ou constriction particulièrement au niveau des fiches, des prises, et au point de sortie des appareils. 13. Utiliser exclusivement des accessoires recommandés par le fabricant. 14. Utiliser exclusivement un chariot, le socle, le trepied, le support ou la table specifiee par le fabricant ou vendus avec l’appareil. En utilisant un chariot, veiller à ne pas renverser la combination cart/ appareil. 15. L’adaptateur externe CA/CC est utilisé comme source d’énergie comme source d’énergie le chargement des piles. Pour être complètement déconnecté, Consignes de sécurité importantes FRANÇAISFRANÇAIS 3839 appareil ne doit pas provoquer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences pouvant pr ovoquer un fonctionnement non désiré de l'appareil. FCC Cet appareil est conforme aux réglementations de la Federal Communications Commission. AVERTISSEMENT expressément approuvées par le fabricant peuvent annuler le droit de l’utilisateur à utiliser l’équipement en vertu des Règles FCC. REMARQUE: Cet équipement a été teste et jugé conforme aux limites propres aux appareils numériques de Classe B, conformément au Paragraphe 15 du règlement du FCC. Ces limites sont destinées à offrir une protection raisonnable contre les interférences nuisibles d’une installation résidentielle. Cet équipement produit, utilise et peut émaner des ondes radiofréquences et, s'il n'est pas installé et utilisé conformément aux instructions du fabricant, il peut causer des interférences nuisibles aux communications radio. Il n'est cependant pas garanti qu’aucune interférence ne se produise dans une installation particulière. Si cet équipement cause des interférences nuisibles à toute réception radio ou télévision, ce qui peut être déterminé en allumant et en éteignant l'équipement, l'utilisateur est encouragé …

Text truncated - open the document above for the full version.

VICTORY CONCEPT INDUSTRIES LTD. Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to section 2.911(d)(7) of the FCC rules To whom it may concern, This letter is to confirm both Stanley Black & Decker (“Agent”) and Victory Concept Industries Ltd (“Applicant”) acknowledge consent to obligations of each party pursuant to 47 CFR part §2.911(d)(7) of the FCC rules in regard to the agent for service of process. I, Samuel Cheng, HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC and Intertek if there is any change in the status identified above. Applicant Company Name : Victory Concept Industries Ltd Contact Name : Samuel Cheng Address : Unit 1304, 13/F, Lu Plaza, 2 Wing Yip Street, Kwun Tong, Kowloon, Hong Kong Telephone No : 852-27930893 Email : [email protected] FCC ID : OJ7DWST08810 Applicant FRN : 0009634965 Signature: ____________________________________ Date: 23/3/2023 I Kirwan Magdamo HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Agent. I consent to the obligation to accept service of process on behalf of the applicant in regard to all certification applications to the FCC submitted by above applicant and agree to immediately notify the FCC and Intertek if there is change in this representation. Agent Company Name : Stanley Black & Decker Contact Name : Kirwan Magdamo Address : 701 East Joppa Road, Towson, MD 21286 Telephone No : 410-716-3563 Email : [email protected] Agent FRN : 0019980119 Signature: Date: March 27, 2023

VICTORY CONCEPT INDUSTRIES LTD. Dated this 23 day March of 2023 Attention: Application Examiner Re: Request for Confidentiality. Applicant: Victory Concept Industries Ltd. FCC ID: OJ7DWST08810 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Victory Concept Industries Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: •Schematics •Detailed Block diagrams •Detailed Operational/Functional Description Short-term Confidentiality Request is hereby submitted by Victory Concept Industries Ltd. to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 180 days from the date of Authorization: •Test setup photos •External photos (NOTE: External photos can only be held for short-term confidentiality) •Internal photos • User manual Rationale for request for confidentiality: Victory Concept Industries Ltd. has invested considerable time and materials in research and development to produce the referenced product: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Disclosure of the short term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development For FCC certification: The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, ___________________________________ Samuel Cheng – R & D Manager Victory Concept Industries Ltd.

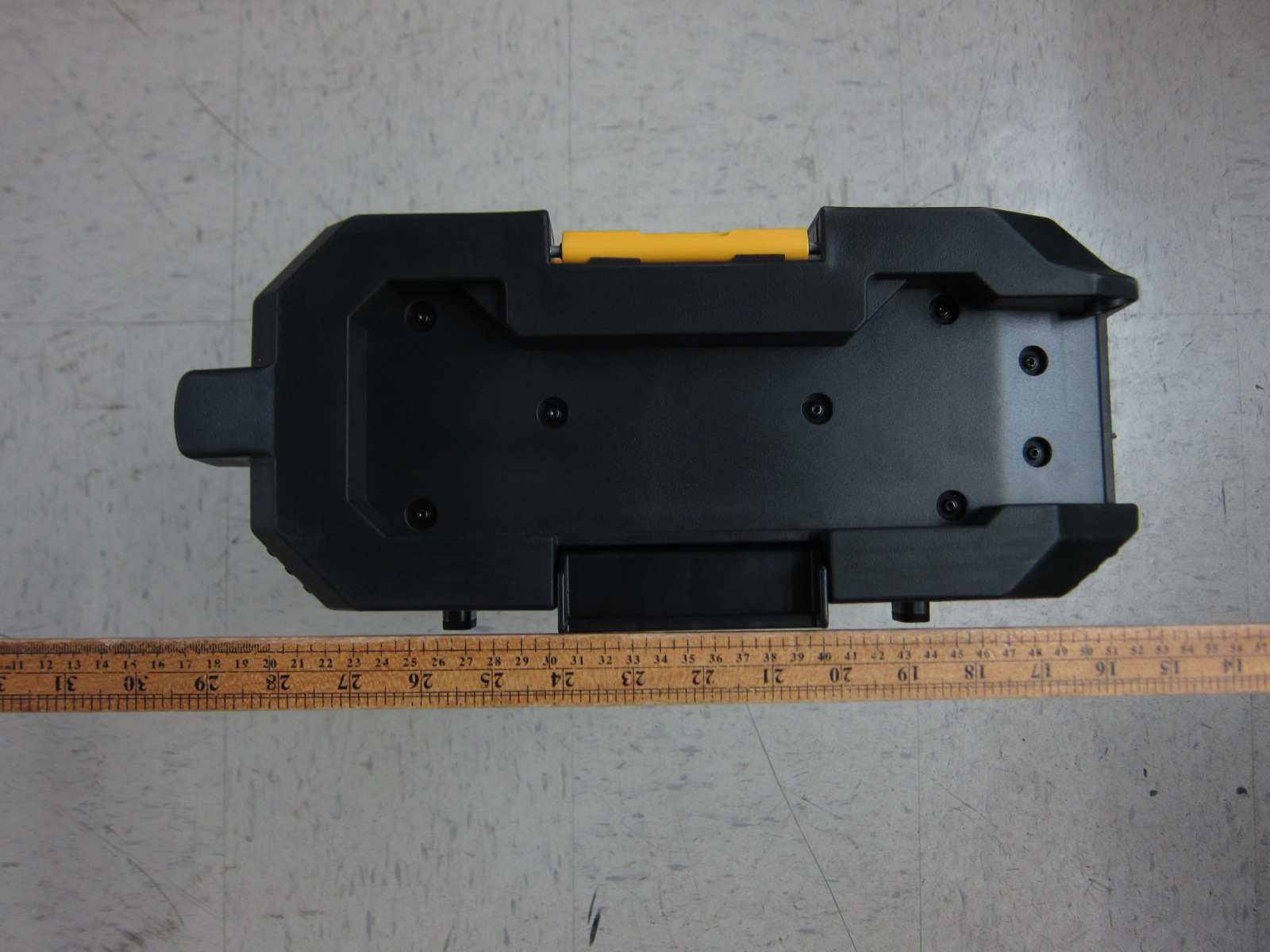

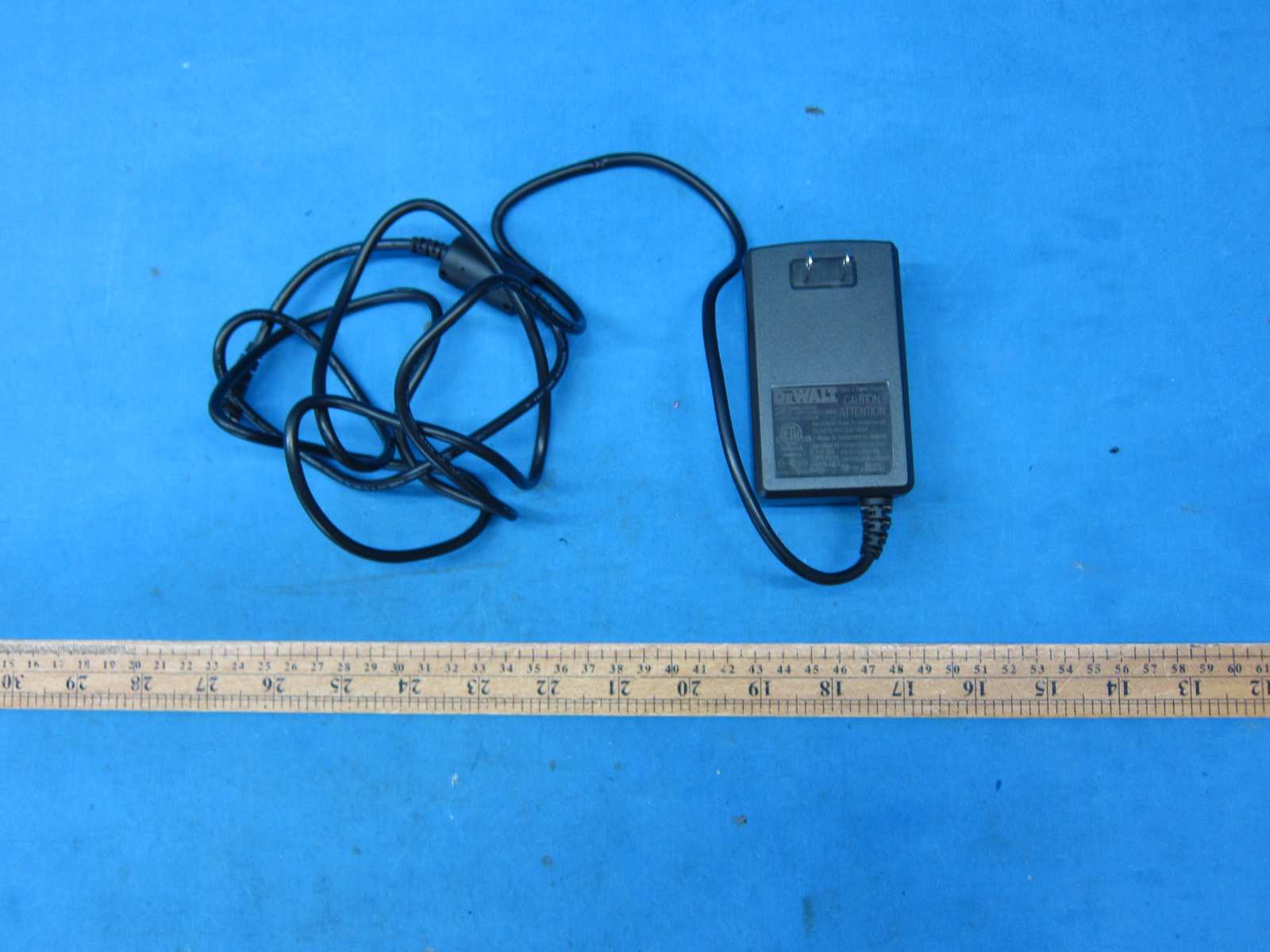

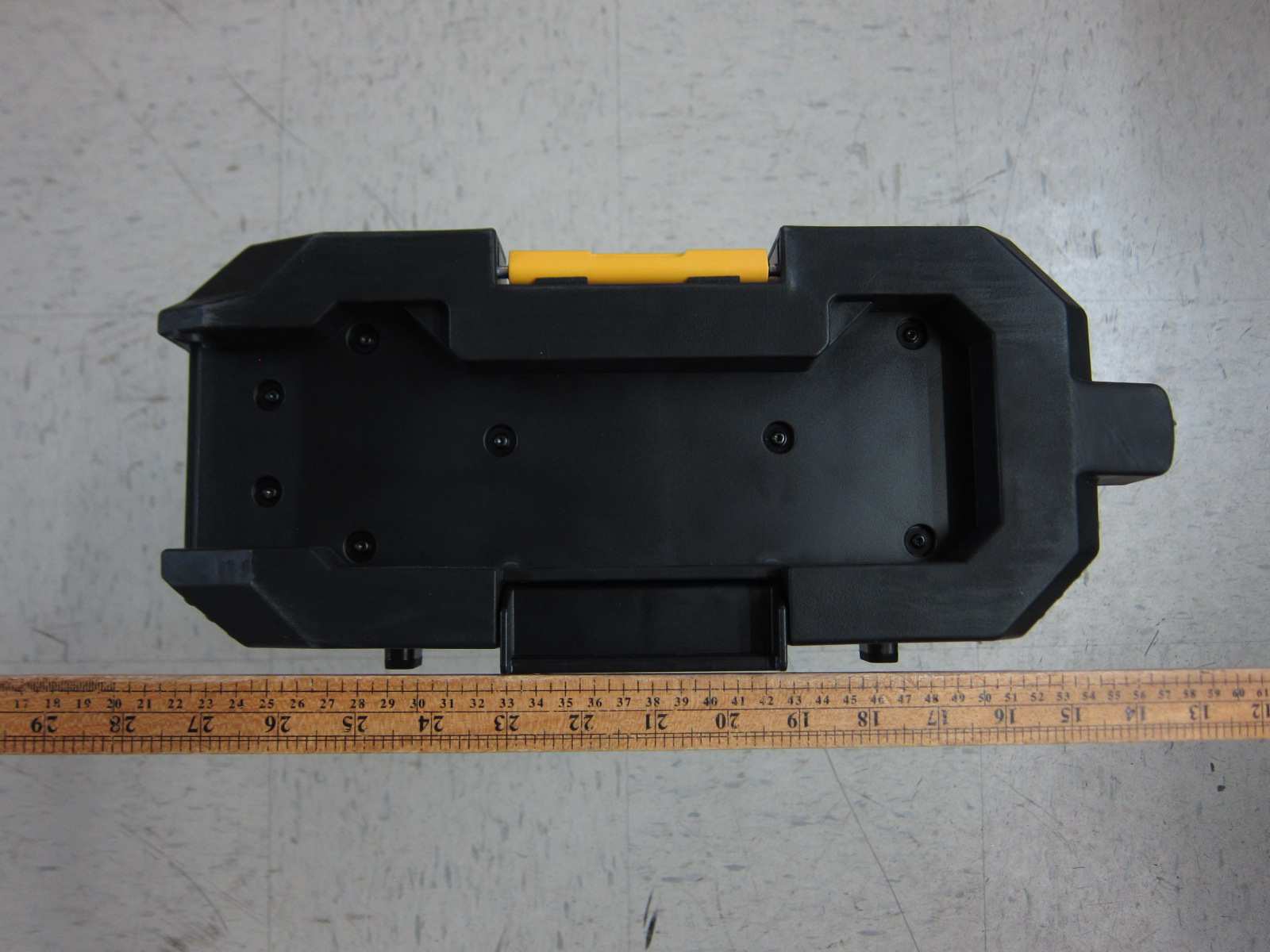

INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (External)

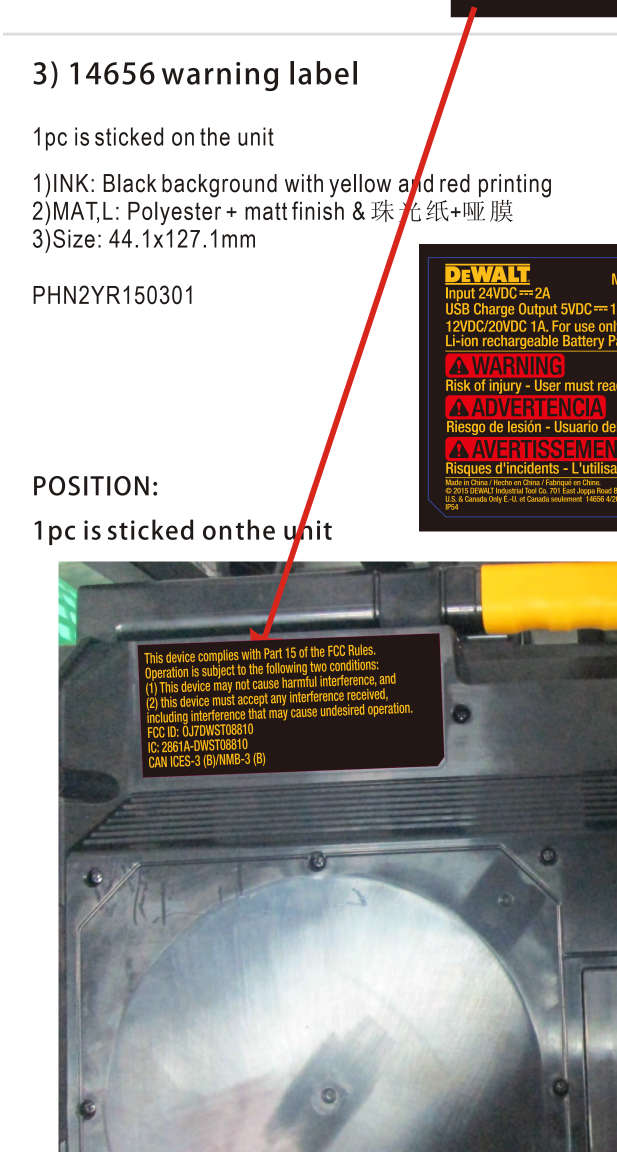

Label size 44.1mm X 127.1 mm Label size 44.1mm X 127.1 mm

INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22120731 Equipment Photographs (Internal)

Analysis Report The Equipment Under Test is a ToughSystem Music + Charger. The EUT operated at frequency range of 2402 MHz to 2480 MHz. The EUT is powered by AC/DC adaptor Antenna Type: Internal integral Antenna Gain: 2.6 dBi • Nominal Radiated Power (EIRP): 0dBm to 10 dBm (peak) • Nominal Radiated Power (EIRP): -30dBm to 0dBm (average) According to the KDB 447498 D04 Interim General RF Exposure Guidance v01 Based on the Maximum allowed average field strength of production tolerance was 0dBm (95.2 dBμV/m at 3m). Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level at 2.48GHz with distance 5mm: = 2.717mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 2.717mW is 99.6dBuV/m @3m Since maximum average field strength plus production tolerance < = 99.6dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 24 Report No.: 22120731HKG-001 Victory Concept Industries Ltd Application For Original Grant of 47 CFR Part 15 Certification Single New of RSS-210 Issue 10 Amendment 1 Certification ToughSystem Music + Charger FCC ID: OJ7DWST08810 IC: 2861A-DWST08810 Prepared and Checked by: Approved by: Signed on File Wong Cheuk Ho, Herbert Wong Kwok Yeung, Kenneth Lead Engineer Assistant Supervisor Date: March 08, 2023 TEST REPORT Victory Concept Industries Ltd Intertek Report No: 22120731HKG-001 Page 2 of 24 GENERAL INFORMATION Grantee: Victory Concept Industries Ltd Grantee Address: Unit 1304, 13/F, Lu Plaza, 2 Wing Yip Street Kwun Tong, Kowloon Hong Kong Manufacturer: Victory Concept Industries Ltd Manufacturer Address: Unit 1304, 13/F, Lu Plaza, 2 Wing Yip Street Kwun Tong, Kowloon Hong Kong FCC Specification Standard: FCC Part 15, October 1, 2021 Edition FCC ID: OJ7DWST08810 FCC Model(s): DWST08810 IC Specification Standard: RSS-210 Issue 10 Amendment 1, April 2020 RSS-Gen Issue 5 Amendment 2, February 2021 IC: 2861A-DWST08810 HVIN: DWST08810 PMN: DWST08810 Type of EUT: Transmitter Description of EUT: ToughSystem Music + Charger Brand Name: DEWALT® Serial Number: N/A Sample Receipt Date: December 21, 2022 Date of Test: December 21, 2022 to February 02, 2023 Report Date: March 08, 2023 Environmental Conditions: Temperature: +10 to 40°C Relative Humidity: 10 to 90% Test Site Location: Workshop No. 3, G/F., World-Wide Industrial Centre, 43-47 Shan Mei Street, Fo Tan, Sha Tin, N.T., Hong Kong. Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-210 Issue 10 Amendment 1 Certification. TEST REPORT Victory Concept Industries Ltd Intertek Report No: 22120731HKG-001 Page 3 of 24 SUMMARY OF TEST RESULT Test Items FCC Part 15 Section RSS-210 / RSS-Gen # Results Transmitter Power Line Conducted Emissions 15.207 8.8 # Complied Radiated Emission 15.249, 15.209 B.10 / 8.9 # Complied Radiated Emission on the Bandedge Complied Radiated Emission in Restricted Bands 15.205 8.10 # Complied For all technical data, which can be referred to Annex B – Report cover sheet. For electronic filing, the Annex B – Report cover sheet is saved with filename: Annex B.pdf. The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2021 Edition RSS-210 Issue 10 Amendment 1, April 2020 RSS-Gen Issue 5 Amendment 2, February 2021 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC Part 15 Section 15.215(c), the 20dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over expected variations in temperature and supply voltage were considered. TEST REPORT Victory Concept Industries Ltd Intertek Report No: 22120731HKG-001 Page 4 of 24 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description .................................................................................................. 5 1.2 Related Submittal(s) Grants ...................................................................................... 5 1.3 Test Methodology ..................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 Justification ............................................................................................................... 6 2.2 EUT Exercising Software............................................................................................ 6 2.3 Special Accessor…

Text truncated - open the document above for the full version.
