OJF1C85P19L70A17OPTICAL NETWORK EVOLUTION DAS

APRIL 2013 Corning ONE™ Wireless Platform User Manual Preface Material P/N 709C011801 Page 2 Preface Material About This Manual This user guide provides all the information necessary to understand the architecture and perform the installation of Corning® ONE™ Wireless Platform. Hardware Corning warrants to the original purchaser (“Customer”) that for the duration of the warranty period, one (1) year, commencing on the date of shipment of the Hardware, unless otherwise agreed in writing by Corning (the “Hardware Warranty Period”), the Hardware furnished by Corning shall be free in all material respects from defects in material and workmanship, and shall conform to the applicable portions of the Specifications, as defined below (the “Hardware Warranty”). If notified by Customer of any such defects in material or workmanship or nonconformity with applicable portions of the Specifications within the Hardware Warranty Period, Corning shall promptly, at its own election and expense, repair or replace any such Hardware proven to be defective under the terms of this Hardware Warranty. Such repair or replacement shall be Customer’s sole remedy and Corning sole obligation in the event this Hardware Warranty is invoked. If any components comprising a part of the Hardware are replaced or repaired during the Hardware Warranty Period, the Hardware Warranty Period for such repaired or replaced components shall extend to the longer of (i) the balance of the Hardware Warranty Period or (ii) three (3) months from the date of repair or replacement. For purposes of this Warranty, “Specifications” shall mean the specifications and performance standards of the Products as set forth in documents published by Corning and delivered to Customer which contain technical specifications or performance standards for the Products. If Customer invokes this Hardware Warranty, it shall notify Corning promptly of the claimed defect. Customer will allow Corning to inspect the Hardware at Customer’s location, or to return the Hardware to Corning closest repair facility. For Hardware returned to Corning repair facility, Customer shall be responsible for payment of all transportation and freight costs (including insurance) to Cornings’ repair facility, and Corning shall be responsible for all transportation and freight costs (including insurance) incurred in connection with the shipment of such Hardware to other repair facilities of Corning and/or its return to Customer. Notwithstanding the foregoing, in no event will Corning be liable for damage to Products resulting from improper handling during or after shipment, misuse, neglect, improper installation, operation or repair (other than by authorized Corning personnel), alteration, accident, or for any other cause not attributable to defects in materials or workmanship on the part of Corning. Corning shall not reimburse or make any allowance to Customer for any labor charges incurred by Customer for replacement or repair of any goods unless such charges are authorized in advance in writing by Corning. Preface Material P/N 709C011801 Page 3 Software Warranty Corning warrants to the original purchaser (“Customer”) that for the duration of the warranty period, one (1) year, commencing on the date of shipment of the Software, unless otherwise agreed in writing by Corning (the “Software Warranty Period”), the Software shall conform with, and perform the functions set forth in the Specifications, and shall be free from defects in material or workmanship (the “Software Warranty”). In the event the Software is proven to be defective under the terms of this Software Warranty, Corning shall correct such defects or failure and ensure that the Software conforms with, and performs the functions set forth in, the Specifications. Customer will allow Corning to inspect the Software at Customer’s location or to return it to Cornings’ closest repair facility. Notwithstanding the foregoing, Corning shall have no obligation under the Software Warranty if the Software is modified or used with hardware or software not supplied or approved by Corning or if the Software is subject to abuse, improper installation or application, accident, electrical or environmental over-stress, negligence in use, storage, transportation or handling. Third-party software distributed with the Software may carry certain warranties which, to the maximum extent allowed by law, Corning hereby assigns, transfers and otherwise conveys to Customer, provided, however, that Corning itself provides no warranty of any kind, express, implied, statutory or otherwise, for any third-party software provided hereunder. Corning does not warrant any hardware, software or services not provided by Corning. THIS WARRANTY IS THE ONLY WARRANTY MADE BY CORNING AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. CORNING SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE GOODS, PARTS AND SERVICE. CORNING SALES AGENTS OR REPRESENTATIVES ARE NOT AUTHORIZED TO MAKE COMMITMENTS ON WARRANTY RETURNS. Returns In the event that it is necessary to return any product against above warranty, the following procedure shall be followed: 1. Return authorization is to be received from Corning prior to returning any unit. Advise Corning of the model, Serial number, and discrepancy. The unit may then be forwarded to Corning, transportation prepaid. Devices returned collect or without authorization may not be accepted. 2. Prior to repair, Corning will advise the customer of our test results and any charges for repairing customer-caused problems or out-of-warranty conditions etc. 3. Repaired products are warranted for the balance of the original warr…

Text truncated - open the document above for the full version.

To: Timco Engineering Ltd. From: Shaike Raz Att: Reviewing Engineer Reference No.: L126640.00 Date: 04 August 2013 Subject: Re-Submission of Application for Grant for FCC ID: OJF1C85P19L70A17 per FCC Waiver Letter To Whom it may Concern, 1. We are re-submitting an application for the subject FCC ID per the FCC waiver letter dated July 26, 2013 following the dismissal of the original grant on June 14, 2013. 2. The re-submission includes the following: 2.1. FCC Waiver Letter. 2.2. All original exhibits previously submitted per FCC waiver letter “...to permit acceptance and action on the equipment certification application for the CMA ONE Wireless Platform under our existing rules.” 3. Please note that due to the waiver, this application comes under the Permit But ask Procedure. 4. Please let us know ASAP if you need any additional information. Regards Shaike Raz EMC/Radio Laboratory Manager ITL (Product Testing) LTD Lod/Kfar Bin Nun Tel: 972-8-918-6117 Fax: 972-8-915-3101 Email: [email protected]

Date: 07 May 2013 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC ID Certification Process for the following application: FCC ID: OJF1C85P19L70A17 Sincerely, Steve Blum Product Manager Corning Mobileaccess 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Corning MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 www.corning.com/mobileaccess

Date: 07 May 2013 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign Form 731 on our behalf regarding the FCC ID Certification Process for the following application: FCC ID: OJF1C85P19L70A17 Sincerely, Steve Blum Product Manager Corning Mobileaccess 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Corning MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 www.corning.com/mobileaccess

Date: 14 August 2013 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: OJF1C85P19L70A17 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, MobileAccess Networks hereby requests long-term confidential treatment of information accompanying this application as outlined below: CONF APPENDIX RAU BlkDia.pdf CONF APPENDIX RXU BlkDia.pdf CONF APPENDIX RAU PartsLst.pdf CONF APPENDIX RAU Schem.pdf The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Steve Blum Product Manager Corning Mobileaccess 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Corning MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 www.corning.com/mobileaccess

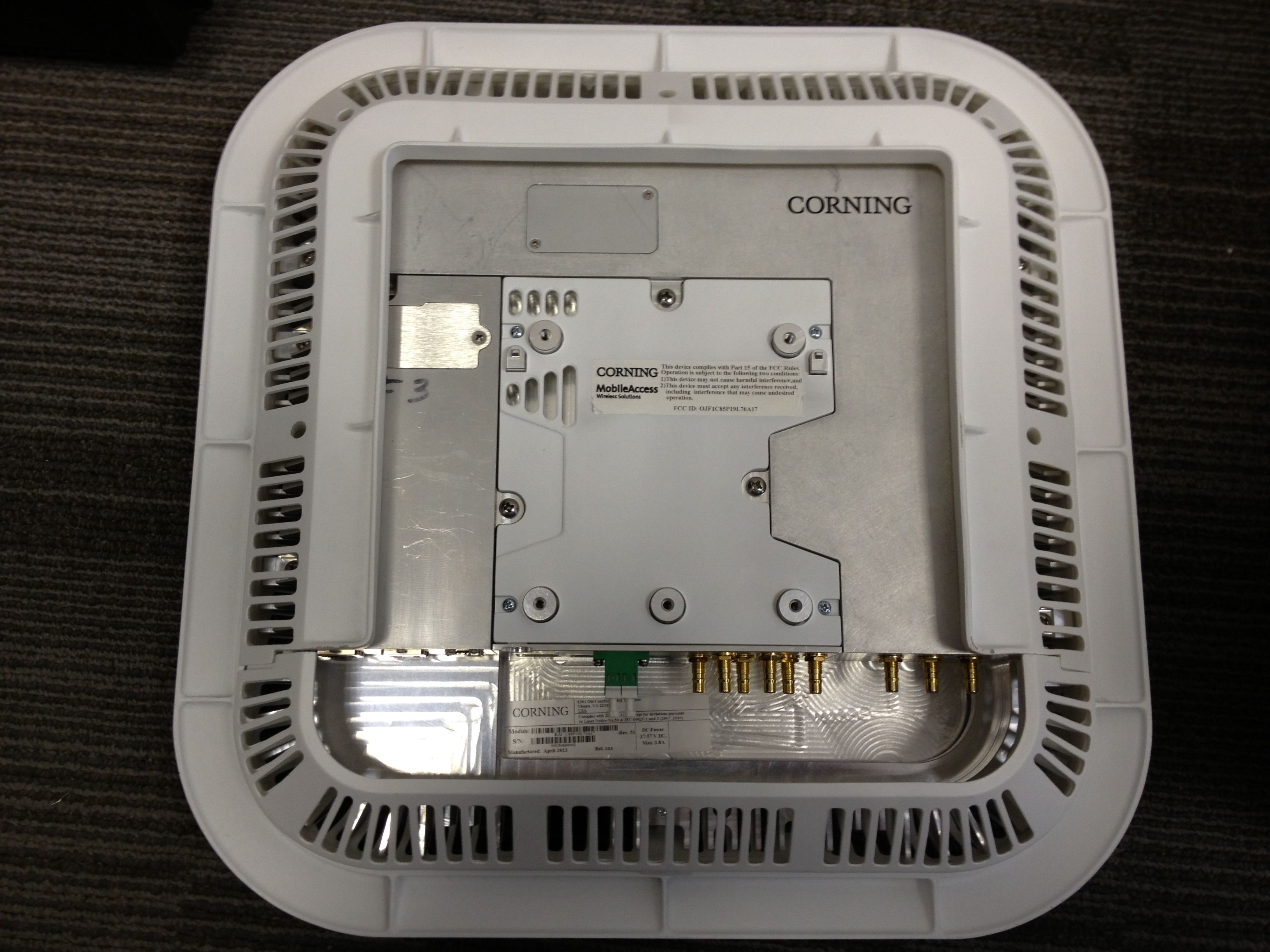

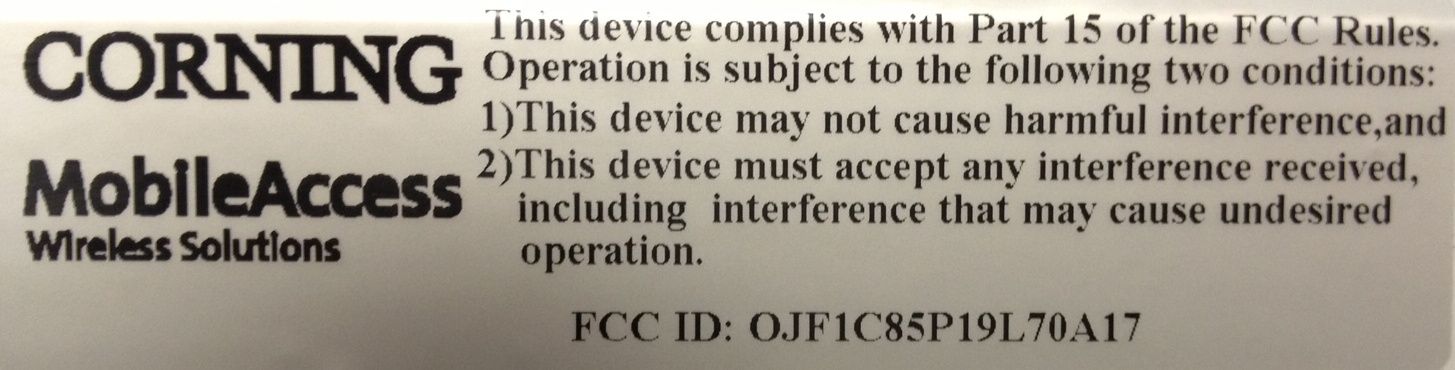

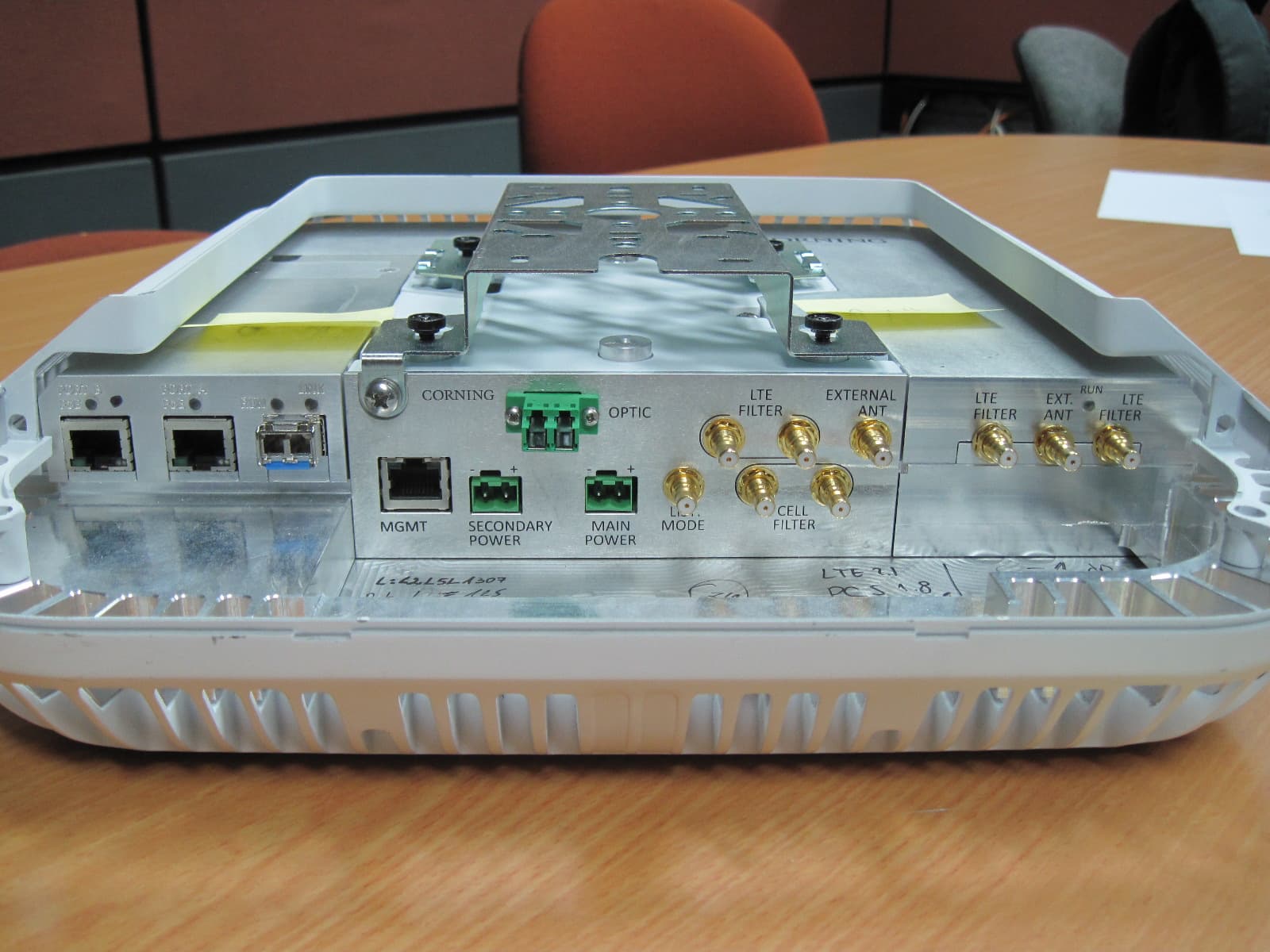

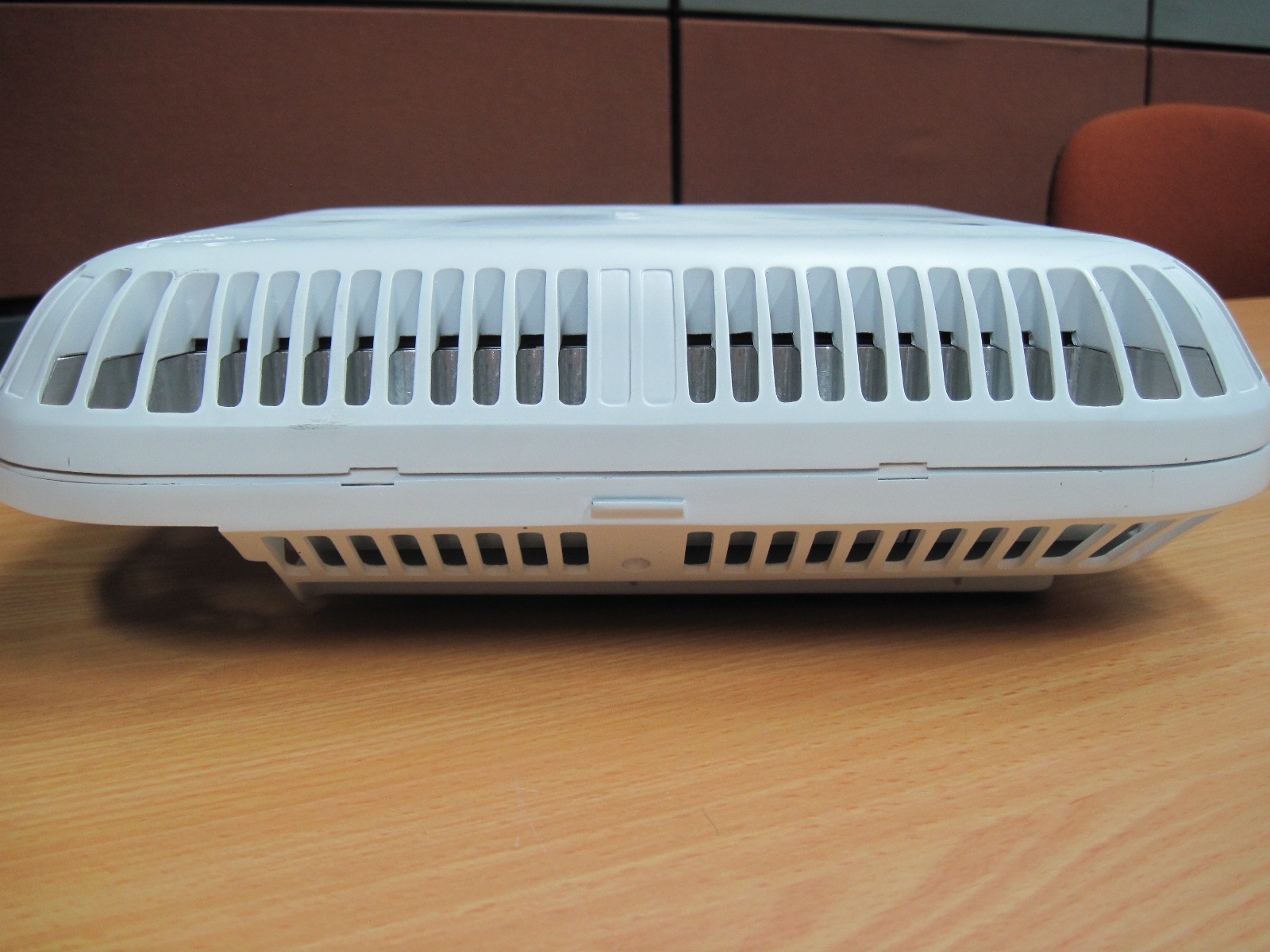

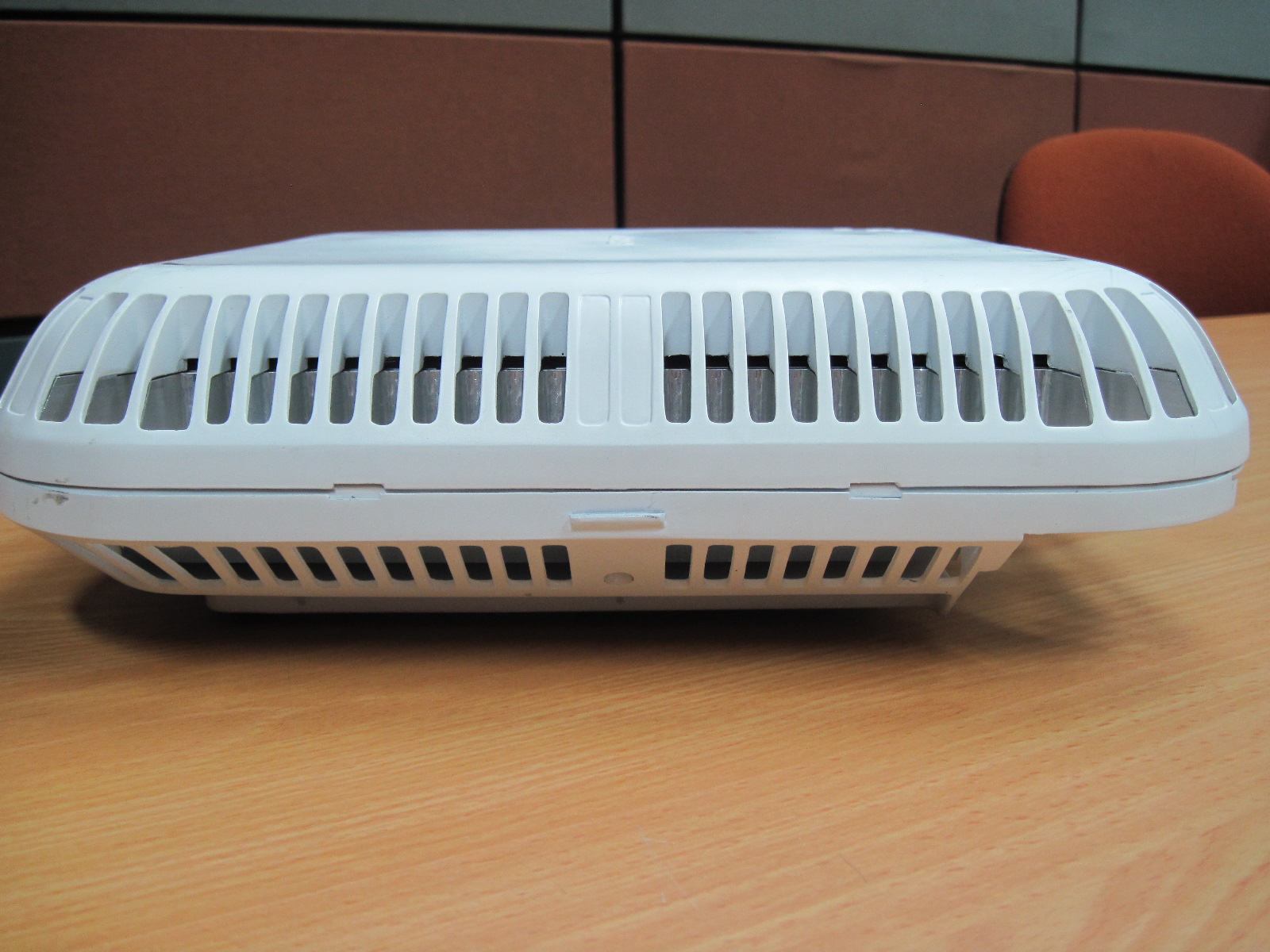

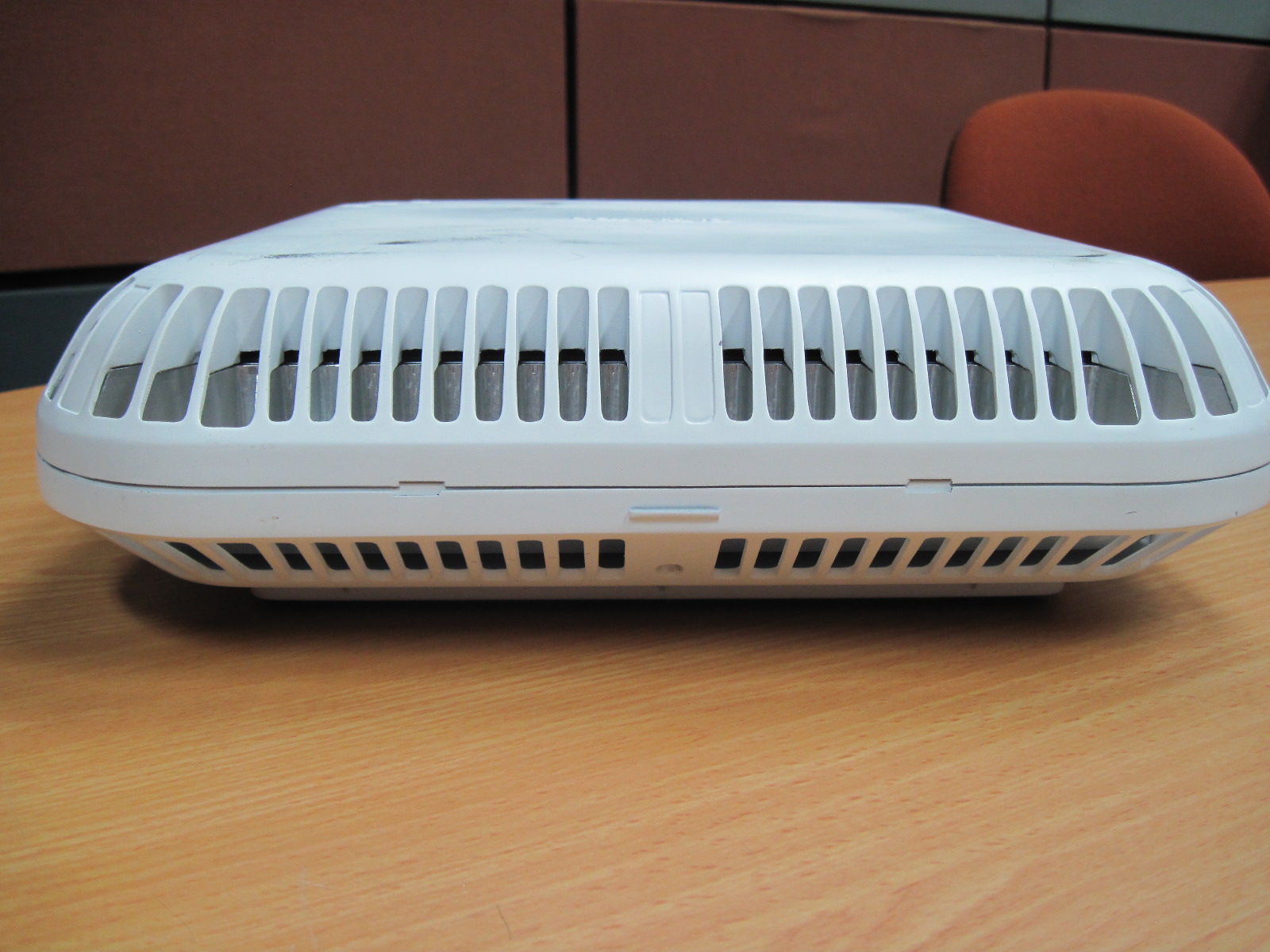

8391 Old Courthouse Road, Suite 300 Vienna, VA 22182 www.corning.com/mobileaccess ONE™ Distributed Antenna System Remote Antenna Unit Operational Description General description The RAU distributes up to four RF services via internal antennas (external antennas are optional). The RF services are received over optic cables and converted for distribution over internal (or optionally external) antennas. Figure 1. RAU Module The RAU may include an additional module RXU to support two additional frequency bands (Figure 2). RXU is connected to main RAU module through RF splitter. As result, two additional frequency bands - LTE and AWS – are filtered and transmitted through additional antenna port. 8391 Old Courthouse Road, Suite 300 Vienna, VA 22182 www.corning.com/mobileaccess Figure 2. RXU Module The signal flow in UL direction is as vice versa: the RF signal from mobile is received by antenna, filtered / amplified and combined back to the RAU broadband section. Interface Description MGMT RJ45 local management connection PWR DC power inputs Main - connect to DC (from composite cable) Secondary – in case of PoE clients. Used when GEM modules are installed (in addition to Main) F/O LC/APC SM connectors for UL and DL optic connections Listening Mode N/A RF Filter (e.g. LTE, CELL) QMA RF ports for external cavity filter use (In/Out). For CELL and LTE filters. External Antenna Optional connection to broadband external antennas. Requires GUI configuration (internal antenna is enabled by default). RAU downlink path Optical broadband signal is injected to photodiode and split into two combined signals – Low Band and High Band - by diplexer. After that each one is further split into two 8391 Old Courthouse Road, Suite 300 Vienna, VA 22182 www.corning.com/mobileaccess services: Low band signal is split to LTE700 and CELL850, whilst the High band signal is split to AWS2100 and PCS1900. In case RXU is installed, two additional signals are transmitted over extra antenna port. Each signal passes through combiner where all 4 signals (or 6 in case of RXU installed) are combined and go to the antenna port of the RAU RAU uplink path RF signals from antenna port pass through the multiplexer. Multiplexer splits the signals onto 2 groups: Low band and High band. Then all the low band signals (2 LTE - band 12 and band 13 – and CELL) combined together. In case of RXU installed, additional two bands are received from extra antenna and combined into RAU broadband section. All the high band signals – AWS and PCS – are combined together as well. In case of RXU installed, additional two bands are received from extra antenna and combined into RAU broadband section. Then grouped signals pass through diplexer and go to the laser diode.

8391 Old Courthouse Road, Suite 300 Vienna, VA 22182 www.corning.com/mobileaccess Date: 2013–05–06 Declaration The maximum output power level (dBm) and the tolerance (±dB) that the ONE™ RAU device is tuned to during the manufacturing process are as follows: Frequency Band (MHz) Max. Power Level (dBm) Deviation (dB) Emission Designator 869-894 15 2 all 1930-1995 17 2 all 2110-2155 17 2 all 728-758 15 2 all Thank you, Steve Blum Product Manager MobileAccess Networks Inc. Office 541 758-2880 Mobile 541 990-3470

2 1 cm mW 2 498.01500/ cm mW f 2 588.01500/ cm mW f 2 1 cm mW R.F Exposure/Safety Calculation for RAU CELL-PCS-LTE-AWS The E.U.T. is rack or wall mounted. The typical distance between the E.U.T. and the general population is >50cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements (a) FCC limit at 881.5 MHz is: FCC limit at 1960 MHz is: FCC limit at 747 MHz is: FCC limit at 2135 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is P t - Transmitted Peak Power (worst case) G T - Antenna Gain ,dBi R- Distance from Transmitter 2 4R GP S tt   (c) Peak power density at worst case continuous transmission: Band Modulation Pt (mW) Antenna type G T (dBi) G T numeric R (cm) S AV (mW/cm 2 ) Spec (mW/cm 2 ) CELL CDMA 47.32 External 12.5 17.8 50 0.026811 0.587 LTE 64QAM 46.67 External 12.5 17.8 50 0.026443 0.587 GSM 36.22 External 12.5 17.8 50 0.020522 0.587 W-CDMA 59.98 External 12.5 17.8 50 0.033984 0.587 PCS LTE 64QAM 105.20 External 12.5 17.8 50 0.059605 1.0 CDMA 104.23 External 12.5 17.8 50 0.059056 1.0 GSM 142.89 External 12.5 17.8 50 0.08096 1.0 W-CDMA 119.40 External 12.5 17.8 50 0.067651 1.0 LTE LTE 64QAM 74.4* External 12.5 17.8 50 0.042154 0.489 LTE 16QAM 74.1* External 12.5 17.8 50 0.041984 0.489 LTE QPSK 76.9* External 12.5 17.8 50 0.043571 0.489 AWS CDMA 203.1* External 12.5 17.8 50 0.115075 1.0 LTE 64QAM 338* External 12.5 17.8 50 0.191508 1.0 GSM 214* External 12.5 17.8 50 0.121251 1.0 W-CDMA 262* External 12.5 17.8 50 0.148447 1.0 Note: The * indicates the Pt (dBm) and Pt (mW) level is the sum of 2 MIMO port readings.

Test Report E126640.01 Corning MobileAccess Page 1 of 94 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 14 August 2013 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Corning MobileAccess Equipment under test: ONE - Optical Network Evolution DAS Remote Antenna Unit RAU-R- G-C85P19L70A17-ME Consisting of RXU P/N:RXU-L70A17-M, GEM and RAU P/N: RAU-C85P19L70A17 CELL-PCS-LTE-AWS (CELL-PCS Section) Written by: _____________________________ R. Pinchuck, Documentation Approved by: _____________________________ A. Sharabi, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E126640.01 Corning MobileAccess Page 2 of 94 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Corning MobileAccess ONE - Optical Network Evolution DAS FCC ID: OJF1C85P19L70A17 This report concerns: Original Grant: X Class II change: Class I change: Equipment type: PCS Licensed Transmitter Limits used: 47CFR Parts 2, 22, 24, 27 Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-C: 2004 Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Steve Blum ITL (Product Testing) Ltd. Corning MobileAccess 1 Batsheva St. 8391 Old Courthouse Rd., Suite #300 Lod 71100 Vienna, VA. 22182 Israel U.S.A. e-mail [email protected] Tel: +1-541-758-2880 Fax: +1-703-848-0260 e-mail: [email protected] Test Report E126640.00 Corning MobileAccess Page 3 of 94 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 7 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 EUT Exercise Software ..................................................................................... 8 2.3 Special Accessories .......................................................................................... 8 2.4 Equipment Modifications ................................................................................... 8 2.5 Configuration of Tested System ........................................................................ 9 3. TEST SET-UP PHOTOS ---------------------------------------------------------------------------------- 10 4. PEAK OUTPUT POWER CELL ------------------------------------------------------------------------ 13 4.1 Test Specification ............................................................................................ 13 4.2 Test procedure ................................................................................................ 13 4.3 Test Results..................................................................................................... 13 4.4 Test Equipment Used ...................................................................................... 20 5. OCCUPIED BANDWIDTH CELL ----------------------------------------------------------------------- 21 5.1 Test Specification ............................................................................................ 21 5.2 Test Procedure ................................................................................................ 21 5.3 Test Results..................................................................................................... 22 5.4 Test Equipment Used ...................................................................................... 35 6. OUT OF BAND EMISSIONS AT ANTENNA TERMINALS CELL ------------------------------ 36 6.1 Test Specification ............................................................................................ 36 6.2 Test procedure ................................................................................................ 36 6.3 Test Results..................................................................................................... 36 6.4 Test Equipment Used. ..................................................................................... 41 7. BAND EDGE SPECTRUM CELL----------------------------------------------------------------------- 42 7.1 Test Specification ............................................................................................ 42 7.2 Test procedure ................................................................................................ 42 7.3 Test Results..................................................................................................... 43 7.4 Test Equipment Used ...................................................................................... 48 8. OUT OF BAND EMISSIONS (RADIATED) CELL -------------------------------------------------- 49 8.1 Test Specification ............................................................................................ 49 8.2 Test Procedure ................................................................................................ 49 8.3 Test Results....................................................................................…

Text truncated - open the document above for the full version.

Test Report E126441.02 Corning MobileAccess Page 1 of 116 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 14 August 2013 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Corning MobileAccess Equipment under test: ONE - Optical Network Evolution DAS Remote Antenna Unit RAU-R-G-C85P19L70A17-ME Consisting of RAU P/N: RXU-L70A17-M, GEM and RAU P/N: RAU-C85P19L70A17 CELL-PCS-LTE-AWS (LTE/AWS Section) Written by: _____________________________ R. Pinchuck, Documentation Approved by: _____________________________ A. Sharabi, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E126441.02 Corning MobileAccess Page 2 of 116 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Corning MobileAccess ONE - Optical Network Evolution DAS Remote Antenna Unit RAU-R-G-C85P19L70A17-ME Consisting of RAU P/N: RXU-L70A17-M, GEM and RAU P/N: RAU-C85P19L70A17 (LTE-AWS Section) FCC ID: OJF1C85P19L70A17 This report concerns: Original Grant: X Class II change: Class I change: Equipment type: PCS Licensed Transmitter Limits used: 47CFR Parts 2; 27 Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-C: 2004 Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Steve Blum ITL (Product Testing) Ltd. Corning MobileAccess Kfar Bin Nun 8391 Old Courthouse Rd., Suite #300 D.N. Shimshon 99780 Vienna, VA. 22182 Israel U.S.A. e-mail [email protected] Tel: +1-541-758-2880 Fax: +1-703-848-0260 e-mail: [email protected] Test Report E126441.02 Corning MobileAccess Page 3 of 116 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 7 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 EUT Exercise Software ..................................................................................... 8 2.3 Special Accessories .......................................................................................... 8 2.4 Equipment Modifications ................................................................................... 8 2.5 Configuration of Tested System ........................................................................ 9 3. TEST SET-UP PHOTOS ----------------------------------------------------------------------------------10 4. RF POWER OUTPUT LTE -------------------------------------------------------------------------------13 4.1 Test Specification ............................................................................................ 13 4.2 Test procedure ................................................................................................ 13 4.3 Test Results..................................................................................................... 13 4.4 Test Equipment Used. ..................................................................................... 23 5. OCCUPIED BANDWIDTH LTE -------------------------------------------------------------------------24 5.1 Test Specification ............................................................................................ 24 5.2 Test Procedure ................................................................................................ 24 5.3 Test Results..................................................................................................... 25 5.4 Test Equipment Used. ..................................................................................... 35 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS LTE -------------------------------------36 6.1 Test Specification ............................................................................................ 36 6.2 Test procedure ................................................................................................ 36 6.3 Test Results..................................................................................................... 36 6.4 Test Equipment Used ...................................................................................... 43 7. BAND EDGE SPECTRUM LTE-------------------------------------------------------------------------44 7.1 Test Specification ............................................................................................ 44 7.2 Test procedure ................................................................................................ 44 7.3 Results ............................................................................................................. 44 7.4 Test Equipment Used. ..................................................................................... 51 8. SPURIOUS RADIATED EMISSION LTE -------------------------------------------------------------52 8.1 Test Specification ............................................................................................ 52 8.2 Test Procedure ......................................................…

Text truncated - open the document above for the full version.
