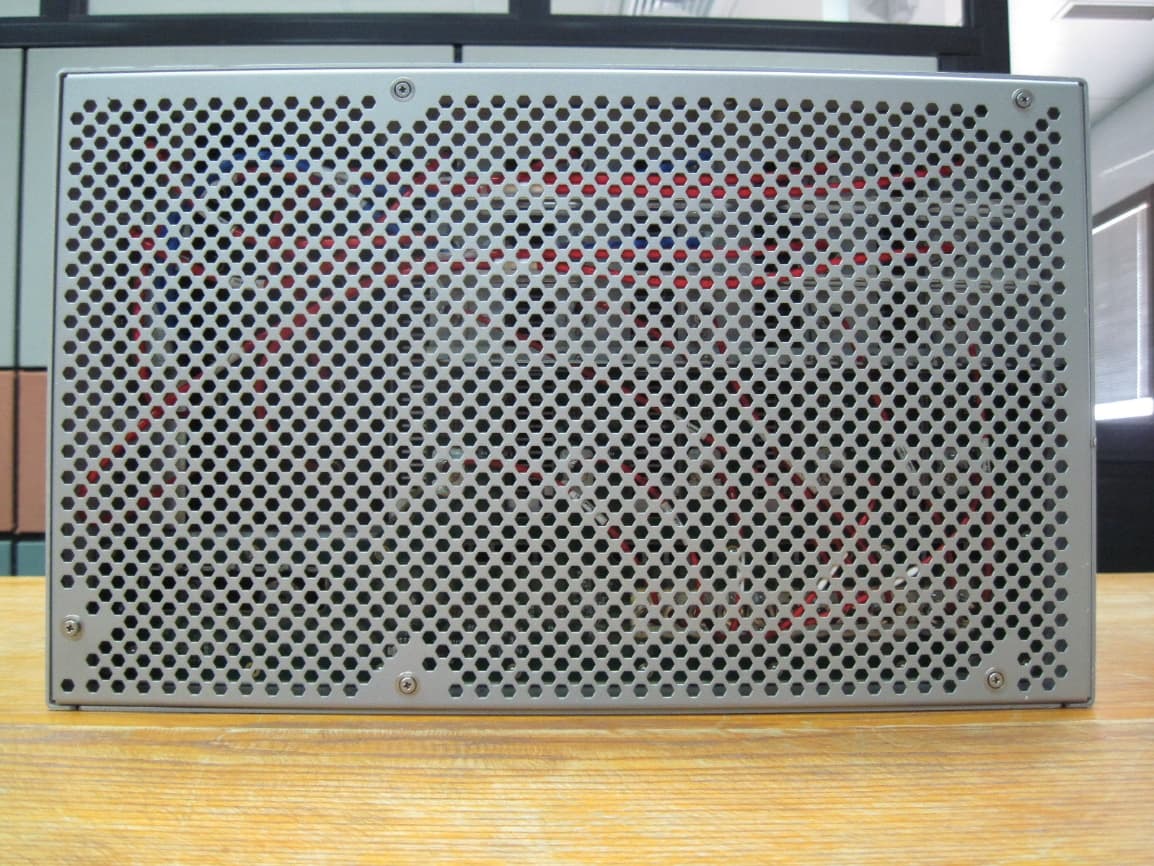

Corning Mid-Power Remote Unit (MRU) User Manual Preface Material CMA- 438- AEN Page 2 DRAFT Preface Material About This Manual This user guide provides all the information necessary to understand the architecture and general installation procedures and requirements of Corning ONE™ wireless platform mid-power remote unit (MRU). Note: The commissioning procedure, monitoring and management capabilities and configuration options of the ONE wireless platform elements are described in a dedicated user manual (Corning ONE wireless platform HCM and Web Management GUI v1.6 User Manual). Hardware Corning warrants to the original purchaser (“Customer”) that for the duration of the warranty period, one (1) year, commencing on the date of shipment of the Hardware, unless otherwise agreed in writing by Corning (the “Hardware Warranty Period”), the Hardware furnished by Corning shall be free in all material respects from defects in material and workmanship, and shall conform to the applicable portions of the Specifications, as defined below (the “Hardware Warranty”). If notified by Customer of any such defects in material or workmanship or nonconformity with applicable portions of the Specifications within the Hardware Warranty Period, Corning shall promptly, at its own election and expense, repair or replace any such Hardware proven to be defective under the terms of this Hardware Warranty. Such repair or replacement shall be Customer’s sole remedy and Corning sole obligation in the event this Hardware Warranty is invoked. If any components comprising a part of the Hardware are replaced or repaired during the Hardware Warranty Period, the Hardware Warranty Period for such repaired or replaced components shall extend to the longer of (i) the balance of the Hardware Warranty Period or (ii) three (3) months from the date of repair or replacement. For purposes of this Warranty, “Specifications” shall mean the specifications and performance standards of the Products as set forth in documents published by Corning and delivered to Customer which contain technical specifications or performance standards for the Products. If Customer invokes this Hardware Warranty, it shall notify Corning promptly of the claimed defect. Customer will allow Corning to inspect the Hardware at Customer’s location, or to return the Hardware to Corning closest repair facility. For Hardware returned to Corning repair facility, Customer shall be responsible for payment of all transportation and freight costs (including insurance) to Corning’ repair facility, and Corning shall be responsible for all transportation and freight costs (including insurance) incurred in connection with the shipment of such Hardware to other repair facilities of Corning and/or its return to Customer. Notwithstanding the foregoing, in no event will Corning be liable for damage to Products resulting from improper handling during or after shipment, misuse, neglect, improper installation, operation or repair (other than by authorized Corning personnel), alteration, accident, or for any other cause not attributable to defects in materials or workmanship on the part of Corning. Corning shall not reimburse or make any allowance to Customer for any labor charges incurred by Customer for replacement or repair of any goods unless such charges are authorized in advance in writing by Corning. Preface Material CMA-438-AEN Page 3 DRAFT Software Warranty Corning warrants to the original purchaser (“Customer”) that for the duration of the warranty period, one (1) year, commencing on the date of shipment of the Software, unless otherwise agreed in writing by Corning (the “Software Warranty Period”), the Software shall conform with, and perform the functions set forth in the Specifications, and shall be free from defects in material or workmanship (the “Software Warranty”). In the event the Software is proven to be defective under the terms of this Software Warranty, Corning shall correct such defects or failure and ensure that the Software conforms with, and performs the functions set forth in, the Specifications. Customer will allow Corning to inspect the Software at Customer’s location or to return it to Corning’s’ closest repair facility. Notwithstanding the foregoing, Corning shall have no obligation under the Software Warranty if the Software is modified or used with hardware or software not supplied or approved by Corning or if the Software is subject to abuse, improper installation or application, accident, electrical or environmental over-stress, negligence in use, storage, transportation or handling. Third-party software distributed with the Software may carry certain warranties which, to the maximum extent allowed by law, Corning hereby assigns, transfers and otherwise conveys to Customer, provided, however, that Corning itself provides no warranty of any kind, express, implied, statutory or otherwise, for any third-party software provided hereunder. Corning does not warrant any hardware, software or services not provided by Corning. THIS WARRANTY IS THE ONLY WARRANTY MADE BY CORNING AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. CORNING SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE GOODS, PARTS AND SERVICE. CORNING SALES AGENTS OR REPRESENTATIVES ARE NOT AUTHORIZED TO MAKE COMMITMENTS ON WARRANTY RETURNS. Returns In the event that it is necessary to return any product against above warranty, the following procedure shall be followed: 1. Return authorization is to be received from Corning prior to returning any unit. Advise Corning of the model, Serial number, and discrepancy. The unit may then be forwarded to Corning, transportation prepa…

Text truncated - open the document above for the full version.

FCC Attestation Letter Date: 12 July 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation letter per KDB 935210 D02 Clause 4 paragraph d for FCC ID: OJF1MRU85 Warning label message will be also shown in online and point-of-sale marketing materials and on the outside packing of device. Company: Corning Optical Communication Wireless Authorized Signature: Printed Name: Habib Riazi Date: July 12, 2015

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OJF1MRU85 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: a. CONF APPENDIX MRU CELL ESMR Schem.pdf b. CONF APPENDIX MRU CELL ESMR PartLst.pdf c. CONF APPENDIX MRU CELL ESMR BlkDia.pdf d. CONF APPENDIX MRU CELL ESMR OpDes.pdf e. CONF APPENDIX MRU CELL ESMR TunPro.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Thank you Company: Corning Optical Communications Wireless Authorized Signature: Printed Name: Habib Riazi Date: September 7, 2015

To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign Form 731 on our behalf regarding the FCC Certification Process for the following application: FCC ID: OJF1MRU85 Company: Corning Optical Communications Wireless Authorized Signature: Printed Name: Habib Riazi Date: September 7 th 2015

To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC Certification Process for the following application: FCC ID: OJF1MRU85 Company: Corning Optical Communications Wireless Authorized Signature: Printed Name: Habib Riazi Date: September 7 th 2015

© 2015 Corning Incorporated. All Rights Reserved. FCCID and Warning Labels

2)This device must accept any interference received , This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1)This device may not cause harmful interference ,and operation. including interference that may cause undesired FCC ID: OJF1MRU85 TITLE: Drawn By: Yaakov S. Yaakov S. 22/07/13 Yossi G. Name: Signature: Date: Check: Approve: FCC label statement . PRODUCT P/N : Drawing No : MF0178201 276B092901 Rev : A00 Paper Size : A4 Sh : 1 of 1 This document contain confidential proprietary information and is the property of MobileAccess Networks Ltd. No use, Disclosure or reproduction is granted to any third parties without explicit written permission of MobileAccess Networks Ltd. REVISIONS REV. DESCRIPTION DATE APPROVED ECO No: NOTES : 1. ALL TEXT PRINTED SIZE 6 AND FONT STYLE TIMES NEW ROMAN. 2. POSITION COMPANY LOGO ACCORDING TO DIMENSION SPECIFIED. WARNING. This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Yossi G. Ofer Sh. Golan Building Hagolan street & Hanegev street Airport City 70151 . CORNING MobileAccess Ltd. Ofer Sh. 22/07/13 22/07/13

2 579.01500/ cm mW f = 2 594.01500/ cm mW f= R.F Exposure/Safety Calculation for MRU – CELL/ESMR The E.U.T. is rack or wall mounted. The typical distance between the E.U.T. and the general population is >100cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1310 Requirements (a) FCC limit at 891.5 MHz is: (b) FCC limit at 867.8 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (c)The power density produced by the E.U.T. is P t - Transmitted Peak Power (worst case) G T - Antenna Gain, 12.5dBi= 17.8 numeric R- Distance from Transmitter 100 cm ( d ) Peak power density at worst case continuous transmission: Band Modulation Pt (dBm) Pt (mW) Antenna type G T (dBi) G T numeric R (cm) S AV (mW/cm 2 ) Spec (mW/cm 2 ) CELL LTE 64QAM 32.6 1820 External 12.5 17.8 100 0.257799 0.594 GSM 32.0 1585 External 12.5 17.8 100 0.224512 0.594 W-CDMA 33.0 1995 External 12.5 17.8 100 0.282588 0.594 ESMR LTE 64QAM 31.7 1479 External 12.5 17.8 100 0.209497 0.579 GSM 32.3 1698 External 12.5 17.8 100 0.240518 0.579 W-CDMA 32.2 1660 External 12.5 17.8 100 0.235136 0.579 (e) This is below the FCC limit. 2 4R GP S tt π =

Test Report E149830.01 Corning Optical Communication Wireless Page 1 of 78 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 07 September 2015 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Corning Optical Communication Wireless Equipment under test: ONE- Optical Network Evolution Wireless Platform MRU (Mid Power Remote Unit) WCS- CELL/ESMR -PCS-LTE-AWS (CELL/ESMR Section) Tested by: _____________________________ M. Zohar Approved by: _____________________________ D. Shidlowsky This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E149830.01 Corning Optical Communication Wireless Page 2 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Corning Optical Communication Wireless ONE- Optical Network Evolution Wireless Platform FCC ID: OJF1MRU85 This report concerns: Original Grant: X Class II change: Class I change: Equipment type: PCS Licensed Transmitter Limits used: 47CFR Parts 2, 22, 20, 90 Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-C: 2004 Application for Certification Applicant for this device: prepared by: (different from "prepared by") R. Pinchuck Habib Riazi ITL (Product Testing) Ltd. Corning Optical Communication Wireless 1 Bat Sheva St. 13221 Woodland Park Rd., Suite #400 Lod 7120101 Herndon, VA. 20171 Israel U.S.A. e-mail [email protected] Tel: +1-541-758-2880 Fax: +1-703-848-0260 e-mail: [email protected] Test Report E149830.01 Corning Optical Communication Wireless Page 3 of 78 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION --------------------------------------------------------------------------------- 5 1.1 Administrative Information ............................................................................... 5 1.2 List of Accreditations ....................................................................................... 6 1.3 Product Description ......................................................................................... 7 1.4 Test Methodology ............................................................................................ 7 1.5 Test Facility ..................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................ 7 2. SYSTEM TEST CONFIGURATION ---------------------------------------------------------------------- 8 2.1 Justification ...................................................................................................... 8 2.2 EUT Exercise Software ................................................................................... 8 2.3 Special Accessories ........................................................................................ 8 2.4 Equipment Modifications ................................................................................. 8 2.5 Configuration of Tested System ...................................................................... 9 3. TEST SET-UP PHOTOS ---------------------------------------------------------------------------------- 10 4. PEAK OUTPUT POWER CELL ------------------------------------------------------------------------- 13 4.1 Test Specification .......................................................................................... 13 4.2 Test Procedure .............................................................................................. 13 4.3 Test Results .................................................................................................. 13 4.4 Test Equipment Used; Peak Output Power CELL ......................................... 17 5. OCCUPIED BANDWIDTH CELL ----------------------------------------------------------------------- 18 5.1 Test Specification .......................................................................................... 18 5.2 Test Procedure .............................................................................................. 18 5.3 Test Results .................................................................................................. 19 5.4 Test Equipment Used; Occupied Bandwidth CELL ........................................ 26 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS CELL ---------------------------------- 27 6.1 Test Specification .......................................................................................... 27 6.2 Test procedure .............................................................................................. 27 6.3 Test Results .................................................................................................. 27 6.4 Test Equipment Used; Out of Band Emission at Antenna Terminals CELL ... 32 7. BAND EDGE SPECTRUM CELL ----------------------------------------------------------------------- 33 7.1 Test Specification .......................................................................................... 33 7.2 Test Procedure .............................................................................................. 33 7.3 Test Results .................................................................................................. 33 7.4 Test Equipment Used; Band Edge Spectrum CELL ...................................... 37 8. SPURIOUS EMISSIONS (RADIATED) CELL ------------------------------------------------------- 38 8.1 Test Specification .......................................................................................... 38 8.2 Test Procedure .............................................................................................. 38 8.3 Test Results .................................................................................................. 39 8.4 Test Instrumentation Used, Radiated Measurements CELL .......................... 40 9. PEAK OUTPUT POWER (ESMR) ----------------------------------------------------…

Text truncated - open the document above for the full version.

Test Report E149830.01 Corning Optical Communication Wireless Page 41 of 78 FCC ACC M Ver 1.1 05Mayl 2000 9. Peak Output Power (ESMR) 9.1 Test Specification FCC Rule Part 20.21 9.2 Test Procedure The E.U.T. antenna terminal was connected to the Spectrum Analyzer through an external attenuator and an appropriate coaxial cable (loss=31.3 dB). The E.U.T. RF output was modulated. Special attention was taken to prevent Spectrum Analyzer RF input overload. The output power level was measured at the low and high channels of each modulation. 9.3 Test Results Modulation Operation Frequency Reading (MHz) (dBm) LTE 64QAM 864.5 31.2 866.5 31.7 GSM 863.2 31.8 867.8 32.3 W-CDMA 864.5 32.2 866.5 31.9 Figure 58 Peak Output Power ESMR See additional information in Figure 59 to Figure 64. JUDGEMENT: Passed Test Report E149830.01 Corning Optical Communication Wireless Page 42 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Peak Output Power (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated Figure 59. — 864.5 MHz – LTE 64QAM Figure 60. — 866.5 MHz – LTE 64QAM Test Report E149830.01 Corning Optical Communication Wireless Page 43 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Peak Output Power (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated Figure 61. — 863.2 MHz – GSM Figure 62. — 867.8 MHz – GSM Test Report E149830.01 Corning Optical Communication Wireless Page 44 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Peak Output Power (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated Figure 63.—864.5 MHz – WCDMA Figure 64. — 866.5 MHz – WCDMA Test Report E149830.01 Corning Optical Communication Wireless Page 45 of 78 FCC ACC M Ver 1.1 05Mayl 2000 9.4 Test Equipment Used; Peak Power (ESMR) Instrument Manufacturer Model Serial Number Calibration Last Calibration Period Spectrum Analyzer HP 8592L 3826A01204 March 4, 2015 1 year Spectrum Analyzer R&S FSL6 100194 January 1, 2015 1 year Signal Generator Agilent N5172B MY48180244 July 16, 2014 1 year 30 dB Attenuator JFW 50FHC-030-50 43608 46-140-1 March 8, 2015 1 month Figure 65 Test Equipment Used Peak Output Power (ESMR) Test Report E149830.01 Corning Optical Communication Wireless Page 46 of 78 FCC ACC M Ver 1.1 05Mayl 2000 10. Occupied Bandwidth (ESMR) 10.1 Test Specification FCC Parts 2.1049; 90.2.09 10.2 Test Procedure The E.U.T. was set to the applicable test frequency in the 862-869MHz band. The E.U.T. antenna terminal was connected to the spectrum analyzer through an external attenuator (at the output test) and an appropriate coaxial cable (loss=31.3 dB). The spectrum analyzer was set to proper resolution B.W. OBW function (99%) was employed for these evaluation Occupied bandwidth measured was repeated in the input terminal of the E.U.T. 10.3 Test Results Modulation Operating Frequency Reading (MHz) (MHz) LTE Input 864.5 4.53 LTE Output 864.5 4.52 LTE Input 866.5 4.53 LTE Output 866.5 4.52 W-CDMA Input 864.5 4.19 W-CDMA Output 864.5 4.17 W-CDMA Input 866.5 4.17 W-CDMA Output 866.5 4.17 GSM Input 863.2 0.24 GSM Output 863.2 0.24 GSM Input 867.8 0.24 GSM Output 867.8 0.24 Figure 66 Occupied Bandwidth Test Results Table See additional information in Figure 67 to Figure 78. Test Report E149830.01 Corning Optical Communication Wireless Page 47 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Occupied Bandwidth (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated Figure 67. — 864.5MHz LTE 64QAM Input Figure 68. — 864.5MHz LTE 64QAM Output Test Report E149830.01 Corning Optical Communication Wireless Page 48 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Occupied Bandwidth (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated igure 69. — 866.5MHz LTE 64QAM Input Figure 70. — 866.5MHz LTE 64QAM Output Test Report E149830.01 Corning Optical Communication Wireless Page 49 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Occupied Bandwidth (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated Figure 71. — 864.5MHz WCDMA Input Figure 72. — 864.5MHz WCDMA Output Test Report E149830.01 Corning Optical Communication Wireless Page 50 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Occupied Bandwidth (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated Figure 73. — 866.5MHz WCDMA Input Figure 74. — 866.5MHz WCDMA Output Test Report E149830.01 Corning Optical Communication Wireless Page 51 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Occupied Bandwidth (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated Figure 75. — 863.2MHz GSM Input Figure 76. — 863.2MHz GSM Output Test Report E149830.01 Corning Optical Communication Wireless Page 52 of 78 FCC ACC M Ver 1.1 05Mayl 2000 Occupied Bandwidth (ESMR) E.U.T Description ONE- Optical Network Evolution Wireless Platform Type MRU (Mid Power Remote Unit) Serial Number: Not Designated Figure 77. — 867.8MHz GSM Input Figure 78. — 867.8MHz GSM Output Test Report E149830.01 Corning Optical Communication Wireless Page 53 of 78 FCC ACC M Ver 1.1 05Mayl 2000 10.4 Test Equipment Used; Occupied Bandwidth (ESMR) Instrument Manufacturer Model Serial Number Calibration Last Calibration Period Spectrum Analyzer HP 8592L 3826A01204 March 4, 2015 1 year Spectrum Analyzer R&S FSL6 100194 January 1, 2015 1 year Signal Generator Agilent N5172B MY48180244 July 16, 2014 1 year 30 dB Attenuator JFW 50FHC-030-50 43608 46-140-1 March 8, 2015 1 month Figure 79 Test Equipment Used Occupied Bandwidth (ESMR) Test Report E149830.01 Corning Optical Communication Wireless Page 54 of 78 FCC…
