R.F Exposure/Safety Calculation for RXU67 The E.U.T. is ceiling mounted. The typical distance between the E.U.T. and the general population is >50cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1310 Requirements 1. FCC limit 600 MHz Band is: f/1500 = 0.413 푚푚푚푚 푐푐푚푚 2 2. FCC limit for 700 MHz Band is: f/1500 = 0.487 푚푚푚푚 푐푐푚푚 2 3. FCC limit at 700FN MHz is: f/1500 = 0.507 푚푚푚푚 푐푐푚푚 2 Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b)The power density produced by the E.U.T. is P t - Transmitted Peak Power (worst case) (antenna gain already included) R- Distance from Transmitter 50 cm 2 4R GP S tt π = (c) Peak power density at worst case continuous transmission: Band Modulation P t (dBm) P t (mW) R (cm) S AV (mW/cm 2 ) Limit (mW/cm 2 ) 600 MHz 16QAM 21.18 131.22 50 0.00418 0.413 64QAM 21.89 154.53 50 0.00492 256QAM 21.94 156.31 50 0.00498 QPSK 21.86 153.46 50 0.00488 700 MHz 16QAM 21.27 133.97 50 0.00426 0.487 64QAM 21.27 133.97 50 0.00426 256QAM 21.95 156.68 50 0.00499 QPSK 21.82 152.05 50 0.00484 700FN MHz 16QAM 21.90 154.88 50 0.00493 0.507 64QAM 21.69 147.57 50 0.00470 256QAM 21.71 148.25 50 0.00472 QPSK 21.75 149.62 50 0.00476 (d) This is below the FCC limit.

Test Report E202872.00 Corning Optical Communication Wireless Page 1 of 102 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 11 February 2020 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report For Corning Optical Communication Wireless Equipment under test: Remote eXpansion Unit RxU67 758-769MHz First Responder Network Services Tested by: _____________________________ I. Kaganovich Approved by: _____________________________ D. Shidlowsky This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E202872.00 Corning Optical Communication Wireless Page 2 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Corning Optical Communication Wireless Remote eXpansion Unit RxU67 (758-769; 788-799 MHz First Responder NetworkNet) FCC ID: OJF1RXU67 This report concerns: Original Grant: X Class II change: Class I change: Equipment type: Part 20 Industrial Booster (CMRS) Limits used: 47CFR Parts 2; 90 Measurement procedure used is KDB 935210 D05 v01r03 April 2019 and ANSI IEEE C63.26-2015 Substitution Method used as in ANSI TIA-603-E-2016 Application for Certification Applicant for this device: prepared by: (different from "prepared by") D. Shidlowsky Isaac Nissan ITL (Product Testing) Ltd. Corning Optical Communication Wireless 1 Bat Sheva St. 8253 1 st Street Lod 7120101 Vienna, VA 22812 Israel U.S.A. e-mail [email protected] Tel: +1-703 855-1773 e-mail: [email protected] Test Report E202872.00 Corning Optical Communication Wireless Page 3 of 102 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1 GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 7 2 SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 EUT Exercise Software ..................................................................................... 8 2.3 Special Accessories .......................................................................................... 8 2.4 Equipment Modifications ................................................................................... 8 2.5 Configuration of Tested System ........................................................................ 9 3 TEST SET-UP PHOTOS ----------------------------------------------------------------------------------11 4 RF POWER OUTPUT -------------------------------------------------------------------------------------14 4.1 Test Specification ............................................................................................ 14 4.2 Test Procedure ................................................................................................ 14 4.3 Test Limit ......................................................................................................... 14 4.4 Test Results..................................................................................................... 14 4.5 Test Equipment Used; RF Power Output ........................................................ 27 5 PEAK TO AVERAGE POWER RATIO ---------------------------------------------------------------28 5.1 Test Procedure ................................................................................................ 28 5.2 Test Limit ......................................................................................................... 28 5.3 Test Results..................................................................................................... 28 5.4 Test Equipment Used; 0.1% PAPR ................................................................. 35 6 OCCUPIED BANDWIDTH -------------------------------------------------------------------------------36 6.1 Test Specification ............................................................................................ 36 6.2 Test Procedure ................................................................................................ 36 6.3 Test Limit ......................................................................................................... 36 6.4 Test Results..................................................................................................... 36 6.5 Test Equipment Used; Occupied Bandwidth ................................................... 61 7 SPURIOUS EMISSIONS AT ANTENNA TERMINALS -------------------------------------------62 7.1 Test Specification ............................................................................................ 62 7.2 Test Procedure ................................................................................................ 62 7.3 Test Limit ......................................................................................................... 62 7.4 Test Results..................................................................................................... 62 7.5 Test Equipment Used; Spurious Emissions at Antenna Terminals................. 87 8 SPURIOUS RADIATED EMISSION -------------------------------------------------------------------88 8.1 Test Specification ............................................................…

Text truncated - open the document above for the full version.

Test Report E202871.00 Corning Optical Communication Wireless Page 36 of 102 FCC ACC M Ver 1.1 05Mayl 2000 6 Occupied Bandwidth 6.1 Test Specification FCC Part 2, Section 1049 6.2 Test Procedure (Temperature (22°C)/ Humidity (35%RH)) The E.U.T. antenna terminal was connected to the spectrum analyzer through an external attenuator and an appropriate coaxial cable (loss=20.8 dB). The spectrum analyzer was set to proper resolution B.W. OBW function (99%) was employed for this evaluation. Occupied bandwidth measured was repeated for each modulation. 6.3 Test Limit N/A 6.4 Test Results JUDGEMENT: Passed See additional information in Table 11 to Table 18 and Figure 97 to Figure 216. Test Report E202871.00 Corning Optical Communication Wireless Page 37 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Modulation Bandwidth Sub Carrier Operation Frequency Reading 16QAM (MHz) (kHz) (MHz) (MHz) 5 15 760.5 4.5389 30 760.5 4.0031 15 763.5 4.5363 30 763.5 4.0077 15 766.5 4.5397 30 766.5 4.0035 10 15 763.0 9.2957 30 763.0 8.5876 60 763.0 7.9803 15 763.5 9.2984 30 763.5 8.5905 60 763.5 7.9886 15 764.0 9.3011 30 764.0 8.5868 60 764.0 7.9900 Table 11 Occupied Bandwidth 16 QAM Input Modulation Bandwidth Sub Carrier Operation Frequency Reading 16QAM (MHz) (kHz) (MHz) (MHz) 5 15 760.5 4.5887 30 760.5 4.0317 15 763.5 4.5835 30 763.5 4.0327 15 766.5 4.5676 30 766.5 4.0231 10 15 763.0 9.4356 30 763.0 8.6985 60 763.0 8.0780 15 763.5 9.4034 30 763.5 8.6783 60 763.5 8.0783 15 764.0 9.3645 30 764.0 8.6790 60 764.0 8.0625 Table 12 Occupied Bandwidth 16QAM Output Test Report E202871.00 Corning Optical Communication Wireless Page 38 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Modulation Bandwidth Sub Carrier Operation Frequency Reading 64QAM (MHz) (kHz) (MHz) (MHz) 5 15 760.5 4.5028 30 760.5 3.9851 15 763.0 4.4983 30 763.0 3.9894 15 766.5 4.5015 30 766.5 3.9884 10 15 763.0 9.3148 30 763.0 8.6466 60 763.0 7.9267 15 763.5 9.3123 30 763.5 8.6433 60 763.5 7.9406 15 764.0 9.3154 30 764.0 8.6464 60 764.0 7.9354 Table 13 Occupied Bandwidth 64 QAM Input Modulation Bandwidth Sub Carrier Operation Frequency Reading 64QAM (MHz) (kHz) (MHz) (MHz) 5 15 760.5 4.5281 30 760.5 4.0105 15 763.0 4.5290 30 763.0 4.0051 15 766.5 4.5098 30 766.5 3.9972 10 15 763.0 9.3605 30 763.0 8.7044 60 763.0 8.0275 15 763.5 9.3415 30 763.5 8.6969 60 763.5 8.0193 15 764.0 9.3336 30 764.0 8.6801 60 764.0 8.0074 Table 14 Occupied Bandwidth 64QAM Output Test Report E202871.00 Corning Optical Communication Wireless Page 39 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Modulation Bandwidth Sub Carrier Operation Frequency Reading 256QAM (MHz) (kHz) (MHz) (MHz) 5 15 760.5 4.5167 30 760.5 3.9821 15 763.0 4.5195 30 763.0 3.9817 15 766.5 4.5193 30 766.5 3.9829 10 15 763.0 9.3332 30 763.0 8.6623 60 763.0 7.9449 15 763.5 9.3325 30 763.5 8.6682 60 763.5 7.9455 15 764.0 9.3330 30 764.0 8.6673 60 764.0 7.9445 Table 15 Occupied Bandwidth 256 QAM Input Modulation Bandwidth Sub Carrier Operation Frequency Reading 256QAM (MHz) (kHz) (MHz) (MHz) 5 15 760.5 4.6227 30 760.5 4.0186 15 763.0 4.6252 30 763.0 4.0190 15 766.5 4.5821 30 766.5 4.0031 10 15 763.0 9.8261 30 763.0 8.9100 60 763.0 8.1782 15 763.5 9.8699 30 763.5 8.8879 60 763.5 8.1664 15 764.0 9.8270 30 764.0 8.8484 60 764.0 8.1615 Table 16 Occupied Bandwidth 256QAM Output Test Report E202871.00 Corning Optical Communication Wireless Page 40 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Modulation Bandwidth Sub Carrier Operation Frequency Reading QPSK (MHz) (kHz) (MHz) (MHz) 5 15 760.5 4.4933 30 760.5 3.9812 15 763.0 4.4936 30 763.0 3.9814 15 766.5 4.4966 30 766.5 3.9809 10 15 763.0 9.2967 30 763.0 8.6460 60 763.0 7.9441 15 763.5 9.3022 30 763.5 8.6473 60 763.5 7.9462 15 764.0 9.2984 30 764.0 8.6469 60 764.0 7.9489 Table 17 Occupied Bandwidth QPSK Input Modulation Bandwidth Sub Carrier Operation Frequency Reading QPSK (MHz) (kHz) (MHz) (MHz) 5 15 760.5 4.6125 30 760.5 4.0780 15 763.5 4.5940 30 763.5 4.0729 15 766.5 4.5670 30 766.5 4.0574 10 15 763.0 9.4021 30 763.0 8.8668 60 763.0 8.1509 15 763.5 9.3900 30 763.5 8.8515 60 763.5 8.1370 15 764.0 9.3750 30 764.0 8.8309 60 764.0 8.1192 Table 18 Occupied Bandwidth QPSK Output Test Report E202871.00 Corning Optical Communication Wireless Page 41 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 97: 16QAM 5MHz B.W.; 760.5MHz, 15kHz Input Figure 98: 16QAM 5MHz B.W.; 763.5MHz, 15kHz Input Figure 99: 16QAM 5MHz B.W.; 766.5MHz, 15kHz Input Figure 100: 16QAM 5MHz B.W.; 760.5MHz, 30kHz Input Figure 101: 16QAM 5MHz B.W.; 763.5MHz, 30kHz Input Figure 102: 16QAM 5MHzC.S; 766.5MHz, 30kHz Input Test Report E202871.00 Corning Optical Communication Wireless Page 42 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 103: 16QAM 10MHz B.W.; 763.0MHz, 15kHz Input Figure 104: 16QAM 10MHz B.W.; 763.5MHz, 15kHz Input Figure 105: 16QAM 10MHz B.W.; 764.0MHz, 15kHz Input Figure 106: 16QAM 10MHz B.W.; 763.0MHz, 30kHz Input Figure 107: 16QAM 10MHz B.W.; 763.5MHz, 30kHz Input Figure 108: 16QAM 10MHz B.W.; 764.0MHz, 30kHz Input Test Report E202871.00 Corning Optical Communication Wireless Page 43 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 109: 16QAM 10MHz B.W.; 763.0MHz, 60kHz Input Figure 110: 16QAM 10MHz C.S; 763.5MHz, 60kHz Input Figure 111: 16QAM 10MHz B.W.; 764.0MHz, 60kHz Input Figure 112: 64QAM 5MHz B.W.; 760.5MHz, 15kHz Input Figure 113: 64QAM 5MHz B.W.; 763.0MHz, 15kHz Input Figure 114: 64QAM 5MHz B.W.; 766.5MHz, 15kHz Input Test Report E202871.00 Corning Optical Communication Wireless Page 44 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 115: 64QAM 5MHz B.W.; 760.5MHz, 30kHz Input Figure 116: 64QAM 5MHz B.W.; 763.0MHz, 30kHz Input Figure 117: 64QAM 5MHz B.W.; 766.5MHz, 30kHz Input Figure 118: 64QAM 10MHz B.W.; 763.0MHz, 15kHz Input Figure 119: 64QAM 10MHz B.W.; 763.5MHz, 15kHz Input Figure 120: 64QAM 10MHz B.W.; 764.0MHz, 15kHz Input Test Report E202871.00 Corning Optical Communication Wireless Page 45 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 121: 64QAM 10MHz B.W.; 763.0MHz, 30kHz Input Figure 122: 64QAM 10MHz B.W.; 763.5MHz, 30kHz Input Fi…

Text truncated - open the document above for the full version.

Test Report E202871.00 Corning Optical Communication Wireless Page 62 of 102 FCC ACC M Ver 1.1 05Mayl 2000 7 Spurious Emissions at Antenna Terminals 7.1 Test Specification FCC Part 90, Subpart R, Sections 91.534(e); 90.219(e)(3) 7.2 Test Procedure (Temperature (22°C)/ Humidity (36%RH)) The E.U.T. antenna terminal was connected to the spectrum analyzer through an external attenuator and an appropriate coaxial cable (max loss=20.8dB). 7.3 Test Limit For operations in the 758-768 MHz and the 788-798 MHz bands, the power of any emission outside the licensee's frequency band(s) of operation shall be attenuated below the transmitter power (P) within the licensed band(s) of operation, measured in watts, in accordance with the following: (1) On all frequencies between 769-775 MHz and 799-805 MHz, by a factor not less than 76 + 10 log (P) dB in a 6.25 kHz band segment, for base and fixed stations (2) On any frequency between 775-788 MHz, above 805 MHz, and below 758 MHz, by at least 43 + 10 log (P) dB. 7.4 Test Results JUDGEMENT: Passed See additional information in Figure 217 to Figure 328. Test Report E202871.00 Corning Optical Communication Wireless Page 63 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 217: 16QAM 5MHz B.W.; 9kHz-758MHz, 15kHz Figure 218: 16QAM 5MHz B.W.; 9kHz-758MHz, 15kHz Figure 219: 16QAM 5MHz B.W.; 758-805MHz, 15kHz Figure 220: 16QAM 5MHz B.W.; 758-805MHz, 15kHz Figure 221: 16QAM 5MHz B.W.; 805MHz-7.0GHz, 15kHz Figure 222: 16QAM 5MHz B.W.; 805MHz-7.0GHz, 15kHz Test Report E202871.00 Corning Optical Communication Wireless Page 64 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 223: Spurious Emissions at Antenna Terminal 16QAM, 760.5MHz, B.W. 5MHz, Sub Carrier 15kHz Figure 224: Spurious Emissions at Antenna Terminal 16QAM, 765.5MHz, B.W. 5MHz, Sub Carrier 15kHz I.T.L.-Israel Testing Laboratries FCC Part 90 Spurious emissions 760.5MHz 7.0G8.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Operator: A.Shelly Company name - CORNING Model name - SXU67 P/N - Subcarrier - 15kHz Modulation - 16QAM BW - 5MHz I.T.L.-Israel Testing Laboratries FCC Part 90 Spurious emissions 765.5MHz 7.0G8.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: A.Shelly Company name - CORNING Model name - SXU67 P/N - Subcarrier - 15kHz Modulation - 16QAM BW - 5MHz Test Report E202871.00 Corning Optical Communication Wireless Page 65 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 225: 16QAM 5MHz B.W.; 9kHz-758MHz, 30kHz Figure 226: 16QAM 5MHz B.W.; 9kHz-758MHz, 30kHz Figure 227: 16QAM 5MHz B.W.; 758-805MHz, 30kHz Figure 228: 16QAM 5MHz B.W.; 758-805MHz, 30kHz Figure 229: 16QAM 5MHz B.W.; 805MHz-7.0GHz, 30kHz Figure 230: 16QAM 5MHz B.W.; 805MHz-7.0GHz, 30kHz Test Report E202871.00 Corning Optical Communication Wireless Page 66 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 231: Spurious Emissions at Antenna Terminal 16QAM, 760.5MHz, B.W. 5MHz, Sub Carrier 30kHz Figure 232: Spurious Emissions at Antenna Terminal 16QAM, 765.5MHz, B.W. 5MHz, Sub Carrier 30kHz Figure 233: 16QAM 10MHz B.W.; 9kHz-758MHz, 15kHz Figure 234: 16QAM 10MHz B.W.; 758-805MHz, 15kHz I.T.L.-Israel Testing Laboratries FCC Part 90 Spurious emissions 760.5MHz 7.0G8.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Operator: A.Shelly Company name - CORNING Model name - SXU67 P/N - Subcarrier - 30kHz Modulation - 16QAM BW - 5MHz I.T.L.-Israel Testing Laboratries FCC Part 90 Spurious emissions 765.5MHz 7.0G8.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: A.Shelly Company name - CORNING Model name - SXU67 P/N - Subcarrier - 30kHz Modulation - 16QAM BW - 5MHz Test Report E202871.00 Corning Optical Communication Wireless Page 67 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 235: 16QAM 10MHz B.W.; 805MHz-7.0GHz, 15kHz Figure 236: 16QAM 10MHz B.W.; 9kHz-758MHz, 30kHz Figure 237: 16QAM 10MHz B.W.; 758-805MHz, 30kHz Figure 238: 16QAM 10MHz B.W.; 805MHz-7.0GHz, 30kHz Figure 239: 16QAM 10MHz B.W.; 9kHz-758MHz, 60kHz Figure 240: 16QAM 10MHz B.W.; 758-805MHz, 60kHz Test Report E202871.00 Corning Optical Communication Wireless Page 68 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 241: 16QAM 10MHz B.W.; 805MHz-7.0GHz, 60kHz Figure 242: Spurious Emissions at Antenna Terminal 16QAM, 763.0MHz, B.W. 10MHz, Sub Carrier 15kHz Figure 243: Spurious Emissions at Antenna Terminal 16QAM, 763.0MHz, B.W. 10MHz, Sub Carrier 30kHz I.T.L.-Israel Testing Laboratries FCC Part 90 Spurious emissions 763MHz 7.0G8.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company name: CORNINGOperator: A.Shelly Company name - CORNING Model name - SXU67 P/N - Subcarrier - 15kHz Modulation - 16QAM BW - 10MHz I.T.L.-Israel Testing Laboratries FCC Part 90 Spurious emissions 763MHz 7.0G8.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company name: CORNINGOperator: A.Shelly Company name - CORNING Model name - SXU67 P/N - Subcarrier - 30kHz Modulation - 16QAM BW - 10MHz Test Report E202871.00 Corning Optical Communication Wireless Page 69 of 102 FCC ACC M Ver 1.1 05Mayl 2000 Figure 244: Spurious Emissions at Antenna Terminal 16QAM, 763.0MHz, B.W. 10MHz, Sub Carrier 60kHz Figure 245: 64QAM 5MHz B.W.; 9kHz-758MHz, 15kHz Figure 246: 64QAM 5MHz B.W.; 9kHz-758MHz, 15kHz Figure 247: 64QAM 5MHz B.W.; 758-805MHz, 15kHz Figure 248: 64QAM 5MHz B.W.; 758-805MHz, 15kHz I.T.L.-Israel Testing Laboratries FCC Part 90 Spurious emissions 763MHz 7.0G8.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company name: CORNINGOperator: A.Shelly Company name - CORNING Model na…

Text truncated - open the document above for the full version.

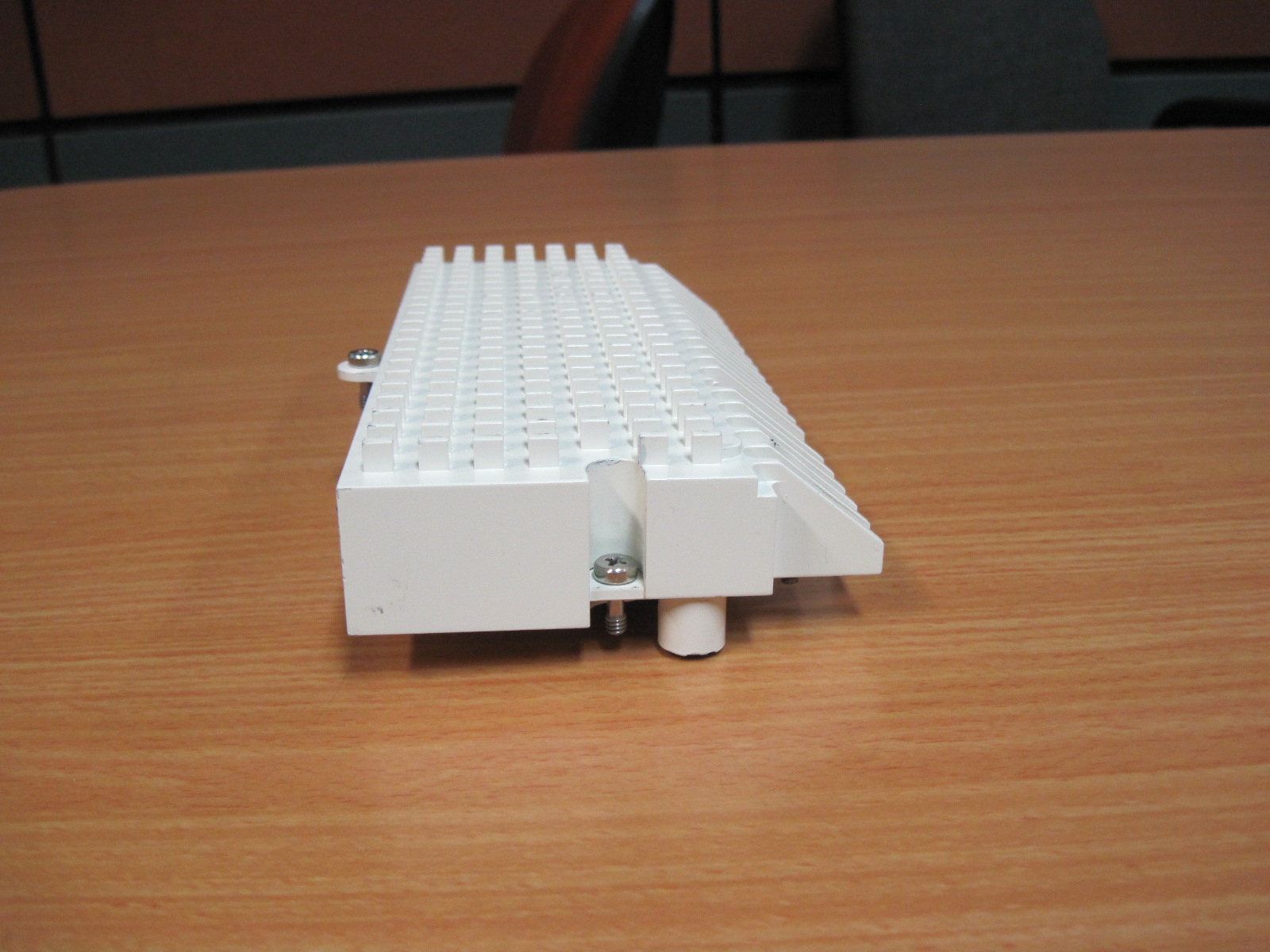

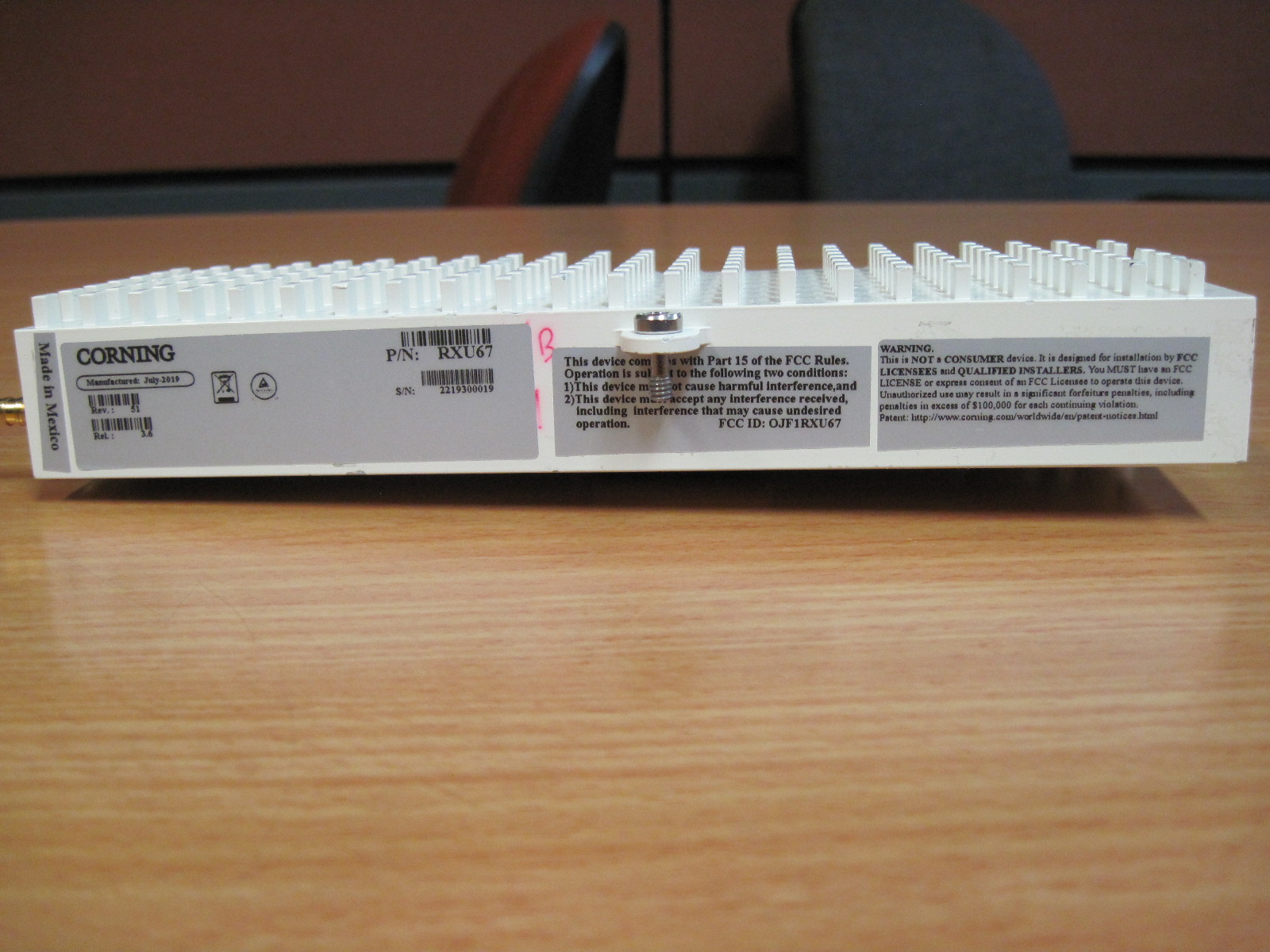

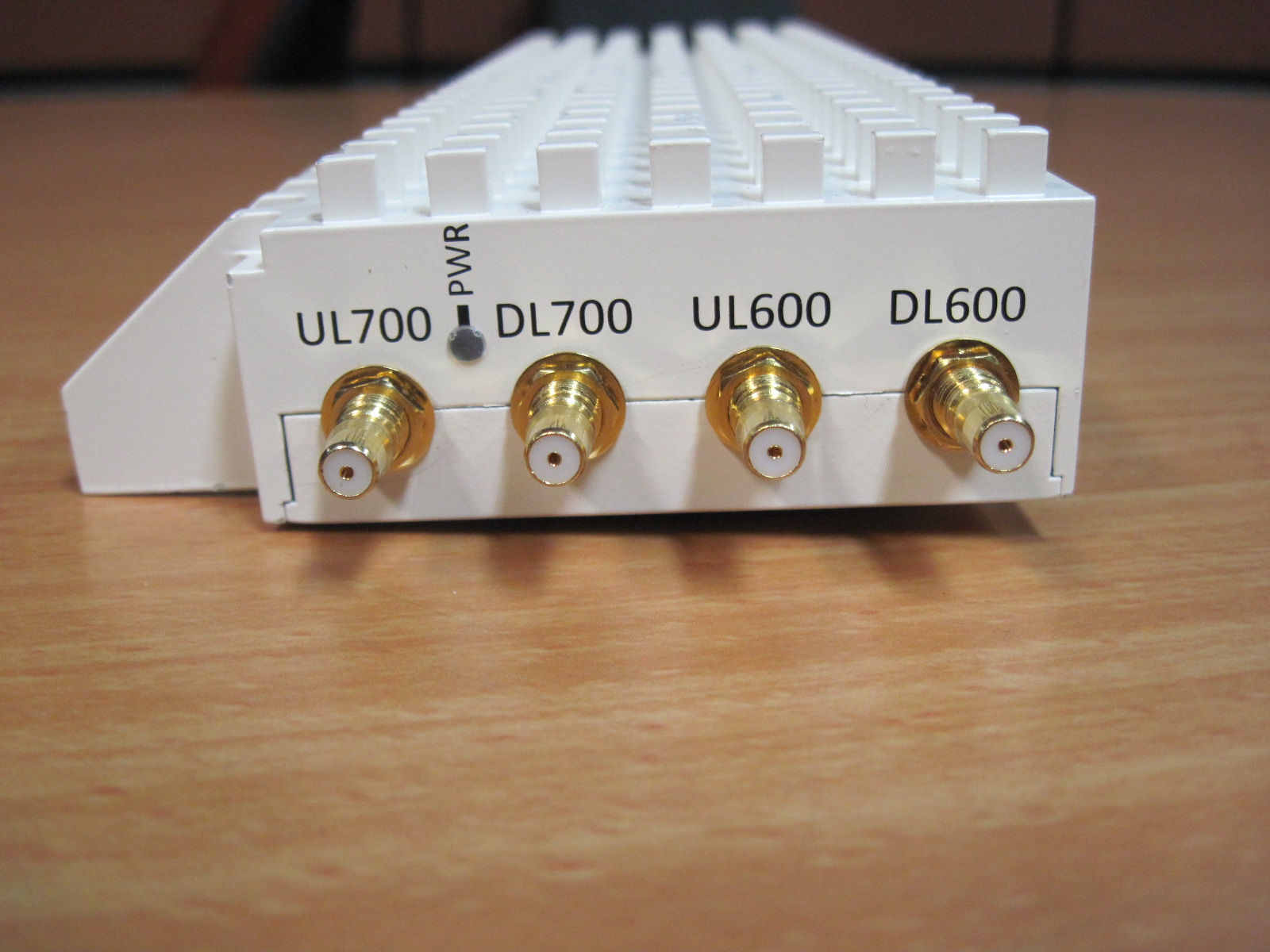

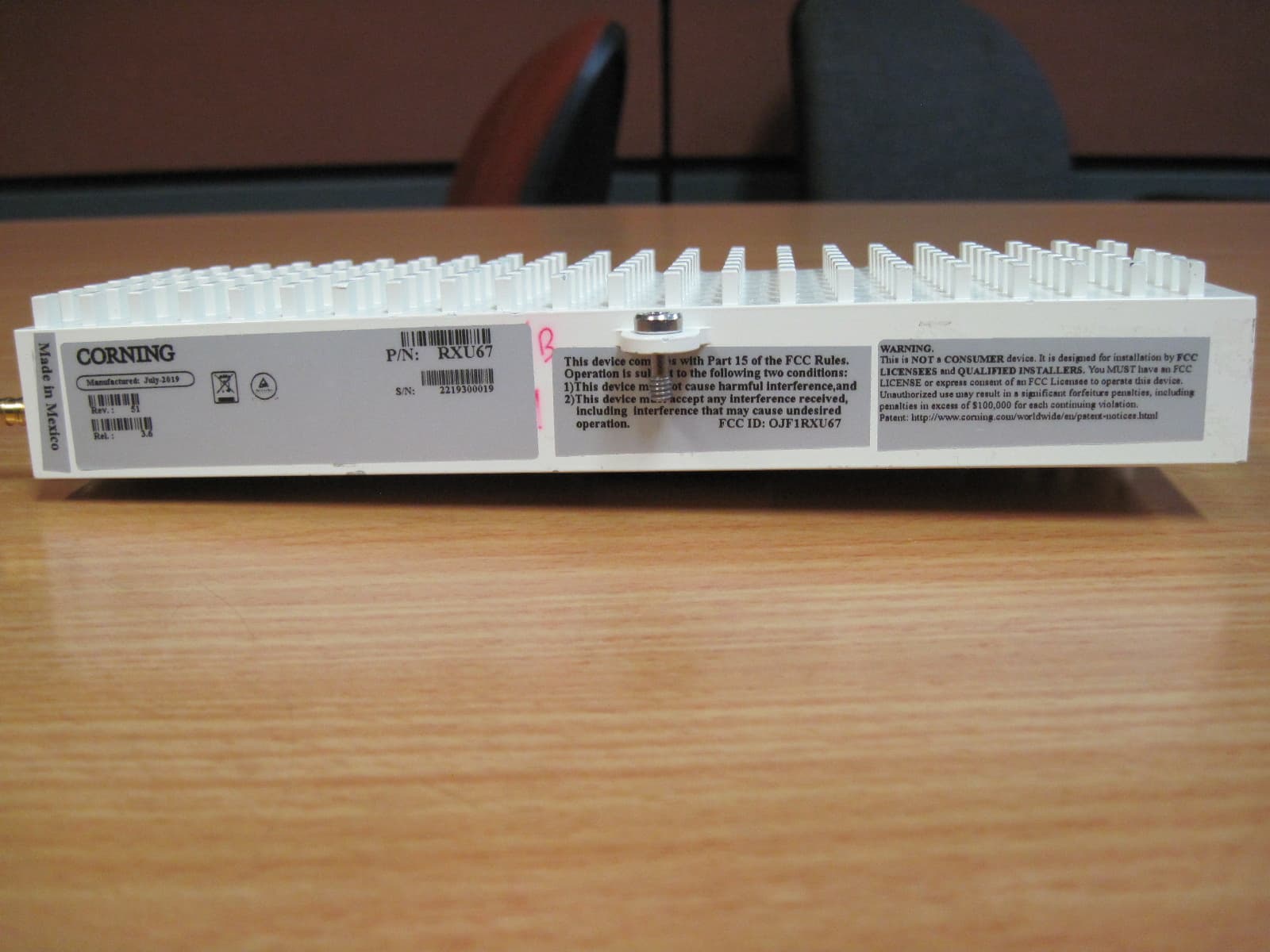

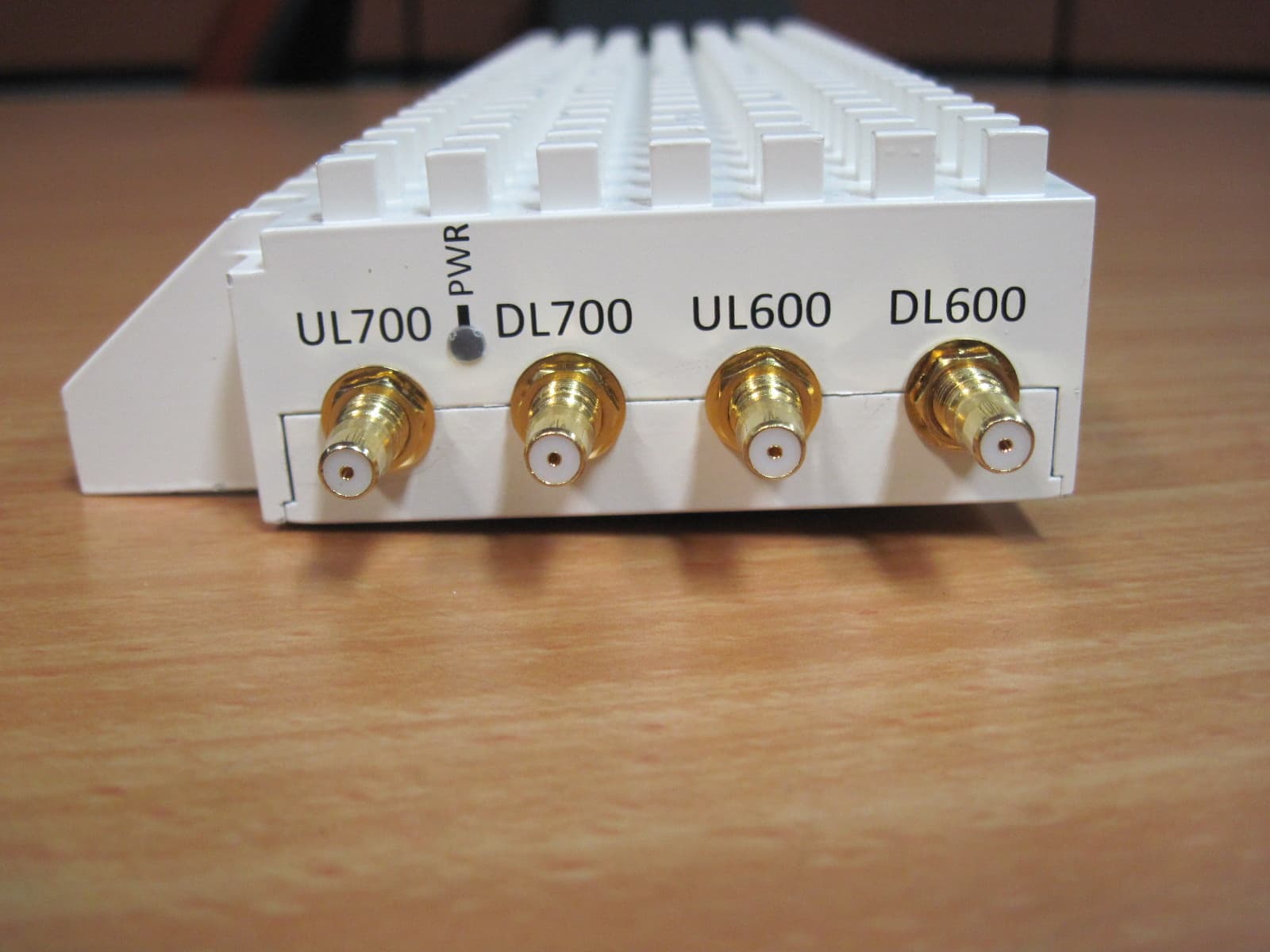

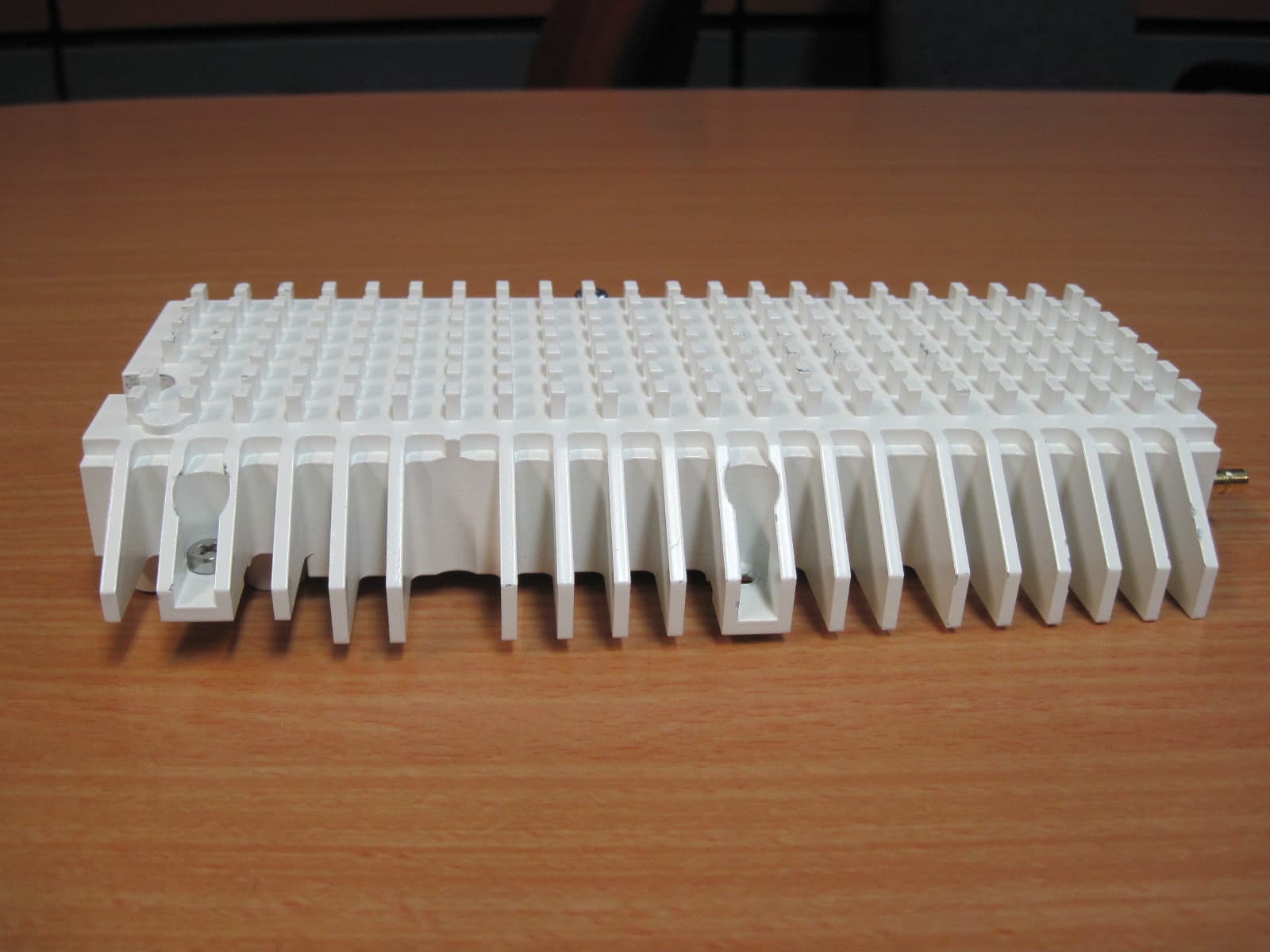

Test Set-Up Photos Figure 1. Conducted Emission From Antenna Port Tests Figure 2. Radiated Emission Test 9kHz - 30MHz Figure 3. Radiated Emission Test 30 - 200 MHz Figure 4. Radiated Emission Test 200 - 1000MHz Figure 5. Radiated Emission Test 1.0 - 8.0GHz
