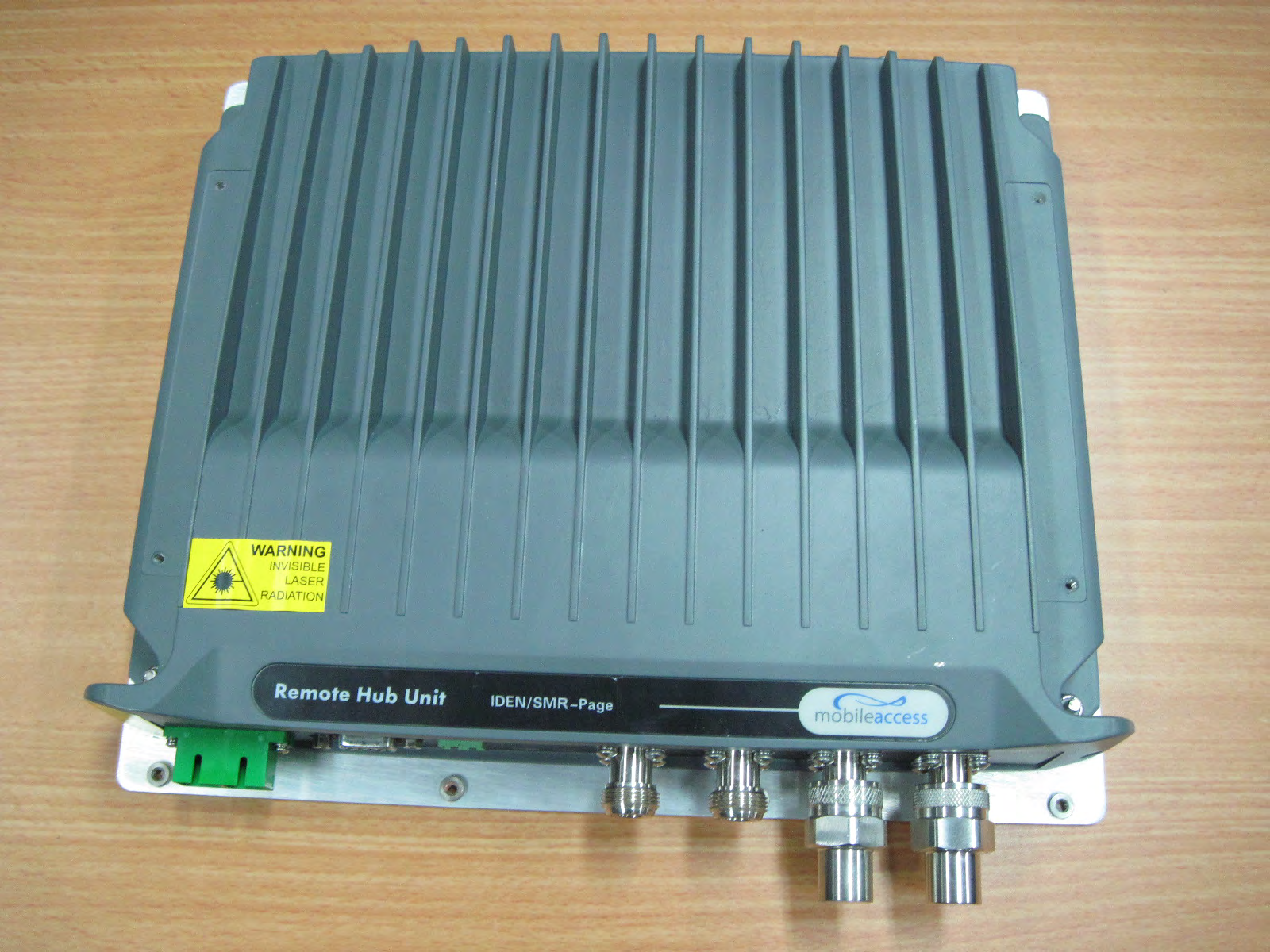

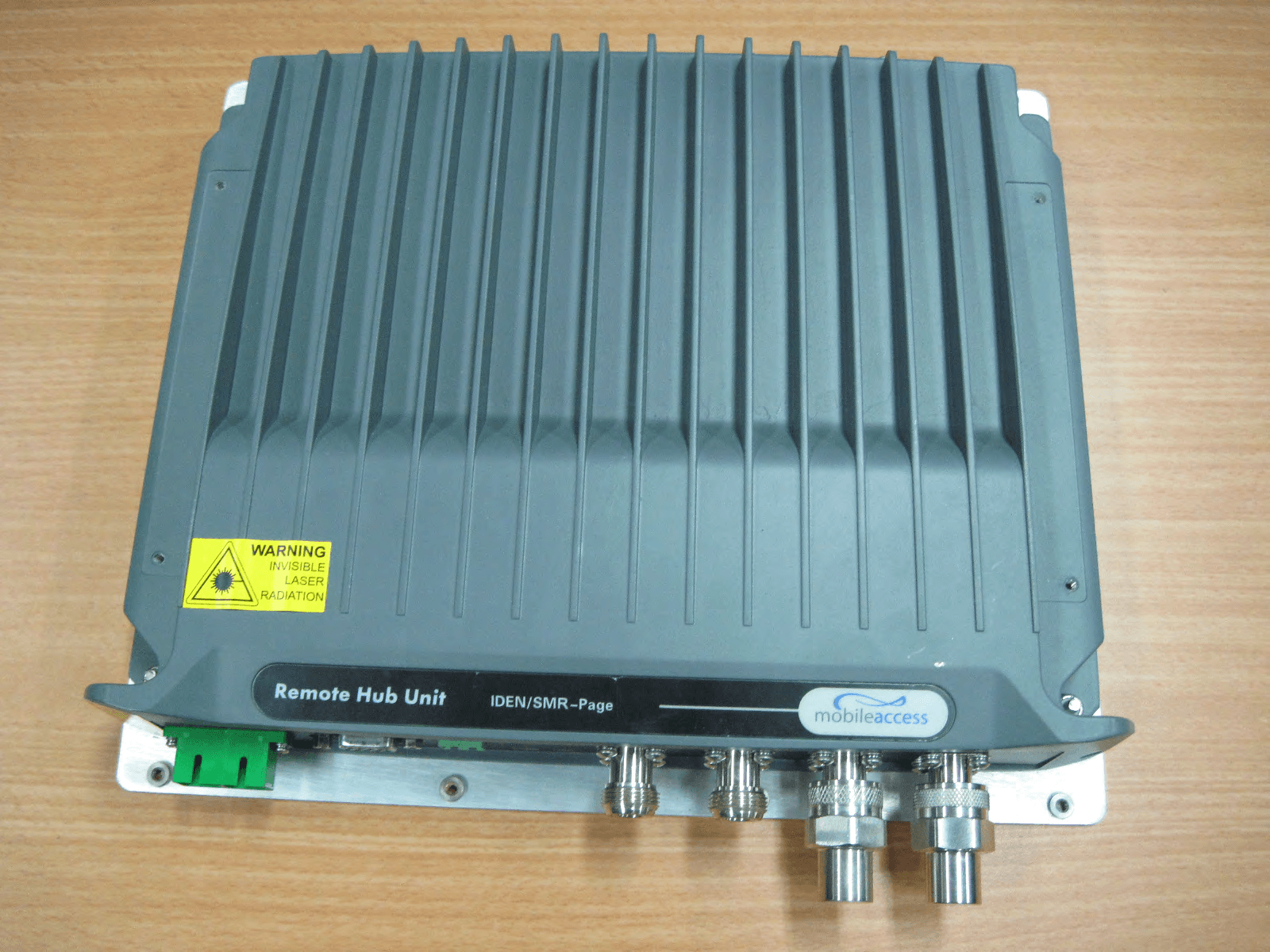

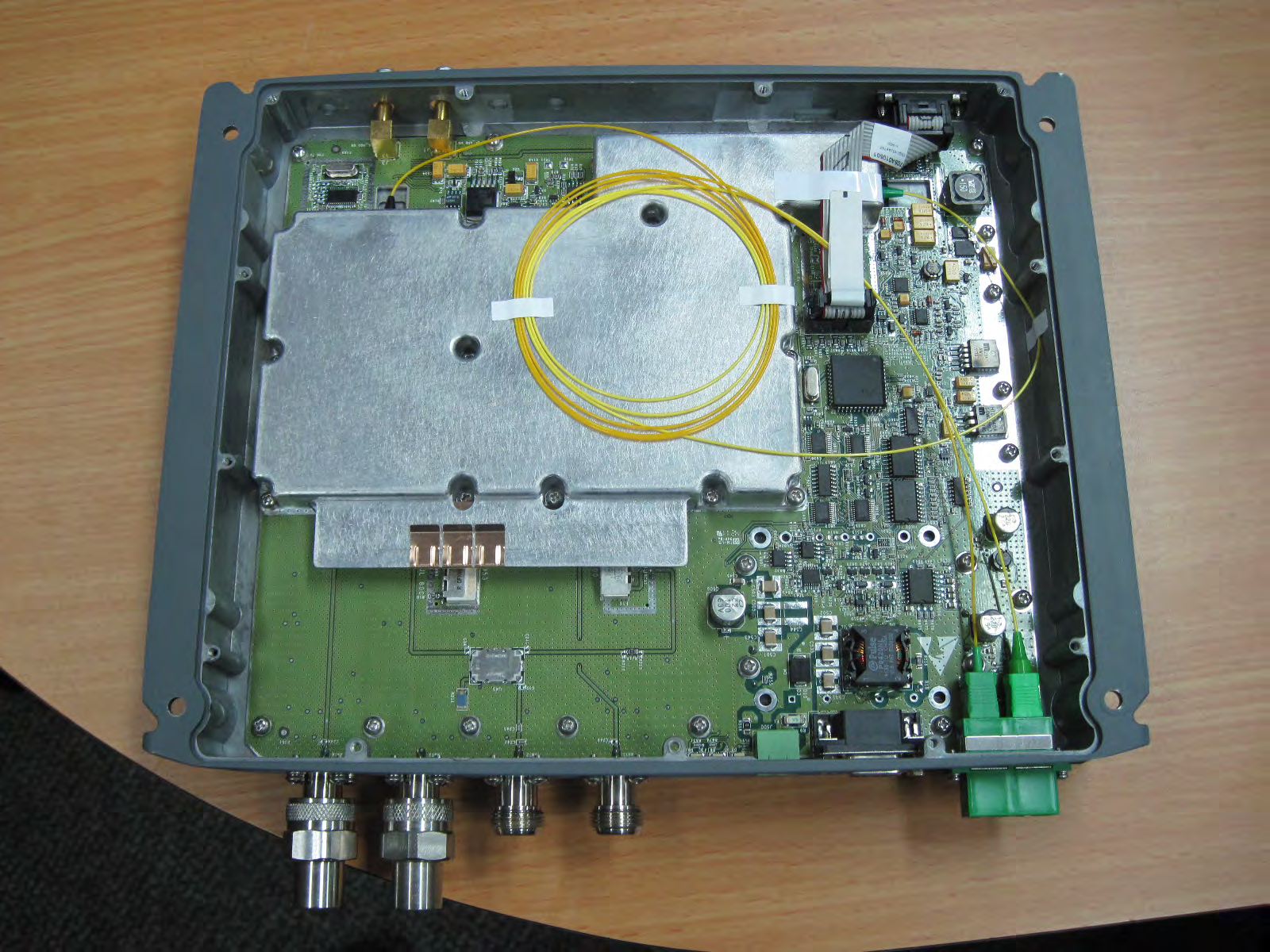

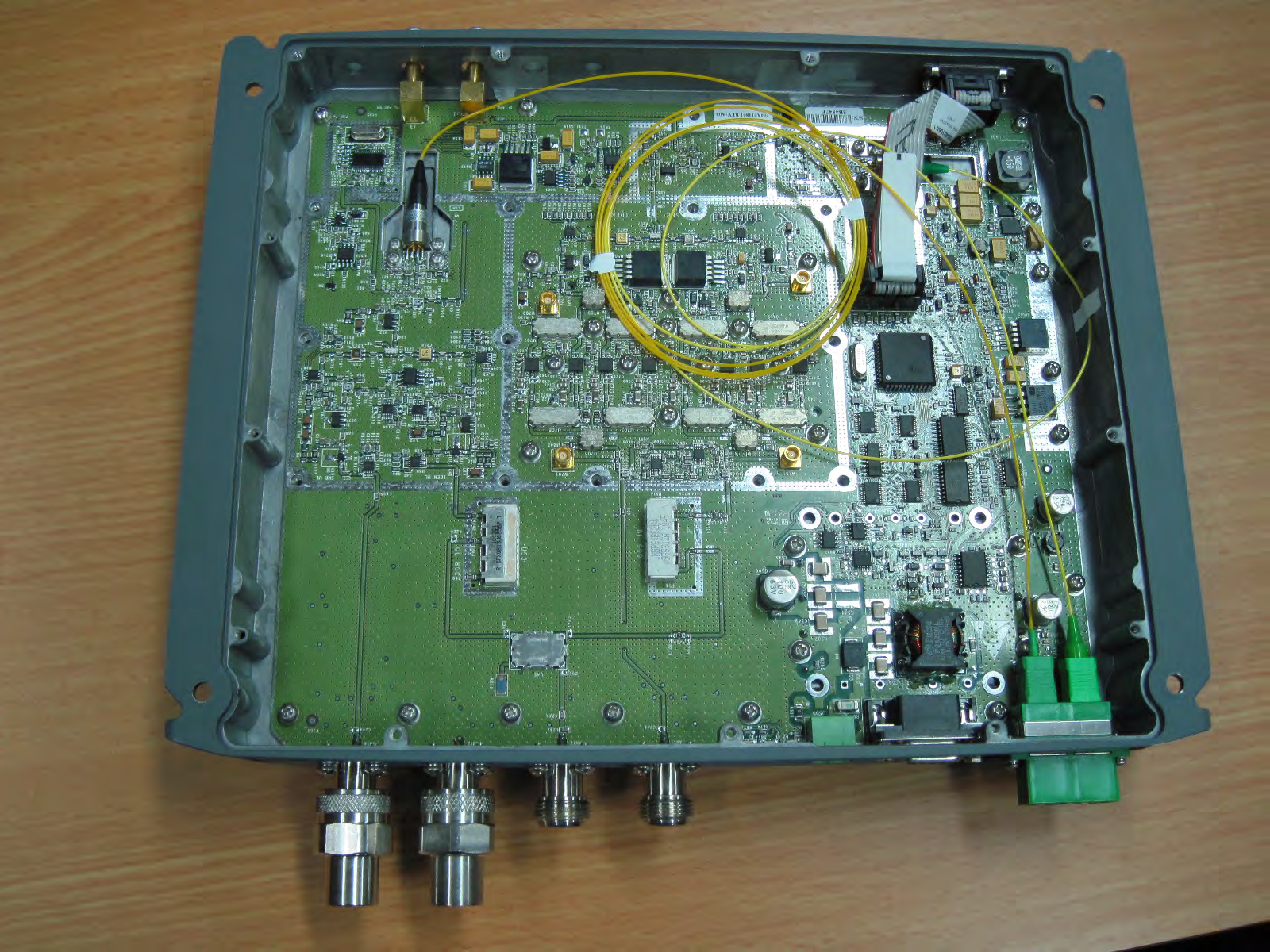

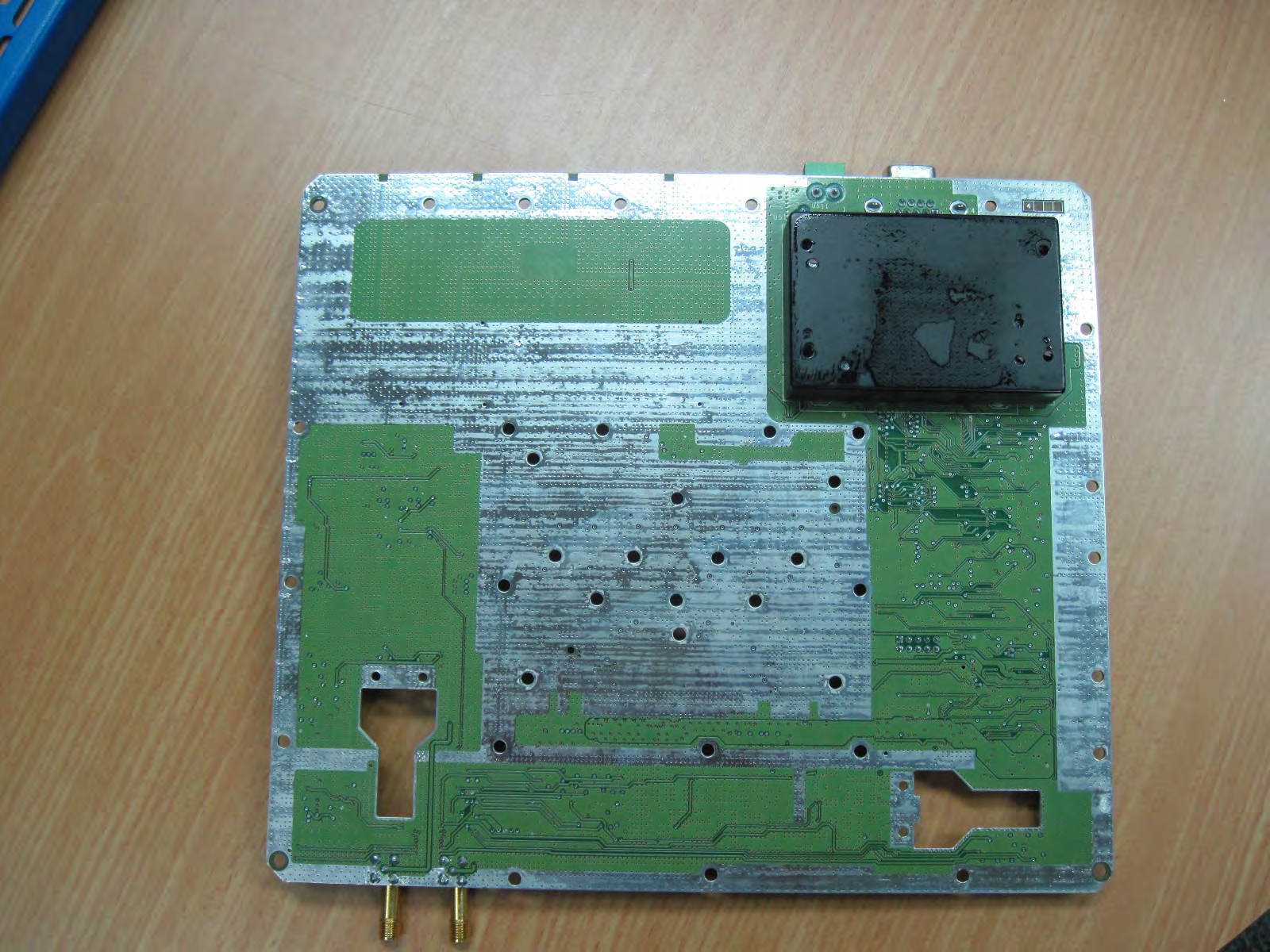

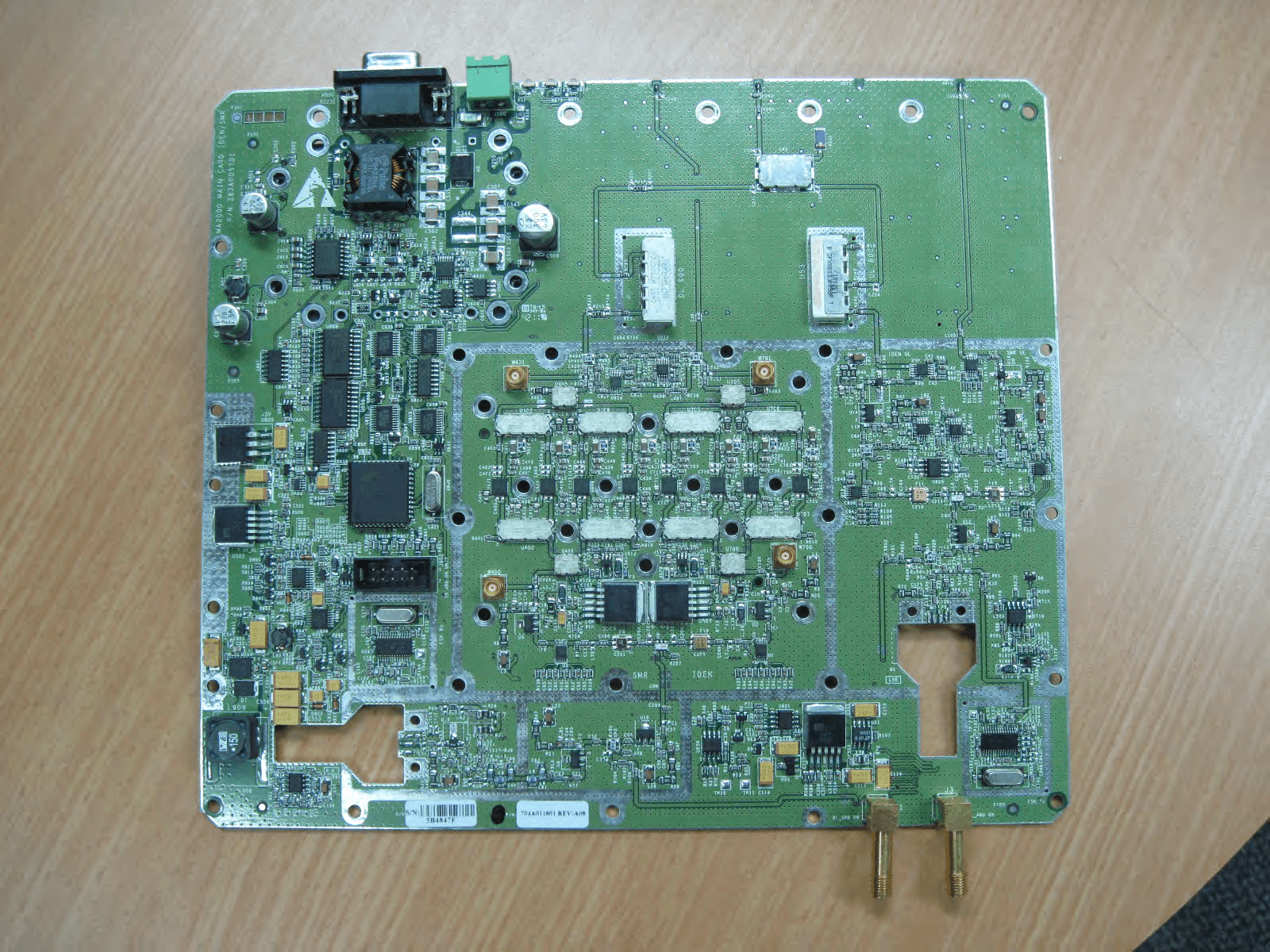

IDEN SMR TSX OD Rev A01_MAR12.docx 1 REV: A01 Date: Mar, 2012 MA2000 IDEN-SMR TSX Operational Description IDEN SMR TSX Operational Description 1 About MA2000 TSX series MobileAccess2000 Tri-Service Package (MA2000 TSX) series are compact, easily installable remote-end enclosures that provide carrier-grade indoor coverage for a number of services over a single, broadband architecture. TSX supports three services, where TSX units that are already installed in the field can be upgraded to support another service. A wide range of services are supported, including 2G, 3G, and 4G mobile voice and data services, where the combination of services supported by each unit is model dependent. The TSX Unit is displayed below. Figure ‎1-1. MA2000 TSX MA2000 TSX IDEN SMR TSX Operational Description TSX units are securely located in the telecommunication closets at each remote location. The units receive the head-end RF service signals via low-loss fiber, filter and reconvert the signals to RF. The RF services are combined and distributed via a passive combiner (SCU-4) to the broadband antennas. Figure ‎1-2. MobileAccesss2000 TSX System Architecture 1.1 Features and Capabilities  Multi-operator platform - accommodates multiple operator requirements separately, yet cost- effectively across one common infrastructure. Pre-assembled modular service packs improve neutral host ROI for the 1 st carrier in, as well as the 2 nd and 3 rd .  Multi-service platform that accommodates virtually any mix of wireless services, eliminating the need for separate cabled networks for each. Services include: GSM, CELL, PCS, iDEN, LMR, SMR, Public Safety, AWS, 700 MHz LTE, Paging, UMTS, DCS, WMTS, and more.  Modular design – enables seamless service upgrades with the addition of a conditioning card in the head-end and self-contained service packs in IDF/Telco/IT closets at remote-ends.  All active components are located in the communication closet/room  Carrier grade management – Built-in signal grooming and an Element Management System (EMS) offer end-to-end visibility and proactive alarming, ideal for large scale, multi-operator environments.  Local and remote end-to-end monitoring and control through interface to SC-450 controller  Conditioning and monitoring of input RF signals at the head-end through interface to MA-RIU  Scalable Media and MIMO Upgrades - Additional services leverage the existing coaxial cabling and antenna grid without disrupting work spaces or existing services. Fiber links extend a single capacity source across multiple buildings in campus environments. Multi-MIMO upgrades are simple with modular elements. IDEN SMR TSX Operational Description 2 MA2000 TSX Solution The MobileAccess2000 TSX solution is comprised of the head-end and remote end elements described in this section. Note: Third-party equipment is sold separately (i.e. cabling, antennas). Figure ‎2-1. MA2000 TSX Diagram 2.1.1 Head-End Equipment At the head-end MobileAccess elements provide interface to the wireless service provider’s network, where the signals can be conditioned through an active interface and transported over optic fiber to the remote end.  Radio Interface Unit (RIU): The RIU adjusts the RF signal source from a number of host base- transceiver stations (BTS) or bi-directional amplifiers (BDA) and feeds the conditioned RF signals to the MobileAccess DAS coverage systems  Base Unit (BU): The BU converts RF Downlink (DL) signals received from the RIU into an optical signal and transports them to/from the MobileAccess2000 TSX units at the remote site.  SC-450 System Controller: The system controller enables centralized remote management and control of all MobileAccess2000 elements at the site. IDEN SMR TSX Operational Description 2.1.2 Remote-End Equipment At the remote end, the MA2000 TSX units reconvert the optical signal to RF signals which are amplified, filtered and distributed via a passive service combiner unit over the broadband antenna infrastructure. The output of multiple TSX/QSX units can be combined to provide a full multi-service solution over a common fiber/coax antenna infrastructure.  MA2000 TSX: The MA2000 TSX delivers coverage for three RF services  Service Combiner Unit (SCU): A passive module that combines the services from the TSX or QSX and forwards the combined signals to a single broadband antenna infrastructure. Two models are available, depending on the site topology:  SCU-4 –supports four (4) Low Band and four (4) High Band connections, used in site topologies where only TSX/QSX services are distributed over the broadband antennas, mounted on top of the TSX/QSX enclosure.  SCU-8 - required for site topologies with EC560 solutions (interfaces between the TSX/QSX solution and the EC560 Antenna Units), includes eight (8) Low Band and eight (8) High Band connections, mounted in 19” rack. The SCU-8 is an integral component of the EC560 solution and the installation procedure is described in the EC560 User Manual. 2.2 MA2000 TSX Interfaces This section provides a description of the MA2000 TSX unit internal views and relevant connection interfaces. Refer to the MA2000 User Manual for detailed description of internal components (RHU and Add-On). You will be required to connect:  Optic fiber to internal RHU optic port  The filter outputs to the Service Combiner Unit (SCU).  Either AC or DC power The TSX internal view is given below. Figure ‎2-2. MA2000 TSX Open Cabinet View 3 AC power DC power Filters service output To connect to SCU RHU Optic fiber connection MA2000 RHU MA1200 Add-On IDEN SMR TSX Operational Description 2.3 SCU-4 Interfaces This section describes the SCU-4 interfaces:  Front Panel - consists of a total of eight QMA ports that support 4 low band (P1-P4) and 4 high band (P5-P8) connections to the TSX/QSX solution(s).  Rear Panel (not shown) – includes the RF antenna connectors that interface to the broadband antennas. Figure ‎2-3 SCU-4 (Front Panel) *NOTE: The flat cable con…

Text truncated - open the document above for the full version.

19 March 2012 Concerning the Mobile Access FCC ID: OJF2KIDENSMRTBC. No manual tune-up procedure required. Thank you, Steve Blum Product Manager Corning Mobileaccess 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Corning MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 www.corning.com/mobileaccess

2 573.01500/ cm mW f= 2 567.01500/ cm mW f= 2 579.01500/ cm mW f= 2 619.01500/ cm mW f= 2 623.01500/ cm mW f= 2 627.01500/ cm mW f= R.F Exposure/Safety Calculation for 2000-S80S90-A -TC The E.U.T. is rack or wall mounted. The typical distance between the E.U.T. and the general population is > 25 cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements (a) FCC Limit at 851.0125 MHz is: FCC limit at 860.0000 MHz is: FCC limit at 868.9875 MHz is: FCC Limit at 929.0125 MHz is FCC Limit at 935.0000 MHz is FCC Limit at 940.9875 MHz is Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is P t - Transmitted Peak Power (worst case) G T - Antenna Gain ,dBi R- Distance from Transmitter 2 4R GP S tt π = (c) Peak power density at worst case continuous transmission: Band Frequency (MHz) Pt (mW) Antenna type G T (dBi) R (cm) S AV (mW/cm 2 ) Spec (mW/cm 2 ) iDEN 851.0125 350.752 External 10 25 0.447 0.567 860.0000 269.774 External 10 25 0.343 0.573 868.9875 236.048 External 10 25 0.301 0.579 SMR 929.0125 179.473 External 10 25 0.229 0.619 935.0000 242.103 External 10 25 0.308 0.623 940.9875 211.836 External 10 25 0.270 0.627

Test Report E115292.00 Corning MobileAccess Page 1 of 86 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 19 March 2012 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Corning MobileAccess Equipment under test: MA2000 IDEN-SMR RHU in TSX Case 2000-S80-S90-A-TC AC 2000-S80-S90-A-TC DC* * See additional information in Section 2.1 of this report. Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ I. Siboni, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E115292.00 Corning MobileAccess Page 2 of 86 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Corning MobileAccess MA2000 IDEN-SMR RHU in TSX Case FCC ID: OJF2KIDENSMRTBC This report concerns: Original Grant: X Class II change: Class I change: Equipment type: Licensed Non-Broadcast Station Transmitter Limits used: 47CFR Part 90, Subparts I; S Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-C: 2004 Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Steve Blum ITL (Product Testing) Ltd. Mobile Access Networks Kfar Bin Nun 8391 Old Courthouse Rd., Suite #300 D.N. Shimshon 99780 Vienna, VA. 22182 Israel U.S.A. Email: [email protected] Tel: + 1 – 541 – 758 - 2880 Fax: + 1 – 703 – 848 – 20260 Email: [email protected] Test Report E115292.00 Corning MobileAccess Page 3 of 86 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 7 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 EUT Exercise Software ..................................................................................... 8 2.3 Special Accessories .......................................................................................... 8 2.4 Equipment Modifications ................................................................................... 8 2.5 Configuration of Tested System ........................................................................ 9 3. CONDUCTED AND RADIATED MEASUREMENT TEST SET-UPS PHOTO --------------- 10 4. PEAK OUTPUT POWER (IDEN) ----------------------------------------------------------------------- 11 4.1 Test Specification ............................................................................................ 11 4.2 Test Procedure ................................................................................................ 11 4.3 Test Results..................................................................................................... 11 4.1 Test Equipment Used. ..................................................................................... 14 5. OCCUPIED BANDWIDTH (IDEN) ---------------------------------------------------------------------- 15 5.1 Test Specification ............................................................................................ 15 5.2 Test Procedure ................................................................................................ 15 5.3 Test Results..................................................................................................... 15 5.4 Test Equipment Used. ..................................................................................... 19 6. EMISSION MASK (IDEN) -------------------------------------------------------------------------------- 20 6.1 Test Specification ............................................................................................ 20 6.2 Test Procedure ................................................................................................ 20 6.3 Test Results..................................................................................................... 20 6.1 Test Equipment Used. ..................................................................................... 24 7. OUT OF BAND EMISSIONS AT ANTENNA TERMINALS (IDEN) ----------------------------- 25 7.1 Test Specification ............................................................................................ 25 7.2 Test Procedure ................................................................................................ 25 7.3 Test Results..................................................................................................... 25 7.4 Test Equipment Used. ..................................................................................... 40 8. OUT OF BAND EMISSIONS (RADIATED) (IDEN) ------------------------------------------------- 41 8.1 Test Specification ............................................................................................ 41 8.2 Test Procedure ................................................................................................ 41 8.3 Test Results..................................................................................................... 42 8.1 Test Equ…
