Corning Restricted Corning Optical Communication LLC To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Corning Optical Communication LLC, 6 Concord Road, Shrewsbury, MA 01545 United States For FCC ID: OJFE62-M3-L; Model number: E62-M3-L According to: FCC KDB 935210 D02 Signal Boosters Certification v04r02 For PART 90 booster device, Section V (g) requirement: (g) Attestation (must be non-confidential exhibit, signed by the applicant; signature by test lab, agent, or TCB is not acceptable) should include: (1) Warning label messages and Class B disclosure will be also shown in online and point-of-sale marketing materials and on outside packaging of device: For PART 20 booster device, IV.(d) requirement: (d)) Attestation (must be non-confidential exhibit, signed by the applicant; signature by test lab, agent, or TCB is not acceptable) should include: (1) Warning label messages will be also shown in online and point-of-sale marketing materials and on outside packaging of device We Corning Optical Communication Wireless declared our Warning label messages and Class B disclosure will be also shown in online and point-of-sale marketing materials and on outside packaging of device. WARNING: This is a part 20 and part 90 class B signal booster device. This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. You MUST register Class B signal boosters (as defined in 47 CFR 90.219) online at www.fcc.gov/signal-boosters/registration. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Sincerely, Name (Printed): Jyotin Basrur Signature: Title: Senior Director Product Line Management On behalf of Company: Corning Telephone: +1 774 772 0814 Corning Restricted © 2021 Corning Incorporated. All Rights Reserved.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Corning Optical Communication LLC Address 6 Concord Road, Shrewsbury, MA 01545 Grantee Code OJF FCC ID OJFE62-M3-L Authorized Contact Name Jyotin Basrur Contact Email [email protected] Contact Phone 774 772 0814 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2022/12/05 Print Name: Jyotin Basrur Title: Senior Director, Product Line Management *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Corning Optical Communication LLC Date: 2022-12-05 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: OJFE62-M3-L To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Corning Optical Communication LLC. This authorization is valid until further written notice from the applicant. Name (Printed): Jyotin Basrur Title: Senior Director, Product Line Management Signature/Electronic Signature: On behalf of Company: Corning Optical Communication LLC Telephone: 774 772 0814

Corning Optical Communication LLC To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Corning Optical Communication LLC 6 Concord Road, Shrewsbury, MA 01545 Regarding: Confidentiality Request regarding application for FCC ID: OJFE62-M3-L LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Tune-up BOM The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature/Electronic Signature: Printed Name (on file with the FCC associated with the Grantee Code): Jyotin Basrur Title: Senior Director, Product Line Management Company Name: Corning Optical Communication LLC

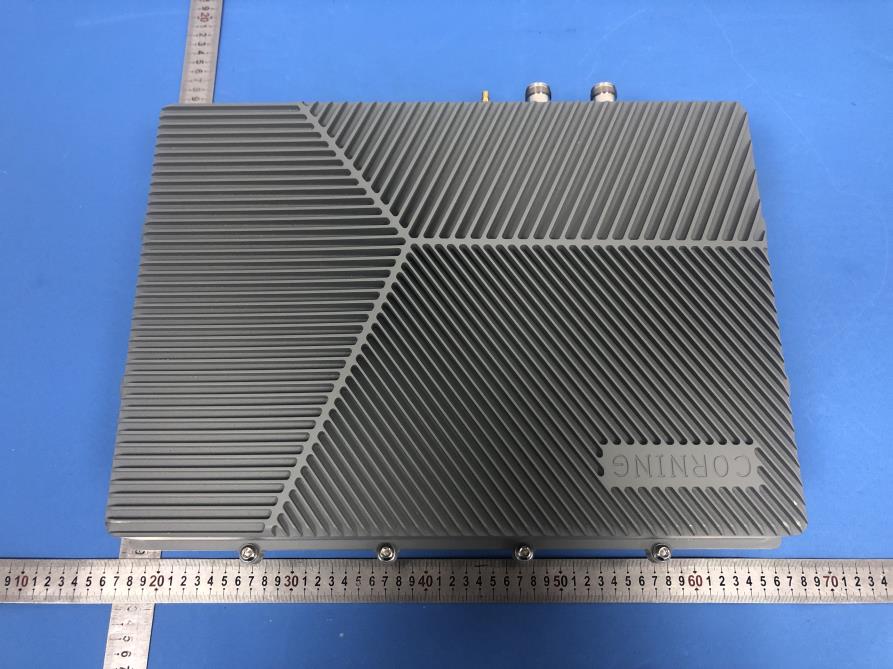

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 Appendix Photographs of External photo for KSCR2211002212AT Test Model No.: E62-M3-L Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

M3RU-L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China 10-2022 P/N: E62-M3-L-SISO-AC REL: V1.0 S/N: 362250XXXX REV: A00 Remote Unit, E62-M3-L Everon 6200 TM Input: 100-240V~ 3A 50/60Hz FCC IDOJFE62-M3-L CLASS 1 LASER PRODUCT Made in China 10-2022 P/N: E62-M3-L-SISO-AC REL: V1.0 S/N: 362250XXXX REV: A00 Remote Unit, E62-M3-L Everon 6200 TM Input: 100-240V~ 3A 50/60Hz FCC IDOJFE62-M3-L CLASS 1 LASER PRODUCT Made in China 10-2022 P/N: E62-M3-L-SISO-DC REL: V1.0 S/N: 362250XXXX REV: A00 Remote Unit, E62-M3-L Everon 6200 TM FCC IDOJFE62-M3-L CLASS 1 LASER PRODUCT Input: -48V 6A WARNING! This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC License to operate this device. You MUST register Part 90 Class B signal Boosters (as defined in 47 CFR 90.219) online at www.fcc.gov/signal-boosters /registration. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation. Part90 and Part 20 Signal Booster THIS IS A 90.219 CLASS B DEVICE

Compliance Certification Services (Kunshan) Inc. Page: 1 of 8 Appendix Photographs of Internal photo for KSCR2211002212AT Test Model No.: E62-M3-L Compliance Certification Services (Kunshan) Inc. Page: 2 of 8 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 8 AC POWER SUPPLY DC POWER SUPPLY Compliance Certification Services (Kunshan) Inc. Page: 4 of 8 Compliance Certification Services (Kunshan) Inc. Page: 5 of 8 Compliance Certification Services (Kunshan) Inc. Page: 6 of 8 Compliance Certification Services (Kunshan) Inc. Page: 7 of 8 DC POWER CABLE Compliance Certification Services (Kunshan) Inc. Page: 8 of 8 AC POWER CABLE

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221100221202 Page: 1 of 8 Eric Lin EMC Lab Manager 1 Cover Page RF MPE REPORT Application No.: KSCR2211002212AT FCC ID: OJFE62-M3-L Applicant: Corning Optical Communications LLC Address of Applicant: 6 Concord Road, Shrewsbury, MA 01545 United States Manufacturer: Corning Optical Communications LLC Address of Manufacturer: 6 Concord Road, Shrewsbury, MA 01545 United States Factory: Sunwave Communications Co., Ltd Address of Factory: 581 Houju Avenue, Binjinag District, Hangzhou, China Equipment Under Test (EUT): EUT Name: Remote Unit Model No.: E62-M3-L Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2022-11-15 Date of Test: 2022-11-16 to 2022-12-08 Date of Issue: 2022-12-08 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221100221201 Page: 2 of 8 Revision Record Version Description Date Remark 00 Original 2022-12-08 / Authorized for issue by: Cloud Peng / Project Engineer Eric Lin / Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221100221201 Page: 3 of 8 2 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 CONTENTS ................................................................................................................................................ 3 3 GENERAL INFORMATION ........................................................................................................................ 4 3.1 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................ 4 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................. 4 3.3 TEST LOCATION .................................................................................................................................... 5 3.4 TEST FACILITY ...................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................. 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ........................................................................... 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................. 7 5.2 MPE CALCULATION .............................................................................................................................. 7 Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221100221201 Page: 4 of 8 3 General Information 3.1 General Description of E.U.T. Power supply: DC 48V ± 20% or AC 100-240V~50/60Hz 3.2 Technical Specifications Frequency Band: 617MHz to 652MHz 729MHz to 746MHz 746MHz to 756MHz 758MHz to 768MHz 862MHz to 869MHz 869MHz to 894MHz 1930MHz to 1995MHz 2110MHz to 2200MHz 2350MHz to 2360MHz 2496MHz to 2690MHz Antenna Type: External Antenna Gain: 12 dBi for 617MHz to 652MHz (Provided by manufacturer) 12 dBi for 729MHz to 746MHz (Provided by manufacturer) 12 dBi for 746MHz to 756MHz (Provided by manufacturer) 12 dBi for 758MHz to 768MHz (Provided by manufacturer) 12 dBi for 862MHz to 869MHz (Provided by manufacturer) 12 dBi for 869MHz to 894MHz (Provided by manufacturer) 12 dBi for 1930MHz to 1995MHz (Provided by manufacturer) 12 dBi for 2110MHz to 2200MHz (Provided by manufacturer) 12 dBi for 2350MHz to 2360MHz (Provided by manufacturer) 12 dBi for 2496MHz to 2690MHz (Provided by manufacturer) Modulation Type: 5G NR: CP-OFDM: QPSK, 16QAM, 64QAM, 256QAM LTE: QPSK, 16QAM, 64QAM, 256QAM MIMO: SISO Temperature Range: -40°C to 55°C Note: The antenna gain value is provided by the customer. The test lab will not be responsible for wrong test result due to incorrect information about antenna gain values. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221100221201 Page: 5 of 8 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. Note: 1.SGS is not responsible for wrong test results due to incorrect information (e.g., max. internal working frequency, antenna gain, cable loss, etc) is provided by the applicant. (If applicable). 2.SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (If applicable). 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). Certificate No. 2541.01. • FCC Compliance Certification Services (Kunshan) Inc. has been recognized as an accredited testing laboratory. Designation Number: CN1172. • ISED Compliance Certification Services (Kunshan) Inc. has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. Company Number: 2324E • VCCI The 3m and 10m Semi-anechoic chamber and Shielded Room of Compliance Certification Services (Kunshan) Inc. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-20134, R-11600, C-11707, T-11499, G-10216 respectively. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR22110022120…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 66 Appendix for KSCR2211002212AT-LTE-Band14+5GNR-N14 1. Out of band rejection 1.1 Band14 1.1.1 Test Result Band: 14 / NTNV Signal Sweep Frequency Range (MHz) TX Type ANT F0 (MHz) FL (MHz) FH (MHz) Verdict CW 738 - 788 SISO 1 763.050 757.750 768.300 Pass Compliance Certification Services (Kunshan) Inc. Page: 2 of 66 1.1.2 Test Graph Band14_CW_SISO_Ant1_NTNV Compliance Certification Services (Kunshan) Inc. Page: 3 of 66 2. AGC threshold 2.1 Band14 2.1.1 Test Result Band: 14 / NTNV Signal Frequency (MHz) TX Type ANT AGC Threshold (dBm) Verdict AWGN 763.05 SISO 1 0.30 Pass GMSK 763.05 SISO 1 0.30 Pass Compliance Certification Services (Kunshan) Inc. Page: 4 of 66 3. Input-versus-output signal comparison 3.1 Band14_OBW 3.1.1 Test Result For LTE Band 14 Band: 14 / NTNV Signal TX Type ANT 99% OBW (MHz) Verdict Type Level (dBm) Frequency (MHz) Output Input AWGN 0.3 763.05 SISO 1 4.542 4.532 Pass 3.3 763.05 SISO 1 4.540 4.541 Pass GMSK 0.3 763.05 SISO 1 0.246 0.243 Pass 3.3 763.05 SISO 1 0.245 0.245 Pass For 5GNR N14 N14 / NTNV Signal TX Type ANT 99% OBW (MHz) Verdict Type Level (dBm) Frequency (MHz) Output Input AWGN 0.3 763 SISO 1 9.3492 9.3316 Pass 3.3 763 SISO 1 9.3734 9.3560 Pass Compliance Certification Services (Kunshan) Inc. Page: 5 of 66 3.1.2 Test Graph For LTE Band 14 Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_Output_AGC Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_Output_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 6 of 66 Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_Input_AGC Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_Input_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 7 of 66 Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_Output_AGC Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_Output_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 8 of 66 Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_Input_AGC Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_Input_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 9 of 66 For 5GNR N14 N14_763MHz_AWGN_SISO_Ant1_NTNV_Output_AGC N14_763MHz _AWGN_SISO_Ant1_NTNV_Output_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 10 of 66 N14_763MHz AWGN_SISO_Ant1_NTNV_Input_AGC N14_763MHz AWGN_SISO_Ant1_NTNV_Input_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 11 of 66 3.2 Band14_EBW 3.2.1 Test Result For LTE Band 14 Band: 14 / NTNV Signal TX Type ANT 26dB EBW (MHz) Verdict Type Level (dBm) Frequency (MHz) Output Input AWGN 0.3 763.05 SISO 1 5.049 5.060 Pass 3.3 763.05 SISO 1 5.053 5.053 Pass GMSK 0.3 763.05 SISO 1 0.314 0.313 Pass 3.3 763.05 SISO 1 0.312 0.313 Pass For 5GNR N14 N14 / NTNV Signal TX Type ANT 26dB EBW (MHz) Verdict Type Level (dBm) Frequency (MHz) Output Input AWGN 0.3 763 SISO 1 10.11 10.22 Pass 3.3 763 SISO 1 10.12 10.18 Pass Compliance Certification Services (Kunshan) Inc. Page: 12 of 66 3.2.2 Test Graph For LTE Band 14 Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_Output_AGC Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_Output_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 13 of 66 Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_Input_AGC Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_Input_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 14 of 66 Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_Output_AGC Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_Output_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 15 of 66 Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_Input_AGC Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_Input_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 16 of 66 For 5GNR N14 N14_763MHz_AWGN_SISO_Ant1_NTNV_Output_AGC N14_763MHz _AWGN_SISO_Ant1_NTNV_Output_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 17 of 66 N14_763MHz AWGN_SISO_Ant1_NTNV_Input_AGC N14_763MHz AWGN_SISO_Ant1_NTNV_Input_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 18 of 66 4. Input/output power and amplifier/booster gain 4.1 Band14_ERP 4.1.1 Test Result For LTE Band 14 Band: 14 / NTNV Signal TX Type ANT Conducted Power (dBm/MHz) ERP (dBm/MHz) Booster Gain (dB) Verdict Type Level (dBm) Frequency (MHz) Output Input Result Limit AWGN 0.3 763.05 SISO 1 26.41 -6.86 36.26 <=60 33.27 Pass 3.3 763.05 SISO 1 26.46 -3.87 36.31 <=60 / Pass GMSK 0.3 763.05 SISO 1 33.51 0.22 43.36 <=60 33.29 Pass 3.3 763.05 SISO 1 33.52 3.23 43.37 <=60 / Pass 758MHz-768MHz / NTNV Operation Band Frequency (MHz) Signal Signal Level Input Power (dBm) Total Output Power (dBm) ERP(dBm) Gain (dB) SISO SISO 758MHz- 768MHz 763.05 AWGN Pre-AGC 0.3 33.40 43.25 / 3dB Above AGC 3.3 33.45 43.30 / 763.05 GMSK Pre-AGC 0.3 33.51 43.36 / 3dB Above AGC 3.3 33.52 43.37 / Compliance Certification Services (Kunshan) Inc. Page: 19 of 66 For 5GNR N14 N14 / NTNV Signal TX Type ANT Conducted Power (dBm/MHz) ERP (dBm/MHz) Booster Gain (dB) Verdict Type Level (dBm) Frequency (MHz) Output Input Result Limit AWGN 0.3 763 SISO 1 23.22 -10.03 33.07 <=60 33.25 Pass 3.3 763 SISO 1 23.40 -7.01 33.25 <=60 / Pass 758MHz-768MHz / NTNV Operation Band Frequency (MHz) Signal Signal Level Input Power (dBm) Total Output Power (dBm) ERP(dBm) Gain (dB) SISO SISO 758MHz- 768MHz 763 AWGN Pre-AGC 0.3 33.21 43.06 / 3dB Above AGC 3.3 33.38 43.23 / Compliance Certification Services (Kunshan) Inc. Page: 20 of 66 4.1.2 Test Graph For LTE Band 14 Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_AGC Band14_763.05MHz_AWGN_SISO_Ant1_NTNV_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 21 of 66 Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_AGC Band14_763.05MHz_GMSK_SISO_Ant1_NTNV_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 22 of 66 For 5GNR N14 N14_763MHz_AWGN_SISO_Ant1_NTNV_AGC N14_763MHz_AWGN_SISO_Ant1_NTNV_AGC+3 Compliance Certification Services (Kunshan) Inc. Page: 23 of 66 4.2 Band14_PAPR 4.2.1 Test Result For LTE Band 14 Band: 14 / NTNV Signal TX Type ANT PAPR (dB) Verdict Type Level (dBm) Frequency (MHz) Result Limit AWGN 0.3 763.05 SISO 1 8.18 <=13 Pass 3.3 763.05 SISO 1 8.18 <=13 Pass GMSK 0.3 763.05 SISO 1 0.36 <=13 Pass 3.3 763.05 SISO 1 0.29 <=13 Pass For …

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221100221201 Page: 1 of 54 Eric Lin Laboratory Manager TEST REPORT Application No.: KSCR2211002212AT FCC ID: OJFE62-M3-L Applicant: Corning Optical Communications LLC Address of Applicant: 6 Concord Road, Shrewsbury, MA 01545 United States Manufacturer: Corning Optical Communications LLC Address of Manufacturer: 6 Concord Road, Shrewsbury, MA 01545 United States Factory: Sunwave Communications Co., Ltd Address of Factory: 581 Houju Avenue, Binjinag District, Hangzhou, China Equipment Under Test (EUT): EUT Name: Remote Unit Model No.: E62-M3-L Trade mark: Standard(s) : FCC Part 2 FCC Part 20 FCC Part 22 FCC Part 24 FCC Part 27 FCC Part 90 subpart R FCC Part 90 subpart S Date of Receipt: 2022-11-15 Date of Test: 2022-11-16 to 2022-12-08 Date of Issue: 2022-12-08 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221100221201 Page: 2 of 54 Revision Record Version Chapter Date Modifier Remark 00 Original 2022-12-08 / Authorized for issue by: Cloud Peng / Project Engineer Eric Lin / Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSCR221100221201 Page: 3 of 54 2 Test Summary 2.1 729MHz-746MHz for FCC Part 27 subpart H Test Item Reference Result RF Output Power, Amplifier Gain and Peak to Average Ratio §2.1046; §27.50(c) PASS Conducted Spurious Emissions §2.1051; §27.53(g) PASS Out-of-band/out-of-block (including intermodulation) Emissions ANSI C63.26 KDB 935210 D05 v01r04 935210 D02 v04r02 PASS Radiated Spurious Emissions §2.1053; §27.53(g) PASS Occupied Bandwidth and Input- versus-output signal comparison §2.1049(h) PASS Frequency Stability §2.1055; §27.54 PASS Remark: EUT: In this whole report EUT means Equipment Under Test. Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. All modes have been tested and onl…
