APRIL 2014 P/N 709C010702 Draft CorningOptical Communications High Power GX™Tri DAS System User Manual Warranties P/N 709C010702 Page 2 Warranties Hardware Corning Optical Communications warrants to the original purchaser(“Customer”) that for the duration of the warranty period, One (1) year, commencing on the date of shipment of theHardware, unless otherwise agreed in writing by Corning Optical Communications(the “Hardware Warranty Period”), theHardware furnished by Corning Optical Communicationsshall be freein all material respects from defects in material and workmanship,and shall conform to the applicable portions of theSpecifications, as defined below (the “Hardware Warranty”). If notified by Customer of any such defects in material orworkmanship or nonconformity with applicable portions ofthe Specifications within the Hardware Warranty Period,Corning Optical Communicationsshall promptly, at its own electionand expense, repair or replace any such Hardware provento be defective under the terms of this Hardware Warranty. Such repair or replacement shall be Customer’s sole remedyand Corning Optical Communications’ sole obligation in the event thisHardware Warranty is invoked. If any components comprisinga part of the Hardware are replaced or repaired duringthe Hardware Warranty Period, the Hardware WarrantyPeriod for such repaired or replaced components shall extendto the longer of (i) the balance of the Hardware WarrantyPeriod or (ii) three (3) months from the date of repair orreplacement. For purposes of this Warranty, “Specifications”shall mean the specifications and performance standards ofthe Products as set forth in documents published by Corning Optical Communicationsand delivered to Customer which contain technicalspecifications or performance standards for the Products. If Customer invokes this Hardware Warranty, it shall notifyCorning Optical Communications promptly of the claimed defect. Customer will allow Corning Optical Communications to inspect theHardware at Customer’s location, or to return the Hardwareto Corning Optical Communications’ closest repair facility. ForHardware returned to Corning Optical Communications ’ repair facility,Customer shall be responsible for payment of all transportationand freight costs (including insurance) to Corning Optical Communications ’ repair facility, and Corning Optical Communications shall be responsible for all transportation and freight costs(including insurance) incurred in connection with the shipmentof such Hardware to other repair facilities of Corning Optical Communications and/or its return to Customer. Notwithstanding the foregoing, in no event will Corning Optical Communications be liable for damage to Products resulting From improper handling during or after shipment, misuse,neglect, improper installation, operation or repair (other Than by authorized Corning Optical Communications personnel),alteration, accident, or for any other cause not attributableto defects in materials or workmanship on the part ofCorning Optical Communications. Corning Optical Communications shall not Reimburse or make any allowance to Customer for any laborcharges incurred by Customer for replacement or repair ofany goods unless such charges are authorized in advance inwriting by Corning Optical Communications. Warranties P/N 709C010702 Page 3 Software Warranty Corning Optical Communications warrants to the original purchaser (“Customer”) that for the duration of the warranty period, One (1) year, commencing on the date of shipment of the Software, unless otherwise agreed in writing by Corning Optical Communications(the “Software Warranty Period”), the Software shall conform with, and perform the functions set Forth in the Specifications, and shall be free from defects in material or workmanship (the “Software Warranty”). In the event the Software is proven to be defective under the terms of this Software Warranty, Corning Optical Communications shall correct such defects or failure and ensure that the Software conforms with, and performs the functions set forth in, the Specifications. Customer will allow Corning Optical Communications to inspect the Software at Customer’s location or to return it to Corning Optical Communications’ closest repair facility. Notwithstanding the foregoing, Corning Optical Communications shall have no obligation under the Software Warranty if the Software is modified or used with hardware or software not supplied or approved by Corning Optical Communications, or if the Software is subject to abuse, improper installation or application, accident, electrical or environmental over-stress, negligence in use, storage, transportation or handling. Third-party software distributed with the Software may carry certain warranties which, to the maximum extent allowed by law, Corning Optical Communications hereby assigns, transfers and otherwise conveys to Customer, provided, however, that Corning Optical Communications itself provides no warranty of any kind, express, implied, statutory or otherwise, for any third-party software provided hereunder. Corning Optical Communications does not warrant any hardware, software or services not provided by Corning Optical Communications. THIS WARRANTY IS THE ONLY WARRANTY MADE BY CORNING OPTICAL COMMUNICATIONS AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. CORNING OPTICAL COMMUNICATIONS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT LIMITED TO: INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE: GOODS, PARTS AND SERVICE. CORNING OPTICAL COMMUNICATIONS SALES AGENTS OR REPRESENTATIVES ARE NOT AUTHORIZED TO MAKE COMMITMENTS ON WARRANTY RETURNS. Returns In the event that it is necessary to return any productagainst above warranty, …
Text truncated - open the document above for the full version.
MODEL NO.: GX- P19S80A17 GX-P19S80A17 Corning MobileAccess Inc. state that we are selling and GX-P19S80A17-40 System (Antenna, Coupler, etc) is considered by solution provider (Operator, SI, etc), according to site conditions. Company: Authorized Signature: Printed Name: Date: Statement P19S80A17-40 P19S80A17-40-DC Corning MobileAccess Inc. state that we are selling products GX 40-DC (FCC ID: OJFGXSPA-40). While the Antenna System (Antenna, Coupler, etc) is considered by solution provider (Operator, SI, etc), according to site conditions. Corning Optical Communications Wireless Habib Riazi June 10 th 2014 products GX-P19S80A17-40 . While the Antenna System (Antenna, Coupler, etc) is considered by solution provider (Operator, SI, Corning Optical Communications Wireless
Corning MobileAccess Inc. state that the below warning label message will be shown in online, point-of GX-P19S80A17-40 and GX Warning Label: Signed by: Print Name: Habib Riazi Title: Director RF, PLM Date: June 10 th 2014 Attestation Corning MobileAccess Inc. state that the below warning label message will be of-sale marketing materials and on outside packaging of and GX-P19S80A17-40-DC (FCC ID: OJFGXSPA Habib Riazi Director RF, PLM 2014 Corning MobileAccess Inc. state that the below warning label message will be sale marketing materials and on outside packaging of DC (FCC ID: OJFGXSPA-40).
Corning Optical Communication Wireless Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OJFGXSPA-40 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------- Name/Title Habib Riazi Company Name: Corning Optical Communication Wireless Address: 13221 Woodland Park Rd Suite 400 Tel: (703) 714-7920 Fax: (703) 848-0280 Email: [email protected]
Corning Optical Communication Wireless AGENCY AUTHORIZATION LETTER Federal Communications Commission Authorization and Evaluation Division FCC ID:OJFGXSPA-40 Date:2014/4/30 To whom it may concern: We, the undersigned, hereby authorize Richard Li from SGS-CSTC Standards Technical Services Co., Ltd. to act on our behalf, as our agent, in the following matters related to the FCC approval of our product: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Richard Li within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, -------------------------------------- Name/Title Habib Riazi Company Name: Corning Optical Communication Wireless Address: 13221 Woodland Park Rd Suite 400 Tel: (703) 714-7920 Fax: (703) 848-0280 Email: [email protected]

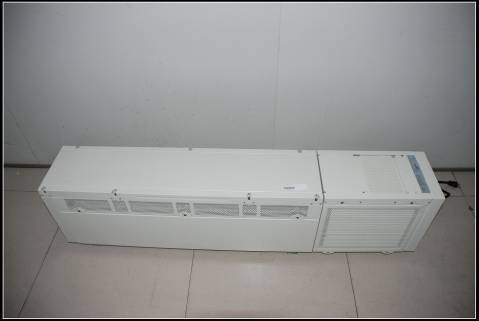

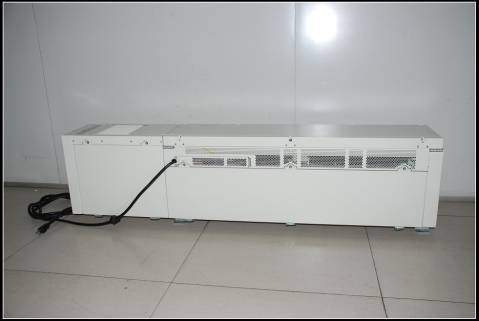

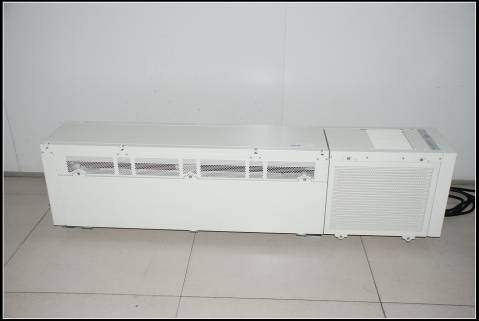

External Photo
物料编码元器件位号 101301-000003-000603-0Ω,SMT resistance R2,R3,R28,R30,R33,R110,R113,R145,R146,R1 53 101301-000051-000603-36Ω, SMT resistanceR76,R79,R87,R88,R89,R91 101301-000083-000603-49.9Ω,±1%,SMT resistanceR103,R104 101301-000007-000603-150Ω,SMT resistanceR46 101301-000010-000603-680Ω,SMT resistanceR47,R51,R58,R63,R148 101301-000002-000603-1kΩ,SMT resistanceR11,R13,R108 101301-000011-000603-1.5kΩ, SMT resistanceR66,R67,R68,R69,R97 101301-000030-000603-2kΩ, SMT resistanceR4,R8,R34,R35,R111 101301-000189-000603-1MΩ,SMT resistanceR9,R18,R36,R37 101401-000045-000603-10pF,NPO,50V,±5%,SMT capacitanceC1,C7 101401-000018-000603-15pF,NPO,50V,±5%,SMT capacitanceC105,C106 101401-000059-000603-47pF,C0G,50V,±5%,SMT capacitanceC90,C97,C98,C107 101401-000020-000603-1000pF,X7R,50V,±10%,SMT capacitanceC3 101401-000001-000603-0.01μF,X7R,50V,±10%,SMT capacitanceC2,C61,C62,C73,C75 101401-000002-000603-0.1μF,X7R,25V,±10%,SMT capacitance C4,C27,C44,C45,C46,C47,C55,C56,C57,C58,C 60,C63,C65,C66,C67,C69,C70,C71,C72,C79,C8 5,C88,C104,C108,C109,C110,C111,C115 101408-000300-0010μF,Ta,10V,±10%,SMT capacitanceC26,C43,C59 101408-000035-0010μF,Ta,50V,±10%,SMT capacitanceC68 101408-000006-00100μF,Ta,16V,±10%,SMT capacitanceC25 101601-000049-00SMT diode (green)LED4,LED5 101601-000039-00LL4148, SMT switch chipD3 101601-000036-00SMT diode (red)LED2 101601-000097-001206,SMT diode (yellow)LED1,LED3 101604-000862-00PCA9306DP1, level switch ICU16 101604-000139-00LTC1480IS8PBF,3.3V,RS485 transceiverU10 101604-000160-00TMP125AIDBV, temperature sensorU26 101604-000540-00AT91SAM9260B-CU, MPUU1 102107-000006-00B3S-1002P,SMT reset switchS1 101604-001024-00DAC104S085CIMM, DA transceiver chipU24 101604-000541-00DP83848IVV,PHYTER chipU18 101604-000788-00MB85RC64-G, serial FRAMU15 101604-000414-00MT48LC16M16A2P-75IT,SDRAM memoryU3,U4 101604-000082-00ISL1208IB8Z, clock ICU17 101604-000542-00K9F2G08U0C-SIB0000,Flash memoryU5 101604-000010-00LM258DR2G,SMT ICU8,U14 101501-000064-000805-70Ω,2500mA,SMT megnetic beadL1 100904-000158-00OSCSMD7050,50MHz,SMD oscillatorB7 101606-001005-00SN74ALVC164245DGGR, ICU19,U20 101604-000206-00SN74HCT573PW, latchU22,U23,U25 101604-000618-00ZT3232LEEY,RS232 driverU12 102099-000004-00HY911110C,RJ45 interfaceJK1,JK2 102003-000142-00LY2510-4A, socketX4 102003-000015-0040P, pin 100904-000054-00CFS206 32.768KHz, oscillatorB2,B5 100904-001002-00HC-49/S(18.432MHZ) oscillatorB1 102105-000039-00ER13170,3.6V,600mAH, batteryBT1 102003-000140-00LY2510-3A, socketX1,X3 102003-000107-00USB-B02,USB socketUSB2 102003-000031-00 DIN41612,64 dual-column curved needle PC socket JXIOUT1 102008-000022-002.54mm, jumpersJ1-2,J9-2 102003-000014-0040P, pin 102201-000027-00GB/T823,M2.5×8, screw 102206-000004-00GB/T93,2.5, spring washer 102207-000004-00GB/T6170,M2.5, net 101301-000003-000603-0Ω,SMT resistanceF1 101301-000022-000603-10Ω,SMT resistanceR77,R78,R81,R82 101301-000083-000603-49.9Ω,±1%,SMT resistanceR101,R102 101301-000007-000603-150Ω,SMT resistanceR124 101301-000058-000603-470Ω,SMT resistanceR57 101301-000010-000603-680Ω,SMT resistanceR1,R93,R114,R128 101301-000002-000603-1kΩ,SMT resistanceR56 101301-000011-000603-1.5kΩ, SMT resistanceR121,R122,R126,R127,R149,R150 101301-000057-000603-2.2kΩ, SMT resistanceR59,R96 101399-000057-000603-4.7kΩ×4,±10%(RCML), resistanceR73,R74,R75,R84 101301-000018-000603-10kΩ, SMT resistance R14,R15,R17,R23,R48,R49,R50,R52,R53,R54, R55,R60,R61,R62,R71,R129,R130,R131,R133, R135,R137,R138 101301-000175-000603-56kΩ,SMT resistanceR7 101301-000021-000603-100kΩ, SMT resistanceR6,R16,R85 101301-000189-000603-1MΩ,SMT resistanceR21 101401-000018-000603-15pF,NPO,50V,±5%,SMT capacitanceC6,C8 101401-000002-000603-0.1μF,X7R,25V,±10%,SMT capacitance C5,C9,C10,C11,C12,C13,C16,C17,C18,C19,C2 0,C21,C23,C24,C29,C30,C31,C32,C33,C34,C35 ,C36,C37,C38,C39,C40,C41,C42,C48,C49,C50, C51,C52,C64,C76,C80,C81,C82,C84,C89,C91, C92,C93,C94,C95,C96,C99,C100,C101,C102,C 103,C116,C117,C118,C119 101408-000300-0010μF,Ta,10V,±10%,SMT capacitanceC14,C15,C22,C77,C83,C86,C87 101601-000039-00LL4148, SMT switch chipD1,D2,D4,D5,D6,D7 101608-000001-00ESDA6V1L,SMTESDV5,V6 101601-000094-00UDD32C05L01,5V,TVS tubeV1,V2,V3,V4,V7,V8 101602-000020-00MMBT3904_NL, switch diode (NPN)Q1,Q2,Q3,Q4,Q7,Q8 101602-000021-00MMBT3906_NL, triode(PNP)Q5,Q6 101604-000618-00ZT3232LEEY,RS232 driverU7 101604-000139-00LTC1480IS8PBF,3.3V,RS485 transceiverU13 101501-000064-000805-70Ω,2500mA,SMT megnetic beadL2 101724-000369-0000-EP6303-5001PC,FR4,PCB
Corning MobileAccess GX System Tune up procedure Page1 Corning MobileAccess GX System Tune up procedure Index 1 INTRODUCTION...................................................................................................................... 2 2 PREPARATION ....................................................................................................................... 2 2.1. PERSONAL PREPARATION ............................................................................................... 2 2.2 POSITION AND CONNECTION ........................................................................................... 3 2.3 POWER UP AND INDICATORS ........................................................................................... 4 3. OMT OPERATION .................................................................................................................... 6 3.1 SET IP ADDRESS OF COMPUTER ..................................................................................... 6 3.2 CONNECT DEVICE VIA OMT .............................................................................................. 6 3.3 EQUIPMENT PARAMETERS ............................................................................................... 7 Corning MobileAccess GX System Tune up procedure Page2 1 INTRODUCTION This document is primarily written for those who are new to Corning MobileAccess GX and wish to tune up the equipment. The document is applicable to below products from Comba. Model number: GX-P19S80A17-40 and GX-P19S80A17-40-DC Corning MobileAccess OCH (Optical Central Hub) is needed to be connected to equip- ment as a system for the entire test. 2 PREPARATION This section will be discussing on: 1 - Preparation for those who are going to operate the equipment; 2 - How to connect to equipment for setting; 3 - LED Indicator description; 2.1. PERSONAL PREPARATION 1 - The following checklist will help to make sure relevant personnel get ready before op- eration. The personnel preparation list: a. Only trained or qualified personnel is recommended for performing tuning with equipment. Operating person should be with necessary knowledge of electronic, RF, and familiar with local regulation, rules. b. Personnel shall read through the manual/instructions/guide carefully before operation. c. Check if there is warning/alert sign on the equipment to avoid possible danger. d. Wear proper cloth. If necessary, equip with PPE (Personal Protective Equipment). e. Before operation, procedures and data recording form should be prepared. 2 - Package inspection Visual inspect the external product package, and check internal items according to pack- ing list. Prepare ample space and easy accessible to socket-outlet. For tools reference please find in manual. 3 - Tools preparation Please prepare tools/cables and measuring instruments ready before hand-on. For tools recommendation, please refer to product user manual. 4 - OCH preparation An already tuned OCH is needed to provide an optical signal input for the equipment. For more information about OCH, please refer to OCH user manual / operation guide. Handling Precautions This covers a range of activities including lifting, lowering, pushing, pulling, carrying, mov- ing, holding or restraining an object, animal or person. It also covers activities that require the use of force or effort, such as pulling a lever, or operating power tools. Caution, Electrostatic Discharge (ESD) Before removing the antistatic bag from repeater, enough caution shall be taken to avoid ESD. The Anti-static Wrist Strap is recommended. Corning MobileAccess GX System Tune up procedure Page3 2.2 POSITION AND CONNECTION 1 - Equipment experimental position Equipment shall be placed in stable position during testing, e.g. place on a table or stand on the floor. Be aware of the table shall be firm enough to support the equipment. 2 - Connections: Grounding Antenna Port 3 Antenna Port 2 Antenna Port 1 OCH Computer AUX_6 AUX_5 850MHz CPL-50dB AWS CPL-50dB 1900MHz CPL-50dB EXT_ALM SYS_ALM COMM ALM RUN LAN 800MHz AWS 1900MHz Before power up: a. Confirm equipment is well grounded; b. Confirm equipment is connected to OCH via optical fiber; c. Confirm equipment antenna ports are either connected to load or measuring instru- ments. - Lan cable to computer can be connected before or after power up. Corning MobileAccess GX System Tune up procedure Page4 2.3 POWER UP AND INDICATORS Before power up, please check product voltage requirement, and make sure the equip- ment is with good grounding protection. Warning: Always be caution to voltage safety. Before hands-on operation, check if the equipment is powered off and disconnected from power supply or otherwise will cause personnel injury and equipment damage. Corning MobileAccess GX System Tune up procedure Page5 1900MHz AWS LAN RUN ALM COMM SYS_ALM EXT_ALM 1900MHz CPL-50dB AWS CPL-50dB 850MHz CPL-50dB AUX_5 AUX_6 LED 800MHz Diagnostic LEDs of each unit are located on the bottom of enclosure; each indicates the status of a particular function. Identifier Color Indication RUN Green On – The system is not ready (system need 2-3min after power up to be ready) Blink – The system is boot up and normal Off – The system is no power supply or MCU is not working ALM Red Off – No Alarm occurring On – Alarm occurring FSK Green Off – No communication between OCH & Equipment Blink – Communication normal between OCH & Equipment Corning MobileAccess GX System Tune up procedure Page6 3. OMT OPERATION 3.1 SET IP ADDRESS OF COMPUTER The equipment default IP address is “192.168.8.101/255.255.255.0” The IP address of computer has to be set in the same subnet. E.g. 192.168.8.10/255.255.255.0 Note: It’s strongly recommended to keep the equipment IP address in default value. 3.2 CONNECT DEVICE VIA OMT Double click “CMA OMT Software V5.00” on the desktop after OMT installation. Choose “Connection via Ethernet”. Note: this is a special version of OMT. A general version of OMT is …
Text truncated - open the document above for the full version.
ERPDescriptionLocation 101301-000003-000603-0Ω,SMT resistance R11,R84,R93,R115,R237,R238,R239,R240,R241,R24 2,R243,R244,R257,R258 101301-000040-000603-5.1Ω,SMT resistanceR9,R24,R38,R113,R114 101301-000022-000603-10Ω,SMT resistanceR28,R29,R210,R225,R232,R260 101301-000056-000603-18Ω, SMT resistanceR10,R112 101301-000173-000603-56Ω,SMT resistanceR12,R13 101301-000006-000603-300Ω,SMT resistanceR14,R118,R119 101301-000041-000603-820Ω,SMT resistanceR18,R19,R31,R32,R33,R34,R121,R122,R123 101301-000226-000603-1kΩ,1/16W,±1%,SMT resistanceR88 101301-000002-000603-1kΩ,SMT resistanceR21,R22,R75,R90,R203,R209 101301-000030-000603-2kΩ, SMT resistanceR7,R50 101301-000057-000603-2.2kΩ, SMT resistanceR77,R211 101301-000237-00 0603-3kΩ, 1/16W, ± 1%, Precision Chip Resistors C101,R143,R236 101301-000042-000603-3kΩ,SMT resistanceR6,R49,R97 101301-000017-000603-3.9kΩ,SMT resistanceR20 101301-000047-000603-4.7kΩ,SMT resistanceR76,R183,R206,R207,R208 101301-000019-000603-5.1kΩ,SMT resistanceR35,R39 101301-000018-000603-10kΩ, SMT resistance R5,R71,R72,R94,R110,R177,R181,R182,R184,R187,R 189,R191,R192,R193,R194,R195,R196,R197,R199,R2 00,R216,R217,R220,R221,R222,R224,R226,R229,R23 0,R245,R246,R247,R248,R249,R250,R251,R252,R254 ,R255,R256,R297,R298 101301-000228-000603-15kΩ,1/16W,±1%, SMT resistanceR235 101301-000048-000603-15kΩ,SMT resistanceR43 101301-000021-000603-100kΩ, SMT resistanceR214,R223 101301-000174-000603-390kΩ,SMT resistanceR23 101301-000189-000603-1MΩ,SMT resistanceR74 101302-000015-000805-10Ω,SMT resistanceR8,R180 101302-000023-000805-180Ω,SMT resistance R1,R2,R3,R4,R98,R99,R100,R101,R102,R103,R104,R 105,R106,R107,R108,R109 101302-000013-000805-10kΩ, SMT resistanceR179 101399-000049-00RC-03K1005FT(0603-10M), resistanceR87,R89,R91,R96 101401-000139-00 0603-1.5pF,C0G,100V,±0.25pF, RF capacitance C34 101401-000041-00 0603-10pF,50V,C0603CG100J500WT,SMT capacitance C345 101401-000045-00 0603-10pF,NPO,50V,±5%,SMT capacitance C27,C29 101401-000072-00 0603-12pF,C0G,50V,±5%,SMT capacitance C28 101401-000067-00 0603-30pF,C0G,50V,±5%,SMT capacitance C127,C128,C300,C302 101401-000011-00 0603-68pF,C0G,50V,±5%,SMT capacitance C5,C141,C144,C147 101401-000042-00 0603-100pF,50V,C0603CG101J500WT, SMT capacitance C25,C161 101401-000126-00 0603-100pF, C0G, 50V, ± 5%, RF Capacitors C11,C12,C13,C26,C30,C35,C156,C157,C177 101401-000002-00 0603-0.1μF,X7R,25V,±10%,SMT capacitance C88,C89,C299,C305,C306,C307,C308,C309,C310,C3 12,C314,C315,C316,C318,C319,C320,C321,C322,C32 3,C324,C325,C326,C327,C328,C329,C330,C331,C332 ,C333,C334,C335,C336,C337,C341,C342,C343,C344 101401-000017-00 0603-0.18μF,X7R,10V,±10%,SMT capacitance C23 101402-000012-00 0805-1000pF,X7R,50V,±10%,SMT capacitance C55,C56,C57,C58,C59,C60,C61,C284,C285,C286,C28 7,C288,C289,C290 101403-000036-00 1206-1uF/50V,12065G105ZAT2A,SMT capacitance C311 101403-000035-00 1206-10uF,X5R,25V,±20%, SMT capacitance C87,C313 101499-000007-00 NFM21CC471R1H3,470pF,1A,SMT capacitance C232,C233,C234,C246,C247,C248 101499-000025-00 10uF,50V,TDKC5750X7R1H106M, SMT capacitance C90 101408-000300-0010μF,Ta,10V,±10%,SMT capacitanceC304,C317 101408-000037-00 B type-10μF,Ta,16V,±10%, SMT capacitance C217,C227,C354,C359 101499-001000-00NFM21CC101U1H3 capacitanceC235,C236,C237,C249,C250,C251 101499-000013-00NFM21PC104R1E3, capacitance C1,C9,C10,C24,C32,C39,C100,C126,C129,C133,C136 ,C137,C138,C160,C176,C179,C205,C207,C208,C209, C210,C211,C212,C228,C229,C230,C231,C355,C356 101501-000070-000603-1.5nH,SMT inductanceC125 101502-000058-000603-3.3nH,±10%, SMT inductanceR111 101502-000064-000603-8.2nH,±10%, InductanceR120 101502-000049-000603-15nH,±5%, SMT inductanceL3,L6,R15 101502-000056-000603-33nH,±5%, SMT inductanceL4,L5 101501-000053-000603-10Ω,1000mA SMT beadF1,F2,F3,F9,F13,F17,F18,F19,F21,F24,F27,F28 101502-000007-000805-33nH,±5%, SMT inductanceL2,L7 101502-000009-000805-82nH,±5%, SMT inductanceL17,L19,L20 101502-000080-00 0805-470nH, ± 5%, wire-wound ceramic core RF inductors L1 101501-000038-000805-470nH,±5%, SMT inductanceL18 101501-000064-000805-70Ω,2500mA,SMT megnetic beadF15,F16,F29,F30 101599-000003-00MSS7341-473ML,47uH, inductanceL29 101501-000094-00PB160808L110Y1A5T,SMT beadF7,F8,F26 101601-000039-00LL4148, SMT switch chipD14,D15,D16,D17,D18,D19,D20,D21,D22,D23 101601-000045-00RLZTE-115.1B,SMT diodeD3 101601-000094-00UDD32C05L01,5V,TVS tubeD7,D8,D10,D11 101601-000049-00SMT diode (green)P9 101601-000036-00SMT diode (red)P7,P10 101602-000020-00MMBT3904_NL, switch diode (NPN)K1,K2,K5,K6,K7 101602-000019-00NJM78L03UA-(TE1),SMT ICU25,U43,U44 101603-000004-003224W-1-103E, potentiometerRW3 101604-000546-00LPC2136FBD64/01, micro-controlerU34 101604-001023-00 ADC108S022CIMT,8-channel AD converter chip U42 101604-000626-00ADL5602ARKZ-R7, amplifierU2,U13,U14,U16 101604-001024-00DAC104S085CIMM, DA transceiver chipU41 101604-000169-00INA138NA/3KG4, circuit detect ICU31 101604-000010-00LM258DR2G,SMT ICU3,U4,U12 101604-000139-00LTC1480IS8PBF,3.3V,RS485 transceiverU40 101604-000788-00MB85RC64-G, serial FRAMU35 101604-000204-00SN74HC04PW, inverterU26,U28 101604-000389-00SN74LVC1G125DBVR,SOT-23 U37 101604-000092-00SPX1117M3-L-3.3,SOT223, chipU36 101604-000160-00TMP125AIDBV, temperature sensorU39 101604-000257-00TPS3823-33, monitor circuit chipU38 101606-000027-00NJM78L05UA,SMT ICU23 101606-000088-00UA78M05IDCYR, manostatU33 102107-000006-00B3S-1002P,SMT reset switchSW2 101004-001006-004302-52, attenuatorU1,U15 101601-000033-00SA5.0A, diodeD5 102003-000254-00FJ2-10ZIJ,2.54mm,2×10, double socketX3 102003-000058-00HE14,5×2, socketX4 100599-000010-00MCX-KHD1,cable connectorX5,X6,X7,X8 100904-000051-00HC-49/S 11.0592MHz, oscillatorB2 101399-000078-000402-10Ω, 1/16W, ± 5%, SMD resistorR291,R296 101399-000121-000402-430Ω, 1/16W, ± 5%, SMD resistorR292,R293,R294,R295 101301-000237-00 0603-3kΩ, 1/16W, ± 1%, Precision Chip Resistors R234 101301-000042-000603-3kΩ,SMT resistanceR42 101301-000018-000603-10kΩ, SMT resistanceR185,R186,R190,R198,R201,R205,R253 101301-000228-000603-15kΩ,1/16W,±1%, SMT resistanceR2…
Text truncated - open the document above for the full version.
BOM 0603-0Ω,SMT resistance 0603-0.22Ω,SMT resistance 0603-3Ω,SMT resistance 0603-5.1Ω,SMT resistance 0603-5.6Ω,SMT resistance 0603-12Ω,SMT resistance 0603-18Ω,SMT resistance 0603-30Ω,SMT resistance 0603-51Ω,SMT resistance 0603-100Ω,SMT resistance 0603-150Ω,SMT resistance 0603-30Ω,SMT resistance 0603-300Ω,SMT resistance 0603-18Ω,SMT resistance 0603-180Ω,SMT resistance 0603-100Ω,SMT resistance 0603-300Ω,SMT resistance 0603-430Ω,SMT resistance 0603-910Ω,SMT resistance 0603-9.1kΩ,SMT resistance 0603-2kΩ,SMT resistance 0603-2.4kΩ,SMT resistance 0603-5.1kΩ,SMT resistance 0603-10kΩ,SMT resistance 0603-12kΩ,SMT resistance 0603-47kΩ,SMT resistance 0805-0Ω,SMT resistance 0805-36Ω,SMT resistance 0805-51Ω,SMT resistance 0805-75Ω,SMT resistance 0805-82Ω,SMT resistance 0805-130Ω,SMT resistance 0805-150Ω,SMT resistance 0805-9.1kΩ ,SMT resistance 1206-0Ω,SMT resistance 1206-16Ω,SMT resistance 1206-30Ω,SMT resistance 1206-47Ω,SMT resistance 1206-51Ω,SMT resistance 1206-82Ω,SMT resistance 1206-100Ω,SMT resistance 1206-130Ω,SMT resistance 1206-100Ω,SMT resistance 1206-2kΩ,SMT resistance 1206-5.1kΩ,SMT resistance 2010-51Ω,SMT resistance 2010-100Ω,SMT resistance CZ12010T0050GBK,Load line 0603-3.9pF,NP0,50V,±0.25pF,SMT Capacitance 0603-5.6pF,250V,251R14S5R6CV4Y,SMT Capacitance 0603-8.2pF,250V,251R14S8R2CV4Y,SMT Capacitance 0603-10pF,50V,0603NPO100JT2AT,SMT Capacitance 0603-15pF,NPO,50V,±5%,SMT Capacitance 0603-33pF,C0G,50V,±5%,SMT Capacitance 0603-3300pF,GRM188R71H332KA01D,SMT Capacitance 0603-1μF,X7R,10V,±10%,SMT Capacitance 0603-0.01uF,50V,C0603X103K500WT,SMT Capacitance 0603-0.1μF,X7R,25V,±10%,SMT Capacitance 0603-1pF,NP0,50V,±0.25pF,SMT Capacitance 0603-3.0pF,250V,251R14S3R0BV4,Microwave Capacitance 0603-3.3pF,NP0,50V,±0.25pF,SMT Capacitance 0603-4.7pF,NP0,50V,±0.25pF,SMT Capacitance 0603-47pF,GRM1885C1H470JA01D,SMT Capacitance 0603-100pF,50V,C0603CG101J500WT,SMT Capacitance 0603-1000pF,X7R,50V,±10%,SMT Capacitance 0805-0.5pF,600F0R5BT250XT,Microwave Capacitance 0805-0.8pF,600F3R3BT250XT,Microwave Capacitance 0805-3.9pF,600F3R9CT250XT,Microwave Capacitance 0805-4.7pF,600F4R7CT250XT,Microwave Capacitance 0805-33pF,600F3R9CT250XT,Microwave Capacitance 600F5R1BT250XT,5.1pF,Microwave Capacitance 0805-5.6pF,600F5R6BT250XT,Microwave Capacitance 0805-5.6pF,600F6R8JT250XT,Microwave Capacitance 0805-8.2pF,600F8R2BT250XT,Microwave Capacitance 0805-15pF,600F150JT250XT,Microwave Capacitance 0805-33pF,600F330JT250XT,Microwave Capacitance 0805-47pF,600F470JT250XT,Microwave Capacitance 0805-1000pF,SMT Capacitance 0805-0.01μF,X7R,50V,±10%,SMT Capacitance 0805-0.47uF,GRM21BR71C474KA01L,SMT Capacitance 0805-2.2uF10V,GRM21BR71A225MA01LSMT Capacitance 0805-3.0pF,600F3R0BT250XT,Microwave Capacitance 0805-10pF,600F100JT250XT,Microwave Capacitance 1206-0.01uF100V,C1206C103K1RACTU,SMT Capacitance 1206-0.1uF,100V,C1206C104K1RACTU,SMT Capacitance 1206-4.7uF,X5R,25V,±10%,SMT Capacitance 1210-1uF,100V,12101C105KAT2A,SMT Capacitance 1210-10uF/50V,C3225X7S1H106K,SMT Capacitance 10uF,50V,TDKC5750X7R1H106M,SMT Capacitance 47uF/50V,EEE-FK1H470XP,Capacitance 100μF/50V,EEE-FK1H101pF,SMT Capacitance 0603-3.9nH,±10%,SMT Inductor 0603-4.3nH,±5%,SMT Inductor 0603-6.8nH,±5%,SMT Inductor 0603-8.2nH,±10%,SMT Inductor 0603-10nH,±5%,SMT Inductor 0603-22nH,ELJ-RE22NJFA,SMT Inductor 0603-33nH,±5%,SMT Inductor 0603-68nH,±2%,SMT Inductor 0603-82nH,±2%,SMT Inductor 0603-100nH,SMT Inductor 0603-220nH,SMT Inductor 0805-68nH,±5%,SMT Inductor 0805-22nH,±5%,SMT Inductor MSS7341-473ML,47uH,SMT Inductor 1G1304-30,30dB SMT coupler HMC483,Mixer 20MHz-T3000,clock oscillator
BOM 0603-0Ω,SMT resistance 0603-12Ω,SMT resistance 0603-18Ω,SMT resistance 0603-24Ω,SMT resistance 0603-51Ω,SMT resistance 0603-62Ω,SMT resistance 0603-75Ω,SMT resistance 0603-100Ω,SMT resistance 0603-150Ω,SMT resistance 0603-220Ω,SMT resistance 0603-240Ω,SMT resistance 0603-300Ω,SMT resistance 0603-330Ω,SMT resistance 0603-360Ω,SMT resistanc…
