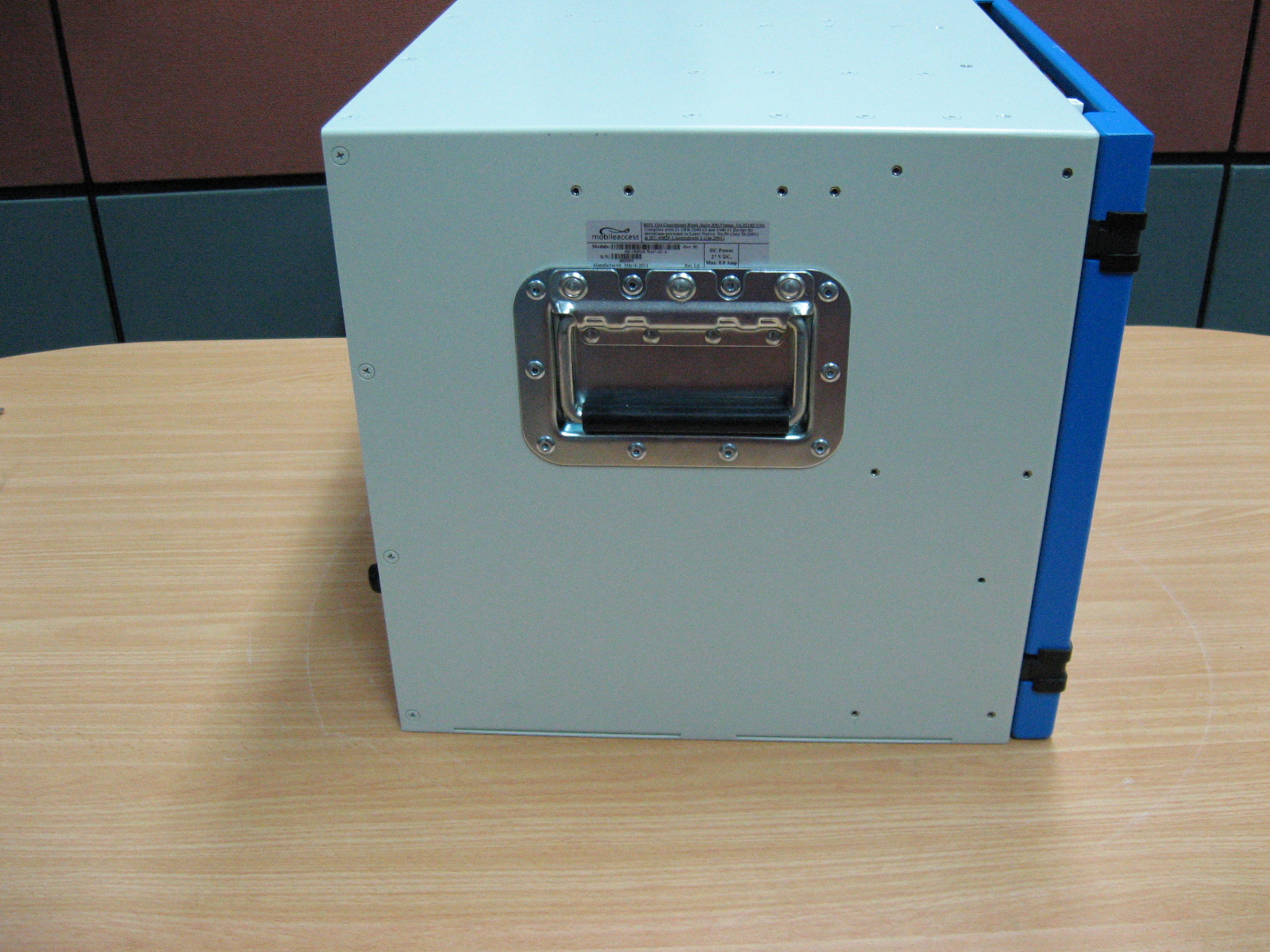

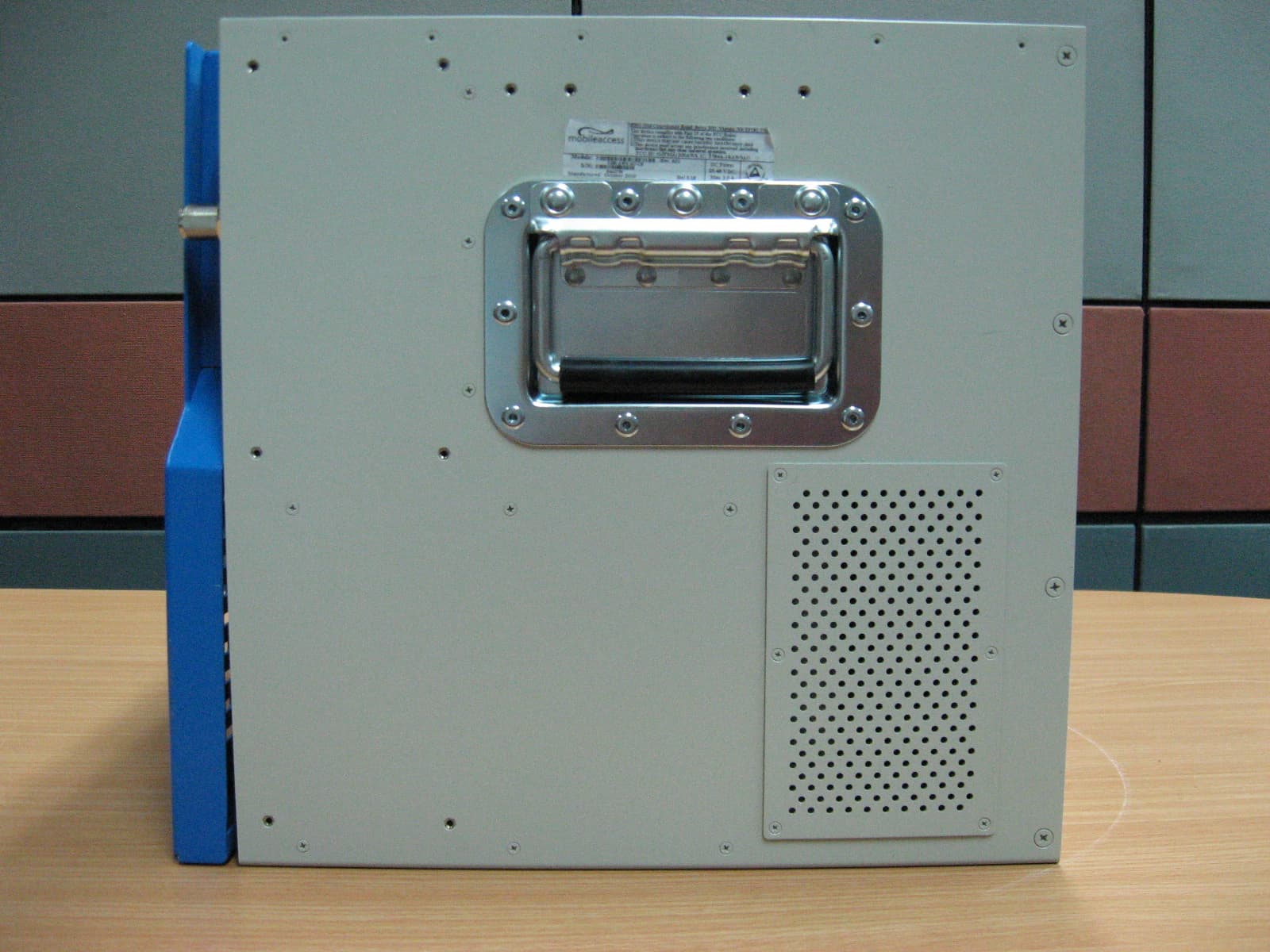

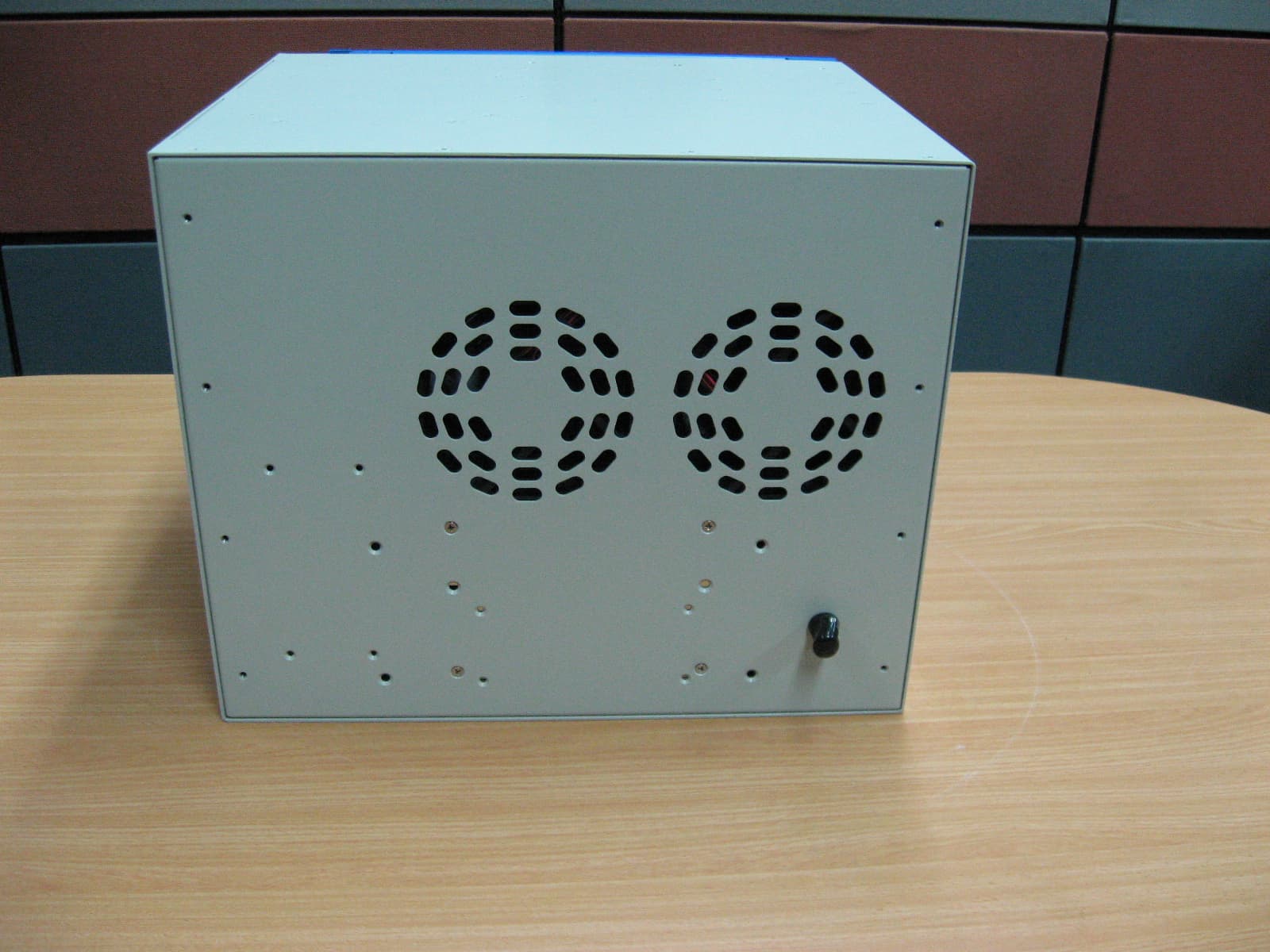

OJFHXA17L70HX HIGH POWER DAS REMOTE UNIT AWS/LTE

MobileAccessHX High Power DAS System Installation and Configuration Guide P/N: 709C006801 REV: A0 Date: 19-MAY-11 Preface MobileAccessHX Installation and Configuration Guide II MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 http://www.MobileAccess.com © COPYRIGHT 2011, MOBILEACCESS NETWORKS INC. ALL RIGHTS RESERVED. M OBILEACCESS IS A REGISTERED TRADEMARK OF MOBILEACCESS. THIS DOCUMENT CONTAINS OTHER TRADEMARKS, TRADE NAMES AND SERVICE MARKS OF MOBILEACCESS AND OTHER ORGANIZATIONS, ALL OF WHICH ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. T HIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF MOBILEACCESS AND MAY NOT BE COPIED, TRANSMITTED, STORED IN A RETRIEVAL SYSTEM OR REPRODUCED IN ANY FORMAT OR MEDIA , IN WHOLE OR IN PART, WITHOUT THE PRIOR WRITTEN CONSENT OF MOBILEACCESS. INFORMATION CONTAINED IN THIS DOCUMENT SUPERSEDES ANY PREVIOUS MANUALS, GUIDES, SPECIFICATIONS, DATA SHEETS OR OTHER INFORMATION THAT MAY HAVE BEEN PROVIDED OR MADE AVAILABLE TO THE USER . T HIS DOCUMENT IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY, AND MOBILEACCESS DOES NOT WARRANT OR GUARANTEE THE ACCURACY, ADEQUACY , QUALITY, VALIDITY, COMPLETENESS OR SUITABILITY FOR ANY PURPOSE OF THE INFORMATION CONTAINED IN THIS DOCUMENT. MOBILEACCESS RESERVES THE RIGHT TO MAKE UPDATES, IMPROVEMENTS AND ENHANCEMENTS TO THIS DOCUMENT AND THE PRODUCTS TO WHICH IT RELATES AT ANY TIME WITHOUT PRIOR NOTICE TO THE USER . MOBILEACCESS MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THIS DOCUMENT OR ANY INFORMATION CONTAINED HEREIN. Preface MobileAccessHX Installation and Configuration Guide III Policy for Warrantee and Repair MOBILEACCESS TESTS AND INSPECTS ALL ITS PRODUCTS TO VERIFY THEIR QUALITY AND RELIABILITY. MOBILEACCESS USES EVERY REASONABLE PRECAUTION TO ENSURE THAT EACH UNIT MEETS THEIR DECLARED SPECIFICATIONS BEFORE SHIPMENT . CUSTOMERS SHOULD ADVISE THEIR INCOMING INSPECTION , ASSEMBLY, AND TEST PERSONNEL ABOUT THE PRECAUTIONS REQUIRED IN HANDLING AND TESTING OUR PRODUCTS. MANY OF THESE PRECAUTIONS CAN BE FOUND IN THIS MANUAL . T HE PRODUCTS ARE COVERED BY THE FOLLOWING WARRANTIES: General Warranty MOBILEACCESS WARRANTS TO THE ORIGINAL PURCHASER ALL STANDARD PRODUCTS SOLD BY MOBILEACCESS TO BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP FOR ONE (1) YEAR FROM DATE OF SHIPMENT FROM MOBILEACCESS. DURING THE WARRANTY PERIOD, MOBILEACCESS WILL REPAIR OR REPLACE ANY PRODUCT THAT MOBILEACCESS PROVES TO BE DEFECTIVE. THIS WARRANTY DOES NOT APPLY TO ANY PRODUCT THAT HAS BEEN SUBJECT TO ALTERATION , ABUSE, IMPROPER INSTALLATION OR APPLICATION, ACCIDENT, ELECTRICAL OR ENVIRONMENTAL OVER -STRESS, NEGLIGENCE IN USE, STORAGE, TRANSPORTATION OR HANDLING. Specific Product Warranty Instructions ALL MOBILEACCESS PRODUCTS ARE WARRANTED AGAINST DEFECTS IN WORKMANSHIP, MATERIALS AND CONSTRUCTION, AND TO NO FURTHER EXTENT . ANY CLAIM FOR REPAIR OR REPLACEMENT OF UNITS FOUND TO BE DEFECTIVE ON INCOMING INSPECTION BY A CUSTOMER MUST BE MADE WITHIN 30 DAYS OF RECEIPT OF SHIPMENT, OR WITHIN 30 DAYS OF DISCOVERY OF A DEFECT WITHIN THE WARRANTY PERIOD. THIS WARRANTY IS THE ONLY WARRANTY MADE BY MOBILEACCESS AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MOBILEACCESS SALES AGENTS OR REPRESENTATIVES ARE NOT AUTHORIZED TO MAKE COMMITMENTS ON WARRANTY RETURNS. Returns IN THE EVENT THAT IT IS NECESSARY TO RETURN ANY PRODUCT AGAINST ABOVE WARRANTY, THE FOLLOWING PROCEDURE SHALL BE FOLLOWED: 1. RETURN AUTHORIZATION IS TO BE RECEIVED FROM MOBILEACCESS PRIOR TO RETURNING ANY UNIT. ADVISE MOBILEACCESS OF THE MODEL, SERIAL NUMBER , AND DISCREPANCY. THE UNIT MAY THEN BE FORWARDED TO MOBILEACCESS, TRANSPORTATION PREPAID. DEVICES RETURNED COLLECT OR WITHOUT AUTHORIZATION MAY NOT BE ACCEPTED . 2. PRIOR TO REPAIR, MOBILEACCESS WILL ADVISE THE CUSTOMER OF OUR TEST RESULTS AND ANY CHARGES FOR REPAIRING CUSTOMER-CAUSED PROBLEMS OR OUT -OF-WARRANTY CONDITIONS ETC. 3. REPAIRED PRODUCTS ARE WARRANTED FOR THE BALANCE OF THE ORIGINAL WARRANTY PERIOD, OR AT LEAST 90 DAYS FROM DATE OF SHIPMENT . Limitations of Liabilities MOBILEACCESS'S LIABILITY ON ANY CLAIM, OF ANY KIND, INCLUDING NEGLIGENCE FOR ANY LOSS OR DAMAGE ARISING FROM, CONNECTED WITH, OR RESULTING FROM THE PURCHASE ORDER , CONTRACT, QUOTATION, OR FROM THE PERFORMANCE OR BREACH THEREOF, OR FROM THE DESIGN, MANUFACTURE , SALE, DELIVERY, INSTALLATION, INSPECTION, OPERATION OR USE OF ANY EQUIPMENT COVERED BY OR FURNISHED UNDER THIS CONTACT , SHALL IN NO CASE EXCEED THE PURCHASE PRICE OF THE DEVICE WHICH GIVES RISE TO THE CLAIM. EXCEPT AS EXPRESSLY PROVIDED HEREIN, MOBILEACCESS MAKES NO WARRANTY, EXPRESSED OR IMPLIED, WITH RESPECT TO ANY GOODS, PARTS AND SERVICES PROVIDED IN CONNECTION WITH THIS AGREEMENT INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. MOBILEACCESS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE GOODS, PARTS AND SERVICE. Preface MobileAccessHX Installation and Configuration Guide IV Reporting Defects THE UNITS WERE INSPECTED BEFORE SHIPMENT AND FOUND TO BE FREE OF MECHANICAL AND ELECTRICAL DEFECTS. E XAMINE THE UNITS FOR ANY DAMAGE THAT MAY HAVE BEEN CAUSED IN TRANSIT. IF DAMAGE IS DISCOVERED, FILE A CLAIM WITH THE FREIGHT CARRIER IMMEDIATELY . NOTIFY MOBILEACCESS AS SOON AS POSSIBLE. RF Safety NOTE: KEEP ALL PACKING MATERIAL UNTIL YOU HAVE COMPLETED THE INSPECTION WARNING: TO COMPLY WITH FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, ANTENNAS USED FOR THIS PRODUCT MUST BE FIXED MOUNTED ON INDOOR PERMANENT STRUCTURES, PROVIDING A SEPARATION DISTANCE OF AT LEAST 80 CM FROM ALL PERSONS DURING NORMAL OPERATION. WARNING:…

Text truncated - open the document above for the full version.

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 19 May 2011 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: OJFHXA17L70 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, MobileAccess Networks hereby requests long-term confidential treatment of information accompanying this application as outlined below: CONF APPENDIX HX High Power DAS Remote Unit AWS LTE BlkDia.pdf CONF APPENDIX HX High Power DAS Remote Unit AWS LTE PartsLst.pdf CONF APPENDIX HX High Power DAS Remote Unit AWS LTE Schem.pdf The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

To: Timco Engineering From: David Shidlowsky Att: Reviewing Engineer Reference No: L106911.00 Date: 19 May 2011 Subject: FCC ID Application for HX HIGH Power DAS Remote Unit AWS/LTE Configuration, FCC ID: OJFHXA17L70 To Whom it may Concern, 1. The subject unit is a hardware de-populated version of the Full Configuration HX HIGH Power DAS Remote Unit FCC ID: OJFHXC85P19L70A17. 2. Due to the above, the block diagram, schematics, and parts list exhibits submitted with this application as the same as the ones submitted for the application of the full configuration application. 3. RF output power listed in item 14 of Form 731, is for all modulations tested per frequency band. Regards David Shidlowsky Technical Writer ITL EMC/ Radio Laboratory Manager ITL (Product Testing) Ltd. Kfar Bin Nun/Lod Israel Tel: +972-8-918-6113 Fax: +972-8-915-3101 Email: [email protected] http://www.itl.co.il I.T.L (PRODUCT TESTING) Ltd. PRODUCT SAFETY, EMC & TELECOMS LAB. Bat-Sheva St., POB 87 LOD 71100 ISRAEL Tel. 972-8-9186100 Fax. 972-8-9153101 Email: [email protected], Web Site: http://www.itl.co.il

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 19 May 2011 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL ) to sign Form 731 on our behalf regarding the FCC ID Certification Process for the following application: FCC ID: OJFHXA17L70 Thank you, Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 19 May 2011 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL ) to act on our behalf regarding the FCC ID Certification Process for the following application: FCC ID: OJFHXA17L70 Thank you, Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

2)This device must accept any interference received , This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1)This device may not cause harmful interference ,and operation. including interference that may cause undesired FCC ID:OJFHXA17L70

MobileAccessHX Operational Description 1 MobileAccessHX High Power DAS System Operational Description System Monitoring and Management MobileAccessHX Operational Description 2 1.1 System Monitoring and Management The MobileAccessHX Remote Unit is centrally managed via the MobileAccess SC-450 Controller. Note that MobileAccessHX is not connected directly to the controller. It is connected to the Base Unit (that is connected to the controller). Thus, the controller monitors views and manages the HX via the Base Unit to which the HX is connected. The following shows the Config(uration) tab of the selected HX unit. The system configuration and management is described in Chapter Error! Reference source not found.‎4. 1.2 HX Unit Interfaces The HX antenna port is located externally. All other interfaces such as F/O connections, power connections, etc. are located inside the cabinet and are accessed by opening the cabinet door. The HX model consists of the following main components – open door view:  Quad-band Service Module – connects to the Base Unit using a single fiber pair and supports up to four services  External Amplifiers blade – 2 External Amplifiers are mounted on each of the 2 blades and provide the additional amplification on the DL signals coming from the Quad-band Service Module top the Multiplexer HX Unit Interfaces MobileAccessHX Operational Description 3  8:1 Multiplexer – combines UL & DL signals of the 4 bands, while providing the proper filtering, into a single duplexed antenna port  Power supply – local AC or Remote DC power feed (model depended)  Duplexed antenna port – interface to RF antennas Note: More information on the components and LEDs is provided in the tables in the next page. Figure ‎0-1. Example of Indoor HX Remote Unit Open front View MobileAccess Quad-band Service Module (supports up to four services) AC power 8:1 Multiplexer Duplexed antenna port DC power Fiber optic port External Amplifiers blade HX Unit Interfaces MobileAccessHX Operational Description 4 Figure ‎0-4. Example of Indoor HX Remote Unit rear View The following tables provide a description of the HX indoor type connectors and LEDs. Table ‎0-1. Connector Descriptions Connector Description F/O SC/APC fiber-optic connector for either SM or MM fibers Antenna N-Type female 50Ω duplexed connector for RF antenna AC PWR 110/220 VAC power feed DC Direct 48VDC power feed RS-232 Local craft connector Grounding Grounding lug Table ‎0-2. LED Descriptions Name Description Color Status Power Device is powered GREEN Steady On Power not supplied to the unit GREEN Off Comm When connected and discovered by an OPTM (BU) GREEN Blink per communication attempt When device is powered on but no external communication is received GREEN Steady Slow Blink Link No Optical link is present GREEN Off Low optical link level from OPTM GREEN Blink Normal optical link level from OPTM GREEN Steady On Grounding lug Fans holes Wall mount brackets Connections MobileAccessHX Operational Description 5 1.3 Connections The HX main connections consist of the following:  RF antenna  Fiber Optic connection  Power connections Connect the HX Indoor unit as follows 1. Connect broadband ANTENNA coax to HX cabinet DUPLEXED ANTENNA port (external). 2. OPEN cabinet door. 3. Connect F/O cables to RHU optic port (internal). NOTE: Keep in mind the rules for handling and connecting F/O cables. The F/O cables will be connected to the associated BU in the communication room at a later phase.  Install splice box near Remote Cabinet.  Connect fiber optic cable to splice box and the SC/APC pigtails to the HX RHU module. Duplexed RF antenna port Fiber optic port on HX RHU module AC power Location of DC power Figure ‎0-2. HX connections Connections MobileAccessHX Operational Description 6  For the downlink, connect the fiber optic cable pigtails from splice box coming from the BU port to the corresponding RU port (routing the optic fibers so they will fit through the top opening in the door.)  For the uplink, connect the fiber optic cable pigtails from splice box from the RU (routing the optic fibers so they will fit through the top opening in the door), to the uplink port that connects to the BU. Note: The internal power connections and other connections should already be connected. 4. Connect AC (cable supplied) or DC power according to your MODEL. (Unit should power-ON). 5. Verify that the RHU LEDs are GREEN:  PWR and Link: Steady Green  COMM: Blinking Green If the LEDs are not as described above, refer to HX Unit Interfaces for troubleshooting. 6. Route the fiber optic cables toward the TOP of the cabinet and the power cable towards the bottom. Figure ‎0-3. Closed HX Cabinet with Routed Cables 7. Close the cabinet door, routing the corresponding cables through the top and bottom openings and lock the door. Cabinet lock Routed fiber optic cable Route power cable from under Initial Controller Setup MobileAccessHX Operational Description 7 1.4 Initial Controller Setup NOTE: The available tabs and options may vary depending on the access level used to open your session. This section provides the details on the basic setup and configuration of the SC-450 management interface. It is to be completed after the physical installation of the controller and connections to the relevant devices has been completed. 1.4.1 Open a Session to the Controller 1. Verify you computer is configured for a DHCP server: NOTE: The procedure may differ depending on your specific Windows OS. a. In the Local Area Connections choose Properties. b. Select Internet Protocol (TCP/IP) Connection, choose Properties and define for DHCP and automatic DNS server address acquisition as shown in following figure. Click OK. Initial Controller Setup MobileAccessHX Operational Description 8 2. Connect the PC directly to the SC-450 LOCAL port via the supplied cross-cable cable as illustrated below. Warning!!! Do NOT connect the SC-450 LOCAL port to a network as its DHCP server can disr…

Text truncated - open the document above for the full version.

8391 Old Courthouse Road, Suite 300 Vienna, VA 22182 19 May 2011 Declaration Concerning the Mobile Access FCC ID: OJFHXA17L70. No manual tune‐up procedure required. Thank you, Steve Blum Product Manager MobileAccess Networks Inc. Office 541 758-2880 Mobile 541 990-3470

R.F Exposure/Safety Calculation for MobileAccessHX High Power DAS Remote Unit AWS/LTE The E.U.T. is rack or wall mounted. The typical distance between the E.U.T. and the general population is >80 cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements 2 498.01500/ cm mW f= (a) FCC limit at 747.0 MHz is: 2 1 cm mW FCC limit at 2135 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is P t - Transmitted Peak Power (worst case) G- Antenna Gain, dBi T R- Distance from Transmitter (c) Peak power density at worst case continuous transmission: Band Modulation Pt (m W) Antenna type G T (dBi) R ( cm) S AV (m 2 ) W/cm Spec (m 2 ) W/cm LTE W-CDMA 3170 External 10 80 0.394 0.498 QPSK 3565 External 10 80 0.443 0.498 16QAM 3614 External 10 80 0.449 0.498 64QAM 3459 External 10 80 0.430 0 .498 AWS CDMA 3741 External 10 80 0.465 1.0 W-CDMA 3027 External 10 80 0.376 1.0 2 4R GP tt π S=

Test Report E106915.00 Mobile Access Networks Page 1 of 138 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 19 May 2011 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Mobile Access Networks Equipment under test: Mobile AccessHX High-Power DAS Remote Unit HX-A17L70-AC-A (A17=AWS; L70=LTE) Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ A. Sharabi, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E106915.00 Mobile Access Networks Page 2 of 138 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Mobile Access Networks Mobile AccessHX High-Power DAS Remote Unit HX-A17L70-AC-A (A17=AWS; L70=LTE) FCC ID: OJFHXA17L70 This report concerns: Original Grant: X Class II change: Class I change: Equipment type: PCS Licensed Transmitter Limits used: 47CFR Parts 2; 27 Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-C: 2004 Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Steve Blum ITL (Product Testing) Ltd. Mobile Access Networks Kfar Bin Nun 8391 Old Courthouse Rd., Suite #300 D.N. Shimshon 99780 Vienna, VA. 22182 Israel U.S.A. e-mail [email protected] Tel: +1-541-758-2880 Fax: +1-703-848-0260 e-mail: [email protected] TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 8 1.5 Test Facility ....................................................................................................... 8 1.6 Measurement Uncertainty ................................................................................. 8 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 9 2.1 Justification ........................................................................................................ 9 2.2 EUT Exercise Software ................................................................................... 10 2.3 Special Accessories ........................................................................................ 10 2.4 Equipment Modifications ................................................................................. 10 2.5 Configuration of Tested System ...................................................................... 11 3. TEST SET-UP PHOTOS ----------------------------------------------------------------------------------12 4. RF POWER OUTPUT LTE -------------------------------------------------------------------------------13 4.1 Test Specification ............................................................................................ 13 4.2 Test procedure ................................................................................................ 13 4.3 Results............................................................................................................. 20 4.4 Test Equipment Used. ..................................................................................... 21 5. OCCUPIED BANDWIDTH LTE -------------------------------------------------------------------------22 5.1 Test Specification ............................................................................................ 22 5.2 Test Procedure ................................................................................................ 22 5.3 Results............................................................................................................. 35 5.4 Test Equipment Used. ..................................................................................... 36 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS LTE ------------------------------------37 6.1 Test Specification ............................................................................................ 37 6.2 Test procedure ................................................................................................ 37 6.3 Results............................................................................................................. 74 6.4 Test Equipment Used. ..................................................................................... 75 7. BAND EDGE SPECTRUM LTE ------------------------------------------------------------------------76 7.1 Test Specification ............................................................................................ 76 7.2 Test procedure ................................................................................................ 76 7.3 Results............................................................................................................. 81 7.4 Test Equipment Used. ..................................................................................... 82 8. SPURIOUS RADIATED EMISSION LTE -------------------------------------------------------------83 8.1 Test Specification ............................................................................................ 83 8.2 Test Procedure ................................................................................................ 83 8.3 Test Results .................................................................................................... 83 8.4 Test Instrumentation Used, Radiated Measurements .................................... 85 9. RF POWER OUTPUT AWS…

Text truncated - open the document above for the full version.
