OJFLITENNA009A400In-Building RF Distribution System

FCC ID: OJFLITENNA009A400 EXHIBIT 3. Page 1 EXHIBIT 3. INSTALLATION AND OPERATING INSTRUCTIONS. FCC ID: OJFLITENNA009A400 EXHIBIT 3. Page 2 The following is a copy of Installation and Operating Instructions of Litenna™ Models 9A410, 9A420, 9A430.

August 3, 2000FCC ID: OJFLITENNA009A400 EXHIBIT 1. Page 1 EXHIBIT 1. COVER LETTER. August 3, 2000FCC ID: OJFLITENNA009A400 EXHIBIT 1. Page 2 TO: Federal Communications Commission ATTN: Jaunice Green, Application Processing Branch FROM: Foxcom Wireless Ltd. DATE: August 3, 2000 ______________________________________________________________________ Subject: Litenna™ Models 9A410, 9A420, 9A430, Form 731 Confirmation Number EA98376 . 1. Litenna™ Models 9A410, 9A420, 9A430 is subject to FCC authorization by certification procedure pursuant 47CFR Sections 2.1031 through 2.1043. 2. Please find attached Exhibits 2 through 9 in accordance with the following list: EXHIBIT 2. IDENTIFICATION LABEL ----- Pursuant 47CFR 2.983(f) EXHIBIT 3. INSTALLATION AND OPERATING INSTRUCTIONS ----- Pursuant 47CFR 2.1033(3). EXHIBIT 4. DESCRIPTION OF THE CIRCUIT FUNCTIONS AND BLOCK DIAGRAM ----- Pursuant 47CFR 2.1033(b)(4).and 47CFR 2.1033(b)(5). EXHIBIT 5. SCHEMATIC DIAGRAMS AND ACTIVE PARTS LIST ----- Pursuant 47CFR 2.1033(4) and 2.983(d)(6). EXHIBIT 6. MEASURED DATA ON CONDUCTED AND RADIATED EMISSIONS ------ Pursuant 47CFR 2.1033(6). ........................................................................................ a) POWER LINE CONDUCTED EMISSIONS ------ Pursuant 47 CFR 15.107. b) RADIATED FIELD EMISSIONS ------ Pursuant 47 CFR 15.109. EXHIBIT 7. Radiated Power and Antenna Height Limits ------ Pursuant 47 CFR 24.232. and Unwanted Emissions ------ Pursuant 47 CFR 24.236. EXHIBIT 8. PHOTOGRAPHS OF THE LITENNA™ MODELS 9A410, 9A420, 9A430 - EXTERNAL VIEW ------ Pursuant 47 CFR 2.975(a)(5). EXHIBIT 9. PHOTOGRAPHS OF THE LITENNA™ MODELS 9A410, 9A420, 9A430.-INTERNAL VIEW. ------ Pursuant 47 CFR 2.975(a)(5). August 3, 2000FCC ID: OJFLITENNA009A400 EXHIBIT 1. Page 3 3. Pursuant to 47CFR Sections 0.457 and 0.459, we hereby request for the confidentiality of the following exhibits: EXHIBIT 4. DESCRIPTION OF THE CIRCUIT FUNCTIONS AND BLOCK DIAGRAM EXHIBIT 5. SCHEMATIC DIAGRAMS AND ACTIVE PARTS LIST EXHIBIT 10. PHOTOGRAPHS OF THE LITENNA™ MODELS 9A410, 9A420, 9A430.-INTERNAL VIEW. Sincerely yours, Shlomo Cohen, Q.A Manager

Ofek One Center, Building B, Northern Industrial Zone, Lod 71293, ISRAEL • Tel 972-8-918-3888 • Direct Tel 972-8-918-3818 • Fax 972-8-918-3844 E-mail: [email protected] August 9, 2000 Federal Communication Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A Re: Applicant Name: Foxcom Wireless Ltd. FCC ID: OJFLITENNA009A400 Confirmation Number: EA98376 Dear Madam / Gentlemen On August 8, 2000, the Company has filed an application via the internet including ten exhibit. Exhibit1, the index, enclosed hereby. On August 7, 2000, ISRAEL DISCOUNT BANK LTD. Transferred $610, the application’s fee, to MELLON BANK (enclosed hereby). The Company has sent by mail FCC-159 form which is enclosed hereby. Please confirm the reception of the letter by fax namber: 972-8-9183844 attention: Shlomo Cohen or send E-mail to [email protected]. Best Regards, Shlomo Cohen Quality Assurance Manager

PAUL R. WATKINS (I89 9 – I 97 3) DANA LATHAM (I898 - I97 4) CHICAGO OFFIC E S EA RS TOWER, SUITE 5800 CHICAGO, ILLINOIS 60606 PHONE (3I2) 876-7700, FA X 993-9767 HONG KON G OFFICE 20TH FLOOR STAN DARD CHARTERED BANK BU ILDING 4 DES VOEU X ROA D CEN TRA L, HONG KON G PHONE +852-2522-7886, FA X 2522-7006 LON DON OFFICE 99 BI SHOPS GA TE, E LEVEN TH FLOO R LON DON EC 2M 3XF ENG LAND PHONE +44-20-77I0-I000, FA X 7374-4460 LO S AN GE LE S O FFICE 633 WES T FIFTH S TRE E T, SUITE 4000 LOS AN GE LE S, C A LIFORNIA 9007I-2007 PHONE (2I3) 485-I234, FA X 89I-8763 MOSCOW OFFICE U LITS A GASHEK A, 7, 9th Floor MOSCOW I23056, RUSS IA PHONE +7-095 785-I234, FA X 785-I235 NEW JERSEY OFFICE ONE NE WA RK CEN TER, I 6th FLOO R NE WA RK , NE W JERSEY 07I0I-3I74 PHONE (973) 639-I234, FA X 639-7298 LATHAM & WATKINS ATTORNEYS AT LAW I00I PENNSYLVANIA AVE., N.W. SUITE I300 WASHINGTON, D.C. 20004-2505 TELEPHONE (202) 637-2200 FAX (202) 637-220I __________ NEW YORK OFFICE 885 TH IRD AVENUE, SUITE I000 NE W YORK , NE W YORK I0022-4802 PHONE (2I2) 906-I200, FA X 75I-4864 ORAN GE COUN TY OFFICE 650 TOWN CEN TE R DRIV E, SUITE 2000 COS TA ME SA, CA LIFORNIA 92626-I925 PHONE (7I4) 540-I235, FA X 755-8290 S AN DIE GO OFFICE 70I " B" S TRE E T, SU ITE 2I00 S AN DIE GO, CA LIFORN IA 92I0I-8I97 PHONE (6I9) 236-I234, FA X 696-74I9 SAN FRANCISCO OFFICE 505 MON TGOM ERY S TREE T, SUITE I900 S AN FRANCISCO, CA LIFORN IA 94III-2562 PHONE (4I5) 39I-0600, FA X 395-8095 S I LICON VA LLEY O FFICE I35 COMM ONWEALTH DRIVE MEN LO PA RK, CA LIFORNIA 94025 PHONE (650) 328-4600, FA X 463-2600 S INGAP O RE OFFIC E 80 RA FFLES P LACE , # I4-20 UOB P LA ZA 2, S INGAP ORE 048624 PHONE +65-536-II6I, FA X 536-II7I TO KY O OFFIC E KANEMATSU BUILDING, 5TH FLOOR 2-I 4-I KYO BASH I, CHUO-KU TOKY O I04-003I, JAPAN PHONE +8I3-5524-I900, FA X 5524-I90I November 16, 2000 F ILE N O . 030531-0000 VIA ELECTRONIC FILING AND FACSIMILE: 301-344-2050 Andrew Leimer Federal Communications Commission Office of Engineering and Technology Laboratory Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Re:Foxcom Wireless Application OJFLITENNA009A400, EA98376 Fee Control No. 0011038315275001 REQUEST FOR CONFIDENTIAL TREATMENT Dear Mr. Leimer: On the FCC Form 731 submitted for the above-referenced application, Foxcom Wireless Ltd. included a request for confidentiality pursuant to 47 C.F.R. §§ 0.457 and 0.459 of the Commission Rules on Item 8 of the application. I understand from my conversations with Bette Taube that there is some question regarding the scope of Foxcom’s confidentiality request on this application. To clear up any confusion, Foxcom requests confidentiality on the following exhibits included as part of its application: Exhibit 4:Description of the Circuit Functions and Block Diagram Exhibit 5:Schematic Diagrams and Active Parts List LATHAM & WATKINS November 16, 2000 Page 2 Exhibit 10:Photographs of the Litenna™ Models 9A410, 9A420, 9A430 – Internal View Foxcom originally requested confidentiality on these three exhibits in its cover letter dated August 3, 2000, filed with the Commission as "Exhibit 1" of the above-referenced application. If the information in these exhibits were made publicly available, Foxcom would suffer substantial competitive injury. See § 0.457(d). I understand that this is the final issue that remains outstanding on this application, and that all other issues, including fees, have been resolved. Please contact me at 202-637-2235 or Shlomo Cohen at [email protected] or 972-8-918-3818 if you have any questions or there is anything else that you need to grant this application. Thank you for your help in this matter. Sincerely yours, /s/ Lee Ann Bambach Lee Ann Bambach of LATHAM & WATKINS cc:Bette Taube Cathy Zatloukal Teresa Baer

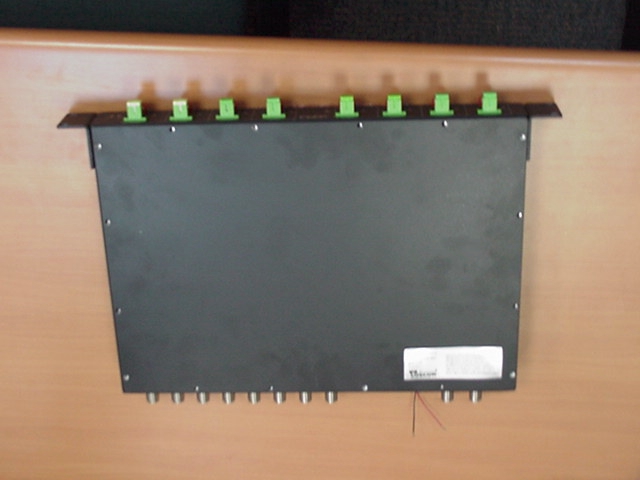

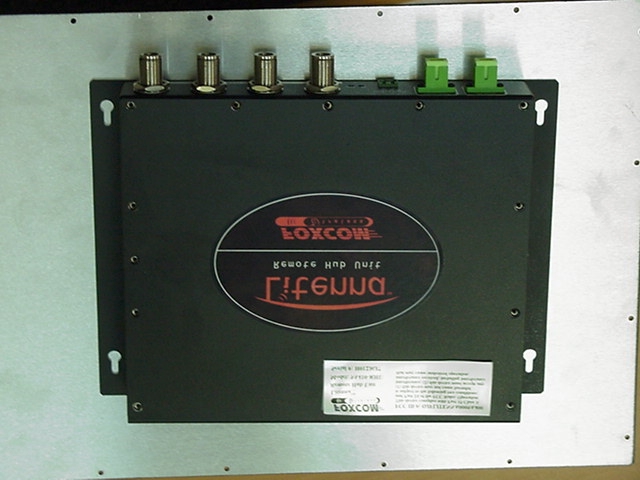

FCC ID: OJFLITENNA009A400 EHXIBIT 9 Page 1 EXHIBIT 9. PHOTOGRAPHS OF THE LITENNA™ MODELS 9A410, 9A420, 9A430 – EXTERNAL VIEW FCC ID: OJFLITENNA009A400 EHXIBIT 9 Page 2 Base Unit FCC ID: OJFLITENNA009A400 EHXIBIT 9 Page 3 FCC ID: OJFLITENNA009A400 EHXIBIT 9 Page 4 Remote Hub Unit FCC ID: OJFLITENNA009A400 EHXIBIT 9 Page 5

FCC ID: OJFLITENNA009A400 EXHIBIT 2. Page 1 EXHIBIT 2. IDENTIFICATION LABEL FCC ID: OJFLITENNA009A400 EXHIBIT 2. Page 2 Pursuant 47CFR Section 2.983(f) see the identification label of Litenna™. Litenna TM Base Unit Model #: 9A410-B8U Serial #: H0123636 FCC ID #: OJFLITENNA009A400 This device complies with Part 15 Class A and Part 24 of the FCC Rules. Operation is s ub je c t to the fo llo wing two c o nd itio ns : (1 ) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Litenna TM Remote Hub Unit Model #: 9A410-RHU Serial #: H0123637 FCC ID #: OJFLITENNA009A400 This device complies with Part 15 Class A and Part 24 of the FCC Rules. Operation is s ub je c t to the fo llo wing two c o nd itio ns : (1 ) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Litenna TM Base Unit Model #: 9A420-B8U Serial #: H0123636 FCC ID #: OJFLITENNA009A400 This device complies with Part 15 Class A and Part 24 of the FCC Rules. Operation is s ub je c t to the fo llo wing two c o nd itio ns : (1 ) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Litenna TM Remote Hub Unit Model #: 9A420-RHU Serial #: H0123637 FCC ID #: OJFLITENNA009A400 This device complies with Part 15 Class A and Part 24 of the FCC Rules. Operation is s ub je c t to the fo llo wing two c o nd itio ns : (1 ) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Litenna TM Base Unit Model #: 9A430-B8U Serial #: H0123636 FCC ID #: OJFLITENNA009A400 This device complies with Part 15 Class A and Part 24 of the FCC Rules. Operation is s ub je c t to the fo llo wing two c o nd itio ns : (1 ) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Litenna TM Remote Hub Unit Model #: 9A430-RHU Serial #: H0123637 FCC ID #: OJFLITENNA009A400 This device complies with Part 15 Class A and Part 24 of the FCC Rules. Operation is s ub je c t to the fo llo wing two c o nd itio ns : (1 ) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Litenna TDMA 1900 Litenna GSM 1900 Litenna CDMA 1900

To: Linda Elliott, FCC Application Processing Branch From: Shlomo Cohen, FOXCOM WIRELESS Re: FCC ID OJFLITENNA009A400 Applicant: Foxcom Wireless Ltd. Correspondence Reference Number: 15586 731 Confirmation Number: EA98376 Date of Original Response: 08/15/2000 The response to your E-Mail, date 08/14/2000. The FCC ID was repaired according Reference Section 2.925(a) of the Rules. Is enclosed updated of Exhibit 2, the identification label of Litenna™. The response for E-Mail of Linda Elliott, FCC Application Processing Branch, date 08/14/2000. EXHIBIT 2. IDENTIFICATION LABEL Pursuant 47CFR Section 2.983(f) see the identification label of Litenna™. Litenna TM Base Unit Model #: 9A410-B8U Serial #: H0123636 FCC ID: OJFLITENNA009A400 This device complies with Part 15 C lass A and Part 24 of the FCC Rules. Operation is sub ject to the fo llowing two co nd itio ns : (1) this de vice ma y no t ca use ha r mful interference. (2) this device must accept any interfere nce rece ived, inc lud ing interfere nce that may cause undesired operation. Litenna TM Remote Hub Unit Model #: 9A410-RHU Serial #: H0123637 FCC ID: OJFLITENNA009A400 This device complies with Part 15 C lass A and Part 24 of the FCC Rules. Operation is s ubje ct to the fo llo wing two co nd itio ns : (1) t his de vic e ma y no t ca use har mfu l interference. (2) this device must accept any interfere nce rece ived, inc lud ing interfere nce that may cause undesired operation. Litenna TM Base Unit Model #: 9A420-B8U Serial #: H0123636 FCC ID: OJFLITENNA009A400 This device complies with Part 15 C lass A and Part 24 of the FCC Rules. Operation is sub ject to the fo llowing two co nd itio ns : (1) this de vice ma y no t ca use ha r mful interference. (2) this device must accept any interfere nce rece ived, inc lud ing interfere nce that may cause undesired operation. Litenna TM Remote Hub Unit Model #: 9A420-RHU Serial #: H0123637 FCC ID: OJFLITENNA009A400 This device complies with Part 15 C lass A and Part 24 of the FCC Rules. Operation is s ubje ct to the fo llo wing two co nd itio ns : (1) t his de vic e ma y no t ca use har mfu l interference. (2) this device must accept any interfere nce rece ived, inc lud ing interfere nce that may cause undesired operation. Litenna TM Base Unit Model #: 9A430-B8U Serial #: H0123636 FCC ID: OJFLITENNA009A400 This device complies with Part 15 C lass A and Part 24 of the FCC Rules. Operation is sub ject to the fo llowing two co nd itio ns : (1) this de vice ma y no t ca use ha r mful interference. (2) this device must accept any interfere nce rece ived, inc lud ing interfere nce that may cause undesired operation. Litenna TM Remote Hub Unit Model #: 9A430-RHU Serial #: H0123637 FCC ID: OJFLITENNA009A400 This device complies with Part 15 C lass A and Part 24 of the FCC Rules. Operation is s ubje ct to the fo llo wing two co nd itio ns : (1) t his de vic e ma y no t ca use har mfu l interference. (2) this device must accept any interfere nce rece ived, inc lud ing interfere nce that may cause undesired operation. Litenna TDMA 1900 Litenna GSM 1900 Litenna CDMA 1900

FCC ID: OJFLITENNA009A400 EXHIBIT 4. Page 1 EXHIBIT 4. DESCRIPTION OF THE CIRCUIT FUNCTIONS AND BLOCK DIAGRAM. FCC ID: OJFLITENNA009A400 EXHIBIT 4. Page 2 The following is a copy of description of the circuit functions and block diagram of Litenna™ Models 9A410, 9A420 and 9A430. Litenna general description The Litenna system is intended to provide the user with a network for the placement of distributed antennas to provide in-building coverage and capacity for cellular telephone services. The system includes two major components, a base unit which interfaces typically with microcell equipment and remote units which are distributed throughout the building and are hubs for antennas. The signals in the forward direction (downlink) from the microcell to the mobile stations (cellular telephones) are carried via optical fiber from the base unit to the remote units. The signals in the reverse direction (uplink) from the mobile to the microcell are similarly carried along a different fiber to the base unit. Functionally, the system behaves as a repeater, with gain/attenuation as appropriate. No signal processing/modification, or RF modulation takes place in the system. The base unit is connected via coaxial cable (and attenuators, splitters...) to the microcell equipment, or an off-air repeater. The remote unit ports connect via coaxial cables to indoor antennae, which we do not supply. The components in the RF system (aside from discrete passives) are amplifiers, splitters/combiners, filters, lasers and photodiodes. There are no oscillators used in the system. The amplifiers are class A bias, except for the output power amplifiers for the downlink, which are class AB bias. The system is designed for the CDMA, TDMA and GSM services (1930-1990 MHz down, 1850-1910 MHz up). For the downlink, the nominal total output power from the antenna ports is 17 dBm per port for Models TDMA and GSM, and the nominal total output power from the antenna ports is 14 dBm per port for Model CDMA. The system is designed for indoor use in public buildings such as offices, shopping malls, etc. FCC ID: OJFLITENNA009A400 EXHIBIT 4. Page 3 Litenna explanation Block Diagram Litenna-in building coverage system The litenna system consist of two part: the base unit that connects to the microcell in one side and in the other it is connected to the remote unit that transmit the signals to the antennas and receive the signal from them. Left side shows the inputs/outputs of the system parts shows the internal structure of the BASE unit. The BASE unit can be consist of two equal boards (for 8 channels). Every board has four courses with optical output, optical input, RF input and common RF in. shows the splitting of the RF input to the BASE unit to every course of the laser circuits that converts the RF signal to a light signal and exits it through the optical fiber to the remote unit. Right side shows the basic structure of the receiver course. A photodiode receive the optic signal and converts it to RF. Then the signal pass trough an Amplifier and exits the unit. shows the basic structure of the REMOTE unit: The photodiode receives the light and converts it back to RF signal. The signal pass trough an amplifier, through a vca (voltage Controlled attenuator), tw o others low power amplifiers and a two way splitter. The signals passes an power amplifiers and duplexer (for separating- between the transmitted signals and the received signals. Then each one of the signal splits again to two signal and we connect the signals to four antennas. In the receive course, we sum the signals from all the four antennas, pass the signal to the receive course, filtering the needed frequencies, controlling the level of the signal through a vca (voltage- controlled attenuator, amplify the signal and convert it to light that passes through the optical fibers to the BASE unit. FCC ID: OJFLITENNA009A400 EXHIBIT 4. Page 4 Optical Fiber BaseRem ote Downlink RF in Uplink RF out 4 Uplink RF out 3 Uplink RF out 2 Uplink RF out 1 Downlink Uplink A tt. 3db A tt. Laser D iode. P hoto D iode. LN A G =15db A tt. 3-20db LN A G =13db LN A G =13db Saw P hoto D iode. LN A G =15db A tt. 3db Splitte r 1:4 D uplexer LN A G =22db A tt. 5-20db LN A G =12.5db Laser D iode. P o rt 1 . P o rt 2 . P o rt 3 . P o rt 4 . P o rt 4 . P o rt 3 . P o rt 2 . P o rt 1 . PA G =30db IP 3=50db Spiltte r 1:4 A tt. 3db Power Supply 18-48Vdc 7V-PA 5V Saw LN A G =12.5db -11 dB G AIN-19 dB G AIN40 dB G AIN 5.5 dB G AIN-19 dB G AIN 20.7dB G AIN

Installation Guide Copyright 1999 Preliminary Document Litenna TM Installation Guide Foxcom Wireless Proprietary Information Document No. 42-93-005-23D 2 Installation Guide Foxcom Wireless Ltd. Ofek One Center Building B Lod, Israel 71293 Tel: +972-8-918-3888 Fax: +972-8-918-3844 Foxcom Wireless Inc. 8150 Leesburg Pike, Suite 600 Vienna, VA 22182 Tel: 703-848-0200 Fax: 703-848-0280 website: www.foxcomwireless.com email: [email protected] This manual contains PROPRIETARY and CONFIDENTIAL information of Foxcom Wireless. Reproduction, release to any third party, or any other unauthorized use, of any information contained herein is expressly prohibited. Litenna Installation GuideTable of Contents Foxcom Wireless Proprietary Information Document No. 42-93-005-23D3 Table of Contents Front Chapter................................ ................................ ................................ ...................... 6 Policy for Warranty and Repair ................................ ................................ .......................... 6 Reporting Defects................................ ................................ ................................ ..............8 Conventions................................ ................................ ................................ ....................... 8 Precautions ................................ ................................ ................................ ........................ 8 Introduction to Litenna................................ ................................ ................................ ..... 10 Litenna TM Models ................................ ................................ ................................ ............ 10 Features................................ ................................ ................................ ........................... 11 Product Drawings................................ ................................ ................................ ............ 12 Required Equipment................................ ................................ ................................ ......... 15 Test Procedures ................................ ................................ ................................ ............... 16 Installation ................................ ................................ ................................ ......................... 20 General Installation................................ ................................ ................................ .......... 20 Fiber Installation ................................ ................................ ................................ ..............21 High Rise Installation................................ ................................ ................................ ....... 25 Horizontal Layout Installation................................ ................................ .......................... 27 Optical and RF Connections ................................ ................................ ............................. 28 Base Unit................................ ................................ ................................ ......................... 28 Remote Hub Unit................................ ................................ ................................ ............. 28 Alarm Monitoring ................................ ................................ ................................ ............. 29 Power Supply for Litenna ................................ ................................ ................................ . 30 Option One................................ ................................ ................................ ......................31 Option Two ................................ ................................ ................................ .....................31 Option Three ................................ ................................ ................................ ...................31 Optical Test Procedure................................ ................................ ................................ ...... 32 Fiberoptic Cable Test................................ ................................ ................................ ....... 32 Fiberoptic Cable – Terms................................ ................................ ................................ . 32 Foxcom Wireless System Characteristics................................ ................................ .......... 37 Fiberoptic Cable Measurement Tests................................ ................................ ................ 37 Optical Insertion Loss Measurement Test ................................ ................................ ........ 38 Optical Return Loss Measurement Test................................ ................................ ............ 40 Results................................ ................................ ................................ ............................. 41 Summary................................ ................................ ................................ ......................... 41 Final Test ................................ ................................ ................................ ........................... 42 Table of ContentsLitenna Installation Guide 4 Document No. 42-93-005-23D Foxcom Wireless Proprietary Information Base Unit and Remote Hub Unit Connections ................................ ................................ .. 42 Maintenance / Mechanical Adjustment................................ ................................ ............ 43 Troubleshooting................................ ................................ ................................ .................43 Appendix A Link Measurements Form ................................ ................................ ............ 45 List of Figures Figure 1 - Base Unit 4 ports................................ ................................ ............................…

Text truncated - open the document above for the full version.

FCC ID: OJFLITENNA009A400 EXHIBIT 6 Page 1 EXHIBIT 6. MEASURED DATA ON CONDUCTED AND RADIATED EMISSIONS. FCC ID: OJFLITENNA009A400 EXHIBIT 6 Page 2 a) POWER LINE CONDUCTED EMISSIONS ------ Pursuant 47 CFR 15.107. Measured data on conducted emissions per 47CFR 15.107 on AC power lines is the subject of Technical Report No.20FOX011F, attached. b) RADIATED EMISSIONS ------ Pursuant 47 CFR 15.109. Measured data on radiated emissions per 47CFR 15.109 is the subject of Technical Report No.20FOX011F, attached. FCC ID: OJFLITENNA009A400 EXHIBIT 6 Page 3 ELECTROMAGNETIC COMPATIBILITY TEST REPORT Company Name: Foxcom Wireless Ltd. Equipment Under Test: Litenna™ Model 1900 MHz TDMA, CDMA and GSM Report I.D.Number: 20FOX011F.DOC Total number of pages (including this page): 25 Date: March 14, 2000 EMI TEST Ltd. EMC Test Laboratory Moshav Hanniel P.O.B.65, D.N.Lev Hasharon, Israel, 42865 Phone:(972) 9-8987382 Fax:(972) 9-8987383 ________________________________________________________________ This report must not be reproduced, except in full, without the written permission of EMI Test Ltd. This report relates only to the items tested. FCC ID: OJFLITENNA009A400 EXHIBIT 6 Page 4 Table of Contents: DescriptionPage 1. General Information. .............................................................................................5 2. Tests Summary. ...................................................................................................6 3. Applicable Documents. .........................................................................................7 4. Detailed Applicable EMC Requirements and Limits. ..............................................8 5. Procedures for Measuring RF Emissions from EUT. ..............................................9 5.1 AC Power line Conducted Emissions Measurements............................................9 5.2 Radiated Emissions Measurements....................................................................10 6. System Test Configuration. .................................................................................11 6.1 Product Description. ..........................................................................................11 6.2 The Tested Configuration...................................................................................12 6.3 Clock frequencies. .............................................................................................13 6.4 Cables Used During the Tests: ..........................................................................13 6.5 Modifications Required for Compliance...............................................................13 7. Description of the Test Site. ................................................................................14 8. List of Test Equipment Used. ..............................................................................15 9. Conducted Emission Data...................................................................................16 10. Radiated Emission Data. ....................................................................................16 11. Results of Conducted Emissions Tests..............................................................17 12. Results of Radiated Emission Tests. ..................................................................17 13. Signatures. ........................................................................................................18 14. Setup Photographs............................................................................................20 Appendix A. Conducted Emission Data .......................................................................21 List of Photographs Photo 1. Test setup, Conducted Emission Test..............................19 Photo 2. Test setup, Radiated Emission Test.................................20 FCC ID: OJFLITENNA009A400 EXHIBIT 6 Page 5 FCC ID: OJFLITENNA009A400 EXHIBIT 6Page 6 1. General Information. Applicant: Foxcom Wireless Ltd. Applicant Address: Ofek One Center Building B, Northern Industrial Zone Lod, Israel 71293 Telephone: 972-8-9183818 FAX: 972-8-9183844 The testing was observed by the following applicant's personnel: Mr. Shlomo Cohen Date of reception for testing: December 24, 1999 Dates of testing: December 24, 1999; February 23, 2000 Test Laboratory Location: EMI TEST Ltd, Moshav Hanniel, P.O.Box 65, D.N.Lev Hasharon, Israel 42865 Equipment Under Test: Litenna™ Model 1900 MHz TDMA, CDMA and GSM Serial Numbers: N/A Mode of Operation: Down-Link Receiving and Transmitting modes Year of Manufacture: 1999 Applicable EMC Specification: Federal Communication Commission (FCC), Code of Federal Regulations 47, Ch. 1 (10-1-97 Edition) Part 15: Radio Frequency Devices, Sections 15.107 & 15.109, Class A FCC ID: OJFLITENNA009A400 EXHIBIT 6Page 7 2. Tests Summary. EMI Test Laboratory has completed testing of Litenna™ Model 1900 MHz TDMA, CDMA and GSM in accordance with the requirements of the FCC Part 15 Regulations for Class A equipment. The EUT has been found to comply with the conducted and radiated emission requirements of the FCC Part 15 Regulations for Class A equipment: Section 15.107:Limits of Mains Terminal Interference Voltage (Conducted Emission) in the 0.45MHz to 30MHz frequency range. Section 15.109:Limits of Radiated Interference Field Strength in the 30MHz to 19,900MHz frequency range. FCC ID: OJFLITENNA009A400 EXHIBIT 6Page 8 3. Applicable Documents. 3.1Federal Communication Commission (FCC), Code of Federal Regulations 47, Ch.1 (10-1-97 Edition), Part 15: Radio Frequency Devices, Sections 15.107 & 15.109. 3.2FCC/OET, Laboratory Measurement Procedures MP-4, July 1987, "FCC Procedures for Measuring RF Emissions from Computing Devices". 3.3FCC/Office of Science and Technology OST-55, August 1982, "Characteristics of Open Field Test Sites". 3.4FCC/OET, "FCC Procedure for Measuring Electromagnetic Emissions from Digital Devices", TP-5, March 1989. 3.5FCC/OET, "Understanding the FCC Regulation…

Text truncated - open the document above for the full version.

EMI Test Report 20FOX011T FCC ID: OJFLITENNA009A400 EHXIBIT 7 Page 1 EXHIBIT 7. MEASURED DATA ON TRANSMITTER RADIATED POWER AND UNWANTED EMISSIONS EMI Test Report 20FOX011T FCC ID: OJFLITENNA009A400 EHXIBIT 7 Page 2 a) Radiated Power and Antenna Height Limits ------ Pursuant 47CFR 24.232 Measured data on Transmitter Output…
