  1. Home/
  2. Corning Optical Communication LLC/
  3. OJFMA2K-CELL-PCSH

OJFMA2K-CELL-PCSHREMOTE HUB UNIT

Corning Optical Communication LLC
REMOTE HUB UNIT - FCC ID OJFMA2K-CELL-PCSH - Corning Optical Communication LLC
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Apr 25, 2010
Application Purpose
Original Equipment
Date of Application
Apr 22, 2010
Equipment Note
REMOTE HUB UNIT
Frequency Range
1930.00000000 - 1995.00000000
Company
Corning Optical Communication LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗
↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

P/N: 709C001208 REV: A0 Date: 08-FEB-09 M M M o o o b b b i i i l l l e e e A A A c c c c c c e e e s s s s s s 2 2 2 0 0 0 0 0 0 0 0 0 S S S y y y s s s t t t e e e m m m Installation and Configuration Guide Preface MA 2000 Installation and Configuration Guide II MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 http://www.MobileAccess.com © COPYRIGHT 2009, MOBILEACCESS NETWORKS INC. ALL RIGHTS RESERVED. M OBILEACCESS™ IS A REGISTERED TRADEMARK OF MOBILEACCESS. THIS DOCUMENT CONTAINS OTHER TRADEMARKS, TRADE NAMES AND SERVICE MARKS OF MOBILEACCESS AND OTHER ORGANIZATIONS, ALL OF WHICH ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. T HIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION OF MOBILEACCESS AND MAY NOT BE COPIED, TRANSMITTED, STORED IN A RETRIEVAL SYSTEM OR REPRODUCED IN ANY FORMAT OR MEDIA , IN WHOLE OR IN PART, WITHOUT THE PRIOR WRITTEN CONSENT OF MOBILEACCESS. INFORMATION CONTAINED IN THIS DOCUMENT SUPERSEDES ANY PREVIOUS MANUALS, GUIDES, SPECIFICATIONS, DATA SHEETS OR OTHER INFORMATION THAT MAY HAVE BEEN PROVIDED OR MADE AVAILABLE TO THE USER . T HIS DOCUMENT IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY, AND MOBILEACCESS DOES NOT WARRANT OR GUARANTEE THE ACCURACY, ADEQUACY , QUALITY, VALIDITY, COMPLETENESS OR SUITABILITY FOR ANY PURPOSE OF THE INFORMATION CONTAINED IN THIS DOCUMENT. MOBILEACCESS RESERVES THE RIGHT TO MAKE UPDATES, IMPROVEMENTS AND ENHANCEMENTS TO THIS DOCUMENT AND THE PRODUCTS TO WHICH IT RELATES AT ANY TIME WITHOUT PRIOR NOTICE TO THE USER . MOBILEACCESS MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THIS DOCUMENT OR ANY INFORMATION CONTAINED HEREIN. Preface MA 2000 Installation and Configuration Guide III Policy for Warrantee and Repair MOBILEACCESS TESTS AND INSPECTS ALL ITS PRODUCTS TO VERIFY THEIR QUALITY AND RELIABILITY. MOBILEACCESS USES EVERY REASONABLE PRECAUTION TO ENSURE THAT EACH UNIT MEETS THEIR DECLARED SPECIFICATIONS BEFORE SHIPMENT . CUSTOMERS SHOULD ADVISE THEIR INCOMING INSPECTION , ASSEMBLY, AND TEST PERSONNEL ABOUT THE PRECAUTIONS REQUIRED IN HANDLING AND TESTING OUR PRODUCTS. MANY OF THESE PRECAUTIONS CAN BE FOUND IN THIS MANUAL . T HE PRODUCTS ARE COVERED BY THE FOLLOWING WARRANTIES: General Warranty MOBILEACCESS WARRANTS TO THE ORIGINAL PURCHASER ALL STANDARD PRODUCTS SOLD BY MOBILEACCESS TO BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP FOR ONE (1) YEAR FROM DATE OF SHIPMENT FROM MOBILEACCESS. DURING THE WARRANTY PERIOD, MOBILEACCESS WILL REPAIR OR REPLACE ANY PRODUCT THAT MOBILEACCESS PROVES TO BE DEFECTIVE. THIS WARRANTY DOES NOT APPLY TO ANY PRODUCT THAT HAS BEEN SUBJECT TO ALTERATION , ABUSE, IMPROPER INSTALLATION OR APPLICATION, ACCIDENT, ELECTRICAL OR ENVIRONMENTAL OVER -STRESS, NEGLIGENCE IN USE, STORAGE, TRANSPORTATION OR HANDLING. Specific Product Warranty Instructions ALL MOBILEACCESS PRODUCTS ARE WARRANTED AGAINST DEFECTS IN WORKMANSHIP, MATERIALS AND CONSTRUCTION, AND TO NO FURTHER EXTENT . ANY CLAIM FOR REPAIR OR REPLACEMENT OF UNITS FOUND TO BE DEFECTIVE ON INCOMING INSPECTION BY A CUSTOMER MUST BE MADE WITHIN 30 DAYS OF RECEIPT OF SHIPMENT, OR WITHIN 30 DAYS OF DISCOVERY OF A DEFECT WITHIN THE WARRANTY PERIOD. THIS WARRANTY IS THE ONLY WARRANTY MADE BY MOBILEACCESS AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MOBILEACCESS SALES AGENTS OR REPRESENTATIVES ARE NOT AUTHORIZED TO MAKE COMMITMENTS ON WARRANTY RETURNS. Returns IN THE EVENT THAT IT IS NECESSARY TO RETURN ANY PRODUCT AGAINST ABOVE WARRANTY, THE FOLLOWING PROCEDURE SHALL BE FOLLOWED: 1. RETURN AUTHORIZATION IS TO BE RECEIVED FROM MOBILEACCESS PRIOR TO RETURNING ANY UNIT. ADVISE MOBILEACCESS OF THE MODEL, SERIAL NUMBER , AND DISCREPANCY. THE UNIT MAY THEN BE FORWARDED TO MOBILEACCESS, TRANSPORTATION PREPAID. DEVICES RETURNED COLLECT OR WITHOUT AUTHORIZATION MAY NOT BE ACCEPTED . 2. PRIOR TO REPAIR, MOBILEACCESS WILL ADVISE THE CUSTOMER OF OUR TEST RESULTS AND ANY CHARGES FOR REPAIRING CUSTOMER-CAUSED PROBLEMS OR OUT -OF-WARRANTY CONDITIONS ETC. 3. REPAIRED PRODUCTS ARE WARRANTED FOR THE BALANCE OF THE ORIGINAL WARRANTY PERIOD, OR AT LEAST 90 DAYS FROM DATE OF SHIPMENT . Limitations of Liabilities MOBILEACCESS'S LIABILITY ON ANY CLAIM, OF ANY KIND, INCLUDING NEGLIGENCE FOR ANY LOSS OR DAMAGE ARISING FROM, CONNECTED WITH, OR RESULTING FROM THE PURCHASE ORDER , CONTRACT, QUOTATION, OR FROM THE PERFORMANCE OR BREACH THEREOF, OR FROM THE DESIGN, MANUFACTURE , SALE, DELIVERY, INSTALLATION, INSPECTION, OPERATION OR USE OF ANY EQUIPMENT COVERED BY OR FURNISHED UNDER THIS CONTACT , SHALL IN NO CASE EXCEED THE PURCHASE PRICE OF THE DEVICE WHICH GIVES RISE TO THE CLAIM. EXCEPT AS EXPRESSLY PROVIDED HEREIN, MOBILEACCESS MAKES NO WARRANTY, EXPRESSED OR IMPLIED, WITH RESPECT TO ANY GOODS, PARTS AND SERVICES PROVIDED IN CONNECTION WITH THIS AGREEMENT INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. MOBILEACCESS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE GOODS, PARTS AND SERVICE. Preface MA 2000 Installation and Configuration Guide IV Reporting Defects THE UNITS WERE INSPECTED BEFORE SHIPMENT AND FOUND TO BE FREE OF MECHANICAL AND ELECTRICAL DEFECTS. E XAMINE THE UNITS FOR ANY DAMAGE THAT MAY HAVE BEEN CAUSED IN TRANSIT. IF DAMAGE IS DISCOVERED, FILE A CLAIM WITH THE FREIGHT CARRIER IMMEDIATELY . NOTIFY MOBILEACCESS AS SOON AS POSSIBLE. NOTE: KEEP ALL PACKING MATERIAL UNTIL YOU HAVE COMPLETED THE INSPECTION WARNING: TO COMPLY WITH FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, ANTENNAS USED FOR THIS PRODUCT MUST BE FIXED MOUNTED ON INDOOR PERMANENT STRUCTURES, PROVIDING A SEPARATION DISTANCE OF …

Text truncated - open the document above for the full version.

Cover Letter(s)

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 14 April 2010 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: OJFMA2K-CELL-PCSH In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, MobileAccess Networks hereby requests long-term confidential treatment of information accompanying this application as outlined below: CONF APPENDIX 2000-CELL-PCSH BlkDia.pdf CONF APPENDIX 2000-CELL-PCSH PartsLst.pdf CONF APPENDIX 2000-CELL-PCSH Schem.pdf The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

Cover Letter(s)

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 14 April 2010 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL ) to act on our behalf regarding the FCC ID Certification Process for the following application: Model: 2000-CELL-PCSH FCC ID: OJFMA2K-CELL-PCSH Thank you, Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

Cover Letter(s)

8391 Old Courthouse Road, Suite 300 Vienna, VA 22182 Date: 14 April 2010 Statement The Mobile Access system does not have a tune-up procedure and all tune-up is controlled at the factory. The product will be completely tuned and tested before it is shipped to customers Thank you, Steve Blum Product Manager MobileAccess Networks Inc. Office 541 758-2880 Mobile 541 990-3470

ID Label/Location Info

2)This device must accept any interference received , This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1)This device may not cause harmful interference ,and operation. including interference that may cause undesired FCC ID: OJFMA2K-CELL-PCSH

Operational Description

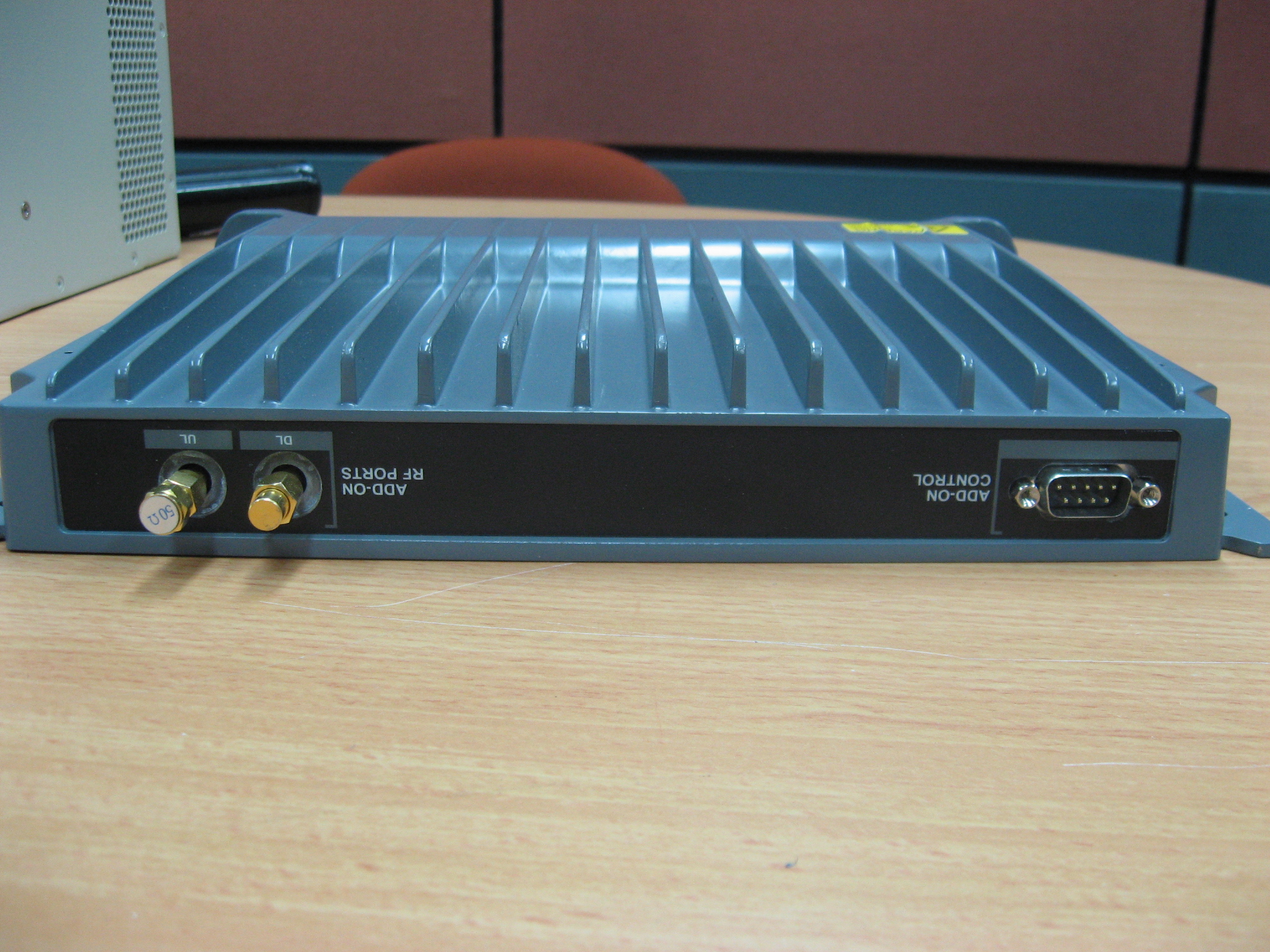

M M A A 2 2 0 0 0 0 0 0 S S y y s s t t e e m m 2 2 K K C C E E L L L L - - P P C C S S H H R R H H U U Operational description RU 2000 Front Panel The RU 2000 front panel contains the fiber optic connections to the BU, four coax connections to the antennas, power connections and status indicators. The RU 2000 front panel contains the fiber optic connections to the BU, four coax connections to the antennas, power connections and status indicators. Figure ‎0-1. RU 2000 Front Panel Figure ‎0-2. RU 2000 Front Panel Table ‎0-1. RU 2000 Front Panel Indicators LED Description COMM Active communication detected LINK Optical link to BU detected PWR DC power connection. 20 to 48VDC Fiber optic BU connections Power connector LEDs MA service connector RF ports 1 to 4 RU 2000 Rear Panel The RU 2000 rear-panel provides the control, RF interface and optic interface ports that enable connecting an MA 1200 add-on unit to the RU 2000 module. Figure ‎0-3. RU 2000 Rear Table ‎0-2. RU 2000 Rear Panel Connectors Add-on control Transmits the control signals from MA 1200 add-on module to the RU 2000 module. The Add-on Control port is connected to the MA 1200 add-on From port. DL, UL Transmit the RF signals to- and from- the MA 1200 add-on module. These ports are connected to the corresponding ports on the MA 1200 rear panel: DL to DL, UL to UL.

RF Exposure Info

Revised R.F Exposure/Safety Calculation for 2000-CELL-PCSH The typical distance between the E.U.T. and the general population is >20 cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements 2 1 cm mW (a) FCC limit at 1960 MHz is: 2 587.01500/ cm mW f= FCC limit at 881.5 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is P t - Transmitted Peak Power (worst case) G T - Antenna Gain ,dBi R- Distance from Transmitter ) Pe(cak power density at worst case continuous transmission: Modulation Pt G T (dBi) ) ) W/cm) (mW) Antenna type R (cm S AV 2 (mW/cm Spec 2 (m W-CDMA 183.65 External 7 20 0.183 1 GSM 124.17 External 7 20 0.124 1 CDMA 136.77 External 7 20 0.136 0.587 2 4R GP tt π S=

Test Report

DATE: 28 April 2010 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Mobile Access Networks Equipment under test: Remote Hub Unit 2000-CELL-PCSH Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ A. Sharabi, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E97280.01 Mobile Access Networks Page 1 of 97 FCC ACC M Ver 1.1 05Mayl 2000 Test Report E97280.01 Mobile Access Networks Page 2 of 97 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Mobile Access Networks Remote Hub Unit FCC ID: OJFMA2K-CELL-PCSH This report concerns: Original Grant: X Class II change: Class I change: Equipment type: PCS Licensed Transmitter Limits used: 47CFR Parts 2; 22, 24 Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-B: 2002 Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Steve Blum ITL (Product Testing) Ltd. Mobile Access Networks Kfar Bin Nun 8391 Old Courthouse Rd., Suite #300 D.N. Shimshon 99780 Vienna, VA. 22182 Israel U.S.A. e-mail [email protected] Tel: +1-541-758-2880 Fax: +1-703-848-0260 e-mail: [email protected] TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 8 1.5 Test Facility ....................................................................................................... 8 1.6 Measurement Uncertainty ................................................................................. 9 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------10 2.1 Justification ...................................................................................................... 10 2.2 EUT Exercise Software ................................................................................... 10 2.3 Special Accessories ........................................................................................ 10 2.4 Equipment Modifications ................................................................................. 10 2.5 Configuration of Tested System ...................................................................... 10 3. TEST SETUP PHOTOS -----------------------------------------------------------------------------------11 4. CONDUCTED EMISSION DATA -----------------------------------------------------------------------13 4.1 Test Specification ............................................................................................ 13 4.2 Test Procedure ................................................................................................ 13 4.3 Measured Data ................................................................................................ 13 4.4 Test Instrumentation Used, Conducted Measurement ................................... 18 5. PEAK OUTPUT POWER CDMA -----------------------------------------------------------------------19 5.1 Test Specification ............................................................................................ 19 5.2 Test procedure ................................................................................................ 19 5.3 Results table .................................................................................................... 21 5.4 Test Equipment Used. ..................................................................................... 22 6. OCCUPIED BANDWIDTH CDMA ----------------------------------------------------------------------23 6.1 Test Specification ............................................................................................ 23 6.2 Test Procedure ................................................................................................ 23 6.3 Results Table .................................................................................................. 26 6.4 Test Equipment Used. ..................................................................................... 27 7. OUT OF BAND EMISSIONS AT ANTENNA TERMINALS CDMA ----------------------------28 7.1 Test Specification ............................................................................................ 28 7.2 Test procedure ................................................................................................ 28 7.3 Results table .................................................................................................... 37 7.4 Test Equipment Used. ..................................................................................... 38 8. BAND EDGE SPECTRUM CDMA ---------------------------------------------------------------------39 8.1 Test Specification ............................................................................................ 39 8.2 Test procedure ................................................................................................ 39 8.3 Results table .................................................................................................... 40 8.4 Test Equipment Used. ..................................................................................... 41 9. OUT OF BAND EMISSIONS (RADIATED) CDMA ------------------------------------------------42 9.1 Test Specification ................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Dana Whitney(Director of Operations and Program)
[email protected]817-431-7894Fax: 817-431-7894

Test Firm

Israel Testing LaboratoriesIIan Cohen
[email protected]972-3-5339022Fax: 972-3-5339019

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
324E1.93 GHz - 2.00 GHz124.00 mWGXWAmp
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This approval is for the Remote Hub Unit (RHU) of a fiber optic distribution system. The antenna(s) used for this transmitter must be fixed-mounted on a permanent structure providing a separation distance of at least 20cm from all persons during normal operation. The maximum radiated output power must satisfy the MPE Categorical Exclusion Requirements of �2.1091. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3). Users and installers must be provided with appropriate antenna installation instructions and device operating conditions, including antenna co-location requirements of �1.1307(b)(3), for satisfying RF exposure compliance.
