Infrastructure Preparation MA-860 Installation and Configuration Guide 19 3.5.3 AP Termination A 50 Ω ΩΩ Ω termination is required on each unused AP port. The type of termination is vendor specific. Vendor Model Termination Cisco 1242 RP-TNC 50 ohm terminators Aruba AP-70 RP-SMA 50 ohm terminators Trapeze MP-422 RP-SMA 50 ohm terminators Colubris MAP-330 RP-SMA 50 ohm terminators Meru AP-200 RP-SMA 50 ohm terminators 3.5.4 IDF Access Point Planning MobileAccess recommends that each independent IDF Telecom closet is adequately planned for installation of the access points to increase the amount of isolation and reduce the amount of RF leakage between access points. MobileAccess recommends the following options for access point installation: •Wall Mounting of MobileAccess supported Access Point •Rack-Mounting of MobileAccess supported Access Points Utilizing the mounting hardware distributed from each supported access point vendor, Access point can be mounted on a wall within the IDF or telecom closet and connected with the appropriate low-loss jumper cables to the appropriate 860 WLAN module interface ports. MobileAccess has also found that mounting the access points in a 19” rack system has proven to be effective against RF leakage between access points. In this configuration, two access points can be installed per 19” shelving unit which takes up 1U of space per two access points. Installation MA-860 Installation and Configuration Guide 20 4 I I n n s s t t a a l l l l a a t t i i o o n n This chapter contains the installation and connection procedures for various installation configurations. The MobileAccess 860 WLAN Module and system architecture may be installed in the following configurations: 4.1 Accessory Kits Verify that the supplied accessory kit corresponds to your installation. The accessory kits include a bracket, the required cables and accessories. Part Number Description AK-860-1000 RHU 1000 860 WLAN Accessory Mounting Kit AK-860-1200 RHU 1200 860 WLAN Accessory Mounting Kit AK-860-MDLT Modulite 860 WLAN Accessory Mounting Kit AK-860-2000 MRC 2000 860 WLAN Accessory Mounting Kit AK-860-2000L MRC 2000L 860 WLAN Accessory Mounting Kit AK-860-SA Stand alone Mounting Kit AK-860-PS-9.8V-75W (Optional) Redundant Power Supply Kit 4.2 Access Point Installation (Recommendation) MobileAccess recommends that each independent IDF Telecom closet is adequately planned for installation of the access points to increase the amount of isolation and reduce the amount of RF leakage between access points. MobileAccess recommends the following options for access point installation: •Wall Mounting of MobileAccess supported Access Point •Rack-Mounting of MobileAccess supported Access Points Utilizing the mounting hardware distributed from each supported access point vendor, Access point can be mounted on a wall within the IDF or telecom closet and connected with the appropriate low-loss jumper cables to the appropriate 860 WLAN module interface ports. Installation MA-860 Installation and Configuration Guide 21 MobileAccess has also found that mounting the access points in a 19” rack system has proven to be effective against RF leakage between access points. In this configuration as detailed in the picture below, two access points can be installed per 19” shelving unit which takes up 1U of space per two access points. Installation MA-860 Installation and Configuration Guide 22 4.3 Wi-Fi Coverage Expander (WCE) Installation Note: It is assumed the antennas have already been installed at the remote locations. A WCE unit is installed near each antenna. The WCE can be installed in the following configurations: •Tie-Wrap / Wire-Tie to a fixture •Wall Mounted – using four screws •In-line with the coax cables The WCE will be connected on one side to a 0.5'' low loss coaxial cable (typically running to a remote wiring closet), and to the Passive Broadband Antenna usually through a jumper (flexible 1' coax cable). The following sections illustrate each type of WCE installation. 0.5'' low loss coaxial cable Up to 250 ft 1' coax cable Installation MA-860 Installation and Configuration Guide 23 4.3.1 WCE Tie to Fixture Installation Use the two mounting slots used to affix the unit to any available building infrastructure via a wire-tie or tie-strap. 4.3.2 WCE Wall Mounted Using Four Screws Secure the WCE using four standard drywall screws (3/16” in diameter). Installation MA-860 Installation and Configuration Guide 24 4.3.3 In Line with Coax Cables WCE’s light design enables connecting it between the two coax cables without additional support. NOTE: The bending moment for ½” coax cable = 3lbs per foot. 4.4 860 WLAN Module Installation MA 860 can be mounted in the following configurations: •Standalone – mounted directly on the wall with four screws •Mounted onto an MA 1000 RHU •Mount as add-on to an MA 1000 RHU with an MA 1200 add-on unit •Add-on to a MA 2000 system To install the unit •Depending on your installation mount the unit on the IDF or telecom Closet wall (standalone installation) or assemble it onto the MA system (when converged with other MA systems) •Record location and serial number of MA860 unit Installation MA-860 Installation and Configuration Guide 25 4.5 MA-860 Unit Installation and Connections MobileAccess MA-860 is typically installed in the IDF or Telecom Closet of each floor to which WLAN coverage is to be supported. The accessories, mounting and installation procedures vary depending on the installation configuration. 4.5.1 Standalone Wall Mount Installation Figure 4-1. MA-860 Standalone Installation Configuration NOTE: It is recommended to record the location of the units and IP address according to the MAC addresses on the sticker at the rear of the units near the Ethernet port. Although it is not required for a stand-alone installation, it is recommended to set the supplied cable 705102101 aside (usually used when MA-860 is installed in an add-on configuration).You will need it if yo…

Text truncated - open the document above for the full version.

Installation MA-860 Installation and Configuration Guide 39 4.7.2 Power Connections to MA860 Unit •Only Main PS is connected to the unit – connect directly to 20-48V side of the PWR connector. •Main and Redundant PSs connected to the unit – connect the provided splitter cable to the unit and the Main and Redundant PSs to the appropriate connectors as shown below. Connection to Main Power Supply only Connection to splitter cable for installations with redundant PS To Main PS To Redundant PS MA-860 Installation and Configuration Guide 40 5 P P o o w w e e r r - - u u p p a a n n d d P P r r o o v v i i s s i i o o n n i i n n g g t t h h e e U U n n i i t t Upon power-up, MA-860 automatically performs WCE, WiFi Coverage Expander auto-discovery. It is recommended to locally connect to the unit using a computer running the telnet session to configure the local configuration options defined below. Following the initial setup and configuration MobileAccess recommends that the administrator verifies that all connected antennas are detected via the Web GUI or Engineering GUI, to perform the adjustment procedures and to verify that the unit is operating properly. MA860 is by default configured with a static IP address. (It may also be configured for DHCP). Once the MA860 IP address is defined and it is connected to the network, it can be remotely managed via a Web access connection. This section provides the following information: •Unit power-up and procedures performed by the unit upon power-up •Opening a session from the MA-860 Engineering Tool application •Verifying all antennas are connected •Performing adjustment procedures 5.1 Power-up and WCE Auto-discovery To power-up the unit Connect the power to the PWR connector located on the MA-860 as defined in Section 4.7. Unit initialization and WCE auto-discovery Upon power-up, the unit performs discovery of the WCE units during which time the RUN LED (located on the front panel) is constant GREEN. This will take between one to two minutes. If you have connected the 860 WLAN Module via the Web GUI or Engineering UI before the auto-discovery process was completed, the dialog will show Auto-discovery in process. After the initial discovery procedure has been completed, the RUN LED continuously flickers green indicating normal operation. Note: Configuration changes corresponding to the addition or removal of WCE units can be remotely performed at any time via the Web GUI to access the unit. Power-up and Provisioning the Unit MA-860 Installation and Configuration Guide 41 5.2 System Setup Configuration Before deploying the device in the field, it is recommended that all system level configurations are configured on the 860 WLAN module as defined in section 5.2 5.2.1.1 Assigning Network Parameters The unit is factory set with the following static IP address: IP address: 192.168.1.1 Subnet mask: 255.255.0.0 Default GW: 192.168.254.254 •Change the static address using Telnet as described in section 5.2.1.2 Note: For networks with DHCP – refer to section 6.2.2 •To set the SNMP parameters – refer to section 5.2.1.3. 5.2.1.2 Changing the Static IP Address The static IP address is changed from the Telnet window. To change the static IP address 1. Set your laptop IP to the same subnet as the static IP address assigned to the Repeater (e.g 192.168.1.2) 2. Connect the unit to your laptop with a cross cable. 3. Click the Windows Start option, choose Run and type Telnet and press Enter. 4. At the prompt Microsoft Telnet> o 192.168.1.1 9999. Press Enter. 5. Click OK and immediately press Enter to go into Setup Mode. The current settings will be displayed, followed by the Change Setup menu. Change Setup: 0 Server configuration 1 Channel 1 configuration 3 SNMP configuration 8 exit without save 9 save and exit Your choice 0 6. Enter 0 (Server Configuration). 7. You will be prompted to change the IP address one byte at a time –Enter the new value for each byte as you are prompted and press Enter. For example, the value entered below is 192.168.10.55 IP Address : (000) 192.(000) 168.(000) 10.(000) 55 Power-up and Provisioning the Unit MA-860 Installation and Configuration Guide 42 8. You will be are prompted to set the Gateway, Netmask, telnet Config password and to Change the DHCP device name. IP Address : (000) .(000) .(000) .(000) Set Gateway IP Address (Y) ? Gateway IP Address : (192) .(168) .(010) .(245) Netmask: Number of Bits for Host Part (0=default) (16) Change telnet config password (N) ? Change DHCP device name (not set) ? (N) ? 9. Press Enter to run through the rest of the parameters. When the Setup Menu is displayed again, select 9 – Save and Exit. 5.2.1.3 Setting SNMP Parameters 1. Click the Windows Start option, choose Run and type Telnet and press Enter. 2. At the prompt Microsoft Telnet> o xxxx.xxxx.xxxx.xxxx 9999 (where xxxx.. is the IP address of the unit). Press Enter. 3. Click OK and immediately press Enter to go into Setup Mode. The current settings will be displayed, followed by the Change Setup menu. Change Setup: 0 Server configuration 1 Channel 1 configuration 3 SNMP configuration 8 exit without save 9 save and exit Your choice 3 4. Enter 3 (SNMP Configuration). 5. Set the SNMP Read and Write community names and the SNMP traps destination addresses (up to three addresses can be defined). SNMP community name for read (): public SNMP community name for write (): private Enter IP addresses for SNMP traps: 1: (000) 192.(000) 168.(000) 10.(000) 22 2: (000) .(000) .(000) .(000) 3: (000) .(000) .(000) .(000) 6. Press Enter to run through the rest of the parameters. When the Setup Menu is displayed again, select 9 – Save and Exit. Power-up and Provisioning the Unit MA-860 Installation and Configuration Guide 43 5.3 Default Login and User Account Levels You may login to the MA 860 unit through any Web browser or 860 WLAN Engineering GUI. The available login credentials and default passwords are defined below: •Operator (oper) – monitoring options only…

Text truncated - open the document above for the full version.

Making Wireless an Indoor State of Mind FCC Confidential Authorization 13/01/2008 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: OJFMA860WCO In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, MobileAccess Networks hereby requests long-term confidential treatment of information accompanying this application as outlined below: Conf 860M With WCE BlkDia.pdf Conf 860M With WCE PartsLst 1.pdf Conf 860M With WCE PartsLst 2.pdf Conf 860M With WCE Schem 1.pdf Conf 860M With WCE Schem 2.pdf The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 09/03/2008 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign Form 731 on our behalf regarding the FCC ID Certification Process for the following application: 860M with WCE System FCC ID: OJFMA860WCO Thank you, Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

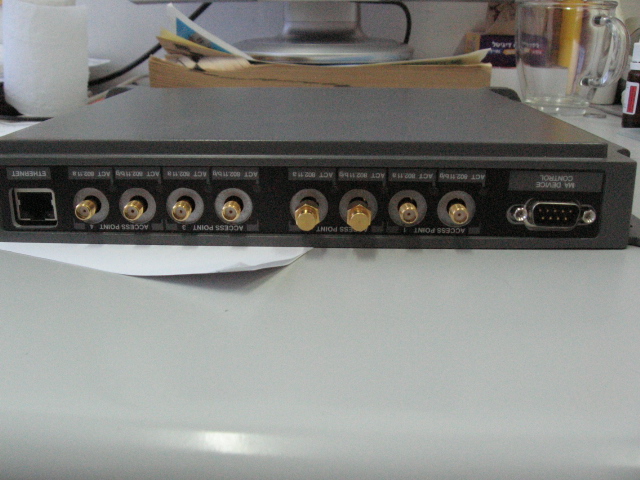

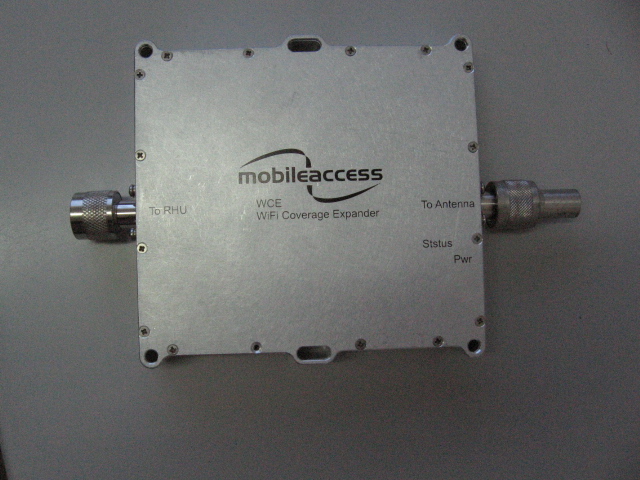

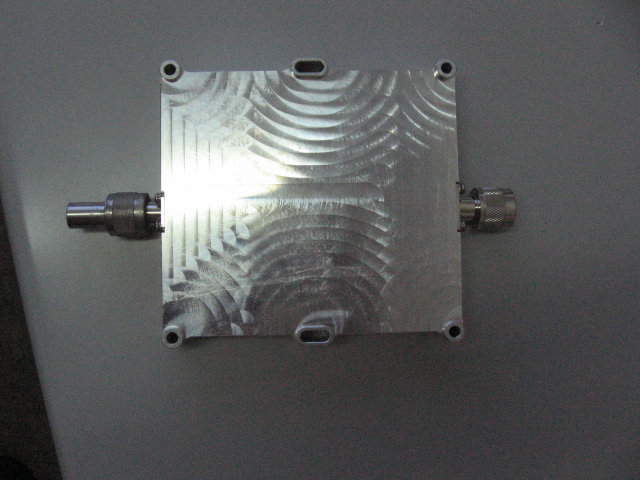

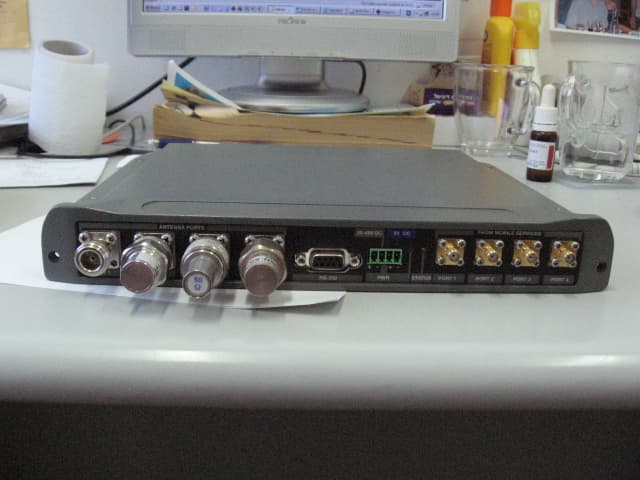

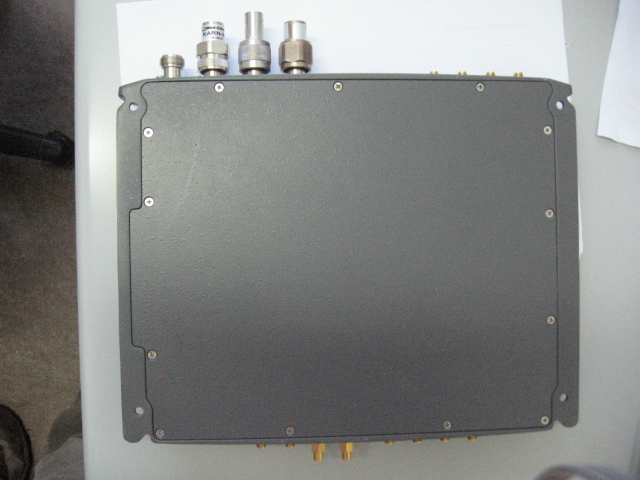

Connectors 860M Connectors 860M Front 860M Rear 860M Antenna Connector WCE RHU Connector WCE Front WCE Rear WCE
