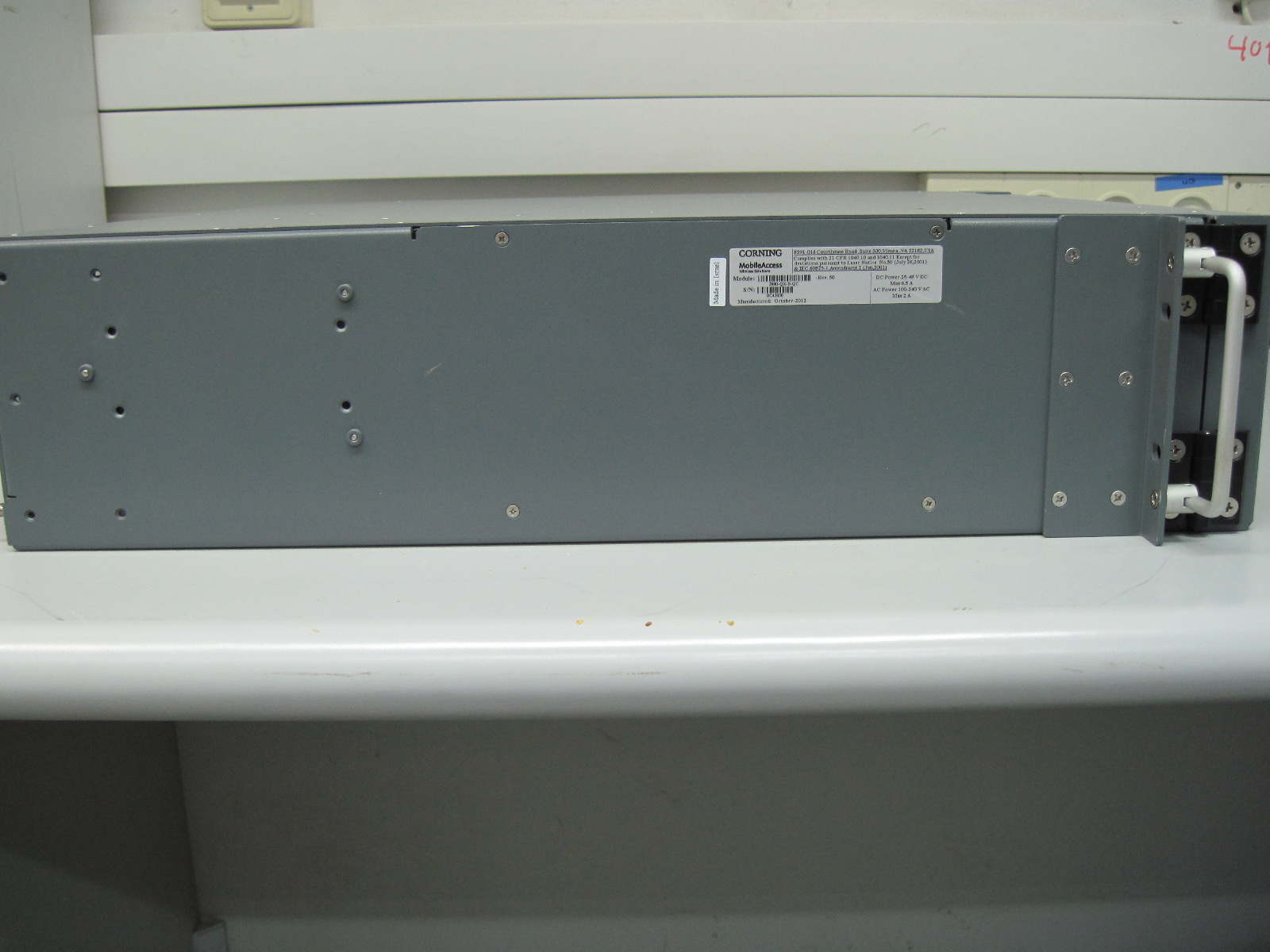

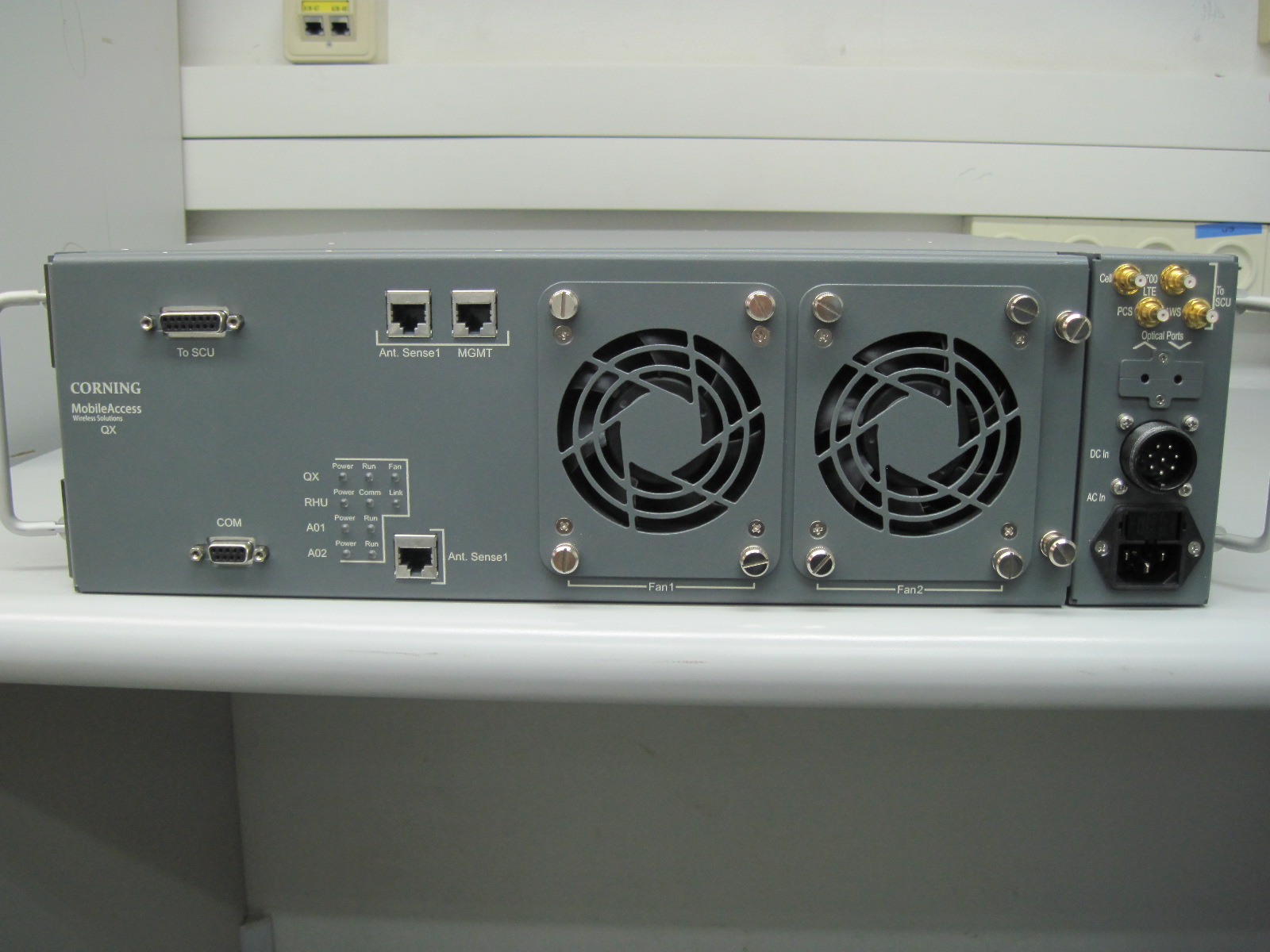

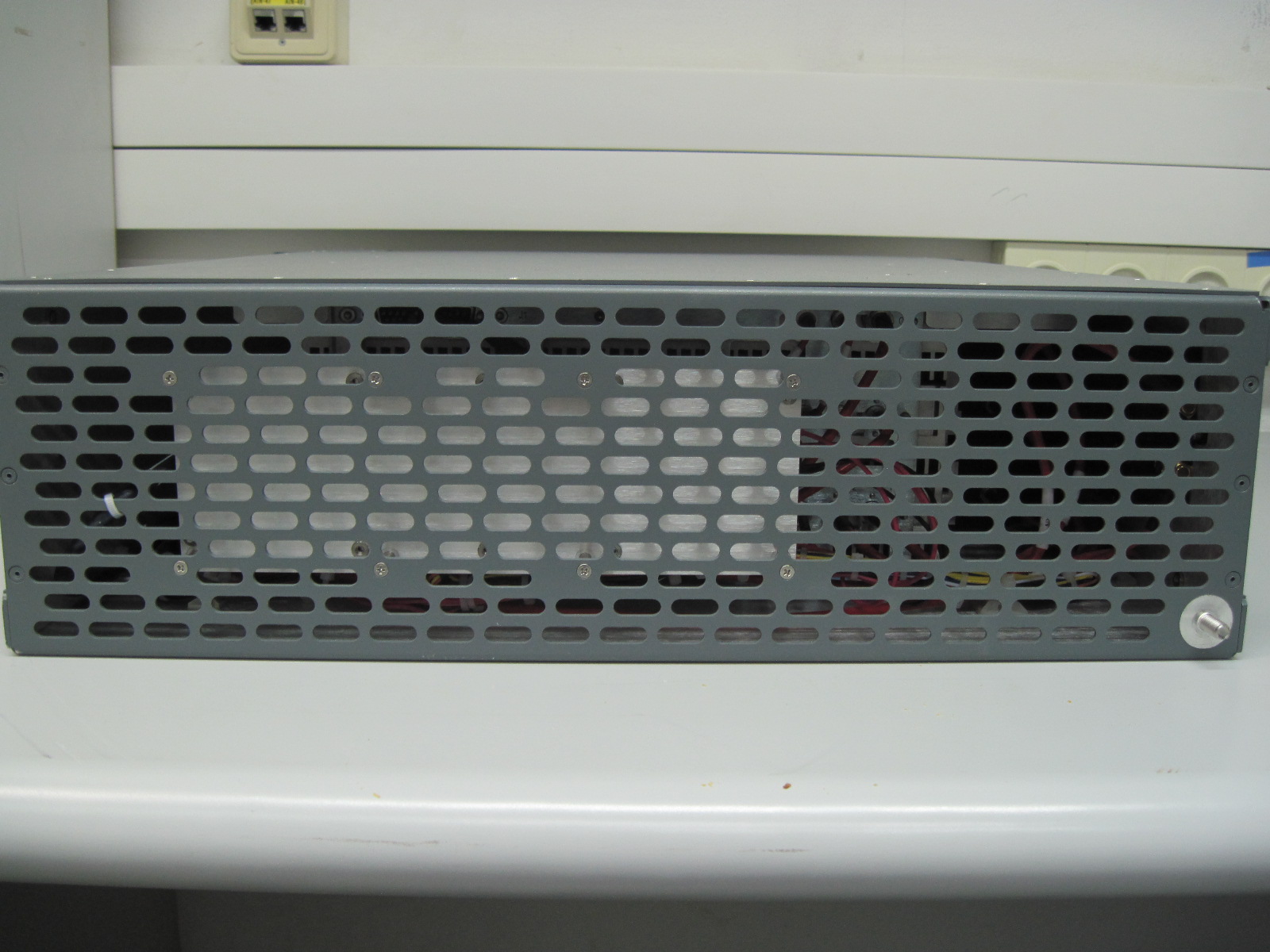

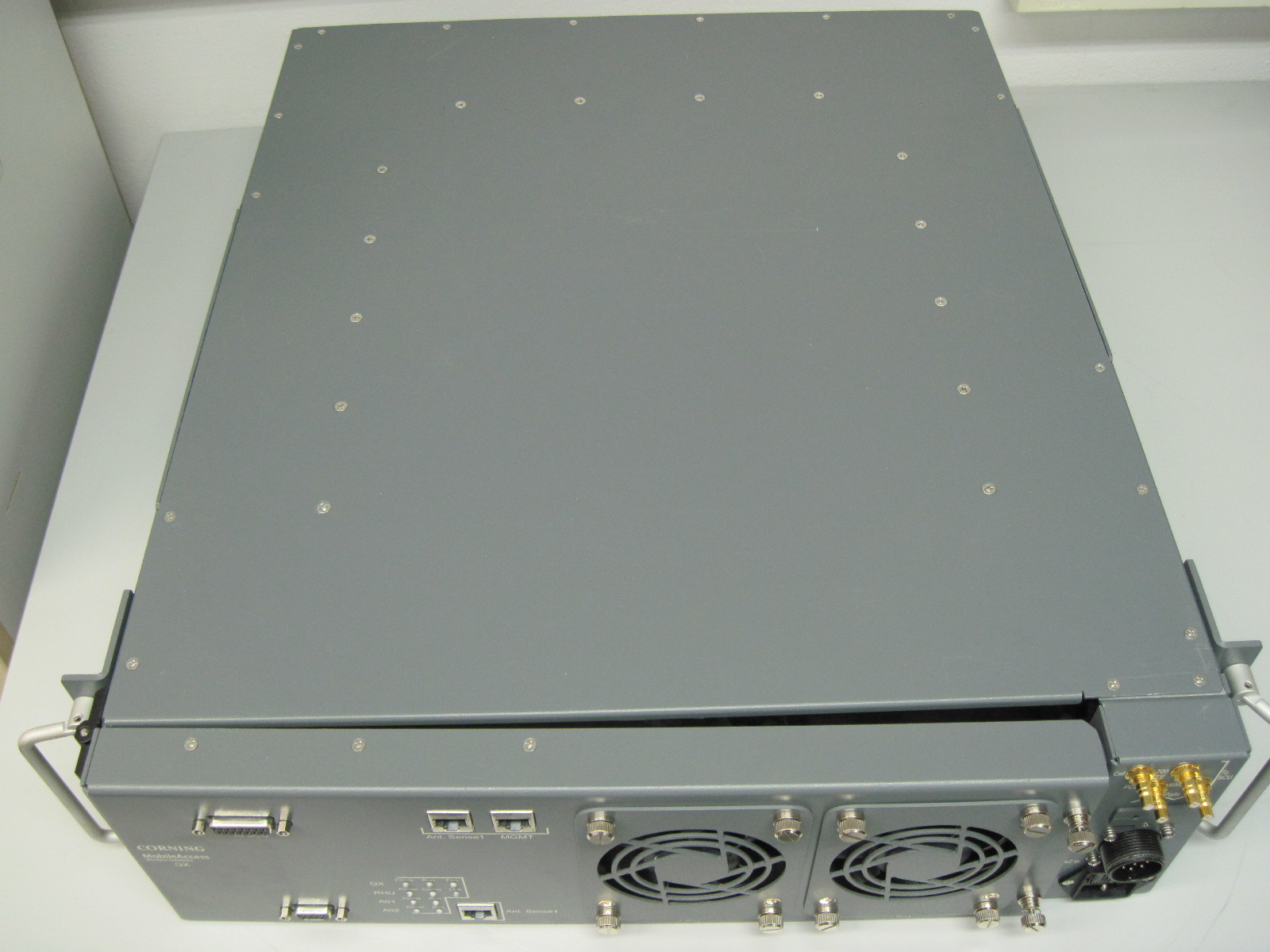

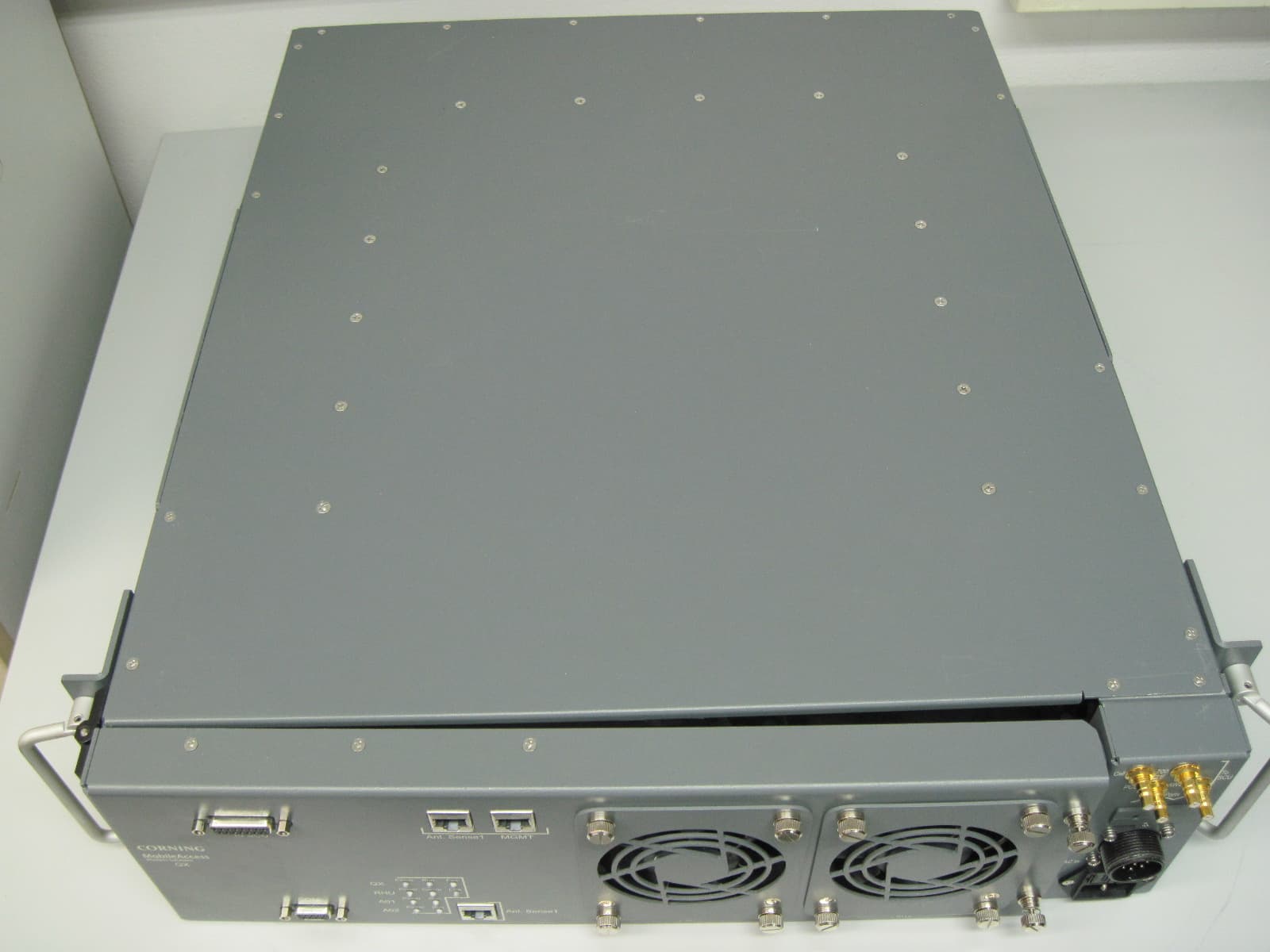

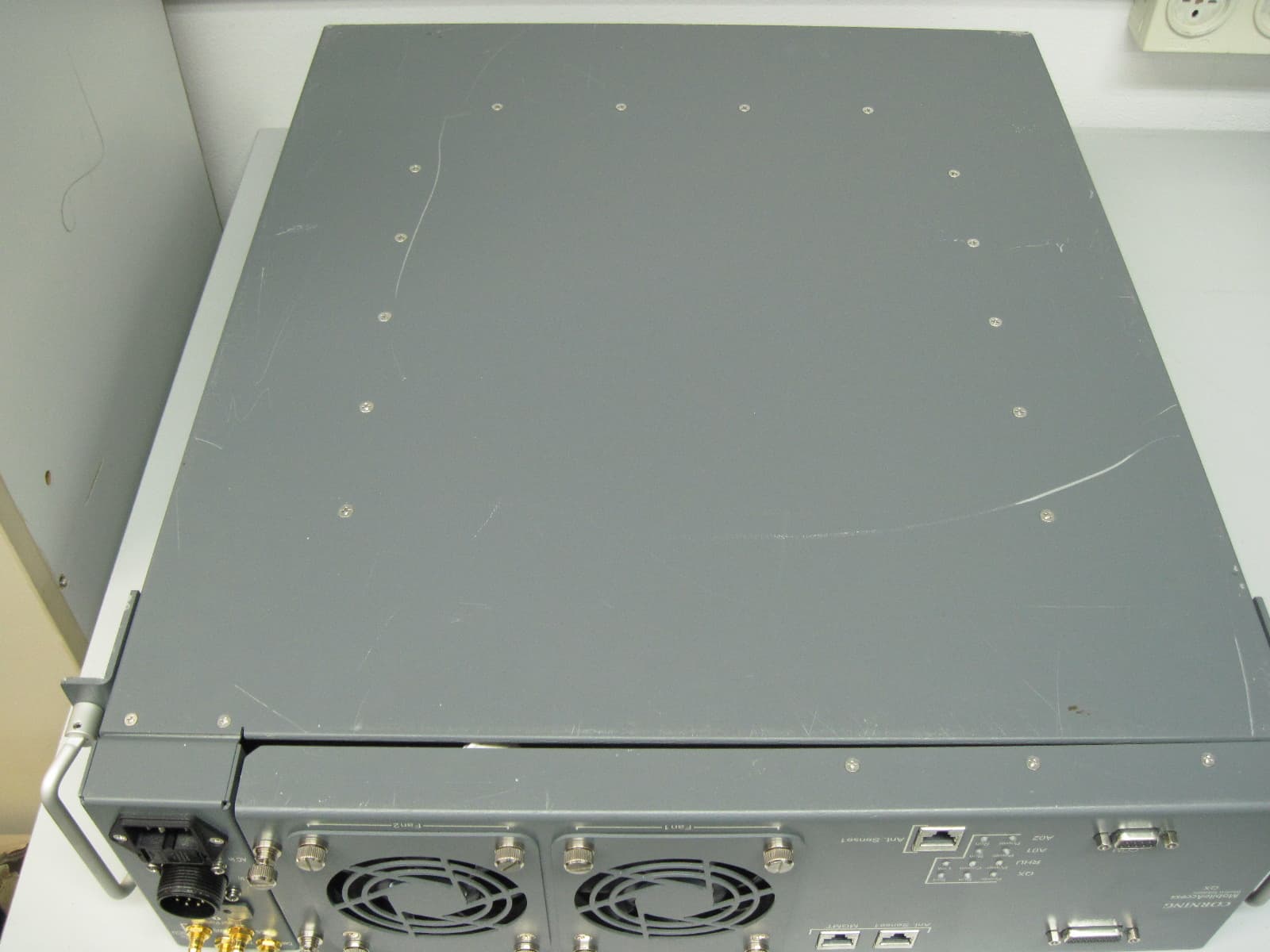

OJFQXC85P19QX REMOTE UNIT

P/N: 709C0011101 REV: A00 Date: JANUARY2013 Corning MobileAccess MobileAccessQX User Manual Preface Material P/N: 709C0011101 Page II Preface Material RF Safety To comply with FCC RF exposure compliance requirement, adhere to the following warnings: Warning! Antennas used for this product must be fixed mounted on indoor permanent structures, providing a separation distance of at least 75 cm from all persons during normal operation. Warning! Each individual antenna used for this transmitter must be installed to provide a minimum separation distance of 75 cm or more from all persons and must not be co-located with any other antenna for meeting RF exposure requirements. Warning! Antenna gain should not exceed 12.5 dBi. Warning! The design of the antenna installation needs to be implemented in such a way so as to ensure RF radiation safety levels and non-environmental pollution during operation. ATTENTION Compliance with RF safety requirements: • MobileAccess products have no inherent significant RF radiation • The RF level on the downlink is very low at the downlink ports. Therefore, there is no dangerous RF radiation when the antenna is not connected. CAUTION Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Preface Material P/N: 709C0011101 Page III Laser Safety Care of Fiber Optic Connectors Fiber optic ports of the MobileAccessQX system emit invisible laser radiation at the 1310/1550 nm wavelength window. The laser apertures /outputs are the green SC/APC Bulkhead adapters located on the front panel of the equipment. External optical power is less than 10 mW, Internal optical power is less than 500 mW. To avoid eye injury never look directly into the optical ports, patchcords or optical cables. Do not stare into beam or view directly with optical instruments. Always assume that optical outputs are on. Only technicians familiar with fiber optic safety practices and procedures should perform optical fiber connections and disconnections of MobileAccessQX devices and the associated cables. MobileAccessQX has been tested and certified as a Class 1 Laser product to IEC/EN 60825-1 (2007). It also meets the requirements for a Hazard Level 1 laser product to IEC/EN 60825-2: 2004 to the same degree. MobileAccessQX complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice NO. 50 (2007). MobileAccessQX employs a Class 3B laser and therefore the following label is affixed inside the unit adjacent to the laser: Do not remove the protective covers on the fiber optic connectors until a connection is ready to be made. Do not leave connectors uncovered when not connected. The tip of the fiber optic connector should not come into contact with any object or dust. Refer to the cleaning procedure for information on the cleaning of the fiber tip. Standards and Certification P/N: 709C0011101 Page IV Standards and Certification Corning MobileAccess products have met the approvals of the following certifying organizations: Company Certification ISO ISO 9001: 2000 and ISO 13485: 2003 Product Certifications US Radio Equipment and Systems : • FCC 47 CFR Part 22 – for CELL Frequency Band • FCC 47 CFR Part 24 – for PCS Frequency Band • FCC 47 CFR Part 27 – for 700 LTE and AWS Frequency Bands EMC • FCC 47 CFR Part 15 Subpart B Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Warning! Changes or modifications to this equipment not expressly approved by Corning MobileAccess could void the user’s authority to operate the equipment. Europe Radio Equipment and Systems EN 301 502 – for GSM / EGSM Frequency Bands About this Guide and Other Relevant Documentation P/N: 709C0011101 Page V EN 300 328 – for WLAN 802.11b/g 2.4GHz Frequency Band EN 301 893 – for WLAN 802.11a 5GHz Frequency Band EMC EN 301 489 Safety EN 60950UL 60950 CAN/CSA-C22.2 No.60950 UL 2043 Laser Safety CDRH 21 CFR 1040.10, 1040.11 (Except for deviations per notice No.50, July 26, 2001) IEC 60825-1, Amendment 2 (January 2001) EN 60825-1 About this Guide and Other Relevant Documentation This user guide describes how to perform the physical installation of the MA2000 systems. The installation procedures of other units (e.g. RIU, SC-450) relevant to the system are detailed in their user manuals (see Additional Relevant Documentation below). Additional Relevant Documents The following documents are required if the corresponding units are included in your system. Document Name RIU Installation and Configuration Guide System Controller (SC-450) User Manual MobileAccessQX Datasheet MA Software Version Update Tool List of Acronyms P/N: 709C0011101 Page VI List of Acronyms BDA Bi-Directional Amplifier BTS Base Transceiver Station BTSC Base Transceiver Station Conditioner BU Base Unit DL Downlink RU Remote (Hub )Unit RIU Radio Interface Unit RBS Radio Base Station UL Uplink Table of Contents I P/N: 709C0011101 I Page VII Table of Contents Preface Material ........................................................................................................................ II RF Safety ............................…

Text truncated - open the document above for the full version.

Date: 27 January 2013 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: OJFQXC85P19 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, MobileAccess Networks hereby requests long-term confidential treatment of information accompanying this application as outlined below: CONF APPENDIX QX CELL-PCS BlkDia.pdf CONF APPENDIX QX CELL-PCS PartsLst.pdf CONF APPENDIX QX CELL-PCS Schem.pdf CONF APPENDIX QX CELL-PCS OpDes.pdf The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Steve Blum Product Manager Corning Mobileaccess 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Corning MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 www.corning.com/mobileaccess

Date: 08 January 2013 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign Form 731 on our behalf regarding the FCC ID Certification Process for the following application: FCC ID: OJFQXC85P19 Thank you, Sincerely, Steve Blum Product Manager Corning Mobileaccess 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Corning MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 www.corning.com/mobileaccess

Date: 08 January 2013 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC ID Certification Process for the following application: FCC ID: OJFQXC85P19 Thank you, Sincerely, Steve Blum Product Manager Corning Mobileaccess 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Corning MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 www.corning.com/mobileaccess

Date: 24 January 2013 Declaration The maximum power level (dBm) and the tolerance (+/- dB) that the device is tuned to during the manufacturing process are as follows: Frequency band Max. power level (dBm) Tolerance (dB) Frequency designator CELL: 869-894 MHz 16 ±1 All PCS: 1930-1995 MHz 20 ±1 All AWS: 2110-2155 MHz 21 ±1 All LTE: 728-758 MHz 21 ±1 All Sincerely, Steve Blum Product Manager Corning Mobileaccess 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Corning MobileAccess 8391 Old Courthouse Road, Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 www.corning.com/mobileaccess

2 1 cm mW 2 588 .0 1500 / cm mW f= R.F Exposure/Safety Calculation for QX CELL-PCS The E.U.T. is rack or wall mounted. The typical distance between the E.U.T. and the general population is >75 cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements (a) FCC limit at 881.5 MHz is: FCC limit at 1960 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is P t - Transmitted Peak Power (worst case) G T - Antenna Gain ,dBi R- Distance from Transmitter (c) Peak power density at worst case continuous transmission: Band Modulation Pt (mW) Antenna type G T (dBi) R (cm) S AV (mW/cm 2 ) Spec (mW/cm 2 ) CELL LTE QPSK 235.505 External 12.5 75 0.059 0.588 LTE 16QAM 246.037 External 12.5 75 0.062 0.588 LTE 64QAM 276.694 External 12.5 75 0.070 0.583 GSM 255.270 External 12.5 75 0.064 0.587 W-CDMA 306.196 External 12.5 75 0.077 0.587 PCS LTE 64QAM 495.450 External 12.5 75 0.125 1.0 LTE 16QAM 432.514 External 12.5 75 0.109 1.0 LTE QPSK 453.942 External 12.5 75 0.114 1.0 GSM 483.059 External 12.5 75 0.122 1.0 W-CDMA 582.103 External 12.5 75 0.147 1.0 2 4R GP S tt π =

Test Report E121596.01 Corning Mobile Access Page 1 of 166 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 27 January 2013 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Corning Mobile Access Equipment under test: QX Remote Unit QX CELL-PCS AC Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ I. Siboni, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E121596.01 Corning Mobile Access Page 2 of 166 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Corning Mobile Access QX Remote Unit FCC ID: OJFQXC85P19 This report concerns: Original Grant: X Class II change: Class I change: Equipment type: PCS Licensed Transmitter Limits used: 47CFR Parts 2, 22, 24 Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-C: 2004 Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Steve Blum ITL (Product Testing) Ltd. Corning MobileAccess 1 Batsheva St. 8391 Old Courthouse Rd., Suite #300 Lod 71100 Vienna, VA. 22182 Israel U.S.A. e-mail [email protected] Tel: +1-541-758-2880 Fax: +1-703-848-0260 e-mail: [email protected] Test Report E121596.01 Corning Mobile Access Page 3 of 166 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 8 1.5 Test Facility ....................................................................................................... 8 1.6 Measurement Uncertainty ................................................................................. 9 2. SYSTEM TEST CONFIGURATION -------------------------------------------------------------------- 10 2.1 Justification ...................................................................................................... 10 2.2 EUT Exercise Software ................................................................................... 10 2.3 Special Accessories ........................................................................................ 10 2.4 Equipment Modifications ................................................................................. 10 2.5 Configuration of Tested System ...................................................................... 11 3. CONDUCTED AND RADIATED MEASUREMENT TEST SET-UPS PHOTO -------------- 12 4. PEAK OUTPUT POWER CELL ------------------------------------------------------------------------ 13 4.1 Test Specification ............................................................................................ 13 4.2 Test procedure ................................................................................................ 13 4.3 Test Results..................................................................................................... 13 4.4 Test Equipment Used ...................................................................................... 23 5. OCCUPIED BANDWIDTH CELL ----------------------------------------------------------------------- 24 5.1 Test Specification ............................................................................................ 24 5.2 Test Procedure ................................................................................................ 24 5.3 Test Results..................................................................................................... 25 5.4 Test Equipment Used ...................................................................................... 41 6. OUT OF BAND EMISSIONS AT ANTENNA TERMINALS CELL ----------------------------- 42 6.1 Test Specification ............................................................................................ 42 6.2 Test procedure ................................................................................................ 42 6.3 Test Results..................................................................................................... 42 6.4 Test Equipment Used. ..................................................................................... 71 7. BAND EDGE SPECTRUM CELL ---------------------------------------------------------------------- 72 7.1 Test Specification ............................................................................................ 72 7.2 Test procedure ................................................................................................ 72 7.3 Test Results..................................................................................................... 73 7.4 Test Equipment Used ...................................................................................... 79 8. OUT OF BAND EMISSIONS (RADIATED) CELL ------------------------------------------------- 80 8.1 Test Specification ............................................................................................ 80 8.2 Test Procedure ................................................................................................ 80 8.3 Test Results..................................................................................................... 81 8.4 Test Instrumentation Used, Radiated Measurements CELL ........................... 82 9. PEAK OUTPUT POWER PCS -------------------------------------------------------------------------- 83 9.1 …
