OJFVELTE700VE DISTRIBUTED ANTENNA SYSTEM

MobileAccessVE LTE 700 MHz MIMO Instant Coverage Solution User Manual P/N: 709C006201 REV: A00 Date: APRIL 2010 Preface Material LTE 700 MHz MobileAccessVE Instant Coverage Solution User Manual II MobileAccess Worldwide Headquarters 8391 Old Courthouse Road Suite 300, Vienna, VA 22182 Tel: +1(866)436-9266, +1(703)848-0200 TAC: +1(800)787-1266, Fax: +1(703)848-0280 http://www.MobileAccess.com Preface Material LTE 700 MHz MobileAccessVE Instant Coverage Solution User Manual III Preface Material © Copyright 2010, MobileAccess Networks Inc. All Rights Reserved. This document contains confidential and proprietary information of MobileAccess and may not be copied, transmitted, stored in a retrieval system or reproduced in any format or media, in whole or in part, without the prior written consent of MobileAccess. Information contained in this document supersedes any previous manuals, guides, specifications, data sheets or other information that may have been provided or made available to the user. This document is provided for informational purposes only, and MobileAccess does not warrant or guarantee the accuracy, adequacy, quality, validity, completeness or suitability for any purpose of the information contained in this document. MobileAccess reserves the right to make updates, improvements and enhancements to this document and the products to which it relates at any time without prior notice to the user. MOBILEACCESS MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THIS DOCUMENT OR ANY INFORMATION CONTAINED HEREIN. Policy for Warrantee and Repair MobileAccess tests and inspects all its products to verify their quality and reliability. MobileAccess uses every reasonable precaution to ensure that each unit meets their declared specifications before shipment. Customers should advise their incoming inspection, assembly, and test personnel about the precautions required in handling and testing our products. Many of these precautions can be found in this manual. The products are covered by the following warranties: General Warranty MobileAccess warrants to the original purchaser all standard products sold by MobileAccess to be free of defects in material and workmanship for one (1) year from date of shipment from MobileAccess. During the warranty period, MobileAccess will repair or replace any product that MobileAccess proves to be defective. This warranty does not apply to any product that has been subject to alteration, abuse, improper installation or application, accident, electrical or environmental over-stress, negligence in use, storage, transportation or handling. Specific Product Warranty Instructions All MobileAccess products are warranted against defects in workmanship, materials and construction, and to no further extent. Any claim for repair or replacement of units found to be defective on incoming inspection by a customer must be made within (30) days of receipt of shipment, or within (30) days of discovery of a defect within the warranty period. This warranty is the only warranty made by MobileAccess and is in lieu of all other warranties, expressed or implied. MobileAccess sales agents or representatives are not authorized to make commitments on warranty returns. Preface Material LTE 700 MHz MobileAccessVE Instant Coverage Solution User Manual IV Returns In the event that it is necessary to return any product against above warranty, the following procedure shall be followed: 1. Return authorization is to be received from MobileAccess prior to returning any unit. Advise MobileAccess of the model, serial number, and discrepancy. The unit may then be forwarded to MobileAccess, transportation prepaid. Devices returned collect or without authorization may not be accepted. 2. Prior to repair, MobileAccess will advise the customer of our test results and any charges for repairing customer-caused problems or out-of-warranty conditions etc. 3. Repaired products are warranted for the balance of the original warranty period, or at least 90 days from date of shipment. Limitations of Liabilities MobileAccess's liability on any claim, of any kind, including negligence for any loss or damage arising from, connected with, or resulting from the purchase order, contract, quotation, or from the performance or breach thereof, or from the design, manufacture, sale, delivery, installation, inspection, operation or use of any equipment covered by or furnished under this contact, shall in no case exceed the purchase price of the device which gives rise to the claim. EXCEPT AS EXPRESSLY PROVIDED HEREIN, MOBILEACCESS MAKES NO WARRANTY, EXPRESSED OR IMPLIED, WITH RESPECT TO ANY GOODS, PARTS AND SERVICES PROVIDED IN CONNECTION WITH THIS AGREEMENT INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. MOBILEACCESS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE GOODS, PARTS AND SERVICE. Reporting Defects The units were inspected before shipment and found to be free of mechanical and electrical defects. Examine the units for any damage that may have been caused in transit. If damage is discovered, file a claim with the freight carrier immediately. Notify MobileAccess as soon as possible. NOTE: Keep all packing material until you have completed the inspection Safety Warnings To comply with FCC RF exposure compliance requirement, adhere to the following warnings: Warning! The Access Pod with its built-in antenna must be installed with a separation distance of at least 20cm from all persons and must not be located in conjunction with any other antenna. Warning! The outside antenna must be installed with a separation of at least 20cm from all persons and mu…

Text truncated - open the document above for the full version.

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 27 May 2010 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: OJFVELTE700 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, MobileAccess Networks hereby requests long-term confidential treatment of information accompanying this application as outlined below: CONF APPENDIX VAP BlkDia.pdf CONF APPENDIX VAP Digital PartsLst.pdf CONF APPENDIX VAP Digital Schem.pdf CONF APPENDIX VAP RF PartsLst.pdf CONF APPENDIX VAP RF Schem.pdf CONF APPENDIX VCU BlkDia.pdf CONF APPENDIX VCU Combiner PartsLst.pdf CONF APPENDIX VCU Combiner Schem.pdf CONF APPENDIX VCU Digital PartsLst.pdf CONF APPENDIX VCU Digital Schem.pdf CONF APPENDIX VCU Reference PartsLst.pdf CONF APPENDIX VCU Reference Schem.pdf CONF APPENDIX VCU RF IF PartsLst.pdf CONF APPENDIX VCU RF IF Schem.pdf CONF APPENDIX VCU Splitter PartsLst.pdf CONF APPENDIX VCU Splitter Schem.pdf The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 27 May 2010 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL ) to sign Form 731 on our behalf regarding the FCC ID Certification Process for the following application: Model: VE LTE700 FCC ID: OJFVELTE700 Thank you, Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

Making Wireless an Indoor State of Mind FCC Confidential Authorization Date: 27 May 2010 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL ) to act on our behalf regarding the FCC ID Certification Process for the following application: Model: VE LTE700 FCC ID: OJFVELTE700 Thank you, Sincerely, Steve Blum Product Manager MobileAccess Networks 8391 Old Courthouse Rd Suite 300 Vienna VA 22182-3819 Unwired: 541-758-2880 Making Wireless an Indoor State of Mind On the web at www.MobileAccess.com

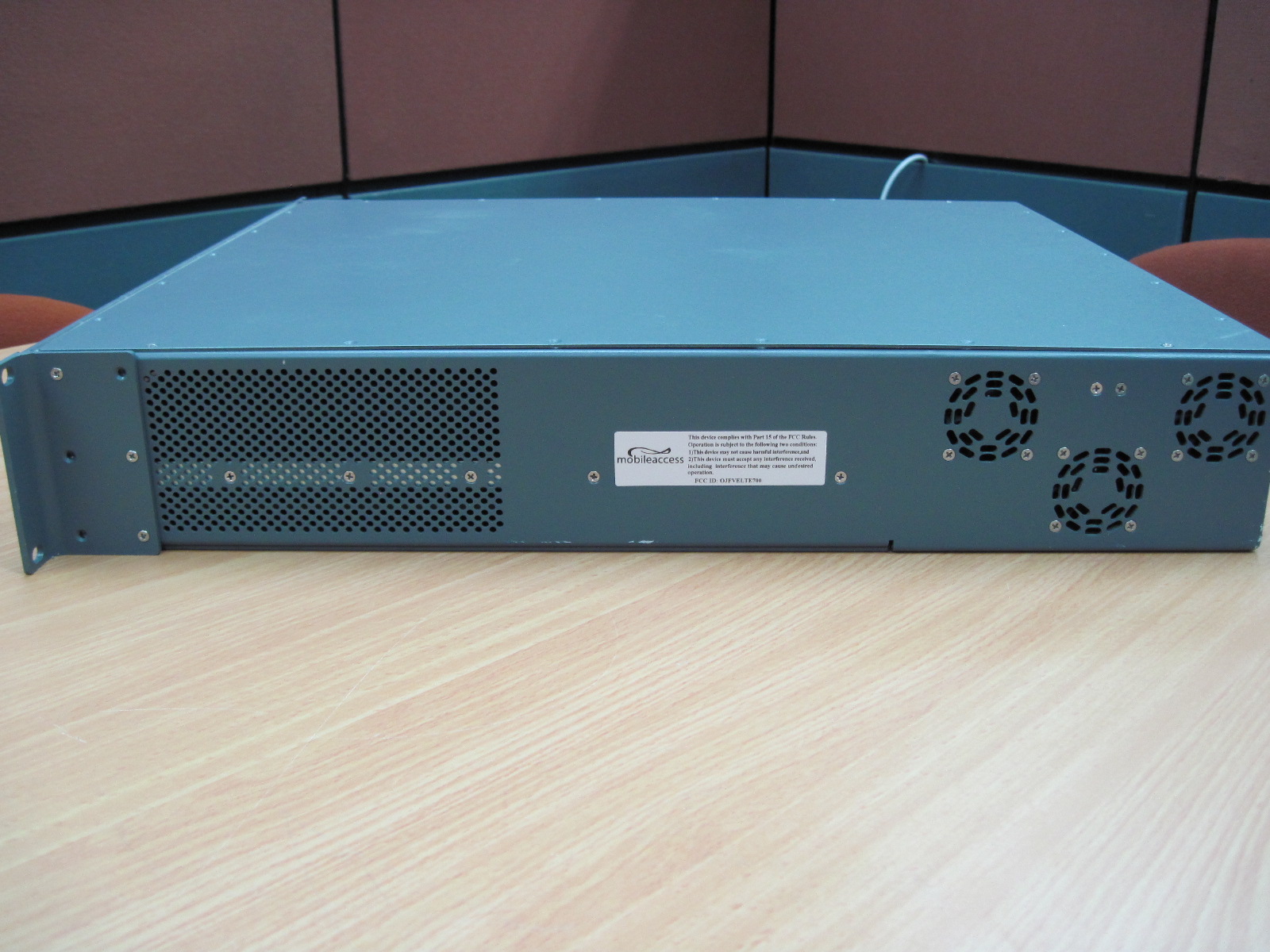

2)This device must accept any interference received , This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1)This device may not cause harmful interference ,and operation. including interference that may cause undesired FCC ID:OJFVELTE700

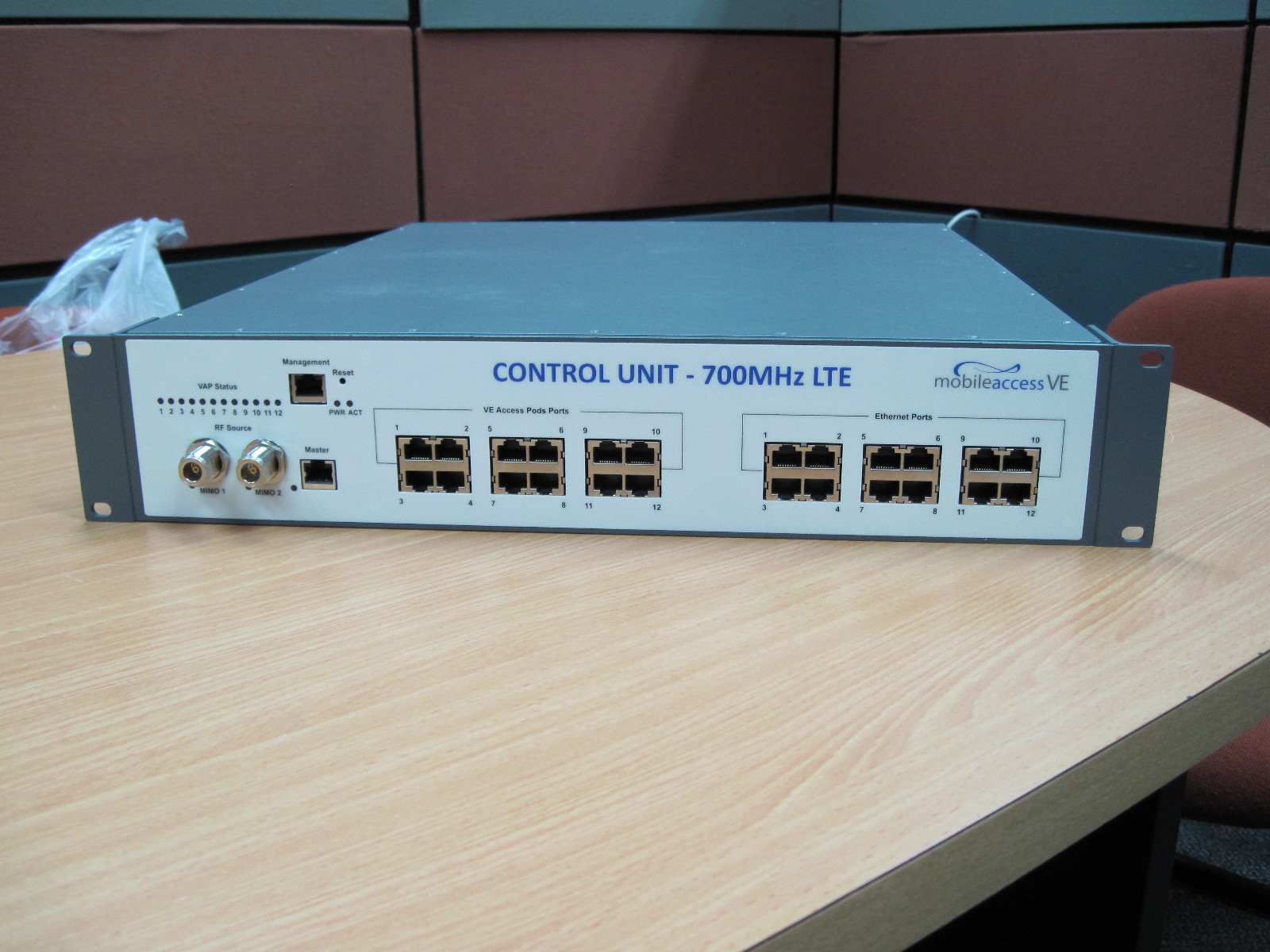

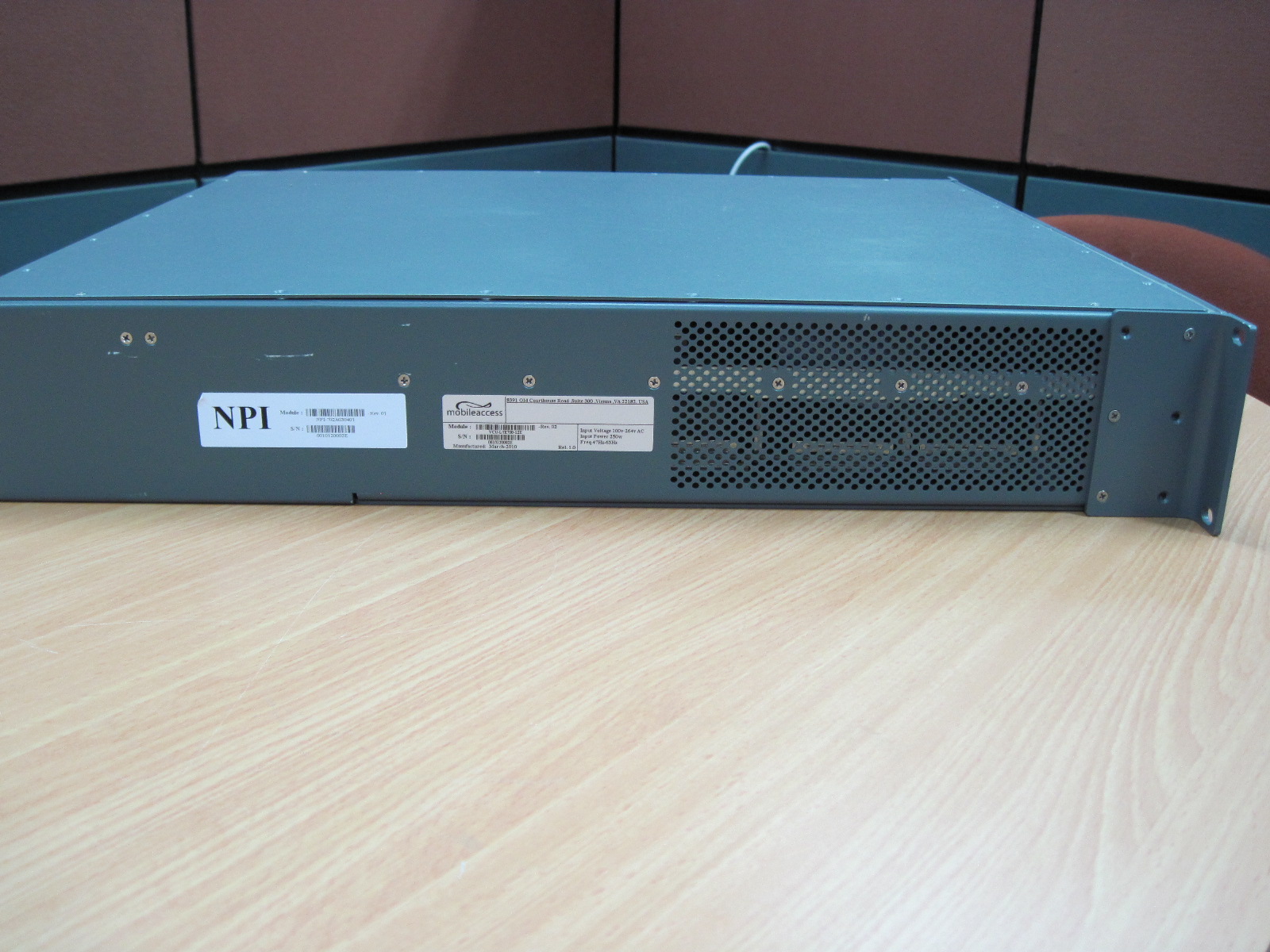

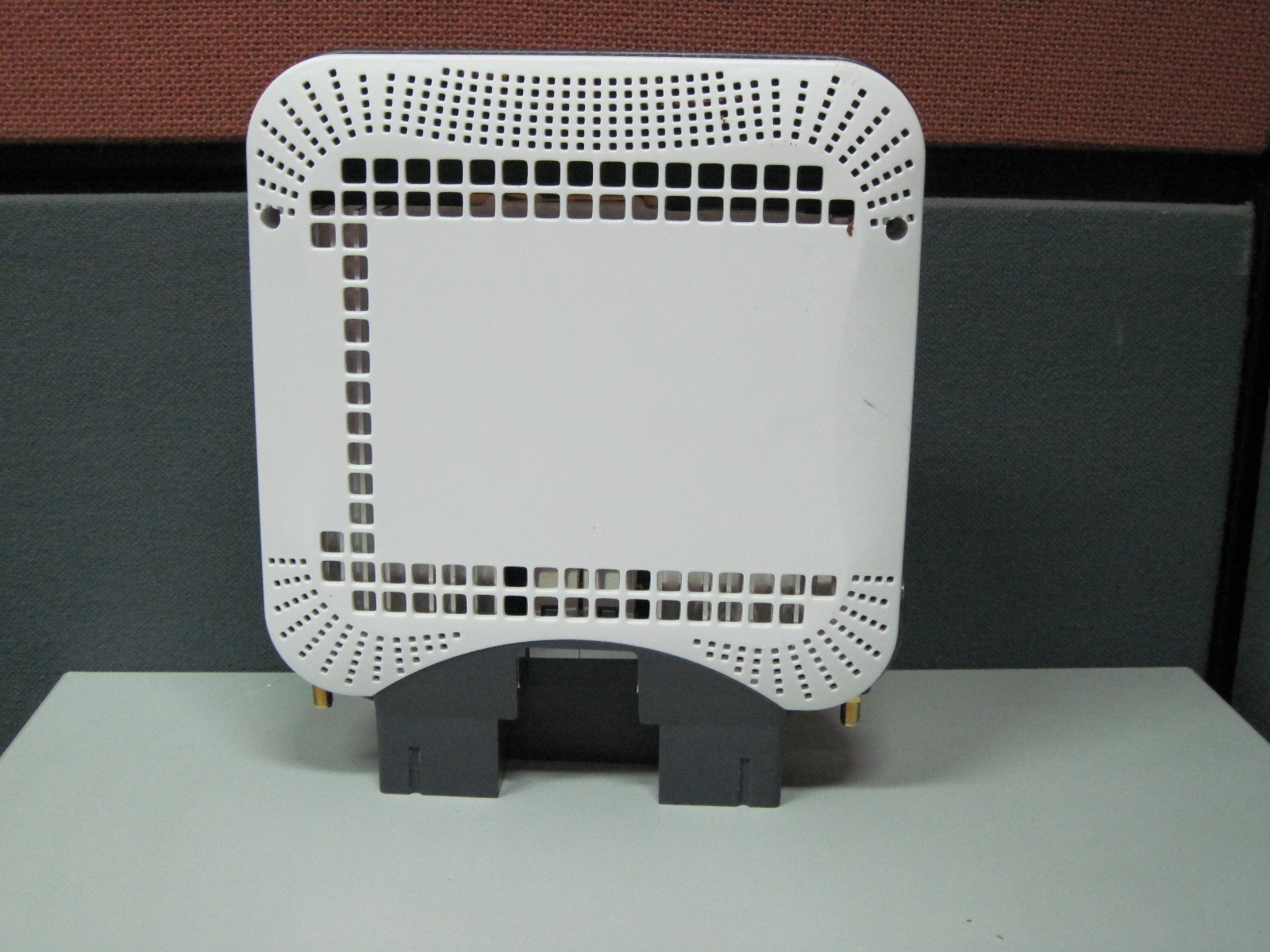

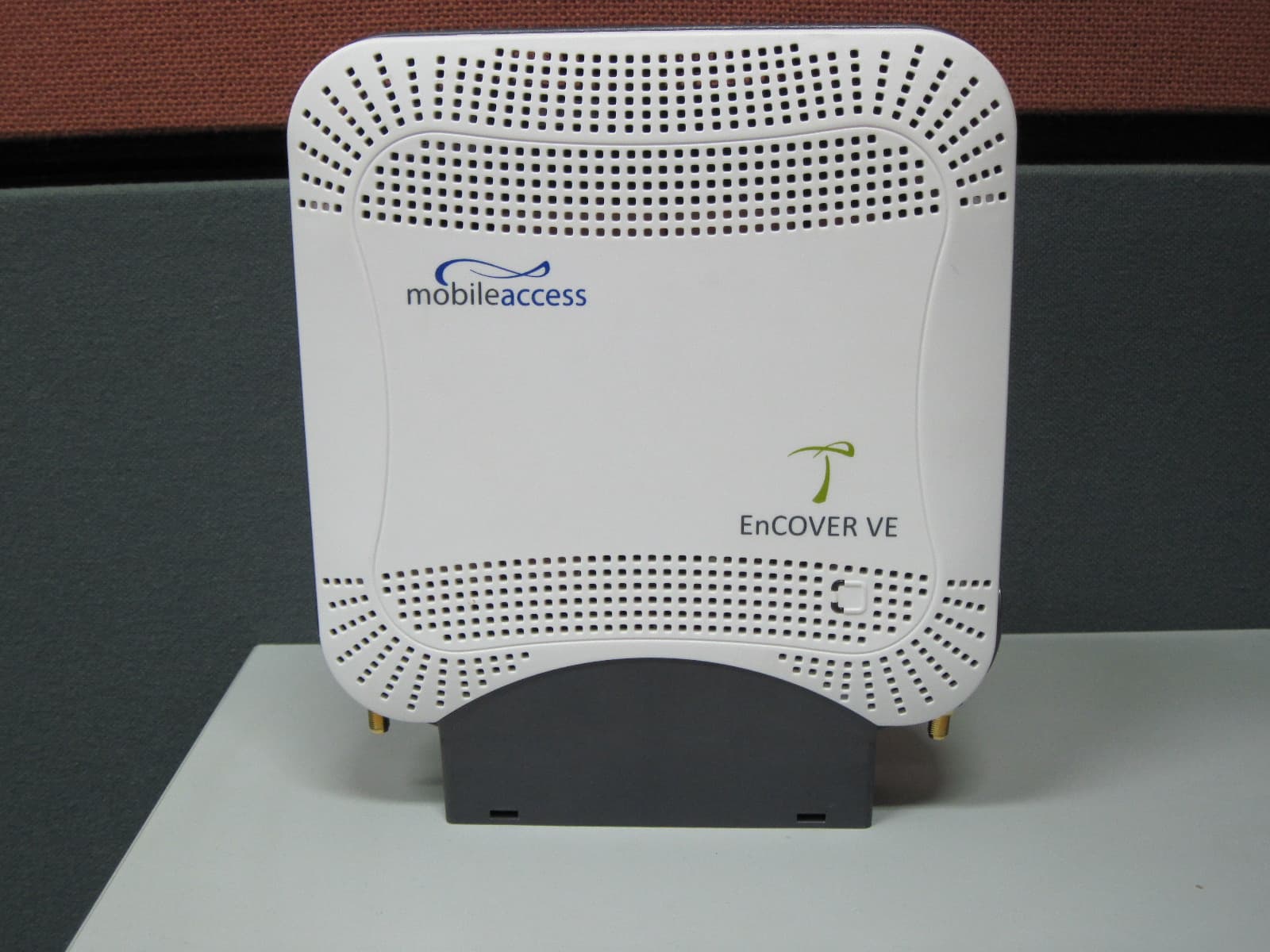

LTE 700 MHz MobileAccessVE Operational Description 1 Main Elements - The MobileAccessVE solution is based on the following main elements:  VE Control Unit (VCU) – The control Unit can serve as either a Master or a Slave and interfaces the other VCUs (in case of Master) or the VAPs (when serving as Slave). The Master or Slave mode is automatically detected according to the VCU's physical connection. If a connection to another VCU is detected, the VCU will automatically be identified as a Slave; otherwise it will assume the role of a Master.  Master VE Control Unit (Master VCU) – installed in the main communication Telco closet, interfaces to the service provider’s RF capacity sources, and provides secure, central management to up to twelve VCUs, as well as all connected VAPs. In cases where no Slave VCUs are required, VAPs can be connected directly to the Master VCU.  Slave VE Control Unit (Slave VCU) – installed in the telco/IDF closet and used to expand coverage to additional floors. Each VCU interfaces the Master VCU and up to twelve VE Access Pods and twelve Ethernet connections. The Slave VCUs distribute wireless service signals to each VAP along with PoE and (where relevant) Ethernet signals from the Ethernet switch, throughout the existing CAT-5e infrastructure. The Slave VCUs are connected to the Master VCU using CAT-6 or 7 cables.  VE Access Pod (VAP) – These are pluggable antennas distributed at strategic locations over one or more floors to provide maximum coverage. VAPs provide RF coverage via integrated, internal antennas. VAPs are also equipped with an interface for external antennas for special coverage requirements. VAPs are remotely powered from the VCU using Power over Ethernet (PoE), eliminating the need for local powering. Up to twelve VAPs can be connected to a single VCU using LAN cables (CAT-5e or higher). MobileAccessVE LTE 700 MHz MIMO Operational Description Operational Description Note: When the total number of VAPs in the deployment exceeds 72, consult with MobileAccess support. The following figure shows the Multi-tier VE LTE 700 MHz MIMO solution architecture. Figure 1. VE Multi-Tier Basic Architecture The Master VCU distributes the wireless MIMO services from the service provider’s equipment to the Slave VCUs. At the Slave VCUs, the wireless MIMO services are converged with Ethernet service and routed to the VAPs via the Ethernet LAN CAT-5e/6 cabling infrastructure. The VAPs distribute the wireless LTE MIMO service via integrated internal antennas or (optional) external antennas and provide Ethernet/IP connectivity (and PoE pass-through) to the connected appliances such as WiFi APs and IP Phones. VCU Front Panel The front panel supports the interfaces to the wireless LTE MIMO service (two channels – corresponding to the two supported TDD MIMO channels) and includes interfaces to VAPs or Slave VCUs (depending on the configuration). The front panel also interfaces to the Ethernet switch, includes a connector (Master) for receiving the wireless LTE MIMO services from the Master VCU (in Master/Slave configuration) and the management interface. The following provides the front panel ports. Operational Description Figure 2. VCU Front Panel Table 1: VCU Ports Description Ports Description MIMO1 MIMO2 RF connections (two TDD MIMO channels) to the service provider LTE Signal Source equipment. N-Type female connectors. Coax cables. Note: When supporting SISO service – only MIMO 1 connector is relevant. Management RJ45 WEB management connection. VE Access Pod Ports 1-4; 5-8; 7-12 VAP/VCU port connections. RJ-45 connection to VAP/VCU through the LAN infrastructure. CAT-5e/6 cables. If VCU is connected as Master – these are connections to the Slave VCUs. If VCU is connected as Slave – these are connections to VAPs. Ethernet Ports 1-4; 5-8; 7-12 Ethernet port connections to Ethernet Switch. Ethernet cables (used only in Slave VCUs). Master Used for connecting a Slave VCU to the Master VCU in a multi-tier deployment (connects to one of the VAP ports of the Master VCU). Reset N/A in current version. Ethernet Ports 1-4; 5-8; 7-12 VAP Ports 1-4; 5-8; 7-12 Management MIMO 2 MIMO 1 Master Port Operational Description The following provides a description of the front panel LEDs. Table 2: VCU LEDs Description LED Description PWR Indicates whether the VCU receives power: Green - Power OK Disabled - No power received by VCU ACT VCU activity LED: Solid Green – During initialization Blinking Green – Normal system operation Fast Blinking Green – User activated VCU Identify on this VCU VAP Status (One LED per port) Indicates the status of the corresponding unit (VAP or VCU) Blinking Green – Unit is initializing Solid Green – Normal operation of unit Solid Orange – Unit is faulty, or unmanaged. This can be due to mismatch type, VoIP phone, etc. Fast Blinking Green – User invoked “Identify” command on the unit Off – No VAP or VCU connected to this port. MIMO (One LED per channel) Indicates the status of connected RF capacity source: Green – Master VCU only. Normal RF level Orange – Master VCU only. RF level is either too low, too high, or service has been turned off by the user. Off – VCU is Slave. Master Indicates the status of the connection to the Master VCU: Off – Master mode (not connected to VCU) Blinking Green – During Attachment process with Master VCU Solid green – Slave (IF-IF) mode and connected to Master PWR LED ACT LED VAP (1-12) Status LEDs Master LED MIMO1 LED MIMO2 LED Operational Description VCU Rear Panel The rear panel includes the following: power switch, AC input, AUX alarms, and service personnel connections. Figure 3. VCU Rear Panel Table 3: VCU Rear Panel Description Connector Description Console RS232 local connection for service personnel (D-Type 9) Alarms AUX alarms connections - see section Error! Reference source not found. Power Input Standard 3-pins AC power connector equipped with an ON/OFF switch. 90-264V AC, 47-63 Hz AC; 350W power consumption maximu…

Text truncated - open the document above for the full version.

8391 Old Courthouse Road, Suite 300 Vienna, VA 22182 Date: 27 May 2010 Statement The VE Mobile Access is plug and play system. It does not have a tune-up procedure and all tune-up is controlled at the factory. The product will be completely tuned and tested before it is shipped to customers. Thank you, Steve Blum Product Manager MobileAccess Networks Inc. Office 541 758-2880 Mobile 541 990-3470

R.F Exposure/Safety Calculation for VE LTE700 The E.U.T. is an in-building antenna distribution system, supporting a single frequency band. The “worst case” distance between the E.U.T. and the general population is 10 cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements 2 50.2 300 751 300cm mWf == (a) FCC Occupational user limit at 751 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is 2 4R GP S tt π = P t - Transmitted Power 208.46 mW, (combined)(peak). G- Antenna Gain 10 dBi (10 numeric) T R- Distance from Transmitter using 10 cm worst case (c) Peak power density: 22 66.1 )10(4 1046.208 cm mW S AV = × = π

DATE: 27 May 2010 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Mobile Access Networks Equipment under test: VE Distributed Antenna System Comprising: VE Control Unit P/N VCU-LTE700-12E VE Access Point P/N VAP-LTE700E VE LTE700 Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ A. Sharabi, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E98341.00 Mobile Access Networks Page 1 of 58 FCC ACC M Ver 1.1 05Mayl 2000 Test Report E98341.00 Mobile Access Networks Page 2 of 58 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for FCC ID: OJFVELTE700 This report concerns: Original Grant: X Class II change: Class I change: Equipment type: Licensed Non-Broadcast Station Transmitter Limits used: 47CFR Part 27 Subpart C Measurement procedure used is ANSI C63.4-2003. Substitution Method used as in ANSI/TIA-603-B: 2002 Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Steve Blum ITL (Product Testing) Ltd. Mobile Access Networks Kfar Bin Nun 8391 Old Courthouse Rd., Suite #300 D.N. Shimshon 99780 Vienna, VA. 22182 Israel U.S.A. e-mail [email protected] Tel: +1-541-758-2880 Fax: +1-703-848-0260 e-mail: [email protected] TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 4 1.1 Administrative Information ................................................................................. 4 1.2 List of Accreditations ......................................................................................... 5 1.3 Product Description ........................................................................................... 6 1.4 Test Methodology .............................................................................................. 6 1.5 Test Facility ....................................................................................................... 6 1.6 Measurement Uncertainty ................................................................................. 7 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 EUT Exercise Software ..................................................................................... 8 2.3 Special Accessories .......................................................................................... 8 2.4 Equipment Modifications ................................................................................... 8 2.5 Configuration of Tested System ........................................................................ 9 3. CONDUCTED EMISSION FROM AC POWER LINES -------------------------------------------10 3.1 Test Specification ............................................................................................ 10 3.2 Test Procedure ................................................................................................ 10 3.3 Measured Data ................................................................................................ 10 3.4 Test Instrumentation Used, Conducted Measurement ................................... 15 4. MAXIMUM PEAK OUTPUT POWER -----------------------------------------------------------------16 4.1 Test Specification ............................................................................................ 16 4.2 Test procedure ................................................................................................ 16 4.3 Results table .................................................................................................... 18 4.4 Test Equipment Used. ..................................................................................... 19 5. EMISSION BANDWIDTH---------------------------------------------------------------------------------20 5.1 Test Specification ............................................................................................ 20 5.2 Test Procedure ................................................................................................ 20 5.3 Results Table .................................................................................................. 24 5.4 Test Equipment Used. ..................................................................................... 25 6. CONDUCTED SPURIOUS EMISSIONS -------------------------------------------------------------26 6.1 Test Specification ............................................................................................ 26 6.2 Test procedure ................................................................................................ 26 6.3 Results table .................................................................................................... 40 6.4 Test Equipment Used. ..................................................................................... 41 7. BAND EDGE MEASUREMENTS ----------------------------------------------------------------------42 7.1 Test Specification ............................................................................................ 42 7.2 Test procedure ................................................................................................ 42 7.3 Results table .................................................................................................... 45 7.4 Test Equipment Used. ..................................................................................... 46 8. SPURIOUS RADIATED EMISSION -------------------------------------------------------------------47 8.1 Test Specification .............................................................…

Text truncated - open the document above for the full version.
