OJR-HT1051Magic SoundBox Bluetooth speaker

1 / 5 User’s Manual Thank you for purchasing our Magic SoundBox Bluetooth speaker R ead carefully and follow all instructions in this User's Manual before you use the Magic SoundBox speaker. Keep this User's Manual in a convenient location for future reference Safety Instructions This product is specially designed based on the full attention to safety; in order to make sure the accident-free operation, please abide the guidelines listed below:
Always position the unit on a stable and level surface. Unstable surface can cause the unit to topple and fall, resulting in possible damage or injury
Do not drop, unpack, open, beat, curve, prink and burn the unit
Avoid using the unit nearby basins or sinks where it may come in contact with water
Do not place any ware with full water on the top of the unit, such as vase, glass, pot, and please avoid placing candle on the speaker surface as well
Protect the using of the unit from any overheating devices (such as radiator, heating installation, cooking stove or other heating devices)
Regardless of what reasons cause the unit damage, please ask for the maintenance personnel to repair
If you want to do the cleaning, please turn off the unit and unplug the power cable from the outlet first
Set the volume properly to prevent injury to the unit and your health Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. WARNING:
The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
No naked flame sources, such as lighted candles, should be placed on the apparatus.

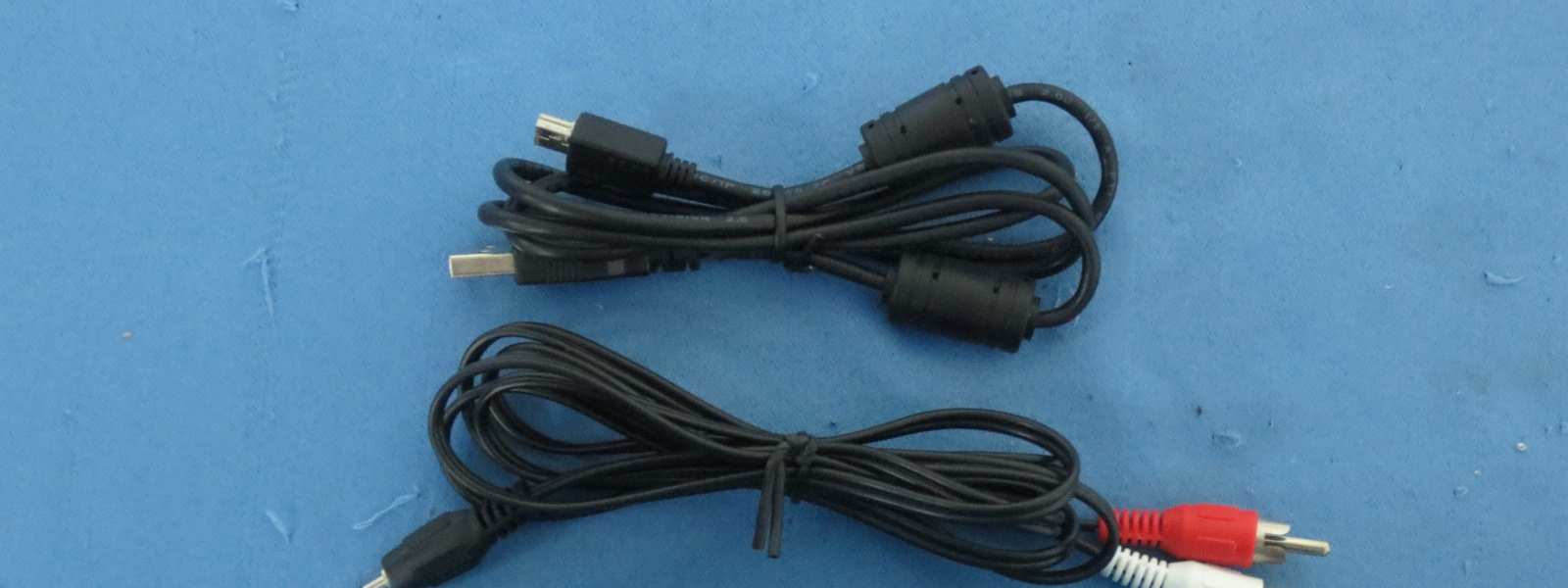

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Package Contents 1. Magic SoundBox Bluetooth speaker main unit x 1 2. USB charging cable x 1 (shielded, with two ferrite core, with Length of 1m) 3. Aux cable x 1 (unshielded, with Length of 1.75m ) 4. User’s manual x 1 Fit Models
Apply to：all iPhone and iPad series, Smartphones, Laptop, Tablets and other Bluetooth devices
Work with any device with standard 3.5mm earphone jack via the included Aux cable for connecting, such as MP3,PSP, Mobile phone...,etc Outstanding Features Magic SoundBox speaker is compatible with all wireless Bluetooth devices such as iPad, iPhone, Smartphones, Laptops, Tablets and other Bluetooth devices. It is portable, wireless, hands-free. Just place it anywhere in a room and enjoy pristine streaming audio from your phone, computer, or other Bluetooth devices. Bring music, movies, and all your mobile audio vibrantly to life--all in the palm of your hand 2 / 5
Go Anywhere and Go Wireless Easily compatible with iPhone, iPad, mobile phones, computers, tablets, or any other Bluetooth-enabled device Wireless working range is up to 8-12 meters, no cords, no hassle
Calling and Conference on the Go With a powerful, built-in microphone, it can frees you to share clean-sounding conference calls or personal calling anywhere--in the office, car, at home, alone, or with a group
Good sound system, enjoy your life Special speaker drive unit with woofer, amp up your Music, Movies, Games to let you experience the richest sound Built-in rechargeable battery, up to 6 hours of continuous play
Crafted outlook and function design Pretty lozenge metal mesh and good hand-feeling rubber casing, showing the high quality and taste LINE IN, almost work with any player LINE OUT, turn the speaker into a Bluetooth receiver to work with more powerful music play system Sleep mode to save the battery for long time play Part Names Main unit 1. Microphone 2. Volume - 3. Multi-function button (play/pause button & answer key) 4. Volume + 5. Bluetooth indicator 6. Charging indicator 7. ON/OFF switch 8. USB charging port 9. Line in 10. Line out 11. Bass vent 12. Anti-slip pad 3 / 5 Basic Operation
Power on/power off 1. Power on the unit: Slide the ON/OFF switch to “ ON” to turn on the unit, the Bluetooth indicator lights up at once 2. Power off the unit：Slide the ON/OFF switch to “ OFF” to turn off the unit, the Bluetooth indicator goes out in the meanwhile.
Connection 1. Work with phone • Power on the unit, and coming with a short Bluetooth hint sound from the unit, the Bluetooth function is on, the blue Bluetooth indicator lights up at the same time, these show the unit is enter pairing mode. • Turn on the Bluetooth function in your phone, and search the Bluetooth device, then, your phone will find the device named “BiJELA HT1051”, A tone will sound to confirm the device has paired successfully. Note: Please take the User’s manual of your cell phone for the details about Bluetooth connection. 2. Work with tablet PC • Please refer to the above phone connection operation steps. 3. Work with laptop/ notebook computer /PC • As the Bluetooth version for laptop/ notebook computer /PC is various, the connection methods are different as well, if you can not connect with the unit for play on first use, you may need to install a new version of the Bluetooth driver in your laptop in advance. Please reference the instructions of laptop for details.
Play mode 1. Bluetooth mode: play the audio signal from Bluetooth device connected with the unit. 2. AUX mode: play the audio signal from the audio device with “LINE IN” port. Note: As long as the Aux cable is connected to the speaker, it will not play the music from Bluetooth
Play the music Play the audio signal from Bluetooth device 1. Follow the above connection steps to pair the Bluetooth device and the unit. …

Text truncated - open the document above for the full version.

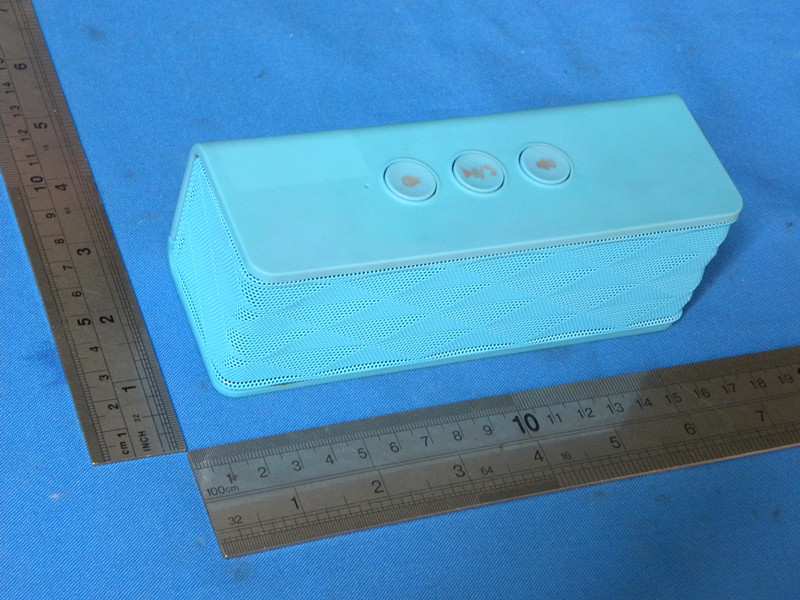

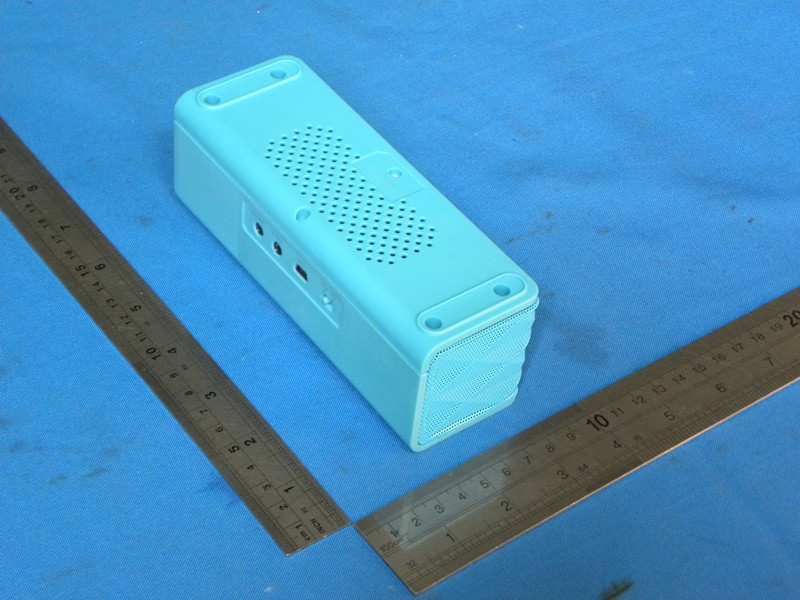

External Photos

Internal Photos

FCC ID: OJR-HT1051 1 INTERTEK TESTING SERVICES RF Exposure report The equipment under test (EUT) is a mobile Magic SoundBox Bluetooth speaker. The EUT was powered by DC 3.7V, 1000mAh internal rechargeable Li-ion battery and can be charged by USB source. For more detail information pls. refer to the user manual. Modulation Type: GFSK, π/4 –DQPSK and 8-DPSK Bluetooth Version: 2.1 with the EDR function An tenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: -10 dBm (tolerance: +/- 4 dB) The worst-case radiated emission for the EUT is 85.7dB
V/m at 3m in the frequency 2.402GHz = [(FS*D) ^2 / 30] mW = -9.53 dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded fr om routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. The maximum radiated output power = -6 dBm = 0.2 5mW Th e source-based time averaged maximum radiated power (including the tune-up tolerance) = 0.25 * Duty Cycle = 0.21mW Fr o m above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: = 0. 21 mW / 4πR ^2 = 0 .00004 mW/cm^2 Th e MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 2.1 + EDR), transmitter ON time FCC ID: OJR-HT1051 2 Is dependent of packet type (DH1, DH3 and DH5) For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hopset consists of 5 TX slot and 1 RX slot. Duty cycle = 5 / 6 = 0.833 The following RF exposure statement is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

A Att 20 dB * Ref 10.5 dBm Offset 0.5 dB LVL Center 2.4 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 5.43 dBm 2.402000000 GHz 1 Delta 1 [T1 ] -42.91 dB -2.020000000 MHz Date: 11.JAN.2013 14:13:05 A Att 20 dB * Ref 10.5 dBm Offset 0.5 dB LVL Center 2.4835 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 5.36 dBm 2.480000000 GHz 1 Delta 1 [T1 ] -58.88 dB 3.940000000 MHz Date: 11.JAN.2013 14:14:13

A Att 20 dB * Ref 10.5 dBm Offset 0.5 dB LVL Center 2.402 GHzSpan 10 MHz1 MHz/ * 3DB RBW 100 kHz SWT 2.5 ms * VBW 300 kHz 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 4.39 dB m 2.402020000 GHz ndB [T1] 20.00 dB BW 1.420000000 MHz T1 Temp 1 [T1 ndB] -16.82 dBm 2.401300000 GHz T2 Temp 2 [T1 ndB] -15.51 dBm 2.402720000 GHz Date: 11.JAN.2013 14:01:44 A Att 20 dB * Ref 10.5 dBm Offset 0.5 dB LVL Center 2.48 GHzSpan 10 MHz1 MHz/ * * RBW 100 kHz VBW 300 kHz SWT 2.5 ms 3DB 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 3.49 dB m 2.480000000 GHz ndB [T1] 20.00 dB BW 1.400000000 MHz T1 Temp 1 [T1 ndB] -17.20 dBm 2.479300000 GHz T2 Temp 2 [T1 ndB] -16.61 dBm 2.480700000 GHz Date: 11.JAN.2013 14:08:36

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com E-CORE TECHNOLOGY (CHINA) CO., LTD. Application For Certification FCC ID: OJR-HT1051 Magic SoundBox Bluetooth speaker Model: HT1051 Additional Model: HT1051C 2.4GHz Transceiver Report No.: 121218002SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file Jimmy Wen Testing Engineer Billy Li Supervisor Date: 18 February 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: OJR-HT1051 Report No.: 121218002SZN-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: OJR-HT1051 Report No.: 121218002SZN-001 ii MEASUREMENT/TECHNICAL REPORT E-CORE TECHNOLOGY (CHINA) CO., LTD. Model: HT1051 Additional Model: HT1051C FCC ID: OJR-HT1051 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12 Edition] provision. Report prepared by: Billy Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0645 Fax: (86 755) 8614 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: OJR-HT1051 Report No.: 121218002SZN-001 iii Table of Contents 1.0 General Description ............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology ............................................................................................... 2 1.4 Test Facility ........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software .................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 5 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1Radiated Test Results............................................................................ 9 3.1.1 Field Strength Calculation ................................................................................ 9 3.1.2 Radiated Emission Configuration Photograph ................................................ 10 3.1.3 Radiated Emissions ....................................................................................... 10 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 12 3.2 Conducted Emission at Mains Terminal................................................... 16 3.2.1 Conducted Emissions Configuration Photograph......................................16 3.2.2 Conducted Emissions........................................................................16 4.0 Equipment Photographs ..................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission

Conducted Emission
