OKY1002300101A02BRFID Reader

1 Operation Manual REVISION 1.0, 2013-07-02 Confidential information, all rights reserved. BALTECH AG Lilienthalstraße 27 85399 Hallbergmoos Germany Phone: +49 (811) 99 88 1- 0 FAX: +49 (811) 99 88 1- 11 e-mail: [email protected] http://www.baltech.de/ 2 Operation Manual ACCESS100 Covered Models: 10023-155-51 10023-001 10023 The “ACCESS100” is a multifunctional contactless smart card RFID Read-/Write-Device (short: reader). The reader supports Mifare, ISO14443A/B, ISO15693 and all cards compliant to these standards. It provides serial interface RS485/ RS232 or a Wiegand Interface to exchange data with a host computer and a 13.56MHz inductive interface to supply power to and exchange data with the Mifare/ISO compliant card (or other available form-factors such as tags, key-fobs). Mounting and Connection The reader generates a magnetic field with the frequency of 13.56MHz which is influenced by any electrically conductive material in close proximity to the device. When mounting the unit, a distance to any such material of minimum 20 mm is required to ensure that there will be no significant degradation of the performance in terms of read range and reliability. Mounting the unit directly to metal would result in a severe reduction of read range down to zero functionality. Care should be taken when testing the device after mounting at a problematic environment: Read ranges and performance vary from card to card and very much from card to tag or key-fob. When mounting multiple readers, the distance between readers should be minimum 0.5 meters in order to avoid degradation of performance due to interference. The reader provides an attached cable to connect the device to the host computer. The cable is colour coded as follows: Pinning Rear View Reader PCB 3 J5: Screw-Clamp, pluggable, 9-Pole. Alternative, potted devices: pigtail cable 1m length. RS485 / Wiegand Pin# Color Name Description 1 Black GND Power and Signal GND 2 Red +VIN Supply Voltage (9...30 VDC) 3 Blue Mult_A: 485/WIE_D0 RS485 A or Wiegand data 0, depending on configuration 4 Pink Mult_B: 485/WIE_D1 RS485 B or Wiegand data 1, depending on configuration 5 Grey LEDGN Wiegand: LED-control input 6 Yellow LEDRD Wiegand: LED-control input 7 Green REL_WC Relais working contact (not installed for ACC-Versions) 8 Brown REL_NO Relais normal open (not installed for ACC-Versions) 9 White REL_NC Relais normal closed. (Special option, available by ordering from factory: Wiegand-Interface Buzzer control input RS485 interface termination resistor: 120 Ohms, to be connected between Mult_A and Mult_B at both ends of the RS485 bus lane cable. Stub line length 1 m max. J10: Through holes, 4-Pole RS232/CMOS Pin# Color Name Description 1 +5V Power 2 Magenta GND GND 3 Grey-pink RX RS232 / CMOS 4 Red-blue TX RS232 / CMOS J8: Service Interface AMP MicroMatch 6-Pole Pin# Name Physical Description 1 TX RS232 / CMOS Reader transmit 2 RX RS232 / CMOS Reader receive 3 GND GND 4 +5V 5V 5% 5VDC supply reader (if connected, the +VIN from J5 must not be connected) 5 NC RS232 / CMOS Do not Connect! 6 NC RS232 / CMOS Do not Connect! Operation Whenever the device is connected to a proper power supply, it will switch on the internal antenna and periodically scan for a card. Once a card has been detected, the card number is read, the data converted and sent to the host system through the serial interface. To enable the device to read cards, tags and key-fobs successfully, they should be placed centered above the reader. The reader may also provide a keypad that may used to enter user identification number. 4 Technical Data Supply Voltage: 9...30 VDC Power consumption : 1.0 W typ. 2.0 W max. Operating temperature : -25 to + 65 C° Operation frequency 13.56 MHz Additional requirements for the supply voltage: Vripple = 50mVpp max. RF Characteristics  Operating frequency: 13.56 MHz  Data transmission modulation reader to card: ASK  Data transmission modulation card to reader: ASK/load modulation Temperature  Operating temperature range: -25...+65°C  Storage temperature range: -25...+80°C  Thermal shock: 30°C/min maximum dT/dt Humidity  Operating:  standard indoor version: 0..90%; non condensing  potted version: 0..100% condensing IP65 5 General regulatory requirements FCC Compliance Statement: This device complies with Part 15 of the FCC rules. The product FCC ID is OKY1002300101A02B. The operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Canada: This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada

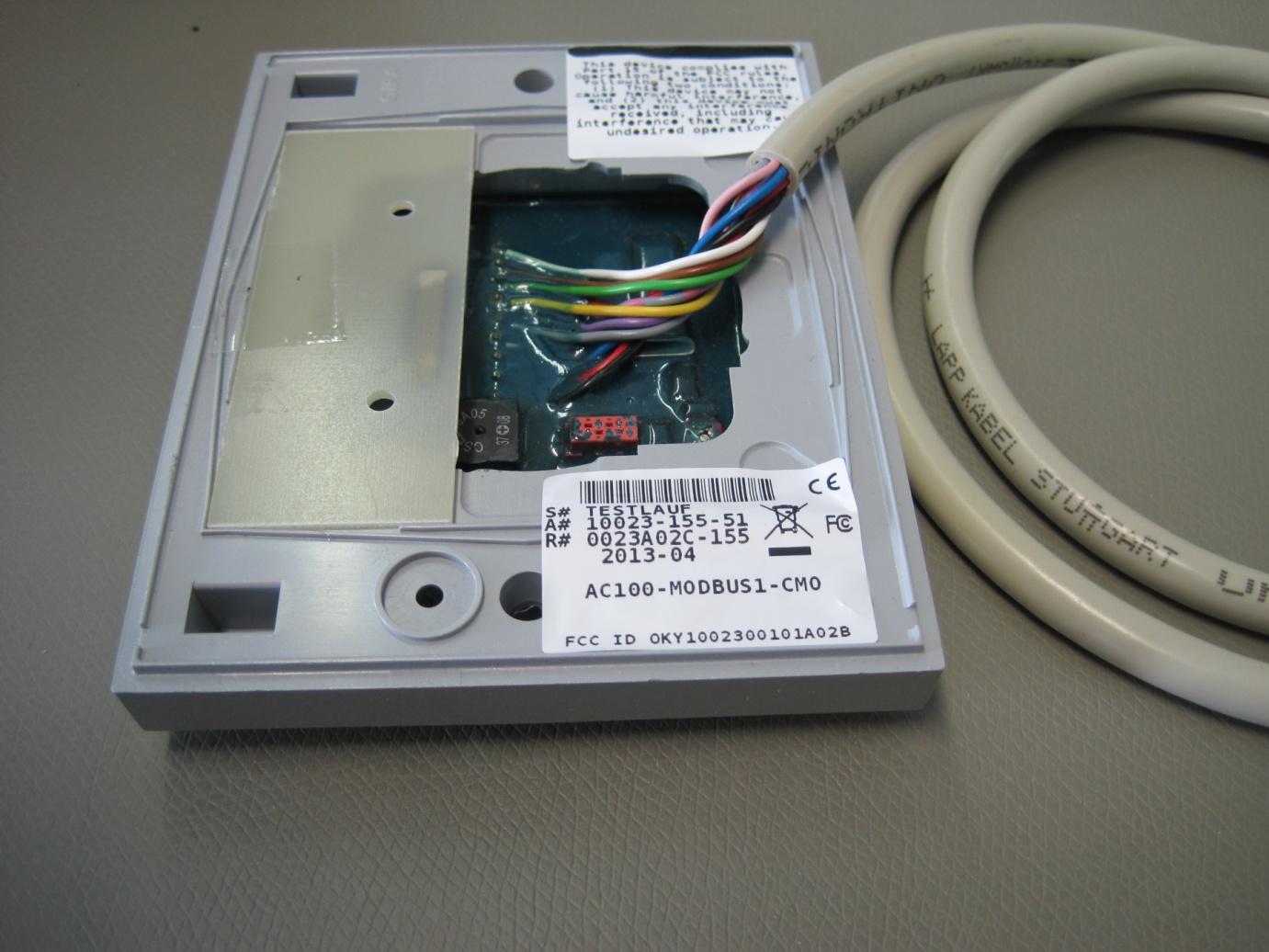

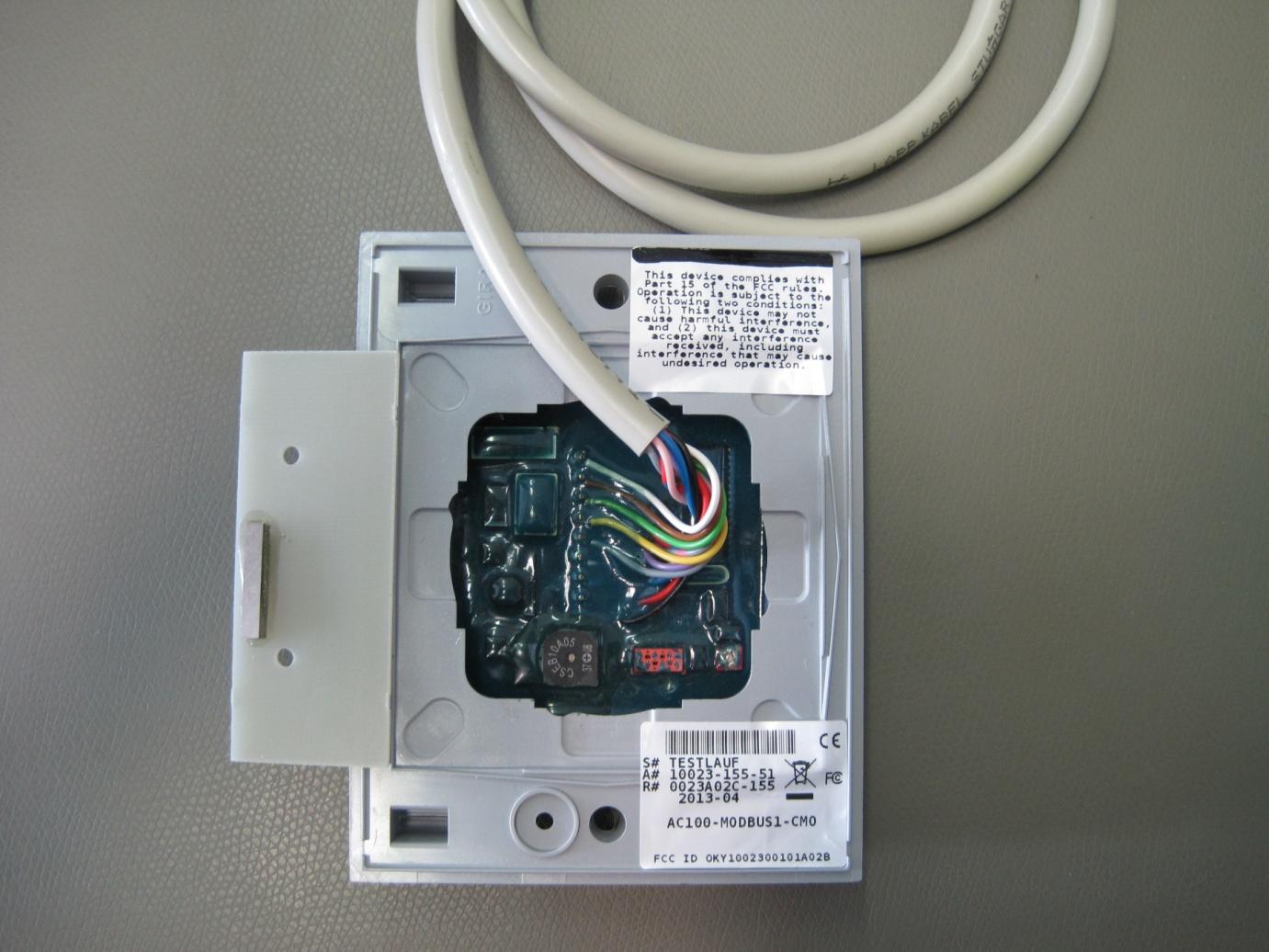

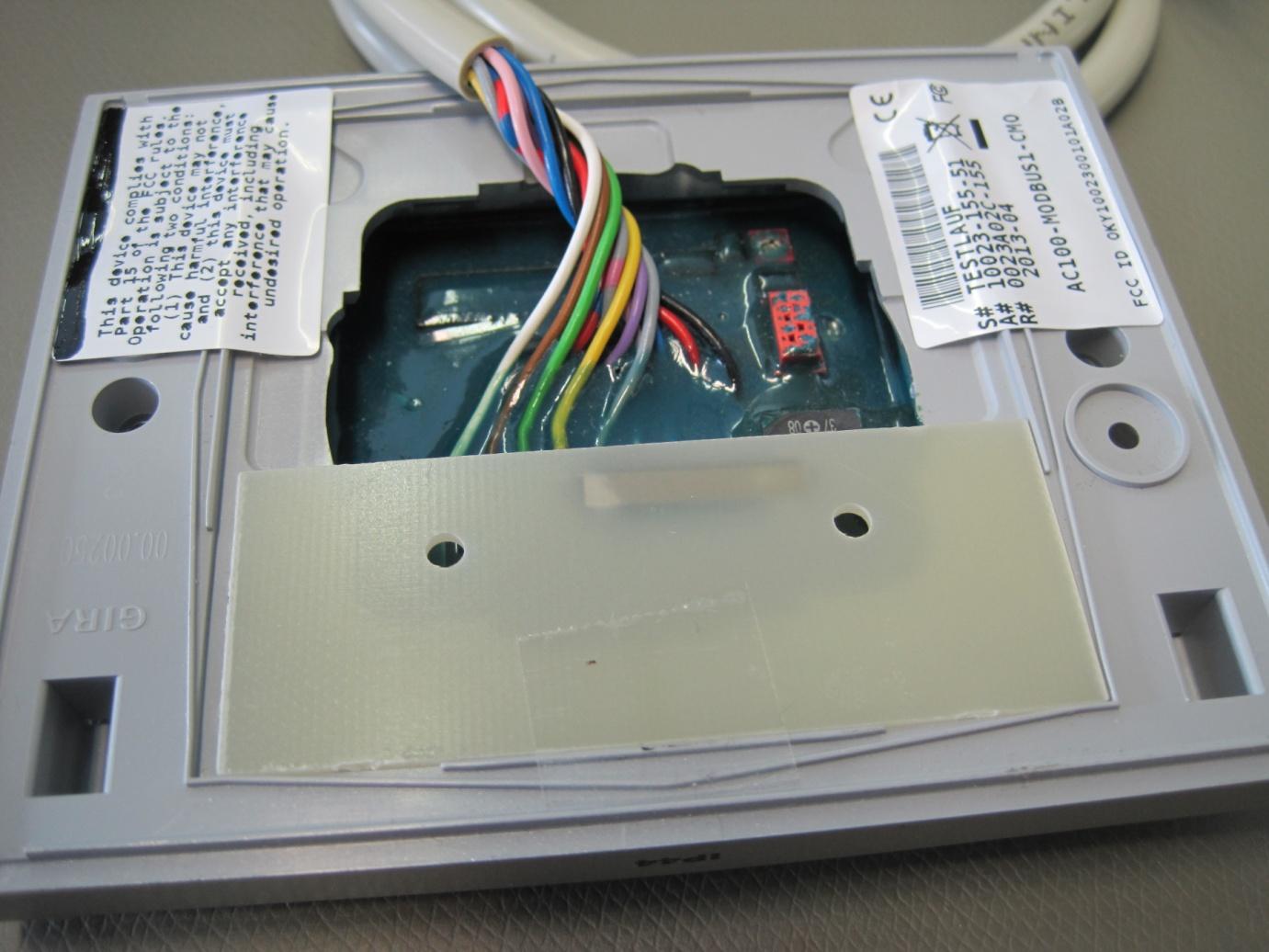

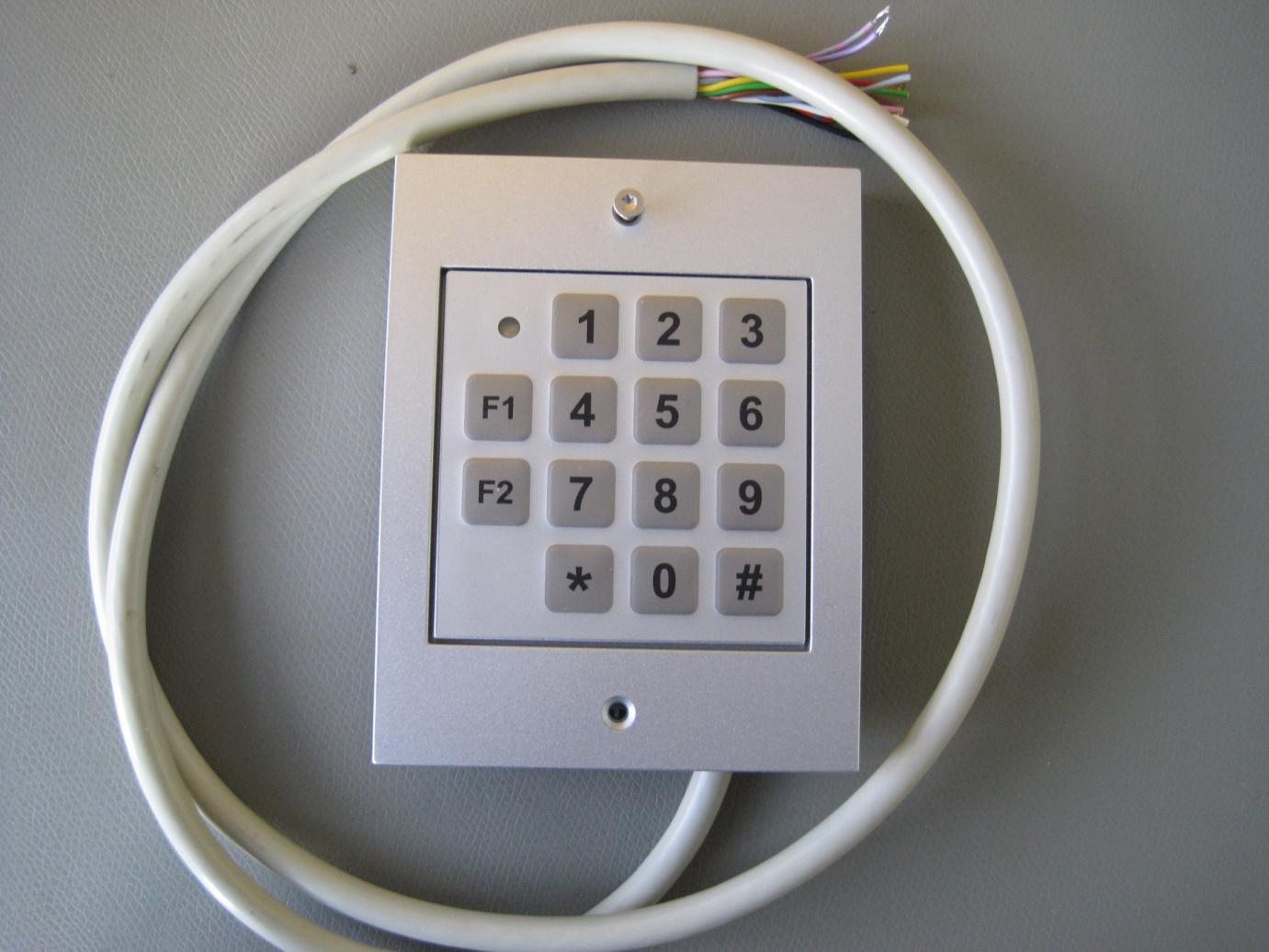

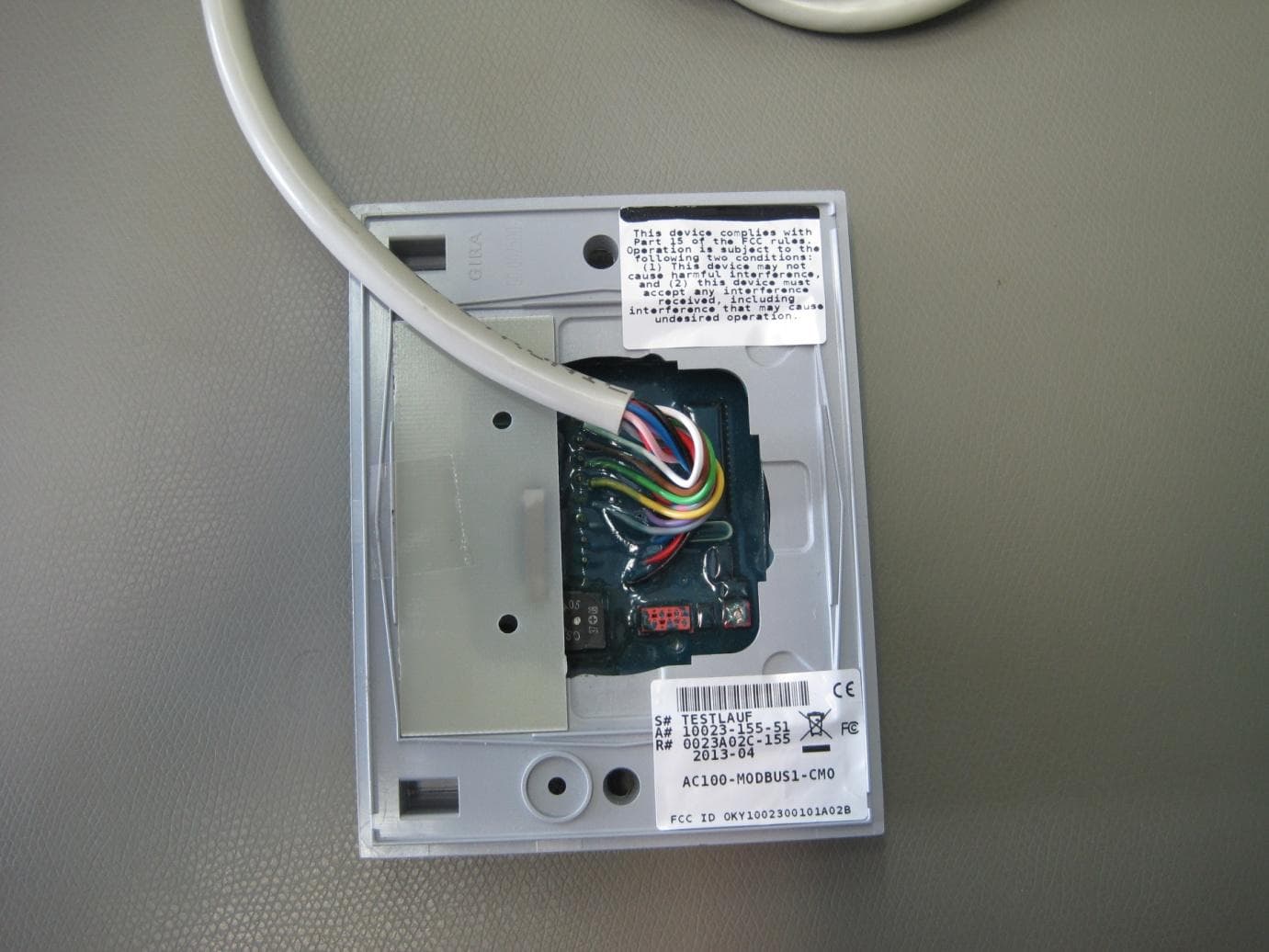

External Photos: FCC ID OKY1002300101A02B 1 Top 2 Bottom 3 Bottom End 4 Top End 5 RightSide Bottom 6 Left Side Bottom 7 Molded Model Bottom 8 Bottom Molded Model 9 Right Side Molded Model 10 Left Side 11 Bottom End 12 Top End 13 Keypad Mode Top

Label Sampel FCC ID OKY1002300101A02B

Device internal picture TOP: Device internal picture BOTTOM:

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 69584-16411 (Edition 1) Applicant: Baltech AG Type of equipment: RFID Reader Type designation: Access 100 & 10023-155-51 & 10023-001- & 10023 Order No.: E-Mail of 2012-12-05 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5 and RSS-210 Issue 8, Section A2.6 (Category I Equipment) April 22, 2013 Page 1 of 56 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 2 of 56 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures .............................................................................................. 9 6.1 Bandwidth Measurements ........................................................................................ 9 6.2 Conducted AC Powerline Emission ....................................................................... 10 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 12 6.4 Radiated Emission at Alternative Test Site ............................................................ 14 6.5 Carrier Frequency Stability ..................................................................................... 16 7 Photographs Taken During Testing .............................................................................. 18 8 Test Results ................................................................................................................. 24 8.1 Occupied Bandwidth .............................................................................................. 26 8.2 Bandwidth of the Emission ..................................................................................... 30 8.3 Designation of Emissions ....................................................................................... 32 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 33 8.5 Spectrum Mask ...................................................................................................... 35 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 37 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 39 8.8 Carrier Frequency Stability ..................................................................................... 40 8.9 Exposure of Humans to RF Fields ......................................................................... 44 9 Referenced Regulations ............................................................................................... 46 10 Test Equipment List with Calibration Data .................................................................... 48 11 Revision History ........................................................................................................... 49 Annex A Charts taken during testing .............................................................................. 50 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 3 of 56 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation and covered variants 1 : Access 100 & 10023-155-51 & 10023-001- & 10023 Parts 2 : Serial number(s): 33020009 201212 Manufacturer: Baltech AG Type of equipment: RFID Reader Version: As received, each FCC ID: OKY1002300101A02B Industry Canada ID: --- Additional parts/accessories: SIEMENS Logo Power 24 V power supply 1 Type designation of the system if EUT consists of more than one part. The applicant declares the conformity of the covered variants. Only one sample tested. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 4 of 56 Pages Technical data of EUT Application frequency range: 13.110 - 14.010 MHz Frequency range: 13.553 – 13.567 MHz Operating frequency: 13.56 MHz Type of modulation: ASK Pulse train: --- Pulse width: --- Number of RF-channels: 1 Channel spacing: --- Designation of emissions 3 : 6K20A1D Type of antenna: Integrated loop antenna on printed board Size/length of antenna: 57 mm x 57 mm Connection of antenna: detachable not detachable Type of power supply: AC supply Specifications for power supply: nominal voltage: 110 V nominal frequency: 60 Hz Type of power supply of EUT: DC supply Specifications for power supply: nominal voltage: 24.0 V minimum v…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 18 of 56 Pages 7 Photographs Taken During Testing TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 19 of 56 Pages Test setup for conducted AC powerline emission measurement TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 20 of 56 Pages Test setup for conducted AC powerline emission measurement - continued - TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 21 of 56 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 22 of 56 Pages Test setup for radiated emission measurement (alternate test site) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69584-16411 (Edition 1) Page 23 of 56 Pages Test setup for radiated emission measurement (alternate test site) - continued -
