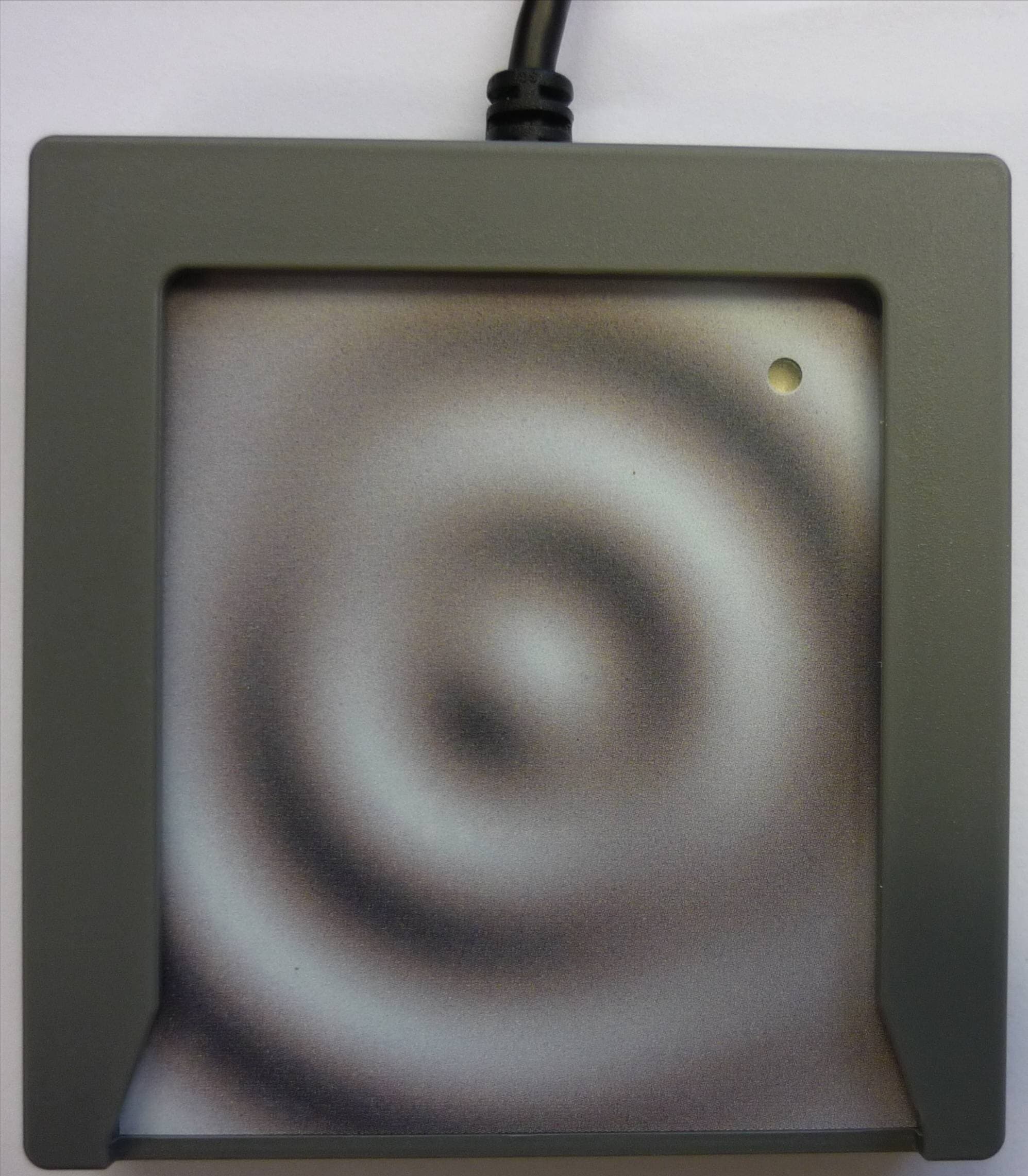

OKY1007400151A03BRFID Reader

Operation Manual 10074-001-51 REVISION 1.0, 2009-11-24 The 10074-001-51 is a RFID Read-/Write-Device (short: reader). The reader supports ISO14443A/B and Mifare cards. It provides an universal serial interface (USB) to output or exchange data with a host computer and a 13.56MHz inductive interface to supply power to and exchange data with the Mifare/ISO compliant card (or other available form-factors such as tags, key-fobs). The host computer can control a LED to interface with the user. Mounting and Connection The reader generates a magnetic field with the frequency of 13.56MHz which is influenced by any electrically conductive material in close proximity to the device. When mounting the unit, a distance to any such material of minimum 10 cm is required to ensure that there will be no significant degradation of the performance in terms of read range and reliability. Mounting the unit directly to metal would result in a severe reduction of read range down to zero functionality. Care should be taken when testing the device after mounting at a problematic environment: Read ranges and performance vary from card to card and very much from card to tag or key-fob. When mounting multiple readers, the distance between readers should be minimum 0.5 m in order to avoid degradation of performance due to interference. Operation Whenever the device is connected to a proper power supply, it will switch on the internal antenna and periodically scan for a card. Once a card has been detected, the card number is read, the data converted and sent to the host system through the serial interface. To enable the device to read cards, tags and key-fobs successfully, they should be placed centred above the reader. Technical Data DC Electrical Characteristics SymbolParameterConditionMinTypMaxUnits Vdd Supply Voltage4.7555.5VDC IddSupply current100mA Idd1Peak Supply currentInrush125mA Additional requirements for the supply voltage: Vripple = 50mVpp max. 1 RF Characteristics Operating frequency: 13.56 MHz Data transmission modulation reader to card: ASK Data transmission modulation card to reader: ASK/load modulation Pinout 4-Pin USB-mini-B plug and Signal Descriptions PinNameTypeDescription 1PWRPower5V Power Supply 2D -OutputUSB-data inverted 3D +InputUSB-data 4IDInputDistinction of plug type 5GNDPowerSignal and Power Ground Temperature Operating temperature range: 0...45°C Storage temperature range: -20...+60°C Thermal shock: 30°C/min maximum dT/dt Humidity Operating: 20% to 80% relative humidity; non condensing Non-operating: 10% to 90% relative humidity; non condensing FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is 2 connected. -- Consult the dealer or an experienced radio/TV technician for help. Canada: This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada 3

Baltech AG Lilienthalstraße 27 D-85399 Hallbergmoos Germany PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg FCC ID OKY1007400151A03B To Whom It May Concern: Please be advised that Baltech AG. authorizes TÜV SÜD SENTON GmbH, Mr. Johann Roidt, to act on our behalf, until otherwise notified, for applications submitted to PHOENIX TEST-LAB GmbH (PTL). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Date: 06 May 2010 ______________________________________ Signatory Jürgen Rösch

Baltech AG Lilienthalstraße 27 D-85399 Hallbergmoos Germany Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.0 3.2008 Datum: Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 06 May 2010 FCC ID OKY1007400151A03B Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Name Jürgen Rösch Position CEO CompanyAdress BALTECH AG, Lillienthalstrasse 27, 85399 Hallbergmoos, Germany Tel/Fax +49 811 99881-0 /-11 E-Mail [email protected]

Request for Confidentiality PHOENIX TESTLAB GmbH Date: June 7, 2010 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: OKY1007400151A03B Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : TÜV SÜD SENTON GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

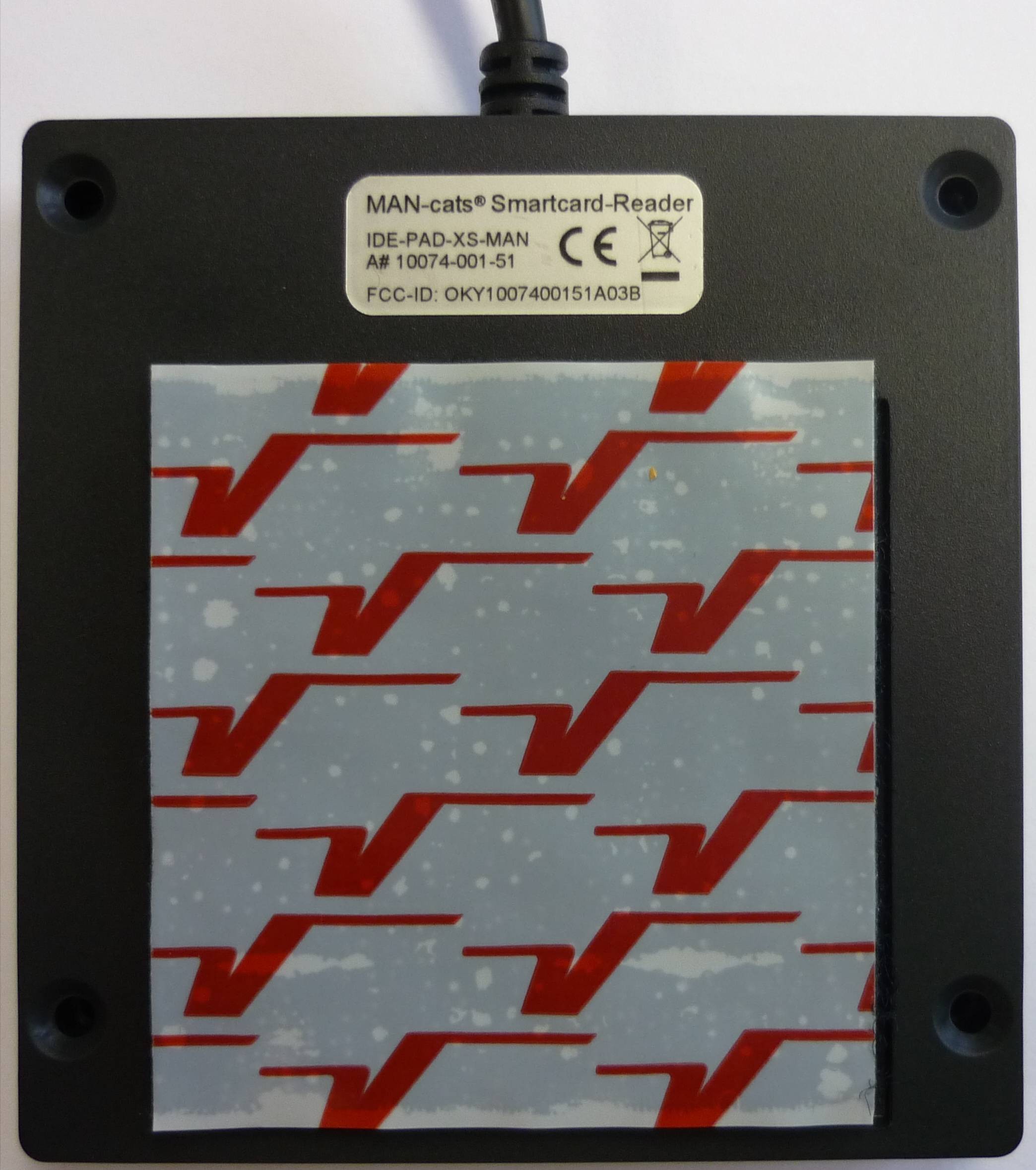

FCC ID OKY1007400151A03B FCC ID OKY1007400151A03B FCC ID OKY1007400151A03B FCC ID OKY1007400151A03B

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 69583-01156 (Edition 2) Page 1 of 64 Pages Prüfbericht / Test Report Nr. / No. 69583-01156 (Edition 2) Applicant: BALTECH AG Type of equipment: USB RFID Reader Type designation: 10074-001-51 Order No.: N.A. Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Section 7.2.2 and RSS-210 Issue 7, Sections 2.2, 2.6, A2.6 (Category I Equipment) 07 December 2009 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 2 of 64 Pages Table of Contents 1 Description of the Equipment Under Test (EUT)............................................................ 3 2 Administrative Data ........................................................................................................ 4 3 Identification of the Test Laboratory............................................................................... 5 4 Summary........................................................................................................................6 5 Operation Mode and Configuration of EUT .................................................................... 7 6 Measurement Procedures .............................................................................................. 8 6.1 Bandwidth Measurements ....................................................................................... 8 6.2 Conducted AC Powerline Emission ......................................................................... 9 6.3 Radiated Emission Measurement 9 kHz to 30 MHz............................................... 11 6.4 Radiated Emission in Fully or Semi Anechoic Room ............................................. 13 6.5 Radiated Emission at Open Field Test Site ........................................................... 15 6.6 Carrier Frequency Stability..................................................................................... 17 7 Photographs Taken During Testing.............................................................................. 19 8 Test Results ................................................................................................................. 26 8.1 Occupied Bandwidth .............................................................................................. 28 8.2 Bandwidth of the Emission..................................................................................... 32 8.3 Designation of Emissions....................................................................................... 34 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 35 8.5 Spectrum Mask ...................................................................................................... 38 8.6 Radiated Emission Measurement 9 kHz to 30 MHz.............................................. 40 8.7 Radiated Emission Measurement 30 MHz to 1 GHz............................................. 43 8.8 Carrier Frequency Stability..................................................................................... 46 8.9 Exposure of Humans to RF Fields ......................................................................... 49 9 Referenced Regulations............................................................................................... 51 10 Revision History ........................................................................................................... 53 11 Charts taken during testing .......................................................................................... 54 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 3 of 64 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : 10074-001-51 Parts 2 : Serial number(s): PCB Rev Nr. 0074A03A Manufacturer: BALTECH AG Type of equipment: USB RFID Reader Version: As received FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 13.110 - 14.010 MHz Frequency range: 13.56 MHz Operating frequency: 13.56 MHz Type of modulation: ASK Pulse train: --- Pulse width: --- Number of RF-channels: 1 Channel spacing: --- Designation of emissions 3 : 10K0A1D Type of antenna: Integrated Size/length of antenna: 5.5 x 5.2 cm Connection of antenna: detachable not detachable Type of power supply: DC supply over USB interface Specifications for power supply: nominal voltage: 5.0 V minimum voltage: 4.5 V maximum voltage: 5.5 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 4 of 64 Pages 2 Administrative Data Application details Applicant (full address): BALTECH AG Lilienthalstraße 27 85399 Hallbergmoos Germany Contact person: Mr. Cemil Yatkin Order number: N.A. Receipt of EUT: November 3, 2009 Date(s) of test: November 2009 Note(s): Report details Report number: 69583-01156 Edition: 2 Issue date: December 7, 2009 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 5 of 64 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: TÜV SÜD SENTON GmbH Address: Aeussere Fruehlingstrass…

Text truncated - open the document above for the full version.

Test Equipment List with Calibration Data Seite 1 von 2 Test report number(s): Date of test: 69583-01156 11/2009 Date of Calibration Type Inv.-No. Type Designation Serial Number Manufacturer Calibration Organization Last Next Test receiver 1028 ESHS10 860043/016 Rohde & Schwarz Rohde & Schwarz 02/2009 08/2010 EMI Test receiver 1569 ESMI 839379/013 Rohde & Schwarz Rohde & Schwarz 10/2009 01/2012 EMI test receiver 1711 ESPI7 836914/0002 Rohde & Schwarz Rohde & Schwarz 09/2009 03/2011 EMI test receiver 1863 ESCI 100008 Rohde & Schwarz Rohde & Schwarz 06/2008 06/2010 EMI test receiver 2010 ESPI7 101018 Rohde & Schwarz Rohde & Schwarz 11/2009 05/2011 Test receiver 2031 ESVP 891846/003 Rohde & Schwarz Rohde & Schwarz 10/2008 04/2010 Spectrum analyser 1666 FSP30 100063 Rohde & Schwarz Rohde & Schwarz 11/2009 05/2011 Preamplifier 1142 R14601 13120026 Advantest TÜV SÜD SENTON 11/2009 05/2011 Preamplifier 1651 CPA9231A 3393 Schaffner Electrotest TÜV SÜD SENTON 05/2008 02/2010 V-network 1059 ESH3-Z5 894785/005 Rohde & Schwarz Rohde & Schwarz 05/2009 05/2012 V-network 1060 ESH3-Z5 862770/021 Rohde & Schwarz Rohde & Schwarz 01/2007 01/2010 V-network 1218 ESH3-Z5 830952/025 Rohde & Schwarz Rohde & Schwarz 07/2008 07/2011 Loop antenna 1016 HFH2-Z2 882964/0001 Rohde & Schwarz Rohde & Schwarz 09/2009 03/2011 Double ridged waveguide horn antenna 1516 3115 9508-4553 EMCO Elektronik ARC 05/2008 05/2011 Biconical Antenna 1518 HK116 842204/01 Rohde & Schwarz Rohde & Schwarz 06/2008 12/2009 Logarithmic-periodic antenna 1519 HL223 841516/23 Rohde & Schwarz Rohde & Schwarz 06/2008 12/2009 TRILOG broadband antenna 1722 VULB 9163 9163-188 Schwarzbeck Schwarzbeck 04/2008 01/2010 TRILOG Broadband Antenna 1802 VULB 9163 9163-214 Schwarzbeck Schwarzbeck 11/2009 05/2011 Note 1: Date of next calibration contains maximum tolerance if applicable. Note 2: Multimeter used to verify voltage settings of appropriate power supply Test Equipment List with Calibration Data Seite 2 von 2 Test report number(s): Date of test: 69583-01156 11/2009 Date of Calibration Type Inv.-No. Type Designation Serial Number Manufacturer Calibration Organization Last Next Multimeter 1653 21 III 76530546 Fluke ZMK 05/2008 02/2011 Multimeter 1654 21 III 76381229 Fluke ZMK 03/2008 12/2010 Multimeter 1975 Fluke 77 III 92370108 Fluke ZMK 09/2008 06/2011 Multimeter 1976 Fluke 77 IV 93090238 Fluke ZMK 09/2008 06/2011 Digital multimeter 2025 Fluke 177 96720024 Fluke ZMK 09/2008 06/2011 Digital multimeter 2026 Fluke 177 96720025 Fluke ZMK 09/2008 06/2011 Note 1: Date of next calibration contains maximum tolerance if applicable. Note 2: Multimeter used to verify voltage settings of appropriate power supply

TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 20 of 64 Pages Test setup for conducted AC powerline emission measurement TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 21 of 64 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 22 of 64 Pages Test setup for radiated emission measurement (fully anechoic room) TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 23 of 64 Pages Test setup for radiated emission measurement (open field test site) TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 24 of 64 Pages Test setup for radiated emission measurement (open field test site) - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton Test Report No. 69583-01156 (Edition 2) Page 25 of 64 Pages Test setup for carrier frequency stability measurement
