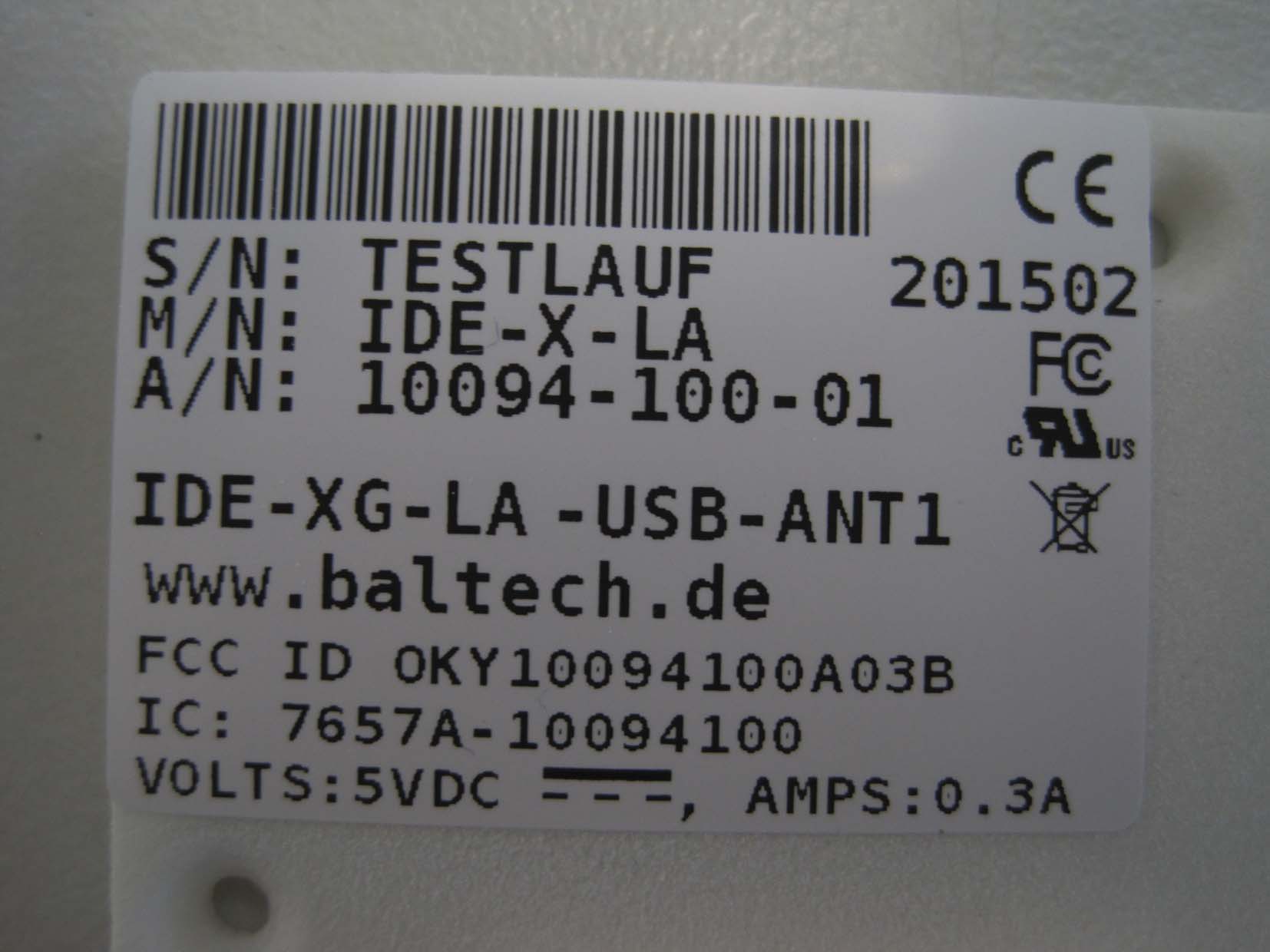

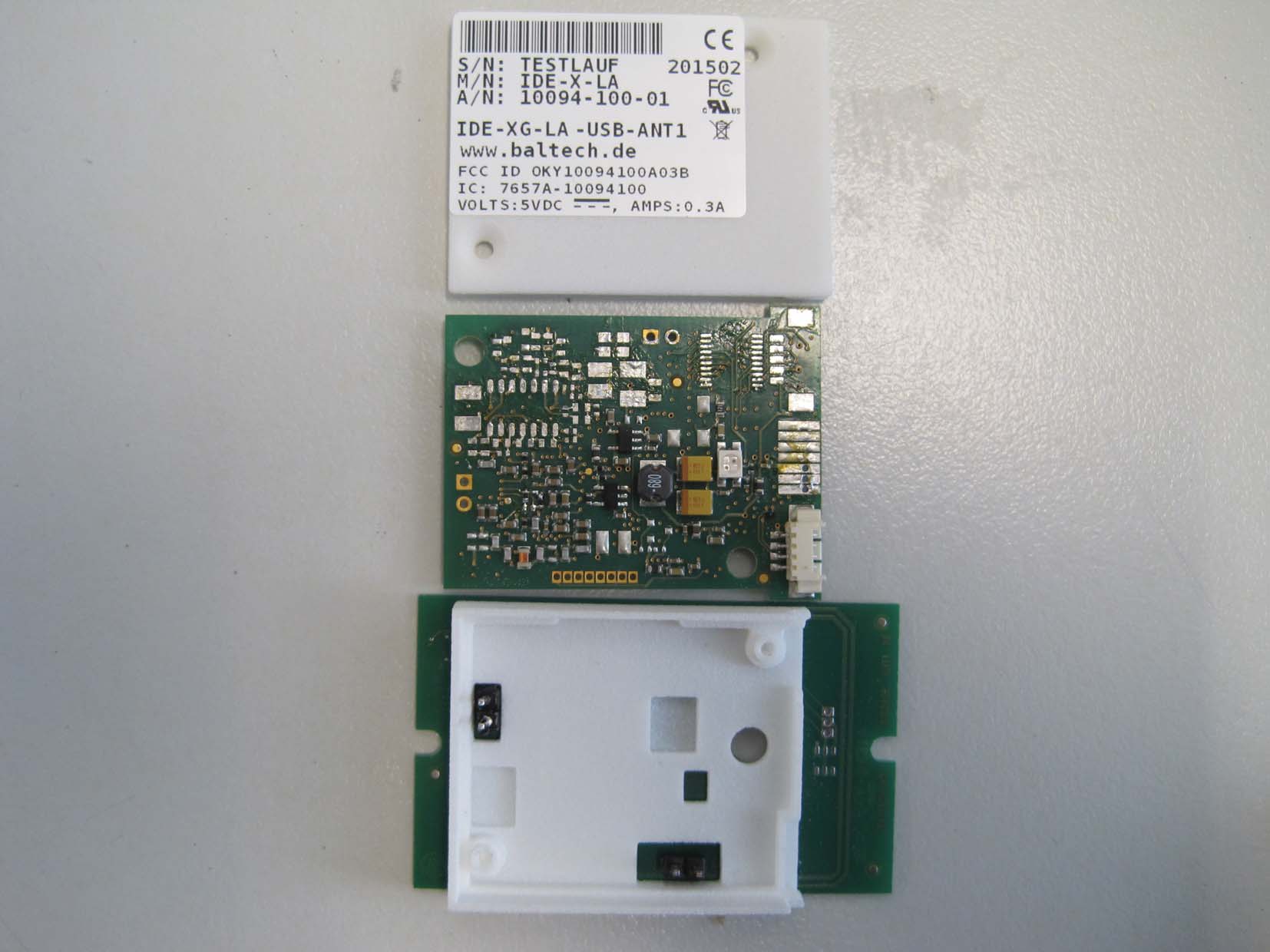

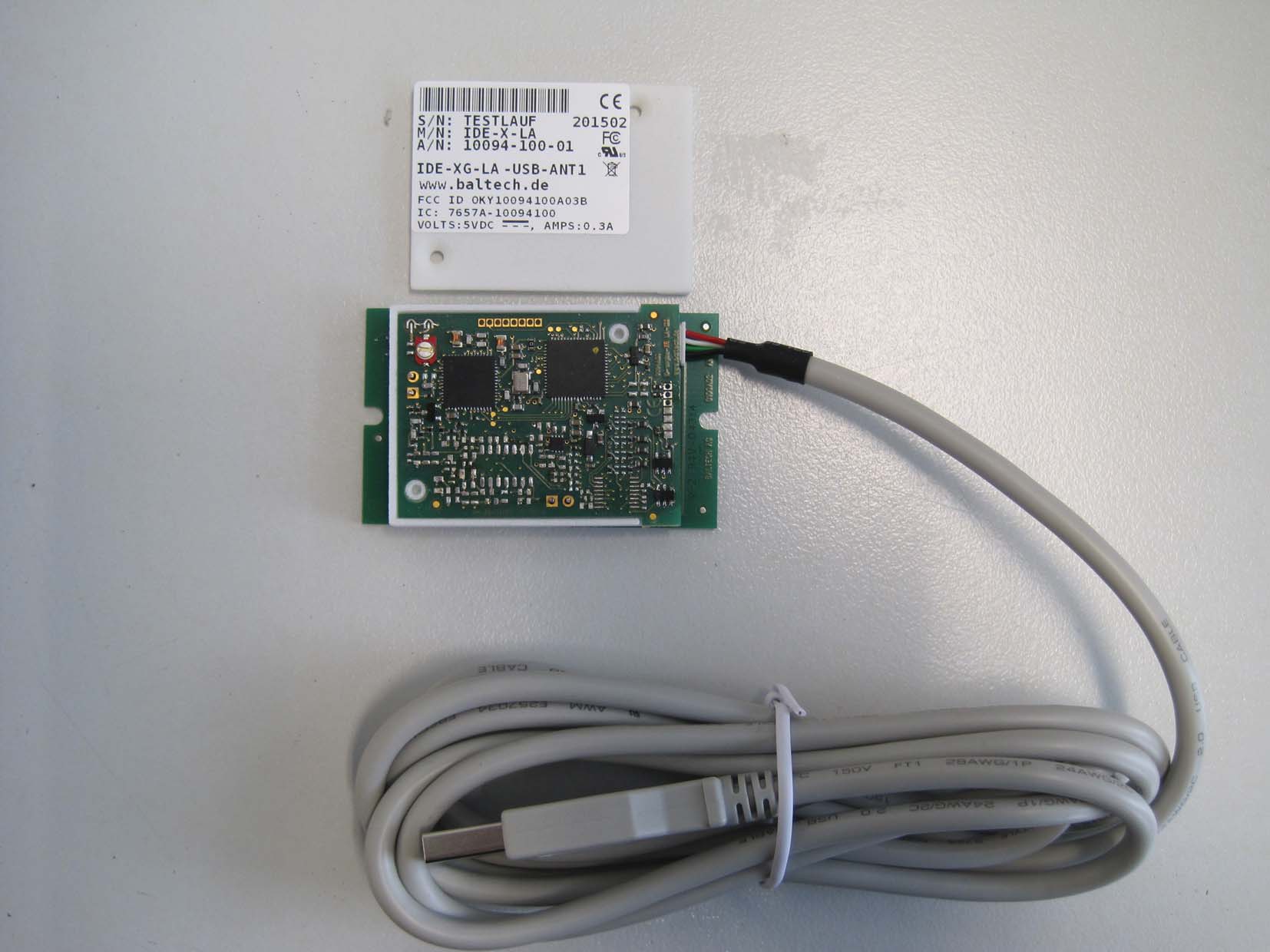

OKY10094100A03BRFID Module

Operation Manual RFID Reader “IDE-X-LA” REVISION 1.0, 2015-02-09 Confidential information, all rights reserved. BALTECH AG Lilienthalstraße 27 85399 Hallbergmoos Germany Phone: +49 (811) 99 88 1- 0 FAX: +49 (811) 99 88 1- 11 e-mail: [email protected] http://www.baltech.de/ - 1 - IDE-X-LA Covered Variants: 10094-100-yy 1 10099-100-yy 2 1 “y” shall represent any numerical number. 2 “y” shall represent any numerical number. - 2 - Introducti o n The “IDE-X-LA” Reader/Writer is a Desktop contactless smart card/tag reader and writer. It supports LEGIC RF standards, ISO 14443A/B, ISO 15693, FeliCa tags. The reader provides 13.56 MHz inductive interface to supply power in order to exchange data with the MIFARE/ISO, LEGIC compliant cards and interfacing with the host PC via USB for data exchange. Mounting and Connection The reader generates magnetic field at 13.56MHz which could be influenced by any electrically conductive material close to the device. To ensure good performances and functionalities in terms of read range and reliability a minimum distance of 20 mm from such materials is required when mounting the unit. Mounting the reader directly or closed to metal would result into a severe reduction of read range or even zero functionality. Care should be taken when testing the assembled-reader at a problematic environment: Read ranges and performance vary from card to card and very much from card to tag or key-fob. When mounting multiple readers, a minimum distance of 0.5 meters between them should be observed in order to avoid degradation of performance due to interference. The reader is supplied with an USB-cable to connect the device to the host PC as following. Pin Name Type Description 1 PWR Power 5V Power Supply 2 D- Output USB-Data inverted 3 D+ Input USB-data 4 GND Power Signal and Power Ground Operation Whenever the device is connected to a proper power supply, it will switch on the internal antenna and periodically scan for a card. Once a card has been detected, the card number is read, the data converted and sent to the host system through the serial interface. To enable the device to read cards, tags and key-fobs successfully, they should be placed centered above the reader. The reader may also provide a keypad that may used to enter user identification number. - 3 - Technical Features Parameters Descriptions RF-Characteristics Operated Frequencies 13.56MHz Data transmission modulation reader to card: ASK Data transmission modulation card to reader: AM/Load modulation Interfaces Host USB: Full speed 2.0 Contactless Supported standards: LEGIC, ISO 14443A/B, ISO 15693, FeliCa Communication speed: Baud rate up to 424kBaud Reading distance : Up to 9 cm- depending on tags and antenna Human LEDs, Buzzer Power Supply [V DC ] USB bus powered: 5 (±5%) Consumption [W] Up to 1.0 / 0.75 typ. Temperature Operating [°C] -25 to +65 Storage [°C] -25 to +85 Humidity Operating[%] 20 to 80 relative humidity; non condensing Non Operating [%] 10 to 90 relative humidity; non condensing - 4 - General regulatory requirements FCC ID OKY10094100A03B IC: 7657A- 10094100 NOTICE: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications made to this equipment not expressly approved by BALTECH AG may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 69583-49775-1e (Edition 3) Applicant: BALTECH AG Type of equipment: RFID Module Type designation: IDE-X-LA Variants covered by this test report: 10094-1X-Y: 10094-100, 10094-101, 10094-102 10094-2X-Y: 10094-200 10094-3X-Y: 10094-300 10099-1X-Y: 10099-100, 10099-102 Where “X” and “Y” may replace any alphanumerical numbers Order No.: E-Mail 2014-09-18 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.209, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5 and RSS-210 Issue 8, Section A2.6 (Category I Equipment) February 4, 2015 Page 1 of 62 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 2 of 62 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures .............................................................................................. 9 6.1 Bandwidth Measurements ........................................................................................ 9 6.2 Conducted AC Powerline Emission ....................................................................... 10 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 12 6.4 Radiated Emission at Alternative Test Site ............................................................ 14 6.5 Carrier Frequency Stability ..................................................................................... 16 7 Photographs Taken During Testing .............................................................................. 18 8 Test Results ................................................................................................................. 27 8.1 Occupied Bandwidth .............................................................................................. 29 8.2 Bandwidth of the Emission ..................................................................................... 35 8.3 Designation of Emissions ....................................................................................... 39 8.4 Restricted Bands of Operation ............................................................................... 40 8.5 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 42 8.6 Spectrum Mask ...................................................................................................... 45 8.7 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 48 8.8 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 51 8.9 Carrier Frequency Stability ..................................................................................... 54 8.10 Exposure of Humans to RF Fields ......................................................................... 57 9 Referenced Regulations ............................................................................................... 59 10 Test Equipment List with Calibration Data .................................................................... 61 11 Revision History ........................................................................................................... 62 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 3 of 62 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : IDE-X-LA Variants covered by this report: 10094-1X-Y: 10094-100, 10094-101, 10094-102 10094-2X-Y: 10094-200 10094-3X-Y: 10094-300 10099-1X-Y: 10099-100, 10099-102 Where “X” and “Y” may replace any alphanumerical numbers Parts 2 : Serial number(s): S# 16004471 Manufacturer: Baltech AG Type of equipment: RFID Module Version: As received FCC ID: OKY10094100A03B Industry Canada ID: 7657A-10094100 Additional parts/accessories: 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 4 of 62 Pages Technical data of EUT Application frequency range: 125 kHz and 13.110 - 14.010 MHz Frequency range: 125 kHz and 13.553 – 13.567 MHz Operating frequencies: 125 kHz and 13.56 MHz Type of modulation: ASK Pulse train: --- Pulse width: --- Number of RF-channels: 2 Channel spacing: N/A Designation of emissions 3 : 1K00A1D / 43K2A1D Type of antenna: Integrated loop antenna Size/length of antenna: 125 kHz: 26 mm x 37 mm 13.56 MHz: 34 mm x 47 mm Connectio…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 18 of 62 Pages 7 Photographs Taken During Testing TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 19 of 62 Pages Test setup for conducted AC powerline emission measurement TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 20 of 62 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 21 of 62 Pages TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 22 of 62 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz) - continued - TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 23 of 62 Pages Test setup for radiated emission measurement (alternate test site) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 24 of 62 Pages TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 25 of 62 Pages Test setup for radiated emission measurement (alternate test site) - continued - TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 69583-49775-1e (Edition 3) Page 26 of 62 Pages
