OKY1055800101A03CInductive Tag Reader

User Manual 0558A02C-001 – DC Analyser REVISION 1.0, 2007-11-07 Operation The DCAnalyser is used for analysis of LTO data cartridges. It contains on the one hand a RFID read-/write-device (short: reader) which is compatible to read LTR labels embedded in LTO data cartridges and one the other hand an integrated bar code scanner to read bar code labels applied on LTO data cartridges. All functions of the DC Analyser can be controlled over a USB interface which allows data exchange with a host computer. This includes: –functions to control the RFID reader: e.g. switch on / off RF field, read / write to a LTR label. –functions for bar code scanner: enable / disable scanner, read labels. –functions for controlling the two LED's on the front of the housing. –system functions: e.g. status of device To ensure full operation it is important that a external wall adapter is used (USB self powered). To process a cartridge it is important that it is applied as shown on the front foil of the device, the antenna of the reader is located as shown on the picture (green rectangle): Hint: the reader generates a magnetic field with the frequency of 13.56MHz which is influenced by any electrically conductive material in close proximity to the antenna. A minimum of 10 cm is required to ensure that there will be no significant degradation of the performance in terms of read range and reliability. Specifications Dimensions: –Length:252 mm –Width:112 mm –Height:80 mm Host interface:USB via virtual COM-Port , 115200 baud, 8N1 Power supply:5VDC, +-5% Current consumption:Idle (typ.):70mA Barcode scanner on (typ.): 135mA RF field on (typ.):160mA max: 500mA Operating temperature range:+5..+45° C Storage temperature range:-20°C..+70°C Thermal shock: 30°C/min maximum dT/dt Relative humidity:5% .. 95% (not condensing) Weight:310g Accessories: –USB Cable –AC/DC Adapter Input: 100-240V AC Output: 5V DC / 1.0A Caution: only the original wall adapter should be used to ensure full operation. RF Characteristics: –Operating frequency: 13.56 Mhz –Data transmission modulation reader to card: AM –Data transmission modulation card to reader: AM/load modulation General regulatory requirements FCC: Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class 1 Laser: –Product complies with 21CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated July 26, 2001. –EN60825-1:1994+ A1:2002 +A2:2001 –IEC60825-1:1993+ A1:1997 +A2:2001 –Class 1 Laser devices are not considered to be hazardous when used for their intended purpose. The following statement is required to comply with US and international regulations: Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. CLASS 1 LASER PRODUCT LASER KLASSE 1 APPAREIL A LASER DE CLASSE 1

Ersteller: U. Rodemeier Revision: 03 Erstelldatum: 03.08.01 Datum: 4.10.2006 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: December 4, 2007 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: OKY1055800101A03C Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : Senton GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

FCC ID OKY1055800101A03C FCC ID OKY1055800101A03C FCC ID OKY1055800101A03C FCC ID OKY1055800101A03C FCC ID OKY1055800101A03C FCC ID OKY1055800101A03C

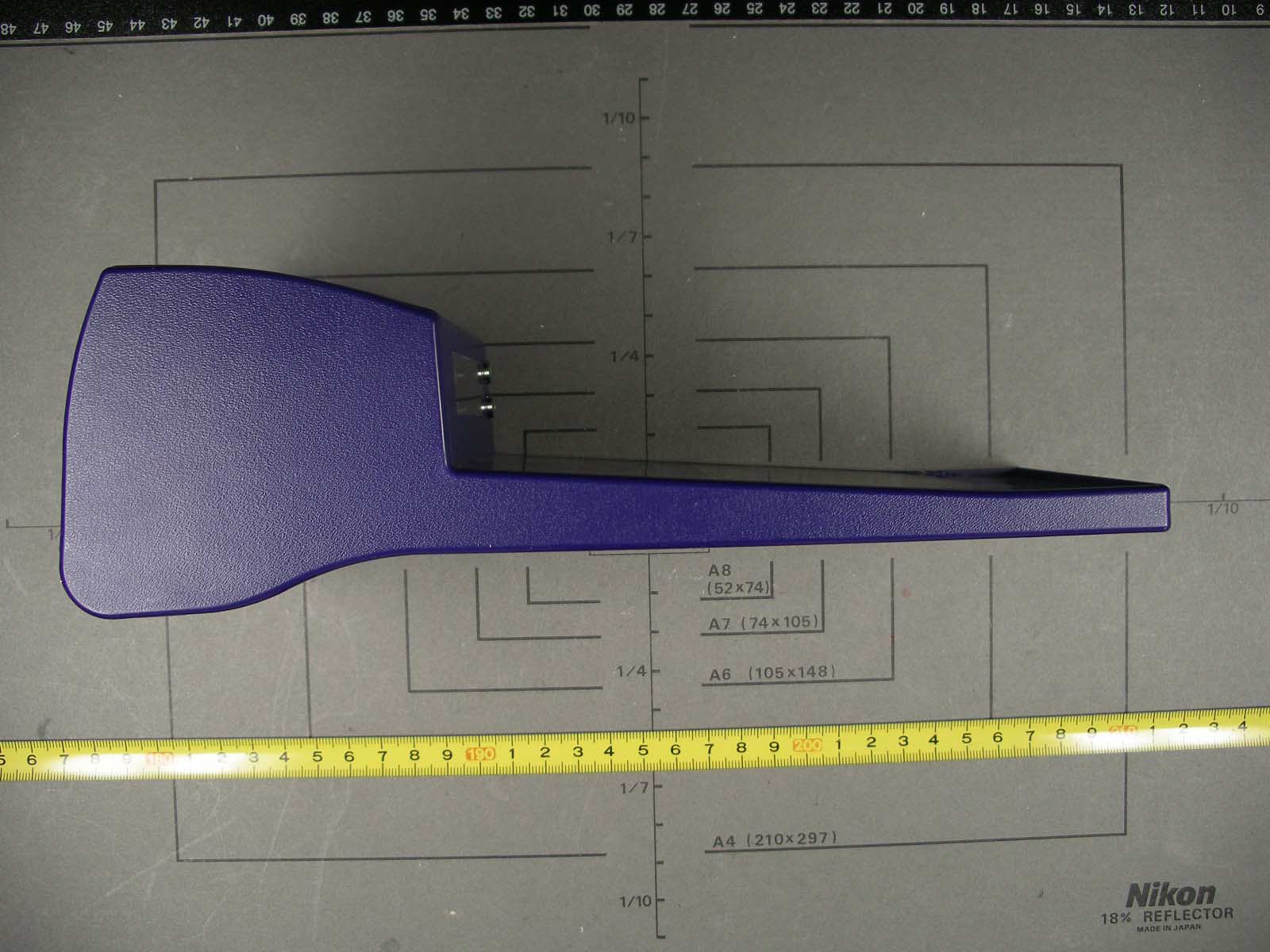

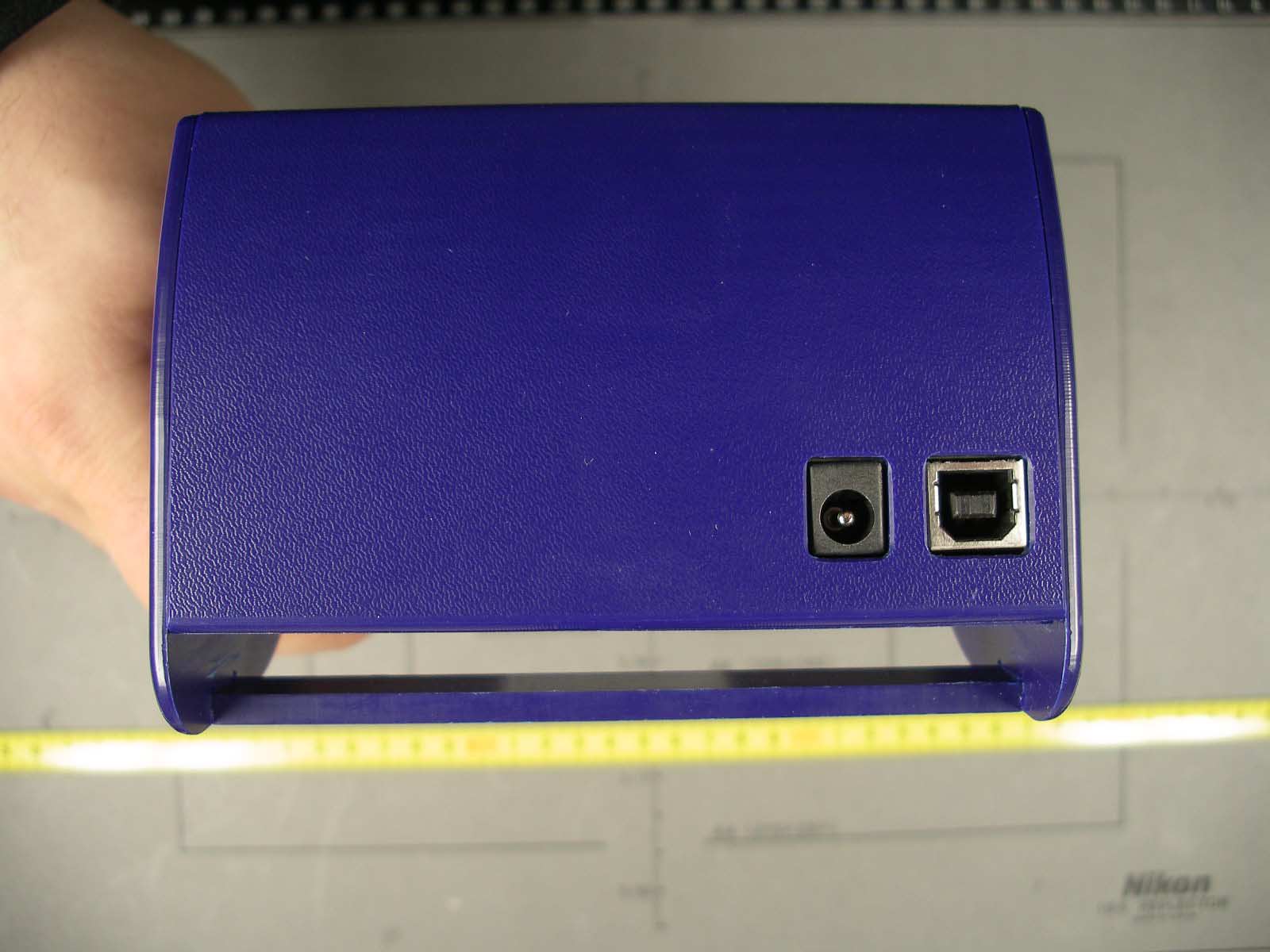

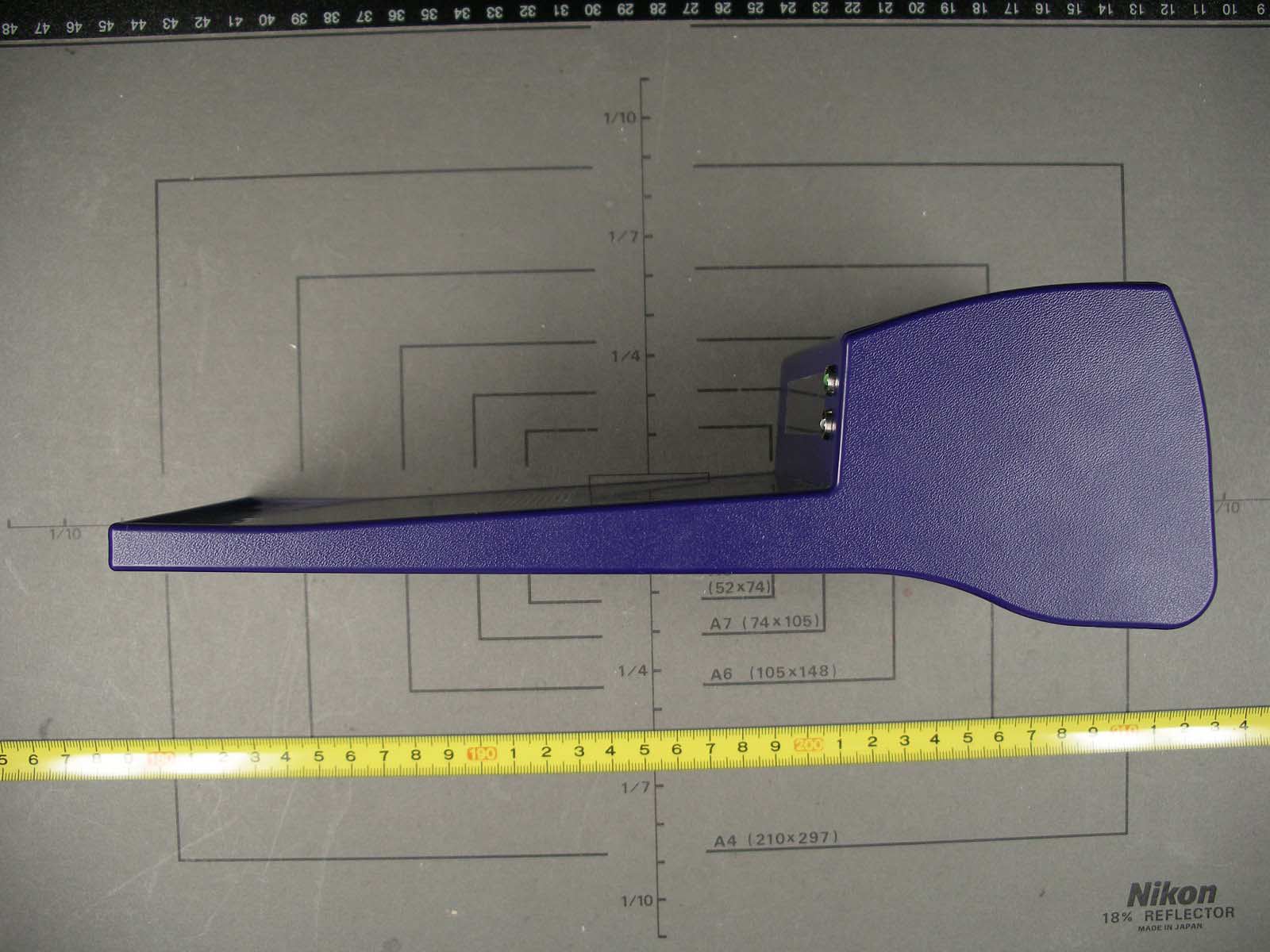

Labels containing FCC ID and FCC statement The picture below shows the label positions including the FCC ID and FCC statement. They are located at the rearside of the device.

FCC ID OKY1055800101A03C FCC ID OKY1055800101A03C FCC ID OKY1055800101A03C

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 50235-070718-1 (Edition 1) Page 1 of 51 Pages Straubing, October 8, 2007 T E S T - R E P O R T No. 50235-070718-1 (Edition 1) for Dual Scanner Inductive Tag Reader Applicant: BALTECH AG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Section 7.2.2 and RSS-210 Issue 7, Sections 2.2, 2.6, A2.6 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 2 of 51 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 4 3 Identification of the Test Laboratory ........................................................................... 5 4 Summary .................................................................................................................... 6 5 Operation Mode and Configuration of EUT................................................................. 7 6 Measurement Procedures........................................................................................... 8 6.1 Bandwidth Measurements .................................................................................... 8 6.2 Conducted AC Powerline Emission ...................................................................... 9 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ........................................... 11 6.4 Radiated Emission in Fully or Semi Anechoic Room.......................................... 13 6.5 Radiated Emission at Open Field Test Site........................................................ 15 6.6 Carrier Frequency Stability ................................................................................. 16 7 Photographs Taken During Testing .......................................................................... 18 8 Test Results .............................................................................................................. 24 8.1 Occupied Bandwidth........................................................................................... 26 8.2 Bandwidth of the Emission ................................................................................. 31 8.3 Designation of Emissions ................................................................................... 33 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 34 8.5 Spectrum Mask................................................................................................... 37 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 39 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ......................................... 42 8.8 Carrier Frequency Stability ................................................................................. 44 8.9 Exposure of Humans to RF Fields...................................................................... 47 9 Referenced Regulations ........................................................................................... 49 10 Revision History ........................................................................................................ 50 11 Charts taken during testing ....................................................................................... 51 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 3 of 51 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : Dual Scanner Parts 2 : Serial number(s): 0001 Manufacturer: BALTECH AG Type of equipment: Inductive Tag Reader Version: As receoved FCC ID: --- Additional parts/accessories: Technical data of EUT Application frequency range: 13.110 - 14.010 MHz Frequency range: 13.553 - 13.567 MHz Operating frequency: 13.56 MHz Type of modulation: ASK Pulse train: Not Applicable Pulse width: Not Applicable Number of RF-channels: 1 Channel spacing: Not Applicable Designation of emissions 3 : 10K0A1D Type of antenna: Integrated loop on printed board Size/length of antenna: 35 x 30 mm Connection of antenna: detachable not detachable Type of power supply: DC supply Specifications for power supply: nominal voltage: 5.00 V minimum voltage: 4.25 V maximum voltage: 5.75 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 4 of 51 Pages 2 Administrative Data Application details Applicant (full address): BALTECH AG Lilienthalstrafle 27 D-85399 Hallbergmoos Contact person: Mr Albin Scherer Contract identification: --- Receipt of EUT: September 14, 2007 Date(s) of test: September 14 to 27, 2007 Note(s): --- Report details Report number: 50235-070718-1 Edition: 1 Issue date: October 8, 2007 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 5 of 51 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory accreditation: DAR-Registration No. DAT-P-171/94-02 FCC test site registration number 90926 Industry Canada test site registration: IC 3050 Contact person: Mr. Johann Roidt Phone: (+49) (0)9421 5522-0 Fax: (+49) (0)9421 5522-99 Senton GmbH Aeussere Fruehlingstrasse 45 D…

Text truncated - open the document above for the full version.

Test Equipment List for Test Report No. 50235-070718 / Page 1 of 1 Page(s) EMI/EMC-Testcenter EMV-Prüfzentrum Test Equipment List with Calibration Data / Test date: September 2007 No. Type Inv.-No. Model Serial Number Manufacturer Calibration Organization Date of last calibration Date of next calibration 1 1. Test receiver 1028 ESHS 10 860043/016 Rohde & Schwarz Rohde & Schwarz 01/2006 07/2007 2. Test receiver 1025 ESVP 881120/024 Rohde & Schwarz Rohde & Schwarz 10/2006 10/2007 3. Spectrum analyzer 1078 R 3271 05050023 Advantest Rohde & Schwarz 03/2006 03/2008 4. Spectrum analyzer 1666 FSP 30 100063 Rohde & Schwarz Rohde & Schwarz 02/2006 08/2007 5. EMI test receiver 1569 ESMI 839379/013 839587/006 Rohde & Schwarz Rohde & Schwarz 12/2005 12/2007 Matrix RELAX consist: 1941 6. Preamplifier 1142 R14601 13120026 Advantest Rohde & Schwarz 11/2006 11/2007 7. Preamplifier 1651 CPA9231A1 3393 Schaffner Schaffner 02/2007 02/2008 8. Preamplifier 1684 AFS3-00100800-32-LN 847743 Miteq Senton GmbH 06/2006 06/2007 9. V-network 1060 ESH 3-Z5 862770/021 B1060 Rohde & Schwarz Senton GmbH 01/2007 01/2010 10. V-network 1218 ESH 3-Z5 830952/025 B1218 Rohde & Schwarz Senton GmbH 05/2005 05/2008 11. Trilog wide band antenna Chamber 2 1722 VULB 9163 9163-188 A1722 Schwarzbeck Schwarzbeck 10/2006 10/2007 12. Trilog wide band antenna Chamber 3 1802 VULB 9163 9163-214 A1802 Schwarzbeck Schwarzbeck 01/2006 07/2007 13. Biconical antenna EG 1 1518 HK 116 842204/001 Rohde & Schwarz Rohde & Schwarz 02/2007 02/2008 14. Log. per. antenna EG 1 1519 HL 223 841516/023 Rohde & Schwarz Rohde & Schwarz 01/2007 01/2008 15. Horn Antenna 1516 3115 9508-4553 Emco ARC-Seibersdorf 05/2005 05/2008 1 Accepted tolerance is ± 6 months.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 19 of 51 Pages Test setup for conducted AC powerline emission measurement Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 20 of 51 Pages Test setup for radiated emission measurement 9 kHz ñ 30 MHz Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 21 of 51 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 22 of 51 Pages Test setup for radiated emission measurement (open field test site) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-070718-1 (Edition 1) Page 23 of 51 Pages Test setup for radiated emission measurement (open field test site) - continued -
