OKY1056500201A03BInductive Reader

Operation Manual 0565A03B-002 / EQT Medusa LegicADVANT USB REVISION 1.0, 2008-02-26 The 0565A03B-002 is a RFID Read-/Write-Device (short: reader) which is compatible to all Legic Prime cards. The reader also supports ISO14443A and ISO15693 and all cards compliant to these standards. It provides an universal serial interface (USB) to output or exchange data with a host computer (typically an Equitrac Page Counter Unit, a printer or a copy machine) and a 13.56MHz inductive interface to supply power to and exchange data with the Mifare/ISO compliant card (or other available form-factors such as tags, key-fobs). The host computer can control a bi-colour LED and a beeper to interface with the user. Mounting and Connection The reader generates a magnetic field with the frequency of 13.56MHz which is influenced by any electrically conductive material in close proximity to the device. When mounting the unit, a distance to any such material of minimum 10 cm is required to ensure that there will be no significant degradation of the performance in terms of read range and reliability. Mounting the unit directly to metal would result in a severe reduction of read range down to zero functionality. Care should be taken when testing the device after mounting at a problematic environment: Read ranges and performance vary from card to card and very much from card to tag or key-fob. When mounting multiple readers, the distance between readers should be minimum 0.5 m in order to avoid degradation of performance due to interference. To connect the device to an Equitrac PageCounter, printer or copy machine, please make sure the host system provides an USB socket intended for connection of the reader. Operation Whenever the device is connected to a proper power supply, it will switch on the internal antenna and periodically scan for a card. Once a card has been detected, the card number is read, the data converted and sent to the host system through the serial interface. To enable the device to read cards, tags and key-fobs successfully, they should be placed centred above the reader. Technical Data DC Electrical Characteristics SymbolParameterConditionMinTypMaxUnits Vdd Supply Voltage4.7555.5VDC IddSupply current400mA Idd1Peak Supply currentInrush450mA 1 Additional requirements for the supply voltage: Vripple = 50mVpp max. RF Characteristics Operating frequency: 13.56 MHz Data transmission modulation reader to card: ASK Data transmission modulation card to reader: ASK/load modulation Pinout 4-Pin USB-A plug and Signal Descriptions PinNameTypeDescription 1PWRPower5V Power Supply 2D -OutputUSB-data inverted 3D +InputUSB-data 4GNDPowerSignal and Power Ground Temperature Operating temperature range: 0...45°C Storage temperature range: -20...+60°C Thermal shock: 30°C/min maximum dT/dt Humidity Operating: 20% to 80% relative humidity; non condensing Non-operating: 10% to 90% relative humidity; non condensing 2

Ersteller: U. Rodemeier Revision: 03 Erstelldatum: 03.08.01 Datum: 4.10.2006 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: March 27, 2008 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: OKY1056500201A03B Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : Senton GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

Baltech AG Lilienthalstraße 27 D-85399 Hallbergmoos Germany PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg FCC Certification / FCC ID: OKY1056500201A03B To Whom It May Concern: Please be advised that Baltech AG authorizes Senton GmbH, Mr. Roidt to act on our behalf, until otherwise notified, for applications submitted to PHOENIX TEST-LAB GmbH (PTL). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Date: March 5, 2008 ______________________________________ Signatory Jürgen Rösch ______________________________________

Baltech AG Lilienthalstraße 27 D-85399 Hallbergmoos Germany Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg FCC ID OKY1056500201A03B Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Date: March 07, 2008 Jürgen Rösch

FCC ID OKY1056500201A03B FCC ID OKY1056500201A03B FCC ID OKY1056500201A03B FCC ID OKY1056500201A03B FCC ID OKY1056500201A03B FCC ID OKY1056500201A03B

FCC ID OKY1056500201A03B

FCC ID OKY1056500201A03B FCC ID OKY1056500201A03B

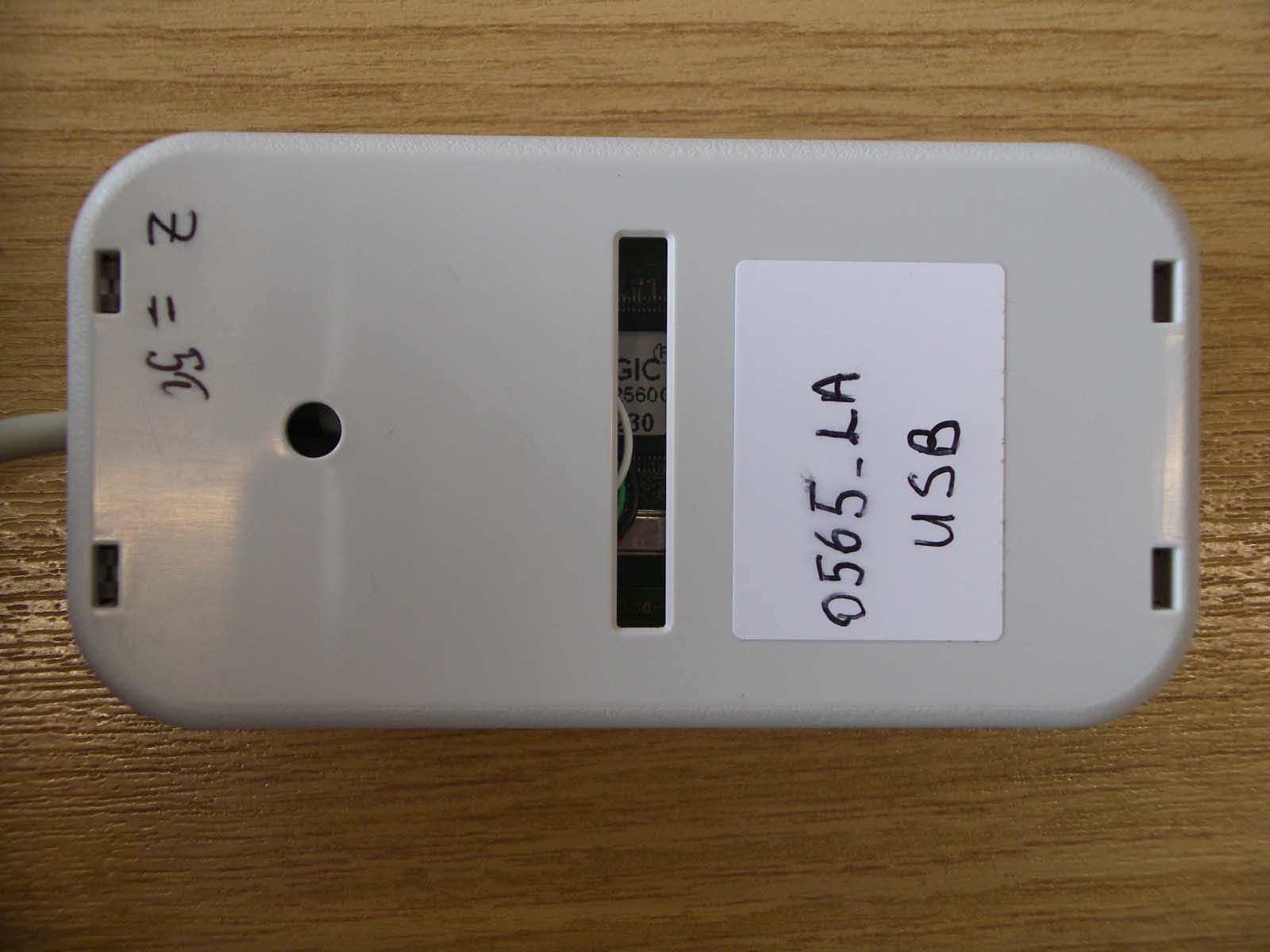

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 50235-080212-1 (Edition 1) Page 1 of 46 Pages Straubing, March 27, 2008 T E S T - R E P O R T No. 50235-080212-1 (Edition 1) for 0565-LA (USB) Inductive Reader Applicant: Baltech AG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Section 7.2.2 and RSS-210 Issue 7, Sections 2.2, 2.6, A2.6 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-080212-1 (Edition 1) Page 2 of 46 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 4 3 Identification of the Test Laboratory ........................................................................... 5 4 Summary .................................................................................................................... 6 5 Operation Mode and Configuration of EUT................................................................. 7 6 Measurement Procedures........................................................................................... 8 6.1 Bandwidth Measurements .................................................................................... 8 6.2 Conducted AC Powerline Emission ...................................................................... 9 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ........................................... 11 6.4 Radiated Emission in Fully or Semi Anechoic Room.......................................... 13 6.5 Radiated Emission at Open Field Test Site........................................................ 15 6.6 Carrier Frequency Stability ................................................................................. 16 7 Photographs Taken During Testing .......................................................................... 18 8 Test Results .............................................................................................................. 22 8.1 Occupied Bandwidth........................................................................................... 24 8.2 Bandwidth of the Emission ................................................................................. 26 8.3 Designation of Emissions ................................................................................... 28 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 29 8.5 Spectrum Mask................................................................................................... 32 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 34 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ......................................... 37 8.8 Carrier Frequency Stability ................................................................................. 40 8.9 Exposure of Humans to RF Fields...................................................................... 43 9 Referenced Regulations ........................................................................................... 45 10 Revision History ........................................................................................................ 46 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-080212-1 (Edition 1) Page 3 of 46 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : 0565-LA (USB) Parts 2 : Serial number(s): Prototype Manufacturer: Baltech AG Type of equipment: Inductive Reader Version: USB FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: <Application Frequency Range> Frequency range: Operating frequency: 13.560 MHz Type of modulation: AM Pulse train: N/A Pulse width: N/A Number of RF-channels: 1 Channel spacing: N/A Designation of emissions 3 : 10K0A1D Type of antenna: Integrated Size/length of antenna: N/A Connection of antenna: detachable not detachable Type of power supply: DC supply Specifications for power supply: nominal voltage: 5.00 V minimum voltage: 4.75 V maximum voltage: 5.25 V nominal frequency: DC Hz 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-080212-1 (Edition 1) Page 4 of 46 Pages 2 Administrative Data Application details Applicant (full address): Baltech AG Lilienthalstraße 27, 85399 Hallbergmoos Contact person: Juergen Roesch Contract identification: N/A Receipt of EUT: 22 February 2008 Date(s) of test: March 5 to 6, 2008 Note(s): Report details Report number: 50235-080212-1 Edition: 1 Issue date: March 27, 2008 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-080212-1 (Edition 1) Page 5 of 46 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory accreditation: DAR-Registration No. DAT-P-171/94-02 FCC test site registration number 90926 Industry Canada test site registration: 3050A-1 Contact person: Mr. Johann Roidt Phone: (+49) (0)9421 5522-0 Fax: (+49) (0)9421 5522-99 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-080212-1 (Edition 1) Page 6 of 46 Pages 4 Summary Summary of test results The tested sample complies with the requirements set forth in the Code of Federal Regul…

Text truncated - open the document above for the full version.

Test Equip ment Li st for Test Repo rt No. 50235 -080 212 / Page 1 of 1 Page (s) EMI/EMC-TestcenterEMV-Prüfzentrum Test Equipment List with Calibration Data / Test date: March 2008 No. Type Inv.-No. Model Serial Number Manufacturer Calibration Organization Date of last calibration Date of next calibration 1 1. Test receiver 1028 ESHS 10 860043/016 Rohde & Schwarz Rohde & Schwarz 04/2007 10/2008 2. Test receiver 1025 ESVP 881120/024 Rohde & Schwarz Rohde & Schwarz 10/2006 04/2008 3. Test receiver 1711 ESPI7 836914/0002 Rohde & Schwarz Rohde & Schwarz 03/2007 09/2008 4. EMI test receiver 1569 ESMI 839379/013 839587/006 Rohde & Schwarz Rohde & Schwarz 04/2007 10/2008 5. Spectrum analyzer 1666 FSP 30 100063 Rohde & Schwarz Rohde & Schwarz 10/2007 04/2009 6. Preamplifier 1142 R14601 13120026 Advantest Rohde & Schwarz 11/2006 05/2008 Matrix RELAX consists: 1941 7. Preamplifier 1651 CPA9231A1 3393 Schaffner Schaffner 02/2007 08/2008 8. Preamplifier 1684 AFS3-00100800-32-LN 847743 Miteq Senton GmbH 03/2008 09/2009 9. V-network 1060 ESH 3-Z5 862770/021 Rohde & Schwarz Senton GmbH 01/2007 01/2010 10. V-network 1218 ESH 3-Z5 830952/025 Rohde & Schwarz Senton GmbH 05/2005 05/2008 11. Loop antenna 1016 HFH2-Z2 882964/0001 Rohde & Schwarz Rohde & Schwarz 12/2007 06/2009 12. Trilog wide band antenna Chamber 2 1722 VULB 9163 9163-188 Schwarzbeck Schwarzbeck 10/2006 04/2008 13. Trilog wide band antenna Chamber 3 1802 VULB 9163 9163-214 Schwarzbeck Schwarzbeck 03/2008 09/2009 14. Biconical antenna EG 1 1518 HK 116 842204/001 Rohde & Schwarz Rohde & Schwarz 02/2007 08/2008 15. Log. per. antenna EG 1 1519 HL 223 841516/023 Rohde & Schwarz Rohde & Schwarz 01/2007 07/2008 16. Horn Antenna 1516 3115 9508-4553 Emco ARC-Seibersdorf 05/2005 05/2008 1 Contains maximum tolerance of six months for devices with calibration cycles less than three years.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-080212-1 (Edition 1) Page 19 of 46 Pages Test setup for conducted AC powerline emission measurement Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-080212-1 (Edition 1) Page 20 of 46 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50235-080212-1 (Edition 1) Page 21 of 46 Pages Test setup for radiated emission measurement (open field test site)
