ONJ-MDR5800ETPoint to Point Spread Spectrum Transceiver

MDR5800 User Manual 862-01881 Issue 6Page 1 MDR5800 Digital Radio User Manual Document Number: 862-01881 MDR5800 User Manual 862-01881 Issue 6Page 2 Issue Status IssueRevised Pages/Amendments 11 231 32 4General – terminology definition PER used instead of BER to remove interpretation ambiguity between Block Error Rate and Bit Error Rate. Note Block (equivalent to packet) concept is still maintained within sections describing G.826 parameters to maintain consistency with G.826 terminology. 5MIB Description chapter added, RESET Button Additions, chapter on setup of a serial connection between a PC/Laptop and the Element Management Port, IP network address description diagrams. 6Amendments related to customer furnished equipment, Outdoor Unit temperature range update, Maintenance and Ordering section updates, Appendix added regarding Antennas. FEDERAL COMMUNICATIONS COMMISSION NOTICE The equipment has been tested and found to comply with the limits for a Class A digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. WARNING- To comply with FCC RF exposure limits, the antennas for this transmitter must be fix-mounted to provide a separation distance of 2 meters (6.6 ft) or more from all persons to satisfy RF exposure requirements. This equipment must be professionally installed. The antennas for this equipment must be fixed mounted on permanent outdoor structures. MDR5800 User Manual 862-01881 Issue 6Page 3 Publication Number: 862-01881 Issue 6 April 2001 © 1999 Tellumat (Pty) Limited The information contained herein is the property of Tellumat (Pty) Limited and is supplied without liability for errors or omissions. No part may be reproduced, used or disclosed except as authorised by contract or other written permission. The copyright and the foregoing restriction on reproduction, use and disclosure extend to all media in which this information may be embodied, including magnetic or electronic storage etc. MDR5800 User Manual 862-01881 Issue 6Page 4 Table of Contents Page 1INTRODUCTION9 1.1MDR5800 Description9 2TECHNICAL DESCRIPTION11 2.1System Overview11 2.2Outdoor Unit11 2.2.1Frequency plans12 2.2.2RF Power Output Options13 2.2.3MDR5800 Outdoor Unit13 2.3Indoor Unit14 2.3.1Payload Interface Options14 2.3.2Service (Wayside) Serial Data Channel16 2.3.3Element Manager Port16 2.3.410BaseT Ethernet RJ45 Port16 2.3.5IU/OU Link LED17 2.3.6IU/OU Data Interconnect RJ4517 2.3.7IU/OU Power Interconnect17 2.3.8Auxiliary In/Out Port17 2.3.9DC Power Input18 2.3.10Fuse Holder18 2.3.11ON/OFF Switch18 2.3.12Ground Terminal18 3PLANNING20 3.1System Type Selection20 3.1.1Antenna selection (MDR5800)20 3.2Site Evaluation21 3.3Multipath Effects21 3.4Interference Considerations22 3.5Microcell Backhaul Applications of MDR5800 Digital Radios23 3.5.1Setting the Transmitted Power Levels23 MDR5800 User Manual 862-01881 Issue 6Page 5 3.5.2Frequency Multiplexing23 3.5.3Antenna Isolation23 4INSTALLATION25 4.1Customer Furnished Tools and Equipment26 4.2Indoor Unit27 4.2.1Introduction27 4.2.2Installing the Indoor Unit in a Rack27 4.2.3Connecting a DC Power Supply28 4.2.4Balanced Payload Data29 4.2.5Connecting Auxiliary In/Out (Optional)30 4.2.6Connecting the Service (Wayside) Serial Channel (Optional)31 4.2.7Connecting the Element Manager Port31 4.3Outdoor Unit32 4.3.1MDR5800 Outdoor Unit32 4.4Interconnection Cable Installation33 4.4.1INTERCONNECTION CABLE WIRING DESCRIPTION34 5ANTENNA ALIGNMENT AND SOFTWARE SETUP36 5.1Installation Equipment Required36 5.2Information Required36 5.3Antenna Alignment36 5.3.1Introduction36 5.3.2Alignment Procedure37 5.3.3Set Transmitted Power Level37 5.4Software Setup38 5.5Functional Test38 5.5.1Link Bit Error Rate Performance Test38 5.6MDR5800 Installation Record40 5.7MDR5800 Test Record41 6NMS SOFTWARE43 6.1Introduction to the Network Management System43 6.2General Information43 6.2.1Microwave Digital Radio44 MDR5800 User Manual 862-01881 Issue 6Page 6 6.3Main Screen45 6.3.1Link Elements Areas46 6.4NMS Menus47 6.4.1Main Screen Menus47 6.4.2Main Screen Short-cut Buttons49 6.5Indoor Unit Configuration49 6.5.1Controls49 6.5.2Menu Items52 6.6Outdoor Unit Configuration56 6.6.1Controls56 6.6.2Menu Items56 6.6.3OU Station Info57 6.6.4Outdoor Unit Status57 6.7RF Link Error Status Monitoring58 6.7.1RF Link Status58 6.7.2Packet Error Rate Thresholds58 6.7.3RF Link Error Monitor59 7MAINTENANCE INFORMATION62 8TECHNICAL DATA64 8.1Environmental Requirements64 8.1.1Outdoor Equipment64 8.1.2Indoor Equipment64 8.2Mechanical Information for Outdoor Equipment64 8.2.1MDR5800 Outdoor Unit64 8.3Mechanical Information for Indoor Equipment64 8.4Power Supply Requirements64 8.5Electrical Performance64 8.5.1General Characteristics65 8.5.2Transceiver Characteristics65 8.5.3RF Interface66 8.5.4Payload Data Interfaces66 8.5.5Auxiliary Input Interface (CONTACT CLOSURE)67 8.5.6Auxiliary Output Interface67 MDR5800 User Manual 862-01881 Issue 6Page 7 8.5.7Wayside channel interface67 8.5.8Element Manager Port Interface67 8.5.9Indoor/Outdoor U…

Text truncated - open the document above for the full version.

COMPANY CONFIDENTIAL 870-32311 Issue 1 19-Feb-01 COMPANY CONFIDEN TIAL Pa ge 1 of 3 INDOOR UNIT SUPPLY VOLTAGE IN AUXILLARY/ ALARMS INTERFACE MANAGEMENT INTERFACE PAYLOAD DATA INTERFACE WAYSIDE SERVICE SERIAL INTERFACE OUTDOOR UNIT WITH CABLE- LINKED TO ANTENNA 2 X CABLES (UP TO 120m) ISM BAND FULL DUPLEX COMMUNICATIONS INDOOR UNIT SUPPLY VOLTAGE IN AUXILLARY/ ALARMS INTERFACE PAYLOAD DATA INTERFACE WAYSIDE SERVICE SERIAL INTERFACE 2 X CABLES (UP TO 120m) LAN MANAGEMENT INTERFACE OUTDOOR UNIT WITH CABLE- LINKED TO ANTENNA TERMINAL ELEMENT MANAGER ELEMENT MANAGER F IGURE 1: System Overview COMPANY CONFIDENTIAL 870-32311 Issue 1 19-Feb-01 COMPANY CONFIDEN TIAL Pa ge 2 of 3 MUX/ DEMUX Forward Error Correction Outdoor Unit Interface 422 & Ethernet RS232 port Full Duplex Async H/W Handshaking max 115.2 kbps Auxiliary Port Inputs (2)/ Relays (2): C, NO, NC Ethernet Port Status (LED) Display MC68360EN OU/IU (RS42/485 TXC, RXC) DATA (Ethernet TXE, RXE) SERVICE PAYLOADSNMP RS232 nE1/nT1 FLASH 2 MB (PROGRAM) FLASH 512 KB (LOADER MEMORY) 8MB DRAM (Volatile Data & Download Memory) RS232 port Full Duplex Async H/W Handshaking max 115.2 kbps ELEMENTMANAGER System Payload RF Link BATTERY- BACKED SRAM (512KB) + RTC WDT BDM I/F CARD SERIALIZATION Int Timers RESET BUTTON & RESET CIRCUITRY Reset to Devices H/W & S/W reset Power to IU Power to OU Power Supply MDR MTE INDOOR UNIT BLOCK DIAGRAM 386 Line Interface F IGURE 2: Radio Station Indoor Unit Block Diagram and Interfaces COMPANY CONFIDENTIAL 870-32311 Issue 1 19-Feb-01 COMPANY CONFIDEN TIAL Page 3 of 3 LNA Rx RF/IF Converter RX IF Filter RX IF Amplifier Power Amplifier TX RF Filter Tx IF/RF Converter TX IF Filter TX IF Amplifier IQ Demodulator IQ Modulator Baseband Processor LO Synthesizer LO Synthesizer ODU Controller I Q Q I Digital PSU 44MHz Reference Receiver Digital Processing Section Data/CLK Tx Power Control Diplexer FPGA Lightning Protection/ Connectors Dual IF Synthesizer Driver Amp TX IF Amplifier RX IF Amplifier RX IF Filter Tx 1/2 FIFO Rx 1/2 FIFO Ethernet Driver/ Receiver Data/CLK RS-485 Control 5.8GHz DSSS Digital Radio Outdoor Unit Block Diagram Transmitter TX POWER AMP RF Interface Board Interface RF PSU BASE PLATEMicrowave Section External Interface Board Bulkhead 10Mhz Ref TCXO 20MHz Reference 16MHz Reference I/O to IU RF Ethernet Data/CLK F IGURE 3: Radio Station Outdoor Unit Block Diagram and Interfaces

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 27, 2001 RE: Plessy Microwave FCC ID: ONJMDR5800 Please address the following comments: 1.) My calculations for RF exposure do not match yours. Please review the calculated MPE radius. My results came in at approximately 34 cm for the dish antenna fed with 240mW. If I am in error, let me know. I used equation (4) on pp. 19 of OET Bulletin 65. 2.) Using the definitions for Category V (a) equipment in the Nov 15. 2000 TCB RF Exposure Procedures, only equipment fixed mounted on outdoor permanent structures, or equipment with radiated and conducted power below 75 mW can be approved by a TCB. The manual indicates this can be used in both outdoor and indoor configurations. Indoor configurations at this power level are currently excluded from TCB scope. Again, if I have misinterpreted, please let me know. 3.) There is much in the user manual which addresses setup and software configuration, but very little to facilitate physical installation from an RF safety perspective. Please address with your client. 4.) Block diagram is missing. 5.) Section 10: Radiated spurious emissions – specifically harmonics - are missing for all antennas. No emission readings appear above 35 MHz. Please resolve. William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Tellumat (Pty) Limited 64-74 White Rd Retreat Cape Town South Africa * PO Box 30451, Tokai 7966 South Africa DIRECTORS: Dr. J.A. Temple (Chairman), L.C. Jones (Managing), P.B. Hobbs, C.J. Meintjes, R.J. Shaw, Dr. S. Sibisi, J. de V. van Zyl, M. Higgins, K.A. Alborough (Alt), J.W. Grobler (Alt), M.D. Chewins (Alt) Registration Number: 96/00957/07 Tel: +27 21 710-2911 Fax: +27 21 712-1278 e-mail: [email protected] Web: http://www.tellumat.com 19 February 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Tellumat (Pty) Limited authorizes Rhein Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to the above competent body. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug abuse ACT of 1988, U.S.C. 682 and as defined in 47 CFR Part 1 §1.2002(b). Yours faithfully For Tellumat (Pty) Limited Dr Douw van der Merwe Technical Director Broadband Wireless

Tellumat (Pty) Limited 64-74 White Rd Retreat Cape Town South Africa * PO Box 30451, Tokai 7966 South Africa DIRECTORS: Dr. J.A. Temple (Chairman), L.C. Jones (Managing), P.B. Hobbs, C.J. Meintjes, R.J. Shaw, Dr. S. Sibisi, J. de V. van Zyl, M. Higgins, K.A. Alborough (Alt), J.W. Grobler (Alt), M.D. Chewins (Alt) Registration Number: 96/00957/07 Tel: +27 21 710-2911 Fax: +27 21 712-1278 e-mail: [email protected] Web: http://www.tellumat.com 19 February 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description Yours faithfully For Tellumat (Pty) Limited Dr Douw van der Merwe Technical Director Broadband Wireless

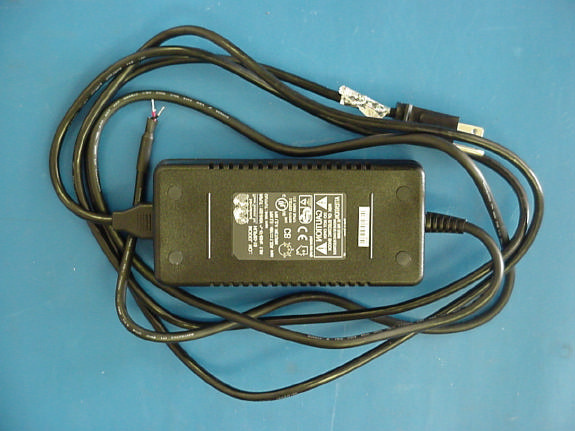

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 53 Document Number: 2001066 Revision 1 26 EXTERNAL PHOTOGRAPHS Outdoor Unit Front Outdoor Unit Back Outdoor Unit Bottom Outdoor Unit Top Outdoor Unit Side On Front of Indoor Unit Back of Indoor Unit Top Of Power Supply Bottom of Power Supply 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 54 Document Number: 2001066 Revision 1 27 ANTENNA PHOTOGRAPHS Front Of Parabolic Antenna Back Of Parabolic Antenna Side of Parabolic Antenna Label on Dish Label on Center Piece of Dish Front of 0.33m Flat Panel Antenna Back Of 0.33m Flat Panel Antenna Side Of 0.33m Flat Panel Antenna Label on Antenna Front of 0.6m Flat Panel Antenna Back of 0.6m Flat Panel Antenna Side of 0.6m Flat Panel Antenna Label on Antenna

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 41 Document Number: 2001066 Revision 1 21 LABEL INFORMATION 21.1 FCC ID LABEL 21.2 WARNING STATEMENT FCC LABEL AND LOCATION OF LABEL ON EUT See following pages This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Tellumat Model: PLESSEY MDR5800 FCC ID: ONJ-MDR5800ET 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 42 Document Number: 2001066 Revision 1 FCC LABEL AND LOCATION OF LABEL ON EUT Tellumat Model: PLESSEY MDR5800 FCC ID: ONJ- MDR5800ET This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 43 Document Number: 2001066 Revision 1 FCC LABEL AND LOCATION OF LABEL ON EUT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 52 Document Number: 2001066 Revision 1 25 INTERNAL PHOTOGRAPHS Gland Housing Lid Inside Outdoor Unit without Front Cover Outdoor Unit with no Baseband Processor Assembly Baseband Processor Assembly with Cans Baseband Processor PCB Top without Cans Baseband Processor PCB Bottom with can Baseband Processor PCB Bottom without can Baseband Processor Assembly Side-on PSU/TCXO PSU Top with Can PSU/TCXO PSU Top without Can PSU/TCXO PSU Bottom with Can PSU/TCXO PSU Bottom without Can Tx Housing Assembly Closed Tx Housing Assembly Open Tx Housing Assembly Bottom Rx Housing Assembly Closed Rx Housing Assembly Open Rx Housing Assembly Bottom Power Amplifier Closed ] Power Amplifier Open Lightning Protection PCB External Cable Interface PCB External Cable Interface and Lightning Protection Assembly Indoor Unit Inside Indoor Unit Component Side Indoor Unit Solder Side

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 37 Document Number: 2001066 Revision 1 18 RF EXPOSURE CALCULATIONS FOR HIGH GAIN ANTENNAS From FCC 1.1310 table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1mW/cm 2. The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: S = E 2 /Z where: S = Power density E = Electric field Z = Impedance. E = √S x Z 1mW/cm 2 = 10 W/m 2 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: E = √10 x 377 = 61.4 V/m which is equivalent to 1mW/cm 2 Using the relationship between Electric field E, Power in watts P, and distance in meters d, the corresponding Antenna numeric gain G and the transmitter output power and solving for d, d = √ P eak x 30 x G E The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log –1 (dB gain/10). The table below identifies the distances where the 1mW/cm 2 exposure limits may be exceeded during continuous transmission using the proposed fixed antennas Manufacturer Type Model Gain (dBi) Numeric gain Channel Peak Power (mW) Calculated Distance (m) Minimum RF Exposure Separation Distance (m) Gabriel Dish SSSP2 52B29.0 794.3 3 239.9 1.2 2 Gabriel Flat panel MT- 20004 28.0 631.0 3 239.9 1.1 2 MTI Flat panel DFPD1- 52 23.9 245.5 3 239.9 0.7 2 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 38 Document Number: 2001066 Revision 1 WARNING: It is the responsibility of the professional installer to ensure that when using the outdoor antenna kits in the United States (or where FCC rules apply), only these antenna configurations shown in the table in section 18 are used. The use of any antenna other than those listed is expressly forbidden in accordance to FCC rules CFR47 part 15.204. Notice: FCC Radiation Exposure Statement i) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment when installed as directed. This equipment should be installed and operated with fix-mounted antennas that are installed with a minimum of 2 meters of separation distance between the antenna and all persons body during normal operation and the antennas as shown below:

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703- 689- 0368; Fax: 703-689- 2056; Metro: 703-471- 6441 APPLICATION FOR FCC CERTIFICATION DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER Part 15 Unlicensed Spread Spectrum DSSS Transceiver Plessey Microwave 1600 Sarno Rd. Suite 3 Melbourne, FL 32935 321-779-8383 Model: MDR5800 FCC ID: ONJ-MDR5800ET March 22, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 RADIO FREQUENCY DEVICES FCC 97-114 GUIDANCE ON MEASUREMENTS FOR DIRECT SEQUENCE SPREAD SPECTRUM SYSTEMS ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS RSS-210, Issue 3: 2000 LOW POWER LICENSE-EXEMPT RADIO -COMMUNICATION DEVICES (ALL FREQUENCY BANDS) RSS-102, Issue 1: 1999 EVALUATION PROCEDURE FOR MOBILE AND PORTABLE RADIO TRANSMITTERS FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator Part 15.247 5735 to 5840 MHz 0.24 N/A N/A This report concerns (check one): Original Grant: X Class II Change: Equipment Type: PCI Board Deferred grant requested per 47 CFR 0.457 (d) (1) (ii) Yes: No: X If yes, defer until: Company name agrees to notify the Commission by: (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X If no, assumed Part 15, subpart B for unintentional radiators - the new 47 CFR. [10-1-90 Edition] provision. REPORT PREPARED BY: EMC Technician: Elizabeth Szrajer Signature: EMC Engineer: Rachid Sehb Signature: Supervising Engineer: Desmond A. Fraser Signature: Document Number:2001066 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 2 Document Number: 2001066 Revision 1 TABLE OF CONTENTS 1 INTRODUCTION..................................................................................................................4 1.1 RELATED SUBMITTAL (S)/GRANT (S)....................................................................4 1.2 TEST METHODOLOGY...............................................................................................4 1.3 TEST FACILITY.............................................................................................................4 1.4 EMISSIONS EQUIPMENT LIST..................................................................................5 2 SYSTEM TEST CONFIGURATION..................................................................................8 2.1 JUSTIFICATION.............................................................................................................8 2.2 EUT EXERCISE SOFTWARE.....................................................................................8 2.3 SPECIAL ACCESSORIES...........................................................................................8 2.4 TEST SYSTEM DETAILS.............................................................................................9 2.5 CONFIGURATION OF TESTED SYSTEM..............................................................10 3 CONFORMANCE STATEMENT......................................................................................11 4 FIELD STRENGTH CALCULATION...............................................................................12 5 CONDUCTED EMISSIONS MEASUREMENTS...........................................................13 5.1 CONDUCTED EMISSIONS TEST.......................................................................................14 5.1.1 CONDUCTED EMISSIONS (CHANNEL 1 Parabolic DISH EXTERNAL ANTENNA)..............15 5.1.2 CONDUCTED EMISSIONS (CHANNEL 6 Parabolic DISH EXTERNAL ANTENNA)..............16 5.1.3 CONDUCTED EMISSIONS (CHANNEL 11 Parabolic DISH EXTERNAL ANTENNA)............17 6 RADIATED EMISSIONS MEASUREMENTS................................................................18 6.1 RADIATED EMISSIONS TEST...........................................................................................19 6.1.1 Radiated EMISSION DIGITAL noise (Channel 1 with Parabolic DISH / PANEL Antenna).......19 7 MODULATED BANDWIDTH............................................................................................20 8 CONDUCTED POWER OUTPUT....................................................................................20 9 ANTENNA CONDUCTED SPURIOUS EMISSIONS....................................................21 10 RADIATED SPURIOUS EMISSIONS.............................................................................23 10.1.1 Radiated Emissions Harmonics/spurious (Channel 1) HIGh GAIN FLAT PANEL......................23 10.1.2 Radiated Emissions Harmonics/spurious (Channel 6) HIGh GAIN FLAT PANEL........................23 10.1.3 Radiated Emissions Harmonics/spurious (Channel 11) HIGh GAIN FLAT PANEL.....................24 10.1.4 Radiated Emissions Harmonics/spurious (Channel 1) PARABOLIC DISH....................................24 10.1.5 Radiated Emissions Harmonics/spurious (Channel 6) PARABOLIC DISH......................................25 10.1.6 Radiated Emissions Harmonics/spurious (Channel 11) PARABOLIC DISH...................................25 11 POWER SPECTRAL DENSITY.......................................................................................26 12 COMPLIANCE WITH THE RESTRICTED BAND EDGE.............................................26 13 RECIEVER/DIGITAL INTERFACE DATA......................................................................27 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Tellumat Page 3 Document Number: 2001066 Revision 1 14 ANTENNA SPECIFICATIONS.........................................................................................28 15 BANDEDGE PLOTS.....................…
