ONJMDR2400-EHCT1 Diplexer System For Wireless Lan

862-01545μLink System Manual Issue 1bPage i μμLink Digital Radio System Manual Publication Number: 862-01545 Issue 1b February 1999 Tellumat (Pty) Limited Reg. No. 96/000957/07 64/74 White Road, Retreat, 7945 P.O. Box 30451, Tokai, 7966 Telephone: +27 21 710-2911 Fax No. +27 21 710-2333 μLink System Manual862-01545 Page iiIssue 1b Federal Communications Commission Notice NOTE The equipment has been tested and found to comply with the limits for a Class A digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The manufacturer is not responsible for any radio or TV interference caused by unauthorised modifications to this equipment. Such modifications could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment must be professionally installed. WARNING- To comply with FCC RF exposure limits, the antennas for this transmitter must be fix- mounted to provide a separation distance of 1 meter (3.5 ft) or more from all persons to satisfy RF exposure requirements. 862-01545μLink System Manual Issue 1bPage iii Document Issue Status When an issue status of this manual changes, the record below must be completed and initialled. Page No. Issue Status Authority (ECN No.) Page No. Issue Status Authority (ECN No.) 1 - 781 1 - 821b μLink System Manual862-01545 Page ivIssue 1b Table of Contents Page Chapter 1: Purpose and Planning............................................................1 Introduction to Chapter 1...................................................................1 μLink Product Family........................................................................1 Role and Purpose................................................................................1 System Description......................................................................................2 System Overview................................................................................2 Features..............................................................................................2 System Configuration Options............................................................5 Interface Definitions...........................................................................6 Planning Information.........................................................................7 Site Evaluation..............................................................................7 Multipath Effects...........................................................................8 Installation Information......................................................................9 General Information......................................................................9 Indoor Unit....................................................................................9 Outdoor Unit and Antenna.............................................................9 Operational Capabilities...................................................................10 Maintenance Features.......................................................................11 Built-in Test Features..................................................................11 System Specifications.......................................................................12 Performance Characteristics.........................................................12 Data Transmission Characteristics...............................................12 Transmitter Characteristics..........................................................13 Receiver Characteristics...............................................................13 Wayside Service Channel.............................................................14 Auxiliary/Alarm Interfaces..........................................................14 Power Supply Characteristics.......................................................15 Controls and Displays..................................................................15 Antenna Characteristics (μLink -T).............................................16 Equipment Status Monitoring......................................................17 Mechanical Characteristics..........................................................18 Environmental Characteristics.....................................................18 Frequency Band Plan........................................................................19 862-01545μLink System Manual Issue 1bPage v Chapter 2: Installation............................................................................21 Introduction to Chapter 2..................................................................21 Site Requirements.............................................................................21 Parts and Accessories Supplied for Installation.................................22 Customer Furnished Tools and Equipment........................................23 Installation Overview........................................................................24 Antenna Installation.....................................................................24 Outdoor Unit Installation.............................................................26 Indoor Unit Installation.................................................…

Text truncated - open the document above for the full version.

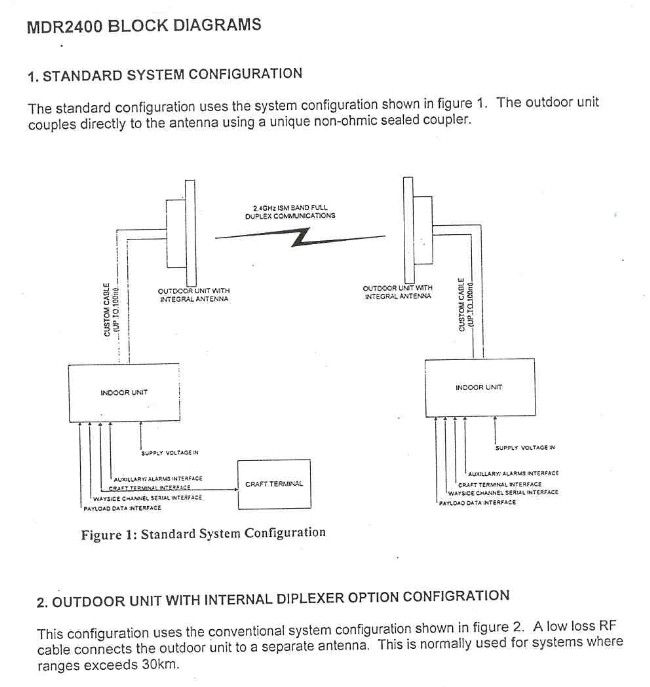

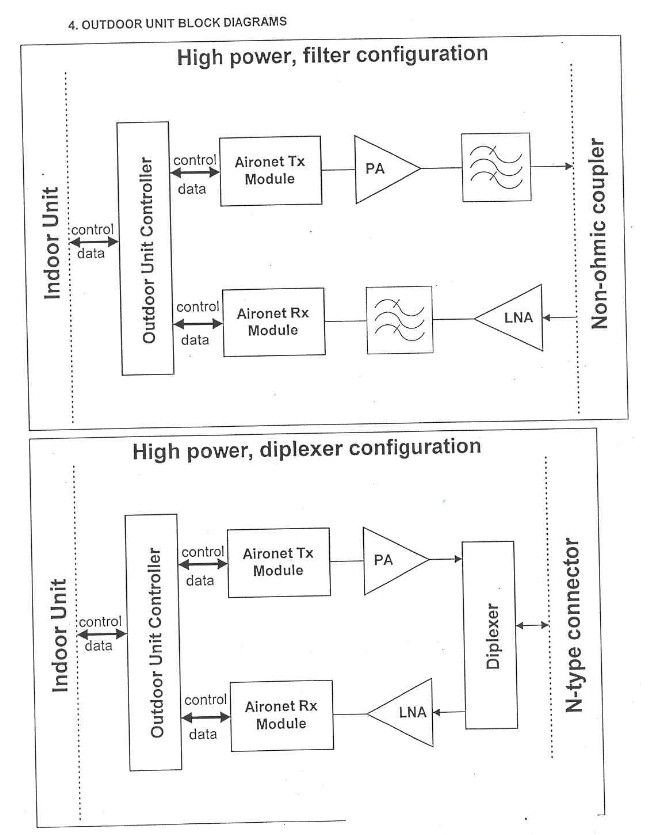

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 888.472.2424 F 352.472.2030 email: [email protected] 3/9/00 Mr. Errol Chang FCC SUBJECT: FCCID: ONJMDR2400-EHC REFERENCE: EA95740 Errol, Attached is a block diagram, which I will use to try my best to explain how the AERONET transceiver module fits into this unit. The AERONET module is inside the block that shows as the “INDOOR UNIT” and the “OUTDOOR UNIT”. On the Receive side, the Aeronet receiver demodulates(despreads) the signal, putting it into a digital format. Within the INDOOR UNIT there is some signal processing and then the signal is fed to the Craft Terminal or to some form of data interface unit. If a more detail description is needed please let me know & I will get the maker to supply it because more than this is over my head. Regards, Sid Sanders T:\CUS\T\tellumat\ec00309l.doc

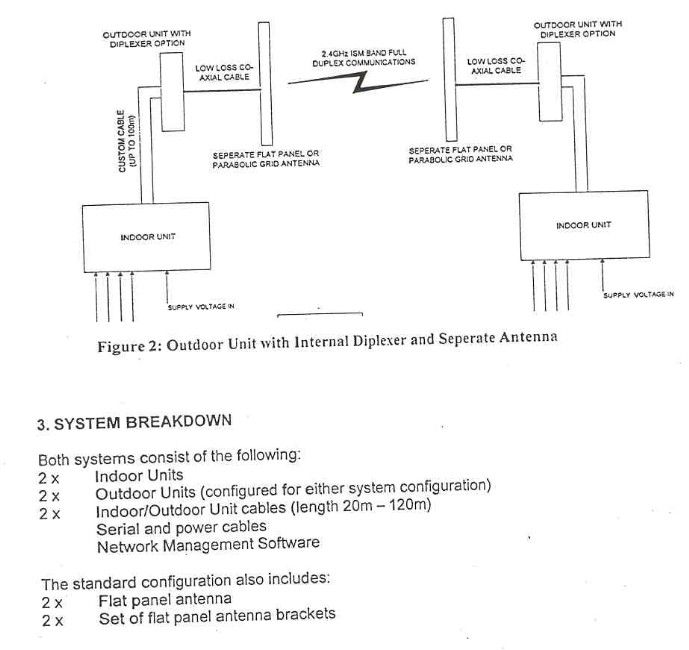

Theory of Operation of a MDR (Microwave Digital Radio) 2400 Radio Diplexer System : E1 Operation Introduction A MDR link may consist of at least one complementary pair of MDR2400 stations that may be extended over longer distances by linking further station pairs in a multiple hop configuration. A single MDR2400 station comprises an Indoor Unit and an Outdoor Unit interconnected by a custom cable. The MDR system is a full duplex, point-to-point digital radio system supporting E1 and T1 data rates and operates in the 2.4 GHz ISM band. The MDR features Network Management, auxiliary alarm inputs and outputs, alarm and status display and a wayside serial data communications port. For E1 payload data, a E1 interface card is used in the Indoor Unit (inserted into the rear of the Indoor Unit, hereafter referred to as an IU). Transmission over the RF Link The line interface transceiver IC on the E1 interface card takes the payload data, Unframed or Framed [with/without CRC6]: software selectable B8ZS or AMI : software selectable 100 Ohm or 75 Ohm : software and jumper selection required - G.703 interface and provides an output data stream to a FPGA within the IU. The FPGA combines E1 data with overhead data (network management & wayside traffic), provided by the IU microprocessor, whereafter is it supplied to the Outdoor Unit as baseband data via an IU/OU interconnection cable : RS422 interface. A DSSS RF Transceiver module in the OU provides the clock that requests the data from the Indoor Unit. The data stream is spread within the RF Transceiver module and is then transmitted at a frequency within the 2400 MHz ISM band. The DSSS RF transceiver module uses DQPSK. Depending on the power requirement, an amplifier may be used at the output of the RF Transceiver module (before the Outdoor Unit's diplexer). Reception via the RF Link On reception, DSSS RF signal power from the RF Link is routed to a different RF transceiver module in the Outdoor Unit via a diplexer. The despread data and the recovered clock signals are passed down the IU/OU interconnection cable to the IU's FPGA (same FPGA as referred to before) via the D-type connector interface on the rear of the Indoor Unit. The overhead data from the remote station is then extracted from the received data stream (and passed to the Indoor Unit's microprocessor). The received E1 data stream is then passed onto the previously-mentioned E1 line interface transceiver IC. Finally, the data is passed out on the IU Interface card's G.703 interface.

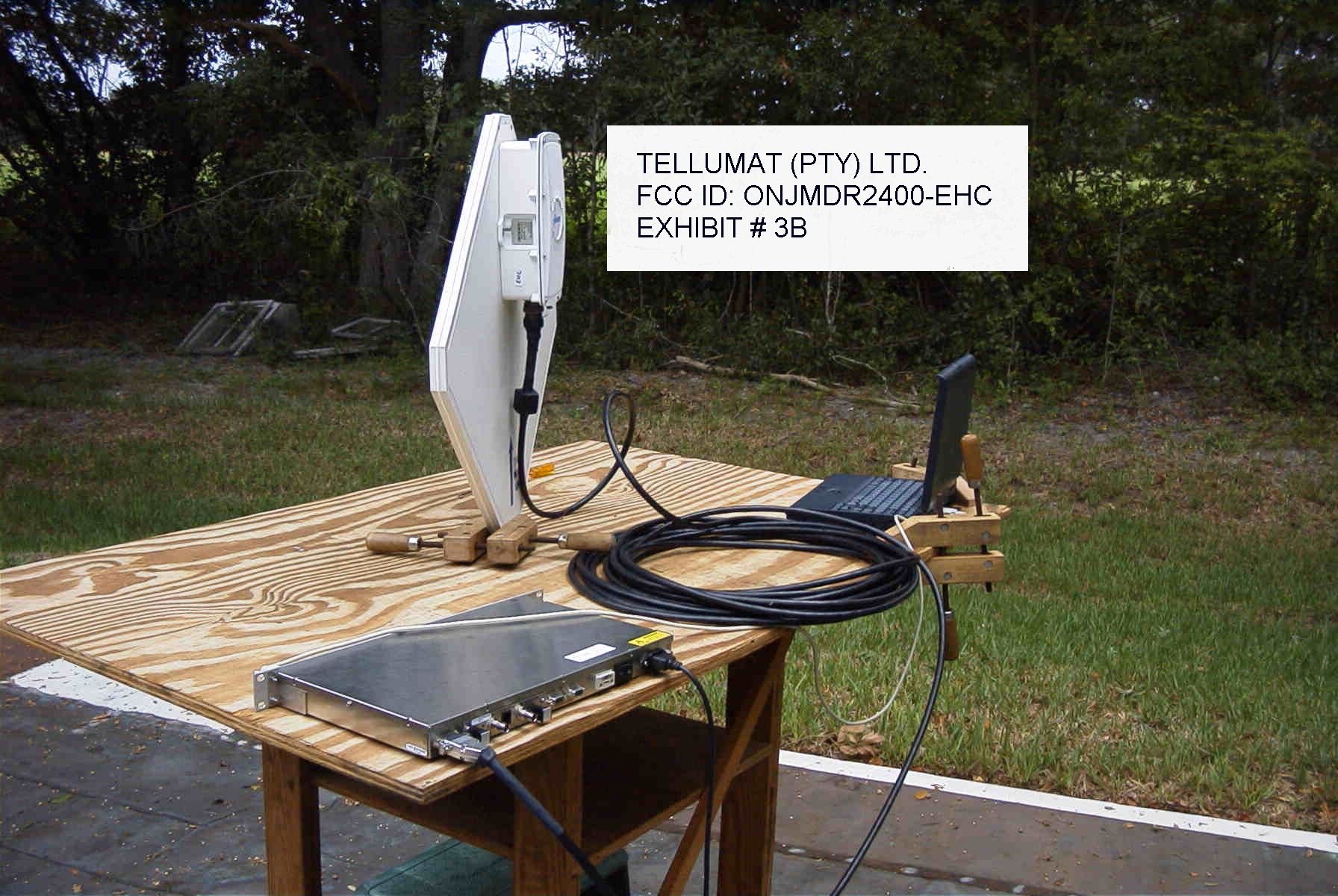

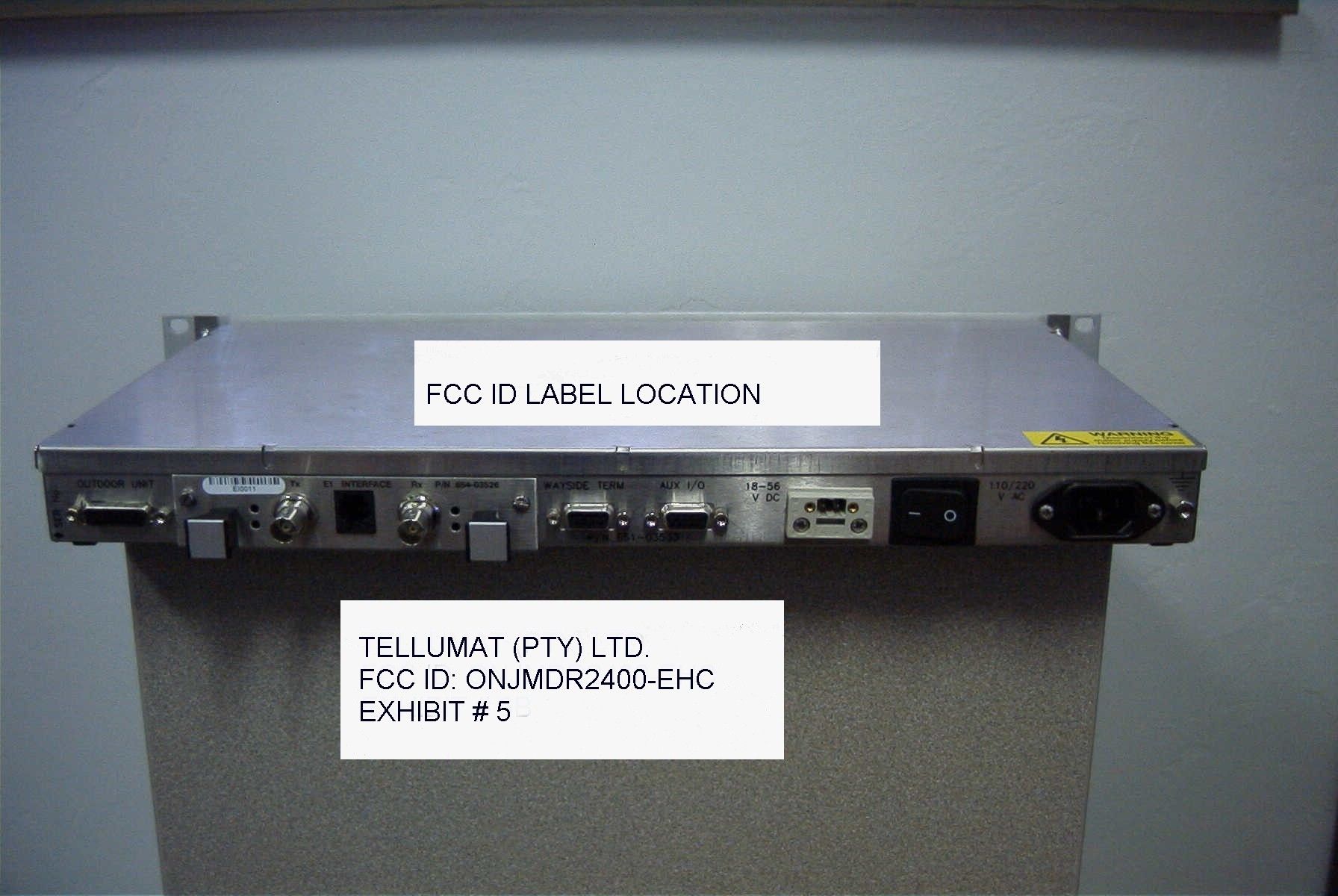

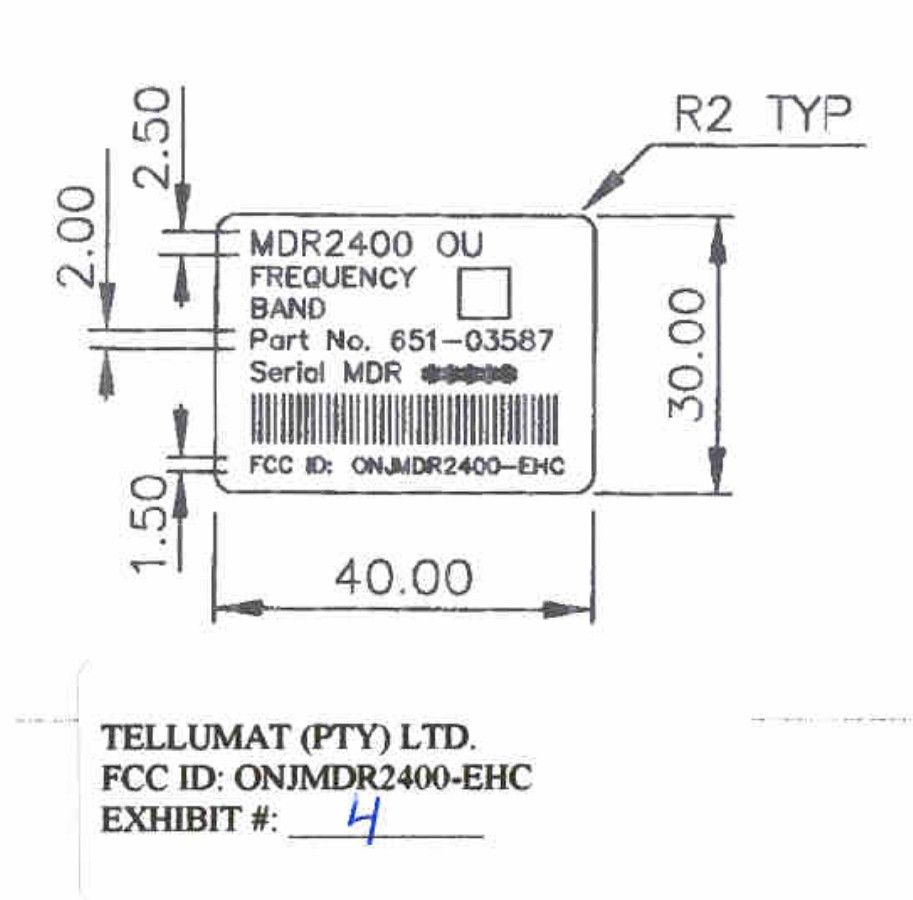

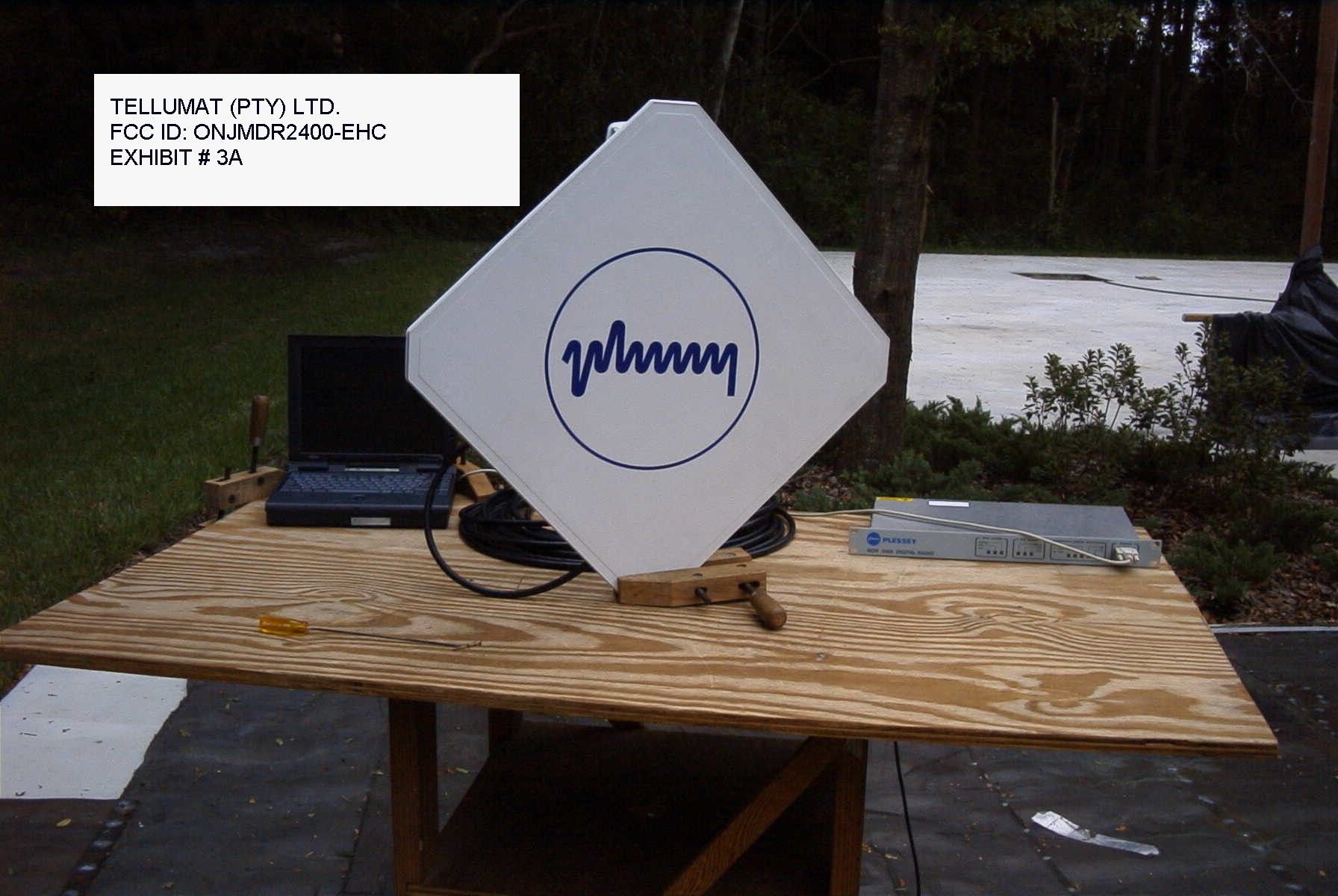

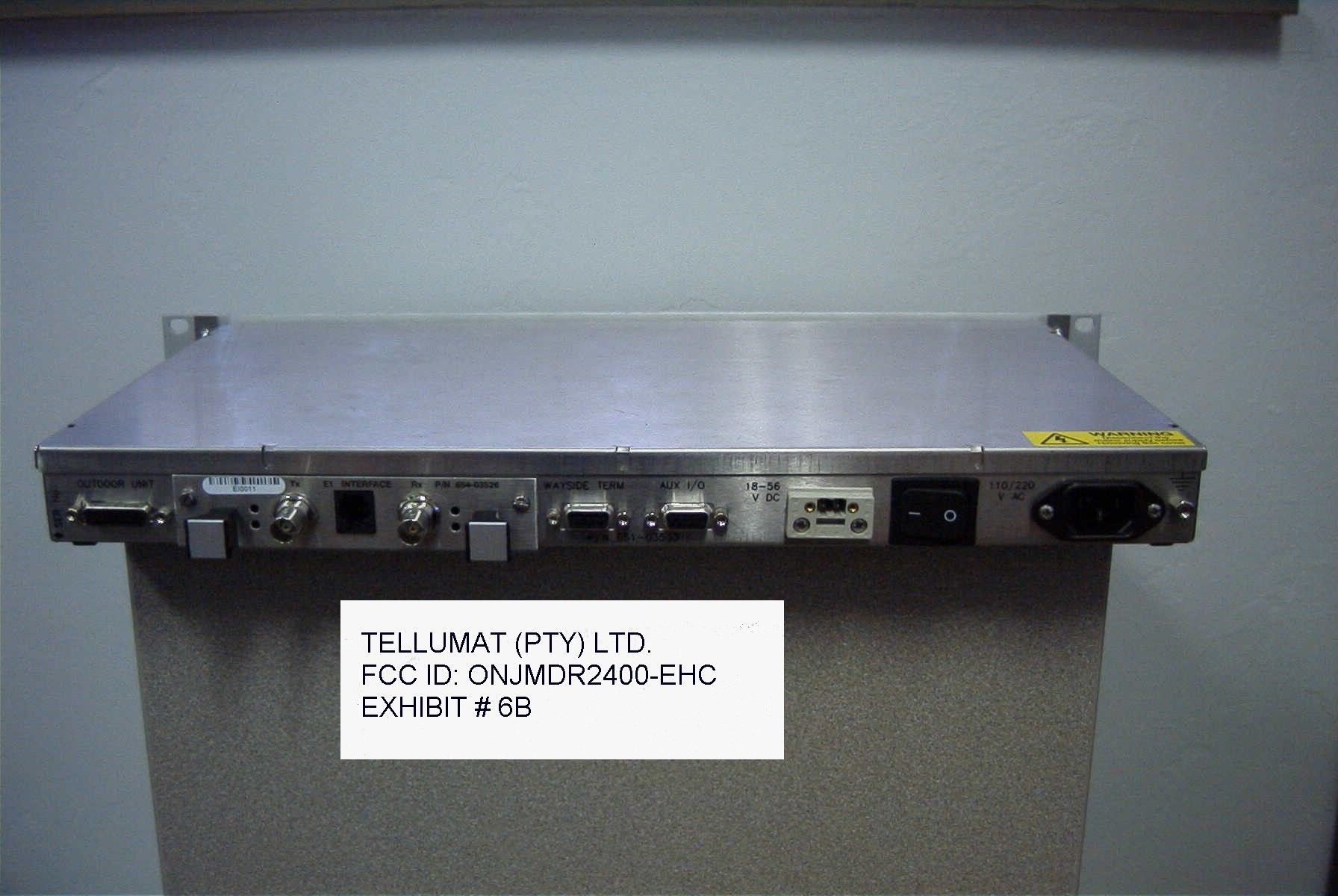

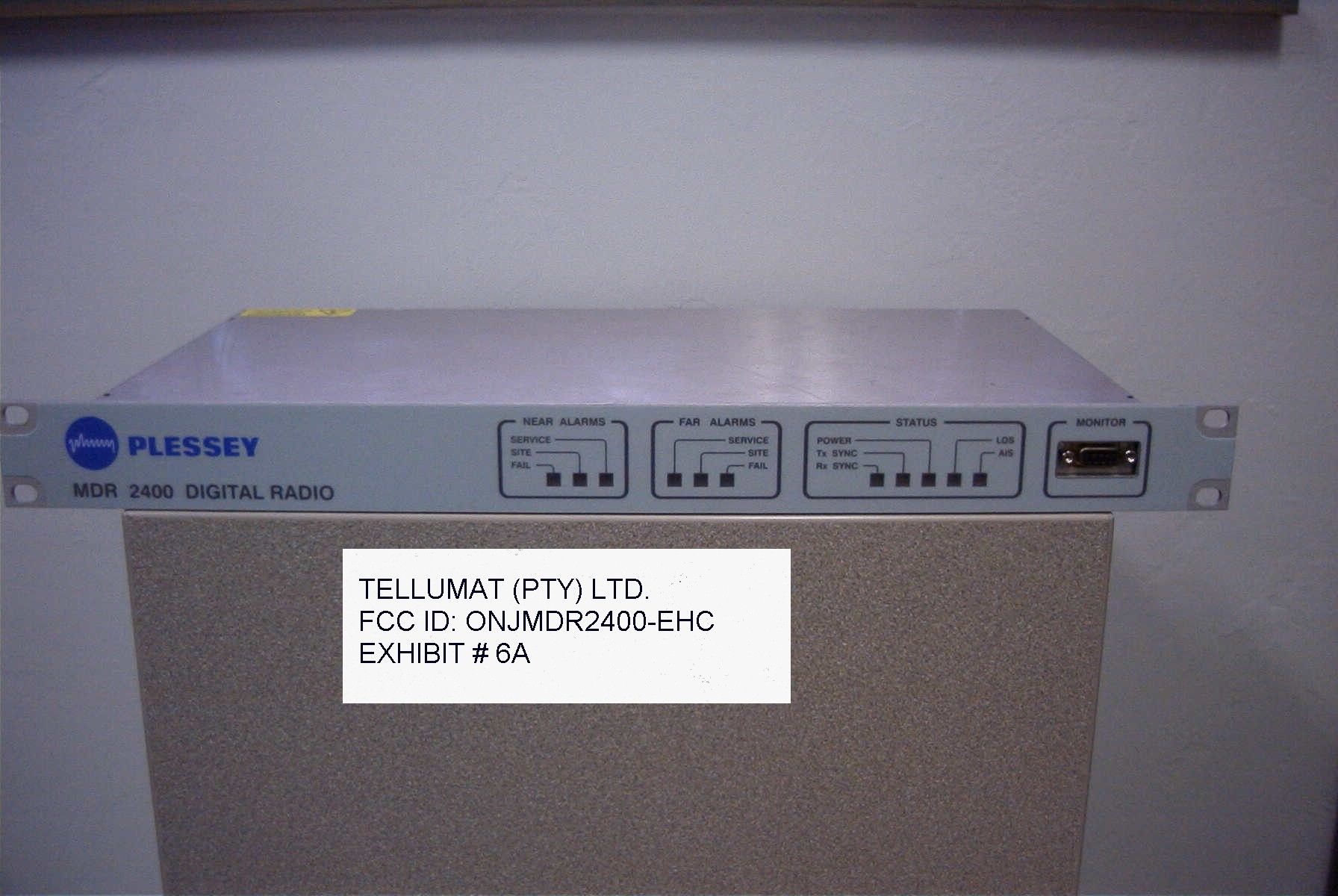

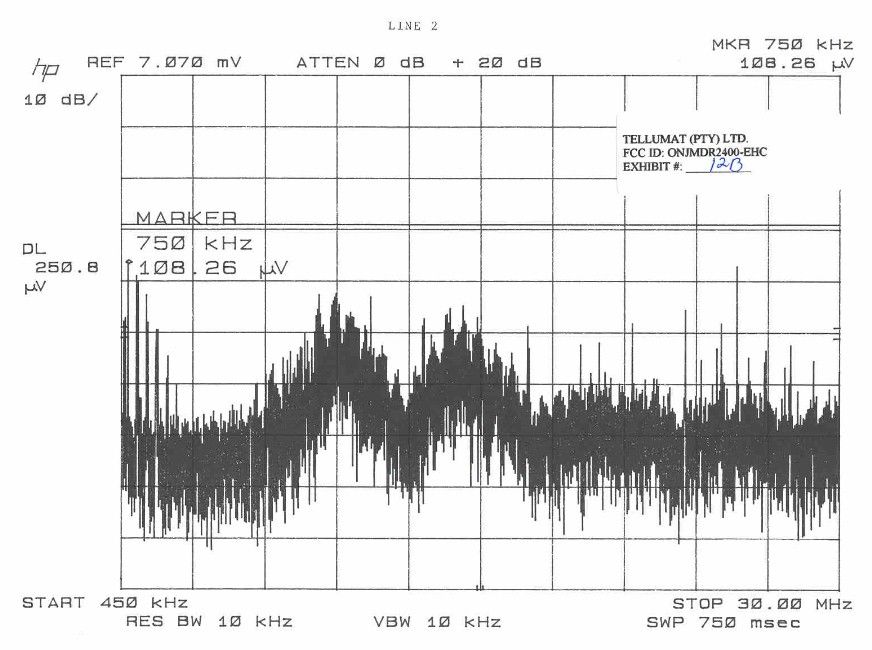

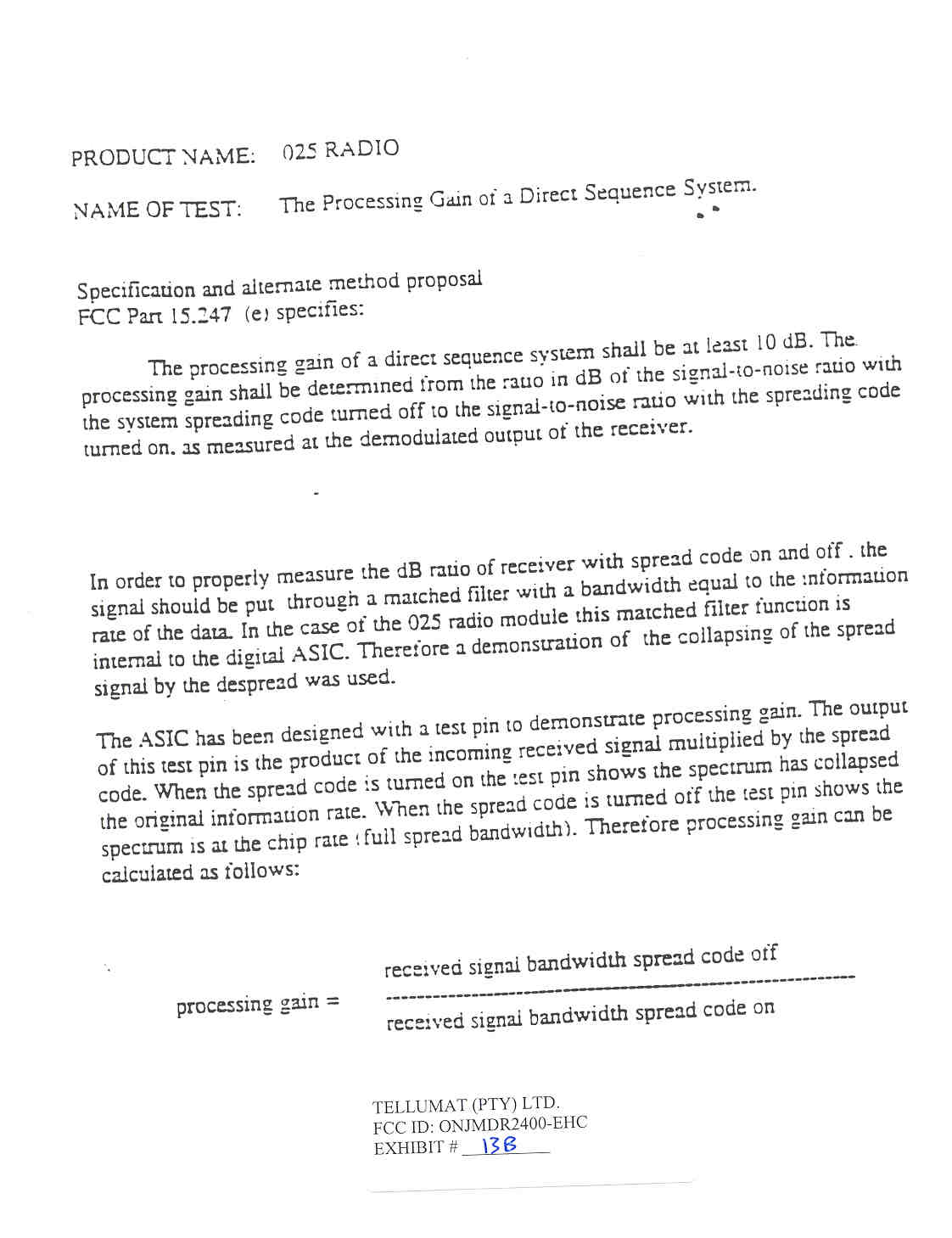

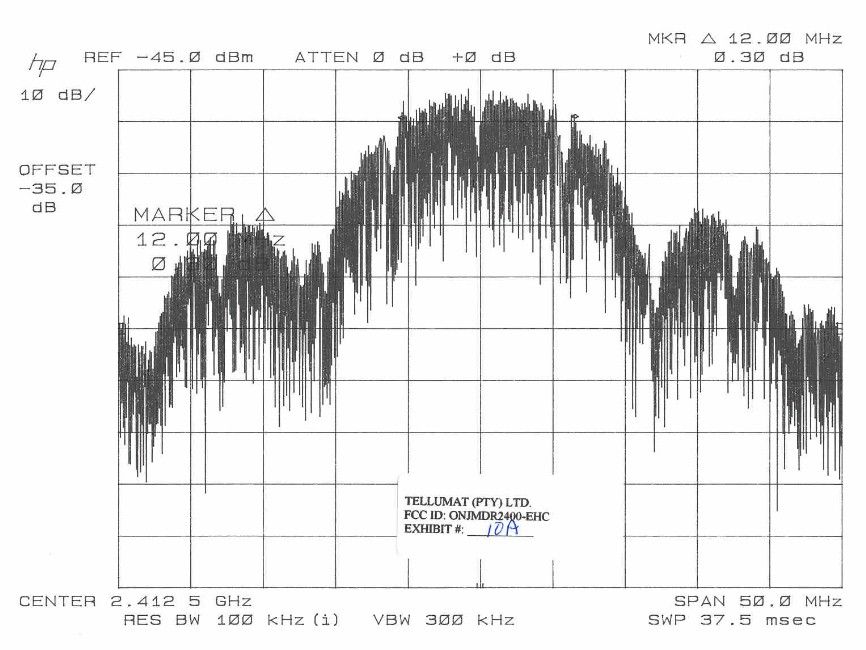

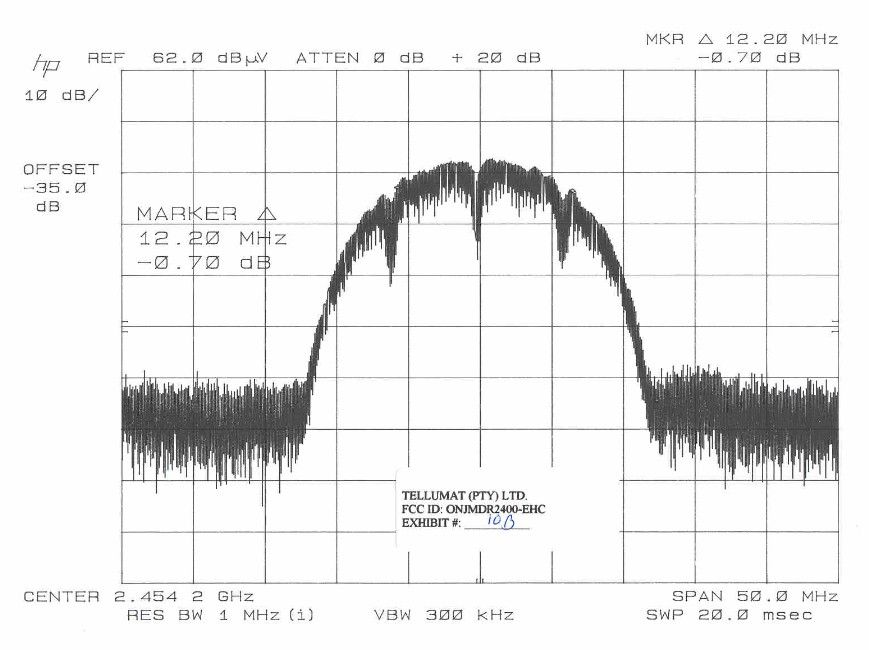

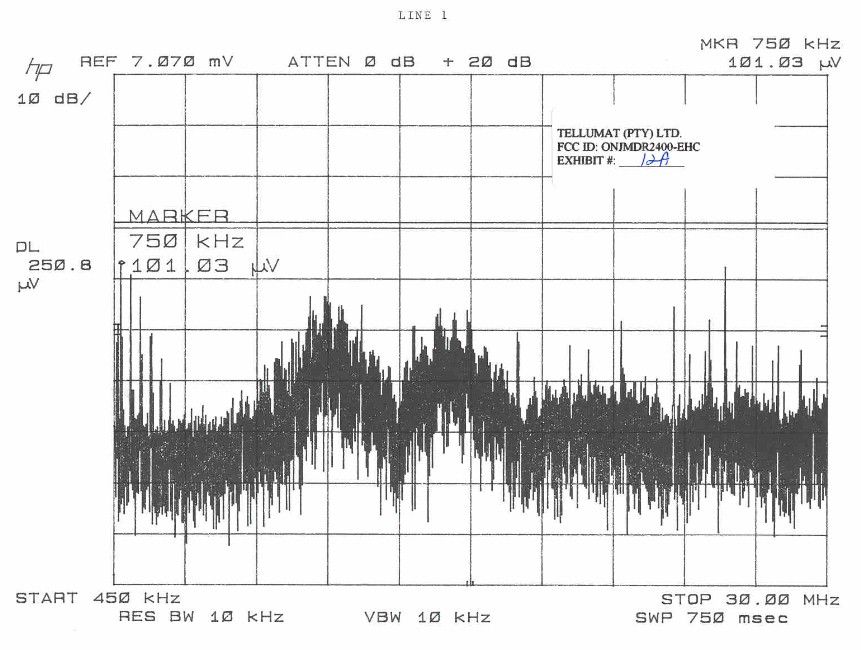

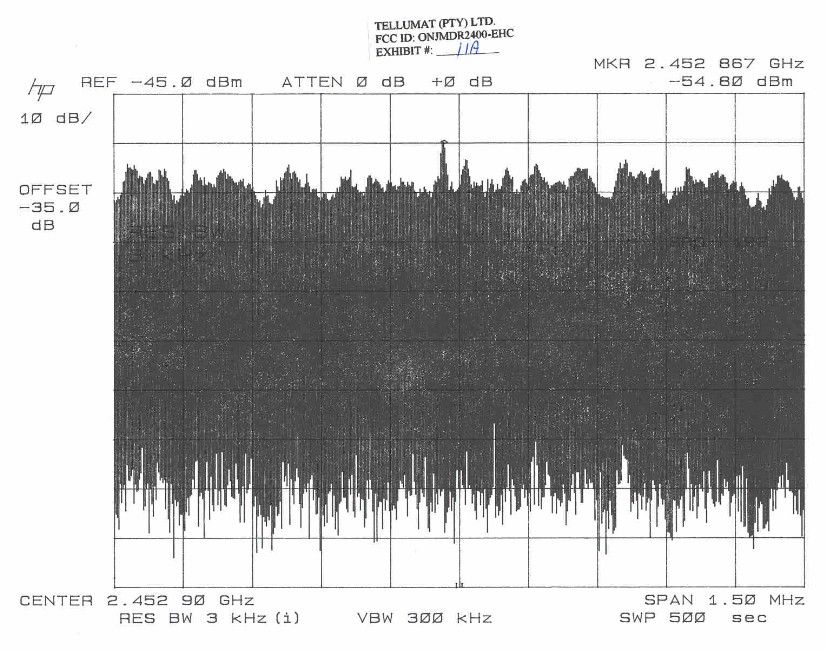

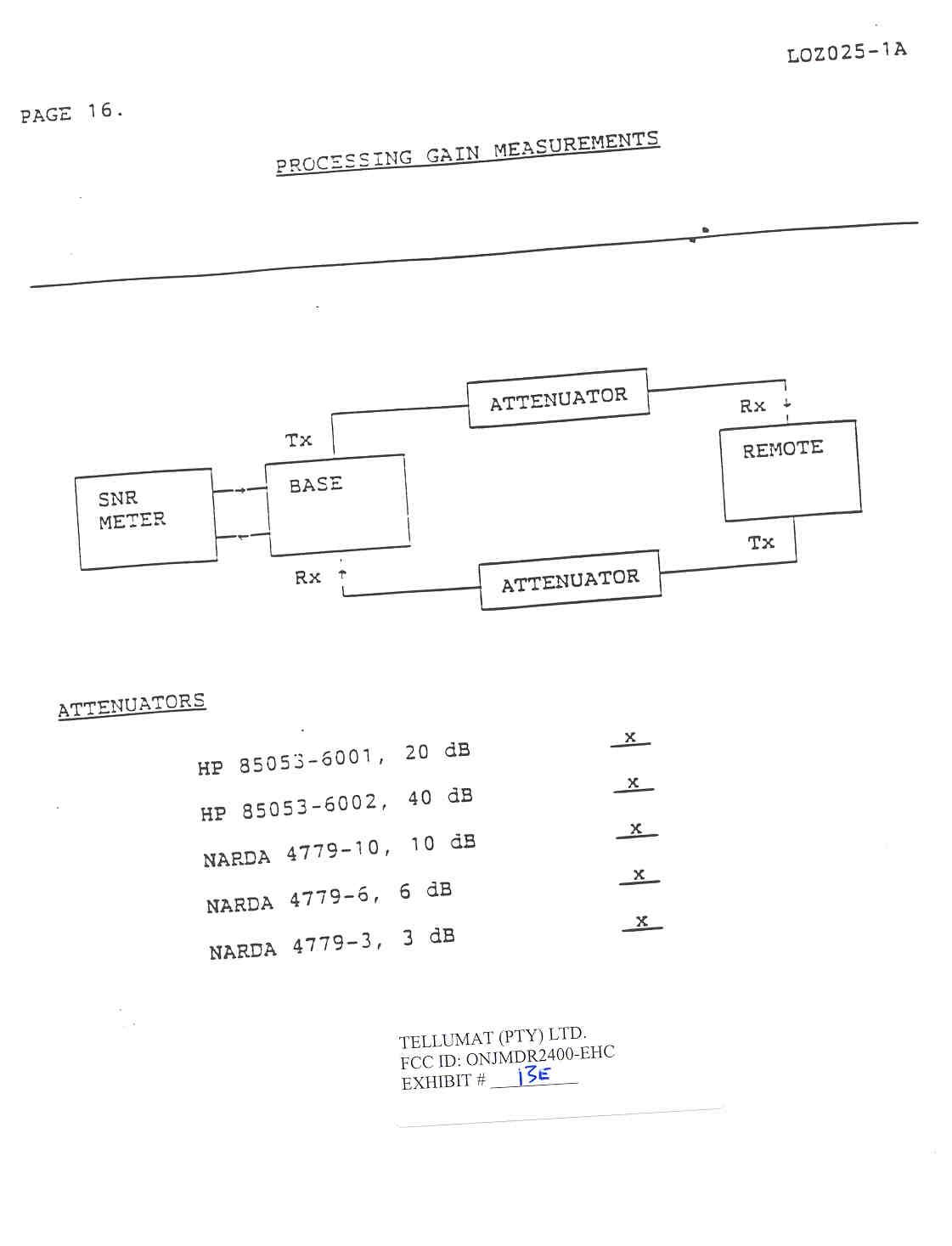

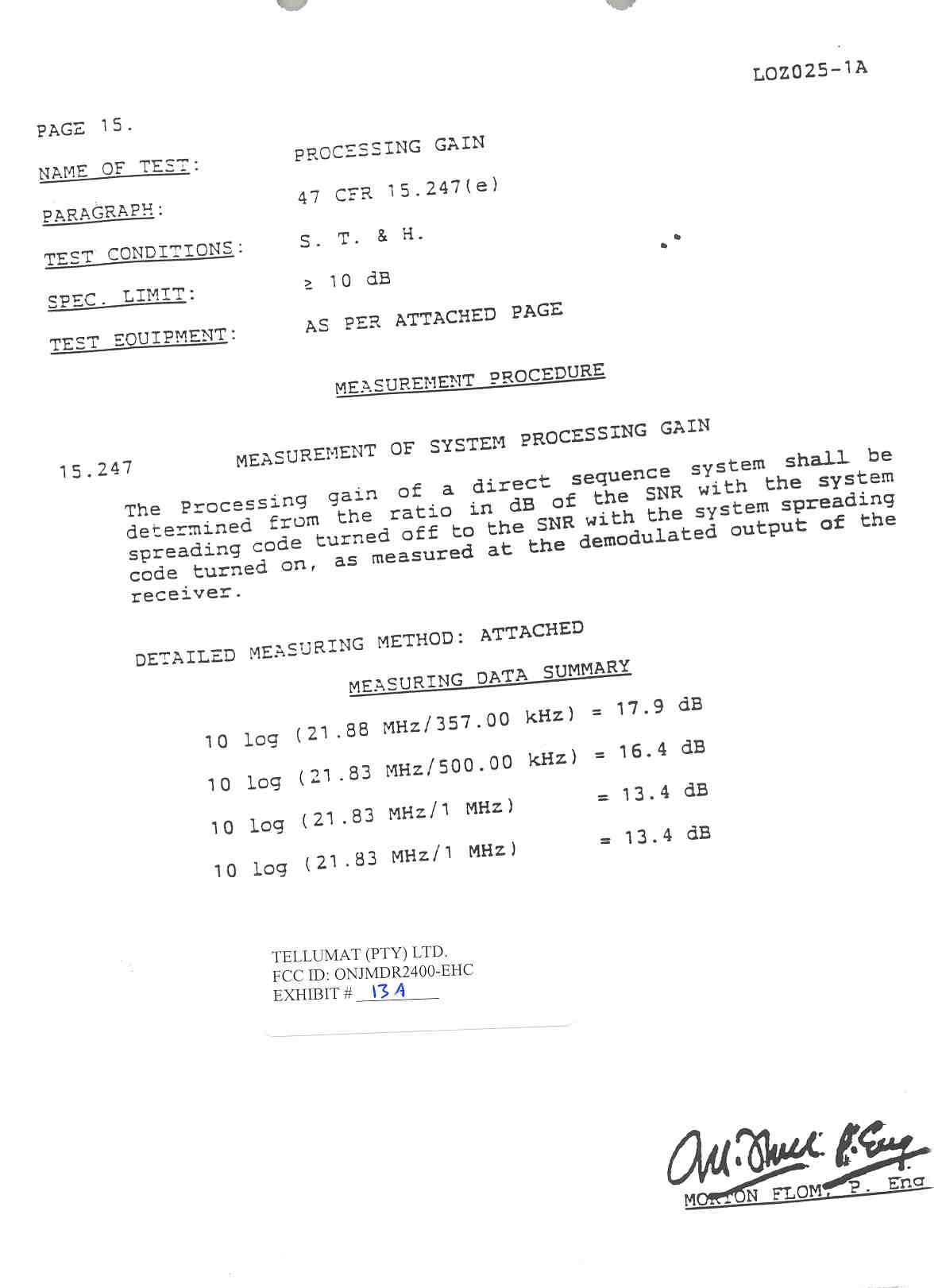

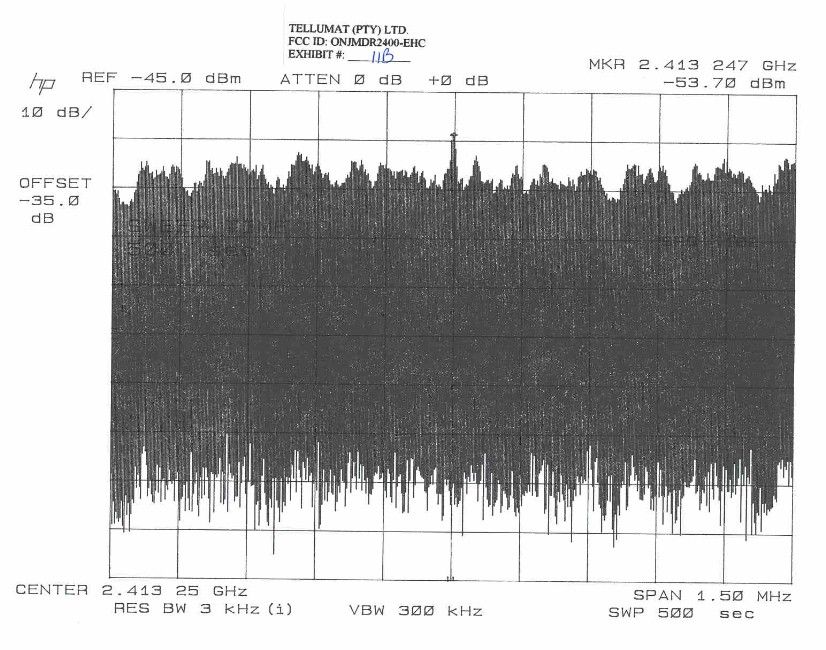

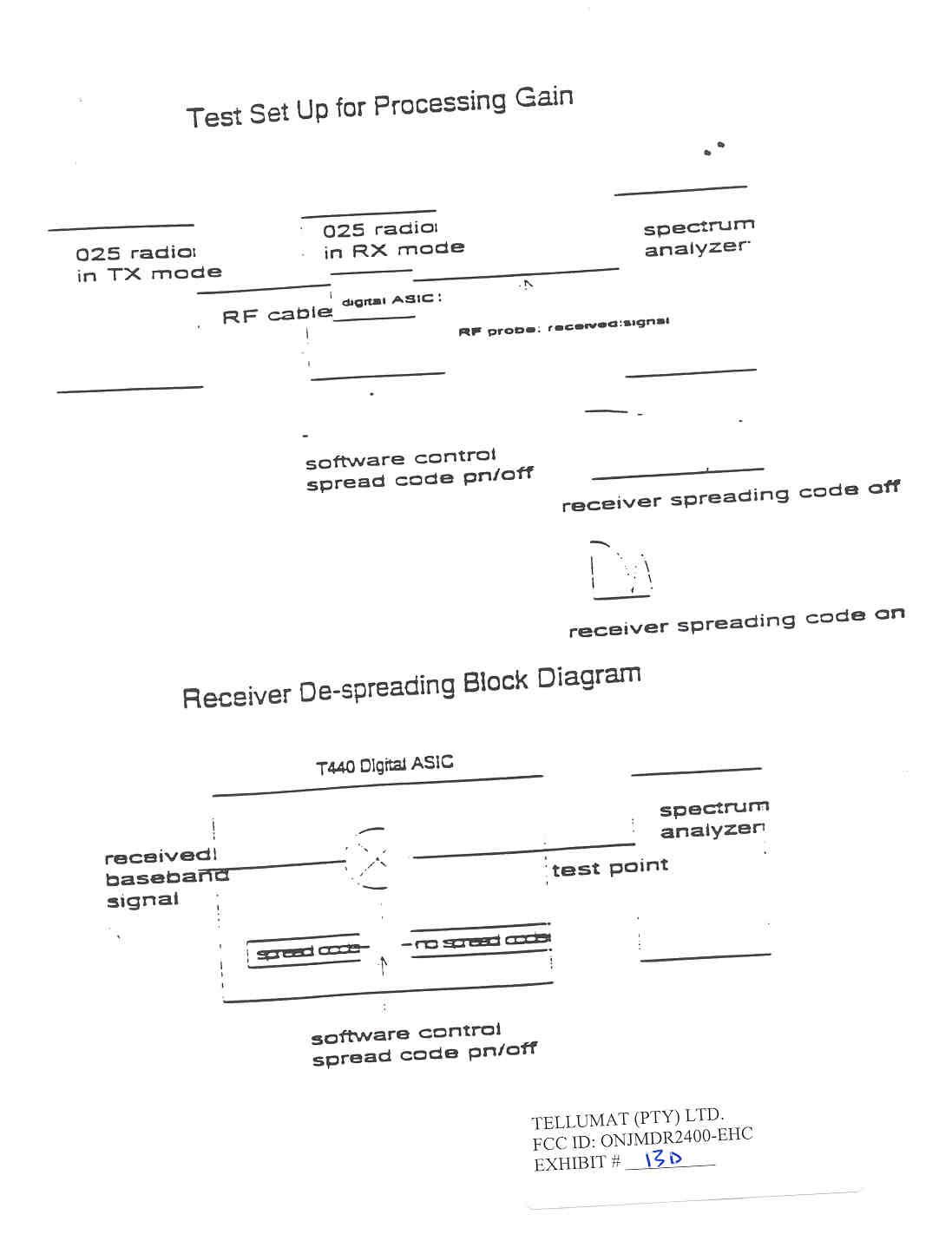

TABLE OF CONTENTS LIST APPLICANT: TELLUMAT (PTY) LIMITED. FCC ID: ONJMDR2400-EHC TEST REPORT CONTAINING: PAGE 1.......LETTER ABOUT CONFIDENTIALITY & PROFESSIONAL INSTALLATION PAGE 2.......LETTER OF EXPLANATION PAGE 3.......LIST OF TEST EQUIPMENT AND TEST PROCEDURE PAGE 4.......TEST PROCEDURE CONTD & BLOCK DIAGRAM OF TEST SET UP AND CIRCUIT DESCRIPTION PAGE 5.......15.247(a)(2) 6.0dB BANDWIDTH & POWER OUTPUT PAGE 6.......15.247(c) ANTENNA CONDUCTED SPURIOUS PAGE 7.......15.247(c) RADIATED SPURIOUS EMISSIONS PAGE 8.......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 9.......15.247(d) POWER SPECTRAL DENSITY PAGE 10.......PROCESSING GAIN (FROM ATT) PAGE 11.......POWER LINE CONDUCTED SPURIOUS EMISSIONS EXHIBITS CONTAINING: EXHIBIT 1A........POWER OF ATTORNEY LETTER EXHIBIT 1B........CONFIDENTIALITY LETTER EXHIBIT 2.........PERMISSION LETTER FROM AIRONET EXHIBIT 3A-B......TEST SET UP PHOTOGRAPHS EXHIBIT 4.........FCC ID LABEL SAMPLE EXHIBIT 5.........FCC ID LABEL LOCATION EXHIBIT 6A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 6B........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 7A-7C.....BLOCK DIAGRAMS EXHIBIT 8.........USER'S MANUAL EXHIBIT 10A-B.....BANDWIDTH PLOTS EXHIBIT 11A-B.....SPECTRAL DENSITY PLOTS EHXIBIT 12A-B.....PLOTS OF POWER LINE CONDUCTED EMISSIONS EHXIBIT 13A-E.....PROCESSING GAIN INFORMATION APPLICANT: TELLUMAT (PTY) LIMITED. FCC ID: ONJMDR2400-EHC REPORT #: T:\CUS\T\TELLUMAT\291ZA9\TEL291A9.RPT DATE: 15 Sept. 1999 TABLE OF CONTENTS LIST 15 Sept. 1999 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: TELLUMAT (PTY) LIMITED. FCC ID: ONJMDR2400-EHC To Whom It May Concern: This will serve as a request for confidentiality for the schemat- ics for the radio. The schematics will be sent directly from the manufacturer to the FCC upon request. Once the review of the application is complete and the schematics are no longer needed, they must be returned to the manufacturer, where they were sent from. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, S. S. Sanders SSS/sh Encl. APPLICANT: TELLUMAT (PTY) LIMITED. FCCID: ONJMDR2400-EHC REPORT #: T:\CUS\T\TELLUMAT\291ZA9\TEL291A9.RPT DATE: 15 Sept. 1999 PAGE #: 1 15 Sept. 1999 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: TELLUMAT (PTY) LIMITED. FCCID: ONJMDR2400-EHC To Whom It May Concern: Attached you will find an application for a direct sequence spread spectrum assembly that is intended to be professionally installed. This unit will only be installed by authorized dealers that have been trained at the manufacturer's facilities. The model only operates on two(2) frequencies, 2.411GHz and 2.455GHz and only comes in two configurations; 1. Long pointed antenna 2. Parabolic Antenna. The users manual will have the following statement in it; "WARNING! ALL PERSONNEL SHOULD STAY AT LEAST 1 METER(3.5') FROM ANTENNA TO AVOID EXPOSURE TO POSSIBLE MICROWAVE ENERGY." The antenna is intended to be used outside. Sincerely, S. S. Sanders SSS/sh Encl. APPLICANT: TELLUMAT (PTY) LIMITED. FCCID: ONJMDR2400-EHC REPORT #: T:\CUS\T\TELLUMAT\291ZA9\TEL291A9.RPT DATE: 15 Sept. 1999 PAGE #: 2 TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 7/6/99 2. Signal Generator, Hewlett Packard 8640B, cal. 9/23/99 3. Signal Generator, HP 8614A Serial No.2015A07428 cal. 5/27/99 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 10/30/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/31/98 5. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 4/27/99 6. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 8. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 9. Special low loss cable was used above 1 GHz 10. Tenney Temperature Chamber 11. AC Voltmeter, HP 400FL, Serial No 2213A14499. Cal. 9/21/99 12. Digital Multimeter, Fluke 8010A/12A, Serial No. 4810047. Cal 9/21/99 13. Digital Multimeter, Fluke 77, Serial No. 43850817. Cal 9/21/99 14. Oscilloscope, Tektronix 2230, Serial No. 300572. Cal 9/23/99 15. Frequency Counter, HP 5385A, Serial No. 3242A07460. Cal 10/6/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. Shielded interface cables were used in all cases except for cables connecting to the telephone line and the power cords. A test program was run which simulated a normal data transmission on a network. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 76oF with a humidity of 55%. BANDWIDTH 6.0dB: The measurements were made withe the spectrum analyz- er's resolution bandwidth(RBW)=100KHz and the video bandwidth(VBW) =300KHz and the span set as shown on plot. POWER OUTPUT: The RF power output was measured at the antenna feed point using a peak power meter. APPLICANT: TELLUMAT (PTY) LIMITED. FCCID: ONJMDR2400-EHC REPORT #: T:\CUS\T\TELLUMAT\291ZA9\TEL291A9.RPT DATE: 15 Sept. 1999 PAGE #: 3 TEST PROCEDURE CONTINUED ANTENNA CONDUCTED EMISSIONS: The RBW=100KHz, VBW=300KHz and the span set to 100MHz and the spectrum was scanned from 30MHz to the 10th Harmonic of the fundamental. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth(RBW) of the spectrum analyzer was 100kHz up to 1GHz and 1.0MHz above 1GHz with an appropriate sweep speed. T…

Text truncated - open the document above for the full version.
