ONJMDR2400-EHD

862-01545 μ Link System Manual Issue 1 Page 26.1 Outdoor Unit Power Levels Follow these steps to set the transmitted power level onthe OU. Refer to table 4 for transmitted power levels. Step Action 1. Determine the gain of the antenna, A T , to be installed with the OU. 2. Calculate the transmitted power, P T , according to the following formula:P T = 30dBm – (A T – 6)/3 dBm 3. Determine the power level to be used in NMSby consulting table 4. 4. Install a fixed attenuator between the OU andthe antenna if the power level can not besufficiently reduced. 5. Set the transmitted power level in NMS. 6. Repeat for both stations. Example: Determining the transmitted power level. Step Action 1. Install a 24dBi antenna. 2. Transmitted power level to be used is:PT = 30 dBm – (24-6)/3 dBm = 30 dBm – 6 dBm = 24 dBm 3. Power level 5 corresponds to 24 dBmtransmitted power (from table 4). 4. Ste the power level to level 5 in NMS. μ Link System Manual 862-01545 Page 26.2 Issue 1 Table 1. Transmitted Power Level Setting NMS PowerLevel Setting Transmitted Power (dBm) 120221322423524625726

862-01545μLink System Manual Issue 1bPage i μμLink Digital Radio System Manual Publication Number: 862-01545 Issue 1b February 1999 Tellumat (Pty) Limited Reg. No. 96/000957/07 64/74 White Road, Retreat, 7945 P.O. Box 30451, Tokai, 7966 Telephone: +27 21 710-2911 Fax No. +27 21 710-2333 μLink System Manual862-01545 Page iiIssue 1b Federal Communications Commission Notice NOTE The equipment has been tested and found to comply with the limits for a Class A digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The manufacturer is not responsible for any radio or TV interference caused by unauthorised modifications to this equipment. Such modifications could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment must be professionally installed. PER FCC rules 15.247 (b)(4) WARNING! ALL PERSONNEL SHOULD STAY AT LEAST 1 METER (3.5') FROM THE ANTENNA TO AVOID EXPOSURE TO POSSIBLE MICROWAVE ENERGY. 862-01545μLink System Manual Issue 1bPage iii Document Issue Status When an issue status of this manual changes, the record below must be completed and initialled. Page No. Issue Status Authority (ECN No.) Page No. Issue Status Authority (ECN No.) 1 - 781 1 - 821b μLink System Manual862-01545 Page ivIssue 1b Table of Contents Page Chapter 1: Purpose and Planning............................................................1 Introduction to Chapter 1....................................................................1 μLink Product Family.........................................................................1 Role and Purpose................................................................................1 System Description......................................................................................2 System Overview................................................................................2 Features..............................................................................................2 System Configuration Options............................................................5 Interface Definitions...........................................................................6 Planning Information..........................................................................7 Site Evaluation...............................................................................7 Multipath Effects...........................................................................8 Installation Information......................................................................9 General Information.......................................................................9 Indoor Unit....................................................................................9 Outdoor Unit and Antenna.............................................................9 Operational Capabilities...................................................................10 Maintenance Features.......................................................................11 Built-in Test Features...................................................................11 System Specifications.......................................................................12 Performance Characteristics.........................................................12 Data Transmission Characteristics...............................................12 Transmitter Characteristics..........................................................13 Receiver Characteristics...............................................................13 Wayside Service Channel.............................................................14 Auxiliary/Alarm Interfaces...........................................................14 Power Supply Characteristics.......................................................15 Controls and Displays..................................................................15 Antenna Characteristics (μLink -T)..............................................16 Equipment Status Monitoring......................................................17 Mechanical Characteristics..........................................................18 Environmental Characteristics.....................................................18 Frequency Band Plan........................................................................19 862-01545μLink System Manual Issue 1bPage v Chapter 2: Installation...........................................................................21 Introduction to Chapter 2.................................................................21 Site Requirements............................................................................21 Parts and Accessories Supplied for Installation.................................22 Customer Furnished Tools and Equipment.......................................23 Installation Overview.......................................................................24 Antenna Installation....................................................................24 Outdoor Unit Installation.............................................................26 Indoor Unit Installation...............................................................29 Interconnection Cable Installation.............…

Text truncated - open the document above for the full version.

862-01545μLink System Manual Issue 1bPage i μμLink Digital Radio System Manual Publication Number: 862-01545 Issue 1b February 1999 Tellumat (Pty) Limited Reg. No. 96/000957/07 64/74 White Road, Retreat, 7945 P.O. Box 30451, Tokai, 7966 Telephone: +27 21 710-2911 Fax No. +27 21 710-2333 μLink System Manual862-01545 Page iiIssue 1b Federal Communications Commission Notice NOTE The equipment has been tested and found to comply with the limits for a Class A digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The manufacturer is not responsible for any radio or TV interference caused by unauthorised modifications to this equipment. Such modifications could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment must be professionally installed. PER FCC rules 15.247 (b)(4) WARNING! ALL PERSONNEL SHOULD STAY AT LEAST 1 METER ( 3.5ft ) FROM THE ANTENNA TO AVOID EXPOSURE TO POSSIBLE MICROWAVE ENERGY. 862-01545 μLink System Manual Issue 1b Page iii Document Issue Status When an issue status of this manual changes, the record below must be completed and initialled. Page No. Issue Status Authority (ECN No.) Page No. Issue Status Authority (ECN No.) 1 - 78 1 1 - 81 1b μLink System Manual862-01545 Page ivIssue 1b Table of Contents Page Chapter 1: Purpose and Planning............................................................1 Introduction to Chapter 1....................................................................1 μLink Product Family.........................................................................1 Role and Purpose................................................................................1 System Description......................................................................................2 System Overview................................................................................2 Features..............................................................................................2 System Configuration Options............................................................5 Interface Definitions...........................................................................6 Planning Information..........................................................................7 Site Evaluation...............................................................................7 Multipath Effects...........................................................................8 Installation Information......................................................................9 General Information.......................................................................9 Indoor Unit....................................................................................9 Outdoor Unit and Antenna.............................................................9 Operational Capabilities...................................................................10 Maintenance Features.......................................................................11 Built-in Test Features...................................................................11 System Specifications.......................................................................12 Performance Characteristics.........................................................12 Data Transmission Characteristics...............................................12 Transmitter Characteristics..........................................................13 Receiver Characteristics...............................................................13 Wayside Service Channel.............................................................14 Auxiliary/Alarm Interfaces...........................................................14 Power Supply Characteristics.......................................................15 Controls and Displays..................................................................15 Antenna Characteristics (μLink -T)..............................................16 Equipment Status Monitoring......................................................17 Mechanical Characteristics..........................................................18 Environmental Characteristics.....................................................18 Frequency Band Plan........................................................................19 862-01545μLink System Manual Issue 1bPage v Chapter 2: Installation...........................................................................21 Introduction to Chapter 2.................................................................21 Site Requirements............................................................................21 Parts and Accessories Supplied for Installation.................................22 Customer Furnished Tools and Equipment.......................................23 Installation Overview.......................................................................24 Antenna Installation....................................................................24 Outdoor Unit Installation.............................................................26 Indoor Unit Installation...............................................................29 Interconnection Cable Installation......…

Text truncated - open the document above for the full version.

TELEPHONE: (352) 472-5500 (888) 472-2424 FAX: (352) 472-2030 E-MAIL: [email protected] Engineering, Inc.WEBSITE: www.timcoengr.com TIMCO ENGINEERING, INC.
849 N. W. STATE ROAD 45
P.O. BOX 370

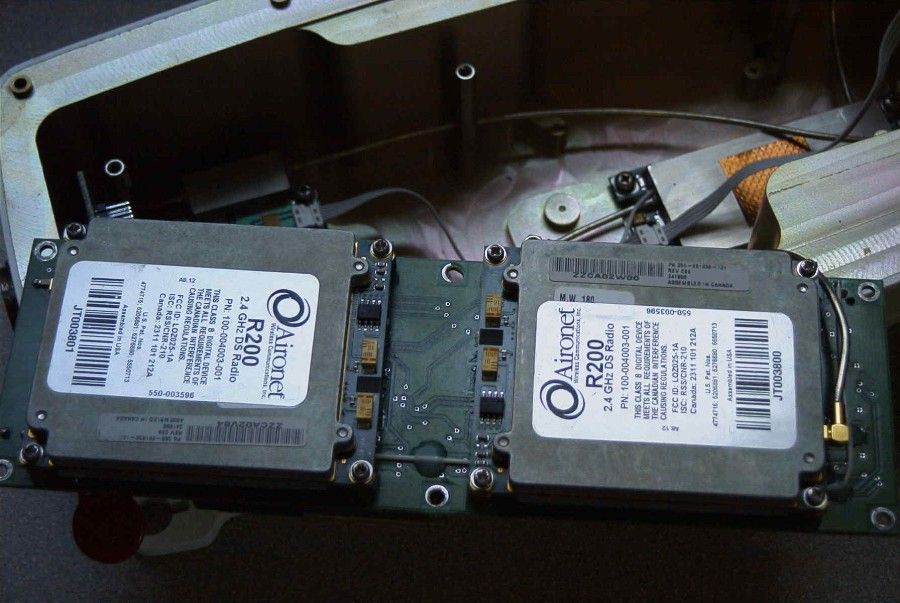

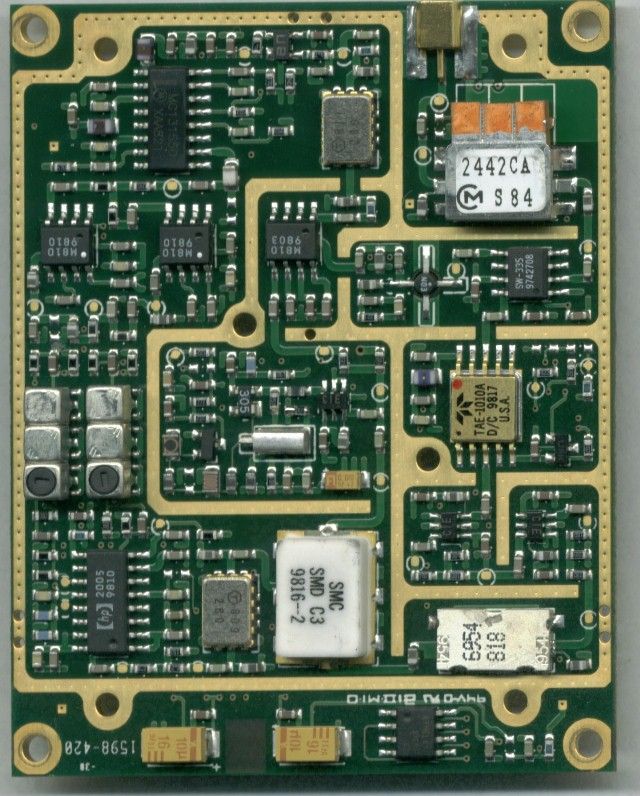

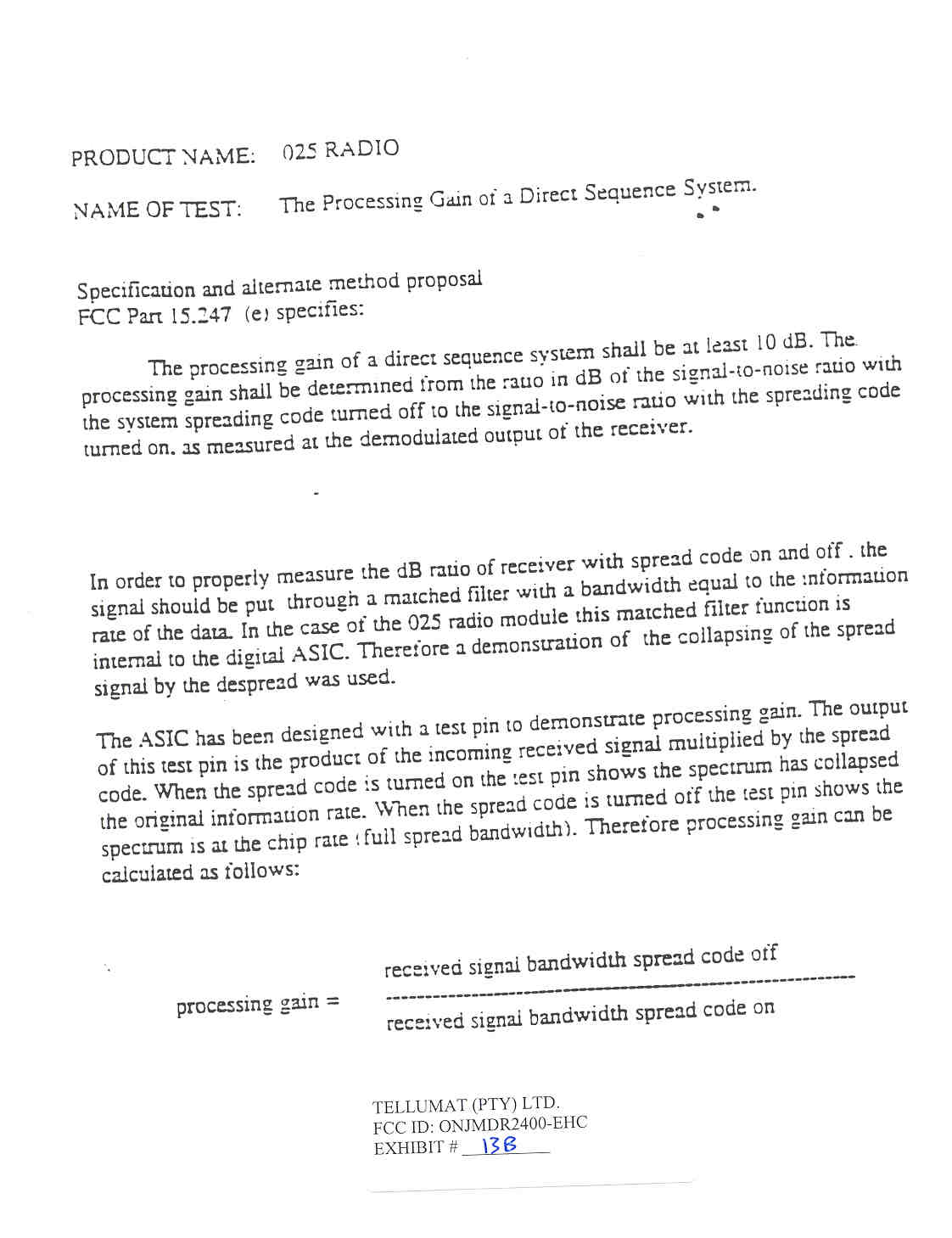

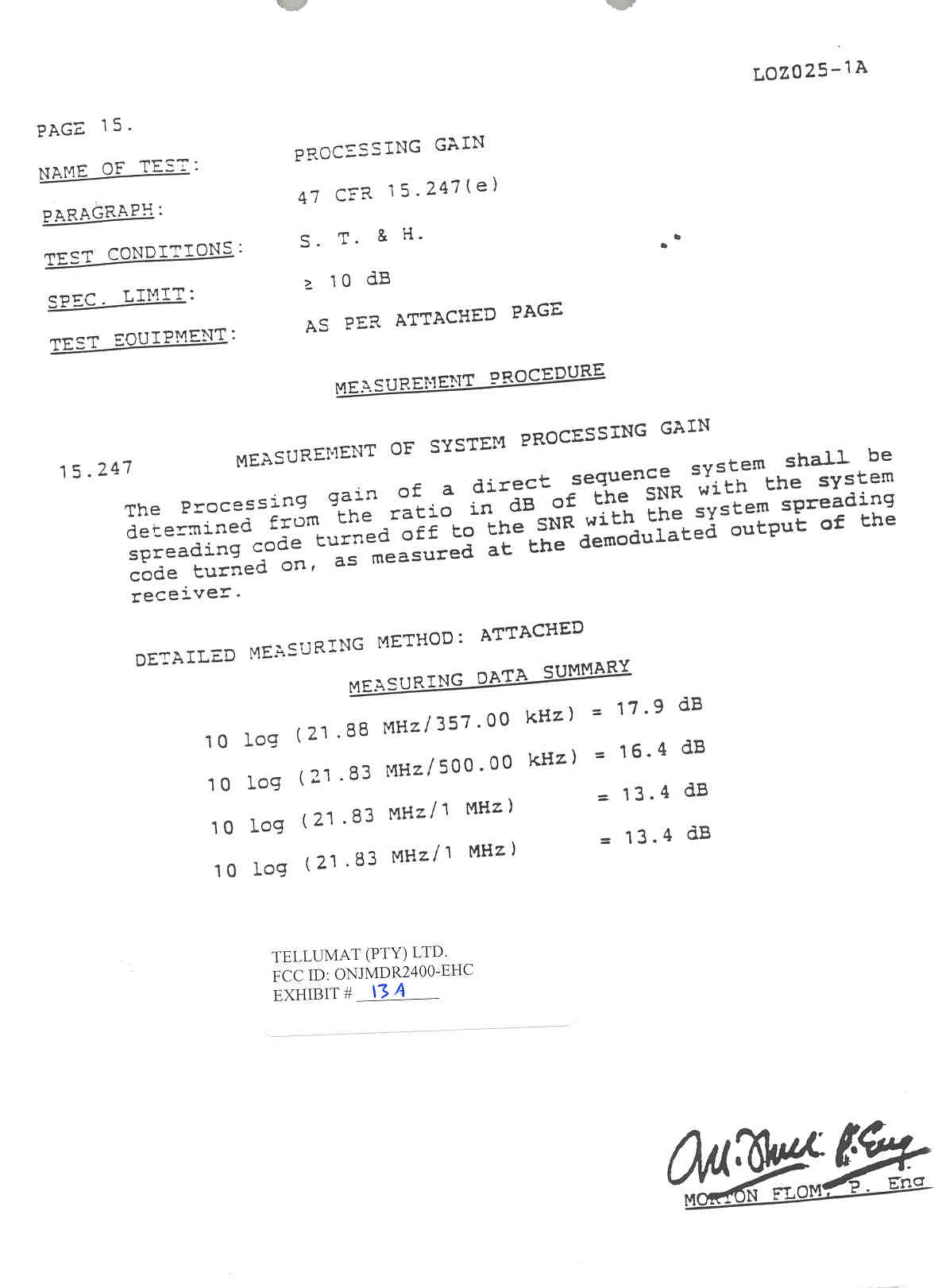

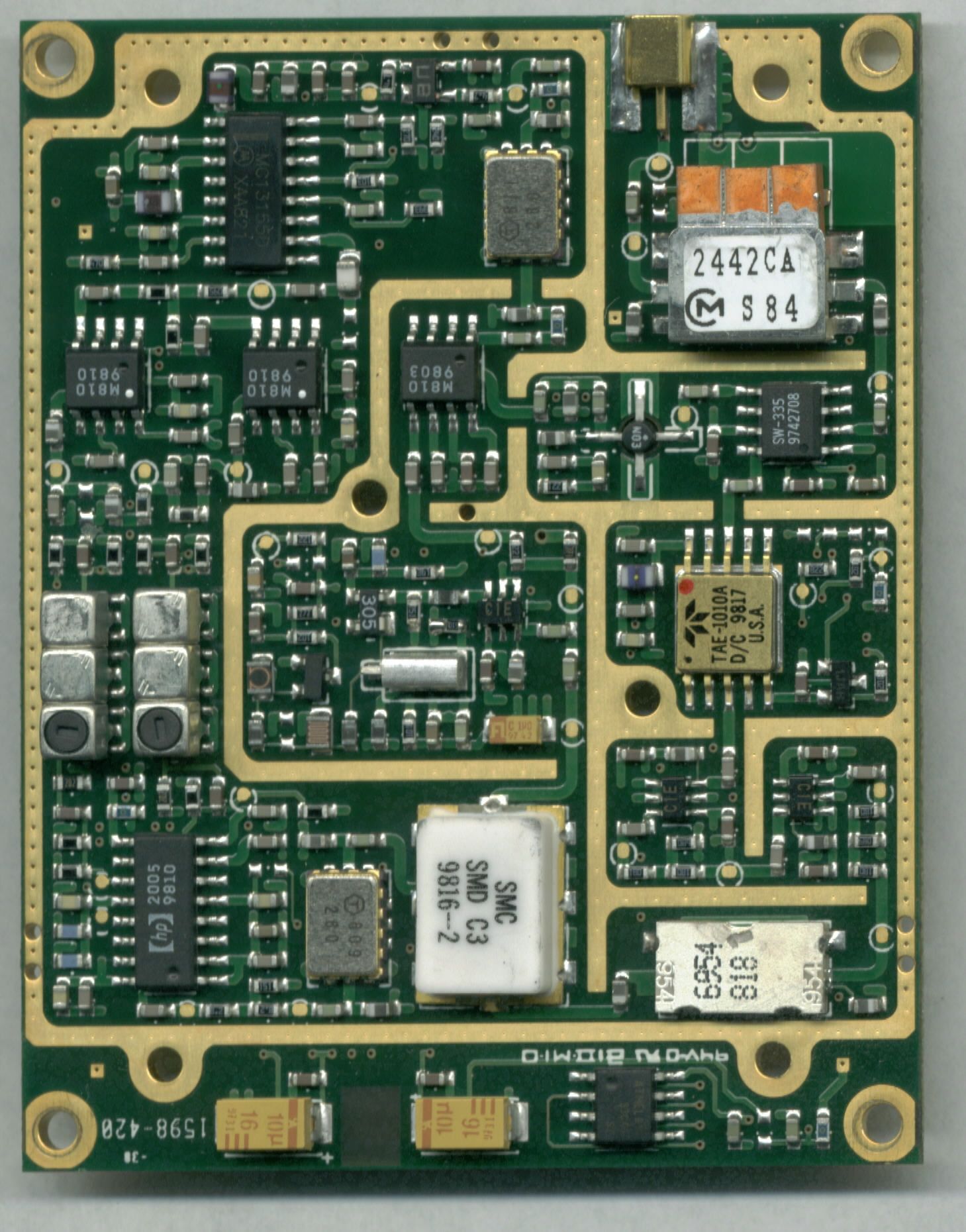

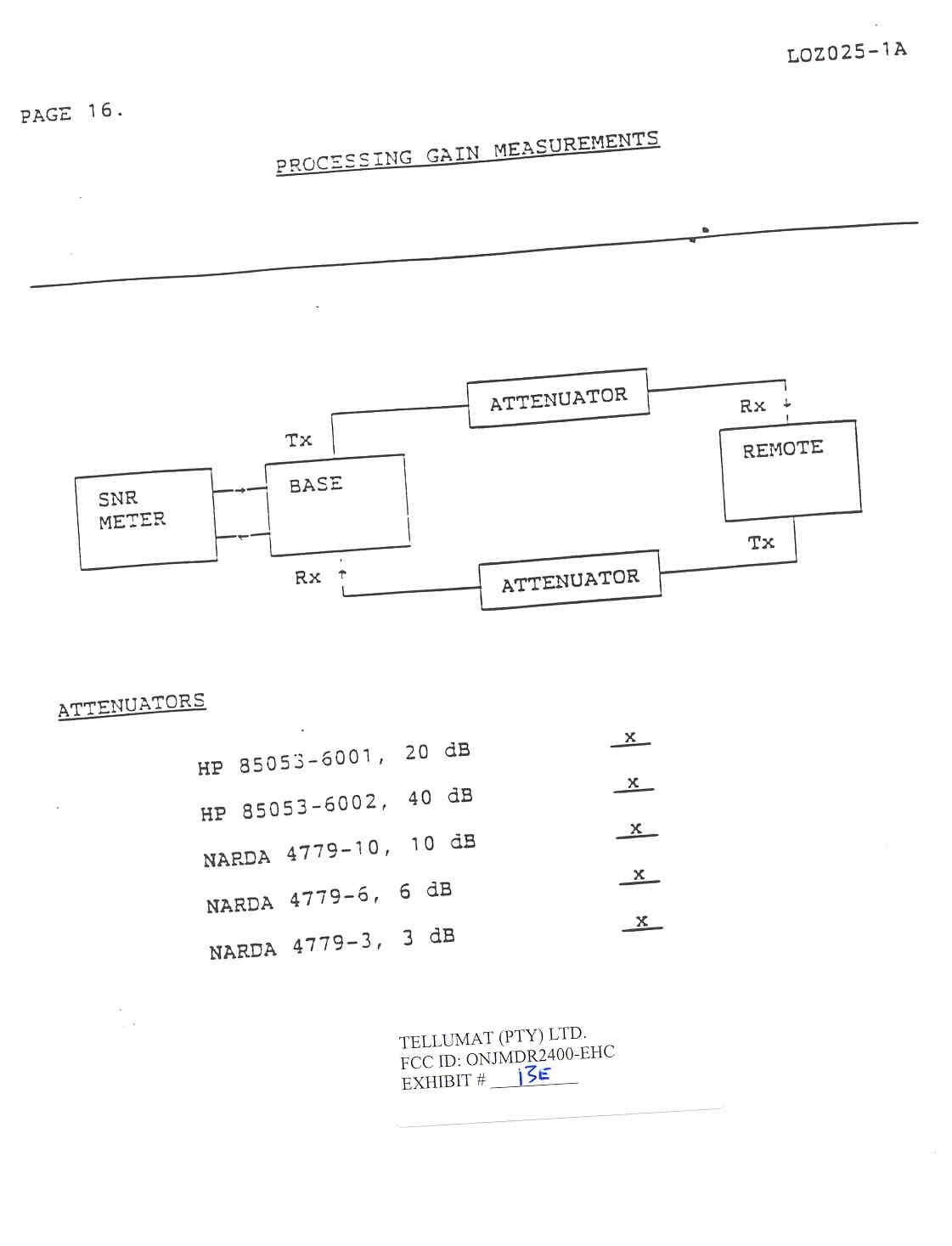

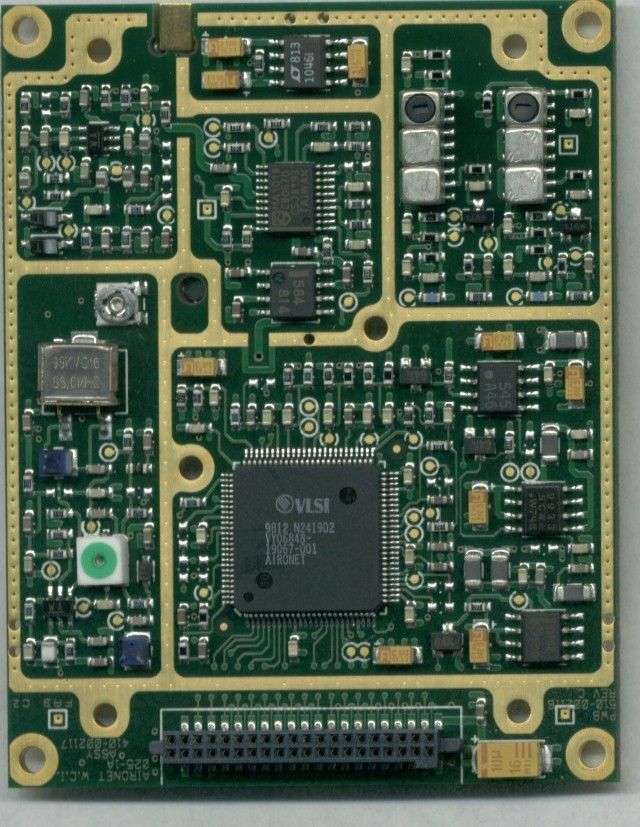

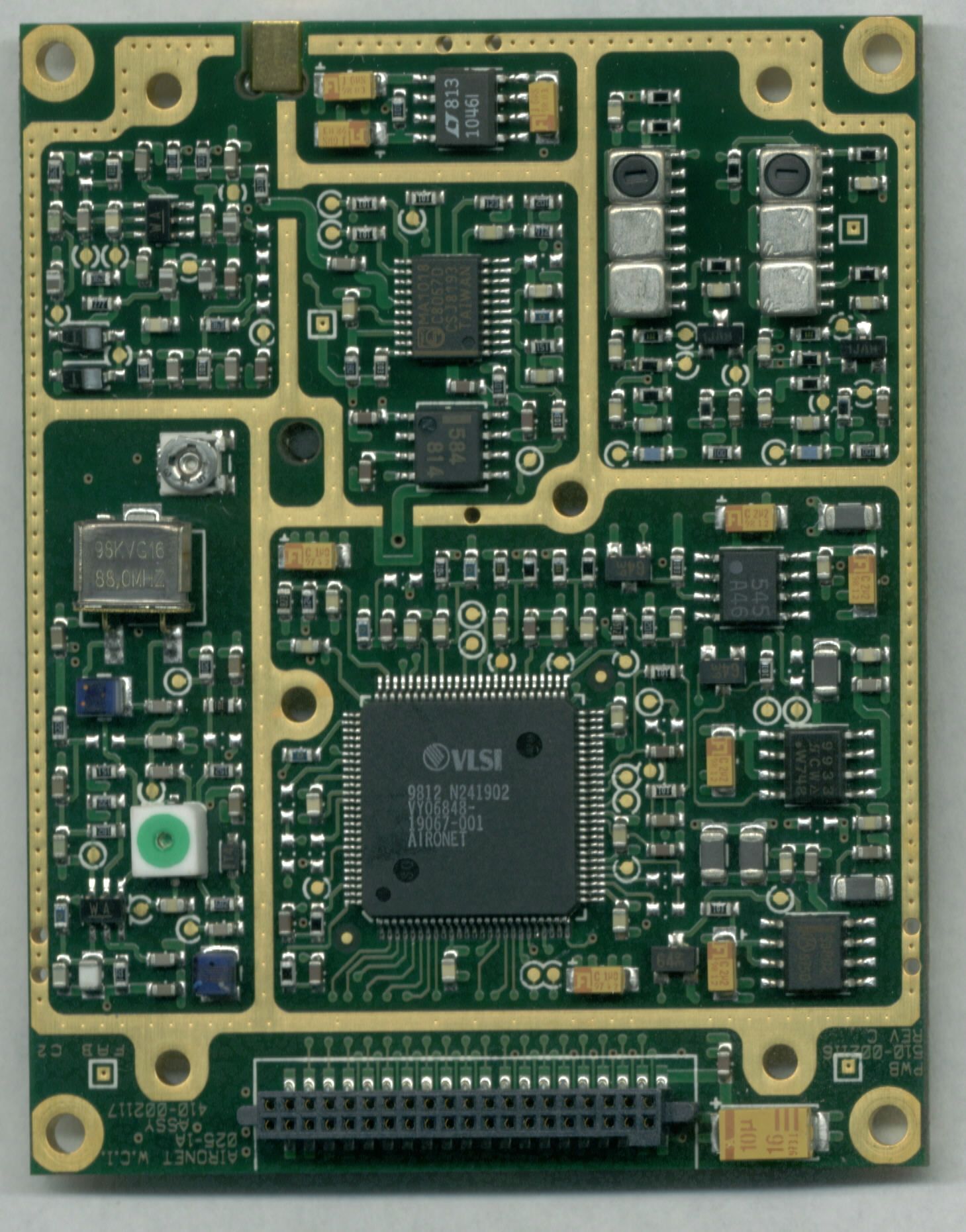

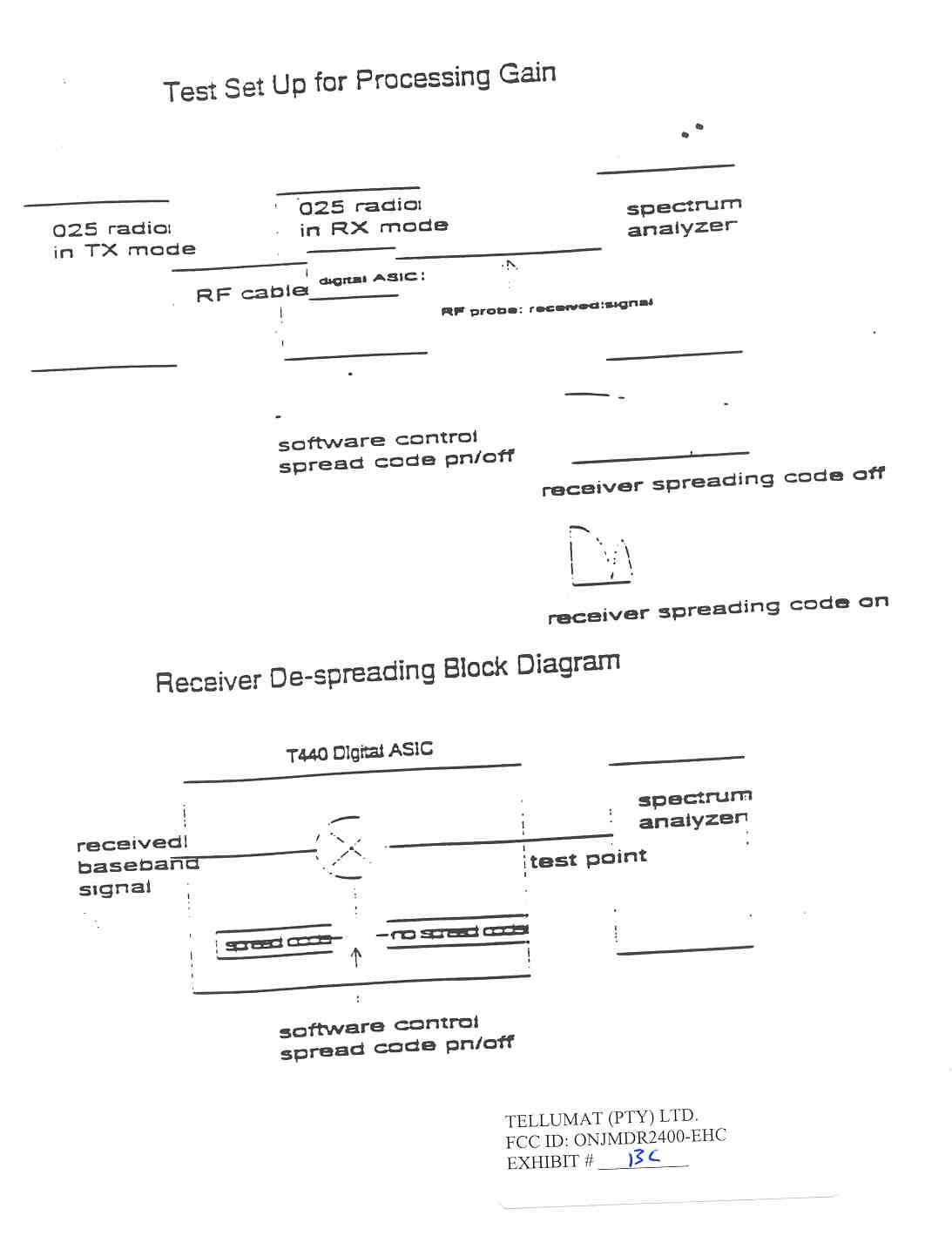

NEWBERRY, FL 32669 October 22, 1999 Mr. Joe Dichoso Federal Communications Commissin Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: TELLUMAT (PTY) LIMITED FCC ID: ONJMDR2400-EHD CONFIRMATION #: EA94985 REFERENCE: CORRESPONDENCE ID # 9670 Dear Joe: Per your request of 9/17/99; A. I’ve been told that the transmitter schematics and block diagram have been sent to you from Aironet. B. I’ve sent photographs of both sides of the circuit boards; the shielding has been removed. C. I’ve sent a new confidential request letter from the applicant. It is not necessary for the block diagram to be confidential; only the schematics need to be confidential. D. The antennas to be used are: YAGI ANTENNA MAKE: CUSHCRAFT MODEL: PC2415N GAIN: 17dBi PARABOLIC ANTENNA MAKE: CALIFORNIA AMPLIFIER MODEL: 130094-1 GAIN: 24 dBi E. OTUPT POWER – This is an error. The output power should be 450 mW. F. I’ve sent the Process Gain measurement report. G. I’ve also sent additional radiated measurements. Should you have any questions or require any further information, please let us know. Regards, Sharon Hoffman/TIMCO ENGINEERING, INC. SAH/hs

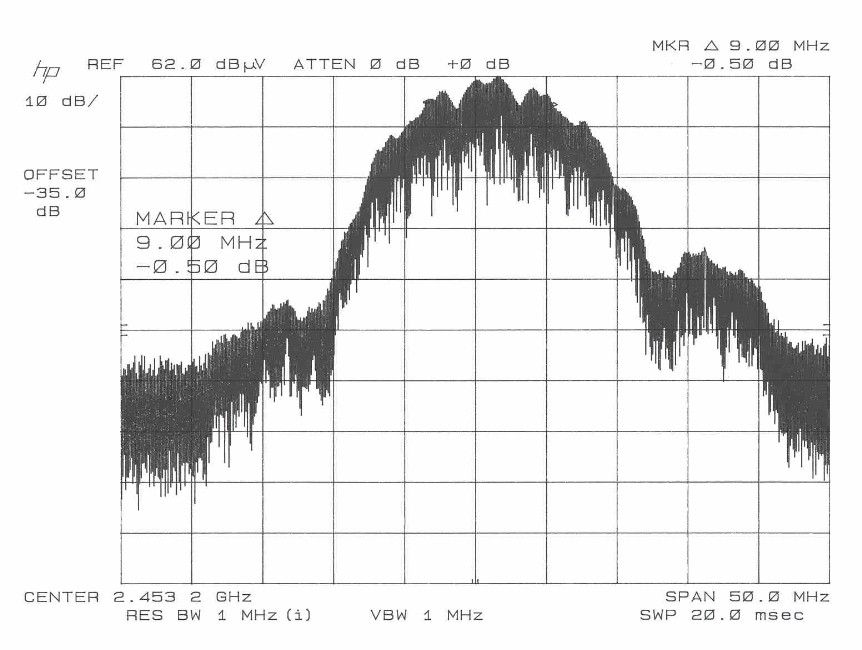

TIMCO ENGINEERING INC. PO Box 370 849 SR 45 Newberry, Florida 32669 Ph. 352.472.5500 Fax. 352.331.8840 [email protected] 10/27/99 TO: JOE DICHOSO FCC Subject: TELLUMAT FCCID: ONJMDR2400-EHD REFERENCE: EA94985 Due to my over sight of the of the 24dBi gain antenna the applicant supplied me with a modified unit that only has a power output of 0.22Watts and a frequency range of 2400 to 2455MHz. 1. In order to comply with the 250milliWatt limit with the 24dBi antenna gain the power output was changed and the UUT remeasured. The power measured 0.220Watts. This is a request for you to correct the 731 form. 2. The power output limit with the 24dBi antenna is 0.250Watts, and for the 17dBi antenna would be 0.4Watts but since the transmitter is the same they supplied a 0.22Watts Unit, sorry I over looked this. 3. The original radiated measurements were made with a video bandwidth of 300kHz, NOT 10Hz as stated in my report. Attached are new measurements that were made with 1.0MHz RBW = VBW. 4. The field strength of the starting edge of the restricted band is included in the radiated measurements. I will include this measurement in all future reports. Thanks for your help. BEST REGARDS, Sid Sanders cc:Sharon Hoffman CHECK OUT OUR WEBSITE @www.timcoengr.com

TELEPHONE: (352) 472-5500 (888) 472-2424 FAX: (352) 472-2030 E-MAIL: [email protected] Engineering, Inc.WEBSITE: www.timcoengr.com TIMCO ENGINEERING, INC. 849 N. W. STATE ROAD 45 P.O. BOX 370 NEWBERRY, FL 32669 January 11, 2000 Mr. Kwok Chan Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Tellumat (Pty) Ltd.’s FCC ID: ONJMDR2400-EHD Confirmation Number EA94985 REFERENCE: Correspondence ID # 11322 Dear Mr. Chan: Per your request of 1/5/00; 1. The calculation of safe distance for radiofrequency radiation exposure limits has been sent to the file. 2. (a) The 24dBi parabolic antenna was tested at 24dbm (level 5). The actual output when set to level 5 is not exactly 250mW; in this case it was 220mW. The 17 dbi Yagi was tested at 26dbm (level 7). Both of these power levels are in accordance with FCC rules 15.247(b)(1) and 15.247 (b)(3)(i). Page 59 of the manual has been corrected. 200 mW is incorrect. Please change that. The transmitter should be granted 26dbm maximum output power (as used with the 17 dbi Yagi). (b) This has been changed in the manual. (c This has been changed in the manual. I have also sent a new user’s manual to the file. Should you have any questions with regards to this, or need any further information, please advise. Regards, Sharon A. Hoffman/TIMCO ENGINEERING, INC.

Calculation of Safe Distance for Radiofrequency Radiation Exposure Limits The Limits for Maximum Permissible Exposure to Radiofrequency Radiation are set out in FCC Document 47 CFR Ch. I paragraph 1.1310. The limits for uncontrolled exposure are 1 mW/cm 2 The distance from an antenna resulting in a power density of greater than 1 mW/cm 2 , can be calculated from the equation: S=EIRP / 4π R 2 Or R=√EIRP / 4πS Where:S is the power density in mW/cm 2 R is the distance from the center of the antenna in cm EIRP is the equivalent isotropically radiated power ( P tx x G antenna ) For a 24dBi gain parabolic antenna, and a transmit power of 24dBm, the EIRP is 48dBm, or 6.3E4 mW R= √EIRP / 4πS = √6.3E4 / 4π = 71cm We therefore recommend that an installer stay 1meter (100cm or 3.5ft) from the antenna while it is transmitting. We also recommend that the antenna be installed such that it is at least 1m away from any easily accessible public location.

862-01545μLink System Manual Issue 1bPage i μμLink Digital Radio System Manual Publication Number: 862-01545 Issue 1b February 1999 Tellumat (Pty) Limited Reg. No. 96/000957/07 64/74 White Road, Retreat, 7945 P.O. Box 30451, Tokai, 7966 Telephone: +27 21 710-2911 Fax No. +27 21 710-2333 μLink System Manual862-01545 Page iiIssue 1b Federal Communications Commission Notice NOTE The equipment has been tested and found to comply with the limits for a Class A digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The manufacturer is not responsible for any radio or TV interference caused by unauthorised modifications to this equipment. Such modifications could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment must be professionally installed. WARNING- To comply with FCC RF exposure limits, the antennas for this transmitter must be fix- mounted to provide a separation distance of 1 meter (3.5 ft) or more from all persons to satisfy RF exposure requirements. 862-01545μLink System Manual Issue 1bPage iii Document Issue Status When an issue status of this manual changes, the record below must be completed and initialled. Page No. Issue Status Authority (ECN No.) Page No. Issue Status Authority (ECN No.) 1 - 781 1 - 821b μLink System Manual862-01545 Page ivIssue 1b Table of Contents Page Chapter 1: Purpose and Planning............................................................1 Introduction to Chapter 1...................................................................1 μLink Product Family........................................................................1 Role and Purpose................................................................................1 System Description......................................................................................2 System Overview................................................................................2 Features..............................................................................................2 System Configuration Options............................................................5 Interface Definitions...........................................................................6 Planning Information.........................................................................7 Site Evaluation..............................................................................7 Multipath Effects...........................................................................8 Installation Information......................................................................9 General Information......................................................................9 Indoor Unit....................................................................................9 Outdoor Unit and Antenna.............................................................9 Operational Capabilities...................................................................10 Maintenance Features.......................................................................11 Built-in Test Features..................................................................11 System Specifications.......................................................................12 Performance Characteristics.........................................................12 Data Transmission Characteristics...............................................12 Transmitter Characteristics..........................................................13 Receiver Characteristics...............................................................13 Wayside Service Channel.............................................................14 Auxiliary/Alarm Interfaces..........................................................14 Power Supply Characteristics.......................................................15 Controls and Displays..................................................................15 Antenna Characteristics (μLink -T).............................................16 Equipment Status Monitoring......................................................17 Mechanical Characteristics..........................................................18 Environmental Characteristics.....................................................18 Frequency Band Plan........................................................................19 862-01545μLink System Manual Issue 1bPage v Chapter 2: Installation............................................................................21 Introduction to Chapter 2..................................................................21 Site Requirements.............................................................................21 Parts and Accessories Supplied for Installation.................................22 Customer Furnished Tools and Equipment........................................23 Installation Overview........................................................................24 Antenna Installation.....................................................................24 Outdoor Unit Installation.............................................................26 Indoor Unit Installation.................................................…

Text truncated - open the document above for the full version.

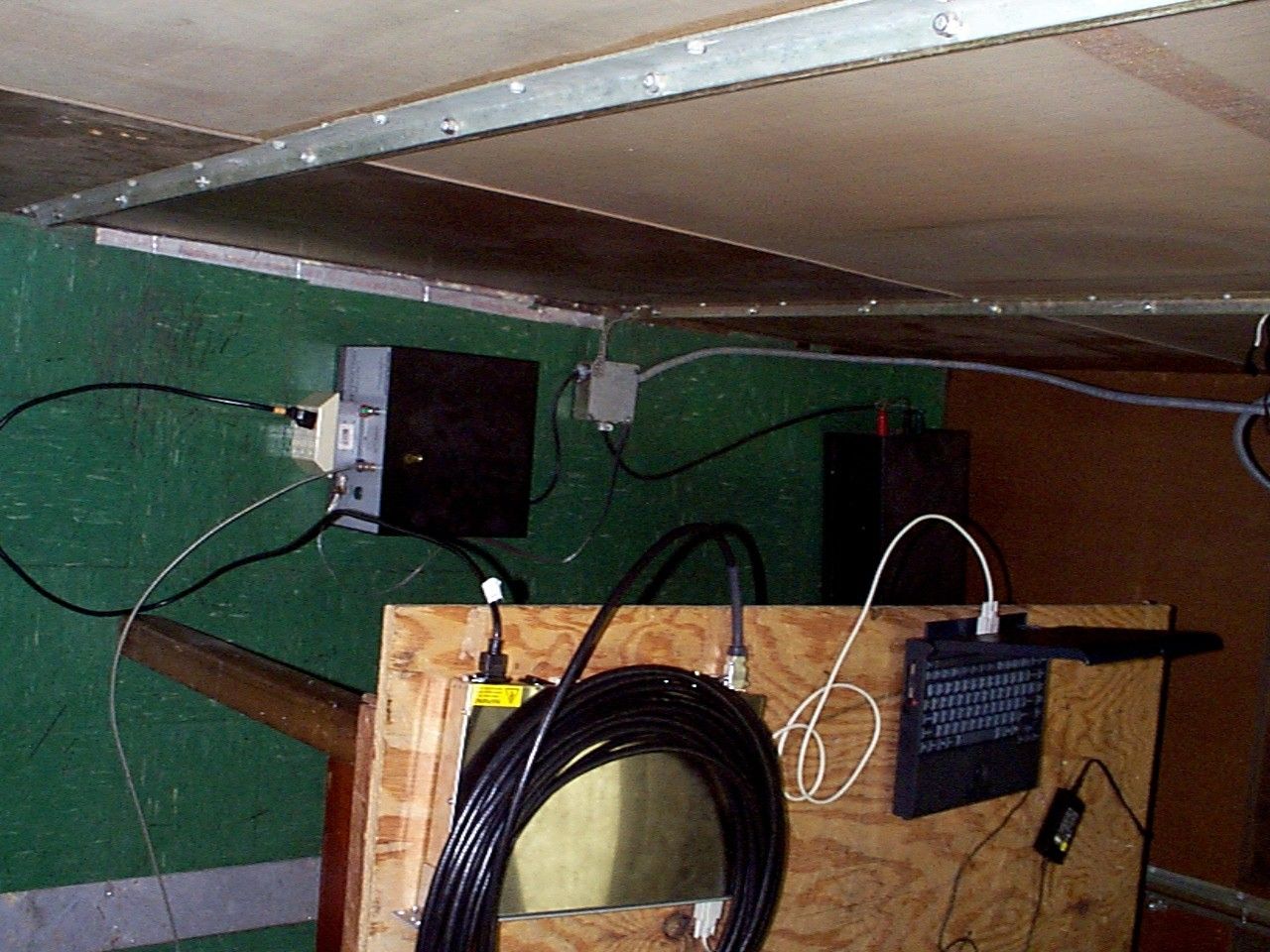

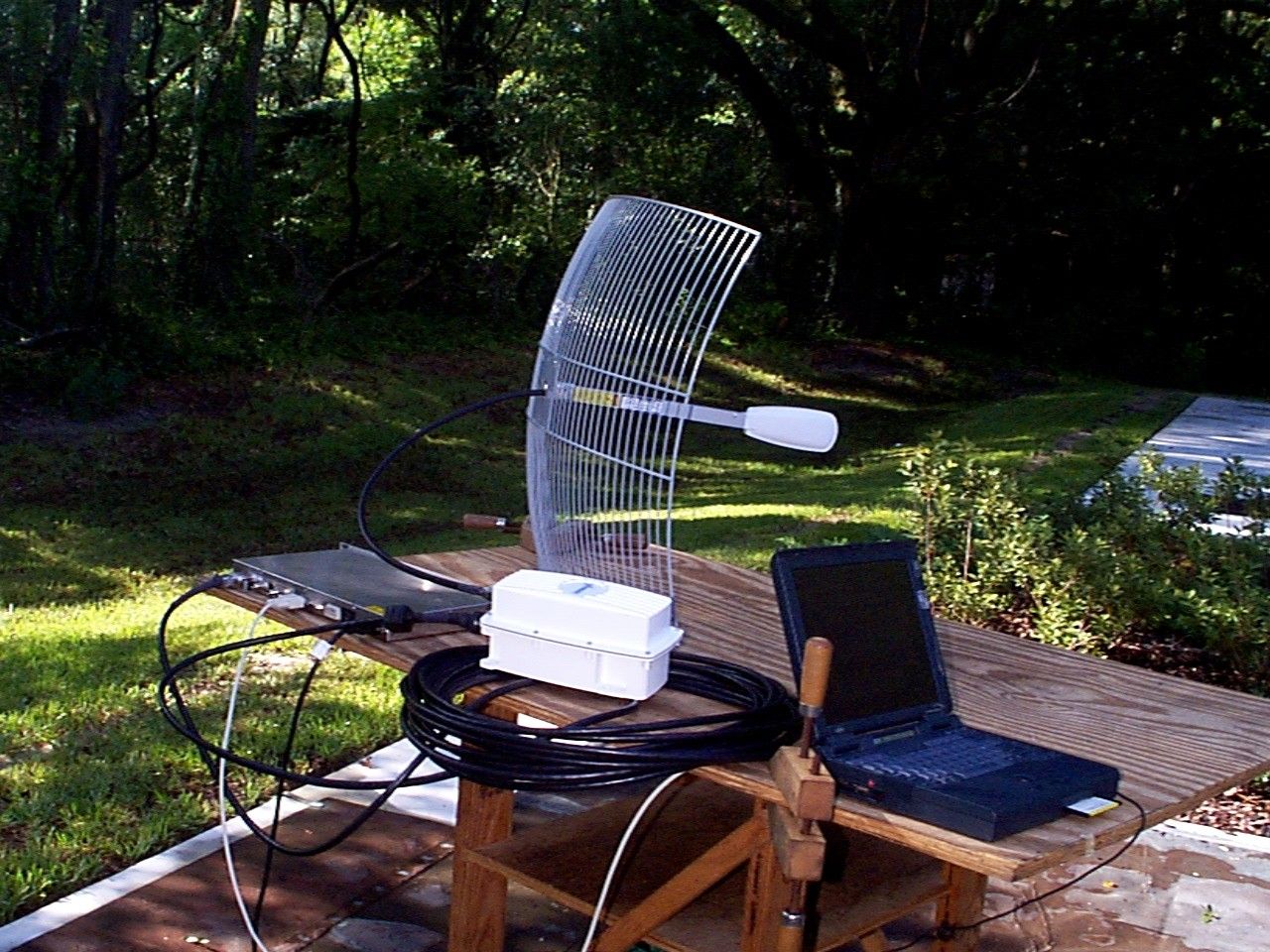

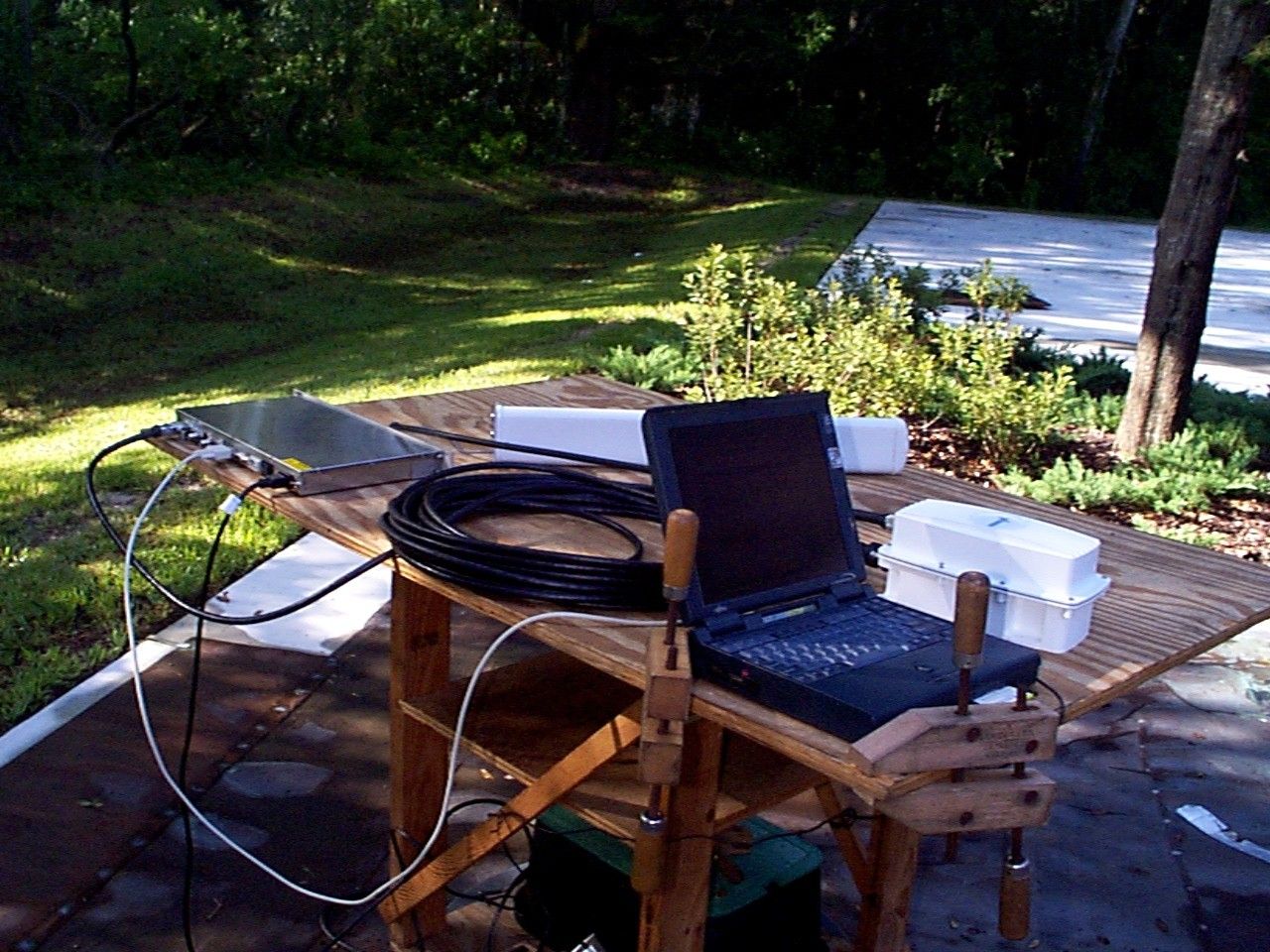

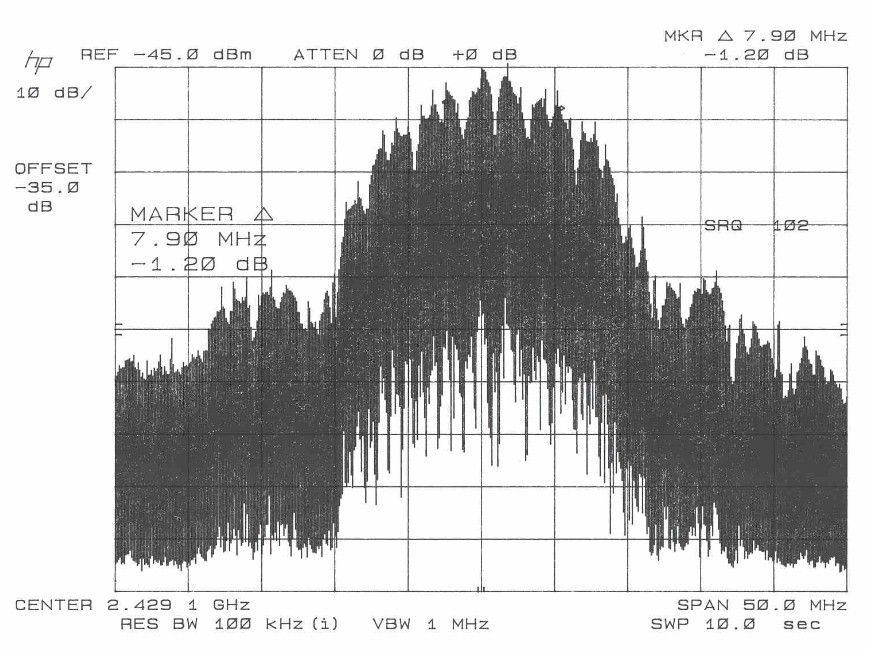

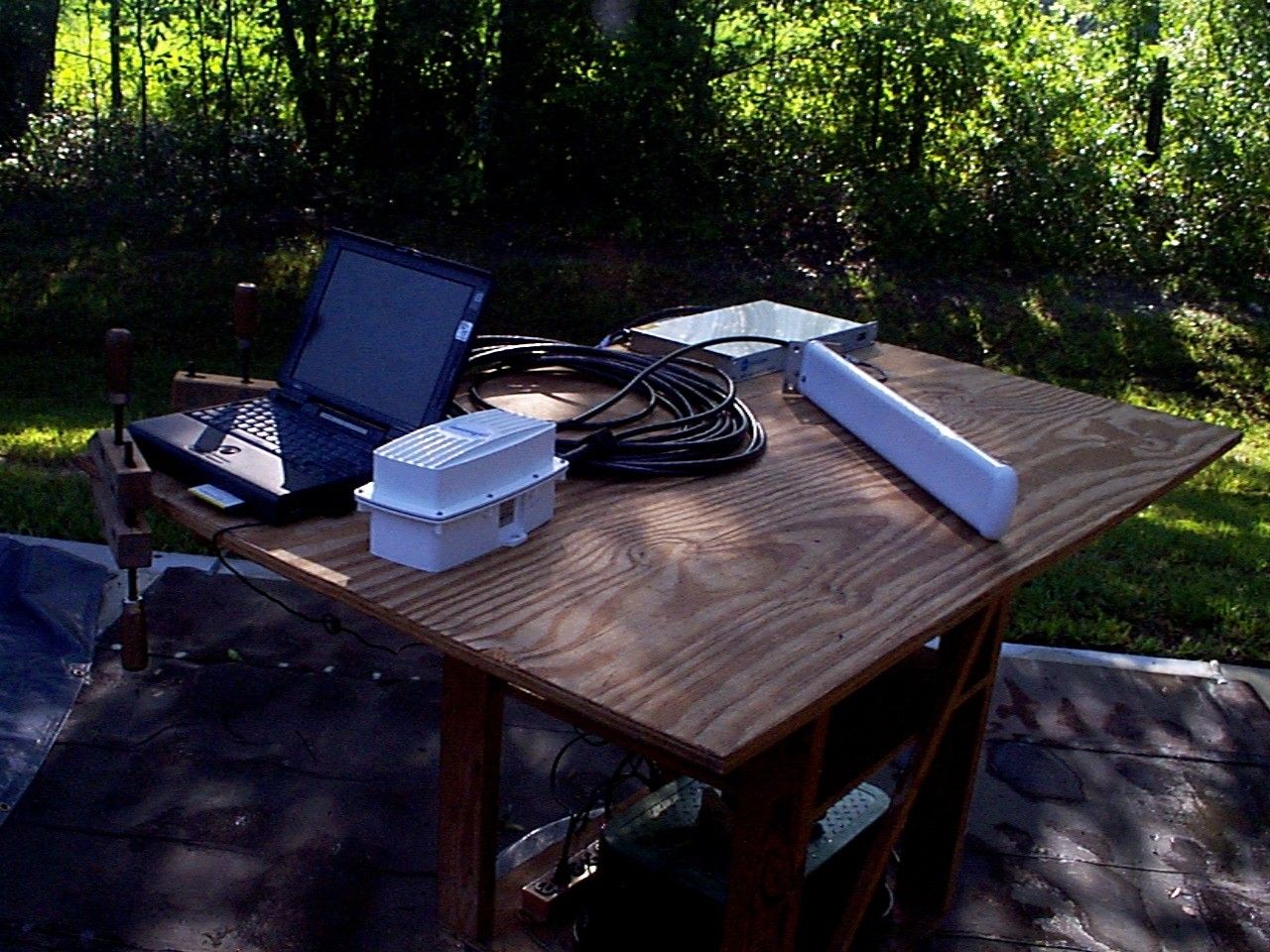

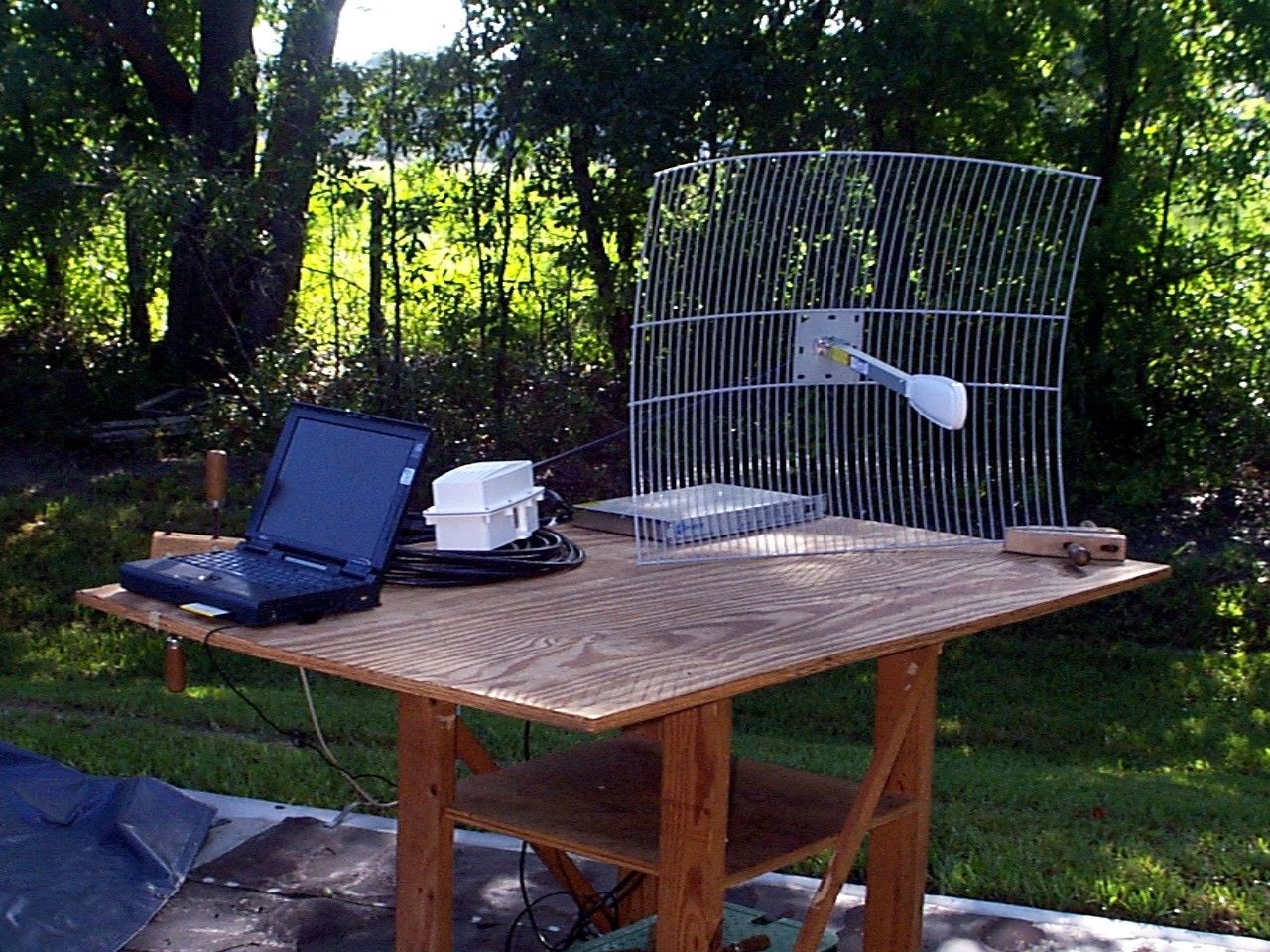

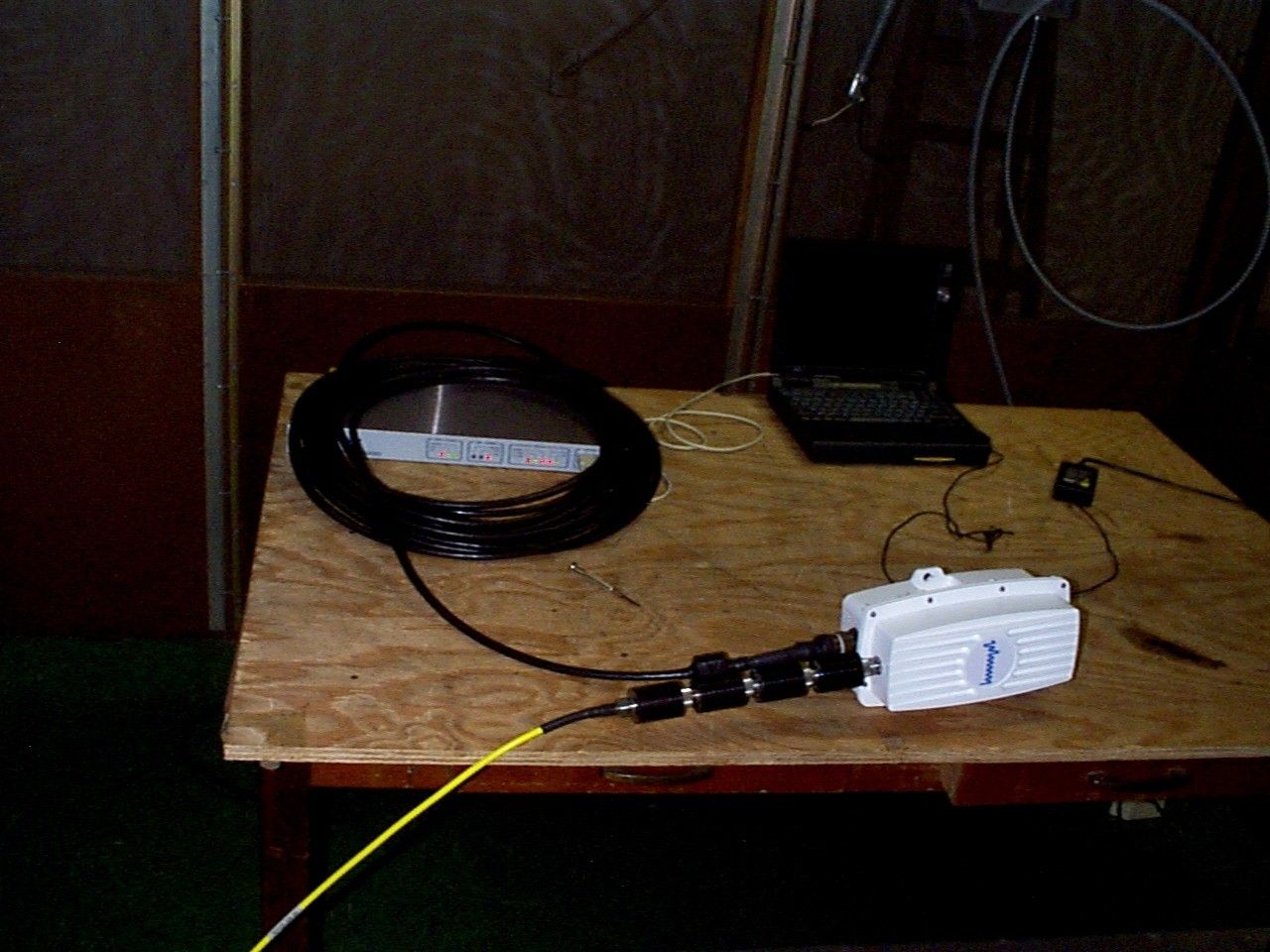

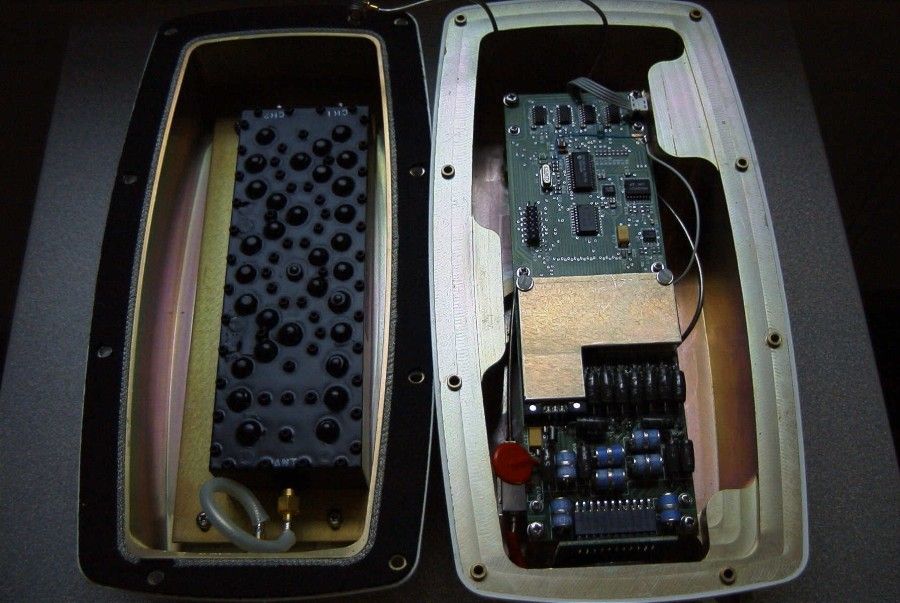

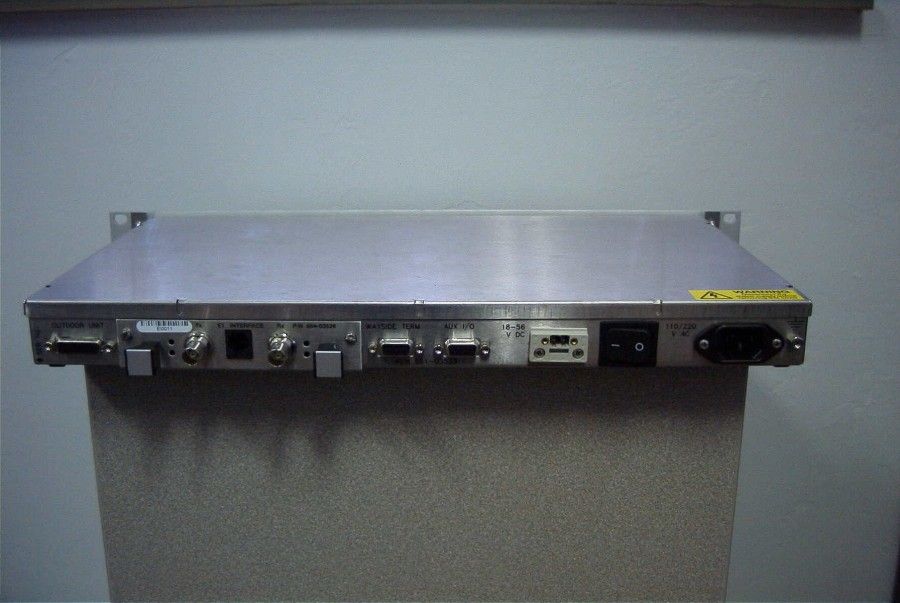

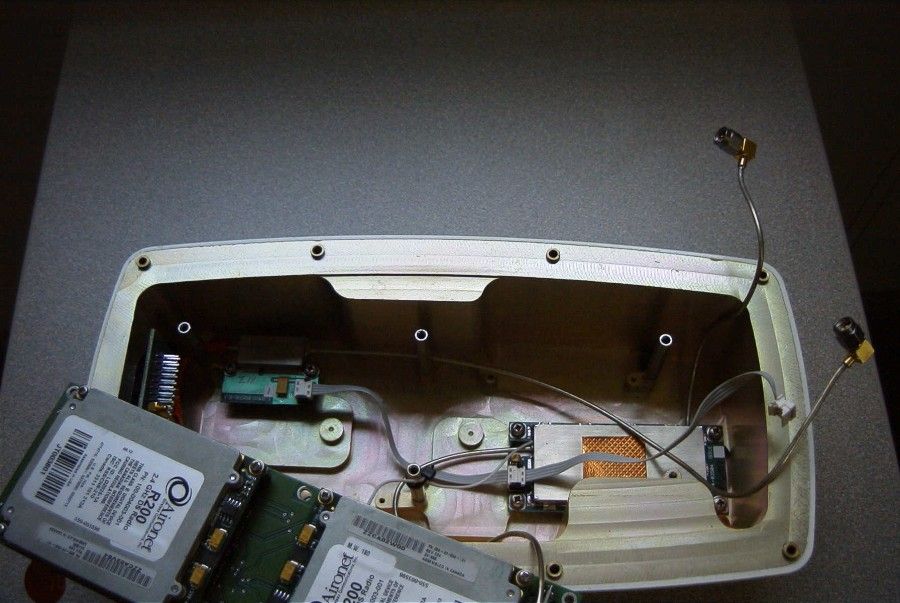

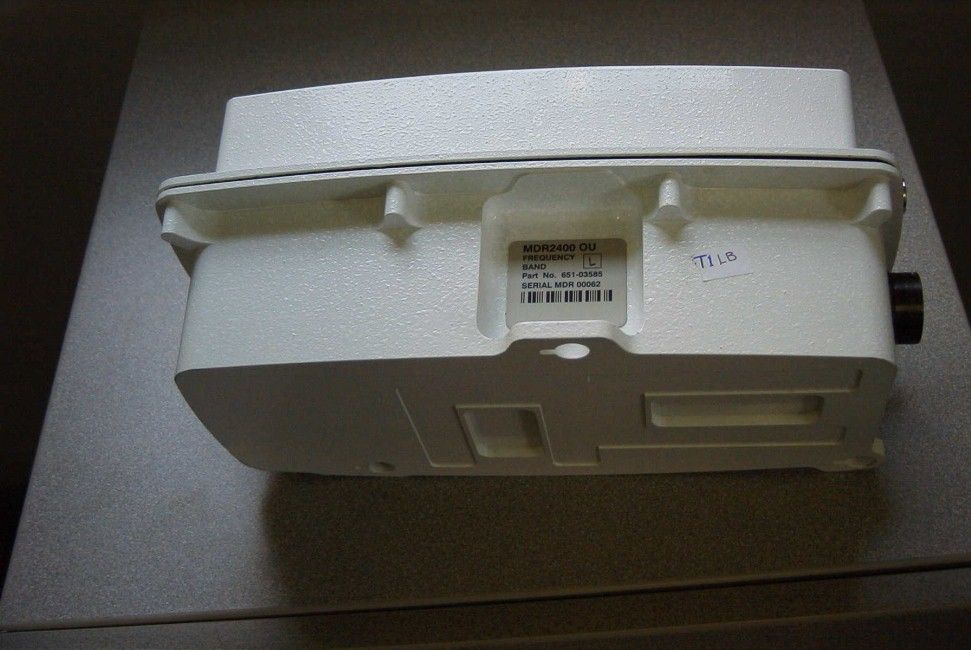

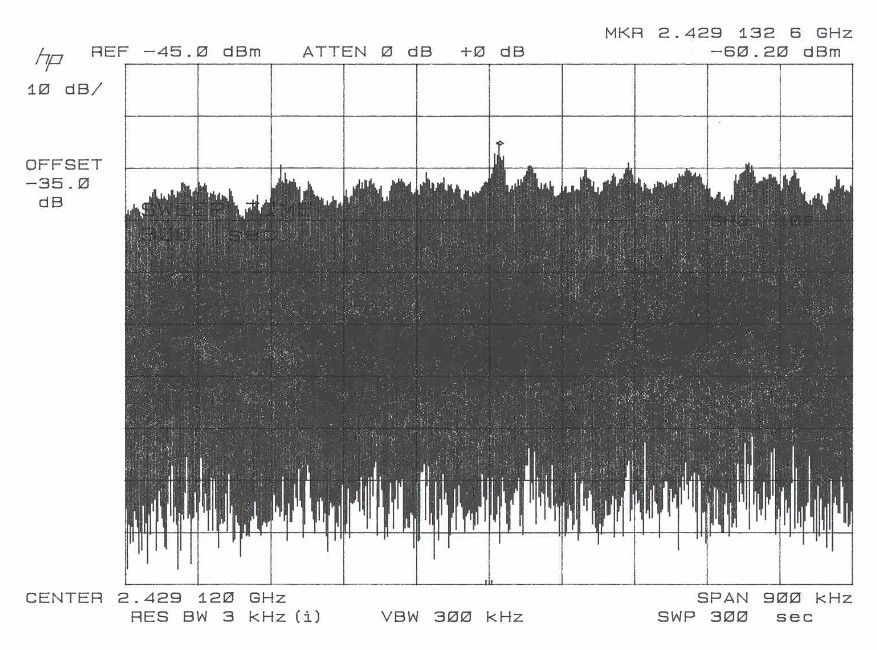

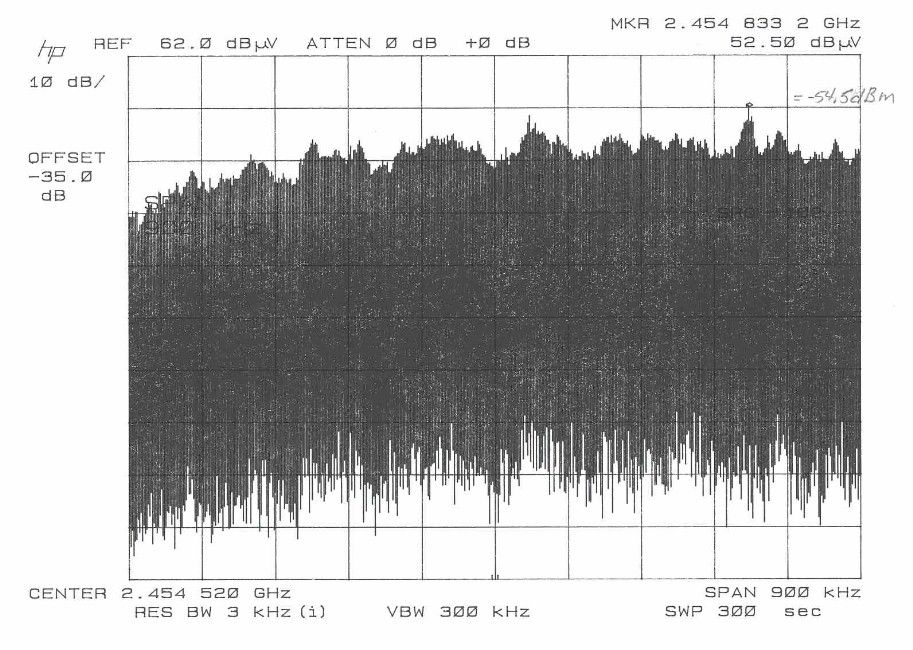

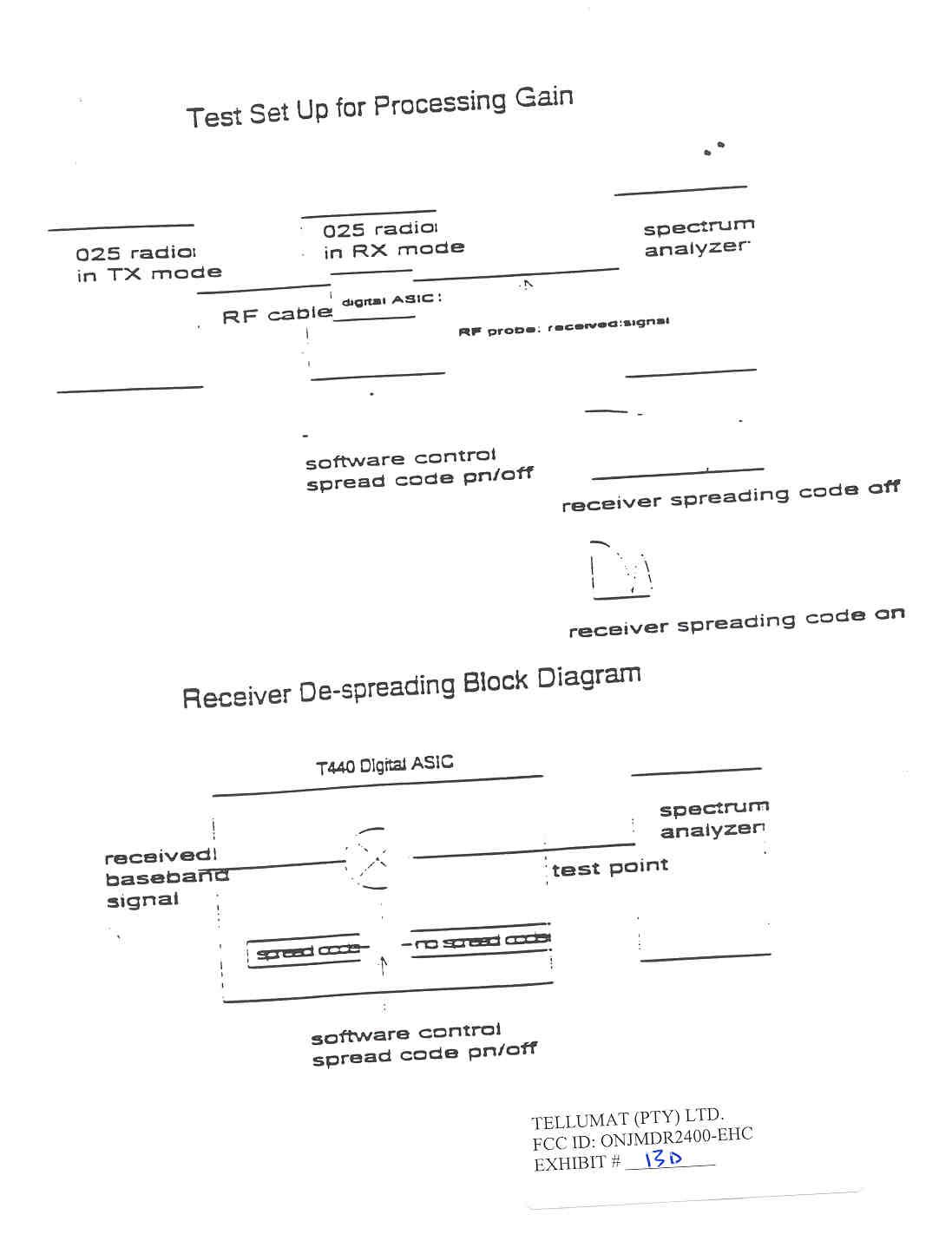

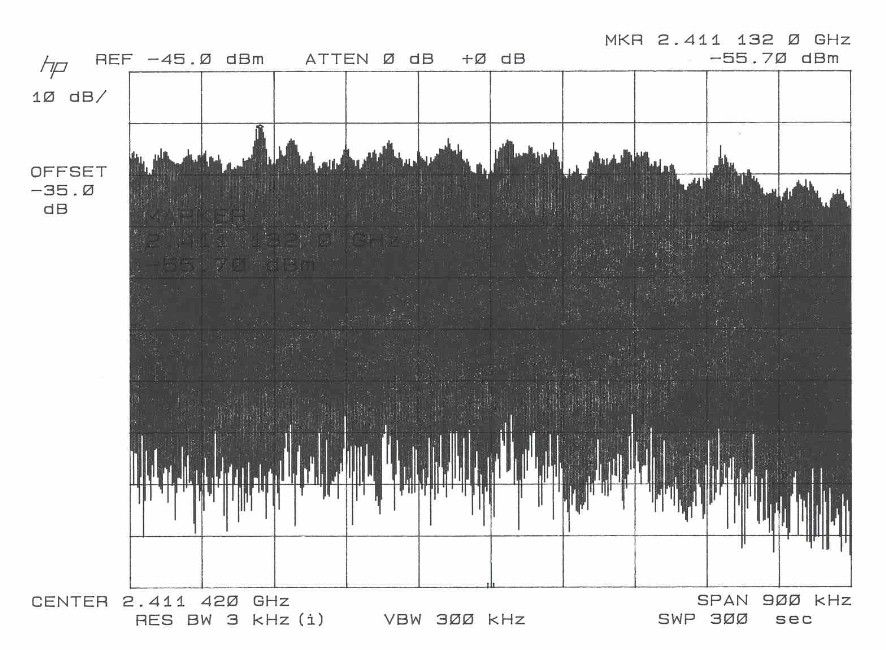

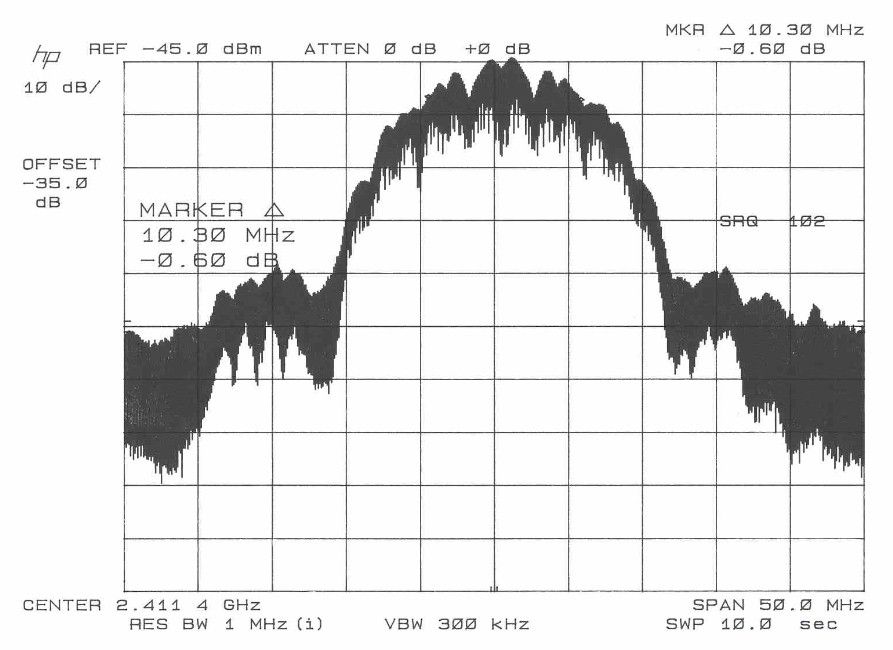

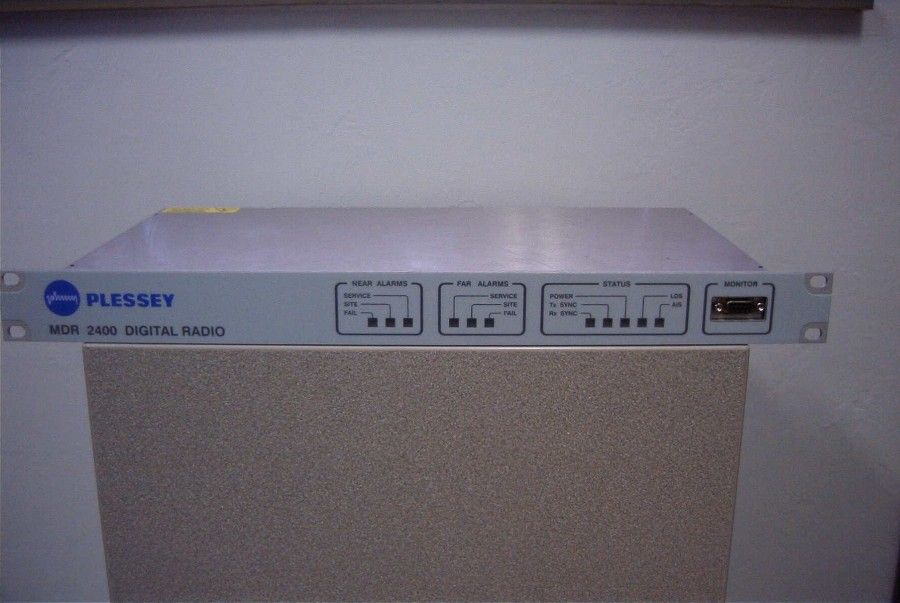

TABLE OF CONTENTS LIST APPLICANT: TELLUMAT(PTY) LIMITED. FCC ID: ONJ651-03585 TEST REPORT CONTAINING: PAGE 1.......LETTER ABOUT CONFIDENTIALITY & PROFESSIONAL INSTALLATION PAGE 2.......LETTER OF EXPLANATION PAGE 3.......TEST PROCEDURE PAGE 4.......BLOCK DIAGRAM OF TEST SET UP PAGE 5.......CIRCUIT DESCRIPTION PAGE 6.......15.247(a)(2) 6.0dB BANDWIDTH & POWER OUTPUT PAGE 7.......15.247(c) ANTENNA CONDUCTED SPURIOUS PAGE 8-9.....15.247(c) RADIATED SPURIOUS EMISSIONS PAGE 10.......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 11.......15.247(d) POWER SPECTRAL DENSITY PAGE 12.......PROCESSING GAIN (FROM ATT) PAGE 13.......POWER LINE CONDUCTED SPURIOUS EMISSIONS EXHIBITS CONTAINING: EXHIBIT 1A........POWER OF ATTORNEY LETTER EXHIBIT 1B........PROFESSIONAL INSTALLATION LETTER EXHIBIT 1C........CONFIDENTIALLY LETTER EXHIBIT 2.........PERMISSION LETTER FROM AIRONET EXHIBIT 3A-F......TEST SET UP PHOTOGRAPHS EXHIBIT 4.........FCC ID LABEL SAMPLE EXHIBIT 5.........FCC ID LABEL LOCATION EXHIBIT 6A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 6B........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 6C........SIDE VIEW PHOTOGRAPH EXHIBIT 6D........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 6E........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 6F........INTERNAL CHASSIS VIEW PHOTOGRAPH EXHIBIT 7A-7C.....BLOCK DIAGRAM EXHIBIT 8.........USER'S MANUAL EXHIBIT 9A-B......BANDWIDTH PLOTS EXHIBIT 10A-B.....SPECTRAL DESNITY PLOTS EXHIBIT 11A-B.....PLOTS OF POWER LINE CONDUCTED EMISSIONS APPLICANT: TELLUMAT(PTY) LIMITED. FCC ID: ONJ651-03585 REPORT #: F:\CUS\T\TELLUMAT\TEL293B9.RPT DATE: JULY 23, 1999 TABLE OF CONTENTS LIST 7    7/26/99     Federal Communications Commission  Authorization and Evaluation Division  7435 Oakland Mills Road  Columbia, MD 21046 SUBJECT: TELLUMAT(PTY) LIMITED. FCC ID: ONJ651-03585 To Whom It May Concern: This will serve as a request for confidentiality for the schemat- ics for the radio. The schematics will be sent directly from the manufacturer to the FCC upon request. Once the review of the application is complete and the schematics are no longer needed, they must be returned to the manufacturer, where they were sent from. Attached as Exhibit 1B you will find a request for approval as a professionally installed equipment. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, S. S. Sanders SSS/sh Encl. APPLICANT: TELLUMAT(PTY) LIMITED. FCCID: ONJ651-03585 REPORT #: F:\CUS\T\TELLUMAT\TEL293B9.RPT DATE: JULY 23, 1999 PAGE #: 1 7/26/99 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: TELLUMAT(PTY) LIMITED. FCCID: ONJ651-03585 To Whom It May Concern: Attached you will find an application for a direct sequence spread spectrum assembly that is intended to be professionally installed. This unit will only be installed by authorized dealers that have been trained at the manufacturer's facilities. The model only operates on two(2) frequencies, 2.411GHz and 2.455GHz and only comes in tow configurations; 1. Long pointed antenna 2. Parabolic Antenna. The user manuel will have the following statement in it; "WARNING! ALL PERSONNEL SHOULD STAY AT LEAST 1 METER(3.5') FROM ANTENNA TO AVOID EXPOSURE TO POSSIBLE MICROWAVE ENERGY." The antenna is intended to use outside. Sincerely, S. S. Sanders SSS/sh Encl. APPLICANT: TELLUMAT(PTY) LIMITED. FCCID: ONJ651-03585 REPORT #: F:\CUS\T\TELLUMAT\TEL293B9.RPT DATE: JULY 23, 1999 PAGE #: 2 TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 7/6/99 2. Signal Generator, Hewlett Packard 8640B, cal. 10/1/98 3. Signal Generator, HP 8614A Serial No.2015A07428 cal. 5/27/99 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 10/30/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/31/98 5. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 10/30/98 6. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 8. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 9. Special low loss cable was used above 1 GHz 10. Tenney Temperature Chamber TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. Shielded interface cables were used in all cases except for cables connecting to the telephone line and the power cords. A test program was run which simulated a normal data transmission on a network. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 76oF with a humidity of 55%. BANDWIDTH 6.0dB: The measurements were made withe the spectrum analyz- er's resolution bandwidth(RBW)=100KHz and the video bandwidth(VBW) =300KHz and the span set as shown on plot. POWER OUTPUT: The RF power output was measured at the antenna feed point using a peak power meter. ANTENNA CONDUCTED EMISSIONS: The RBW=100KHz, VBW=300KHz and the span set to 100MHz and the spectrum was scanned from 30MHz to the 10th Harmonic of the fundamental. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth(RBW) of the spectrum analyzer was 100kHz up to 1GHz and 1.0MHz above 1GHz with an appropriate sweep speed. The VBW above 1.0GHz was = 10Hz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the UUT was 89oF with a humidity of 86%. APPLICANT: TELLUMAT(PTY) LIMITED. FCCID: ONJ6…

Text truncated - open the document above for the full version.
