ONKAT-400BUHF FM TRANSCEIVER

FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 Appendix I. Operational Description FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 i Your FM radio generates RF electromagnetic energy during transmit mode. This radio is de- signed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Popula- tion” in an uncontrolled environment. This radio has been tested and complies with the FCC RF expo- sure limits for “Occupational Use Only.” In addition, your FM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Stan- dard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3 – 1992), IEEE Rec- ommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. To ensure that your exposure to RF electromag- netic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: •DO NOToperate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with WARNING CAUTION SAFETY TRAINING INFORMATION ii this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. •DO NOTtransmit for more than 50% of total radio use time ( “50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. •ALWAYS useIcom authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories can cause the FCC RF exposure compliance requirements to be ex- ceeded. • ALWAYS keep the antenna at least 2.5cm (1 inche) away from the body when transmitting and only use the belt-clips which supplied when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOToperate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001

August 23, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize E-RAE Testi ng Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by E-RAE Testi ng Laboratory Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 853(a). Sincerely, Tae Hoon, Myung Manager of Oversea Sales Dept. Airtech Information & Communication Co.,Ltd. August 23, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re : Airtech Information&Communication Co., Ltd. FCC ID: ONKAT- 400B FCC Part 90 Certification Gentlemen : This equipment meets the requirements of the FCC Rules, Parts 90.203(e) and (g), as applicable. The programming of transmitter frequencies for this products can be performed ONLY by the manufacturer or by service or maintenance personnel. The user or operator can not program the transmit frequencies using the equipment’s external operation controls. Sincerely, Tae Hoon, Myung Manager of Oversea Sales Dept. Airtech Information & Communication Co.,Ltd.

FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 Appendix H. Block Diagram Please see the following page

EMC TELECOM SAFETY SERVICES www.etl.re.kr ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea Phone : +82 2 858 0786 Fax : +82 2 858 0788 http://www.etl.re.kr August 28, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re : Airtech Information&Communication Co., Ltd. FCC ID: ONKAT- 400B FCC Part 90 Certification Gentlemen: On behalf of Airtech Information&Communication Co., Ltd. we hereby submit an application for Part 90 Certification of the Airtech Information&Communication UHF FM Handheld Transceiver as follows: FCC ID: ONKAT-400B Model(s): AT-400B Equipment Class: Licensed Non-Broadcast Transmitter Held to Face (TNF) Equipment Type: FM Transceiver Tx Freq. Range: 440 - 470 MHz Max. RF Output Power: 4.0 Watts ERP / 2.0 Watts ERP Emission Designator(s): 11KOF3E , 16KOF3E Attached is the Letter of Authorization, Part 90 measurement report data and plots, RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams, circuit diagrams, operational description, parts list and tune-up procedure, and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Kayoung Kim General Manager E-RAE Testing Laboratory Inc. cc: Airtech Information&Communication Co., Ltd.

EMC TELECOM SAFETY SERVICES www.etl.re.kr ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea Phone : +82 2 858 0786 Fax : +82 2 858 0788 http://www.etl.re.kr September 26, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re : Airtech Information&Communication Co., Ltd. FCC ID: ONKAT- 400B FCC Part 90 Certification Gentlemen: On behalf of Airtech Information&Communication Co., Ltd. we hereby resubmit a revised SAR Evaluation Report for Part 90 Certification of the Airtech Information&Communication UHF FM Handheld Transceiver. This is the reason from Celltech Research Inc as follows : “ The FCC has recently informed us regarding the new target numbers for conductivity and permitivity of the brain and muscle fluids. This means that we have had to re-evaluate the Airtech radios with the new parameters. “ Attached is the revised AT-400B. Would you please review the revised SAR test report If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Kayoung Kim General Manager E-RAE Testing Laboratory Inc. cc: Airtech Information&Communication Co., Ltd.

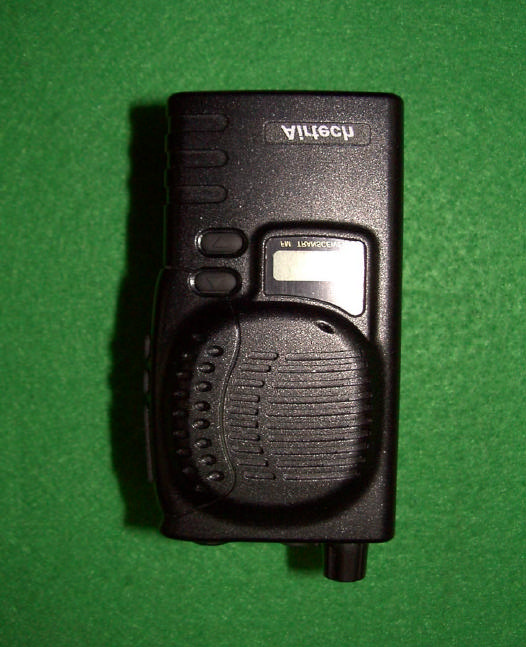

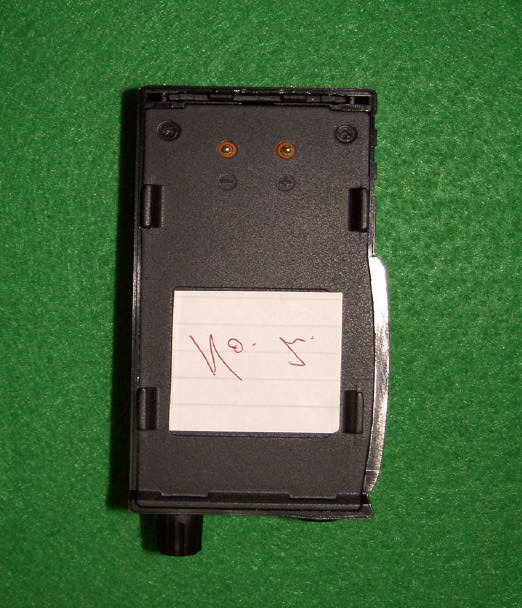

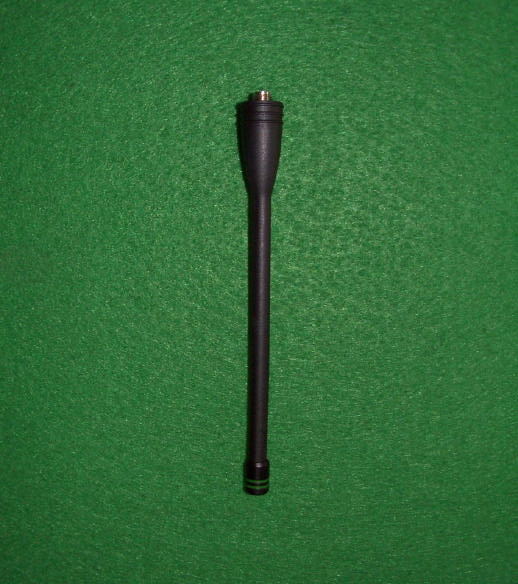

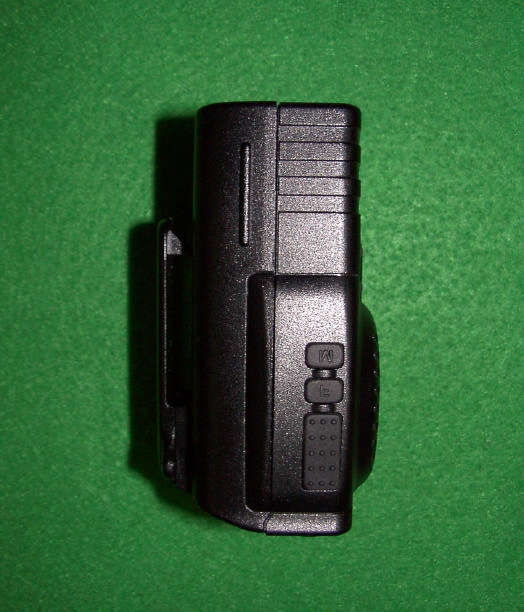

FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 1 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 2 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 3 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 4 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 5 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 6 of 8 E-RAE Testing Lab Appendix F. External Photographs ’ ONKAT-400B FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 7 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 8 of 8 E-RAE Testing Lab Appendix F. External Photographs

FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 1 of 1 E-RAE Testing Lab Attachment D. ID Lable & Location Product Label Sample with FCC ID Label and RF Exposure information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label and the RF exposure caution label is attached on the rear side of the cabinet. The user notice and warning statement are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) ONKAT-400B ’ ’

FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 1 of 6 E-RAE Testing Lab Appendix G. Internal Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 2 of 6 E-RAE Testing Lab Appendix G. Internal Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 3 of 6 E-RAE Testing Lab Appendix G. Internal Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 4 of 6 E-RAE Testing Lab Appendix G. Internal Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 5 of 6 E-RAE Testing Lab Appendix G. Internal Photographs FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 6 of 6 E-RAE Testing Lab Appendix G. Internal Photographs

FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 Attachment J. Operational Instruction

FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 1 of 1 E-RAE Testing Lab Attachment K. Part list and Tune up Procedure Please see the following pages

CELLTECH RESEARCH INC. Test Report S/N: 082001-154ONK 1955 Moss Court, Kelowna Date(s) of Tests: August 22, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for controlled environment / occupational exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: AIRTECH INFORMATION & COMMUNICATIONS CO., LTD. 101-807 Techno Park Complex 364, Samjung-dong, Ojung-ku Puchon-Si, Kyungki-do, Korea FCC ID: ONKAT-400B Model(s): AT-400B EUT Type: Portable UHF PTT Radio Transceiver Modulation: FM (UHF Band) Tx Frequency Range: 440 - 470 MHz Conducted Power Tested: 4.5 Watts (440.0125 MHz) 4.7 Watts (455.0125 MHz) 4.3 Watts (469.9750 MHz) FCC Rule Part(s): 2.1093; ET Docket 96-326 CELLTECH RESEARCH INC. Test Report S/N: 082001-154ONK 1955 Moss Court, Kelowna Date(s) of Tests: August 22, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3-4 5.0 DETAILS OF SAR EVALUATION............................................ 5 6.0 EVALUATION PROCEDURES................................................. 5 7.0 SAR LIMITS........................................................................ 6 8.0 SYSTEM VALIDATION.......................................................... 6 9.0 SIMULATED EQUIVALENT TISSUES...................................... 7 10.0 TISSUE PARAMETERS......................................................... 7 11.0 SYSTEM SPECIFICATIONS.................................................... 8 12.0 PROBE SPECIFICATION....................................................... 9 13.0 GENERIC TWIN PHANTOM................................................... 9 14.0 DEVICE HOLDER................................................................. 9 15.0 TEST EQUIPMENT LIST........................................................ 10 16.0 MEASUREMENT UNCERTAINTIES........................................ 11 17.0 REFERENCES...................................................................... 12 APPENDIX A - SAR MEASUREMENT DATA........................................ 13 APPENDIX B - DIPOLE VALIDATION................................................ 14 APPENDIX C - PROBE CALIBRATION............................................... 15 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS............................... 16 CELLTECH RESEARCH INC. Test Report S/N: 082001-154ONK 1955 Moss Court, Kelowna Date(s) of Tests: August 22, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. AIRTECH FCC ID: ONKAT-400B (Model: AT-400B) 1 Portable UHF PTT Radio Transceiver (440-470MHz) 1.0 INTRODUCTION This measurement report shows compliance of the AIRTECH Model: AT-400B Portable UHF PTT Radio Transceiver FCC ID: ONKAT-400B with the regulations and procedures specified in FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices (controlled exposure). The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65, Supplement C (Edition 01-01) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Rule Part(s) FCC 2.1093; ET Docket 96.326 Modulation FM (UHF Band) EUT Type Portable UHF PTT Radio Transceiver Tx Frequency Range (MHz) 440 - 470 FCC ID ONKAT-400B Conducted Output Power Tested 4.5 W (440.0125MHz) 4.7 W (455.0125MHz) 4.3 W (469.9750MHz) Model No.(s) AT-400B Antenna Type Helical Whip Serial No. Pre-production Battery Type Ni-Mh 1350mAh 7.2 VDC Front of EUT Right Side Left Side Back Side EUT with speaker/mic CELLTECH RESEARCH INC. Test Report S/N: 082001-154ONK 1955 Moss Court, Kelowna Date(s) of Tests: August 22, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. AIRTECH FCC ID: ONKAT-400B (Model: AT-400B) 2 Portable UHF PTT Radio Transceiver (440-470MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is compr…

Text truncated - open the document above for the full version.

CELLTECH RESEARCH INC. Test Report S/N: 082001-154ONK 1955 Moss Court, Kelowna Date(s) of Tests: August 22, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for controlled environment / occupational exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: AIRTECH INFORMATION & COMMUNICATIONS CO., LTD. 101-807 Techno Park Complex 364, Samjung-dong, Ojung-ku Puchon-Si, Kyungki-do, Korea FCC ID: ONKAT-400B Model(s): AT-400B EUT Type: Portable UHF PTT Radio Transceiver Modulation: FM (UHF Band) Tx Frequency Range: 440 - 470 MHz Conducted Power Tested: 4.5 Watts (440.0125 MHz) 4.7 Watts (455.0125 MHz) 4.3 Watts (469.9750 MHz) FCC Rule Part(s): 2.1093; ET Docket 96-326 CELLTECH RESEARCH INC. Test Report S/N: 082001-154ONK 1955 Moss Court, Kelowna Date(s) of Tests: August 22, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3-4 5.0 DETAILS OF SAR EVALUATION............................................ 5 6.0 EVALUATION PROCEDURES................................................. 5 7.0 SAR LIMITS........................................................................ 6 8.0 SYSTEM VALIDATION.......................................................... 6 9.0 SIMULATED EQUIVALENT TISSUES...................................... 7 10.0 TISSUE PARAMETERS......................................................... 7 11.0 SYSTEM SPECIFICATIONS.................................................... 8 12.0 PROBE SPECIFICATION....................................................... 9 13.0 GENERIC TWIN PHANTOM................................................... 9 14.0 DEVICE HOLDER................................................................. 9 15.0 TEST EQUIPMENT LIST........................................................ 10 16.0 MEASUREMENT UNCERTAINTIES........................................ 11 17.0 REFERENCES...................................................................... 12 APPENDIX A - SAR MEASUREMENT DATA........................................ 13 APPENDIX B - DIPOLE VALIDATION................................................ 14 APPENDIX C - PROBE CALIBRATION............................................... 15 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS............................... 16 CELLTECH RESEARCH INC. Test Report S/N: 082001-154ONK 1955 Moss Court, Kelowna Date(s) of Tests: August 22, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. AIRTECH FCC ID: ONKAT-400B (Model: AT-400B) 1 Portable UHF PTT Radio Transceiver (440-470MHz) 1.0 INTRODUCTION This measurement report shows compliance of the AIRTECH Model: AT-400B Portable UHF PTT Radio Transceiver FCC ID: ONKAT-400B with the regulations and procedures specified in FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices (controlled exposure). The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65, Supplement C (Edition 01-01) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Rule Part(s) FCC 2.1093; ET Docket 96.326 Modulation FM (UHF Band) EUT Type Portable UHF PTT Radio Transceiver Tx Frequency Range (MHz) 440 - 470 FCC ID ONKAT-400B Conducted Output Power Tested 4.5 W (440.0125MHz) 4.7 W (455.0125MHz) 4.3 W (469.9750MHz) Model No.(s) AT-400B Antenna Type Helical Whip Serial No. Pre-production Battery Type Ni-Mh 1350mAh 7.2 VDC Front of EUT Right Side Left Side Back Side EUT with speaker/mic CELLTECH RESEARCH INC. Test Report S/N: 082001-154ONK 1955 Moss Court, Kelowna Date(s) of Tests: August 22, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. AIRTECH FCC ID: ONKAT-400B (Model: AT-400B) 2 Portable UHF PTT Radio Transceiver (440-470MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is compr…

Text truncated - open the document above for the full version.

FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237N UHF-FM Handheld Transceiver AT-400B Date of Test : June 15 ~20, 2001 Appendix I. Schematics Please see the following pages

www.ETL.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC Part 90 Certification Measurement PRODUCT : UHF FM Transceiver MODEL/TYPE NO : AT-400B FCC ID : ONKAT-400B APPLICANT : Airtech Information & Communicatons Co.,Ltd. #101-807, Techno Park Complex. , 364, Samjung-dong, Ojung-ku, Buchon-si, Kyungki-do, 421-809, Korea Attn. : T.H. Myung / General Manager FCC CLASSIFICATION : Non-Broadcast Transmitter Held to Face(TNF) FCC RULE PART(S) : FCC Part 90 Private Land Mobile Radio Services FCC PROCEDURE : Certification TRADE NAME : Airtech TEST REPORT No. : E01.0625.FCC.237-1 DATES OF TEST : August 24, 2001 DATES OF ISSUE : August 27, 2001 TEST LAB. ETL Inc 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 This UHF hand held FM transceiver has been tested in accordance with the measurement procedures specified in ANSI/TIA/EIA-603-1992 and Part 2(refer to the test report) at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part 2 & 90 requirement. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. E-RAE Testing Laboratory Inc. 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea Name : Kayoung Kim Title Chief Engineer & Lab.Manager FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 2of 41 E-RAE Testing Lab Table of Contents Attachment A : Cover Letter(s) Attachment B : Attestation Statement(s) Attachment C : FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 6. Sample Calculations 7. List of test Equipment used for Measurement Attachment D : FCC ID Label and Location Attachment E : Test Setup Photographs Attachment F : External Photographs Attachment G : Internal Photographs Attachment H : Block Diagram Attachment I : Schematics Attachment J : Operational Instruction Attachment K : Part List / Tune up Procedure Attachment L : User Manual Attachment M : SAR Measurement Report FCC Part 90 Certification FCC ID : ONKAT-400B Airtech Information & Communicatons Report No : E01.0625.FCC.237-1 UHF-FM Handheld Transceiver AT-400B Date of Test : August 20~24, 2001 ETL Inc. 3of 41 E-RAE Testing Lab FCC MEASUREMENT REPORT 1.Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : UHF-FM Handheld Transceiver l Trade Name : AIRTECH l Model Number : AT-400B l FCC Identifier : ONKAT-400B l S/N : Prototype l Emission Designator : 11K0F3E, 16K0F3E l Freq. Range : 440 MHz – 470 MHz l FCC Rule Part(s) : Part 90.210 l EquipmentClass : Non-Broadcast Transmitter Held to Face(TNF) l Modulation : FM l Channel Spacing : 12.5kHz / 25 kHz l Max. RF Power : ERP 4 watts / 2 watts l Frequency Tolerance : 2.5 ppm / 5.0 ppm l Battery Pack : 7.5 VDC Ni-Mh Battery l Dates of Tests : August 20 ~ 24, 2001 l Place of Tests : ETL(E-RAE Te…

Text truncated - open the document above for the full version.
