FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 Attachment L. User Manual Please refer to the following pages i Your FM radio generates RF electromagnetic energy during transmit mode. This radio is de- signed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Popula- tion” in an uncontrolled environment. This radio has been tested and complies with the FCC RF expo- sure limits for “Occupational Use Only.” In addition, your FM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Stan- dard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3 – 1992), IEEE Rec- ommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. To ensure that your exposure to RF electromag- netic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: •DO NOToperate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with WARNING CAUTION SAFETY TRAINING INFORMATION ii this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. •DO NOTtransmit for more than 50% of total radio use time ( “50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. •ALWAYS useIcom authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories can cause the FCC RF exposure compliance requirements to be ex- ceeded. • ALWAYS keep the antenna at least 2.5cm (1 inche) away from the body when transmitting and only use the belt-clips which supplied when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOToperate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.

March 06, 2002 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize E-RAE Testing Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by E-RAE Testing Laboratory Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 853(a). Sincerely, Tae Hoon, Myung Manager of Oversea Sales Dept. Airtech Information & Communication Co.,Ltd. September 21, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re : Airtech Information&Communication Co., Ltd. FCC ID: ONKAT- 100A FCC Part 90 Certification Gentlemen : This equipment meets the requirements of the FCC Rules, Parts 90.203(e) and (g), as applicable. The programming of transmitter frequencies for this products can be performed ONLY by the manufacturer or by service or maintenance personnel. The user or operator can not program the transmit frequencies using the equipment’s external operation controls. Sincerely, Tae Hoon, Myung Manager of Oversea Sales Dept. Airtech Information & Communication Co.,Ltd.

FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 1 of E-RAE Testing Lab Appendix H. Block Diagram Please see the following page

EMC TELECOM SAFETY SERVICES www.etl.re.kr ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea Phone : +82 2 858 0786 Fax : +82 2 858 0788 http://www.etl.re.kr March 20, 2002 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re : Airtech Information&Communication Co., Ltd. FCC ID: ONKAT 100A FCC Part 90 Certification Gentlemen: On behalf of Airtech Information&Communication Co., Ltd. we hereby submit an application for Part 90 Certification of the Airtech Information&Communication UHF FM Handheld Transceiver as follows: FCC ID: ONKAT100A Model(s): AT-100A Equipment Class: Licensed Non-Broadcast Transmitter Held to Face (TNF) Equipment Type: VHF-FM Transceiver Tx Freq. Range: 136 - 152 MHz Max. RF Output Power: 5.0 Watts ERP / 2.0 Watts ERP Emission Designator(s): 11KOF3E , 16KOF3E Attached is the Letter of Authorization, Part 90 measurement report data and plots, RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams, circuit diagrams, operational description, parts list and tune-up procedure, and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Kayoung Kim General Manager E-RAE Testing Laboratory Inc. cc: Airtech Information&Communication Co., Ltd.

RRL Accerdited Test Laboratory for EMC and Electrical Safety for Telcom Type Approval FCC Industry Canada CE-Marking VCCI UL CSA TUV VDE Telecom Services Tel : 02-858-0786 Fax: 02-858-0788 ETL Inc. 371-51Gasan-Dong Geumcheon-Gu Seoul, 153-023 Korea April 29, 2002 Federal Communications Commission Equipment Approval Services Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Andy Leimer SUBJECT: Airtech Information & Communication Co.,Ltd. FCC ID: ONKAT100A 731 Confirmation No.: EA614753 Correspondence Ref. No.: 22733 Dear Andy: On behalf of Airtech Information & Communication Co.,Ltd., we hereby submit our response to your e-mail dated April 27, 2002 requesting additional information for the subject application. Please find attached test report for SAR Evaluation. If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Kayoung Kim Chief Engineer ETL Inc.

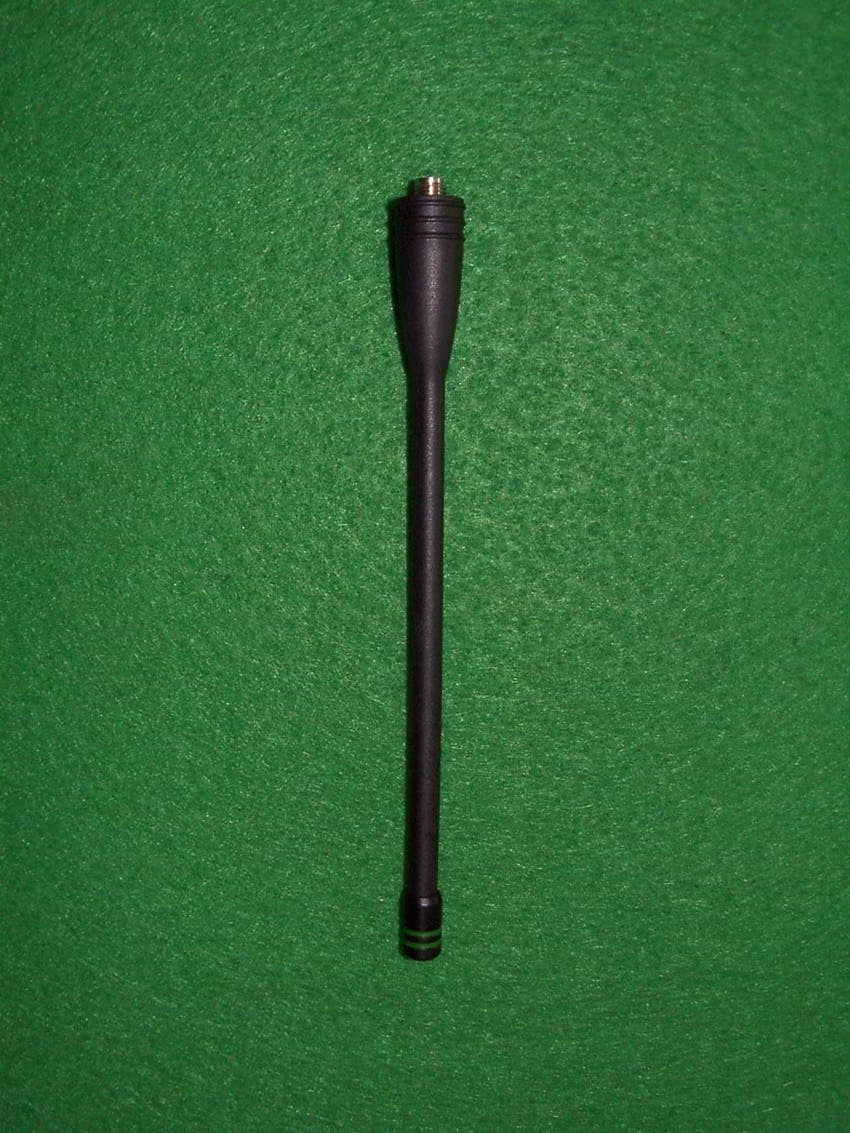

FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 1 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 2 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 3 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 4 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20~25, 2001 ETL Inc. 5 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20~25, 2001 ETL Inc. 6 of 8 E-RAE Testing Lab Appendix F. External Photographs ’ ONKAT100A FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 7 of 8 E-RAE Testing Lab Appendix F. External Photographs FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 8 of 8 E-RAE Testing Lab Appendix F. External Photographs

FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 1 of 1 E-RAE Testing Lab Appendix E. ID Lable & Location Product Label Sample with FCC ID Label and RF Exposure information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label And the RF exposure caution label is attached on the rear side of the cabinet. The user notice and warning statement are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) ONKAT100A ’ ’

i Your FM radio generates RF electromagnetic energy during transmit mode. This radio is de- signed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Popula- tion” in an uncontrolled environment. This radio has been tested and complies with the FCC RF expo- sure limits for “Occupational Use Only.” In addition, your FM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Stan- dard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3 – 1992), IEEE Rec- ommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. To ensure that your exposure to RF electromag- netic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: •DO NOToperate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with WARNING CAUTION SAFETY TRAINING INFORMATION ii this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. •DO NOTtransmit for more than 50% of total radio use time ( “50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. •ALWAYS useIcom authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories can cause the FCC RF exposure compliance requirements to be ex- ceeded. • ALWAYS keep the antenna at least 2.5cm (1 inche) away from the body when transmitting and only use the belt-clips which supplied when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOToperate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.

CELLTECH RESEARCH INC. Test Report S/N: 082001-153ONK 1955 Moss Court, KelownaDate(s) of Tests: Sept. 10, 2001 B.C. Canada V1Y 9L3FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for controlled environment / occupational exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: AIRTECH INFORMATION & COMMUNICATIONS CO., LTD. 101-807 Techno Park Complex, 364 Samjung-dong, Ojung-ku Puchon-Si, Kyungki-do, Korea FCC ID: ONKAT100A Model(s):AT-100A EUT Type:Portable VHF PTT Radio Transceiver Modulation:FM (VHF Band) Tx Frequency Range:136 - 152 MHz Conducted Power Tested: 5.0 Watts (136.0125 MHz) 5.5 Watts (143.0000 MHz) 5.3 Watts (149.9500 MHz) FCC Rule Part(s):2.1093; ET Docket 96-326 CELLTECH RESEARCH INC. Test Report S/N: 082001-153ONK 1955 Moss Court, KelownaDate(s) of Tests: Sept. 10, 2001 B.C. Canada V1Y 9L3FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0INTRODUCTION.................................................................. 1 2.0DESCRIPTION OF EUT.......................................................... 1 3.0SAR MEASUREMENT SYSTEM ............................................. 2 4.0MEASUREMENT SUMMARY..................................................3-4 5.0DETAILS OF SAR EVALUATION............................................ 5 6.0EVALUATION PROCEDURES................................................. 5 7.0SAR LIMITS........................................................................ 6 8.0SYSTEM VALIDATION.......................................................... 6 9.0SIMULATED EQUIVALENT TISSUES...................................... 7 10.0TISSUE PARAMETERS......................................................... 7 11.0SYSTEM SPECIFICATIONS.................................................... 8 12.0PROBE SPECIFICATION....................................................... 9 13.0GENERIC TWIN PHANTOM................................................... 9 14.0DEVICE HOLDER................................................................. 9 15.0TEST EQUIPMENT LIST........................................................ 10 16.0MEASUREMENT UNCERTAINTIES........................................ 11 17.0REFERENCES...................................................................... 12 APPENDIX A - SAR MEASUREMENT DATA........................................ 13 APPENDIX B - DIPOLE VALIDATION................................................ 14 APPENDIX C - PROBE CALIBRATION............................................... 15 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS............................... 16 CELLTECH RESEARCH INC. Test Report S/N: 082001-153ONK 1955 Moss Court, KelownaDate(s) of Tests: Sept. 10, 2001 B.C. Canada V1Y 9L3FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. AIRTECH FCC ID: ONKAT100A (Model: AT-100A) 1 Portable VHF PTT Radio Transceiver (136-152MHz) 1.0 INTRODUCTION This measurement report shows compliance of the AIRTECH Model: AT-100A Portable VHF PTT Radio Transceiver FCC ID: ONKAT100A with the regulations and procedures specified in FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices (controlled exposure). The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65, Supplement C (Edition 01-01) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Rule Part(s) FCC 2.1093; ET Docket 96.326 Modulation FM (VHF Band) EUT Type Portable VHF PTT Radio Transceiver Tx Frequency Range (MHz) 136 - 152 Model No.(s) AT-100A Conducted Output Power Tested 5.0 W (136.0125MHz) 5.5 W (143.0000MHz) 5.3 W (149.9500MHz) FCC ID ONKAT100A Antenna Type Helical Whip Serial No. Pre-production Battery Type Ni-Mh 1350mAh 7.2VDC Front of EUT Right Side Left Side Back SideEUT with Speaker/Mic CELLTECH RESEARCH INC. Test Report S/N: 082001-153ONK 1955 Moss Court, KelownaDate(s) of Tests: Sept. 10, 2001 B.C. Canada V1Y 9L3FCC SAR Measurements _____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. AIRTECH FCC ID: ONKAT100A (Model: AT-100A) 2 Portable VHF PTT Radio Transceiver (136-152MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, ne…

Text truncated - open the document above for the full version.

FCC Part 90 Certification FCC ID : ONKAT-100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 1 of 3 E-RAE Testing Lab Appendix I. Schematics Please see the following page

www.ETL.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC Part 90 Certification Measurement PRODUCT : VHF-FM Handheld Transceiver MODEL/TYPE NO : AT-100A FCC ID : ONKAT100A APPLICANT : Airtech Information & Communicatons Co.,Ltd. #101-807, Techno Park Complex. , 364, Samjung-dong, Ojung-ku, Buchon-si, Kyungki-do, 421-809, Korea Attn. : T.H. Myung / General Manager FCC CLASSIFICATION : Non-Broadcast Transmitter Held to Face(TNF) FCC RULE PART(S) : FCC Part 90 Private Land Mobile Radio Services FCC PROCEDURE : Certification TRADE NAME : Airtech TEST REPORT No. : E01.0825.FCC.255N DATES OF TEST : August 20 ~25, 2001 DATES OF ISSUE : August 25, 2001 TEST LAB. ETL Inc 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 This VHF hand held FM transceiver has been tested in accordance with the measurement procedures specified in ANSI/TIA/EIA-603-1992 and Part 2(refer to the test report) at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part 2 & 90 requirement. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. E-RAE Testing Laboratory Inc. 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea Name : Kayoung Kim Title Chief Engineer & Lab.Manager FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : August 20 ~25, 2001 ETL Inc. 2 of 41 E-RAE Testing Lab Table of Contents Attachment A : Cover Letter(s) Attachment B : Attestation Statement(s) Attachment C : FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 6. Sample Calculations 7. List of test Equipment used for Measurement Attachment D : FCC ID Label and Location Attachment E : Test Setup Photographs Attachment F : External Photographs Attachment G : Internal Photographs Attachment H : Block Diagram At tachment I : Schematics Attachment J : Operational Instruction Attachment K : Part List / Tune up Procedure Attachment L : User Manual Attachment M : SAR Measurement Report FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : August 20 ~25, 2001 ETL Inc. 3 of 41 E-RAE Testing Lab FCC MEASUREMENT REPORT 1.Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : VHF-FM Handheld Transceiver l Trade Name : AIRTECH l Model Number : AT-100A l FCC Identifier : ONKAT100A l S/N : Prototype l Emission Designator : 11KOF3E , 16KOF3E l Freq. Range : 136 MHz – 152 MHz l FCC Rule Part(s) : Part 90.210 l EquipmentClass : Non-Broadcast Transmitter Held to Face(TNF) l Modulation : FM l Channel Spacing : 12.5kHz / 25 kHz l Max. RF Power : 5 watts / 2 watts l Battery Pack : 7.5 VDC Ni-Mh Battery l Dates of Tests : August 20 ~ 25, 2001 l Place of Tests : ETL(E-RAE Testing Laboratory) Inc. 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E01.0825.FCC.255N Applicant Name : Airtech Information & Communicatons Co.,Ltd. Address : #101-807, Techno Park Complex. , 364, Samjung-dong, Ojung-ku, Buchon-si, Kyungki-do, 421-809, Korea Attention : T.H. Myung / General Manager FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : August 20 ~25, 2001 ETL Inc. 4 of 41 E-RAE Testing Lab 2. INTRODUCTION The measurement tests were conducted at the open area test site of E-RAE Testing Laboratiry Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The measurement facilities were constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). All measurements contained in this application were conducted in accordance with FCC Rules and regulations CFR 47and American National Standard Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992). Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level was recorded. For readings above 1 GHZ, the above proc…

Text truncated - open the document above for the full version.

FCC Part 90 Certification FCC ID : ONKAT100A Airtech Information & Communicatons Report No : E01.0825.FCC.255N VHF-FM Handheld Transceiver AT-100A Date of Test : Aug. 20 ~25, 2001 ETL Inc. 1 of 1 E-RAE Testing Lab Attachment E. Test Setup Photograph Radiated Emission Test Setup
