ONKATP-400BFM HANDHELD TRANCEIVER

User’s Manual Land Mobile Radio (LMR) Model: ATP-400B APPROVAL 1. FCC Approval FCC ID: ONKATP-400B 1) Safety Training Information Your FM Handheld Transceiver generates RF electromagnetic energy during tran smit mode. This radio is designed for and classified as “Controlled Exposure / Occupation Environment”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population / Uncontrolled Environment. This radio complies with FCC RF radiation exposure limits set forth for a controlled environment. This radio should be installed and operated with a minimum distance of 2.5 centimeters between the radio and your body. Therefore, to ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always follow below information. Do not operate the radio wit hout a proper antenna as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. Do not transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitti ng more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. Always use Airtech supplied acce ssories (antennas, batteries, belt clips, speaker/mics, etc. ). Use of unauthorized accessories can cause the FCC RF exposure compliance requirements to be exceeded. Always keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the belt-clips, when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. 2) LABEL 3) This device complies with the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includin g interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This radio complies with the FCC RF exposure limits for Occupational Use Onl y . 3 RF Exposure Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operation can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure, The tests are performed in positions and location (e.g., at the ear and worn on the body) as required by the FCC for each model. (Body-worn measurements may differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and international standards bodies: This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEE Std. 1528-200X (Draft6.5, January 2002). Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement know as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg*. CONTENTS GENERAL FEATURES.................................................4 UNPACKING.................................................................5 OPTIONAL ACCESSORIES.........................................5 GETTING READY.........................................................2 DESCRIPTION..............................................................3 OPERATION .................................................................4 CHARGER AND BATTERY..........................................5 General Features 1. Ultra compact design & size (102(W)x50(H)x36(D), 310g with high capable battery) 2. Heavy duty durable construction 3. 256 channels 4. 38 CTCSS/ 83 CDCSS/ 83 INVERR CDCSS 5. PC Programmable, transferable by cloning 6. Time-out timer (TOT) 7. Busy Lockout (BCLO) 8. Battery saving mode 9. Low battery alert 10. DTMF ANI 11. Transmit output power High/Low 12. DC 7.5V Ni-MH battery Unpacking Unpack and check that all items have been enclosed. Packing contents: ① radio ② antenna ③ battery pack (1,650 mAH) ④ belt clip ⑤ hand strap ⑥ charger ⑦ user…

Text truncated - open the document above for the full version.

Date : Aug. 08, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Airtech Information & Communication Co., Ltd. FCC ID: FCC Part 90 Certification Gentlemen, In accordance with 0.459 of CFR 47, Airtech Information & Communication Co., Ltd. hereby requests confidentiality of all Schematics, Parts List attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Airtech Information & Communication Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Airtech Information & Communication Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name : Mr. John. Kim Title : Asst. Manager Company : Airtech Information & Communication Co.

___________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 BZT ETS CERTIFICATION GMBH Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 30.10.2003 Subject:Application for TCB Certification Applicant: Airtech Information & Communications Co. Ltd. Equipment: FM Handheld Transceiver FCC ID: ONKATP-400B Dear Sirs, Submitted herewith, on behalf of Airtech Information & Communications Co. Ltd., is an application for certification under FCC Rule 90 and 90.210 of the following equipment: FM Handheld Transceiver Attached are the 731Form, Confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), RF Exposure, FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagrams, schematics, tune procedure information, antenna specification and user manual. In accordance with 0.459 of CFR 47 Airtech Information & Communications Co. Ltd., hereby requests confidentiality of all Block Diagrams, Circuit Diagrams (Schematics), Parts List and Operational Description (see attached Confidentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the following e-mail addresses: [email protected] Best Regards Axel Müller Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c 15526 Reichenwalde bei Berlin Germany e-mail: [email protected]

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 1 of 16 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 2 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 3 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 4 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 5 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 6 of 16

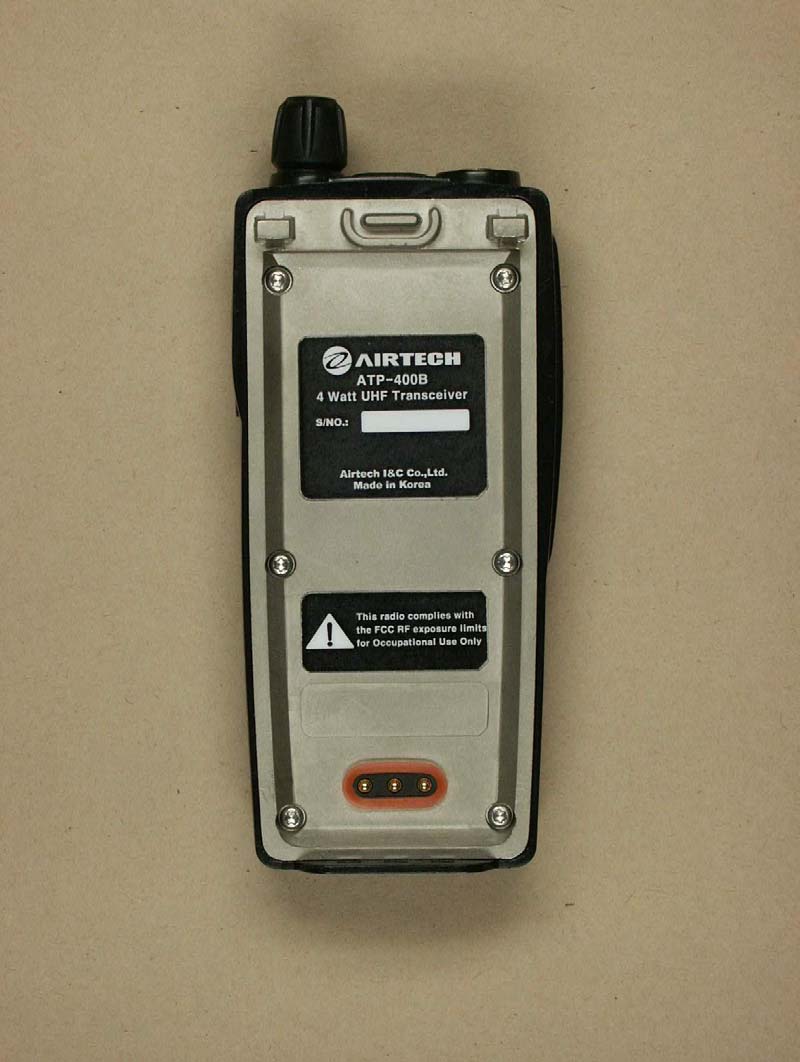

AIRTECH UHF FM TRANSCEIVER FCC ID: ONKATP-400B RF POWER RATING 4W S/NO.: AIRTECH I&C Co.,Ltd. Made in Korea THIS DEVICE COMPLIES WITH PART 90 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

AIRTECH UHF FM TRANSCEIVER FCC ID: ONKATP-400B RF POWER RATING 4W S/NO.: AIRTECH I&C Co.,Ltd. Made in Korea THIS DEVICE COMPLIES WITH PART 90 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. Restricted to occupational use to satisfy FCC RF exposure limits. See user manual fo r operating requirements

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 7 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 8 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 9 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 10 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 11 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 12 of 16

[ANTENNA SPECIFICATION] Description: FM HANDHELD TRANSCEIVER FCC ID: ONKATP-400B

[OPERATIONAL DESCRIPTION] Description: FM HANDHELD TRANSCEIVER FCC ID: ONKATP-400B INTRODUCTION ATP-400B is a micro size 256 channel portable FM transceiver constructed with a microprocessor controlled, temperature compensated Phase Locked Loop (PLL) frequency synthesizer. The radio features a double conversion receiver and a direct FM transmitter modulator. A special integrated circuit provides support to sub- audible signaling (CTCSS & DCS) and most of the receiving parts are switched off periodically in the power saver mode to reduce battery current drain during standby. The Block Diagram RF and Control Circuit Diagrams for ATP-400B shall be used in associate with the following circuit description. CIRCUIT DESCRIPTIONS 1) PHASE-LOCK LOOP (PLL) CIRCUIT * REFERENCE OSCILLATOR The reference oscillator consists of TCX301 in U301 with a frequency of 12.8MHz. The reference oscillator frequency drives a divider to produce a comparison frequency. This comparison frequency is selected by decoding the first three bits of the data input from microcomputer. * PROGRAMMABLE DIVIDER The programmable divider in U301 consists of a two-modulus prescaler with a 7bit control register followed by a 11-bit internal programmable divider. The overall division ratio is selected by a single 19-bit world located on the serial data bus. * PHASE COMPARATOR A digital-type phase comparator in U301 with output(pin 15, 17) and an open drain lock detect output(pin 8) compares divided VCO frequency with the comparison frequency. It generates a correction voltage that is applied to a low-pass filter consisting of R309, R310, and C314, C315, C316 then sent to the VCO circuit. * VCO CIRCUIT The transmit/receive frequency is directly generated by the Colpitts oscillation circuit contains Q401, Q402. The oscillation frequency is variable by applying the VCO control voltage to variable to variable capacitors D401, D402 and D403. To switch between the transmit and receive frequencies, Q402 turn on, and Q401 (VCO for transmission) oscillates when the T/R pin is low. 2) TRANSMITTER * MIC AMP CIRCUIT Voice signal from the microphone are applied to microphone amplifier U601 through CON 601 . U601 contains a low-pass filter that has a 6dB/oct response between 300Hz and 3 Khz, and eliminates harmonics above 3 kHz. The pre-emphasized audio signal is applied to VR303 from U606 pin 23 to adjust maximum frequency deviation. * VCO AND AMPLIFIER The VCO signal output is amplified by Q209,Q1,Q207 and then fed to power amplifier Q204. * POWER AMPLIFIER CIRCUIT Q204 is provided approximately 7.5V DC power source. RF power output is adjusted by variable resistors VR201 (High Power) and VR202 (Low Power). Signals from Q204 is supplied through antenna switch D202 to a low-pass filter made up of L201, L202, L203 and C201-C206, C214 then applied to Antenna Jack. 3) RECEIVER * ANT SWITCHING CIRCUIT Signals from antenna connector fed to the antenna switching circuit through the low pass filter consisting of L201, L202, L203 and C201-C206, C214, . In receive mode, D201 is turned off, isolates the antenna from the transmitter circuit and matching circuitry, so that the incoming signals are fed to the RF amplifier through L209. * RF AMPIFIER CIRCUIT The signals from the switching circuit are fed to the RF amplifier Q101 through a band pass filter made up of mold coil , vvc diode and capacitor. * FIRST MIXER CIRCUIT The amplified signals are fed to Gate 1 of the first mixer Q102 through L108. First local oscillator signal is supplied to Gate 2 of Q102 from the PLL circuit through C129 to convert the RF signals into 45.3MHz first IF signal. * IF CIRCUIT The first IF signals from Q102 are fed to the matched pair crystal filter FL101, then IF signals are amplified in Q103. And those signals are fed to U101 which is composed of the second local oscillator, second mixer, limiter amplifier, quadrature detector and active filter circuit. The second local oscillator at 44.845MHz with X101and is fed to the second mixer with the first IF signals to convert into 455kHz second IF signals.. The second IF signals leave through pin 3,and are fed to external ceramic filters FL102,FL103 which has excellent selectivity, then fed to U101 (pin 5) again to be amplified and detected. Narrow /Wide band are switched by Q541, Q542. The detected AF signals are output from pin 9. * AUDIO AND SQUELCH CIRCUIT The detected audio signals are put through a 6dB/oct de-emphasis circuit made up of C143 and R132, R136. The signal is then applied to audio power amplifier U607 through the volume control SVR601 to obtain enough power to driver the speaker. 4. Alignment Procedure Measurement Condition The following sections describes the alignment procedure for ATP-400B LMR transceiver under the following reference environment conditions: Temperature : 25 (77) Relative Humidity : 65% Power Supply Voltage : 7.5VDC Test Equipment / Tools required The following list of equipment is recommended for use in setting up the radio properly. Please ensure the test equipment are calibrated according to the manufacturer’s instructions: - Frequency counter more than 300MHz +/-100Hz tolerance, high input impedance and high sensitivity - UHF FM Signal generator, 300MHz with adjustable frequency, FM deviation, and RF output attenuators. 50Ω Output impedance. - Oscilloscope, high input impedence. - 16Ω 1 Watt resistor as loudspeaker load - Audio Signal Generator, 10Hz to 20KHz, 600Ω impedance with attentuators. - RF Watt meter, with 50Ω 5 Watt termination resistor (Or RF Voltmeter with 50Ω termination and external 50Ω attenuators) - Regulated Power Supply 7.5VDC 3A output - Digital A-V-O Mulit-meter - SINAD Meter - External Speaker Mic plug (or special audio test jig) - Interconnection test cable for RF and Control PCB - Circuit Diagram for ATP-400B - PCB layout diagram for ATP-400B - Tuning tools for RF/IF transformer and the VR potentiometers Disassembling the unit The antenna Disconnect the antenna The C…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5M203070138-S-2 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-S-2Page 1 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference positions for handheld radio transmitters 2.9Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-S-2Page 2 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 07.10.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 07.10.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-S-2Page 3 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Airtech I & C Co., Ltd. Street: zip 421-809, #101-807, Techno ParkComplex, 364, Samjung-dong Town: Ojung-Gu, Bucheon-si, Kyeonggi-Do Country: Korea Telephone: +82-32-234-2345 Fax: +82-32-234-2350 Contact: Mr. John Kim E-Mail: [email protected] 1.4Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-S-2Page 4 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 21.07.2003 Date of receipt of test item: 21.07.2003 Date of test: 26.09.2003 1.6Test item FCC ID: ONKATP-400B Description of test item: VHF Transceiver Type identification: ATP-400B Serial number: without; Device category: TNF (Licensed Non-Broadcast Tx Held To Face) Technical data TX Frequency range: 440.025 - 469.975 MHz RX Frequency range: 440.025 - 469.975 MHz Max. Conducted RF output power : 36,89 dBm(4,89 W) Power supply : 7,5 V DC Antenna Tx: external Antenna RX: external Antenna Type: Whip Antenna Additional information: Tx and Rx. antenna are the same. 1.7Test Results Max. SAR Measurement: 3,86 W/kg (50% duty cycle) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for controlled exposure/occupational environment exposure limits specified in ANSI/IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-S-2Page 5 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - FCC OET Bulletin 65, Supplement C, Edition 01-01 2Technical test 2.1Summary of test results Classification Uncontrolled environment/general population Controlled exposure/occupational environmentX Applicable Configuration Handset (Head) Handset (Held to face)X Handset (Body) Headset (Head) Body Worn EquipmentX EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. am…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-S-2.DOCPage 17 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 4. Test Results Procedures Used To Establish Test Signal The EUT was placed into simulated call mode (e.g. AMPS, Cellular CDMA & PCS CDMA modes) using manufacturers test codes. Such test signals offer a consistent means for testing SAR and are recommended for evaluating SAR
2. The actual transmission is activated through a base station simulator or similar when test modes are not available or inappropriate for testing the EUT. The EUT is rechargeable battery operated. The battery used for the SAR measurements was completely charged. The device was tested at full power verified by implementing conducted output power measurements. For confirming of the output power it was tested before and after each SAR measurement. The test was repeated if a conducted power deviation of more than 5 % occurred. Mixture Type:450 MHz Head Date:26.09.2003 Liquid Temperature:22,0 - 22,2 o C Room Temperature: 22,0 - 22,4 o C FrequencySAR (W/kg) 1g Measured SAR values with 2 mm phantom MHzChannel Modulation Power Drift dBm Antenna Pos. Phantom Section Test Position -25 mm 100% Duty Cycle 50 % Duty Cycle 440,025LowCW-0,15Fixed FlatFront7,243,62 455,025MiddleCW0,11Fixed FlatFront7,663,83 469,975HighCW-0,13Fixed FlatFront 7,733,86 1. The SAR values found were below the maximum limit of 8.0 w/kg (controlled exposure): 2. The highest face-held SAR value found was 3.86 w/kg (50 % duty cycle) 3. The EUT was tested for face-held SAR with a 2.5 cm separation distance between the front of the EUT and the outer surface of the planar phantom.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 90 FCC ID: ONKATP-400B Test report no.: G5M203070138-C-1 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 1 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4 Test Procedures 2.4.1 Output power conducted 2.4.2 Output power radiated 2.4.3 Spurious Emissions radiated 2.4.4 Spurious Emissions at antenna terminal 2.4.5 Audio frequency response 2.4.6 Audio low pass filter frequency response 2.4.7 Modulation limited 2.4.8 Occupied Bandwidth 2.4.9 Frequency stability 2.4.10 Transient frequency behaviour of the transmitter 2.4.11 Spurious Emissions related to AC power line 3 Test Results 3.1 RF Power Output (conducted) FCC 2.1046(a), FCC 90.205 3.2 Radiated Power FCC 2.1046 3.3 Spurious Emission radiated, FCC 2.1053, FCC 90.210 3.4 Spurious emissions at antenna terminal FCC 2.1051, FCC 90.210(b) (d) 3.5 Audio frequency response FCC 2.1047(a) 3.6 Audio low pass filter frequency response FCC 2.1047(a), FCC 90.210 3.7 Modulation Limiting FCC 2.1047(b), FCC 22.915(b), FCC 90.242(b)(8) 3.8 Occupied Bandwidth FCC 2.1049, FCC 90.210 3.9 Frequency Stability vs. Temperature, FCC 90.213, FCC 2.1055, FCC 22.915(b) 3.10 Transient frequency behaviour of the transmitter FCC 90.214 3.11 Spurious emissions related to AC power line ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 2 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 20.08.2003D. Hoppe DateETS-Lab.NameSignature Technical responsibility for area of testing: 20.08.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 3 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY:BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: Airtech I & C Co., Ltd. Street: zip 421-809, #101-807, Techno ParkComplex, 364, Samjung- dong Town: Ojung-Gu, Bucheon-si, Kyeonggi-Do Country: Korea Telephone: +82-32-234-2345 Fax: +82-32-234-2350 Contact: Mr. John Kim Telephone: +82-32-234-2345 E-mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 4 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 21.07.2003 Date of receipt of test item: 21.07.2003 Date of test: 11.08.2003-19.08.2003 1.5Test item Description of test item: VHF Transceiver Type identification: ATP-400B Serial number: Test model without serial number. Photos: See annex Technical data Frequency band: 440-470 MHz Frequency ( ch A): 440.025 MHz Frequency (ch B): 455.025 MHz Frequency (ch C): 469.975 MHz Channel spacing: 12.5 kHz and 25 kHz Antenna: external Whip Antenna Antenna gain: unity Power supply : 7,5V Operating mode: duplex Type of modulation: FM Emission : 8K5F3E / 16K0F3E Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G5M203070138-C-1Page 5 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical stand…
