ONKATS-400BFM HANDHELD TRANCEIVER

APPROV AL 1. FCC Approv al FCC ID: ONKA TS-400B 1) Safety T r aining Information Y our FM Hand held T r an sceiver gen erates RF elect r oma gne tic energy during tran smit mode. This radi o is desi gne d for and cl assif i ed as “Co n trolle d Exposu r e / Occu p a tion Environm ent”, meaning it must be u s ed only duri ng the co urse of empl oyment by individual s awa r e of the hazards, and the ways to minimize su ch haza r d s . This ra dio is NOT inte nded for u s e by the “Gene ral Pop u lation / Uncontrolled Environment. This ra dio co mplie s with FCC RF radi ation exposu r e limit s set forth for a controlled enviro n ment. This radio sho u ld be inst all ed a n d operated with a minim u m dist an ce of 2.5 centim eters betwee n the radio and you r body . Therefore, to ensure that your expo su re to RF electromag netic e nergy is within the FCC allo wa ble li mit s for occu p a tion al u s e, alway s follow below information. Do not op erate the radio wit hout a prope r anten na as this may dam age the ra dio an d may al so cause you to excee d FCC RF exp o su re limit s. A prope r an tenna i s the antenn a sup p lied with this radio by the manufacturer or an antenn a spe c ifically a u thori z e d by the manufac t urer for use with this radio. Do not tra n smit for more than 50% o f tot a l radio use time (“5 0% duty cycle”). T r ansmitti ng more than 50% of the time can cau s e F CC RF expo sure compli an ce re qui rem e nt s to be exceeded. Always use A i rtech suppli e d acce sso r ie s (ante nna s, b a tterie s , belt cli p s, spe a ker/mi cs, etc.). Use of u nau thori z ed acce ssori e s can cau s e t he FCC RF exposure co mplian c e requirement s to be exceeded. Always ke ep the anten na at least 2. 5 cm (1 i n ch) a w ay fro m the body whe n transmitting and only use the belt-cli p s, when att a chi ng the radio to your belt, etc., to ensu r e FCC RF exposure compliance requirement s are not exceeded. 3 2) LABEL This radio complies with the FCC RF exposure limit s for Occup a tional Use Onl y . 3 ) Th is d e v i ce co m p lies with th e FCC R u les. Op eratio n is sub j ect to th e fo llowi n g two cond itio n s : (1 ) th is d e v i ce m a y n o t cau s e harm ful interference , a n d (2) this de vi ce m u st accept any interfe rence received, incl udin g inte rfe re nce that m a y cause undesi red operat i on. CA UTIO N : C h an ges o r m odi fi cat i ons not ex pre ssl y ap p r o v e d by t h e pa rt y res p o n si bl e f o r c o m p l i a nce c o ul d voi d t h e user ’ s aut h o r i t y t o operat e t h e equi pm ent . CONTENTS GENERAL FEA T URES................................................. 2 UNP ACKING ................................................................. 3 OPTI ONAL ACCE SS ORIES ......................................... 3 GETTING READY ......................................................... 2 DESCRIPTI O N .............................................................. 3 OPERA T I O N ................................................................. 4 CHARGE R AND BA TT ER Y .......................................... 5 General Features 1. Ultra comp act design & size (102(W)x50(H)x36(D), 310g with high cap able battery) 2. Heavy duty durable construction 3. 256 channels 4. 38 CTCSS/ 83 CDCSS/ 83 INVERR CDCSS 5. PC Programmable, transferable by cloning 6. T i me-out timer (T OT) 7. Busy Lockout (BCLO) 8. Battery saving mode 9. Low battery alert 10. DTMF ANI 11. T r ansmit output power High/Low 12. DC 7.5V Ni-Mh battery 1 Unp acking Unp a ck and check that all items have been enclosed. Packing content s: ⑥ radio ② antenna ③ battery p a c k (1,70 0 mAH ) ④ belt clip ⑤ ha nd stra p ⑥ char ger ⑦ us e r ’ s manual Optional Accessories External speaker/microphone 1. Additional battery p a ck Getting Ready 1. Inst allation and Removal, Belt Clip Inst allation : Align the belt clip with the plastic slot s of the battery p a ck. Slide the bel t clip onto the battery p a ck, pushing firmly until a click heard. Rem o v a l : Hold up the belt clip release t ab with a fingernail or a coin (or like instrument). While holding up the release t ab, slide the belt clip out and away from the battery p a c k . 2. Inst allation and Removal, Battery Pack Inst allation : T u rn of f the trans c e iver . Hold the transceiver with the back of the unit facing up. Place the battery p a ck against the back of the transceiver so that the t abs on the transceiver engage the four openings in the battery p a ck. Slide the battery p a ck toward the top of the transceiver until a click heard. Rem o v a l : T u rn of f the transceiver . Hold the radio with the back of the unit facing up. With the thumbnail of your other hand slide the latch lever down. While holding the latch lever down, slide the battery p a ck down toward the bottom of the transceiver . Sep a rate the battery p a ck from the transceiver . 3. Inst allation Antenna Rot a te the antenna clockwise until it is seated firmly . *. Be fore st arting operation, make sure the battery is fully charged. 2 Description Power on / of f and V o l u m e C ont rol Swi t c h T u rn th e tr ansceiv e r on b y ro tatin g pow er o n / of f and vo lu m e cont rol swi t c h cl ockwi s e and cont rol t h e vol um e. External Earphone/MIC and Programming Jack Socket W h ip An ten n a . Tx / Rx Indicate LED (3 colors) On T r an sm ittin g Red B l i nki n g L o w bat t e ry O n R e c e i v i n g , m o n i t o r i n g Green B l i n k i n g D i f f erent sub- tone when receiving O r a n g e O n In itializin g , p r o g r am m i n g an d cl oni ng Speaker Funct i on Squelch (SQ) Channel Up Button Emergency Tx Output H/L C h annel Down B u t t on P T T ( P u s h To Ta l k ) B u t t o n Mo n ito r Bu tto n Press t o m oni t o r . H o l d i ng d o w n o v er 2 sec o n d s keep s m oni t o ri n g funct i on on, and press short l y agai n or PTT B u t t on t o st op Hold down to transm it, release to receive. Channel Select Button Sel ect t h e des …

Text truncated - open the document above for the full version.

Date : Aug. 08, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Airtech Information & Communication Co., Ltd. FCC ID: FCC Part 90 Certification Gentlemen, In accordance with 0.459 of CFR 47, Airtech Information & Communication Co., Ltd. hereby requests confidentiality of all Schematics, Parts List attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Airtech Information & Communication Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Airtech Information & Communication Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name : Mr. John. Kim Title : Asst. Manager Company : Airtech Information & Communication Co.

___________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 BZT ETS CERTIFICATION GMBH Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 30.10.2003 Subject:Application for TCB Certification Applicant: Airtech Information & Communications Co. Ltd. Equipment: FM Handheld Transceiver FCC ID: ONKATS-400B Dear Sirs, Submitted herewith, on behalf of Airtech Information & Communications Co. Ltd., is an application for certification under FCC Rule 90 and 90.210 of the following equipment: FM Handheld Transceiver Attached are the 731Form, Confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), RF Exposure, FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagrams, schematics, tune procedure information, antenna specification and user manual. In accordance with 0.459 of CFR 47 Airtech Information & Communications Co. Ltd., hereby requests confidentiality of all Block Diagrams, Circuit Diagrams (Schematics), Parts List and Operational Description (see attached Confidentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the following e-mail addresses: [email protected] Best Regards Axel Müller Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c 15526 Reichenwalde bei Berlin Germany e-mail: [email protected]

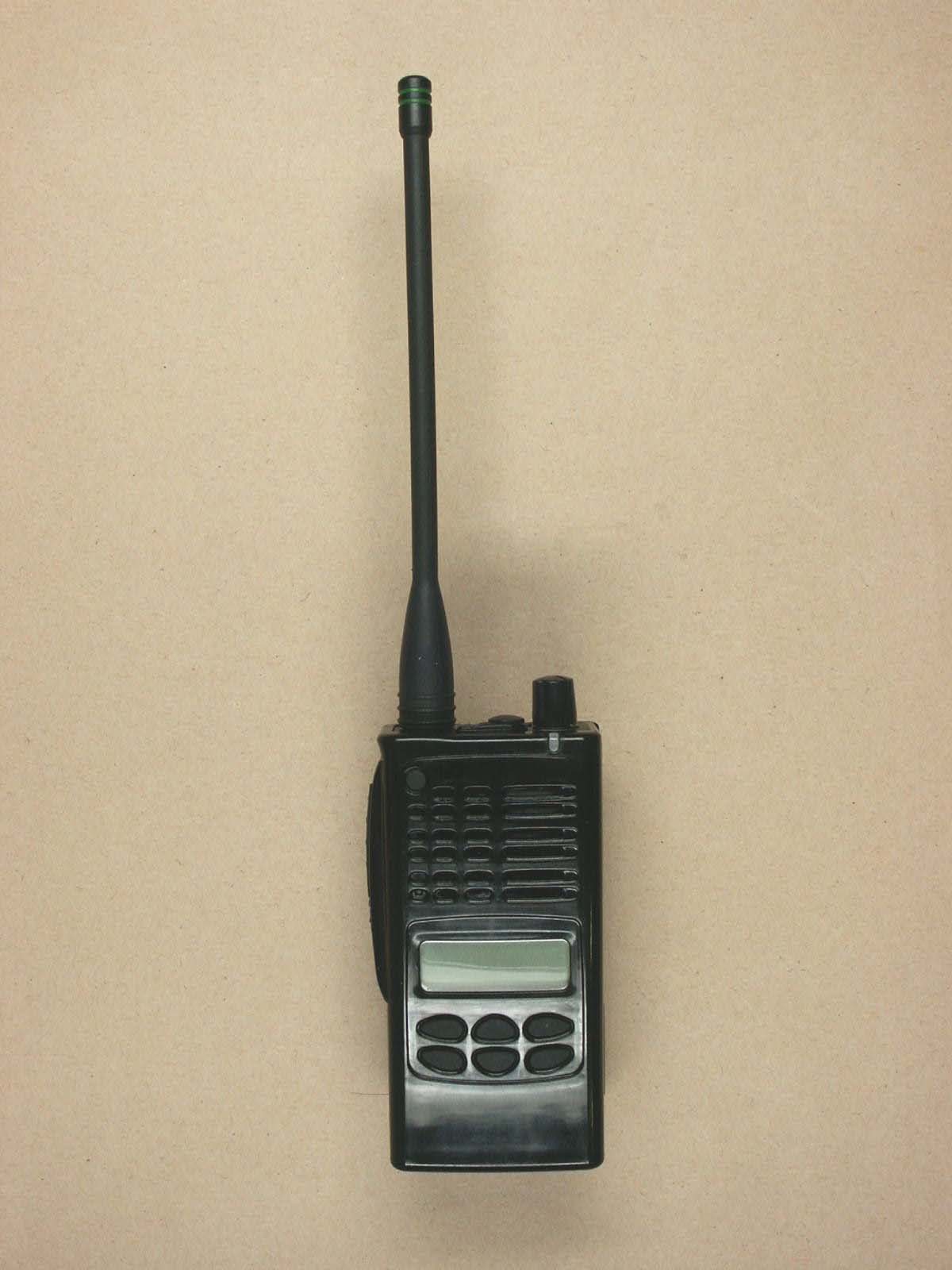

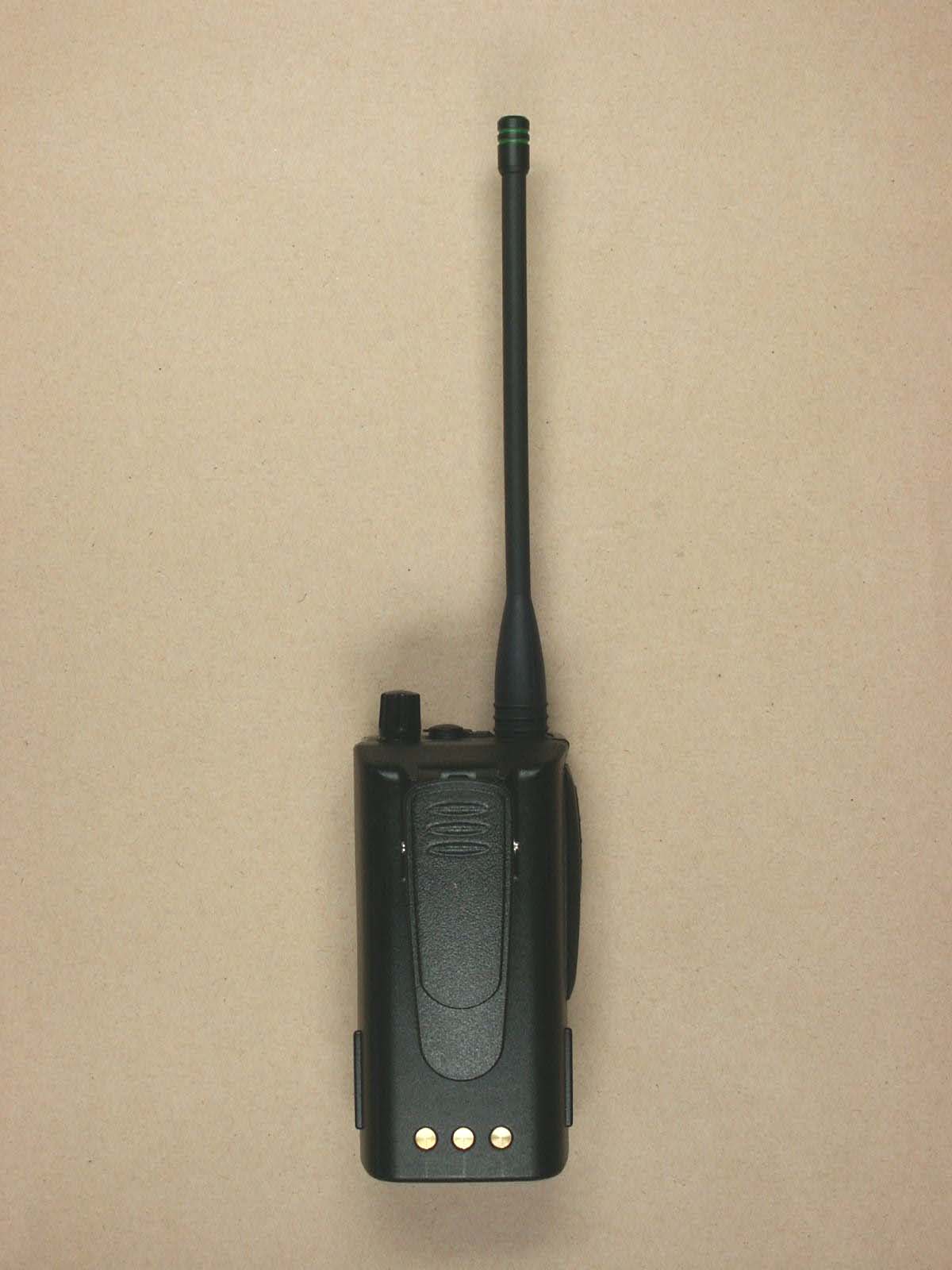

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 1 of 16 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 2 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 3 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 4 of 16

AIRTECH UHF FM TRANSCEIVER ATS-400B FCC ID: ONKATS-400B RF POWER RATING 4W AIRTECH I&C Co.,Ltd. Made in Korea THIS DEVICE COMPLIES WITH PART 90 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION THAT THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 5 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 6 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 7 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 8 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 9 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 10 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 11 of 16

[ANTENNA SPECIFICATION] Description: FM HANDHELD TRANSCEIVER FCC ID: ONKATS-400B

[OPERATIONAL DESCRIPTION] Description: FM HANDHELD TRANSCEIVER FCC ID: ONKATS-400B INTRODUCTION ATS-400B is a micro size 256 channel portable FM transceiver constructed with a microprocessor controlled, temperature compensated Phase Locked Loop (PLL) frequency synthesizer. The radio features a double conversion receiver and a direct FM transmitter modulator. A special integrated circuit provides support to sub- audible signaling (CTCSS & DCS) and most of the receiving parts are switched off periodically in the power saver mode to reduce battery current drain during standby. The Block Diagram RF and Control Circuit Diagrams for ATS-400B shall be used in associate with the following circuit description. CIRCUIT DESCRIPTIONS 1) PHASE-LOCK LOOP (PLL) CIRCUIT * REFERENCE OSCILLATOR The reference oscillator consists of TCX301 in U301 with a frequency of 12.8MHz. The reference oscillator frequency is stabilized and drives a divider to produce a comparison frequency. This comparison frequency is selected by decoding the first three bits of the data input from microcomputer. * PROGRAMMABLE DIVIDER The programmable divider in U301 consists of a two-modulus prescaler with a 7bit control register followed by a 11-bit internal programmable divider. The overall division ratio is selected by a single 19-bit world located on the serial data bus. * PHASE COMPARATOR A digital-type phase comparator in U301 with output(pin 15, 17) and an open drain lock detect output(pin 8) compares divided VCO frequency with the comparison frequency. It generates a correction voltage that is applied to a low-pass filter consisting of R305, R306, R307 and C316, C317, C318 then sent to the VCO circuit. * VCO CIRCUIT The transmit/receive frequency is directly generated by the Colpitts oscillation circuit contains Q401, Q402, Q404, Q405. The oscillation frequency is variable by applying the VCO control voltage to variable to variable capacitors D401-404 and by L401-402, L407-408, C403,C428,C433,C429,C404,C405,C406,C425,C426,C427. To switch between the transmit and receive frequencies, Q403 turn on, and Q401 (VCO for transmission) oscillates when the T/R pin is low. 2) TRANSMITTER * MIC AMP CIRCUIT Voice signal from the microphone are applied to microphone amplifier U601 through CON 601 . U601 contains a low-pass filter that has a 6dB/oct response between 300Hz and 3 kHz,and eliminates hamonics above 3 kHz. The pre-emphasized audio signal is applied to VR303 from U606 pin 23 to adjust maximum frequency deviation. * VCO AND AMPLIFIER The VCO signal output is amplified by Q207,Q1,Q601 and then fed to power module Q602. * POWER AMPLIFIER CIRCUIT Q602 is provided approximately 7.5V DC power source. RF power output is adjusted by variable resistors VR501 (High Power) and VR502 (Low Power). Signals from Q602 is supplied through antenna switch D201 to a low-pass filter made up of L201-203, L211 and C202-C206, C208 then applied to Antenna Jack. 3) RECEIVER * ANT SWITCHING CIRCUIT Signals from antenna connector fed to the antenna switching circuit throught the low pass filter consisting of L201-203, L211 and C202-C206, C208. In receive mode, D201 is turned off, isolates the antenna from the transmitter circuit and matching circuitry, so that the incoming signals are fed to the RF amplifier through L101. * RF AMPIFIER CIRCUIT The signals from the switching circuit are fed to the RF amplifier Q122,Q106,Q123,Q101 through a band pass filter made up of mold coil , vvc diode and capacitor. * FIRST MIXER CIRCUIT The amplified signals are fed to Gate 1 of the first mixer Q102 through C126. First local oscillator signal is supplied to Gate 2 of Q102 form the PLL circuit through C127 to convert the RF signals into 21.4MHz first IF signal. * IF CIRCUIT The first IF signals from Q102 are fed to the matched pair crystal filter FL101, then IF signals are amplified in Q103. And those signals are fed to U101 which is composed of the second local oscillator, second mixer, limiter amplifier, quadrature detector and active filter circuit. The second local oscillator at 44.845MHz with X101and is fed to the second mixer with the first IF signals to convert into 455kHz second IF signals.. The second IF signals leave through pin 3,and are fed to external ceramic filters FL102,FL103 which has excellent selectivity, then fed to U101 (pin 5) again to be amplified and detected. Narrow /Wide band are switched by Q104,Q105,Q144. The detected AF signals are output from pin 9. * AUDIO AND SQUELCH CIRCUIT The detected audio signals are put through a 6dB/oct de-emphasis circuit made up of C147 and R125. The signal is then applied to audio power amplifier U607 through the volume control SVR601 to obtain enough power to driver the speaker.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G5M203080157-S-2 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-S-2Page 1 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference positions for handheld radio transmitters 2.9Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-S-2Page 2 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 07.10.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 07.10.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-S-2Page 3 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Airtech I & C Co., Ltd. Street: zip 421-809, #101-807, Techno ParkComplex, 364, Samjung-dong Town: Ojung-Gu, Bucheon-si, Kyeonggi-Do Country: Korea Telephone: +82-32-234-2345 Fax: +82-32-234-2350 Contact: Mr. John Kim E-Mail: [email protected] 1.4Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-S-2Page 4 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 18.08.2003 Date of receipt of test item: 18.08.2003 Date of test: 27.09.2003 1.6Test item FCC ID: ONKATS-400B Description of test item:FM Handheld Transceiver Type identification: ATS-400B Serial number: without; Device category: TNF (Licensed Non-Broadcast Tx Held To Face) Technical data TX Frequency range: 440.025 - 469.975 MHz RX Frequency range: 440.025 - 469.975 MHz Max. Conducted RF output power : 34.64 dBm(2.91 W) Power supply : 7,5 V DC Antenna Tx: external Antenna RX: external Antenna Type: Whip Antenna Additional information: Tx and Rx. antenna are the same. 1.7Test Results Max. SAR Measurement: 3,58 W/kg (50 % duty cycle) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for controlled exposure/occupational environment exposure limits specified in ANSI/IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-S-2Page 5 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - FCC OET Bulletin 65, Supplement C, Edition 01-01 2Technical test 2.1Summary of test results Classification Uncontrolled environment/general population Controlled exposure/occupational environmentX Applicable Configuration Handset (Head) Handset (Held to face)X Handset (Body) Headset (Head) Body Worn EquipmentX EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment …

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 90 FCC ID: ONKATS-400B Test report no.: G5M203080157-C-1 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 1 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4 Test Procedures 2.4.1 Output power conducted 2.4.2 Output power radiated 2.4.3 Spurious Emissions radiated 2.4.4 Spurious Emissions at antenna terminal 2.4.5 Audio frequency response 2.4.6 Audio low pass filter frequency response 2.4.7 Modulation limited 2.4.8 Occupied Bandwidth 2.4.9 Frequency stability 2.4.10 Transient frequency behaviour of the transmitter 2.4.11 Spurious Emissions related to AC power line 3 Test Results 3.1 RF Power Output (conducted) FCC 2.1046(a), FCC 90.205 3.2 Radiated Power FCC 2.1046 3.3 Spurious Emission radiated, FCC 2.1053, FCC 90.210 3.4 Spurious emissions at antenna terminal FCC 2.1051, FCC 90.210(b) (d) 3.5 Audio frequency response FCC 2.1047(a) 3.6 Audio low pass filter frequency response FCC 2.1047(a), FCC 90.210 3.7 Modulation Limiting FCC 2.1047(b), FCC 22.915(b), FCC 90.242(b)(8) 3.8 Occupied Bandwidth FCC 2.1049, FCC 90.210 3.9 Frequency Stability vs. Temperature, FCC 90.213, FCC 2.1055, FCC 22.915(b) 3.10 Transient frequency behaviour of the transmitter FCC 90.214 3.11 Spurious emissions related to AC power line ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 2 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 20.08.2003D. Hoppe DateETS-Lab.NameSignature Technical responsibility for area of testing: 20.08.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 3 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY:BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: Airtech I & C Co., Ltd. Street: zip 421-809, #101-807, Techno ParkComplex, 364, Samjung- dong Town: Ojung-Gu, Bucheon-si, Kyeonggi-Do Country: Korea Telephone: +82-32-234-2345 Fax: +82-32-234-2350 Contact: Mr. John Kim Telephone: +82-32-234-2345 E-mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 4 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 18.08.2003 Date of receipt of test item: 18.08.2003 Date of test: 11.08.2003-19.08.2003 1.5Test item Description of test item:FM Handheld Transceiver Type identification: ATS-400B Serial number: Test model without serial number. Photos: See annex Technical data Frequency band: 440-470 MHz Frequency ( ch A): 440.025 MHz Frequency (ch B): 455.025 MHz Frequency (ch C): 469.975 MHz Channel spacing: 12.5 kHz and 25 kHz Antenna: external Whip Antenna Antenna gain: unity Power supply : 7,5V Operating mode: duplex Type of modulation: FM Emission : 8K5F3E / 16K0F3E Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 5 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 90, Part 2 Additional information: none 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 7,5 V DC Extrem conditions parameters:: test voltage - extrememin :-- V, AC max:-- V, AC ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 6 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spectrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSM…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 12 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 13 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 14 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 15 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G5M203080157-C-1Page 16 of 16
