OOAW4-2NOMAD W4-2 Weighscale System

Maynetronics Ltd
NOMAD W4-2 Weighscale System - FCC ID OOAW4-2 - Maynetronics Ltd
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Feb 13, 2002
Application Purpose
Original Equipment
Date of Application
Feb 13, 2002
Equipment Note
NOMAD W4-2 Weighscale System
Frequency Range
0.12500000 - 0.12500000
Company
Maynetronics Ltd
Country
United Kingdom

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

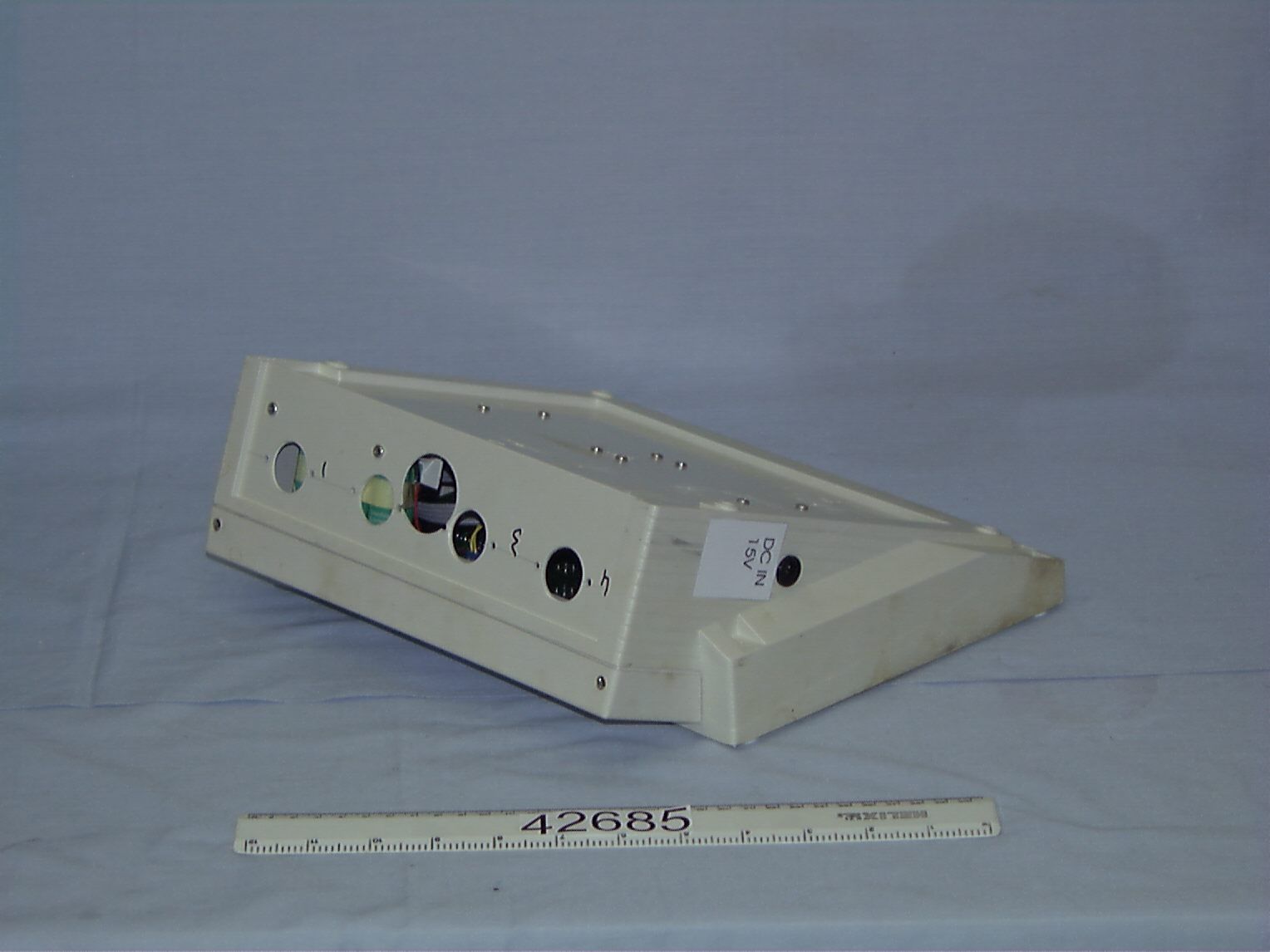

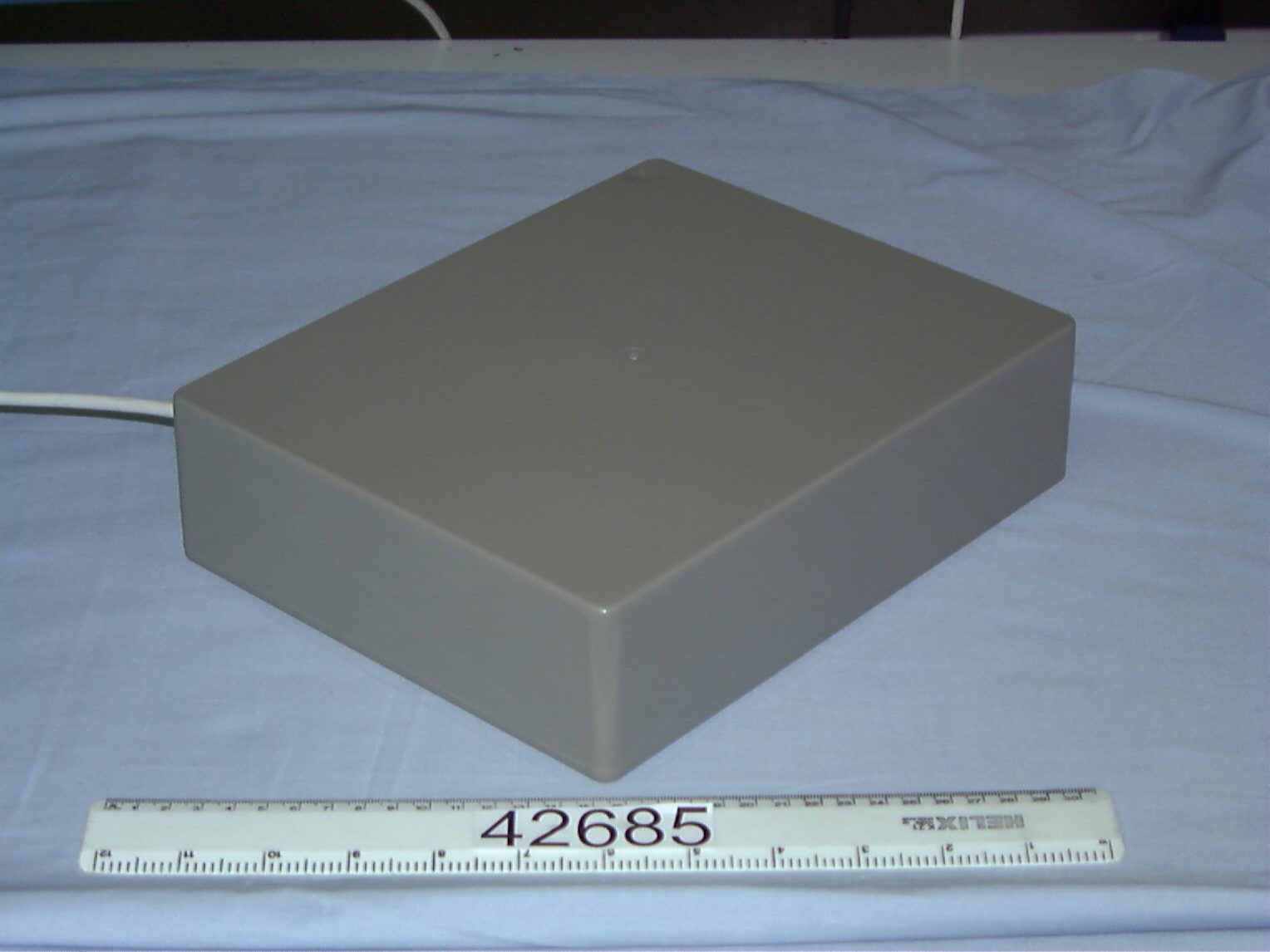

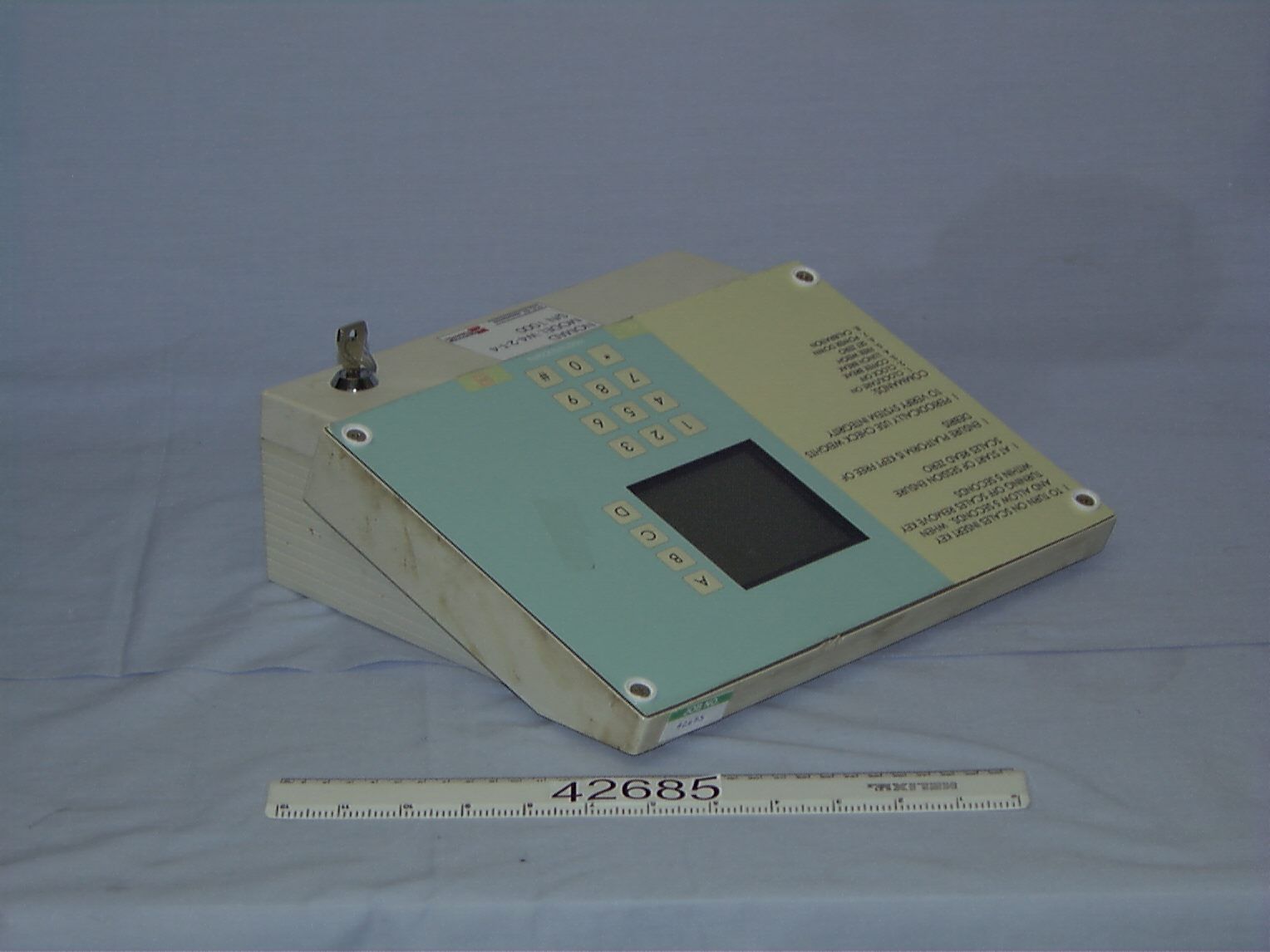

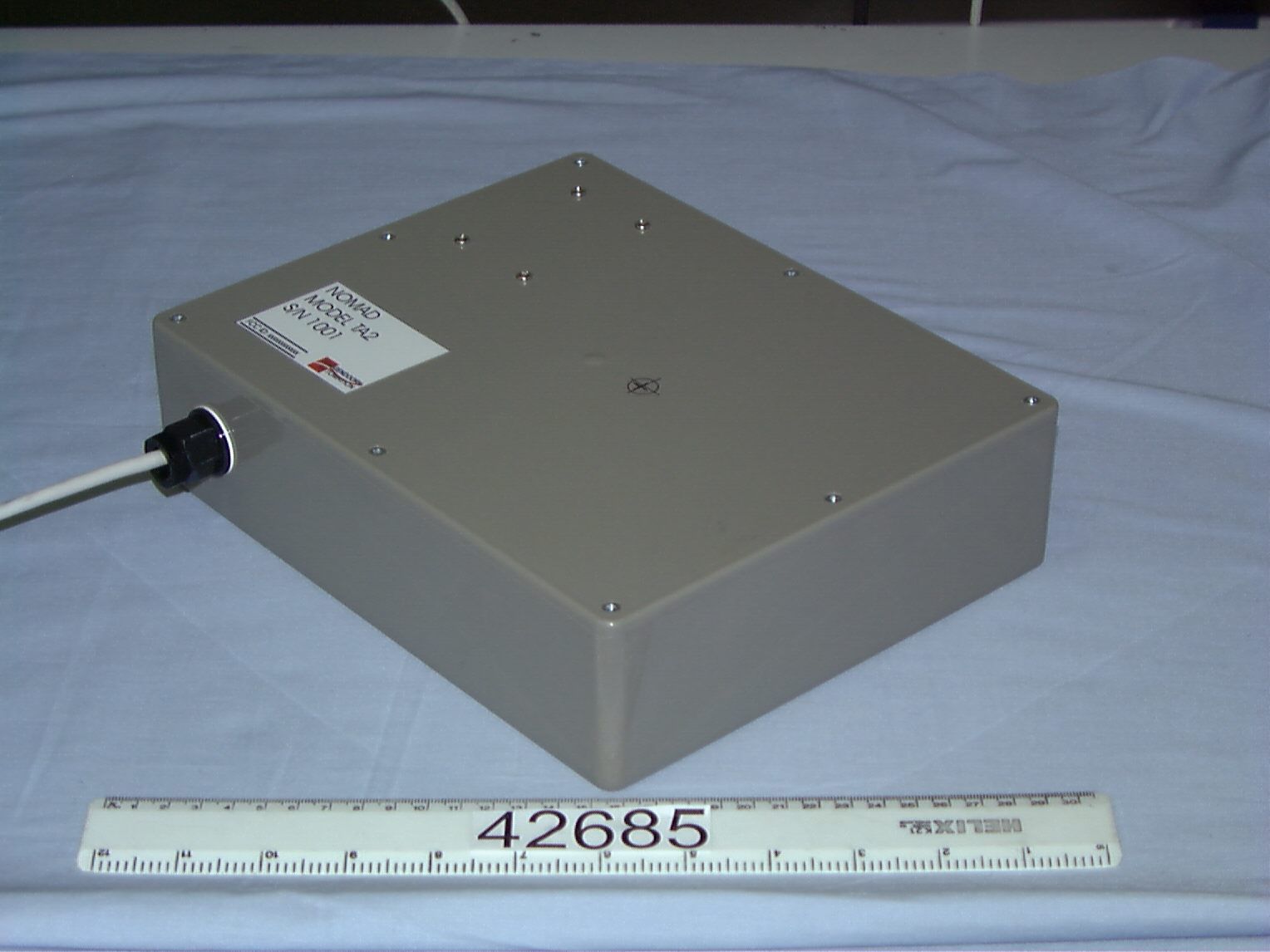

External Photos

↗
↗
↗
↗

ID Label/Location Info

↗

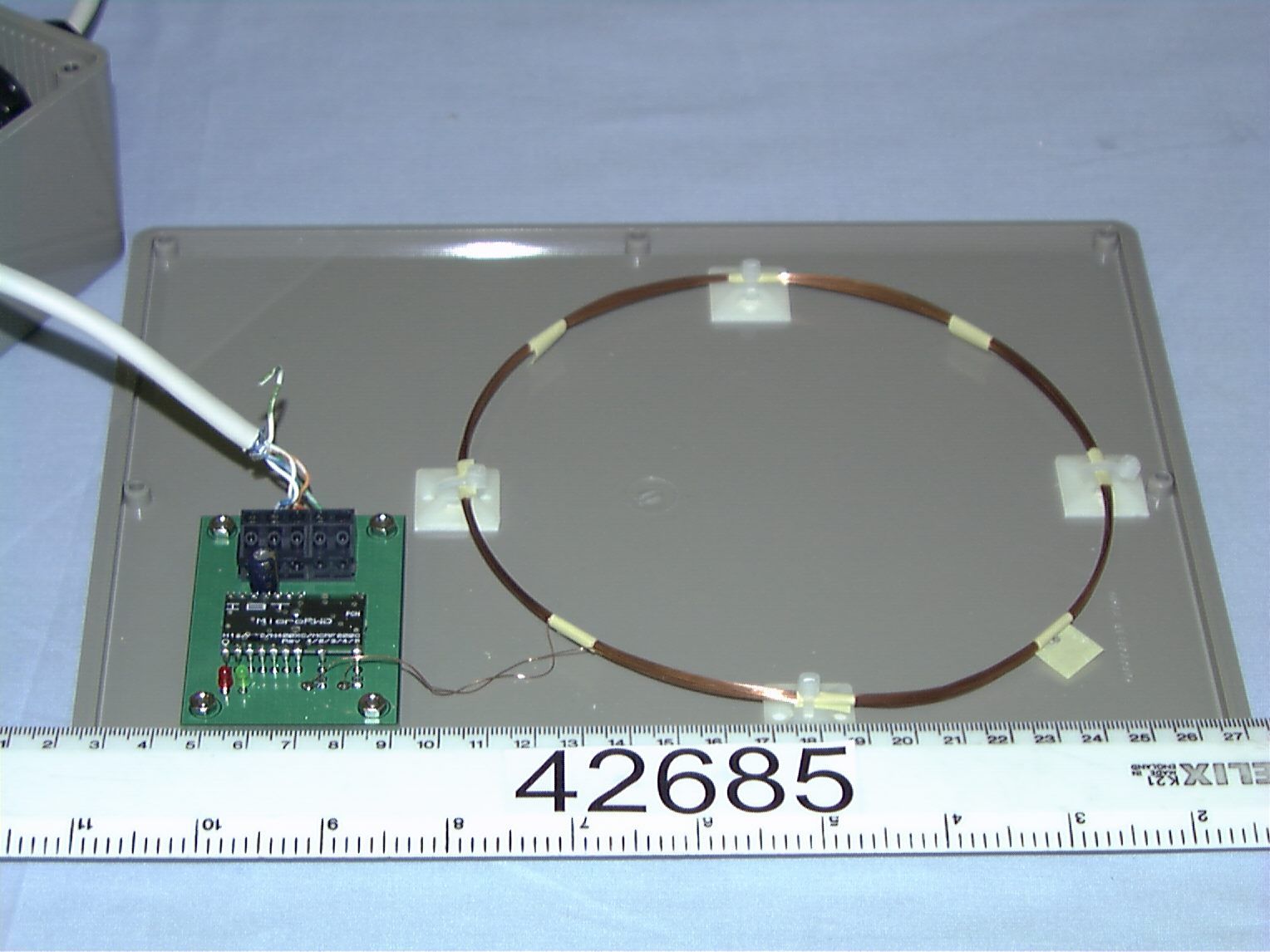

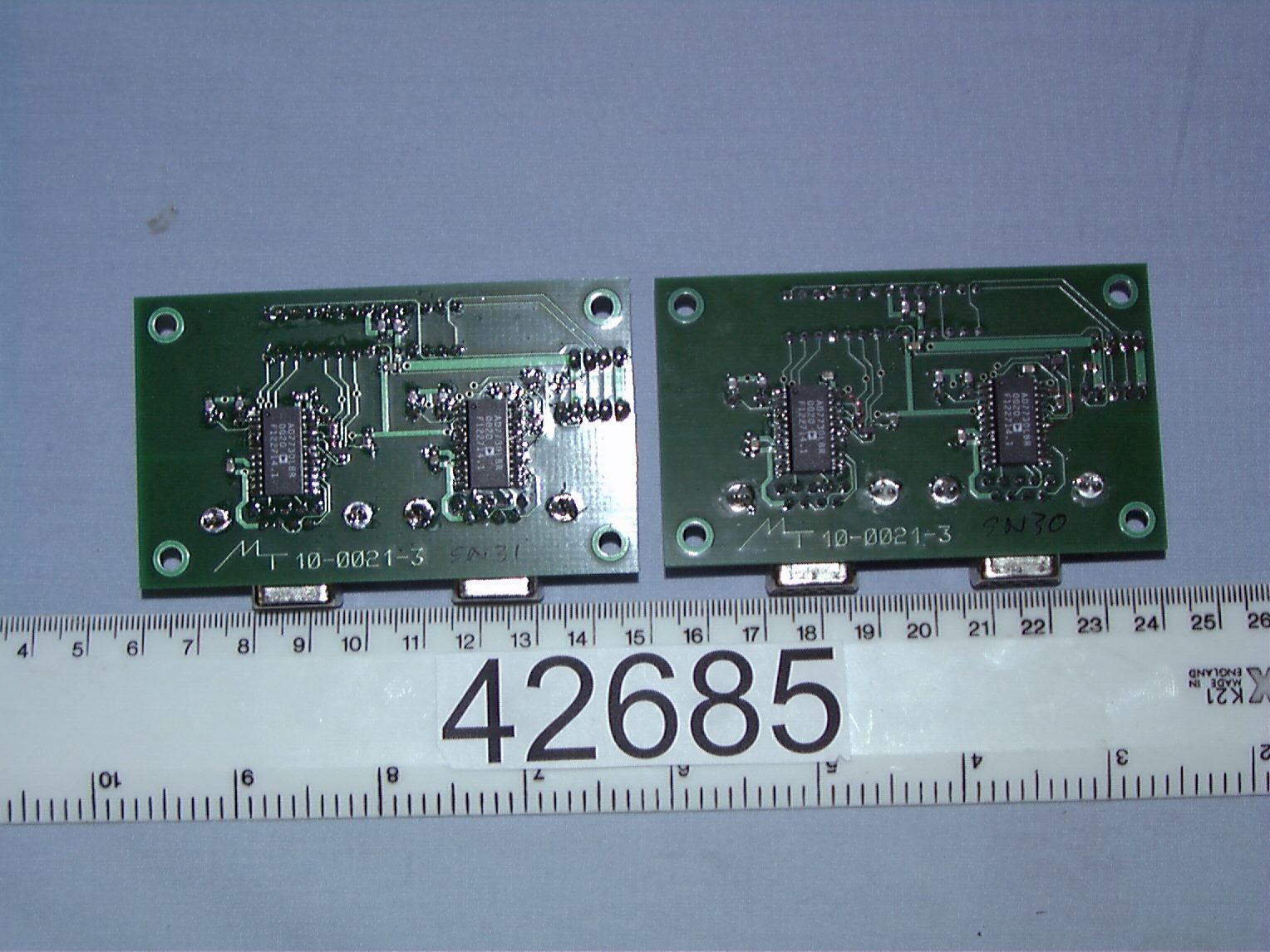

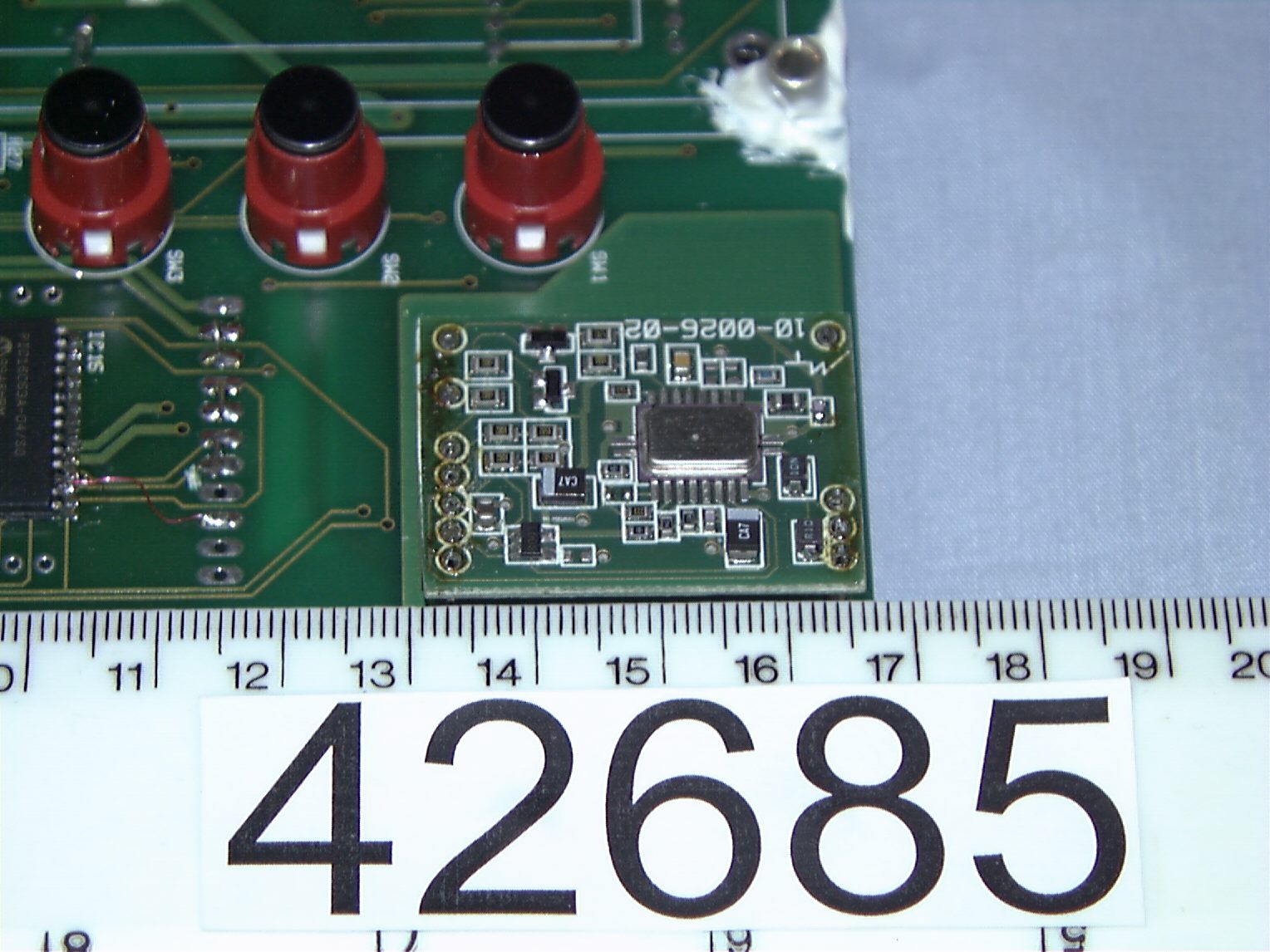

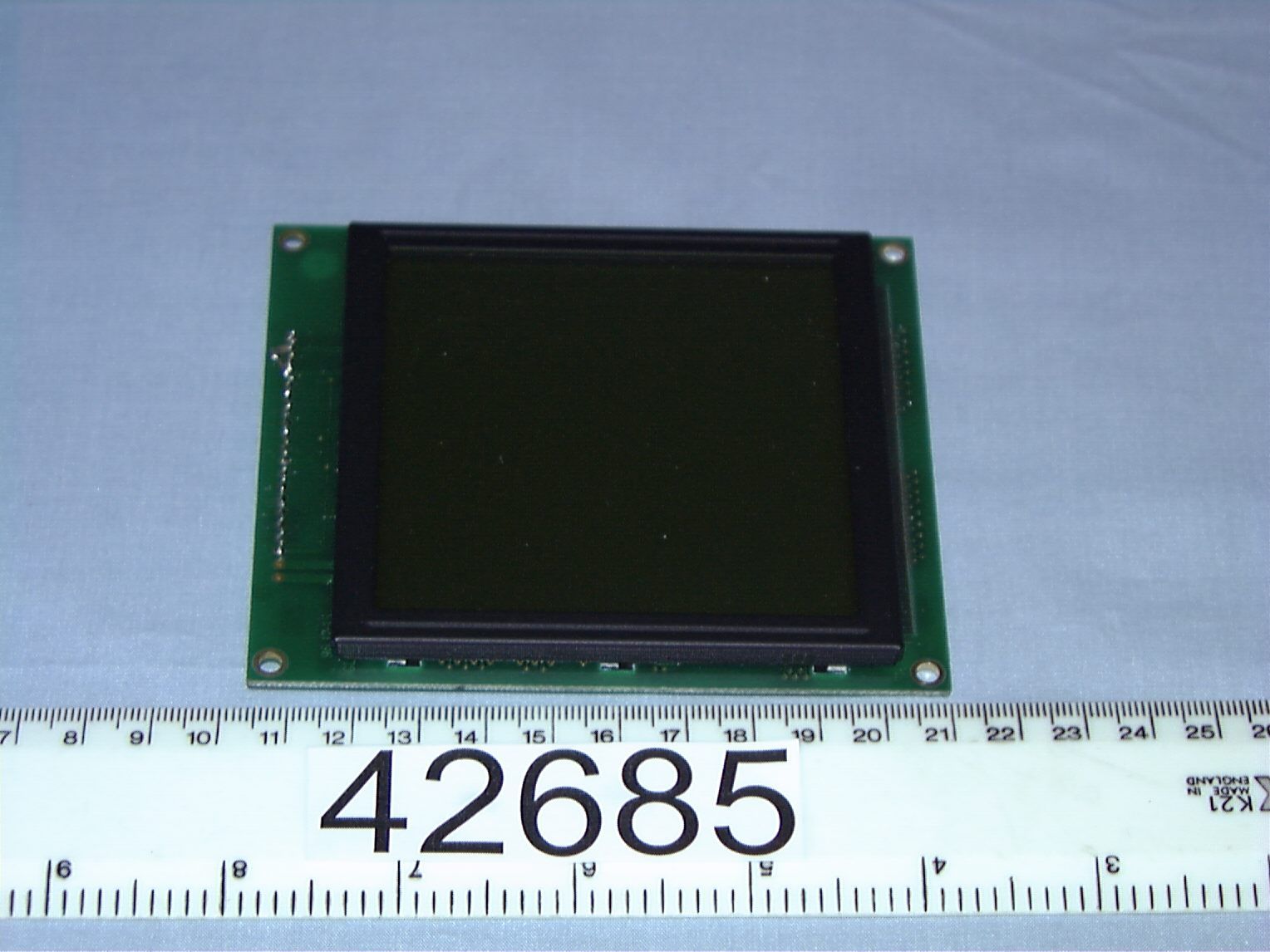

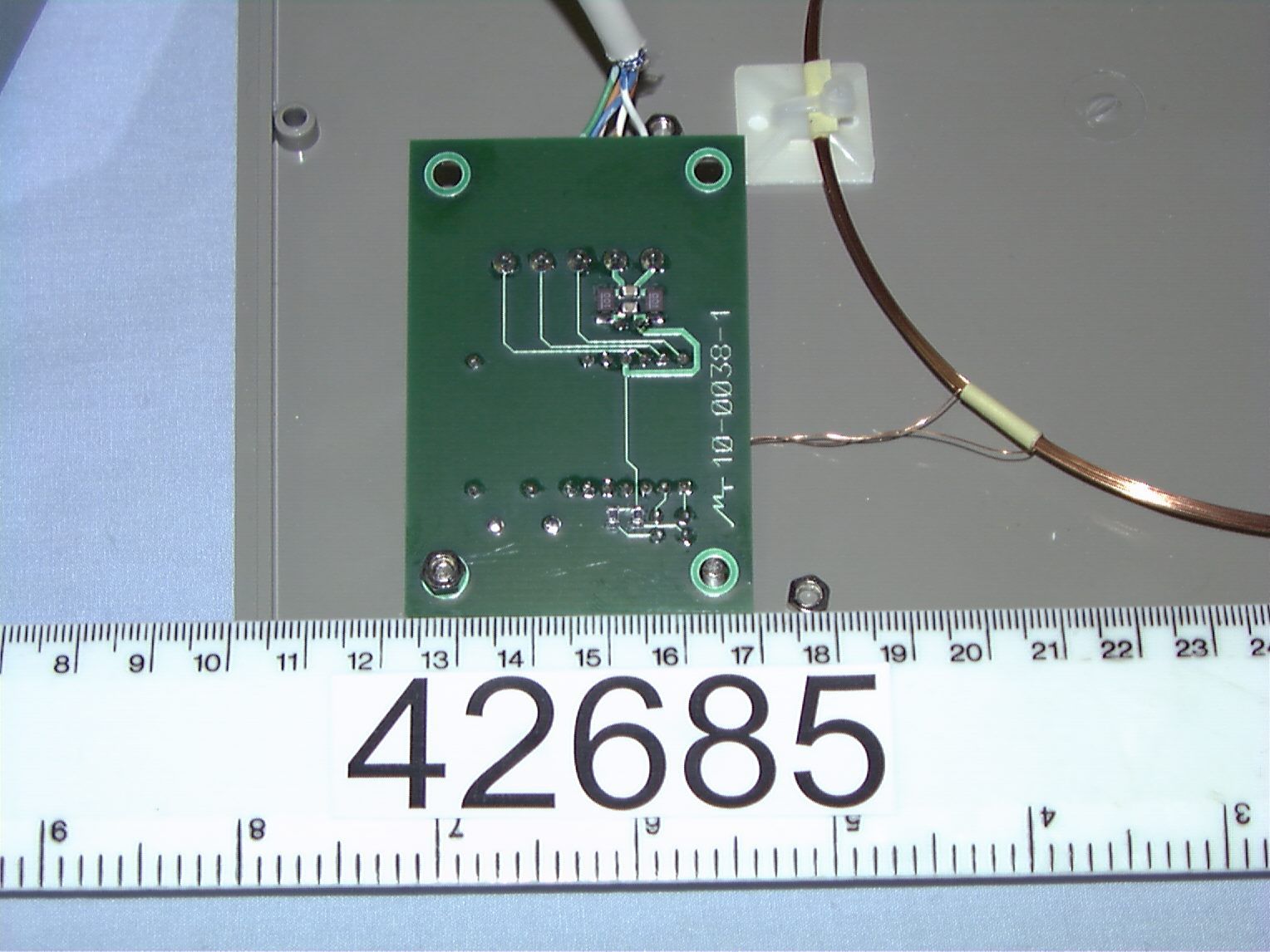

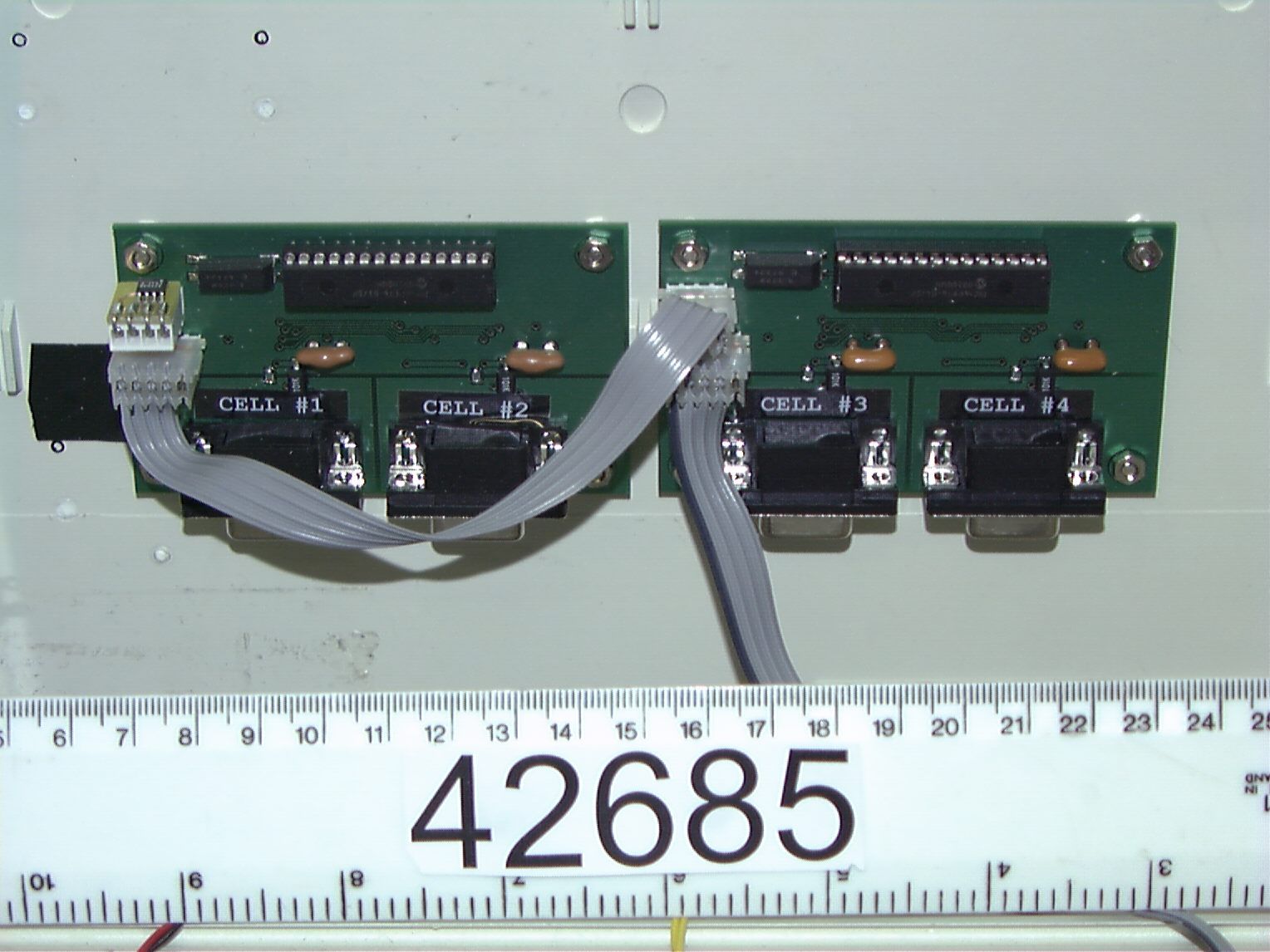

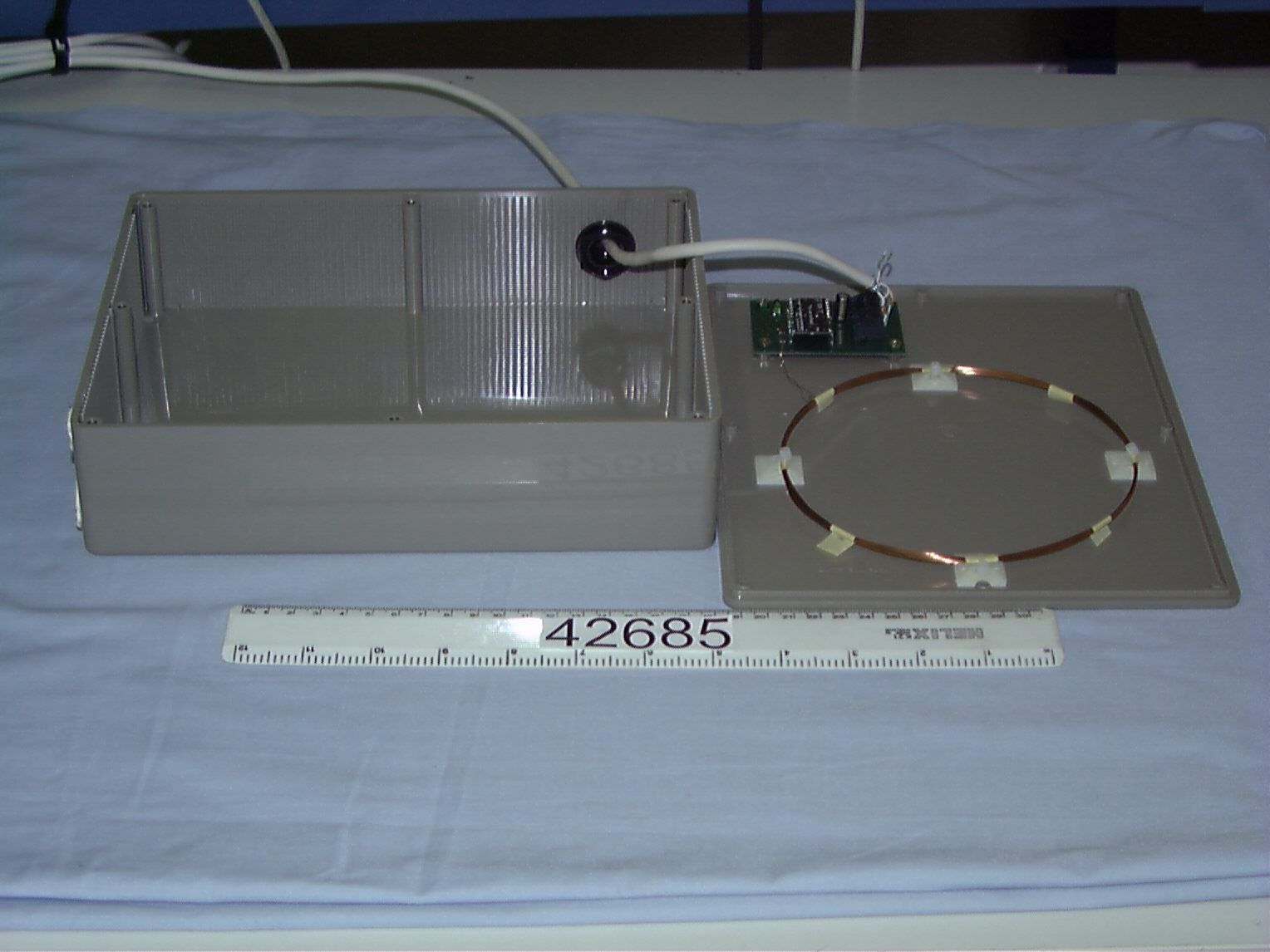

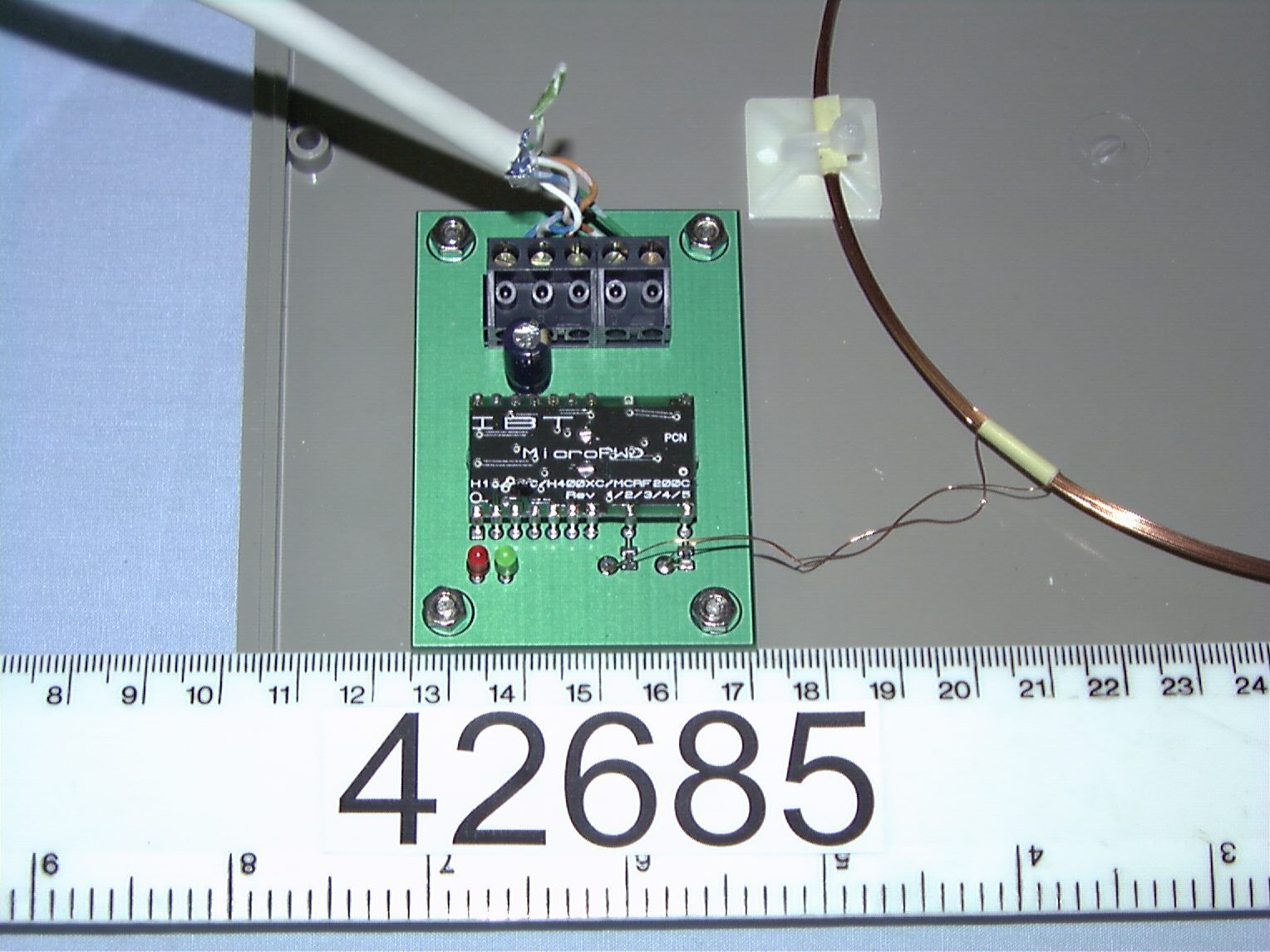

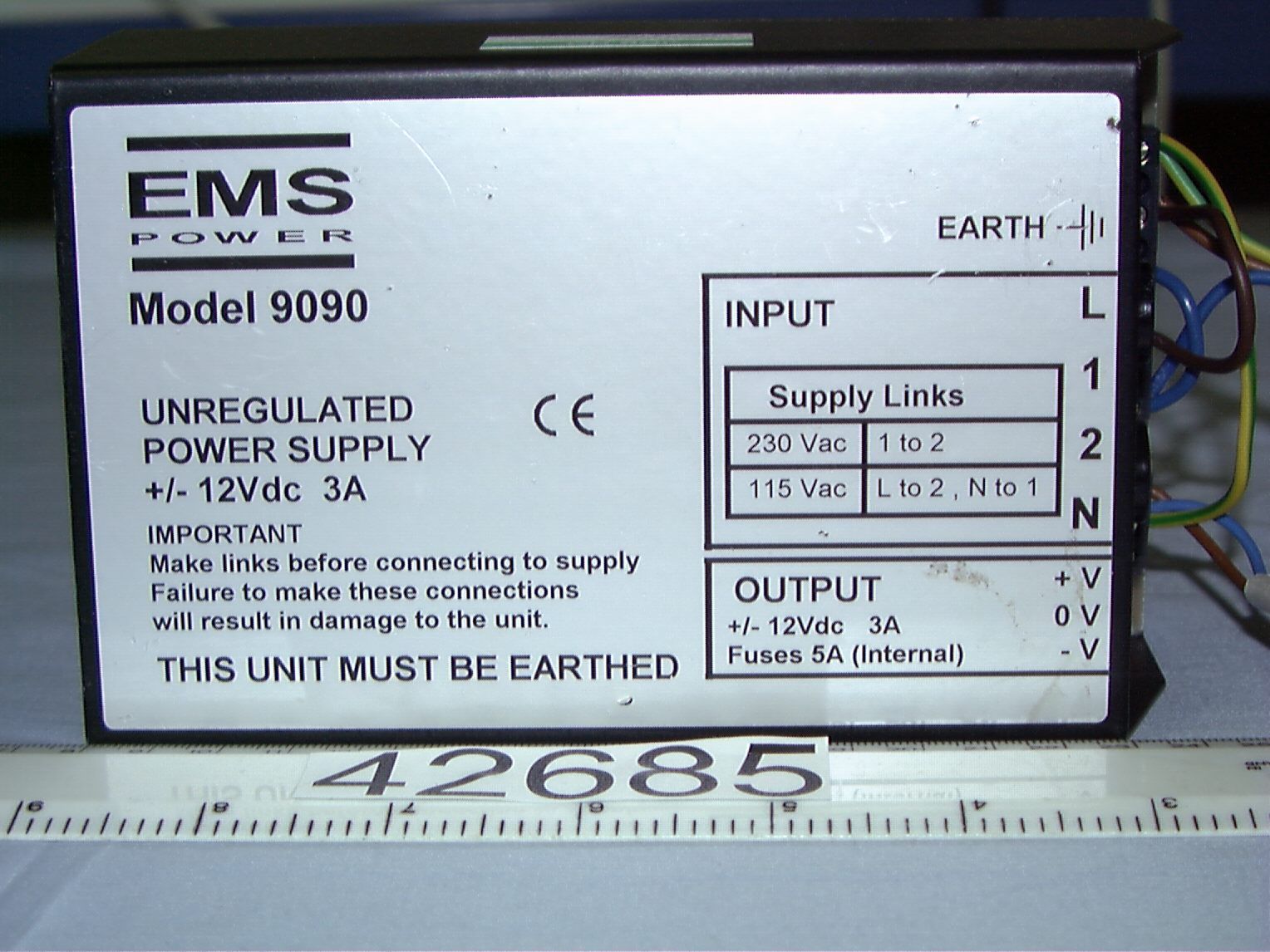

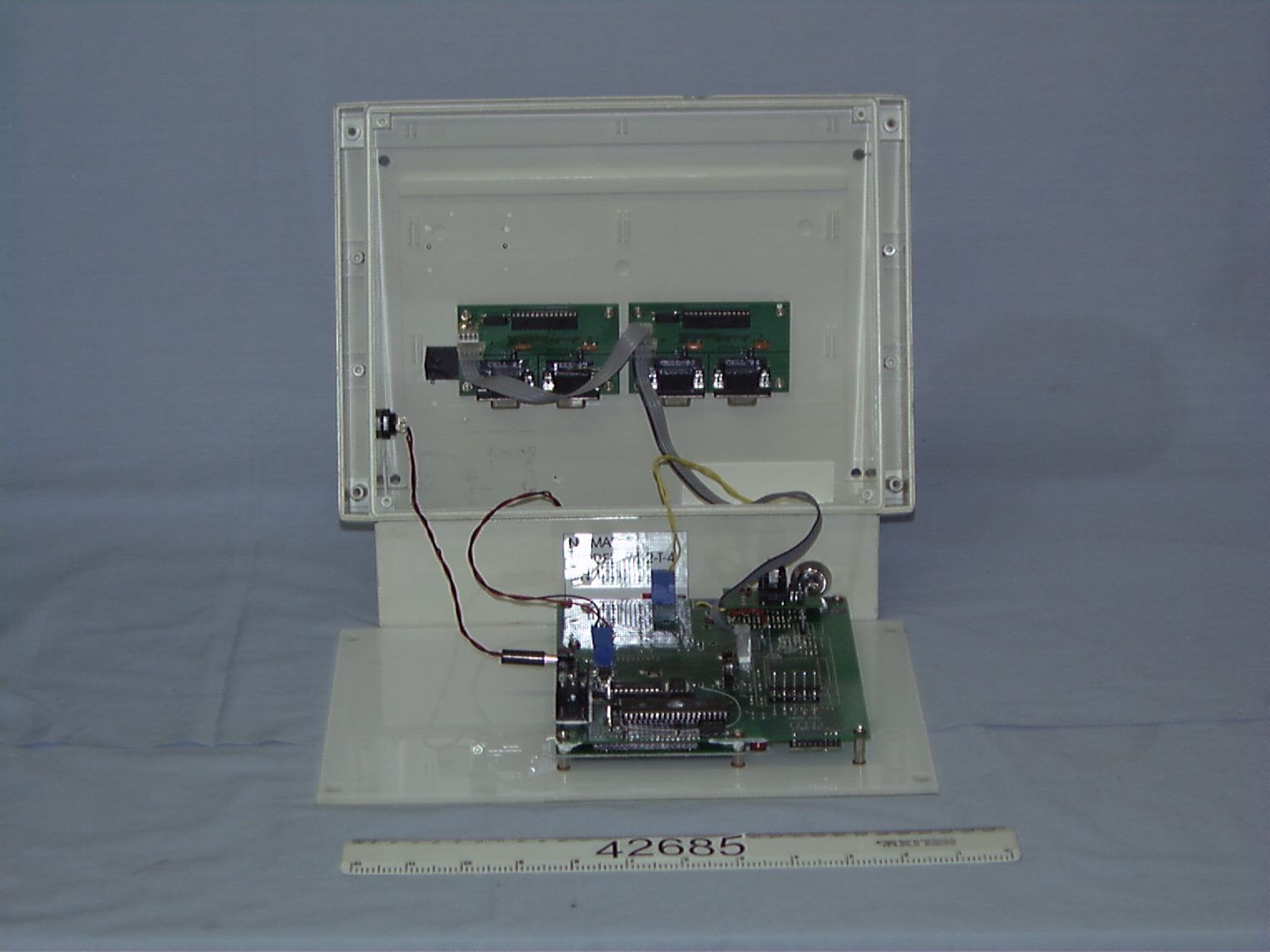

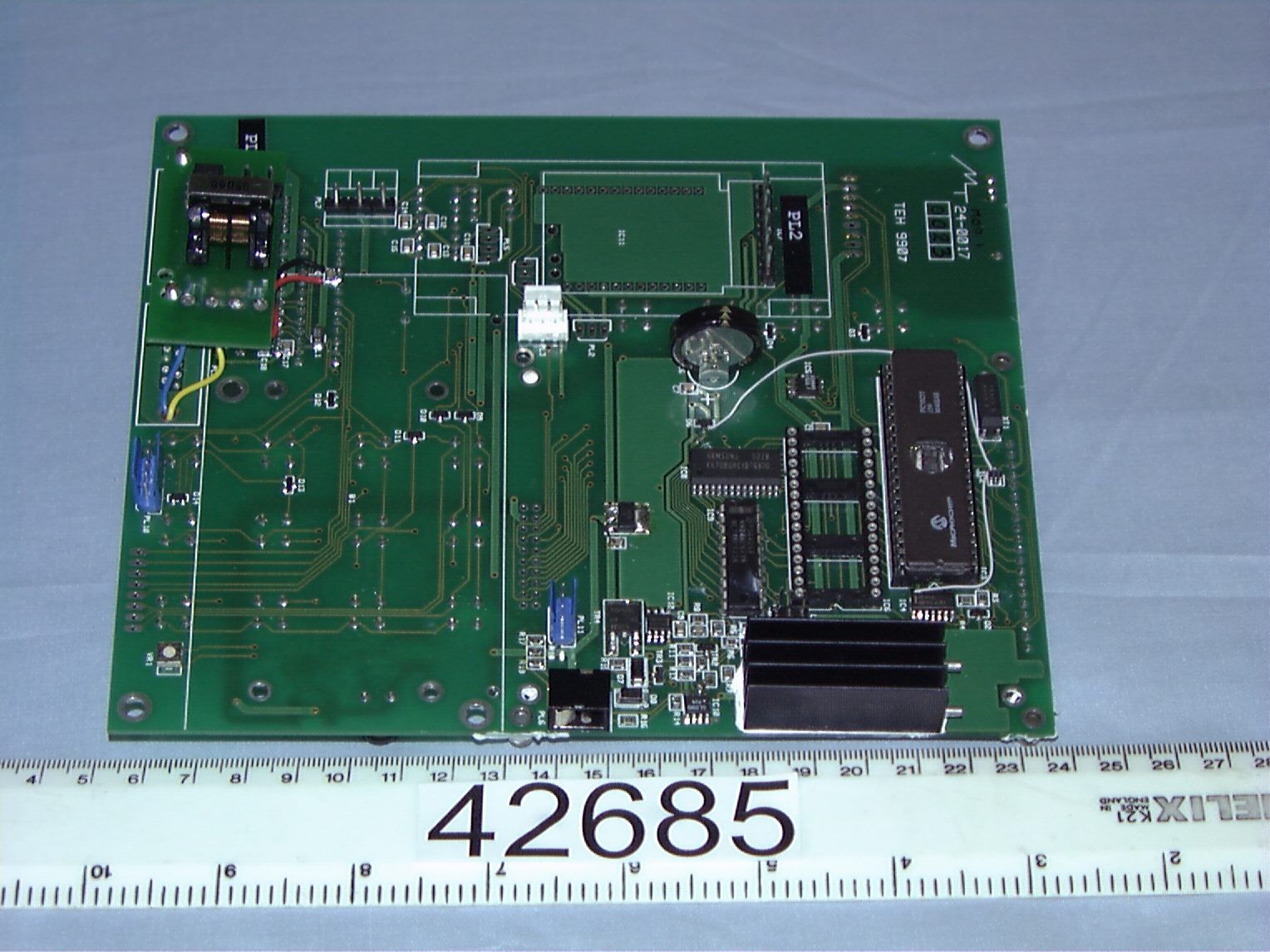

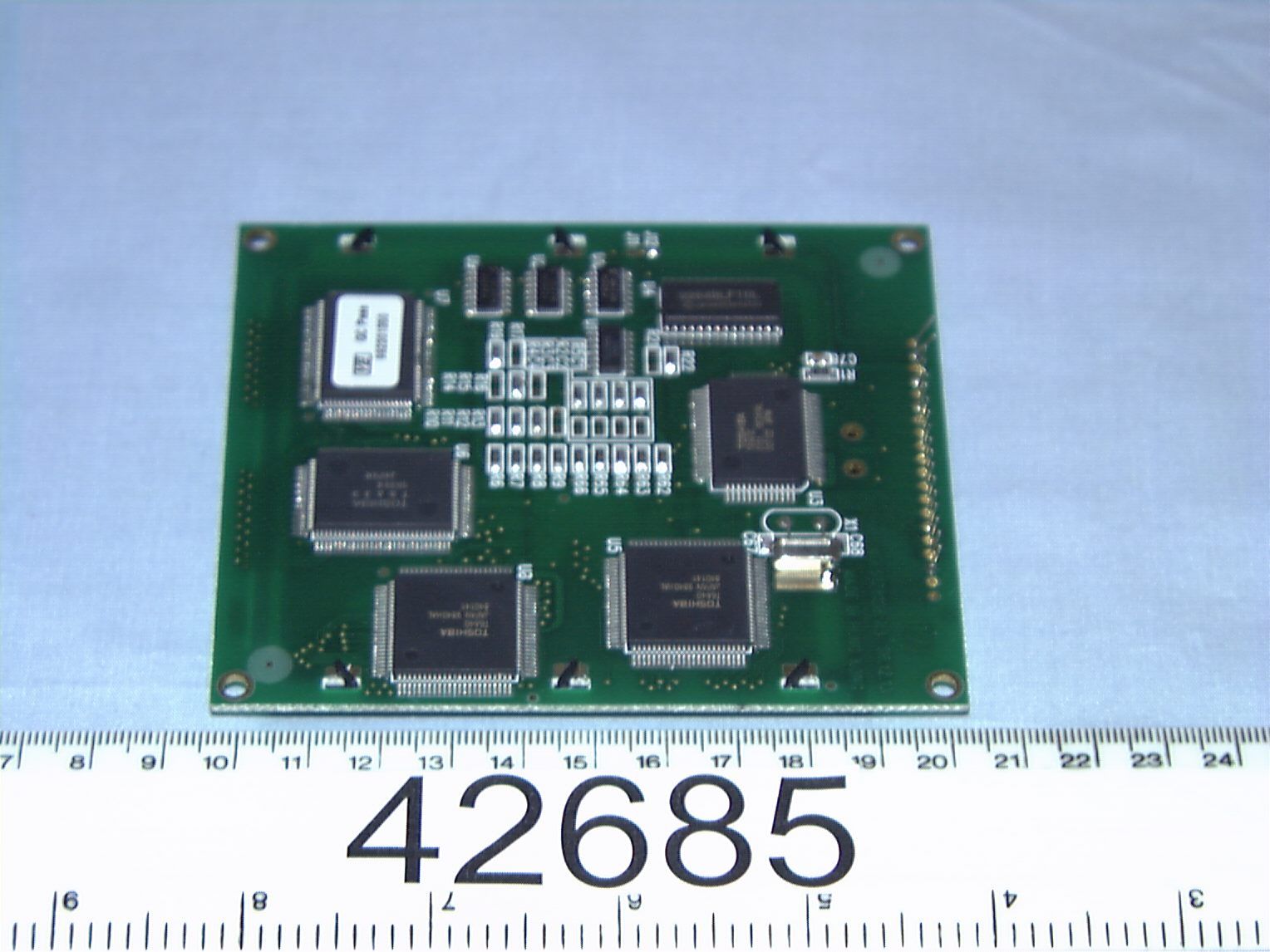

Internal Photos

↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗

Operational Description

↗

Parts List/Tune Up Info

↗

Schematics

↗
↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

28-Oct-2001 OPERATION MANUAL FOR W4-2 SCALES NOMAD ™ - W4-2 SCALES O PERATING I NSTRUCTIONS P AGE 2 of 13 28-Oct-2001 1.INTRODUCTION......................................................................................................................3 2.OPERATION - W4 ....................................................................................................................3 2.1 OPERATOR M ODE .................................................................................................................. 3 2.2 S UPERVISOR M ODE .................................................................................................................... 4 2.2.1Clock In .......................................................................................................................... 5 2.2.2Clock Out........................................................................................................................ 5 2.2.3Coffee............................................................................................................................. 5 2.2.4Lunch............................................................................................................................. 5 2.2.5Free Weigh ..................................................................................................................... 6 2.2.6Set Zero.......................................................................................................................... 6 2.2.7Power Off ....................................................................................................................... 6 3.OPERATION - W4A ................................................... ERROR! BOOKMARK NOT DEFINED. 3.1 USE OF TRANSPONDERS ...................................................................................................... 7 3.1.1TARE OF A TRANSPONDER CART ................................................................................. 7 4.CHARGING...............................................................................................................................7 5.CALIBRATION / SETUP ..........................................................................................................8 5.1 EXAMPLE: CALIBRAT ING CELL #1 .............................................................................................. 8 5.2 SETTING THE NODE NUMBER................................................................................................ 9 5.3 CLEARING THE MEMORY .................................................................................................... 10 5.4 STABILITY THRESHOLD AND TIMEOUT ............................................................................... 10 5.4.1Threshold...................................................................................................................... 10 5.4.2Timeout........................................................................................................................ 11 6.CONNECTING THE SCALES ...............................................................................................11 6.1 A DDING A N E XPANSION M ODULE ................................................... E RROR ! B OOKMARK NOT DEFINED . 6.2 CONNECTING TO W4A............................................................ E RROR ! B OOKMARK NOT DEFINED . 7.MAINTENANCE......................................................................................................................11 7.1 B ATTERIES .............................................................................................................................. 11 7.2 R EPLACING THE CIRCUIT BOARD .................................................................................................. 12 8.SPECIFICATIONS..................................................................................................................13 8.1 C OMMUNICATION R ANGE ........................................................................................................... 13 NOMAD ™ - W4-2 SCALES O PERATING I NSTRUCTIONS P AGE 3 of 13 28-Oct-2001 1. INTRODUCTION The W4-2 scales controllers provide all the functionality required to implement a mobile or fixed weigh scales solution in the NOMAD system. The standard controller accepts up to four load cells. Power is supplied by internal rechargeable batteries and charger with a universal voltage range is built in. 2. OPERATION - W4-2 There are two modes of operation - operator and supervisor mode. Operator mode is the default state of the scales and is the mode where actual weighing takes place - the only action that may be performed in operator mode. Supervisor mode is protected by a keyswitch or nominated ID tags. It is in this mode that operators are clocked in and out and all other functions are performed. All numerical entries should be followed by pressing the ‘ENT’ key. Pressing the ‘CLR’ key will clear the current entry with subsequent presses backtracking up the menu hierarchy if any. 2.1 OPERATOR MODE In operator mode the controller waits for an operator number. Place the load onto the weigh platform. Note that the weight is not displayed until the reading is accepted. Enter the operator number. The controller will check to see if the operator is known to the controller - that is they have clocked in and have not clocked out. If the entered operator number is known to the controller then it will prompt for a row number. NOMAD ™ - W4-2 SCALES O PERATING I NSTRUCTIONS P AGE 4 of 13 28-Oct-2001 Enter the row number from which the fruit was picked. A maximum of 5 digits are allowed. After entering the row number the controller will monitor the weigh platform for stability. If the platform is not stable the phrase “Acquiring Weight” will be displayed and the platform monitored for a preset period. If during that period the weight doesn’t become stable an error message will be displayed “WEIGHT NOT STABLE” accompanied by a tripl…

Text truncated - open the document above for the full version.

Block Diagram

Block Diagram MAIN UNIT W4A-2-T-4 CARD READER TA2 LOAD CELL #1 LOAD CELL #2 LOAD CELL #3 LOAD CELL #4 STROBE 15VDC 916.5MHz LINK TO NOMAD SYSTEM

ID Label/Location Info

Label placement, main unit. NO M AD M O D E L W 4 -2 -T-4 S/N xxxx AUTOMATION 65m m 45m m NOMAD MODEL W4-2-T-4 S/N xxxx AU TO MATI ON 3 A 56 B 8 9 C 0 # D 1 2 7 * 4 AU TO MATI ON Label placement, card reader. NO M AD MODEL TA2 S/N xxxx AUTOMATION NOMAD MODEL TA2 S/N xxxx AUTOMATION 65m m 45m m

Operational Description

Operation of Unit The primary function of the W4-2 scale interface is to measure the load applied to a platform, store that reading in memory along with ancillary data and when requested via a wireless link transmit the data back over that link. There is also a RFID card reader and the serial number of the mostly recently read smart card will be stored with the weigh data. A keypad and LCD display is used for set-up purposes and manual entry of data. A strobe input triggers the W4-2 to take the reading.

Parts List/Tune Up Info

Parts List Main Board .PARTS IC1 MAX749,MAX749 SO8 2.5750 3.5000 0.00 IC2 BU4S66,BU4S66 SOT23-5 4.3500 8.9000 F 270.00 IC3 PIC16C74,PIC16F877 #DIL40 4.3000 8.3500 F 180.00 IC4 7400,7400 SO14 3.1500 8.3250 F 270.00 IC5 X24????,X24F032 SO8 5.2000 7.4250 F 0.00 IC6 28F010,28F010 #DIL32 3.9000 7.5750 F 180.00 IC7 ZR78LXXG,ZR78L05G SOT223 6.7500 5.6000 180.00 IC8 62256,62256 SO28 4.3750 6.8250 F 270.00 IC9 74573,74573 DIL20 3.5250 6.8500 F 0.00 IC10 358A,LM358 SO8 2.2250 6.4750 F 90.00 IC12 78L_SO8,uA78L05ACD SO8 2.9500 6.2000 F 90.00 IC13 ZR78LXXG,ZR78L05G SOT223 3.9250 5.9500 F 90.00 IC14 GD128128,128128 GD128128 3.8100 9.1400 0.00 IC15 TRANSCEIVER,10-0026 BIM418 6.9500 8.4750 270.00 IC16 PIC16C73,PIC16C73 SO28 6.7000 6.4750 0.00 IC18 75176,MAX483 #DIL8 7.0500 4.8750 0.00 IC19 MAX2x2,MAX202CPE #DIL16 6.8500 4.4250 0.00 IC20 PIC16C73,PIC16C73 #DIT28 6.0750 3.4750 0.00 IC100 6PDARL,4N32 DIL6 6.5250 2.5000 F 180.00 TR1 RFD10P03,RFD10P03LSM D-PAK 2.8250 7.1750 F 0.00 TR2 NDS0610,NDS0610 SOT23 2.7450 6.5600 F 270.00 TR3 2N7002,2N7002 SOT23 2.5050 6.1850 F 0.00 TR4 RFD10P03,RFD10P03LSM D-PAK 3.0250 5.9250 F 270.00 TR5 2N7002,2N7002 SOT23 2.6000 9.0500 90.00 TR6 NDS0610,NDS0605 SOT23 2.6450 3.7500 180.00 D1 SMA_SCH,10MQ040N DO-214AC 2.7000 4.0000 90.00 D2 BZX84C,6v8 SOT23 3.0700 8.6800 F 270.00 D3 BAV70,BAV70 SOT23 5.7500 7.9250 F 0.00 D4 BAV70,BAV70 SOT23 5.7500 7.1500 F 0.00 D5 BAV70,BAV70 SOT23 5.7500 6.5250 F 0.00 D6 BAV70,BAV70 SOT23 4.8400 6.5900 F 270.00 D7 S1A,S1A DO-214AC 2.5250 6.0250 F 0.00 D8 S1A,S1A DO-214AC 2.3000 5.9750 F 90.00 D9 BAV70,BAV70 SOT23 4.9000 4.6750 F 270.00 D10 BAV70,BAV70 SOT23 4.9000 4.4750 F 270.00 D11 BAV70,BAV70 SOT23 4.7000 4.2750 F 270.00 D12 BAV70,BAV70 SOT23 5.0500 3.6000 F 0.00 D13 BAV70,BAV70 SOT23 4.2250 3.3000 F 180.00 D14 BAV70,BAV70 SOT23 4.1000 2.4250 F 90.00 D15 BAV70,BAV70 SOT23 5.9000 4.7500 270.00 XT1 MA506,4MHz SXC2 4.9000 8.8750 F 0.00 XT2 MA506,4MHz SXC2 6.9500 5.9500 90.00 XT3 MA506,4MHz SXC2 6.5250 3.9250 270.00 R1 R0805,1R 0805 2.7500 3.5500 90.00 R2 R0805,820k 0805 2.6550 3.2150 270.00 R3 R0805,4k7 0805 3.2100 8.7200 F 180.00 R4 R0805,100k 0805 3.1900 8.5900 F 90.00 R5 R0805,1M 0805 2.9250 6.6500 F 0.00 R6 R0805,220k 0805 2.8000 6.7500 F 270.00 R7 R0805,1k 0805 2.5200 6.7200 F 0.00 R8 R0805,47k 0805 3.0000 6.5000 F 90.00 R9 R0805,47k 0805 2.6100 6.5200 F 0.00 R10 R0805,10k 0805 2.4700 6.5800 F 0.00 R11 R0805,100k 0805 2.7350 6.3950 F 270.00 R12 R0805,4k7 0805 2.6300 6.3950 F 270.00 R13 R0805,220k 0805 2.5100 6.3950 F 90.00 R14 R0805,5k 0805 2.2650 6.3150 F 180.00 R15 R0805,10k 0805 2.6000 5.8750 F 90.00 R16 R0805,1k 0805 2.1000 5.9500 F 90.00 R17 R0805,1R 0805 2.8000 5.2500 F 270.00 R18 R0805,1R 0805 2.7000 5.2500 F 270.00 R19 R0805,1R 0805 2.6000 5.2500 F 270.00 R21 R0805,47k 0805 2.8500 8.9000 90.00 R22 R0805,NULL 0805 3.6500 8.9250 180.00 R23 R0805,47k 0805 4.3000 8.9250 180.00 R24 R0805,47k 0805 4.1500 8.7500 180.00 R25 R0805,47k 0805 3.2500 8.3700 180.00 R26 R0805,4k7 0805 4.9800 6.8800 180.00 R27 R0805,47k 0805 5.6500 6.3750 0.00 R28 R0805,10k 0805 7.3250 4.9000 180.00 R29 R0805,10k 0805 7.3800 4.6050 180.00 R30 R0805,10k 0805 5.8250 3.5000 270.00 R31 R0805,10k 0805 5.9250 3.5000 270.00 R32 R0805,10k 0805 6.0250 3.5000 270.00 R33 R0805,10k 0805 6.1250 3.5000 270.00 R34 R0805,10k 0805 6.5250 3.4200 F 90.00 R36 R0805,120R 0805 5.2000 6.6750 0.00 R100 R0805,390R 0805 6.3000 2.7500 180.00 R101 R0805,390R 0805 6.3000 2.6500 180.00 VR1 VR_3314J,500k VR_3314J 2.6250 2.4500 F 270.00 C1 TAJ_D,22/20 TAJ_D 2.7250 4.3250 90.00 C2 CER_0805,0u1 0805 2.3800 3.4700 90.00 C3 TAJ_D,22/20 TAJ_D 2.1750 3.5500 180.00 C4 CER_0805,NULL 0805 2.7750 3.4250 0.00 C5 CER_0805,0u1 0805 4.8000 7.5250 F 270.00 C6 MEMCAP,SG_V_1 MC_SG_V 5.3750 6.6750 F 90.00 C7 CER_0805,0u1 0805 5.1750 6.4750 F 90.00 C8 CER_0805,0u1 0805 2.9000 6.5000 F 90.00 C9 CER_0805,0u1 0805 2.9150 6.3600 F 180.00 C10 CER_0805,0u1 0805 3.7000 5.8800 F 270.00 C11 CER_0805,0u1 0805 6.5250 4.6750 F 180.00 C12 CER_0805,0u1 0805 6.8500 4.3750 F 0.00 C13 CER_0805,0u1 0805 6.5500 4.4000 F 0.00 C14 CER_0805,0u1 0805 6.8500 4.1500 F 180.00 C15 CER_0805,0u1 0805 6.6000 4.1750 F 180.00 C16 CER_0805,0u1 0805 6.2750 3.5500 F 180.00 C17 CER_0805,0u1 0805 2.1200 6.3150 F 0.00 C18 CER_0805,0u1 0805 2.7250 4.5250 180.00 C19 CER_0805,0u1 0805 4.4000 8.7300 0.00 C20 CER_0805,22p 0805 4.5500 8.7900 90.00 C21 CER_0805,22p 0805 4.6500 8.7900 90.00 C23 CER_0805,0u1 0805 6.7250 6.1500 180.00 C24 CER_0805,0u1 0805 6.7250 6.0500 180.00 C25 CER_0805,0u1 0805 6.3000 5.8500 270.00 C26 SMD_ECB,22/6 SMD_ECB 6.4750 5.9000 180.00 C27 CER_0805,0u1 0805 6.3650 5.4800 180.00 C28 CER_0805,0u1 0805 7.0500 4.9000 0.00 C29 CER_0805,22p 0805 6.2250 3.4500 90.00 C30 CER_0805,22p 0805 6.3250 3.4500 90.00 C101 CER_0805,0u1 0805 5.8000 2.7000 90.00 C102 CER_0805,0u1 0805 6.1500 2.7000 90.00 L2 L_ELC08,47u L_ELC08 2.3000 4.0500 270.00 L100 SU10V,5mH SU10V 6.0000 2.7000 F 180.00 PL1 HE14,8 HE14_8 3.2500 2.1500 0.00 PL2 332,5 332_5 6.6500 7.1500 F 0.00 PL3 MOLEX_4,* MOLEX_4 5.7500 5.3000 F 90.00 PL4 332_2 332_2 7.0000 2.7500 F 90.00 PL5 HE14,4 HE14_4 6.6250 4.8500 F 180.00 PL6 DC_PWR,2.5 DC_PWR 2.2750 5.5250 F 270.00 PL7 332_3 332_3 7.0000 3.7750 F 90.00 PL10 HE14,5 HE14_5 4.2000 2.2000 F 0.00 PL11 HE14,4 HE14_4 2.9500 5.4500 F 0.00 LK1 LINK1 LINK1 3.0250 7.2000 F 90.00 SW1 D6,R_R D6 5.9000 8.1500 270.00 SW2 D6,R_R D6 5.9000 7.4500 270.00 SW3 D6,R_R D6 5.9000 6.7500 270.00 SW4 D6,R_R D6 5.9000 6.0500 270.00 SW5 D6,R_R D6 3.0500 4.7000 0.00 SW6 D6,R_R D6 3.8000 4.7000 0.00 SW7 D6,R_R D6 4.5500 4.7000 0.00 SW8 D6,R_R D6 3.0500 3.9500 0.00 SW9 D6,R_R D6 3.8000 3.9500 0.00 SW10 D6,R_R D6 4.5500 3.9500 0.00 SW11 D6,R_R D6 3.0500 3.2000 0.00 SW12 D6,R_R D6 3.8000 3.2000 0.00 SW13 D6,R_R D6 4.5500 3.2000 0.00 SW14 D6,R_R D6 3.0500 2.4500 0.00 SW15 D6,R_R D6 3.8000 2.4500 0.00 SW16 D6,R_R D6 4.5500 2.4500 0.00 BZ1 PIEZOSND,EI-242-B EI242B 6.0000 4.1750 180.00 HK1 HSK1 15X65HSK 2.6500 8.3000 F 0.00 .ENDPARTS RF TRANS. PARTS IC1 LP2985,LP2985-3 SOT23-5 -…

Text truncated - open the document above for the full version.

Schematics

Board Layout Main Board RF Trans Reader

Schematics

Page 1 of 12 Page 2 of 12 Page 3 of 12 Page 4 of 12 Page 5 of 12 Page 6 of 12 Page 7 of 12 Page 8 of 12 Page 9 of 12 Page 10 of 12 Page 11 of 12 Page 12 of 12

Test Report

TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Maynetronics Ltd NOMAD W4-2 To: FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 Test Report Serial No: RFI/EMCB2/RP42685JD06 Supersedes Test Report Serial No: RFI/EMCB1/RP42685JD06 This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: pp Release Version No: PDF01 Issue Date: 12 February 2002Test Date: 8 th January 2001 to 10 th January 2001 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP42685JD06 EMC DepartmentPage 2 of 28 Issue Date: 12 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP42685JD06 EMC DepartmentPage 3 of 28 Issue Date: 12 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 Table of Contents 1. Client Information......................................................................................................4 2. Equipment Under Test (EUT).....................................................................................5 3. Test Specification, Methods And Procedures..........................................................8 4. Deviations From The Test Specification...................................................................9 5. Operation Of The EUT During Testing....................................................................10 6. Summary Of Test Results........................................................................................11 7. Measurements, Examinations And Derived Results..............................................12 8. Measurement Uncertainty........................................................................................19 Appendix 1. Test Equipment Used...............................................................................20 Appendix 2. Measurement Methods............................................................................22 Appendix 3. Test Configuration Drawings..................................................................25 Test Report Serial No: RFI/EMCB2/RP42685JD06 Supersedes Test Report Serial No: RFI/EMCB1/RP42685JD06 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP42685JD06 EMC DepartmentPage 4 of 28 Issue Date: 12 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 1. Client Information Company Name: Maynetronics Ltd Address: 9 Pavilion Rise Ryde Isle of Wight PO33 1PA Contact Name: Mr G Mayne RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP42685JD06 EMC DepartmentPage 5 of 28 Issue Date: 12 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 2. Equipment Under Test (EUT) The client has supplied the following information (with the exception of the Date of Receipt): 2.1. Identification Of Equipment Under Test (EUT) Brand Name: NOMAD Model Name or Number: W4-2 Unique Type Identification: W4-2-T-4 Serial Number: None Stated by the Client Country of Manufacture: U.K. FCC ID Number: Not Applicable Date of Receipt: 08 January 2002 Brand Name: NOMAD Model Name or Number: W4-2 Unique Type Identification: TA2 Serial Number: None Stated by the Client Country of Manufacture: U.K. FCC ID Number: Not Applicable Date of Receipt: 08 January 2002 2.2. Description Of EUT Load cell indicator with graphic LCD display, keypad, smart card reader and RF link (916.5 MHz) to host PC. Up to 4 load cells may be connected to the indicator and a reading is taken when an external contact is closed. The serial number of the last smart card to pass the reader is added stored along with the reading in memory and sent to a host PC via the RF link when requested via that link. The keyboard and display is used for setting up, calibration and general status. The Unit is dc powered via the ac mains network with internal batteries powering the system in the event of mains failure. The card reader is contained in a separate housing connected to the main unit via a screened cable and interfaces with 125 kHz contactless HITAG2 cards. 2.3. Modifications Incorporated In EUT The EUT has not been modified from the Model Name or Unique Type Identification number stated above. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB2/RP42685JD06 EMC DepartmentPage 6 of 28 Issue Date: 12 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 2.4. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Power Supply Brand Name: EMS POWER Model Name or Number: 9090 Serial Number: 986723 FCC ID Number: Not Applicable Cable Length And Type: 4.1M of twin core 6 Amps/1.9M of triple core 15 Amps Connected to Port: DC IN Description: Load Cell Simulator Brand Name: None Stated by the client Model Name or Number: None Stated by the client Serial Number: None Stated by the client FCC ID Number: Not Applicable Cable Length And Type: 4m Screened Connected to Port: Load Cell #1 Description: Load Cell Simulator Brand Name: None Stated by the client Model Name or Number: None Stated by the client Serial Number: None Stated by the client FCC ID Number: Not Applicable Cable Length And Type: 4m Screened Connected to Port:…

Text truncated - open the document above for the full version.

Test Report

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 GRAPH SECTION 1 FOR RFI TEST REPORT SERIAL NO: RFI/EMCB2/RP42685JD06 Test Of: Maynetronics Ltd NOMAD W4-2 To: FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 RADIO FREQUENCY INVESTIGATION LTD.Graph Section S.No. RFI/EMCB2/RP42685JD06 EMC Testing DepartmentIssue Date: 12 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 This appendix contains the following graphs: Graph Reference NumberTitle GPH\42685JD06\CE01Conducted Emissions transmit mode with TAG (450kHz to 30 MHz) GPH\42685JD06\RE01Radiated Emissions transmit mode with TAG (9 kHz to 150 kHz) GPH\42685JD06\RE02Radiated Emissions transmit mode without TAG (9 kHz to 150 kHz) GPH\42685JD06\RE03Radiated Emissions transmit mode without TAG (150 kHz to 30 MHz) GPH\42685JD06\RE04Radiated Emissions transmit mode with TAG (150 kHz to 30 MHz) GPH\42685JD06\RE05Radiated Emissions transmit mode with TAG (30 MHz to 1 GHz) GPH\42685JD06\RE06Radiated Emissions standby mode with TAG (30 MHz to 1 GHz) GPH\42685JD06\RE07Radiated Emissions standby mode with TAG (1 GHz to 2 GHz) GPH\42685JD06\RE08Radiated Emissions transmit mode with TAG (1 GHz to 2 GHz) GPH\42685JD06\RE09Radiated Emissions transmit mode with TAG (2 GHz to 4 GHz) GPH\42685JD06\RE10Radiated Emissions standby mode with TAG (2 GHz to 4 GHz) These pages are not included in the total number of pages for this report.

Test Report

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 GRAPH SECTION 2 FOR RFI TEST REPORT SERIAL NO: RFI/EMCB2/RP42685JD06 Test Of: Maynetronics Ltd NOMAD W4-2 To: FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 RADIO FREQUENCY INVESTIGATION LTD.Graph Section S.No. RFI/EMCB2/RP42685JD06 EMC Testing DepartmentIssue Date: 12 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 This appendix contains the following graphs: Graph Reference NumberTitle GPH\42685JD06\RE11Radiated Emissions transmit mode with TAG (4 GHz to 5 GHz) GPH\42685JD06\RE12Radiated Emissions standby mode with TAG (4 GHz to 5 GHz) GPH\42685JD06\RE13Radiated Emissions standby mode with TAG (5 GHz to 6 GHz) GPH\42685JD06\RE14Radiated Emissions transmit mode with TAG (5 GHz to 6 GHz) GPH\42685JD06\RE15Radiated Emissions transmit mode with TAG (6 GHz to 8 GHz) GPH\42685JD06\RE16Radiated Emissions standby mode with TAG (6 GHz to 8 GHz) GPH\42685JD06\RE17Radiated Emissions standby mode with TAG (8 GHz to 10 GHz) GPH\42685JD06\RE18Radiated Emissions transmit mode with TAG (8 GHz to 10 GHz) These pages are not included in the total number of pages for this report.

Test Setup Photos

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 PHOTO SECTION FOR RFI TEST REPORT SERIAL NO: RFI/EMCB2/RP42685JD06 Test Of: Maynetronics Ltd NOMAD W4-2 To: FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 RADIO FREQUENCY INVESTIGATION LTD.Photograph Section S.No: RFI/EMCB2/RP42685JD06 EMC Department Issue Date: 14 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 This appendix contains the following photographs: Photo Reference NumberTitle PHT/42685JD06/001Front View of EUT PHT/42685JD06/002Rear View of EUT PHT/42685JD06/003Side View of Conducted Emissions Set-up PHT/42685JD06/004Rear View of Conducted Emissions Set-up These pages are not included in the total number of pages for this report. RADIO FREQUENCY INVESTIGATION LTD.Photograph Section S.No: RFI/EMCB2/RP42685JD06 EMC Department Issue Date: 12 February 2002 Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.Photograph Section S.No. RFI/EMCB2/RP42685JD06 EMC Testing Department Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 PHT/42685JD06/001 Front View of EUT RADIO FREQUENCY INVESTIGATION LTD.Photograph Section S.No. RFI/EMCB2/RP42685JD06 EMC Testing Department Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 PHT/42685JD06/002 Rear View of EUT RADIO FREQUENCY INVESTIGATION LTD.Photograph Section S.No. RFI/EMCB2/RP42685JD06 EMC Testing Department Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 PHT/42685JD06/003 Side View of Conducted Emissions Set-up RADIO FREQUENCY INVESTIGATION LTD.Photograph Section S.No. RFI/EMCB2/RP42685JD06 EMC Testing Department Test Of:Maynetronics Ltd NOMAD W4-2 To:FCC Part 15 Subpart C: 2000 (Intentional Radiators) Section 15.249 and 15.209 PHT/42685JD06/004 Rear View of Conducted Emissions Set-up

Contact Information

Applicant

Mr. George Mayne
[email protected]+441983564233Fax: +441983617081

Technical Contact

Radio Frequency Investigation LtdSimon Olford
[email protected]+44 1635 870207

Ewhurst Park · Hants · United Kingdom

Test Firm

RFI Global Services Ltd.Allan Hume
[email protected]44-1256-855439Fax: 44-1256-851195

Technical Specifications

#Rule PartsFrequency RangePower Output
215C0.125 MHz - 0.125 MHz90.00 µW
