OQH-CHUNGS-05-005Wireless Weather Station (Receiver)

WIRELESS WEATHER STATION C-8136 USER’S INSTRUCTIONS LCD-329 (US) LCD-330(EUROPE) Part NO: P17813600010 The multifunctional weather station is equipped with many functions providing thorough weather information to you. The receiver unit has a clear, easy-to-read display that shows weather forecast, indoor temperature pressure, time and date, as well as the temperature measured and transmitted by the sensor. It is able to receive and display readings from remote sensor. The 433 MHz technology means no wire installation is required and you can place the sensor anywhere you like. With radio controlled function, the current time and date are automatically synchronized with the time signal transmitted from Frankfurt, Germany (DCF77). The signal can cover a distance of about 1500 km from the related transmitter. 18 p. 1 p. the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 2 p. 17 p. MAIN FEATURES: WEATHTER STATION: 15 14 1 12 11 10 9 8 7 6 2 3 45 13 Accuracy of Temperature:+/- 1 ºC (1 ~ 30 ºC) Accuracy of Barometer:+/- 4mb (970 ~ 1030 mb @25ºC) Weight Main unit:265gm Remote sensor: 53gm Dimension Main unit:196(W)x129(H)x 22(D)mm Remote sensor:65(W)x93(H)x 27(D)mm FCC Remarks: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void Main unit:4.5 V, use 3 x AAA 1.5V alkaline battery Remote sensor:3 V, use 2 x AAA 1.5V alkaline battery 1. CLOCK : - Displays the time and radio controlled signal. 2. CALENDAR : - Displays the date, year, day of the week. 3. OUTDOOR AND INDOOR TEMPERATURE WINDOW: - Shows the outdoor and indoor temperature. 4. ATMOSPHERE PRESSURE : - Displays the current atmospheric pressure data. 5. WEATHER FORECAST : - Displays the weather forecast indicator. 6. TABLE STAND: - Use to stand on desktop. 7. SNOOZE : - Press it to stop alarm when it is sounding. 8. TIME: - Press it once to view the year. - Press and hold it for 2 seconds to enter the time setting mode. 9. DOWN: -In setting mode, press it to decrease the setting value. - In alarm mode, press it to turn on/off alarm and snooze. 16 p. 3 p. SPECIFICATIONS MAIN UNIT Indoor temperature measuring range: -5 ºC to +50 ºC Recommended operating range: 0 ºC to + 45 ºC Temperature resolution: 0.1 ºC / 1ºF (above 0 ºC) 1 ºC / ºF (below 0 ºC) REMOTE SENSOR Our Temperature measuring range: -20 ºC to +60 ºC Recommended operating range: -20 ºC to + 55 ºC Temperature resolution: 0.1 ºC / 1ºF (above 0 ºC) 1 ºC / ºF (below 0 ºC) RF transmission frequency:433MHz No of remote unit:1 unit RF transmission range:Maximum 30 meters Temperature sensing cycle:around 60 ~ 64 seconds Pressure measuring range:800mb to 1050mb Pressure sampling cycle:15 minutes Radio controlled signal:DCF77,MSF,WWVB Power: 10. UP: - In setting mode, press it to increase the setting value. - In alarm mode, press it to turn on/off alarm and snooze. 11. ALARM: - Press it to switch to alarm and temperature alarm. - In alarm mode, press and hold it for 2 seconds to enter the alarm and pre-alarm setting mode. 12. ºC / ºF: - Switch between ºC / ºF. 13. mb/hPa . inHg: - Switch between mb/hPa or inHg. 14. RESET: - Press it to set all of the values to factory value. - In case of mal-function, the unit may be required to reset. 15. WALL-MOUNTING HOLE: - Use to support the main unit on wall. 4 p. 15 p. USING THE TABLE STAND OR WALL MOUTING The receiver has both desk-top and wall-mounting structure. Fix the separate wall-mounting stand on the wall by screws. Push the stand of the clock upward, hang it on the wall-mounting stand by its recessed holes. For the transmitter, fix the wall-mount holder on the wall or simply place it on the table. TRANSMITTER: 1. LED indicator: - Flashes when the remote unit transmits a reading. 2. LCD: - Displays the current temperature monitored by the remote unit. 3. ºC / ºF: - Switches between ºC / ºF. 14 p. 5 p. 1 2 3 4 5 6 7 8 Snow Sunny LOW BATTERY INDICATOR When the battery does not have enough power to operate the unit, The Receiver’’s LCD becomes dim, and the transmitter’s low battery indicator will appear to remind you to replace with new batteries. Transmitter’s low battery indicator Transmitter’s low battery indicator ( shows on transmitter ) ( shows on the main unit) NOTE: Attention! Please dispose of used unit and batteries in an ecologically safe manner. CH 4. RESET: - Return all values to default value. 5. Battery compartment: - Accommodates 2 AAA size batteries. 6. Battery door 7. Wall mount holder: - Supports the transmitter in wall mounting. 8. Folding table stand BEFORE YOU BEGIN TRANSMITTER: 1. Remove the removable stand, unscrew the screws of the back cov…

Text truncated - open the document above for the full version.

CHUNG’S ELECTRONIC CO.,LTD. CHUNG’S EECTRONIC CO.,LTD Description name Block diagram Model C8154 File No FCC8154-BN Date 1/4/05 MCU1&2 Crystal 32k 433MHz RF receiver (super regeneration) LCD display Temperature sensor Humidity sensor pressure sensor Figure 1 C-8136 Block diagram 60 kHz RCC Receiver Ferrite antenna Keyboard 3V Regulator 4.5V batter y

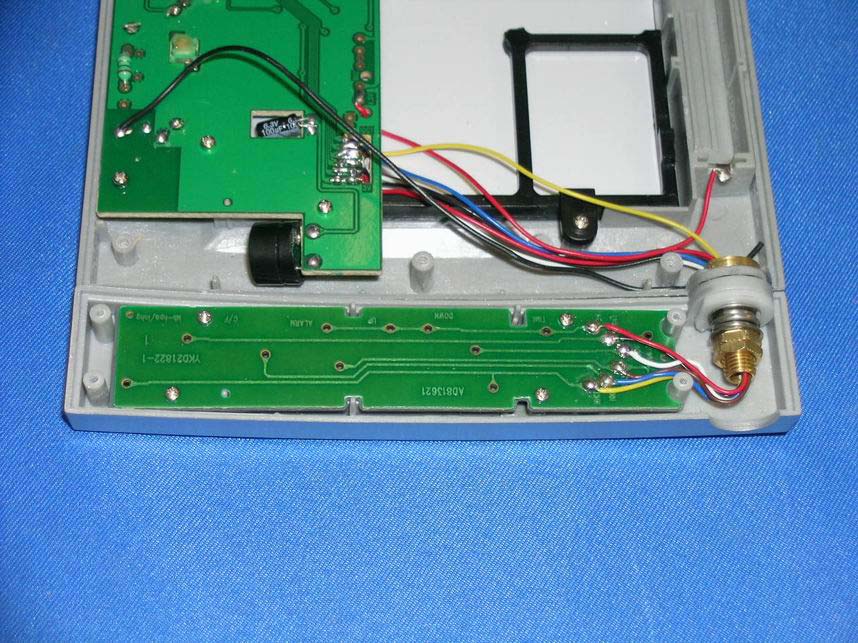

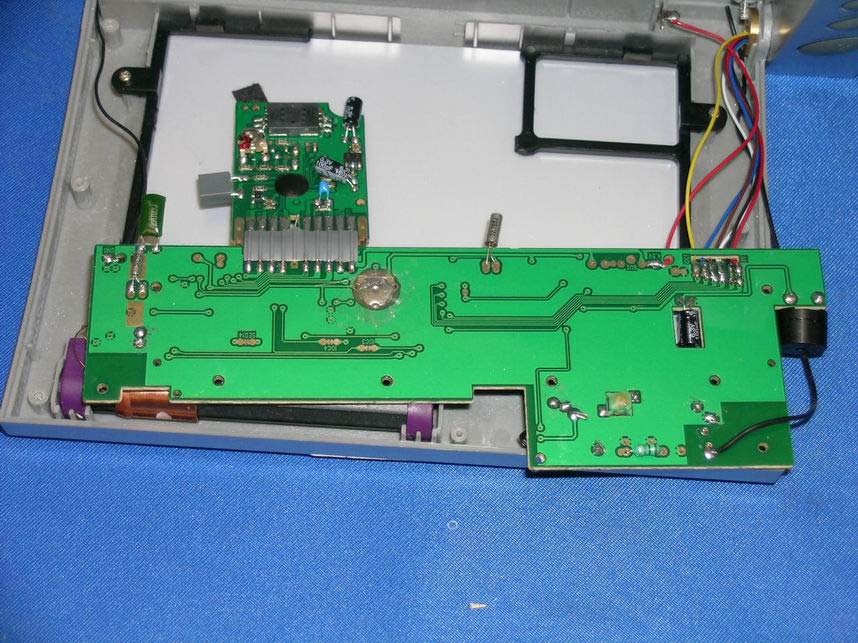

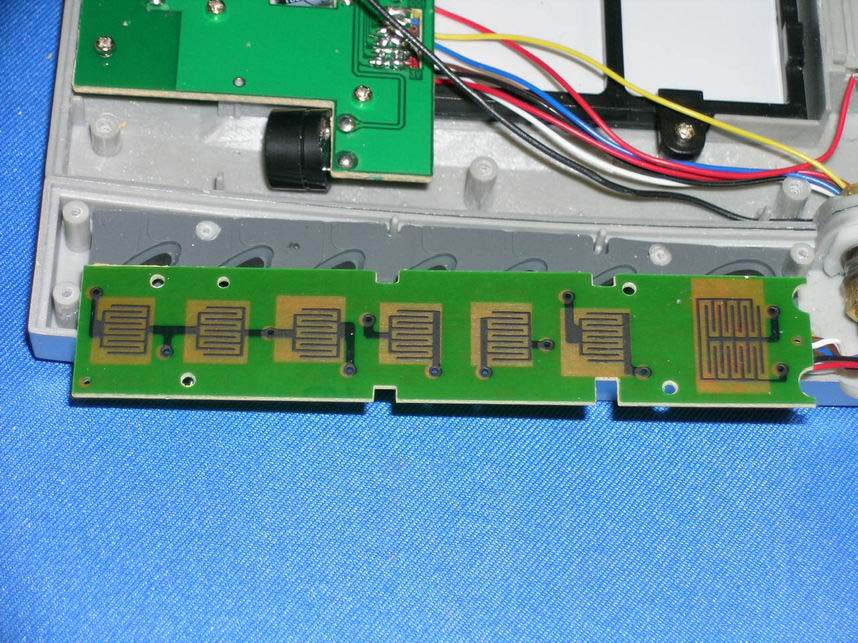

Test Setup FCC ID : OQH-CHUNGS-05-005 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : OQH-CHUNGS-05-005 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : OQH-CHUNGS-05-005 Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : OQH-CHUNGS-05-005 Internal Photo - 7 Internal Photo - 8

C-8136 TECHNICAL DESCRIPTION A. CIRCIUT OPERATION 1. Temperature sensor. Provide temperature data for (MCU) micro controller unit. 2. Humidity sensor . Provide Humidity data for (MCU) micro controller unit. 3. Pressure sensor & A/D IC Provide air pressure data for A/D IC ,and then input MCU 1. 4. MCU1+MCU2 The micro controller unit (MCU) are encoding and manipulating temperature Humidity and pressure data and RC clock and 433 received and driver LCD. 5. RF Receiver Receive Convert RF modulated information into digital for (MCU). 6. Voltage regulator Stable RF receiver and (MCU) and (RC) Radio controlled receiver voltage . 7. LCD Display option Display indoor outdoor temperature and Humidity ,pressure ,pressure bar ,moon phase, time, date and other . B. COMPONENT DESCRIPTION CATEGOR Y NUMBER NAME DESCRIPTION Regulator 3A-0R 3V Regulator Stable RF receiver, RCC, pressure board and MCU Transistor 2SC1623 L6 Buzzer driver(Q1) Transistor 2SC1623 L6 RF receiver switch(Q2) Transistor 2SA812 M6 RF receiver switch(Q3) and reset circuit(Q4) Transistor H2D RF transistor 433.92MHz RF receiver IC SSC32210 Pressure A/D Pressure A/D MCU1 + MCU2 TM8726 MSM64162A Micro controller unit decoding and manipulating temperature Humidity data from transmitter ,radio controlled ,pressure and drive LCD display . Crystal 32.768KHz 3*8 32k Quartz Stable MCU master clock Crystal 60KHz 2*6 60k Quartz For RCC receiver Display LCD329 C8136LCD Display time ,indoor outdoor temperature ,Humidity, 433 channel, alarm time, Pressure ,pressure bar ,weather and moon phase IC TL062CD SMD 062 433 MHz receiver Low pass amplifier and comparator IC UE6005 6005 RCC receiver IC RCC receiver Transducer 8.5mm Transducer Alarm sound output Sensor 103AT Temperature sensor Provide temperature data for MCU Sensor DMP015A Pressure sensor Provide pressure data for MCU CHUNG’S ELECTRONIC CO.,LTD Name TECHNICAL DESCRIPTION Model C8136 File No FCC8136-T Date 1/4/05

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Chung's Electronic Co., Ltd. Application For Certification (FCC ID: OQH-CHUNGS-05-005) Superregenerative Receiver 0507005 DL/ Sandy Lee June 13, 2005 INTERTEK TESTING SERVICES FCC ID: OQH-CHUNGS-05-005 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: OQH-CHUNGS-05-005 ii MEASUREMENT/TECHNICAL REPORT Chung's Electronic Co., Ltd. - MODEL: CHUNG'S C-8136 FCC ID: OQH-CHUNGS-05-005 This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: OQH-CHUNGS-05-005 iii Table of Contents 1.0 General Description .......................................................................................... 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants ................................................................................ 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration ............................................................................... 5 2.1 Justification ......................................................................................................... 5 2.2 EUT Exercising Software .................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty ................................................................................... 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results .............................................................................................. 8 3.1 Field Strength Calculation ................................................................................... 9 3.2 Radiated Emission Configuration Photograph ................................................... 10 3.3 Radiated Emission Data.................................................................................... 11 4.0 Equipment Photographs ................................................................................. 14 5.0 Product Labelling ............................................................................................ 16 6.0 Technical Specifications ................................................................................ 18 7.0 Instruction Manual .......................................................................................... 20 8.0 Miscellaneous Information ............................................................................. 22 8.1 Stabilization Waveform...................................................................................... 23 8.2 Discussion of Pulse Desensitization .................................................................. 24 8.3 Calculation of Average Factor ........................................................................... 25 8.4 Emissions Test Procedures............................................................................... 26 INTERTEK TESTING SERVICES FCC ID: OQH-CHUNGS-05-005 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Stabilization Waveform superreg.pdf INTERTEK TESTING SERVICES FCC ID: OQH-CHUNGS-05-005 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: OQH-CHUNGS-05-005 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Receiver operating at 433MHz. The EUT is powered by 4.5V d.c. (3 x 1.5V “AAA” battery). It receives temperature signal from corresponding transmitter and display the reading on…

Text truncated - open the document above for the full version.

Test Setup FCC ID : OQH-CHUNGS-05-005 Radiated Photo - Front Radiated Photo - Rear RADIATED Model: C-8136 Job No.: 0507005 RADIATED Model: C-8136 Job No.: 0507005
