OSCMSP-345Printer

List of Exhibit EXHIBIT A Sample Label EXHIBIT BTest Report EXHIBIT CUser Manual EXHIBIT DCircuit Diagram EXHIBIT EBlock Diagram EXHIBIT FPhotographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:MSP-345 Classic FCC ID:OSCMSP-345 LABEL Size: 80 x 25 mm LABEL Position:

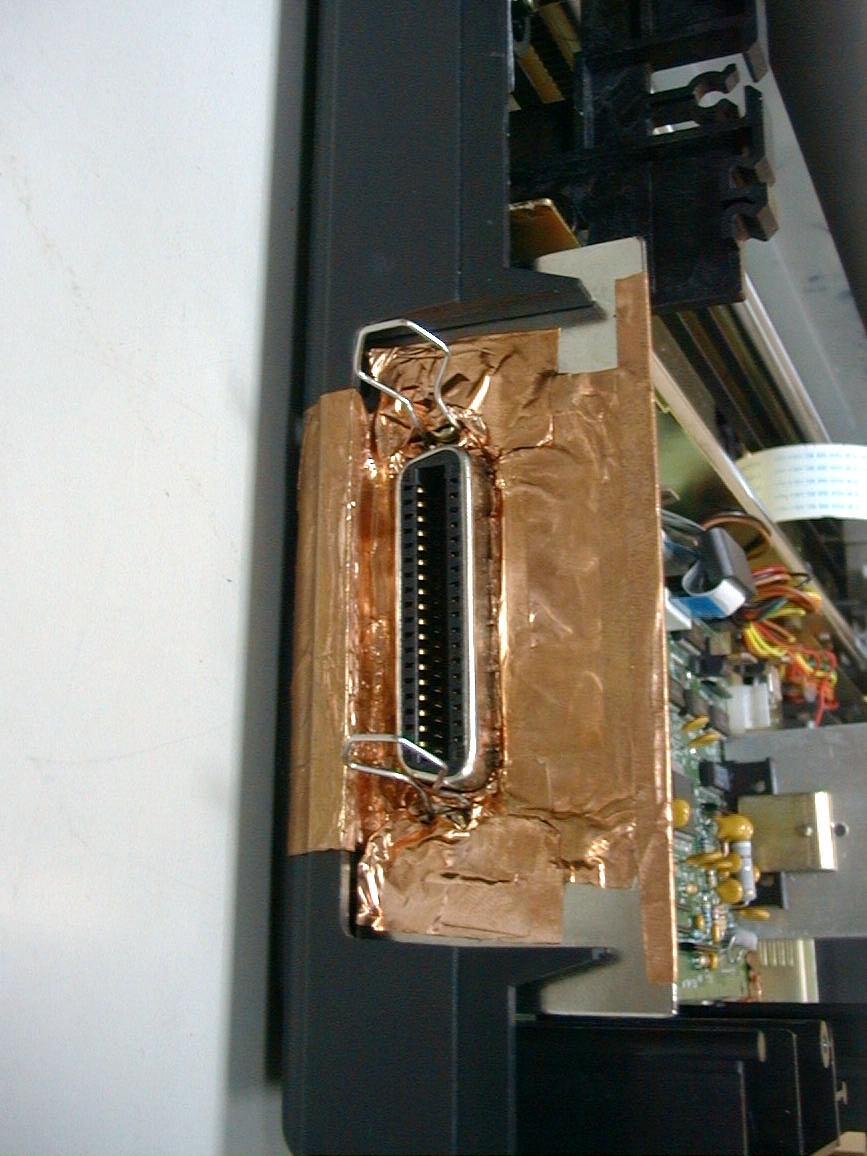

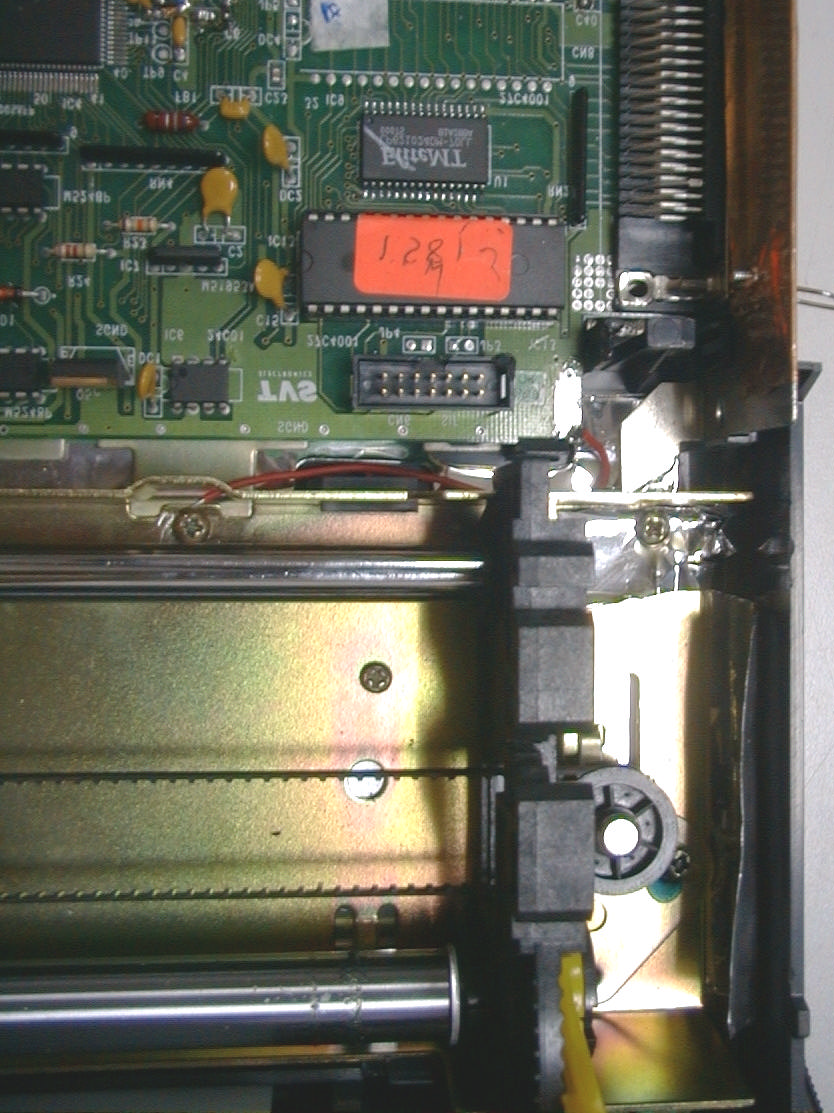

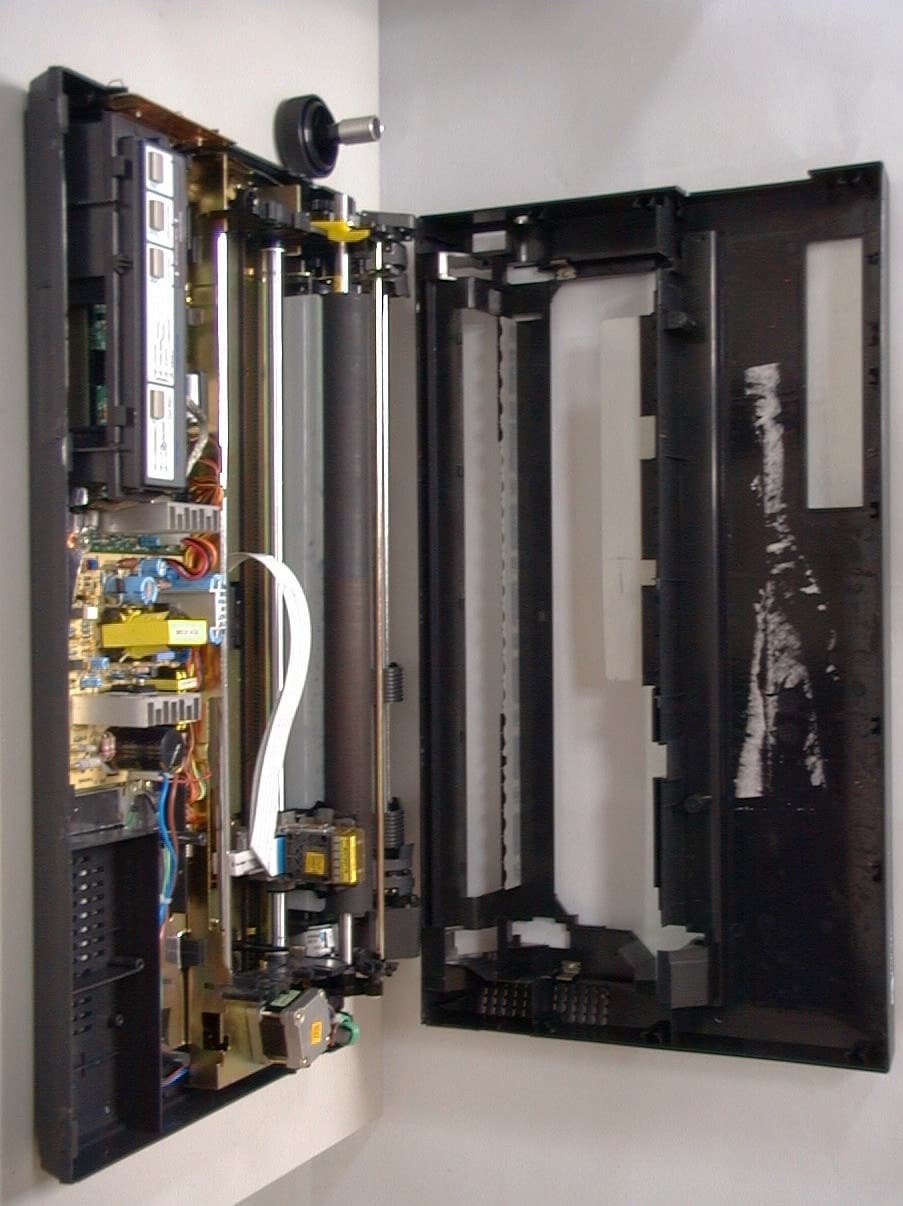

EXHIBIT F-1 Photographs of EUT

EXHIBIT F-2 Photographs of EUT

Test Report -------------------------------------------------------------------------------- 2/14 Report No.: T5415369 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Contents Chapter 1 Introduction Description of EUT ................................................................................................................. 3 Configuration of Test Setup ..................................................................................................... 4 List of Support Equipment ....................................................................................................... 5 Chapter 2 Conducted Emission Test Test Condition and Setup ........................................................................................................ 7 Conducted Test Placement ...................................................................................................... 8 Chapter 3 Radiated Emission Test Test Condition and Setup ........................................................................................................ 9 Radiated Test Placement ........................................................................................................ 10 Appendix A : Conducted test result .............................................................................................................. 11 Appendix B : Radiated test result ................................................................................................................. 12 Appendix C : List of modifications ................................................................................................................ 14 Test Report -------------------------------------------------------------------------------- 3/14 Report No.: T5415369 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 1Introduction Description of EUT: This device is printing data equipment. It is designed to connect with a personal computer via parallel port of PC. Connections of EUT: (1) The power port of EUT is connected with AC power source. (2) The parallel port of EUT is connected with the parallel port of PC. Test method: Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. During testing, the EUT was operated at “continuously printing” mode. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report -------------------------------------------------------------------------------- 4/14 Report No.: T5415369 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Configuration of test setup Connections: PC: *Serial port --- via a 76cm shielded RS-232 cable to an external modem *Printer port --- EUT *Keyboard port --- a keyboard with 1.7m length data cable *Mouse port --- a mouse with 1.88m length data cable *Monitor port --- a monitor with 1.45m long of data cable *USB port A --- a joystick with 1.5m long, shielded and no ferrite bead data cable *USB port B --- a mouse with 1.5m long, shielded and no ferrite bead data cable (Each port on PC is connected with suitable device) EUT: *Power Port --- via a 1.75m long, non-shielded, no ferrite bead, power cable to the AC power source *Parallel Port --- via a 1.45m long, shielded, no ferrite bead, data cable to the parallel port of person computer EUT USB Mouse USB Joystick Mouse Keyboard Monitor Modem PC Power Test Report -------------------------------------------------------------------------------- 5/14 Report No.: T5415369 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 List of support equipment Conducted (Radiated) test: PC:HP Brio 85xx 6/350 Model No.:D6928A Serial No. :SG91801535 FCC ID:N/A, Doc Approved :3872H013 Power type:100 ~ 230VAC / 50 ~ 60Hz, 5A, Switching Power cord :Non-shielded, 2.30m long, Plastic, No ferrite core Monitor :HP 15’ Color Monitor Model No.:D2827A Serial No. :KR91161719 (KR91161717) FCC ID:C5F7NFCMC1518X :3872B039 Power type:110 ~ 240 VAC / 50 ~ 60 Hz, Switching Power cord:Shielded, 1.83m long, No ferrite core Data cable :Shielded, 1.46m long, with two ferrite cores Keyboard:HP Model No.:SK-2501K Serial No. :MR80700789 (M990308909) FCC ID:GYUR38SK :3862A621 Power type:By PC Data cable :Shielded, 1.73m long, with ferrite core Mouse:HP Model No.:M-S34 Serial No. :LZB90714106 (LZB90714122) FCC ID:DZL211029 :4862A011 Power type:By PC Power cord:Non-shielded, 1.88m long, No ferrite core Test Report -------------------------------------------------------------------------------- 6/14 Report No.: T5415369 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Modem:ACEEX Model No.:XDM-9624 FCC ID:IFAXDM-9624 Power type:220VAC, 50Hz / 9VAC, 1A Power cord:Non-shielded, 1.9m long, No ferrite cord Data cable :RS232, Shielded, 1.2m long, No ferrite core RJ11C x 2, 7’ long non-shielded, No ferrite core USB Mouse:Logitech Model No.:M-BA47 Serial No. :LZE92250027 FCC ID:N/A, Doc Approved :4872A220 Power type:Powered by PC Power Cable:Shielded, 1.5m long, Plastic hoods, No ferrite bead USB Joystick:Padix Model No.:QF-305U Serial No. :8100848 FCC ID: N/A, Doc Approval Power type:Powered by PC Power Cable:Shielded, 1.5m long, No ferrite bead data cable Test Report -------------------------------------------------------------------------------- 7/14 Report No.: T5415369 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 2Conducted Emission Test Test condition and setup: All the equipment is placed and setup according to the CISPR 22. The EUT is assembled on a wooden table, which is 80 cm high, is placed 40 cm from the back-wall which is a vertical conducting plane. One LISN is for EUT, the other LIS…
