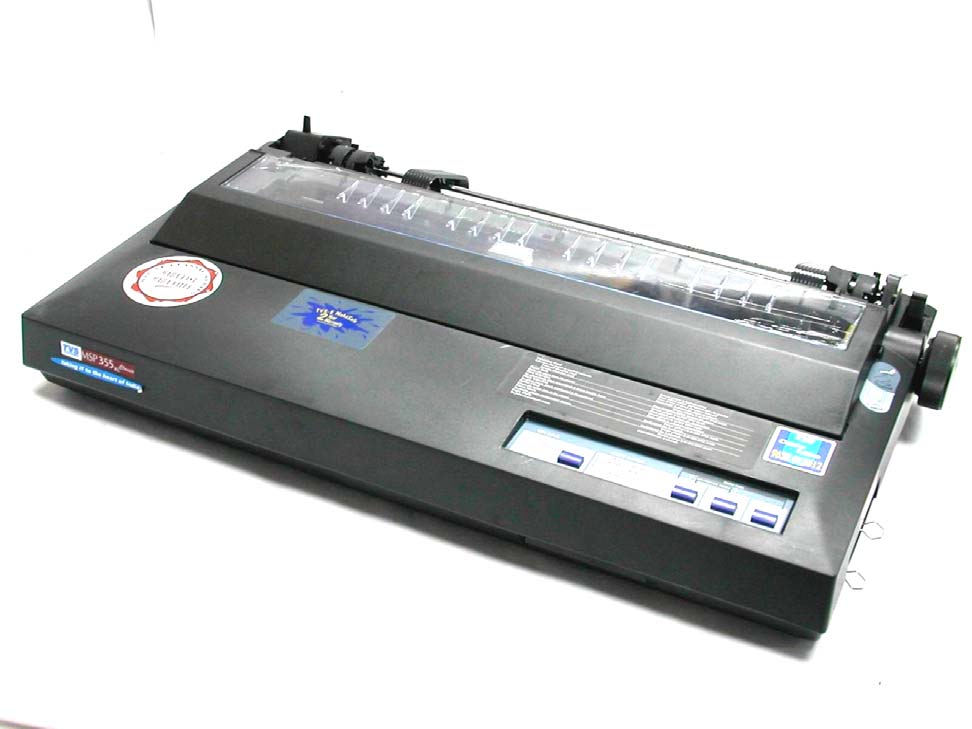

OSCMSP355XLCPRINTER

India’s largest manufacturer of Peripherals l Dot Matrix Printers l UPS Systems l Keyboards Superior Printing Quality for your Business W a rra n ty 2 2 Y e a r (I n c lu d in g P r in t H e a d ) uSuperior Printing Speed - 432cps uLong Print Head Life - 200 Million Characters uWide Input Buffer - 100 KB uDual Interface - Parallel & Serial with Auto Sensing uConvertible Push & Pull Tractor uFlexible Paper Handling - Top, Rear & Bottom Visit us at www.tvs-e.com TVS Electronics Limited 34, Developed Plots, South Phase, Industrial Estate, Guindy, Chennai - 600 032. Ph: (44)2325506 / 09 Fax: (44)2327577 Branch Offices: n Ahmedabad: Ph: (79)7412325 / 35 / 37 E-mail: [email protected] n Bangalore: Ph: (80)6566172 / 6568156 E-mail: [email protected] n Bhopal: Ph: (755)275988 E-mail: [email protected] n Chandigarh: Ph: (172)605581 E-mail: [email protected] n Chennai: Ph: (44)8526290 / 8526469 E-mail: [email protected] n Hyderabad: Ph: (40)7816667 / 7845144 E-mail: [email protected] n Kochi: Ph: (484)355433 / 360462 / 3 / 4 E-mail: [email protected] n Kolkata: Ph: (33)4769611-14 E-mail: [email protected] n Lucknow: Ph: (522)285614 / 282042 E-mail: [email protected] n Mumbai: Ph: (22)7912766-70 / 7668496 / 7668498 E-mail: [email protected] n New Delhi: Ph: (11)4603367-69 / 4603714 E-mail: [email protected] n Pune: Ph : (20)5674508 / 5675364 E-mail: [email protected] Product Specifications Print MethodSerial Impact Dot Matrix Print DirectionBi-directional Logic Seeking Print Head - Type24 - Wire Print Width136 Column Print Head Life200 Million Characters Print Speed Character Pitch (cpi)101215 High Speed Draft (cps)400 Draft (cps)300360375 Letter Quality (cps)83100125 Resident Printer Fonts DraftDraft, High Speed Draft Letter QualityRoman, Sans Serif, Courier, Prestige, Script, Script-C, Orator, OCR-B, Orator-S Letter Quality Scalable FontsRoman & Sans Serif (8 to 40 points) Fast LQ*Prestige Paper Handling Paper Path-StandardTop, Rear and Bottom Continuous-Tractor Feed-Standard Convertible Push & Pull Paper Size Continuous Form Width4 - 16” Cutsheets Width7.2 - 16.1” Paper Thickness (max) - Tractor feed 0.3 mm Paper Thickness (max) - Friction feed 0.3 mm Copy Capability1+3 with Carbon Consumables - Ribbon Fabric-Ink TypeHigh Density (Mobius Loop) Fabric Life3 Million Characters 1 kg = 2.2lbs; 1 inch = 2.54 cms. Input Buffer (Kilo Bytes)100 KB Reliability-MTBF (Power On Hours)6,000 POH Acoustics - Noise Level55 dB(A) EmulationESC P/2, IBM Proprinter XL24e Interface StandardIEEE-P1284A Parallel & RS-232 C Serial (Auto Interface Switching) Electrical Specifications Operating Voltage150 VAC ~ 270 VAC Mains Frequency47 - 63 Hz Power (Standby)12 W Environmental - Operating Conditions Temperature+5 to +45 o C Relative Humidity10% to 80% Physical Dimensions Size (WxDxH) mm608 x 379 x 147 Weight (Kg)7 Ordering Information SKU / FRU No.Description 1355MS09MSP 355 xl Classic Standard ConfigurationCD-ROM Quick Reference Guide Insertion Plate Convertible Push/Pull Tractor Black Ribbon Cartridge Parallel Interface Cable Power Cord Consumables 3M011058High Density Black Ribbon Note: All specifications are at standard operating conditions and are subject to change without notice. Dealer / Channel Partner / Contact: NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

Test Report --------------------------------------------------------------------------- 2/13 Report No.: T5415032 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Contents Chapter 1 Introduction Description of EUT ................................................................................................................... 3 Configuration of Test Setup ...................................................................................................... 4 List of Support Equipment ........................................................................................................ 5 Chapter 2 Conducted Emission Test Test Condition and Setup .......................................................................................................... 7 Conducted Test Placement ........................................................................................................8 Chapter 3 Radiated Emission Test Test Condition and Setup .......................................................................................................... 9 Radiated Test Placement .......................................................................................................... 10 Appendix A : Conducted test result ................................................................................................................ 11 Appendix B : Radiated test result ................................................................................................................... 12 Appendix C: List of Modifications ................................................................................................................ 13 Test Report --------------------------------------------------------------------------- 3/13 Report No.: T5415032 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 1 Introduction Description of EUT: The EUT is a Dot Matrix Printer. Test method: Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. During the pretest, the EUT was at “operating” mode. The test voltage is 230Vac/50Hz. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report --------------------------------------------------------------------------- 4/13 Report No.: T5415032 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Configuration of test setup Connections: PC: *Serial Port --- via a 76cm shielded RS-232 cable to an external modem *Monitor Port --- a monitor with 1.5m length data cable. *Keyboard Port --- a keyboard with 1.7m length data cable. *Mouse Port --- a mouse with 1.8m length of data cable. *Printer port --- to EUT. *USB Port A --- a joystick with 1.5m length shielded and no ferrite bead data cable *USB Port B --- a mouse with 1.5m length shielded and no ferrite bead data cable (Each port on PC is connected with suitable device) EUT: *Printer port --- via a 1.18m length braid shielded data cable to the printer port of PC. *Power port --- via a 2.0m length power cable to the power source. Power Source PS/2 Mouse Keyboard Monitor PC Modem USB Mouse USB Joystick EUT Test Report --------------------------------------------------------------------------- 5/13 Report No.: T5415032 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 List of support equipment Conducted (Radiated) test: PC : HP Brio 85xx 6/350 Model No. : D6928A Serial No. : SG91801443 FCC ID : Doc Approved Power type : 100 ~ 230VAC / 50 ~ 60Hz, 5A, Switching Power cord : Non-shielded, 2.33m long, Plastic, No ferrite core Keyboard : Logitech SK-720C Model No. : Y-SA2 Serial No. : SCC04514357 FCC ID : GYUR49SK Power type : By PC Data cable : Shielded, 1.73m long, with ferrite core Monitor : HP 15’ Color Monitor Model No. : D2827A Serial No. : KR91161719 FCC ID : C5F7NFCMC1518X Power type : 110 ~ 240 VAC / 50 ~ 60 Hz, Switching Power cord : Shielded, 1.83m long, No ferrite core Data cable : Shielded, 1.46m long, with two ferrite cores Mouse : HP Model No. : M-S34 Serial No. : LZB90714106 (LZB90714122) FCC ID : DZL211029 Power type : By PC Power cord : Non-shielded, 1.88m long, No ferrite core USB Mouse : Logitech Wheel Mouse Model No. : M-BJ-58 Serial No. : LN20901985 FCC ID : Doc Approved Power type : By PC Power cord : Non-shielded, 1.88m long, No ferrite core Test Report --------------------------------------------------------------------------- 6/13 Report No.: T5415032 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Modem : ACEEX Model No. : DM-1414V FCC ID : IFAXDM1414 Power type : 120VAC, 60Hz/ 9VAC, 1A Power cord : Non-shielded, 1.9m long, no ferrite cord Data cable : RS232, Shielded, 1.2m long, no ferrite core RJ11C x 2, 7’ long non-shielded, no ferrite core USB Joystick : Rockfire Model No. : QF-337uv Serial No. : 10600545 FCC ID : CE Approval Power type : Powered by PC Power cable : Shielded, 1.8m long, No ferrite bead data cable Test Report --------------------------------------------------------------------------- 7/13 Report No.: T5415032 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 2 Conducted emission test Test condition and setup: All the equipment is placed and setup according to the CISPR 22. The EUT is assembled on a wooden table that is 80 cm high, is placed 40 cm from the back-wall that is a vertical conducting plane. One LISN is for EUT, the other LISN is for support equipment. They are all placed on the conductive ground. The EUT’s LISN connect a line switch box for selecting L1 or L2, then connect to a preamplifier and spectrum for pretest. The spectrum measured from 150KHz to 30MHz. Conducted emission levels are detected at ma…
