OSCTVSGOLD104Tamil/English Keyboard

EXHIBIT C User Manual

EXHIBIT E Block Diagram

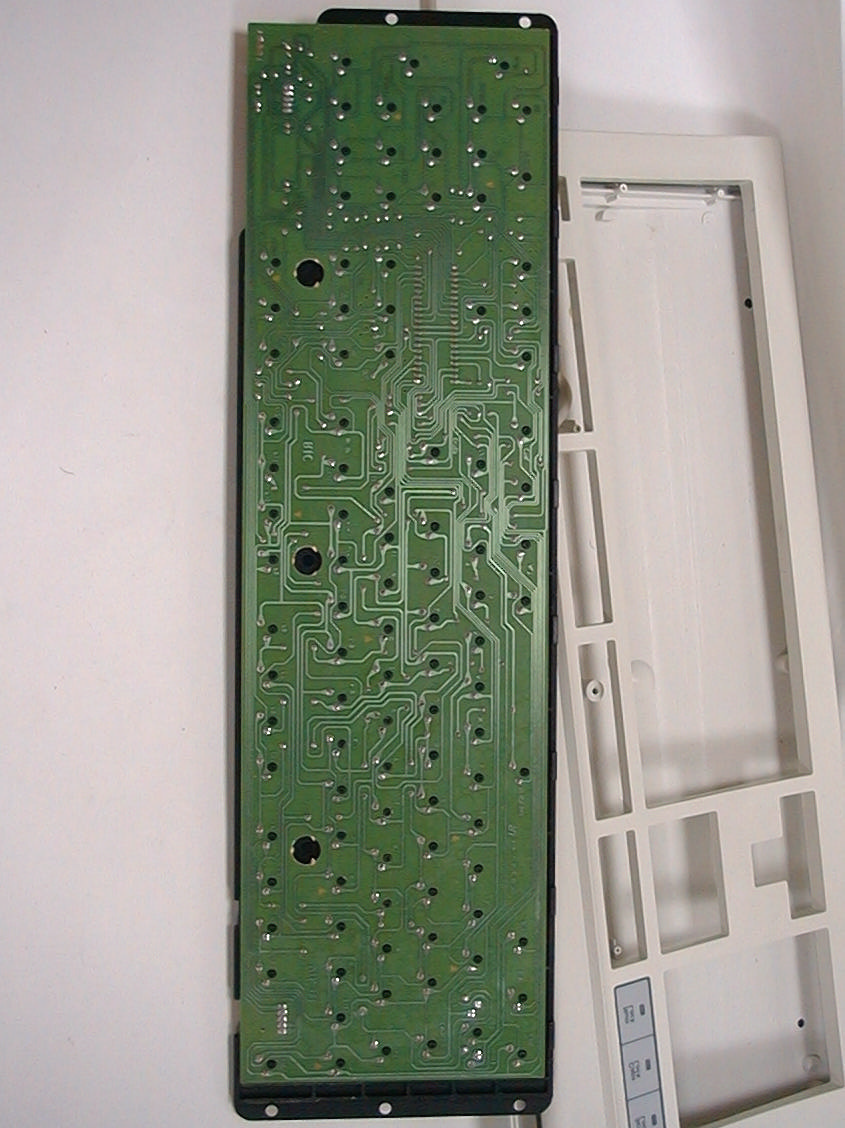

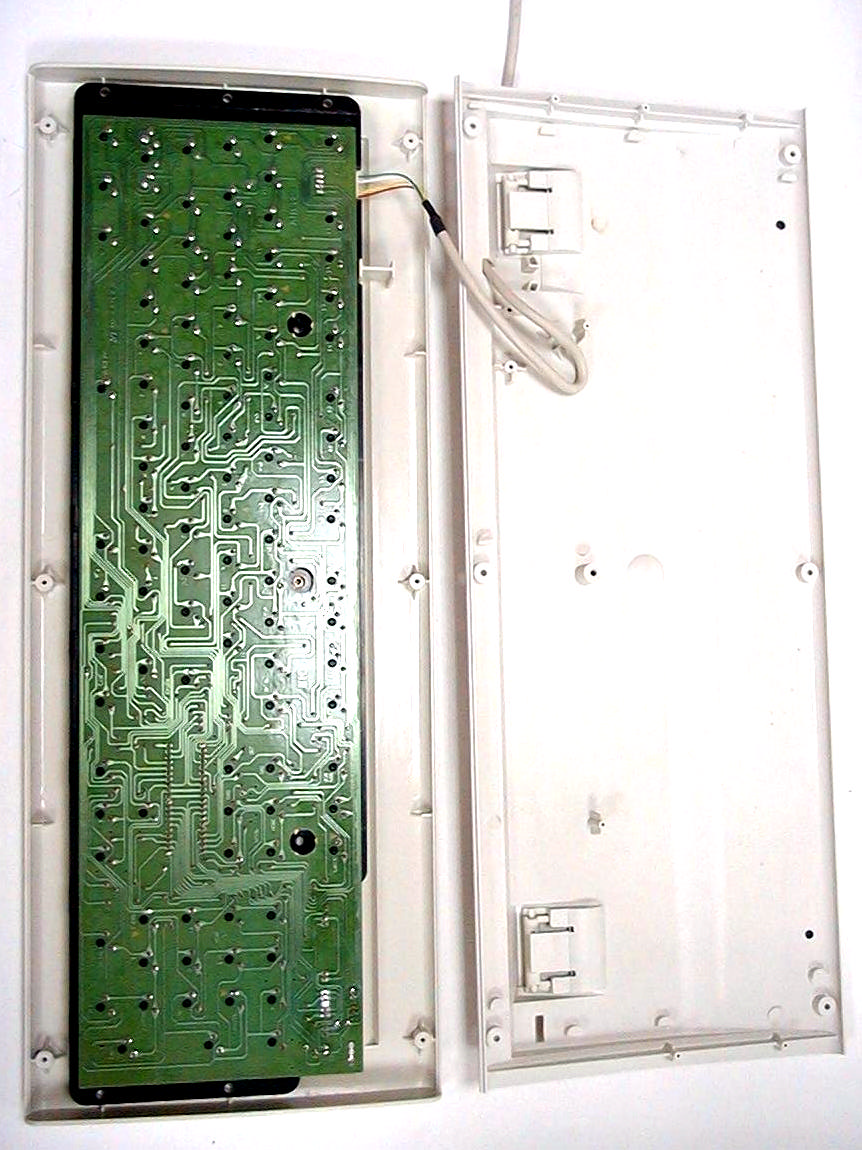

EXHIBIT F Photographs of EUT

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format : This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:TVS GOLD MODEL 104 FCC ID:OSCTVSGOLD104 LABEL Size : 6323 mm LABEL Position :

EXHIBIT D Circuit Diagram

EXHIBIT B Test Report Test Report --------------------------------------------------------------------------------------------------------------- 2/13 Report No.: T5415787, Tamil / English Keyboard, FCC Part 15,Class B Test date: 09/23/99, Training Research Co., Ltd. , TEL:886-2-26935155, Fax:886-2-26934440 Contents Chapter 1 Introduction Description of EUT................................................................................................................... 3 Configuration of Test Setup....................................................................................................... 4 List of Support Equipment........................................................................................................ 5 Chapter 2 Conducted Emission Test Test Condition and Setup........................................................................................................... 7 Conducted Test Placement......................................................................................................... 8 Chapter 3 Radiated Emission Test Test Condition and Setup........................................................................................................... 9 Radiated Test Placement........................................................................................................... 10 Appendix A: Conducted test result................................................................................................................ 11 Appendix B: Radiated test result................................................................................................................... 12 Test Report --------------------------------------------------------------------------------------------------------------- 3/13 Report No.: T5415787, Tamil / English Keyboard, FCC Part 15,Class B Test date: 09/23/99, Training Research Co., Ltd. , TEL:886-2-26935155, Fax:886-2-26934440 Chapter 1Introduction Description of EUT: The EUT is designed to be connected with the PS/2 keyboard port of PC. The EUT offers substantially greater life and enhanced handling comfort along with a string of other value added benefits. In addition to the EUT, the bi-lingual feature is also available in 7 other languages. Connections of EUT: (1) The PS/2 plug of EUT is connected with the keyboard port of PC. Test method: Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. During testing, the EUT was depressed one key continuously. This was done in order to ensure that maximum emission levels were attained. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report --------------------------------------------------------------------------------------------------------------- 4/13 Report No.: T5415787, Tamil / English Keyboard, FCC Part 15,Class B Test date: 09/23/99, Training Research Co., Ltd. , TEL:886-2-26935155, Fax:886-2-26934440 Configuration of test setup Power ModemMonitor Printer PC EUTMouse USBUSB MouseJoystick Connections: PC: *Serial A port --- via a 76 cm shielded RS232 to an external modem *Printer port --- a printer with 1.2m length data cable *Keyboard port --- EUT *Mouse port --- a mouse with 1m length data cable *Monitor port --- a monitor with 0.7m long of data cable *USB port A --- a joystick with 1.5m long, shielded and no ferrite bead data cable *USB port B --- a mouse with 1.5m long, shielded and no ferrite bead data cable (Each port on PC is connected with suitable device) EUT: *PS/2 plug --- via 135cm long, shielded, no ferrite bead, data cable to the keyboard port of PC. Test Report --------------------------------------------------------------------------------------------------------------- 5/13 Report No.: T5415787, Tamil / English Keyboard, FCC Part 15,Class B Test date: 09/23/99, Training Research Co., Ltd. , TEL:886-2-26935155, Fax:886-2-26934440 List of support equipment Conducted (Radiated) test: PC :HP Brio 85xx 6/350 Model No.:D6928A Serial No. :SG91801443 (TW90400174) FCC ID:N/A, Doc Approved :3872H013 Power type:100 ~ 230VAC / 50 ~ 60Hz, 5A, Switching Power cord :Non-shielded, 2.30m long, Plastic, No ferrite core Monitor :HP 15’ Color Monitor Model No.:D2827A (D2832A) Serial No.:KR91161716 (MY90615892) FCC ID:C5F7NFCMC1518X (N/A, Doc Approved) :3872B039 (4872A167) Power type:110 ~ 240 VAC / 50 ~ 60 Hz, Switching Power cord:Shielded, 1.80m long, No ferrite core Data cable :Shielded, 1.50m long, with two ferrite cores Mouse:HP Model No.:M-S34 Serial No.:LZC84446151 (LZB90910462) FCC ID:DZL211029 :4862A011 Power type:By PC Power cord:Non-shielded, 1.80m long, no ferrite core Modem:ACEEX Model No.:XDM-9624 FCC ID:IFAXDM-9624 Power type:110VAC, 60Hz / 9VAC, 1A Power cord:Non-shielded, 1.9m long, no ferrite cord Data cable :RS232, Shielded, 1.2m long, no ferrite core RJ11C x 2, 7’ long non-shielded, no ferrite core Test Report --------------------------------------------------------------------------------------------------------------- 6/13 Report No.: T5415787, Tamil / English Keyboard, FCC Part 15,Class B Test date: 09/23/99, Training Research Co., Ltd. , TEL:886-2-26935155, Fax:886-2-26934440 Printer:EPSON Model No.:P78PA (P70RA) Serial No. :0EE0014030 (10010386) FCC ID:BKM9A8P70RA Power type:110VAC, 60Hz Power cord:Non-shielded, 2m long, no ferrite core Data cable :Shielded, 1.84m (1.7m) long, no ferrite core USB Joystick :Padix Model No.:QF-305U Serial No.:N/A (8100848) FCC ID: N/A, Doc Approval Power type:Powered by PC Power Cable:Shielded, 1.5m long, no ferrite bead data cable USB Mouse:Logitech (Chic) Model No.:M-BA47 (CM-USB) Serial No.:LZE92250027 (N/A) FCC ID:N/A, Doc Approved :4872A220 (N/A) Power type:Powered …
