OSZ39000C2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card

Preliminary User manual FCC ID: OSZ39000C Page 1 of 10 Intersil ISL39000C IEEE 802.11a/g WLAN Cardbus32 Card User Manual Version 0.1 Preliminary User manual FCC ID: OSZ39000C Page 2 of 10 Table of Contents 0-INTRODUCTION .................................................................................................... 3 1-INSTALLATION PROCEDURE ........................................................................... 3 1.1 INSTALLING THE CARDBUS32 CARD INTO THE HOST PC NOTEBOOK............... 3 1.2 INSTALLING THE SOFTWARE DRIVERS................................................................ 3 1.3 WIRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE.7 2-REGULATORY INFORMATION ........................................................................ 7 2.1 FCC INFORMATION TO USER............................................................................. 7 2.2 FCC GUIDELINES FOR HUMAN EXPOSURE........................................................ 7 2.3 FCC ELECTRONIC EMISSION NOTICES.............................................................. 7 2.4 FCC RADIO FREQUENCY INTERFERENCE STATEMENT..................................... 8 2.5 EXPORT RESTRICTIONS....................................................................................... 8 2.6 EUROPE - EU DECLARATION OF CONFORMITY................................................. 9 3-TECHNICAL SPECIFICATIONS....................................................................... 10 Preliminary User manual FCC ID: OSZ39000C Page 3 of 10 0-Introduction The Intersil ISL39000C WLAN NIC is a complete wireless high speed Network Interface Card (NIC). It conforms to the IEEE 802.11g and IEEE 802.11a protocol and operates in the 2.45 GHz and 5150- 5350MHz frequency bands. It provides a complete reference design evaluation platform of hardware and software to system providers or integrators requiring wireless data communications capability and is ideal for integration into computer platforms. • Fully compliant with the IEEE 802.11g and IEEE 802.11a WLAN standards • FCC Certified Under Part 15 (pending) to Operate in the 2.45 GHz and 5150-5350MHz Bands • Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates • Driver Supports Microsoft Windows ® 98/SE, ME, XP and 2000 (SR1) 1-Installation procedure 1.1 Installing the Cardbus32 card into the host PC Notebook a-Turn Host PC off, then insert Cardbus card into Cardbus slot of notebook Host PC. CAUTION: 1-- This assembly is designed to operate with a supply voltage of 3.3V in laptop computers supporting the CARDBUS32 standard. 2-- Do not force engagement of the card in the CARDBUS32 slot. It is mechanically designed to prevent improper insertion. 1.2 Installing the software drivers a-Start windows b-When windows detects new hardware and asks for drivers, point to directory where the Intersil driver is located (for example floppy drive, cdrom , harddisk) to install. c-after drivers are installed, restart windows d-the Intersil WLAN icon will appear in system tray on the bottom right of the screen (see yellow arrow in fig. 01) fig, 01: Intersil WLAN icon Preliminary User manual FCC ID: OSZ39000C Page 4 of 10 e-double click the Intersil WLAN icon to open the WLAN settings, the following window will appear (see fig.02) fig, 02: Intersil WLAN settings window f-click on configuration tab and select which type of network is required (access point or Peer-to-peer mode), see fig. 03. fig, 03: WLAN network type setting window Preliminary User manual FCC ID: OSZ39000C Page 5 of 10 g-select what TX rate is required (default setting is fully automatic) see fig. 04. fig, 04: WLAN tx rate setting window h-select what encryption type is required, 64 or 128 bit WEP (default setting is disabled) see fig. 05. fig, 05: WLAN encryption rate setting window Preliminary User manual FCC ID: OSZ39000C Page 6 of 10 i-click on the status tab to see the connection status (fig.06). fig, 06: WLAN network status j-click on the about tab to see the software drivers versions and MAC address (fig.07). fig, 07: WLAN driver and MAC addres information Preliminary User manual FCC ID: OSZ39000C Page 7 of 10 1.3 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by Intersil may void the user’s authority to operate the equipment. Intersil is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Intersil and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. The use of Wireless LAN devices may be restricted in some situations or environments for example: * On board of airplanes, or * In an explosive environment, or * In case the interference risk to other devices or services is perceived or identified as harmful. In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please first verify authorization to use these devices prior to operating the equipment. 2-Regulatory information 2.1 FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals 2.2 FCC Guidelines for Human Exposure SAR (Specific Absorption…

Text truncated - open the document above for the full version.

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date June 8, 2003 Our reference 03K0810 Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Office of Engineering and Technology Laboratory Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 U.S.A. Dear Mr./Ms., On behalf of our customer Intersil Corporation, we hereby would like to apply for FCC certification of the following device: FCC ID : OSZ39000C Brand : Intersil Model number : ISL39000C Description : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card The following PDF files (exhibits) are electronically submitted: 1. Cover letter containing the request for FCC certification 2. Request for confidentiality 3. Test report(s) in conformity with 47 CFR Part 15 4. Bill of materials 5. Circuit diagram 6. Block diagram 7. Operational description 8. Interior photographs 9. Exterior photographs 10. Test setup photographs 11. SAR test report 12. Authorization letter 13. User manual 14. Label information Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date June 8, 2003 Our reference 03K0810b Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Office of Engineering and Technology Laboratory Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 U.S.A. Dear Mr. Blom, Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: OSZ39000C, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Intersil Corporation and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Operational description 4. Block diagram The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

www.intersil.com ING Bank: 65.02.63.049 Swift code: INGBNL2A VAT / BRW: NL8039.66.659.B.01 Chamber of Commerce Utrecht: 30139807 Date 03 June 2003 Your reference -- Our reference 2003-mansup-585d Subject Agent authorization letter for FCC ID: OSZ39000C To whom it may concern To whom it may concern, This letter confirms the agreement that; TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 9822 TL Niekerk The Netherlands is authorized as an agent for Company Intersil Corp. The Netherlands Address, City Rembrandtlaan 1a, Bilthoven Country The Netherlands Phone number +31 30 2296060 Fax number +31 30 2296061 and is authorized to sign application forms and act on behalf of Intersil Corp. The Netherlands and is authorized to receive and exchange data between Intersil Corp. The Netherlands and European/non-European national authorities regarding the -certification of- and/or -arranging type approvals for the following product: Intersil model ISL39000C WLAN Cardbus Card with FCC ID: OSZ39000C This authorization will expire on December, 2003 or upon earlier written notice from Intersil Corp. The Netherlands. Yours sincerely, Derick Sariredjo ( [email protected] ) Intersil Corp. The Netherlands ( www.intersil.com ) Rembrandtlaan 1a, 3723 BG Bilthoven, The Netherlands Phone: +31.30.225.9742 Fax: +31.30.229.6061

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date July 18, 2003 Our reference 03K0810b Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Office of Engineering and Technology Laboratory Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 U.S.A. Dear Mr./Ms., I would like to inform you that I selected the wrong equipment class for this device. Currently the equipment class on the 731 form is stated as being DSS. The equipment class must be DTS. I would like to request you to correct this error I made during the completion of the 731 form. Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

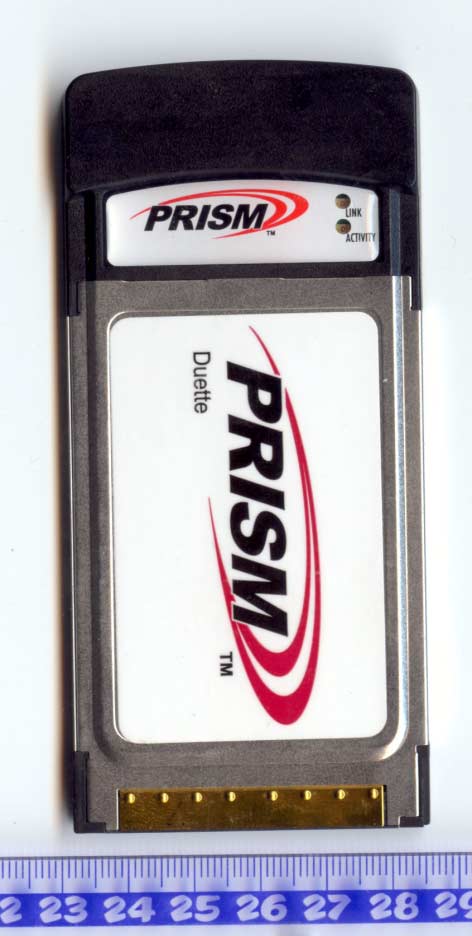

FCC ID: OSZ39000C Page 1 of 3 External photographs of Description: 2.4 GHz / 5 GHz Dual band WLAN Cardbus Card FCC ID: OSZ39000C Brand name: Intersil Model number: ISL39000C FCC ID: OSZ39000C Page 2 of 3 ISL39000C Front exterior FCC ID: OSZ39000C Page 3 of 3 ISL39000C back exterior

FCC ID: OSZ39000C Page 1 of 4 FCC and CE Label info of Description: 2.4 GHz / 5GHz dual band WLAN Cardbus Card FCC ID: OSZ39000C Brand name: Intersil Model number: ISL39000C FCC ID: OSZ39000C Page 2 of 4 ISL39000C FCC and CE Label Label material: Tamper evident 0.002" polyester. This material is durable, tamper proof and legible. Tamper proof: If the label is removed after 48 hours (time for the adhesive to cure) it will separate which will leave label material on the attached surface that it was removed from. This label material will spell out the word "VOID". The label will also show the word "VOID" where the label material was pulled away. The end result is the word " VOID " on both the mating surface and label, leaving both unusable. FCC ID: OSZ39000C Page 3 of 4 ISL39000C Front label on Cover set FCC ID: OSZ39000C Page 4 of 4 ISL39000C FCC and CE Back label on Cover set

FCC ID: OSZ39000C Page 1 of 4 Internal photographs of Description: 2.4 GHz / 5 GHz WLAN Cardbus Card FCC ID: OSZ39000C Brand name: Intersil Model number: ISL39000C FCC ID: OSZ39000C Page 2 of 4 ISL39000C PCB front with shield FCC ID: OSZ39000C Page 3 of 4 ISL39000C PCB front without shield FCC ID: OSZ39000C Page 4 of 4 ISL39000C PCB rear

ISL39000C Prism Duette PCMCIA Card Model No.: ISL39000C Tested For Intersil Corporation Rembrandtlaan 1a 3723 BG Bilthoven P.O. Box 343 3720 AH Bilthoven The Netherlands In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: ITS-005-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: June 25, 2003 Report Prepared by: JaeWook Choi Tested by: JaeWook Choi Issued Date: June 24, 2003 Test Dates: June 18, 2003 ~ June 21, 2003 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR) Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) ISL39000C Prism Duette PCMCIA Card M/N: ISL39000C TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION................................................................................................................................................4 1.1. SCOPE...............................................................................................................................................................................4 1.2. REFERENCES...................................................................................................................................................................4 EXHIBIT 2. PERFORMANCE ASSESSMENT.....................................................................................................................5 2.1. CLIENT AND MANUFACTURER INFORMATION......................................................................................................5 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION..............................................................................................................6 2.3. LIST OF D.U.T.’S ACCESSORIES:.................................................................................................................................. 6 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES.............................6 2.5. ANCILLARY EQUIPMENT.............................................................................................................................................6 2.6. GENERAL TEST CONFIGURATIONS...........................................................................................................................6 2.6.1. Equipment Configuration...........................................................................................................................................6 2.6.2. Exercising Equipment.................................................................................................................................................7 2.7. SPECIFIC OPERATING CONDITIONS......................................................................................................................................7 2.8. BLOCK DIAGRAM OF TEST SETUP.............................................................................................................................8 EXHIBIT 3. SUMMARY OF TEST RESULTS......................................................................................................................9 3.1. LOCATION OF TESTS.....................................................................................................................................................9 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS.....................................................................................................9 EXHIBIT 4. MEASUREMENTS, EXAMINATIONS & TEST DATA..............................................................................10 4.1. TEST SETUP...................................................................................................................................................................10 4.2. PHOTOGRAPH OF D.U.T. AND ALL ACCESORIES................................................................................................................11 4.3. PHOTOGRAPHS OF D.U.T. POSITION........................................................................................................................16 4.4. MAXIMUM PEAK SPATIAL-AVERAGE SAR........................................................................................................................19 4.4.1. Maximum Peak Spatial-average SAR Data..............................................................................................................19 4.4.2. Maximum Peak Spatial-Average SAR Location.......................................................................................................19 4.5. SAR MEASUREMENT DATA..............................................................................................................................................20 4.5.1. Body Configuration Result.......................................................................................................................................20 4.5.1.1. 802.11g mode (ISM-2.4 band).................................................................................................................................................20 4.5.1.2. 802.11a mode (UNII band)......................................................................................................................................................20 4.5.2. Power Measurement....................................................................................…

Text truncated - open the document above for the full version.

Re: FCC ID OSZ39000C Applicant: Intersil Corporation Correspondence Reference Number: 25647 Q1) SAR report shows concept of "alpha" as distance between laptop and phantom. FYI - note that arbitrary spacing should not be used in lapheld position SAR test unless device has feature to maintain spacing. A1) Test report revised as directed. Q2) EMC and SAR reports show identical output powers. Please describe procedures used to ensure card was transmitting at max power for SAR tests, including SAR power test results where appropriate. A2) The power level was tuned up according to the power table (power settings along with the estimated power measurement at this settings) provided by manufacturer using the exclusive controlling software. The tolerance used is less than ±5%. Procedure: i) - the output of the transmitter was coupled to a diode detector; - the output of the diode detector was connected to the vertical channel of an oscilloscope; ii) - the measurement set up as given under i) was used to determine on the oscilloscope the peak of the envelope of the output signal of the transmitter; - the maximum deviation of the Y-trace of the oscilloscope was recorded as ìBî iii) - the transmitter was replaced by a signal generator. The output frequency of the signal was made equal to the center of the output signal of the transmitter; - the signal generator was unmodulated. The output power of the signal generator was raised to a level such that the deviation of the Y-trace of the oscilloscope reached level B, as indicated in ii); - this output power level ìCî (in dBm) of the signal generator was determined using a calibrated RF power meter with a thermocouple detector; Equipment list: Signal Generator ñ Hewlett & Packard ñ M/N: 83752B Oscilloscope ñ Hewlett & Packard ñ M/N: 54810A Power Meter ñ Hewlett & Packard ñ M/N: 436A Power Sensor ñ Hewlett & Packard ñ M/N: 8481A Diode Detector ñ Narda ñ M/N: 503A-03 Q3) FYI - in future filings please list also SAR area scan dimensions A3) Acknowledged and accepted. Q4) FYI - in future filings please include photo of actual SAR verification dipole in position at flat phantom for each band. A4) Acknowledged and accepted. Q5) FYI - in future filings keyboard up position typically not needed. A5) Acknowledged and accepted. Q6) Please submit mix procedures for 5 GHz liquid. A6) Composition (by weight) Distilled water : 77.67 [%] DBGE : 2.91 [%] Triton X-100 : 19.42 [%] Mix procedure i) Heat DI water up to 40 ∞C in mixing container using heat belts around container. ii) Add up DGBE and stir at low speed about 10 minutes. iii) Add up Triton X-100 and stir at very low speed about 30 minutes Q7) Please submit printout/output/screen-dump from dielectric test system including several frequencies within band. A7) a) 5.24 GHz muscle tissue Meas. after 5min DI Water at 20∞C Init. Meas. Frequency [GHz] ε' ε'' σ [S/m] ε' ε'' σ [S/m] ε' ε'' σ [S/m] 5.200000000 47.4568 18.98795.49 73.2324 19.77155.72 47.4606 18.97985.49 5.210000000 47.4274 18.98615.50 73.2297 19.78705.74 47.4227 18.98755.50 5.220000000 47.4029 19.01965.52 73.1874 19.81845.76 47.3925 19.00455.52 5.230000000 47.3650 19.05505.54 73.1926 19.86885.78 47.3496 19.04335.54 5.240000000 47.3182 19.06875.5673.162519.89015.80 47.3104 19.05185.55 5.250000000 47.3100 19.07865.57 73.1366 19.92455.82 47.2982 19.08305.57 5.260000000 47.2770 19.09285.59 73.1066 19.91465.83 47.2832 19.08285.58 5.270000000 47.2406 19.11505.60 73.1028 19.97525.86 47.2285 19.09745.60 5.280000000 47.2001 19.14965.62 73.0610 20.01065.88 47.1946 19.14425.62 5.290000000 47.1724 19.17555.64 73.0353 20.02445.89 47.1719 19.16665.64 5.300000000 47.1484 19.19555.66 73.0084 20.08455.92 47.1509 19.19375.66 b) 2.45 GHz brain tissue Meas. after 5min DI Water at 20∞C Init. Meas. Frequency [GHz] ε' ε'' σ [S/m] ε' ε'' σ [S/m] ε' ε'' σ [S/m] 1.900000000 41.6932 11.50311.22 78.93448.27630.87 41.6018 11.59601.23 1.950000000 41.6144 11.70201.27 78.89488.49400.92 41.5290 11.79521.28 2.000000000 41.3591 11.86081.32 78.84778.70150.97 41.2300 11.96301.33 2.050000000 41.2486 12.04021.37 78.79328.88981.01 41.1272 12.14481.39 2.100000000 41.0650 12.20541.43 78.75169.10681.06 40.9348 12.30981.44 2.150000000 40.8631 12.39731.48 78.70249.32751.12 40.7293 12.50071.50 2.200000000 40.7410 12.55661.54 78.63849.52851.17 40.6113 12.67641.55 2.250000000 40.5207 12.71221.59 78.59799.72671.22 40.3742 12.82161.60 2.300000000 40.3722 12.87251.65 78.51869.93761.27 40.2349 12.99681.66 2.350000000 40.1627 13.02641.70 78.4719 10.14961.33 40.0376 13.14821.72 2.400000000 40.0161 13.17351.76 78.4081 10.34921.38 39.8820 13.30501.78 2.450000000 39.8246 13.31181.8178.352110.54911.44 39.7126 13.44591.83 2.500000000 39.6495 13.43191.87 78.3006 10.74161.49 39.5211 13.57941.89 c) 2.45 GHz muscle tissue Meas. after 5min DI Water at 20∞C Init. Meas. Frequency [GHz] ε' ε'' σ [S/m] ε' ε'' σ [S/m] ε' ε'' σ [S/m] 2.300000000 54.2202 13.56701.74 78.42369.90931.27 54.2780 13.76271.76 2.316666667 54.4740 13.89451.79 78.39629.97441.29 54.4978 13.90021.79 2.333333333 54.6210 13.99471.82 78.3803 10.04941.30 54.5738 13.92691.81 2.350000000 54.5412 13.83251.81 78.3551 10.11951.32 54.4403 13.82021.81 2.366666667 54.3566 13.53431.78 78.3351 10.18331.34 54.2212 13.67981.80 2.383333333 54.1769 13.36521.77 78.3221 10.26431.36 54.0524 13.62351.81 2.400000000 54.1004 13.46791.80 78.2966 10.33131.38 54.0034 13.73401.83 2.416666667 54.1518 13.81281.86 78.2751 10.38631.40 54.1064 13.96741.88 2.433333333 54.2431 14.20761.92 78.2600 10.46101.42 54.2197 14.20531.92 2.450000000 54.3175 14.37951.9678.237410.52381.43 54.2792 14.31371.95 2.466666667 54.3348 14.25861.96 78.2196 10.60301.46 54.2390 14.22141.95 2.483333333 54.2989 14.00131.93 78.2081 10.67111.47 54.1441 14.06571.94 2.500000000 54.2148 13.82241.92 78.1659 10.71901.49 54.0397 13.99111.95 Q8) What is specific heat capacity for 5 GHz liquid and how was it determined? A8) Specific heat capacity: 4.019 [J/g/∞C] Determining the Heat Capacity of Simulated Tissue Instrumen…

Text truncated - open the document above for the full version.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03050505.r01 Page 1 of 58 TEST REPORT OF A 2.4/5 GHZ IEEE 802.11g/a WLAN CARDBUS CARD, BRAND INTERSIL, MODEL ISL39000C, IN CONFORMITY WITH 47 CFR PART 15 (2003-03-13). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-03-13) 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Intersil Corporation Intersil ISL39000C OSZ39000C Project number: 03050505.r01 Page 2 of 58 MEASUREMENT/TECHNICAL REPORT Intersil Corporation Model : ISL39000C FCC ID: OSZ39000C July 8, 2003 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Digital Transmission System Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No Report prepared by: Name : P.A.J.M. Robben, B.Sc.E.E. Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-1992. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: July 8, 2003 Signature: P. de Beer TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-03-13) 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Intersil Corporation Intersil ISL39000C OSZ39000C Project number: 03050505.r01 Page 3 of 58 Description of test item Test item : 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Manufacturer : Intersil Corporation Brand : Intersil Model : ISL39000C Serial numbers : V3140022 Revision : E12 Receipt number : 1 Receipt date : May 5, 2003 Applicant information Applicant's representative : Mr. D. Sariredjo Company : Intersil Corporation Address : Rembrandtlaan 1a Postal code : 3723 BG City : Bilthoven PO-box : 343 Postal code : 3720 AH City : Bilthoven Country : The Netherlands Telephone number : +31 30 2259742 Telefax number : +31 30 2296061 Test(s) performed Location : Niekerk Test(s) started : May 5, 2003 Test(s) completed : May 27, 2003 Purpose of test(s) : Type approval / certification Test specification(s) : 47 CFR Part 15 (2003-03-13) Test engineer : O.H. Hoekstra Report written by : P.A.J.M. Robben, B.Sc.E.E. Project leader : P.A.J.M. Robben, B.Sc.E.E. This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-03-13) 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card Intersil Corporation Intersil ISL39000C OSZ39000C Project number: 03050505.r01 Page 4 of 58 Table of contents 1 General information................................................................................................................................................................. 6 1.1 Product description .......................................................................................................................................................... 6 1.2 Related submittal(s) and/or Grant(s) ............................................................................................................................... 6 1.3 Tested system details ....................................................................................................................................................... 6 1.4 Test methodology ....…

Text truncated - open the document above for the full version.
