OTVSBTFR500-2Family Radio







PERFORMANCE Your transceiver will achieve its maximum operating range when communi-cating with other transceiver(s) in a flat open area with no trees or buildingsobstructing its signal. Range may be up to two miles under such conditions.Obstacles such as buildings, trees or mountains will tend to reduce the tran-sceiver’s effective range. FCC WARNINGReplacement or substitution of transistors, diodes or other parts of a uniquenature, with parts other than those recommended by the manufacturer, maycause a violation of the technical regulations of Part 15 of FCC Rules. 90 DAY LIMITED WARRANTY

      AUDIOVOX CORPORATION (the Company) warrants to original retail purchaser of this product that should this product or any part thereof, undernormal use and conditions, be proven defective in material or workmanshipwithin 90 days from the date of original purchase, such defect(s) will berepaired or replaced with new or reconditioned product ( at the Company’soption) without charge for parts and repair labor.To obtain repair or replacement within the terms of this Warranty,the productis to be delivered with proof of warranty coverage ( e.g. dated bill of sale ),specification of defect(s), transportation prepaid, to the warranty center at the address shown below.The Company disclaims liability for communications range of this product.This Warranty does not apply to any product or part thereof which, in theopinion of the Company, has suffered or been damaged through alteration,improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label (s). THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT,SH-ALL THE COMPANY’S LIABILTY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-CHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDERINCLUDING ANY IMPLIED WARRANTY OF MERCHANTABI-LITY MUST BEBROUGHT WITHIN A PERIOD OF 30 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY THISCONSEQUENTIAL ORINCIDENTAL DAMGES FOR BREACH OF OR ANY OTH-ER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or repre- sentative is authorized to assume for the Company any liability other than expressed herein connection with the sale of this product. AUDIOVOX CORPORATION,150 MARCUS BLVD.,HAUPPAUGE, NEW YORK 11788






Low Battery Indication
When the battery is low, RX/BATT. LED Lamp will flash to indicate that the batteries need to be replaced.Sending Call TonedYou can use Call Tones to alert the other user or to identify yourself.You can also use Call Tones to signal the beginning or the end of transmission.1. Press and release he CALL button. 2. Your Call Tones will transmit.



OPERATION



1. Power Button : Press and hold this button for 2 seconds to turn the tran- sceiver on or off2. PTT (Push-To-Talk ) Button : Press and hold to transmit. Release to receive. 3. Monitor Button : Press and hold to bypass the squelch and listen to chan- nel activity.4. Belt Clip 5. Battery Compartment 6. Speaker 7. Microphone 8. Call Button : Press this button to send a ringing sound to other radios tuned to the same channel.9. Up Button : Press this button to increase the volume or channel setting or function selection.10. Down Button : Press this button to decrease the volume or channel set- ting or function selection.11. LED Lamp :Illuminates red when transmitting or, flashing when the battery power is low. 12. Channel Select Switch : This button to change the channel setting 13. Antenna : Rotate counterclockwise when transceiver is in use 14. Microphone/Charger Jack : For use with an external microphone / PTT button and optional battery charger15. Speaker Jack : For use with an Audiovox approved headset accessory only. Accessory ConnectionFR530-2 model is designed to work with various accessories. When those accessories are connected through ACCESSORY CONNECTOR, the headphone symbol will display on LCD indicating FR530-2 is operatingwith accessories.Accessories AvailableThe following accessories work with FR530-2.  Charging Kit (NI-MH Rechargeable Batteries and AC/DC Adapter)  Speaker Microphone with Lapel Clip  VOX Headset  Neck Strap  Carrying Case



FUNCTION AND LOCATION OF THE CONTROLS







WARNING  Remove the batteries from the transceiver if it is not expected to be used for long periods. This will eliminate the possibility of battery acid leaking from the batteries and corroding the transceiver.  Avoid exposing the unit to water or extremes of temperature.  Do not use device in or near a mining facility, which uses remotely triggered explosives or in areas labeled “Blasting Area.” Premature or accidental deto- nation may result. Do not attempt to modify or in any way increase he output of this transceiver. Its output is designed to meet the legal limits set by the FCC. Do not use this device or charge its batteries in potentially explosive atmos- pheres as sparks in such areas could result in an explosion. Turn your transceiver off wherever posted notices restrict the use of radio or cellular telephones. Facilities such as hospitals may use equipment that is sensitive to RF energy. Turn your transceiver off on-board aircraft when requested to do so.  Do not place your transceiver in front of a vehicle’s air-bag. If the air-bag de- ploys, it could propel th…

Text truncated - open the document above for the full version.

SB TECHNOLOGIES, Model 530 Changes made at the Test Site to effect FCC compliance These changes were necessitated when the unit was tested with a speaker/microphone accessory. 1. Receiver Emissions • C49, 50, 52 and C58,59,60 220Pf capacitors were added at the speaker jack terminals • Copper foil was added inside the battery housing • Two "cans" were added to RX & TX circuitry of the RF board TX harmonics (RF Board changes) • C20 which is part of a tuned filter, was changed from 9Pf to 10Pf • L4, L3 coil spacings extended. This will be a factory procedure.

SB TECHNOLOGY CORP . HEAD OFFICE & FACTORYPHILIPPINE FACTORY #613-9, Namchon-Dong, Namdong – KUPHILIPPINES ECONOMIC ZONE AUTHORITY INCHEON, KOREAROSARIO CAVITE, PHILIPPINES TEL : +82-32-821-0035TEL : +63-46-437-6750-1 FAX : +82-32-810-8118FAX : +63-46-437-6752


  !"#$ %&
  ' ()*  ( +& %*
   %,& --*


  .- *  %*
   %, ,,, /  0-     / ,-/1
+% (& --& %2,, %,- 3!  , 1
+, 455& 635! &- *--%2 ,, %,-
  SB Technology Co., Ltd ( Vice president)


Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] E NGINEERED S AFETY C ONSULTING S ERVICES 6511 Kempson Crescent, Delta, B.C., Canada V4E 1R6 SB TECHNOLOGIES LTD. FCC ID: OTVSBTFR500-2 This page may be used to reference the RF Board Block diagram. Please note that this Board is electrically and mechanically identical to the Models FR530 (OTVSBTFR530-2) and Model FR500 (OTVSBTFR500-2). The file is FR530f~1.pdf. This file was up-loaded with 731 Confirmation No. EA97148, FCC ID: OTVSBTFR530-2 Refer to page 11 as numbered by the Adobe Acrobat reader of this document for Block diagram.

Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] E NGINEERED S AFETY C ONSULTING S ERVICES 6511 Kempson Crescent, Delta, B.C., Canada V4E 1R6 SB TECHNOLOGIES LTD. FCC ID: OTVSBTFR500-2 This page may be used to reference the block diagram of the FR500 Mother Board. The file is FR530f~1.pdf. This file was up-loaded with 731 Confirmation No. EA97148, FCC ID: OTVSBTFR530-2 Refer to page 3 as numbered by the Adobe Acrobat reader of this document for Mother Board.

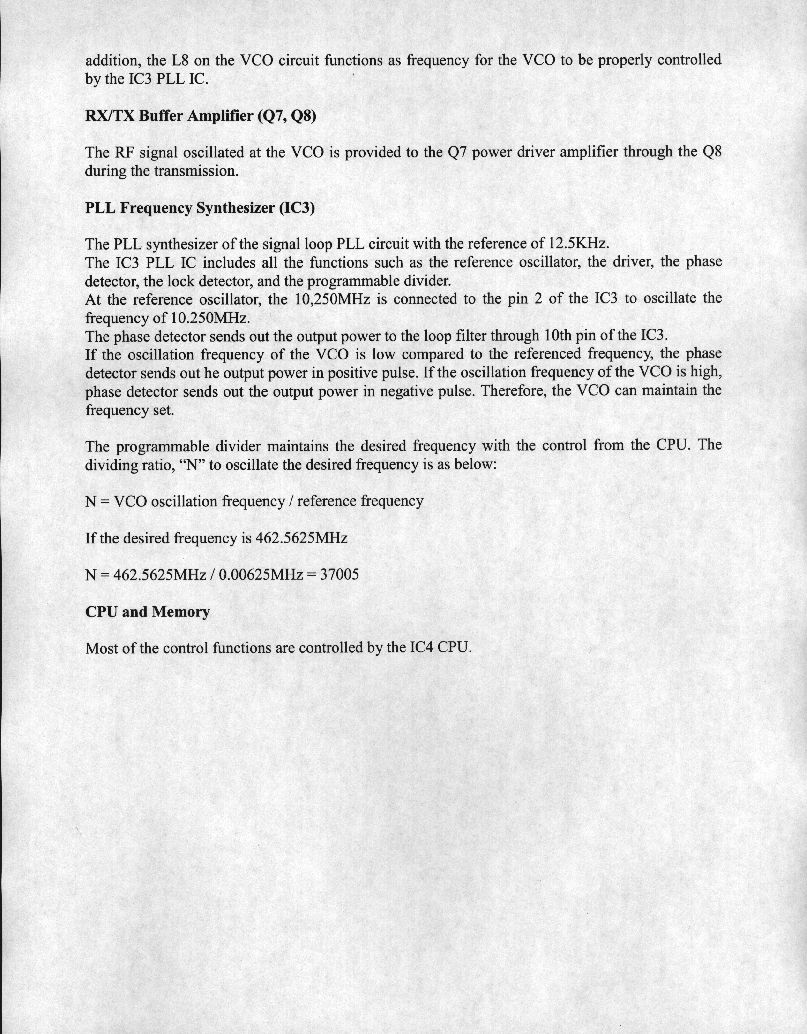

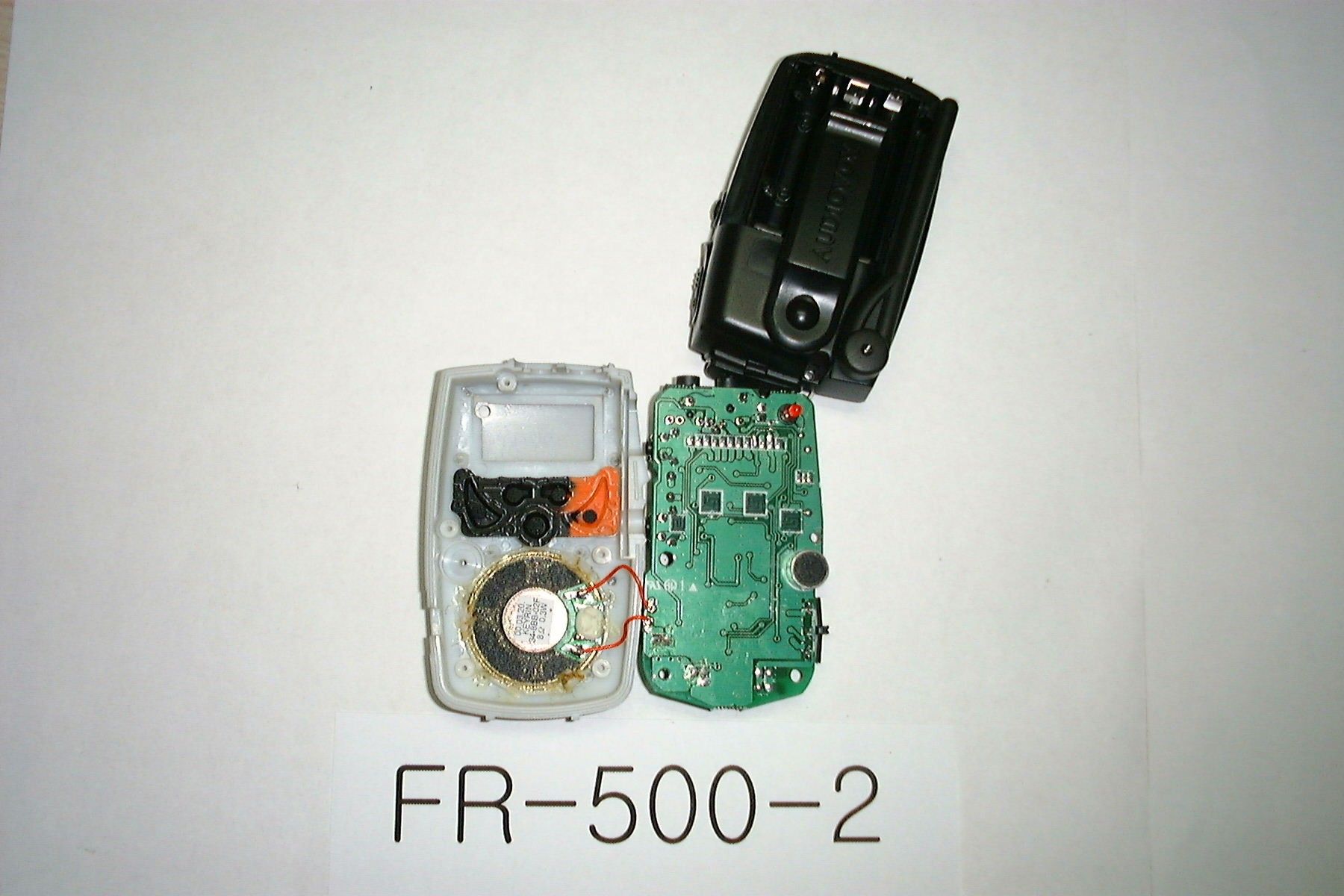

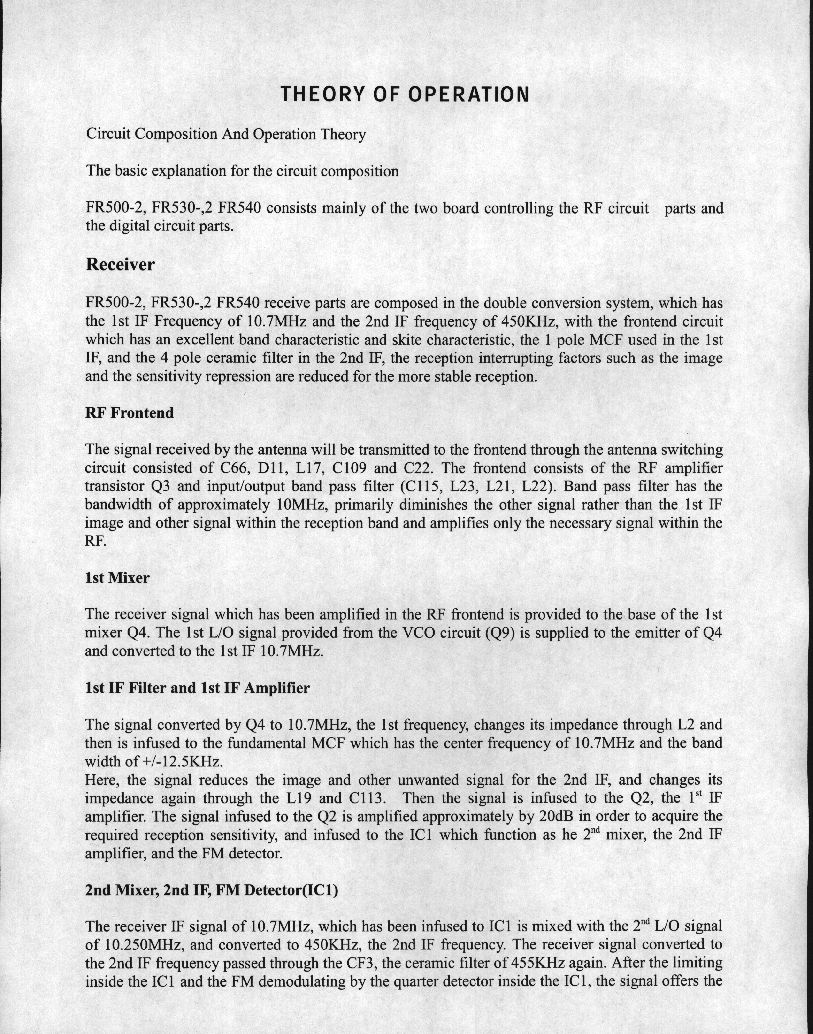

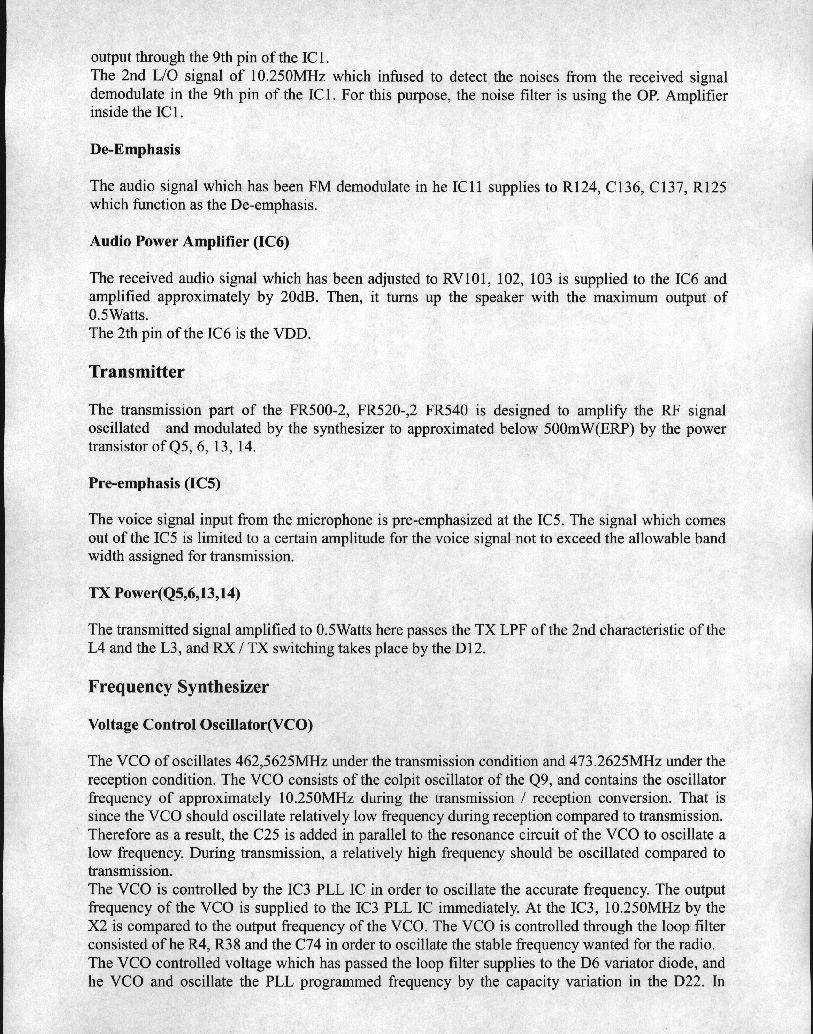

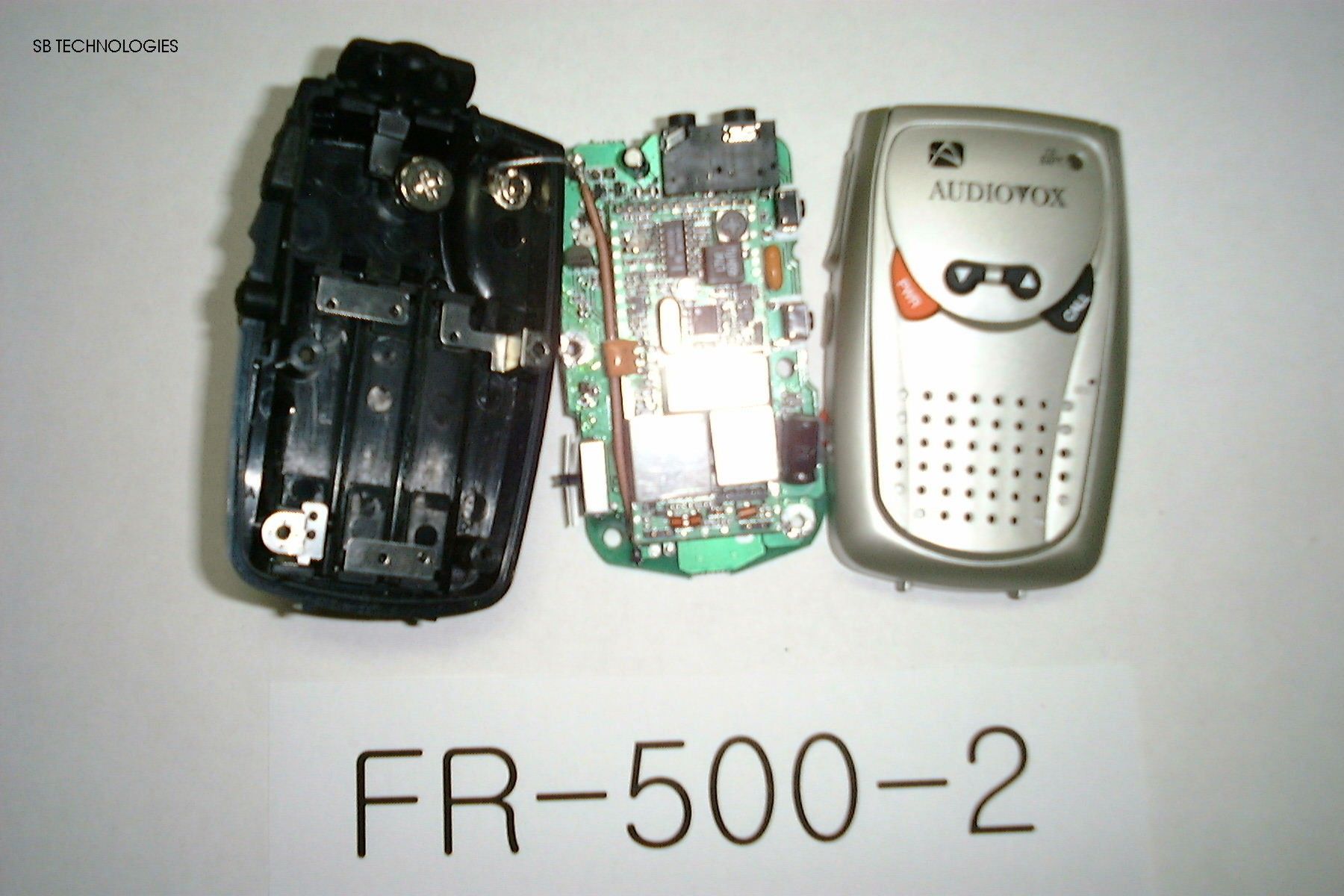

Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] E NGINEERED S AFETY C ONSULTING S ERVICES 6511 Kempson Crescent, Delta, B.C., Canada V4E 1R6 March 24, 2000 Federal Communications Laboratory 7435 Oakland Mills Road Columbia, MD 21046-1609 USA Subject: Request for Equipment Authorization re Models FR530, FR500 FCC Grantee Code: OTV FCC ID: OTVSBTFR530-2, OTVSBTFR500-2 Note: Information in Bold references model FR500-2 Which is filed under EA97161 Dear Sirs: SB Technologies Corp. of Korea, hereby makes application for Equipment Authorizations for the subject models. These equipments are Family Radio Services Devices, under Part 95 of the Rules. The Model FR 530 was tested under Part 95 of the Rules and found to be compliant. Testing was done at Spectrum Technologies, Edmonds WA. See this test facility's report and attestations. The information below is supplemental to the list of attachments file and input to the FCC reporting database input. Model FR530 is the more complex of the two models. Each model uses an identical RF Board (identified as SBM- 2010) The files are in .doc format, identified as 2010ca~1.doc, 2010no~1.doc for photographs; schematics, parts lists, block diagrams are in file FR530F~1.pdf Model 530 photographs are filed as .jpg files, identified as 530-1,-2,-3,-4. Model 530 owner's manual is filed as owner.pdf file Model 530 Schematics are filed as FR530~1.pdf, Pages 6 & 10 on the Adobe Acrobat Reader Model 530 Parts Lists are filed as FR530~1.pdf, Pages 8,9,12,13 Model 530 block diagrams are filed as FR530~1.pdf, Pages 7, 11 Model 500 photographs are filed as .jpg files, identified as 500-1,-2,-3,-4. Model 500 owner's manual is filed as owner500.pdf Model 500 schematics are filed as part of FR530~1.pdf, Pages 2 & 10 on the Adobe Acrobat Reader Model 500 Parts lists are filed as FR530~1.pdf, Pages 4,5, 12,13 Model 500 block diagrams are filed as FR530~1.pdf, pages 3 and 11 Please see the list of attachments, file attach~3.doc, for complete information. Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] Description of Models Model FR530: Model FR530 has these functions/features: 1. Power Button 2. PTT Button 3. Monitor Button 4. Belt Clip 5. Batter Compartment for 3 AAA Cells 6. Call Button to send a ringer signal to all radios tuned to the same channel 7. Microphone 8. Up button to increase the volume or channel setting or change the function selection 9. Down button to decrease the volume or channel setting or change the function selection 10. LCD Display which displays all functions and modes -- figure one Below 11. Function Select Button for altering the function setting and operation of the unit 12. Antenna which is permanently attached to the unit 13. Microphone Jack for use with an external microphone or PTT button 14. Speaker Jack for use with a manufacturer approved headset only. This unit was tested per Part 95 and 15 with this accessory attached. 15. Channel Selection is made by pushing the up or down button. Fourteen Channels are available 16. Channel Scan provides an endless channel sweep from channels one thru fourteen 17. Battery Level indicator is an icon in the display which flashes when batteries need replacement Model FR500 Model FR500 has these functions/features: 1. Power on button 2. PTT button 3. Monitor Button 4. Belt Clip 5. Battery compartment for three AAA Cells 6. Speaker 7. Microphone 8. Call Button 9. Up Button to increase speaker volume 10. Down Button to decrease speaker volume 11. LED Lamp w hich illuminates during transmission or flashes w hen battery power is low 12. Channel Select Switch -- a manually operated switch to select either channel one, eight or fourteen 13. Antenna which is permanently attached to the unit 14. Microphone jack for use with external microphone 15. Speaker jack for use with manufacturer approved headset only Model Differences: FeatureModel FR530Model FR500 1. Up/down buttonsSelect spkr. volume, channel selection, functionsSelect Speaker volume 2. LCD displayHas oneNone 3. LED lampnoneHas one 4. Channel SelectionBy way of up/down buttons and softwareMech. Switch & software 5. Function Select ButtonHas oneNone 6. Number of Channels143 M. Neumeister, P.Eng. ENGINEERED SAFETY CO NSULTI NG SERVICES

FCC ID LABEL HERE

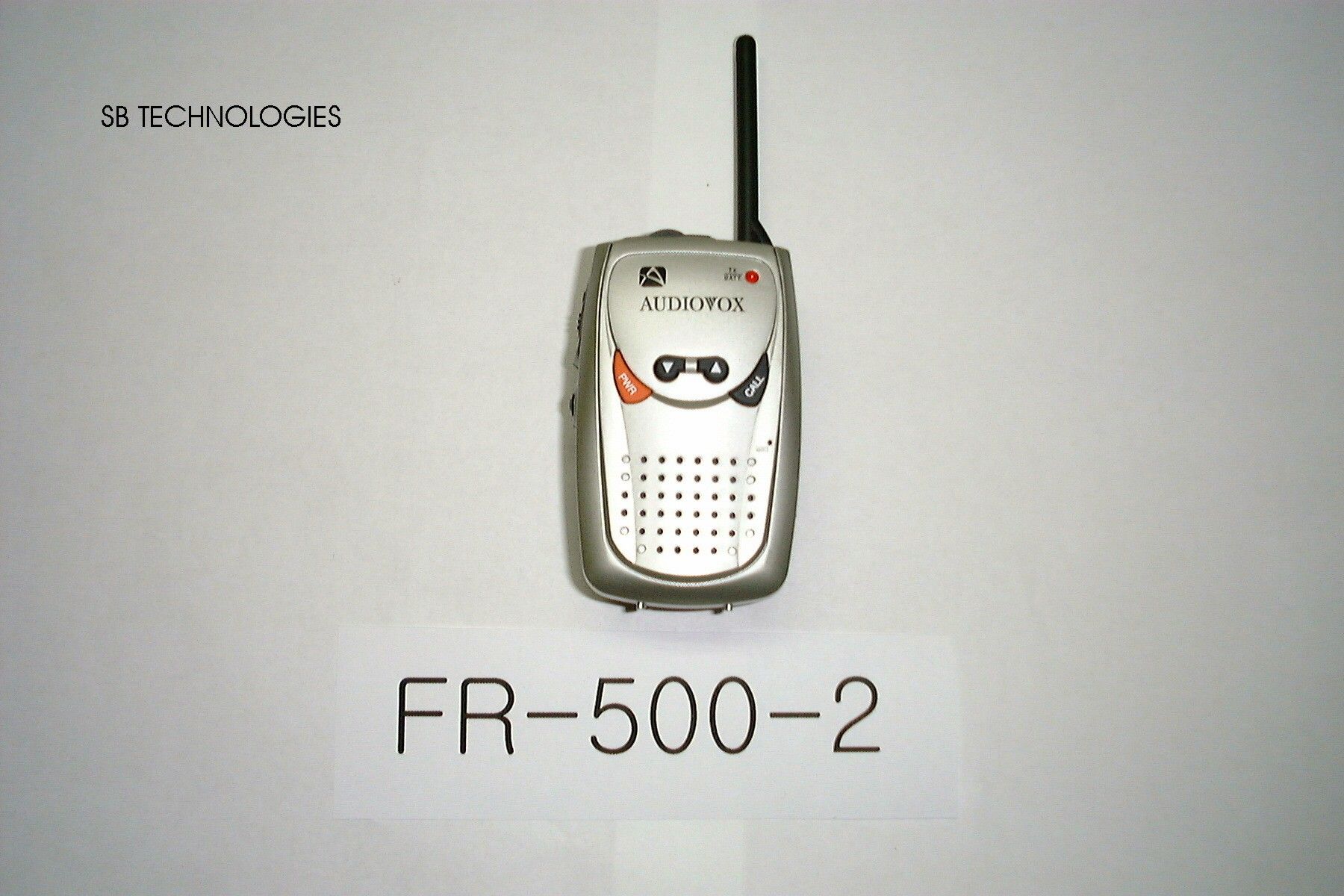

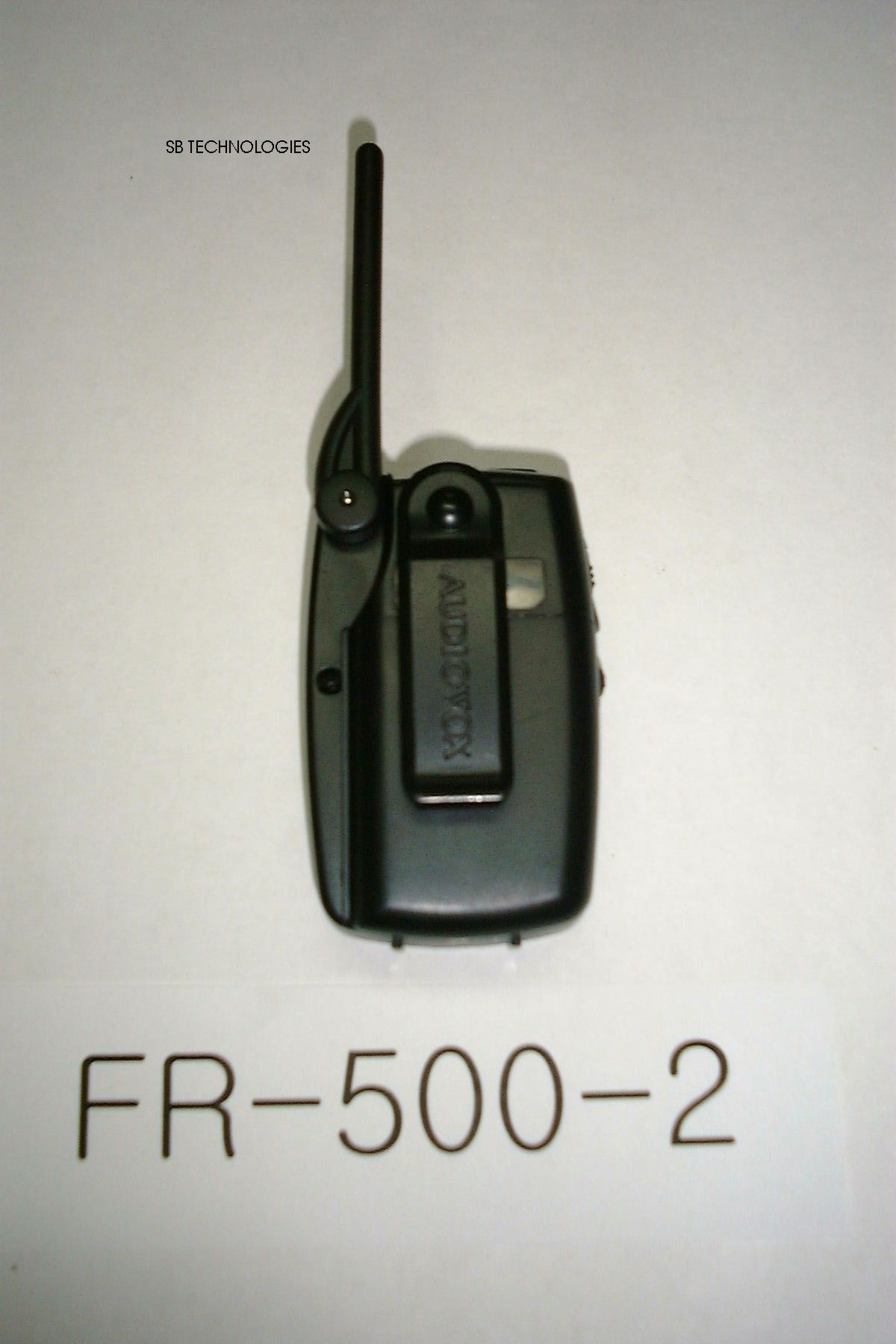

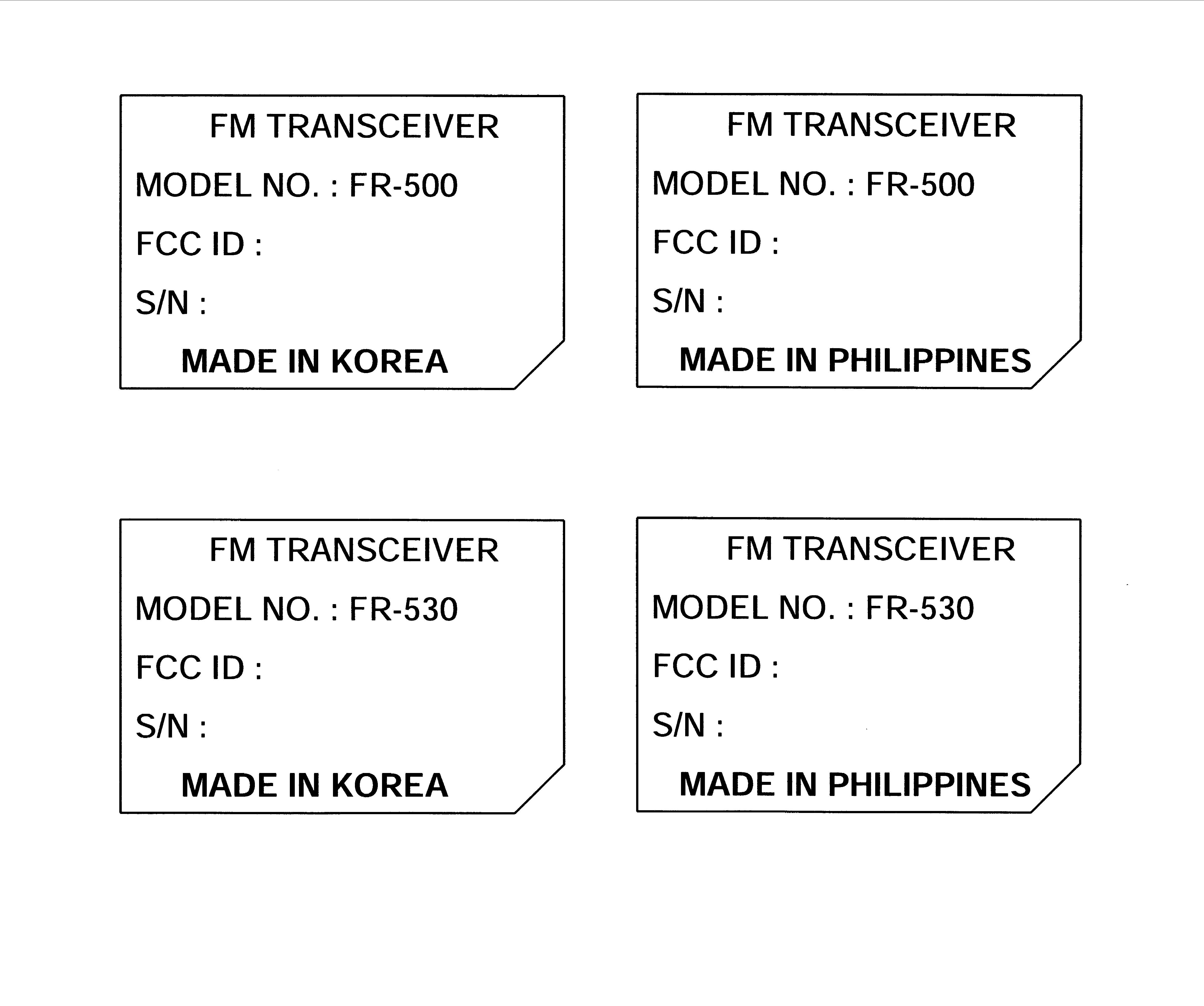

OTVSBTFR500-2OTVSBTFR500-2 OTVSBTFR530-2OTVSBTFR530-2 FRS 500 SERIES FCC LABELS Note: Frames around FCC ID may not be printed

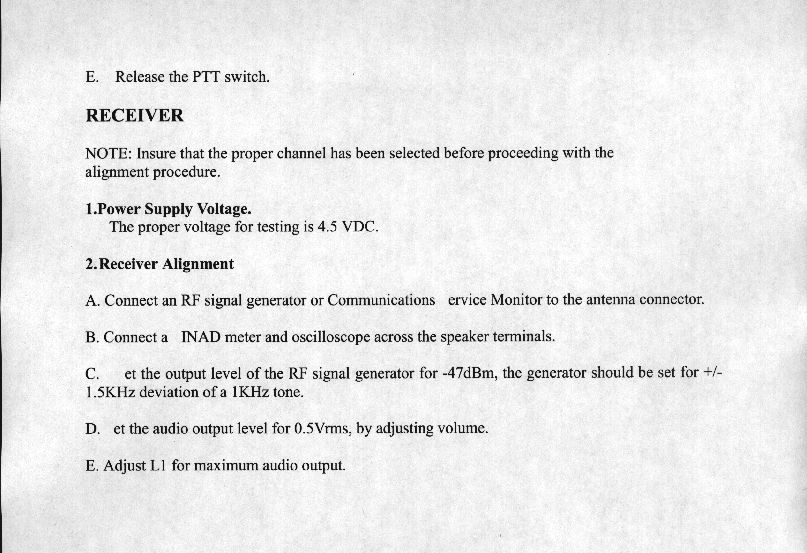

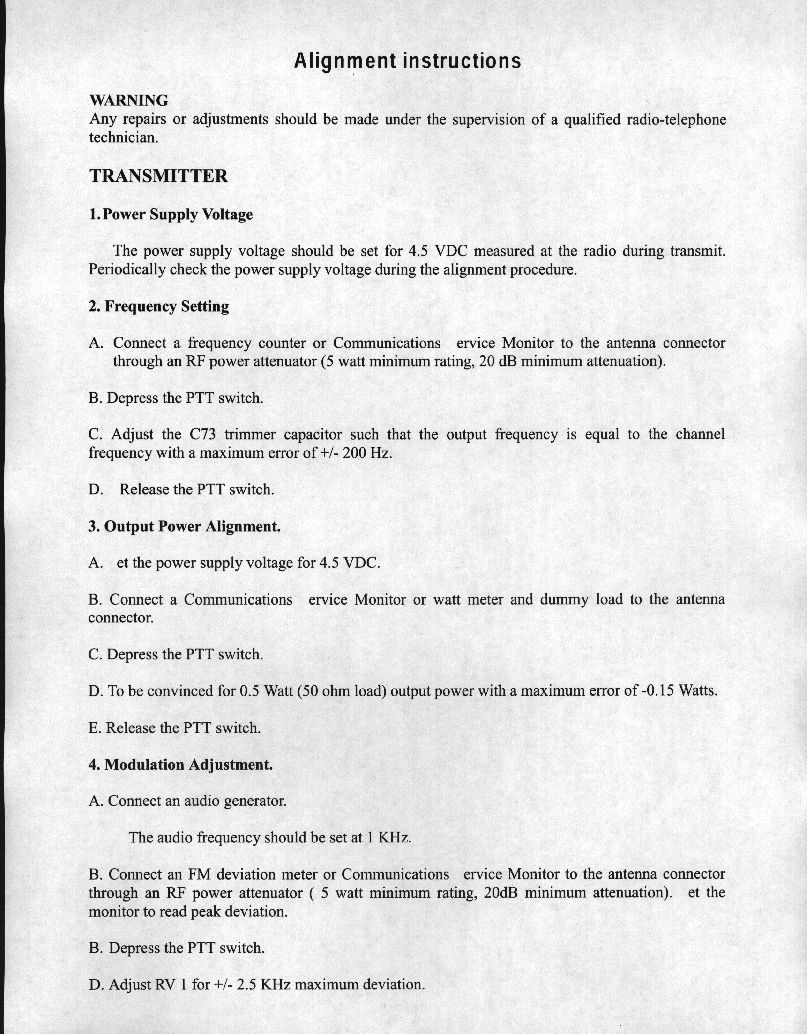

Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] E NGINEERED S AFETY C ONSULTING S ERVICES 6511 Kempson Crescent, Delta, B.C., Canada V4E 1R6 SB TECHNOLOGIES LTD. FCC ID: OTVSBTFR500-2 This page may be used to reference the Parts Lists of the RF Board. Please note that this Board is electrically and mechanically identical to the Models FR530 (OTVSBTFR530-2) and Model FR500 (OTVSBTFR500-2). The file is FR530f~1.pdf. This file was up-loaded with 731 Confirmation No. EA97148, FCC ID: OTVSBTFR530-2 Refer to pages 12 and 13 as numbered by the Adobe Acrobat reader of this document for Parts List.

Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] E NGINEERED S AFETY C ONSULTING S ERVICES 6511 Kempson Crescent, Delta, B.C., Canada V4E 1R6 SB TECHNOLOGIES LTD. FCC ID: OTVSBTFR500-2 This page may be used to reference the Mother Board parts list. The file is FR530f~1.pdf. This file was up-loaded with 731 Confirmation No. EA97148, FCC ID: OTVSBTFR530-2 Refer to pages 4 and 5 as numbered by the Adobe Acrobat reader of this document for this parts list.

Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] E NGINEERED S AFETY C ONSULTING S ERVICES 6511 Kempson Crescent, Delta, B.C., Canada V4E 1R6 SB TECHNOLOGIES LTD. FCC ID: OTVSBTFR500-2 This page may be used to reference the Schematic of the RF Board. Please note that this Board is electrically and mechanically identical to the Models FR530 (OTVSBTFR530-2) and Model FR500 (OTVSBTFR500-2). The file is FR530f~1.pdf. This file was up-loaded with 731 Confirmation No. EA97148, FCC ID: OTVSBTFR530-2 Refer to page 10 as numbered by the Adobe Acrobat reader of this document for Schematic.

Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] E NGINEERED S AFETY C ONSULTING S ERVICES 6511 Kempson Crescent, Delta, B.C., Canada V4E 1R6 SB TECHNOLOGIES LTD. FCC ID: OTVSBTFR500-2 This page may be used to reference the Schematic of the FR500 Mother Board. The file is FR530f~1.pdf. This file was up-loaded with Form 731 Confirmation No. EA97148, FCC ID: OTVSBTFR530-2 Refer to page 2 as numbered by the Adobe Acrobat reader of this document for this Schematic.

Tel. (604) 594-6055 FAX: (604)594-6057 Web: http//www.mnserve.com email: [email protected] E NGINEERED S AFETY C ONSULTING S ERVICES 6511 Kempson Crescent, Delta, B.C., Canada V4E 1R6 SB TECHNOLOGIES LTD. FCC ID: OTVSBTFR500-2 This page may be used to reference the test report file prepared by Spectrum Technologies, and filed under OTVSBT530-2, Confirmation no.: EA97148
