Exhibit J: Users Manual Xanboo XPC220 Power Module Transmitter WIRELESS POWER SWITCH PRODUCT DESCRIPTION /// The Shell HomeGenie ™ Power Switch allows users to remotely monitor when devices (i.e. security lighting, computers, televisions) have been activated. PACKAGE CONTENTS /// n (1) Shell HomeGenie ™ Power Switch FEATURES /// n LED indicates state of power n Test/Discover button n 3-prong grounded connection LOCAL OPERATION /// The Shell HomeGenie ™ Power Switch allows local and remote access to the device. You can turn the device on and off as well as view the current state of the Power Switch. 1. Each time the ‘TEST’ button is pressed, it will cycle power to the device connected to the Power Switch. 2. When power is ‘ON’ the LED indicator will be lit in red, otherwise the LED indicator will be off. WARNING: This device should be used indoors and should never be used outdoors. Place this device in a well ventilated, open area where temperatures never exceed thirty degrees Celsius (eighty five degrees Farenheit). Do not cover or place in an area where it can be subjected to a source of heat. Also, do not place on a deep pile carpet and keep away from moisture. Do not use this product with any electrical device that exceeds the max rating as stated in the Techinical Specs. section of this manual. I2 SHELL HOMEGENIE POWER SWITCH TECHNICAL SPECS /// Voltage: 115 Volts 60 Hz Switching power: 1150 W resistive (10 A), 750 W incandescent Motor: 1/2 HP Frequency: 418 MHz Typical Range Indoors: 60 feet APPROVALS /// FCC ID NUMBER: OU4-XPC220 / IC: 4576A STANDARDS 93/68/EEC, 89/336/EEC, BS EN 50082-1:1992, 73/23/EEC, EN60950:1992 CE INSTRUCTIONS TO THE USER: The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interferences will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CE directive 93/68/EEC, EMC directive 89/336/EEC, LV directive 73/23/EEC. This class B digital apparatus complies with Canadian ICES-003. The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Exhibit F: Block Diagram Xanboo XPC220 Power Module Transmitter

Exhibit K: Letter of Confidentiality Xanboo XPC220 Power Module Transmitter American Telecommunications Certification Body, Inc. 6731 Whittier Ave. McLean, VA 22101 February 6, 2004 RE: Certification Application FRN: 0007774151 FCC ID: OU4-XPC220 Please be advised the following information is to be held confidential on behalf of Company. • Schematics • Theory of operation Thank you, M Ghalebi Senior Vice president (Engineering)

Exhibit I: Letter of Authorization Xanboo XPC220 Power Module Transmitter

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 4, 2004 RE: FCC ID: QU4 -XPC220 Attention: Mike Royer I have a few comments on this Application. 1. As part of the ATCB quality control and for help in tracking of an application, a competed 731 form is needed. Please note that the provided 731 does not list the equipment code for this application. Please provide the requested equipment code under section 4a of the 731. 2. Please provide the description of the device in section 4b of the 731 as it will be on the grant. Otherwise the name of this device as listed on the grant will be “ XPC220 Power Module” 3. Please note that no letter of confidentiality has been provided, thus all exhibits will be open for public view. If you wish confidentiality of the schematics, block diagram and theory of operation, please submit a request for confidentiality letter. 4. Please provide the schematics for the device. 5. Please note that 15.231 devices using pulsed emissions must be averaged using the pulse width averaging technique specified in 15.35 and are not averaged using an average detector. This applies for all spurious emissions even those above 1GHz. Your report indicates that above 1GHz an average detector and not the averaging specified in 15.35 was used. Please also note that because of this and the fact that an average detector may yield a different value than the averaging method under 15.35, the actual peak value of several frequencies above 1GHz may actually exceed that of the fundamental and thus the corrected average and/or peak values for 1254MHz may fail. Please also not that under no circumstance can the peak, QP or average values of any emission exceed the recorded peak, QP or average value of the fundamental. Please report the peak readings of emissions above 1GHz and then use the calculated duty cycle averaging value to derive pulsed width averages. Alternately, please record all values of Peak and QP values for comparison to the requirement of 15.209c. 6. Please provide evidence that the device meets the automatic or manual turn off requirements of 15.231a2&3. This is generally done in the operational description. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

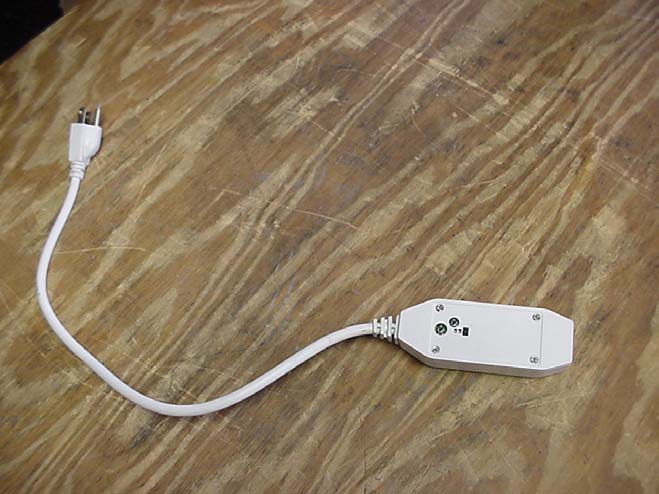

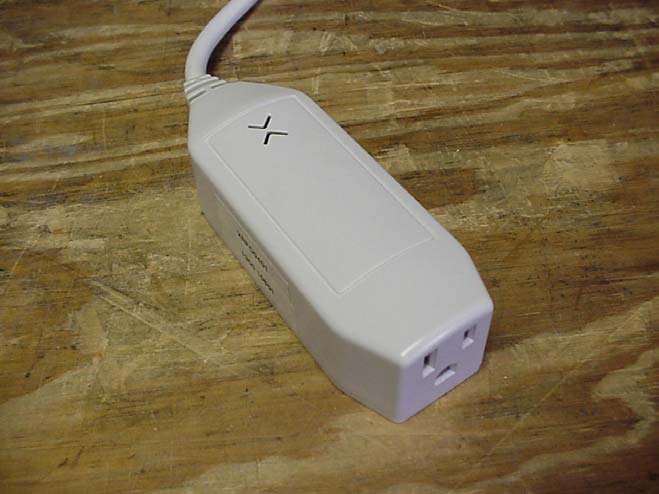

Exhibit E2: EUT External Photos Xanboo XPC220 Power Module Transmitter Xanboo XPC220 Power Module Transmitter EUT External View Xanboo XPC220 Power Module Transmitter

Exhibit C: Label Location Xanboo XPC220 Power Module Transmitter Xanboo XPC220 Power Module Transmitter

Exhibit E1: EUT Internal Photos Xanboo XPC220 Power Module Transmitter Xanboo XPC220 Power Module Transmitter

Professional Testing (EMI), Inc. 1 Exhibit B: Test Report Xanboo XPC220 Power Module Transmitter Professional Testing (EMI) Inc. Report No. 04045-10 Page 2 of 19 Project Number: 04045-10 Prepared for: Xanboo 1626 Vineyard Grand Praire , TX 75052 By Professional Testing (EMI), Inc. 1601 FM 1460, Suite B Round Rock, Texas 78664 December 2003 CERTIFICATION Electromagnetic Interference Test Report Xanboo Power Module Transmitter, Model XPC220 (Intentional Radiator Portion) Professional Testing (EMI) Inc. Report No. 04045-10 Page 3 of 19 Table of Contents Title Page .........................................................................................................................................1 Table of Contents .............................................................................................................................2 Certificate of Compliance ................................................................................................................3 1.0 EUT Description ......................................................................................................................5 1.1 EUT Operation.........................................................................................................................5 2.0 Electromagnetic Emissions Testing.........................................................................................5 2.1 Test Procedure .....................................................................................................................7 2.2 Test Criteria ........................................................................................................................5 2.3 Test Results ..........................................................................................................................8 3.0 Occupied Bandwidth Measurements .......................................................................................8 3.1 Test Procedure .....................................................................................................................8 3.2 Test Criteria .........................................................................................................................8 3.3 Test Results ..........................................................................................................................8 4.0 Antenna Requirement ..............................................................................................................9 4.1 Evaluation Procedure ...........................................................................................................9 4.2 Evaluation Criteria ...............................................................................................................9 4.3 Evaluation Results ...............................................................................................................9 5.0 Modifications to Equipment ..................................................................................................10 6.0 List of Test Equipment...........................................................................................................10 Figures FIGURE 1 : Conducted Emissions Mains Terminal Measurements ............................................ 11 FIGURE 2: Radiated Emissions Test Setup ................................................................................. 12 Appendices Appendix A: Emissions Data Sheet ...............................................................................................13 Appendix B: Occupied Bandwidth Data Sheets............................................................................. 18 THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF PROFESSIONAL TESTING (EMI), INC. Professional Testing (EMI) Inc. Report No. 04045-10 Page 4 of 19 Applicant: Xanboo Applicant’s Address: 1626 Vineyard Grand Praire, TX 75052 Serial Number: N/A Project Number: 04045-10 Test Dates: July 7, 2003 I, Jeffrey A. Lenk, for Professional Testing (EMI), Inc., being familiar with the FCC rules and test procedures have reviewed the test setup, measured data and this report. I believe them to be true and accurate. The Xanboo, Power Module Transmitter, Model XPC220 was tested to and found to be in compliance with FCC Part 15 Subpart C for an Intentional Radiator. The highest emissions generated by the above equipment are listed below: Frequency (MHz) Level (dBμV/m) Limit (dBμV/m) Margin (dB) Fundamental 418 83.5 80.3 -10.2 Spurious 1254.1 68.4 69.8 -1.4 2090.1 51.4 69.8 -18.4 Conducted All data more than 10 dB below the limit. 0 Occupied Bandwidth 143.5 KHz ______________________________ Jeffrey A. Lenk President This report has been reviewed and accepted by Xanboo. The undersigned is responsible for ensuring that Xanboo, Power Module Transmitter, Model XPC220 will continue to comply with the FCC rules. ______________________________ Certificate of Compliance Professional Testing (EMI) Inc. Report No. 04045-10 Page 5 of 19 1.0 EUT Description The Equipment under Test (EUT) is the Xanboo, Power Module Transmitter, Model XPC220. The Power Module Transmitter, Model XPC220 resembles an extension cord. A 418 MHz transmitter with an internal antenna is located next to the female AC connector. When a load is plugged into the security lighting control and turned on so as to draw current, the transmitter begins to transmit its identifier code. The EUT operates at 418 MHz and is designed for compliance with 47 CFR 15.231 of the FCC rules. Specific test requirements for this device include the following: 47 CFR 15.209 & 15.231 Fundamental Transmit Power 47 CFR 15.231 & 15.205 Spurious Radiated Power 47 CFR 15.231 Occupied Bandwidth 47 CFR 15.203 Antenna Requirement 47 CFR 15.207 Conducted Emissions The system tested consisted of the following: Manufacturer & Model Serial # FCC ID # Description Xanboo, Power Module Transmitter, Model XPC220 N/A Security Lighting Control Sy…
