OU4-XSC501Door Sensor XSC501

Exhibit H: Users Manual Xanboo Door Sensor XSC501 WIRELESS DOOR/WINDOW SENSOR XWS10D USER’S GUIDE APPROVALS /// FCC ID NUMBER: OU4-XSC501 / IC: 4576A-XSC501 ST ANDARDS 93/68/EEC, 89/336/EEC, BS EN 50082-1:1992, 73/23/EEC, EN60950:1992 CE INSTRUCTION TO THE USERS (IF DEVICE DOES NOT CONTAIN A DIGITAL DEVICE) The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. INSTRUCTION TO THE USER (IF DEVICE CONTAINS A DIGITAL DEVICE) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interferences will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. DRILLING TEMPLATE FOR WALL MOUNTING SENSOR(S) /// DRILL HOLES IN THESE POSITIONS PRODUCT DESCRIPTION /// The Xanboo ™ Door/Window Sensor allows for convenient placement. Using a magnetic force field created between the sensor and a magnetic contact you can secure household doors, office doors, file cabinets or windows. PACKAGE CONTENTS /// n (1) Door/Window Sensor n (1) Magnetic Contact n (1) Hardware Kit n (1) Installation Guide CONNECTING TO THE GATEWAY /// DISCOVERING NEW DEVICES In order for the Gateway to control Xanboo devices such as cameras and sensors, each device must be registered with the Gateway . The iG3 Gateway establishes a “secure wireless network” between itself and all discovered Xanboo devices. The Gateway can only control devices that it has discovered. New devices can be discovered at any time: A. Log into the iG3 using ‘XANASSIST’ B. Click on the ‘DISCOVERY’ menu option C. Click the ‘START DISCOVERY’ menu item, on the left, to begin discovery for your Door/Window Sensor. D. At this time, using a paper clip, press the ‘DISCOVERY’ button on the back of your Door/ Window Sensor. The light on the device will turn green when the Gateway has discovered it properly. NOTE: After a brief period, the LED will turn off. The LED is only Green when transmitting. The LED is not 'lit' during sleep mode (waiting for the next time to transmit a signal). I2 DOOR/WINDOW SENSORMAGNETIC CONTACT HARDWARE KIT DEVICE DISCOVERY BUTTON MOUNTING HOLE MOUNTING HOLE E. Go back to your PC and confirm that the device has been discovered and displayed. F. Click on the ‘STOP DISCOVERY’ menu option when you are finished discovering all of your devices. G. The Gateway and devices are now ready to be used. ADDITIONAL NOTES A. This page will refresh every 10 seconds to show newly discovered devices. You may have to wait for a refresh to see the device listed. B. The Gateway will automatically stop discovery after 10 minutes or if you browse off the page C. New devices can only be discovered when the Gateway has an active Internet connection (ie. your Gateway is connected to the internet). MOUNTING /// The Xanboo ™ Door/Window Sensor is constructed of UV resistant ABS plastic allowing for indoor or sheltered outdoor use. The Sensor works by creating a magnetic field between the Sensor base and the magnetic contact. When there is a change in status, either opening or closing, the Sensor will trigger an event to the Gateway. The spacing between the Sensor and the contact should be between 1/10 inch and .5 inch. NOTE: The Door/Window Sensor cannot be used on metal doors, metal door frames or metal objects. 1. Peel the paper strip from the double-sided tape located on the back of the Sensor. You can also mount the sensor more securely using the screws in the hardware kit. Using the drilling template on the back of the instruction guide, drill two small holes for the screws. Affix the screws to one side of the object (typically the “stationary” side) leaving 1/16“ space between the screw head and the object, 2. Mount the Sensor onto the screws and slide down to lock into place 3. The magnetic contact should now be placed on the other side of the object (typically the side that moves) SETUP WIZARD DEVICE DISCOVERY (IN PROGRESS) PAGE 34 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARRANTY /// This product has a one year manufacturer's warranty which covers parts and SYMPTOM Events are not triggered REMEDIES 1. Check to make sure that the sensor has been registered properly with the gateway. 2. Check to make sure that the gateway is currently connected to the internet and is online. 3. Check to make sure the spacing between the contact and the sensor is between 1/10” and 1” 4. Check to make sure that you have the proper settings configured for the …

Text truncated - open the document above for the full version.

Exhibit K: Letter of Confidentiality Xanboo Door Sensor XSC501 American Telecommunications Certification Body, Inc. 6731 Whittier Ave. McLean, VA 22101 February 6, 2004 RE: Certification Application FRN: 0007774151 FCC ID: OU4-XSC501 Please be advised the following information is to be held confidential on behalf of Company. • Schematics • Theory of operation Thank you, M Ghalebi Senior Vice president (Engineering)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 29, 2004 RE: FCC ID: OU4-XSC501_ATCB001071 Attention: Mike Royer I have a few comments on this Application. 1. Please note that the operational description has three duplicated pages. Please provide only one operational description and remove the duplicated pages. 2. Please note that your manual Class B statement says, “shielded cables must be used with this equipment”. What shielded cables are you talking about? Please provide a correct statement for the device in question. 3. Please note that you have provided the OATS setup photos along with the external photos. Please separate the external photos of the device from the OATS setup photos. 4. Please note that the setup photos provided show the device tested inside in close proximity to a number of metal objects that could affect the emissions of this device. Please explain. 5. Please note that this device appears to be able to be installed in at least two of three orthogonal planes, yet was tested in only on plane. Please test the device in all three orthogonal planes. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

dward ATCB From: Michael Royer [[email protected]] Sent: Thursday, February 05, 2004 9:32 AM To: 'Dennis Ward ATCB' Cc: David Rahe (E-mail); Jeff Lenk (E-mail); Jhaley@Ptitest. Com (E-mail); Michelle Cantrell (E-mail); Sree (E-mail) Subject: RE: OU4-XSC501_ATCB001071 2/6/2004 Dennis, Thank you for your comments. We are uploading the package again today. In regard to your question about the metal objects in the photo, tests above 1GHz are performed indoors and at 1m. We find that the close distance, narrow beamwidth of the antenna, and directionality of product emissions make it rare for reflections to affect measurements. We do guard against cancellation due to reflection by manually moving the EUT to maximize the emissions. This ensures that an reflections are combined constructively. Thank you for your comments on the microwave emissions setup. Best regards, Mike Royer Michael Royer EMC Engineer Professional Testing (EMI), Inc. 1601 FM 1460 Suite B Round Rock, TX 78660 Ph: (512) 244-3371 ext. 110 Fx: (512) 244-1846 Email: [email protected] -----Original Message----- From: Dennis STI [mailto:[email protected]]On Behalf Of Dennis Ward ATCB Sent: Thursday, January 29, 2004 1:54 PM To: [email protected] Subject: OU4-XSC501_ATCB001071 Hi Mike Please see attached comments Thanks Dennis --- Incoming mail is certified Virus Free. Checked by AVG anti-virus system (http://www.grisoft.com). Version: 6.0.572 / Virus Database: 362 - Release Date: 1/27/2004 --- Outgoing mail is certified Virus Free. Checked by AVG anti-virus system (http://www.grisoft.com). Version: 6.0.572 / Virus Database: 362 - Release Date: 1/27/2004

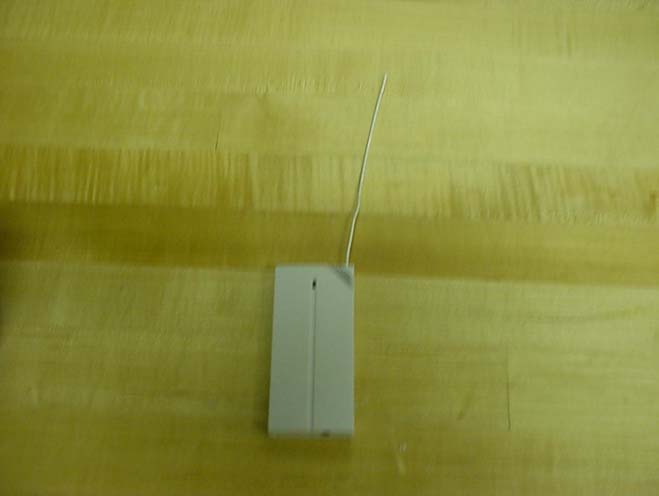

Exhibit E2: External EUT Photographs Xanboo Door Sensor XSC501 Xanboo Door Sensor XSC501 EUT Front Outside View EUT Rear Outside View

Exhibit C: Label Artwork Xanboo Door Sensor XSC501

Exhibit E1: Internal EUT Photographs Xanboo Door Sensor XSC501 Xanboo Door Sensor XSC501 PCB Top View PCB Bottom View

FCC ID# OU4-XSC501 Professional Testing (EMI), Inc. 2 Exhibit B: Test Report Xanboo Door Sensor XSC501 FCC ID# OU4-XSC501 Professional Testing (EMI), Inc. 1 Project Number: 03194-10 Prepared for: Xanboo 1626 Vineyard Grand Praire , TX 75052 By Professional Testing (EMI), Inc. 1601 FM 1460, Suite B Round Rock, Texas 78664 September 2003 CERTIFICATION Electromagnetic Interference Test Report Xanboo Door Sensor, Model XSC501 (Intentional Radiator ) FCC ID# OU4-XSC501 Professional Testing (EMI), Inc. 2 Table of Contents Title Page .........................................................................................................................................1 Table of Contents .............................................................................................................................2 Certificate of Compliance ................................................................................................................3 1.0 EUT Description ......................................................................................................................4 1.1 EUT Operation.........................................................................................................................4 2.0 Electromagnetic Emissions Testing.........................................................................................4 2.1 Test Procedure .....................................................................................................................5 2.2 Test Criteria ........................................................................................................................5 2.3 Test Results ..........................................................................................................................6 3.0 Occupied Bandwidth Measurements .......................................................................................6 3.1 Test Procedure .....................................................................................................................6 3.2 Test Criteria .........................................................................................................................6 3.3 Test Results ..........................................................................................................................6 4.0 Antenna Requirement ..............................................................................................................7 4.1 Evaluation Procedure ...........................................................................................................7 4.2 Evaluation Criteria ...............................................................................................................7 4.3 Evaluation Results ...............................................................................................................7 5.0 Modifications to Equipment ....................................................................................................8 6.0 List of Test Equipment.............................................................................................................8 Figures Figure 1: Radiated Emissions Test Setup ........................................................................................8 Appendices Appendix A Emissions Data Sheet........................................................................................ 10 Appendix B Occupied Bandwidth Data Sheets ...................................................................... 13 THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF PROFESSIONAL TESTING (EMI), INC. 1601 FM 1460, Suite B Round Rock, Texas 78664 512/244-3371 Fax 512/244-1846 Applicant: Xanboo Applicant’s Address: 1626 Vineyard Grand Praire, TX 75052 Model: XSC501 FCC ID: OU4-XSC501 Project Number: 03194-10 Test Dates: March 20, 2003 I, Jeffrey A. Lenk, for Professional Testing (EMI), Inc., being familiar with the FCC rules and test procedures have reviewed the test setup, measured data and this report. I believe them to be true and accurate. The Xanboo, Door Sensor, Model XSC501 was tested to and found to be in compliance with FCC Part 15 Subpart C for an Intentional Radiator. The highest emissions generated by the above equipment are listed below: Frequency (MHz) Level (dBμV/m) Limit (dBμV/m) Margin (dB) Fundamental 418 77.1 80.3 -3.2 Harmonics 1254 55.2 69.8 -14.6 Occupied Bandwidth 166 (kHz) 1.045 (MHz) ______________________________ Jeffrey A. Lenk President This report has been reviewed and accepted by Xanboo. The undersigned is responsible for ensuring that Xanboo, Door Sensor, Model XSC501 will continue to comply with the FCC rules. ______________________________ Certificate of Compliance Professional Testing (EMI), Inc. 4 1.0 EUT Description The Equipment under Test (EUT) is the Xanboo, Door Sensor, Model XSC501. The Door Sensor, Model XSC501is battery powered and activated when the door is opened and the sensor is separated from a permanent magnet mounted on the door frame. The EUT operates at 418 MHz and is designed for compliance with 47 CFR 15.231 of the FCC rules. Specific test requirements for this device include the following: 47 CFR 15.231 Fundamental Transmit Power 47 CFR 15.231 & 15.205 Spurious Radiated Power 47 CFR 15.231 Occupied Bandwidth 47 CFR 15.203 Antenna Requirement The system tested consisted of the following: Manufacturer & Model Serial # FCC ID # Description Xanboo, Door Sensor, Model XSC501 N/A OU4-XSC501 Door Sensor 1.1 EUT Operation The Xanboo Door Sensor, Model XSC501 was tested using internal batteries. The frequency of the transmitting signal is 418 MHz. The Transmitter operating at 418 MHz under normal configuration can only be triggered once per fifteen seconds and transmits a recognition code for 52 milliseconds. For the purpose of testing, a special mode was used, for most of the testing, allowing the Door Sensor transmitter to transmit continuously. 2.0 Electromagnet…

Text truncated - open the document above for the full version.

Exhibit D: Test Setup Photographs Xanboo Door Sensor XSC501 Xanboo Door Sensor XSC501 Microwave Radiated Emissions - Rear View Microwave Radiated Emissions –Front View
