OU4-XWC700Security Camera

Exhibit J: Users Manual Xanboo Security Camera, Model XWC700 DRILL HOLES IN THESE POSITIONS DRILLING TEMPLATE FOR WALL MOUNTING CAMERA(S) /// For wall-mounting Camera(s), drill two holes using a 7/32” drill bit and the template below. Insert supplied wall anchors into holes and secure camera to wall with supplied screws. Printers and copy machines can affect the scale of this template. Before drilling, compare this template with the actual camera by placing the template on the back of the camera and observing if mounting holes on camera line up exactly with the drill holes on this template. WIRELESS CAMERA I2 PRODUCT DESCRIPTION /// The Shell HomeGenie ™ Wireless Camera is a 2.4 GHz wireless camera with motion detection. PACKAGE CONTENTS /// n (1) Shell HomeGenie ™ Wireless Camera n (1) 9V Power Supply n (1) Wall Mounting Kit WALL MOUNTING /// NOTE: Be aware of the length of the power adapter cord before selecting a mounting position. 1. Using the holes on the drilling template on the back page of the manual, mark the position of the holes to be drilled. For drywall or other composite surfaces use a a 7/32” drill bit. Drill a hole for each of the mounting screws and insert a plastic wall plug into each hole. 2. Using the screws provided, secure the camera to the wall. 3. Position the camera to view the desired area and plug in the power supply. Please keep in mind that the field of view is 80 degrees and motion sensor distance is up to 30 feet. 4. Any slight adjustments can now be made to the camera viewing angle by tilting and panning the camera head with your hand. 5. It is recommended that the antenna be set fully vertical. TABLETOP MOUNTING /// Alternatively the camera may be placed on a level surface. 1. Plug in the power supply 2. Any slight adjustments can now be made to the camera viewing angle by tilting and panning the camera mirror with your hand. 3. Adjust the antenna as needed. It is recommended that the antenna stay at a 90-degree angle to the base of the camera for the best picture quality. TECHNICAL SPECS /// n High resolution color video camera with motion detection n All hardware for either wall or ceiling mounting included n AC or battery operation (batteries not included) n Auto Brightness, Auto Contrast, Auto White-Balance TV System: NTSC or PAL (color) standard Integrated Lens: 4.3 mm, F2.0 fixed focus Motion and camera lens: 80 degree field of view Focus range: 2’ - Infinity Resolution: 360 horizontal TV lines Signal/Noise Ratio: 48 dB Image Sensor: 1/3” CMOS Frequency Range: 2.41 - 2.47GHz High Speed Electronic Shutter: 1/60 - 1/15,000 sec Modulation: FM Min Illumination: 3 lux Current Consumption: approx. 220mA Channel Selection: Electronic tuning with PLL RX Sensitiivity: -102 dBm Typical free range space: 200 feet Typical indoor range: 60 feet APPROVALS /// FCC ID NUMBER: OU4-XWC700 / IC: 4576A STANDARDS 93/68/EEC, 89/336/EEC, BS EN 50082-1:1992, 73/23/EEC, EN60950:1992 CE INSTRUCTIONS TO THE USER: The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interferences will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CE directive 93/68/EEC, EMC directive 89/336/EEC, LV directive 73/23/EEC. This class B digital apparatus complies with Canadian ICES-003. The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. WALL MOUNTED DESK/TABLETOP MOUNTING SHELL HOMEGENIE WIRELESS CAMERA9V CAMERA ADAPTERWALL MOUNTING KIT

Exhibit F: Block Diagram Xanboo Security Camera, Model XWC700

Exhibit K: Letter of Authorization Xanboo Security Camera, Model XWC700 American Telecommunications Certification Body, Inc. 6731 Whittier Ave. McLean, VA 22101 February 6, 2004 RE: Certification Application FRN: 0007774151 FCC ID: OU4-XWC700 Please be advised the following information is to be held confidential on behalf of Company. • Schematics • Theory of operation Thank you, M Ghalebi Senior Vice president (Engineering)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 5, 2004 RE: FCC ID: OU4-XWC700_ATCB001086 Attention: Mike Royer I have a few comments on this Application. 1. Please note that no letter of confidentiality has been provided, thus all exhibits will be open for public view. If you wish confidentiality of the schematics, block diagram and theory of operation, please submit a request for confidentiality letter. 2. Please note that recent interpretations from the FCC have reiterated that the operational description of a device is to include a brief explanation of how the device actually works and not simply an overview of the purpose of the device. Please provide an operational description of the intentional radiator part of this device that explains how the device works. 3. Please note that part 15 devices using average limits must also meet the 15.35b 20dB over average limit specification. As you have only provided the average readings for this device at 2470MHz fundamental and the radiated emissions on page 20, it cannot be determined if the device is compliant. Please provide the peak readings for the 2470MHz fundamental emissions and the peak radiated emission readings on page 20 showing compliance to 15.35b. 4. This is a composite application covering two distinct rule parts. Please provide the appropriate 731 information for the 15.249 application. 5. Please provide evidence that the device meets the automatic or manual turn off requirements of 15.231a2&3. This is generally done in the operational description. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

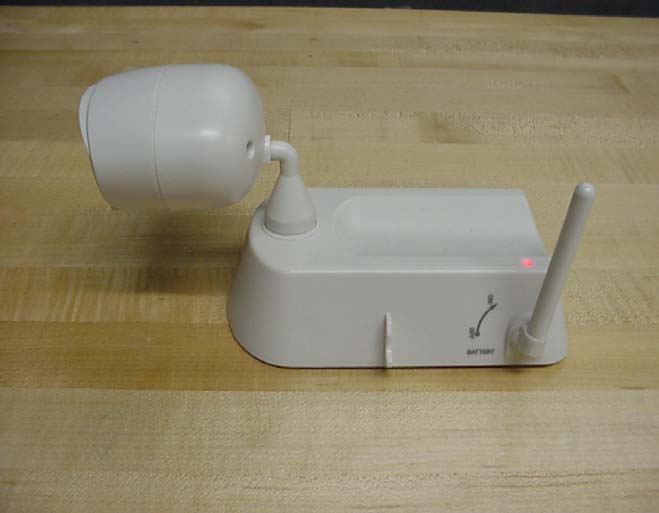

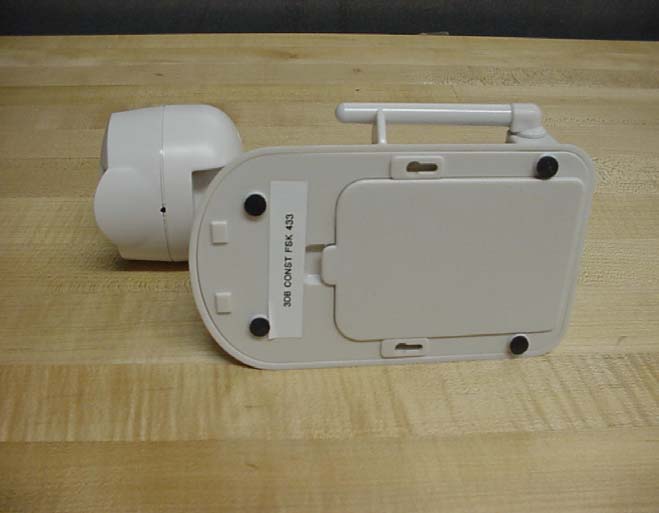

Exhibit E2 – External EUT Photo Xanboo Security Camera, Model XWC700 Xanboo Security Camera, Model XWC700 Front View of EUT Side View of EUT Xanboo Security Camera, Model XWC700 External View of EUT Bottom View of Batteries at the Bottom

Exhibit C: Label Location Xanboo Security Camera, Model XWC700 Xanboo XWC700 FCC ID Number: OU4-XWC700 This device complies with part 15 of the FCC rules. Operation is subject to the followi ng conditions: 1) This device may not cause harmful interference and 2)This device must accept any interference received, includi ng interference that may cause undesired operation. Standards: 93/68/EEC, 89/336/EEC, BS EN 50082-1: 1992 73/23/EEC, EN60950:1992 Serial No Xanboo Inc, New York USA Made in China

Exhibit E1 – Internal EUT Photo Xanboo Security Camera, Model XWC700 Xanboo Security Camera, Model XWC700 Top View of Camera PCB Bottom View of Transmitter PCB Xanboo Security Camera, Model XWC700 Transmitter PCB with cover removed Front View of Infrared Sensor PCB Xanboo Security Camera, Model XWC700 Rear View of Infrared Sensor PCB Xanboo Security Camera, Model XWC700 Power Supply

Professional Testing (EMI), Inc. Report No. 03193-10 Page 1 of 24 Exhibit B: Test Report Xanboo Security Camera, Model XWC700 Professional Testing (EMI), Inc. Report No. 03193-10 Page 2 of 24 Project Number: 03193-10 Prepared for: Xanboo 1626 Vineyard Grand Praire , TX 75052 By Professional Testing (EMI), Inc. 1601 FM 1460, Suite B Round Rock, Texas 78664 December 2003 CERTIFICATION Electromagnetic Interference Test Report Xanboo Security Camera, Model XWC700 (Intentional Radiator Portion) Professional Testing (EMI), Inc. Report No. 03193-10 Page 3 of 24 Table of Contents Title Page .........................................................................................................................................1 Table of Contents .............................................................................................................................2 Certificate of Compliance ................................................................................................................3 1.0 EUT Description ......................................................................................................................5 1.1 EUT Operation.........................................................................................................................5 2.0 Electromagnetic Emissions Testing.........................................................................................5 2.1 Test Procedure .....................................................................................................................7 2.2 Test Criteria ........................................................................................................................5 2.3 Test Results ..........................................................................................................................8 3.0 Occupied Bandwidth Measurements .......................................................................................8 3.1 Test Procedure .....................................................................................................................8 3.2 Test Criteria .........................................................................................................................8 3.3 Test Results ..........................................................................................................................8 4.0 Antenna Requirement ..............................................................................................................9 4.1 Evaluation Procedure ...........................................................................................................9 4.2 Evaluation Criteria ...............................................................................................................9 4.3 Evaluation Results ...............................................................................................................9 5.0 Modifications to Equipment ..................................................................................................10 6.0 List of Test Equipment...........................................................................................................10 Figures FIGURE 1: Conducted Emissions Mains Terminal Measurements ............................................. 11 FIGURE 2: Radiated Emissions Test Setup ................................................................................ 12 Appendices Appendix A: Emissions Data Sheet ...............................................................................................13 Appendix B: Occupied Bandwidth Data Sheets............................................................................. 23 THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF PROFESSIONAL TESTING (EMI), INC. Professional Testing (EMI), Inc. Report No. 03193-10 Page 4 of 24 Applicant: Xanboo Applicant’s Address: 1626 Vineyard Grand Praire, TX 75052 FCC ID: OU4-XWC700 Project Number: 03193-10 Test Dates: March 20, 2003 I, Jeffrey A. Lenk, for Professional Testing (EMI), Inc., being familiar with the FCC rules and test procedures have reviewed the test setup, measured data and this report. I believe them to be true and accurate. The Xanboo, Security Camera, Model XWC700 was tested to and found to be in compliance with FCC Part 15 Subpart C for an Intentional Radiator. The highest emissions generated by the above equipment are listed below: Frequency (MHz) Level (dBμV/m) Limit (dBμV/m) Margin (dB) Fundamental 2470 100.8 103.5 -2.7 418 79.8 80.3 -0.5 Spurious 4940 46.7 63.5 -16.8 1254 45.7 69.8 -24.1 Conducted 0.498 44.7 46.0 -1.3 Occupied Bandwidth 166 (kHz) 1.045 (MHz) ______________________________ Jeffrey A. Lenk President This report has been reviewed and accepted by Xanboo. The undersigned is responsible for ensuring that Xanboo, Security Camera, Model XWC700 will continue to comply with the FCC rules. ______________________________ Certificate of Compliance Professional Testing (EMI), Inc. Report No. 03193-10 Page 5 of 24 1.0 EUT Description The Equipment under Test (EUT) is the Xanboo, Security Camera, Model XWC700. The Security Camera, Model XWC700 is a TV security camera with motion sensor. The EUT operates at 2470 MHz and 418 MHz and is designed for compliance with 47 CFR 15.231 of the FCC rules. The EUT uses five battery cells and operates either using a power supply or batteries, but not both. Specific test requirements for this device include the following: 47 CFR 15.231 & 15.249 Fundamental Transmit Power 47 CFR 15.231 & 15.205 & 15.249 Spurious Radiated Power 47 CFR 15.231 Occupied Bandwidth 47 CFR 15.203 Antenna Requirement 47 CFR 15.207 Conducted Emissions The system tested consisted of the following: Manufacturer & Model Serial # FCC ID # Description Xanboo, Security Camera, Model XWC700 N/A OU4-XWC700 Security Camera 1.1 EUT Operation The Xanboo Security Camera, Model XWC700 was tested using internal batteries with the exception of c…

Text truncated - open the document above for the full version.

Exhibit D – Test Setup Photographs Xanboo Security Camera, Model XWC700 Xanboo Security Camera, Model XWC700 Conducted Emissions Test Setup Xanboo Security Camera, Model XWC700 Radiated Emissions Test Setup Xanboo Security Camera, Model XWC700 Radiated Emissions Test Setup Xanboo Security Camera, Model XWC700 Occupied Bandwidth Test Setup
