OU4-XWT380418 MHz Thermostat Transmitter

Exhibit J: Users Manual Xanboo XWT380 Thermostat Transmitter

Exhibit F: Block Diagram Xanboo XWT380 Thermostat Transmitter

Exhibit K: Letter of Confidentiality Xanboo XWT380 Thermostat Transmitter American Telecommunications Certification Body, Inc. 6731 Whittier Ave. McLean, VA 22101 February 6, 2004 RE: Certification Application FRN: 0007774151 FCC ID: OU4-XWT380 Please be advised the following information is to be held confidential on behalf of Company. • Schematics • Theory of operation Thank you, M Ghalebi Senior Vice president (Engineering)

Exhibit I: Letter of Authorization Xanboo XWT380 Thermostat Transmitter

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 4, 2004 RE: FCC ID: QU4-XWT380 Attention: Mike Royer I have a few comments on this Application. 1. Please note that no letter of confidentiality has been provided, thus all exhibits will be open for public view. If you wish confidentiality of the schematics, block diagram and theory of operation, please submit a request for confidentiality letter. 2. Please note that the picture on the bottom of page 2 and the picture on page 4 appear to be the same picture. Please show the other side of the circuit board in these pictures.. 3. Please note that recent interpretations from the FCC have reiterated that the operational description of a device is to include a brief explanation of how the device actually works and not simply an overview of the purpose of the device. Please provide an operational description of the intentional radiator part of this device that explains how the device works. 4. Please show how you derived the ”averaging factor” shown in the data sheets (i.e. plots of the duty cycle over 100ms and the calculation etc). 5. Please provide the peak readings for the spurious emissions averaged on page 18 of the report. 6. Please provide evidence that the device meets the automatic or manual turn off requirements of 15.231a2&3. This is generally done in the operational description. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Exhibit E2: EUT External Photos Xanboo XWT380 Thermostat Transmitter Xanboo XWT380 Thermostat Transmitter EUT External View

Exhibit C: Label Location Xanboo XWT380 Thermostat Transmitter Xanboo XWT380 Thermostat Transmitter

Exhibit E1: EUT Internal Photos Xanboo XWT380 Thermostat Transmitter Xanboo XWT380 Thermostat Transmitter EUT Internal View Xanboo XWT380 Thermostat Transmitter Xanboo XWT380 Thermostat Transmitter

Professional Testing (EMI), Inc. 1 Exhibit B: Test Report Xanboo XWT380 Thermostat Transmitter Professional Testing (EMI) Inc. Report No. 04044-10 Page 2 of 22 Project Number: 04044-10 Prepared for: Xanboo 1626 Vineyard Grand Praire , TX 75052 By Professional Testing (EMI), Inc. 1601 FM 1460, Suite B Round Rock, Texas 78664 July 2003 CERTIFICATION Electromagnetic Interference Test Report Xanboo Thermostat System Transmitter, Model XWT380 (Intentional Radiator Portion) Professional Testing (EMI) Inc. Report No. 04044-10 Page 3 of 22 Table of Contents Title Page .........................................................................................................................................1 Table of Contents .............................................................................................................................2 Certificate of Compliance ................................................................................................................3 1.0 EUT Description ......................................................................................................................5 1.1 EUT Operation.........................................................................................................................5 2.0 Electromagnetic Emissions Testing.........................................................................................5 2.1 Test Procedure .....................................................................................................................7 2.2 Test Criteria ........................................................................................................................5 2.3 Test Results ..........................................................................................................................7 3.0 Occupied Bandwidth Measurements .......................................................................................8 3.1 Test Procedure .....................................................................................................................8 3.2 Test Criteria .........................................................................................................................8 3.3 Test Results ..........................................................................................................................8 4.0 Antenna Requirement ..............................................................................................................9 4.1 Evaluation Procedure ...........................................................................................................9 4.2 Evaluation Criteria ...............................................................................................................9 4.3 Evaluation Results ...............................................................................................................9 5.0 Modifications to Equipment ....................................................................................................9 6.0 List of Test Equipment...........................................................................................................10 Figures FIGURE 1: Conducted Emissions Mains Terminal Measurements ............................................. 11 FIGURE 2: Radiated Emissions Test Setup ................................................................................. 12 Appendices Appendix A: Emissions Data Sheet................................................................................................ 13 Appendix B: Occupied Bandwidth Data Sheets.............................................................................. 20 THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF PROFESSIONAL TESTING (EMI), INC. Professional Testing (EMI) Inc. Report No. 04044-10 Page 4 of 22 Applicant: Xanboo Applicant’s Address: 1626 Vineyard Grand Praire, TX 75052 FCC ID: OU4-XWT380 Project Number: 04044-10 Test Dates: July 7, 2003 I, Jeffrey A. Lenk, for Professional Testing (EMI), Inc., being familiar with the FCC rules and test procedures have reviewed the test setup, measured data and this report. I believe them to be true and accurate. The Xanboo, Thermostat System Transmitter, Model XWT380 was tested to and found to be in compliance with FCC Part 15 Subpart C for an Intentional Radiator. The highest emissions generated by the above equipment are listed below: Frequency (MHz) Level (dBμV/m) Limit (dBμV/m) Margin (dB) Fundamental 418 91.3 80.3 -2.4 Spurious 1672 40.5 63.5 -23.0 1254 50.0 63.5 -13.5 Conducted 150 KHz 60 66 QP. -6dB 150 KHz 17 56 Avg. -29dB 180 KHz 23 56 Avg. -23dB Occupied Bandwidth 150 KHz ______________________________ Jeffrey A. Lenk President This report has been reviewed and accepted by Xanboo. The undersigned is responsible for ensuring that Xanboo, Thermostat System Transmitter, Model XWT380 will continue to comply with the FCC rules. ______________________________ Certificate of Compliance Professional Testing (EMI) Inc. Report No. 04044-10 Page 5 of 22 1.0 EUT Description The Equipment under Test (EUT) is the Xanboo, Thermostat System Transmitter, Model XWT380. The Thermostat System Transmitter, Model XWT380 is a wall mounted home thermostat which transmits an alarm signal to the home security system if the temperature cannot be controlled. The EUT operates at 418 MHz and is designed for compliance with 47 CFR 15.231 of the FCC rules. Specific test requirements for this device include the following: 47 CFR 15.209 & 15.231 Fundamental Transmit Power 47 CFR 15.231 & 15.205 Spurious Radiated Power 47 CFR 15.231 Occupied Bandwidth 47 CFR 15.203 Antenna Requirement 47 CFR 15.207 Conducted Emissions The system tested consisted of the following: Manufacturer & Model Serial # FCC ID # Description Xanboo, Thermostat System Transmitter, Model XWT380 N/A Home Thermostat System Peripherals: Teac -41-240300U Class II Power Transformer Class II Power Supply 1.1 EUT Oper…

Text truncated - open the document above for the full version.

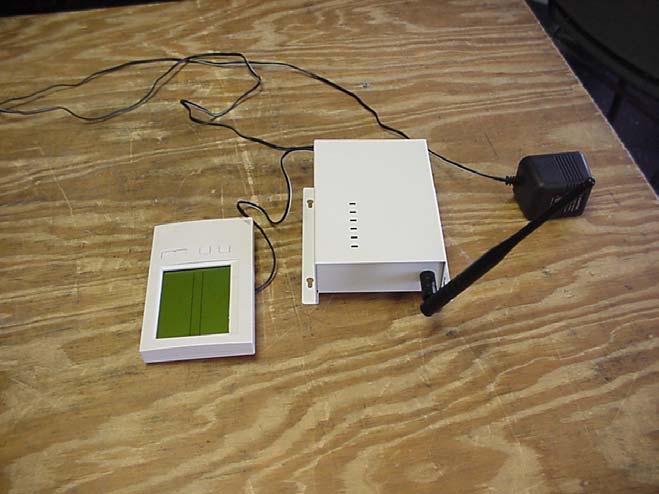

Exhibit D: Test Setup Photos Xanboo Thermostat System, Model XWT380 Transmitter Xanboo Thermostat System, Model XWT380 Transmitter Conducted Emissions Test Setup Xanboo Thermostat System, Model XWT380 Transmitter Radiated Emissions Test Setup
