OU4XWS350WIRELESS SIREN

Introduction Congratulations on y our pur chase of the Motorola homesight ™ siren accessory . Your siren w ill w o rk w i th any homesight device tin conjunction w i th a triggered event. F o r example, if y our Door/W indow sensor is armed and configured to trigger an event response w hen opened, the siren can set as a device that is set in action on that triggered event. T h is Quick Start Guide describes how to set up and troubleshoot y our homesight siren accessory . Controlling Your Siren Using y our computer and W i reless Sy stem Controller, y ou locally manage the Siren acccessory by setting events w i th trigger devices that w ill utilize the siren in the event response.. How It Works T he Siren accessory enables y ou to signal an audible alert to an event being monitored. If, for ex ample, y ou are monitoring an area for motion and this is detected, the siren can be configured to sound w hen the area event takes place. In this exam ple, the motion sensor is triggered, the information relay ed to the W i reless Sy stem Controller, w h ich activates the siren to sound, aler ting y ou to the event audibly . Co nt r o l l e r Package Contents Siren Installing Your Siren Accessory T he W i reless System Controller must be installed before installing your Siren. Consult the Motorola homesight ™ User Guide for details. T he Siren accessory is used bet w een the monitoring device and the Wiresless Sy stem Controller. 1 2 Plug the Siren into an AC outlet. Register the siren w i th y our W i reless Sy stem Controller using a process called discovery . Refer to y our W i reless Sy stem Controller documentation for instructions on how to discover y our Siren accessory . Feature Locator Features and Specifications • Device signal communication • LED indicates state of available pow er to device • Discovery button T y pical range outdoors 200 feet (61 m) T y pical range indoors 60 feet (18 m) Operating temperature/humidity 32° to 104° F with 10% to 80% humidity with all components operating within manufacturer thermal limits. Dimensions 4.75"W x 1.75"H x 1.44"D (12.07 cm W x 4.45 cm H x 3.66 cm D) Storage temperature -25º C to 75° C Communication frequency 418 MHz Sound level 105 dB Troubleshooting P r o b l e m S o l u t i o n Wir e less Sy stem Controller does not recognize the Siren during discovery • Position the Siren in closer proximity to y our Controller and try again. • Ensure that there are no other w i reless devices interfering w i th the Siren. The Siren transmits on the 418 MHz frequency . Device does not turn on/off w hen specified • Ensure that the Siren has been registered properly w i th the Wireless Sy stem Controller by logging into y our Motorola hom esight ™ program and review ing the Devices list. • Place the Siren in another location closer to the W i rel e s s Sy s t em Control l e r. • Consider adding a Motorola Wireless Signal Repeater (HMAC9100) to y our sy stem to increase device signal communication range. FAQ How far aw ay can the Siren be placed from my Wireless Sy stem Controller? Ty pically 60 feet (18 meters). Can I place the Siren in a different room than my Wireless Sy stem Controller? Y e s, the Siren and Wireless Sy stem Controller use radio frequencies to communicate w i th each other. These frequencies can go through objects like w a lls, ceilings, and floors. Can I use the Siren outdoors? Y e s. The Siren should be kept out of di rect contact w i th w eather elements and plugged into a w eather-proof AC outlet. CAUTION: Changes or modifications not expressly approved by Motorola for compliance could void the user’s authority to operate the equipment. Regulatory Information Bel l FCC Compliance Class B Digital Dev i ce This equipment has been tested and found to comply w i th the limits for a Class B digital dev ice, pursuant to Part 15 of the FCC Rules. These li mits are designed to prov ide reasonable protection against harmful interf erence in a residential env ironment. This equipment generates, uses, and c an radiate radio frequency energy and, if not installed and used in accordance w i th the instructions , may cause harmful interference to radio communications. How e v e r, there is no guarantee that interference w ill not occur in a particular installation. If this equipment does cause harmful interference to radio or telev i sion reception, w h ich c an be determined by turning the equipment off and on, the user is encouraged to try to correct the interf erence by one of the follow ing measures: Dev i ce acti v e LED Ma gn e t • Reorient or relocate the receiv ing antenna. • Increase the separation betw een the equipment and receiv er. • Connect the equipment into an outlet on a circ uit different from that to w h ich the receiv er is connected. Dev i ce status LED • Consult the dealer or an ex perienc ed radio/TV technician for help. FCC Declaration of Conformity Motorola, Inc., Broadband Communications Se ctor, 101 Tournament Driv e, Horsham, PA 19044, 1-215-323-1000, declares under sole res ponsibility that the HMVC3075 complies w i th 47 CFR Parts 2 and 15 of the FCC Rules as Class B digital dev ices. Base Industry Canada ICES-003 Statement W ill need UL safety statement This Class B digital apparatus complies w i th Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Wireless LA N Information This W i reless LAN product uses Direct Sequence Spread Spectrum (DSSS) radio technology . It is designed to be inter-operable w i th any other w i reless DSSS ty pe product that com p lies w i th: The IEEE 802.11 Standard on W i reless LANs (R ev ision B and G), as defined and approv ed by the Institute of Electr ical Electronics Engineers. Wireless LA N and Your Health This dev ice, like other radio dev ices, em its radio frequency elec tromagnetic energy , but operates w i thin the guidelines found in radio frequency safety standards and recommendations. Restrictions on Use of Wireless Dev i ces In…

Text truncated - open the document above for the full version.

EUT – External Photos View 2.1 EUT - Front View 2.2 EUT - Back View

FCC ID Label Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accpt any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location For Home or Office Use

FCC ID Label Sample for Model XWS350 FCC ID: OU4XWS350 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

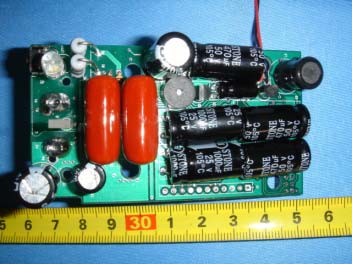

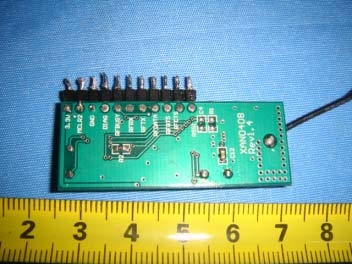

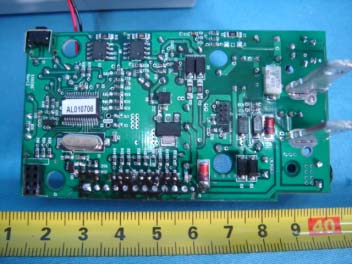

2.1 PCB - Component View(1) 2.2 PCB - Solder View (1) 2.3 PCB - Component View(2) 2.4 PCB - Solder View(2)

XWS350 Mar 08, 2005 Architecture XANBOO’s siren accessory enables you to signal an audible alert to an event being monitored. If, for example, you are monitoring an area for motion and this is detected, the siren can be configured to sound when the area event takes place. The hardware architecture is shown in Figure 1. 1. Two way telemetry link to support XANBOO AFM2 functionality. 2. Corded design removes the need for external power supply. 3. LED indicates state of available power to device. 4. Discovery button. 5. Sound level 105dB. 6. Typical range outdoors: 250 feet. 7. Typical range indoors: 60 feet. 8. Transmits on 418MHz frequency. 7. Input: 120V 60Hz AC

S H E E T OF SIZE FILE B TITLE SUPERSEDESDRAWING NO. 1 2 3 4 ABCD ABCD 1 2 3 4 SEE SHEET 1 FOR NOTES AND APPROVALS PRINT DATE TIME 115 West 30th Street 6th FL., New York, NY 10001 (646) 674 - 3000 BOO THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR HEREWITH IS THE PROPERTY OF XANBOO AND IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART WITHOUT THE PERMISSION OF XANBOO. AL L PATENT, PROPRIETARY, DESIGN, USE, SALE, MANUFACTURING AND REPRODUCTION RIGHTS THERETO ARE RESERVED BY XANBOO. 12 XAN0408 Rev1.4-02 XAN0408_1_4 2004-01-14 10:07:24 CC1000 AGND 2 RF_IN 3 RF_OUT 4 AVDD 5 AGND 6 AGND 7 AVDD 9 L1 10 AVDD 1 DGND 20 DVDD 21 DGND 22 DIO 23 DCLK 24 PCLK 25 PDATA 26 PALE 27 RSSI/IF 28 L2 11 CHP_OUT 12 R_BIAS 13 AGND 14 AVDD 15 AGND 16 XOSC_Q2 17 XOSC_Q1 18 AGND 8 AGND 19 U1 CC1000 XL4 33nH, 5% +3.3V R131 82k +3.3V XX1 11.0592 Mhz C141 16pF C15116pF C15 1nF C2220pF C14 220pF C13 220pF C12 1nF C11 1nF C10 33nF XL268nH XL36.2nH XC5 8.2pF +3.3V XC3 15pF XC4 5.6pF L2BLM11A102S RSSI R1TBA C4TBA XL1 8.2nH XC122pF XC215pF LOW PASS FILTER NOT FITTED C3TBA 433MHz XAN0408_1_4 TKS2351CT-ND PALEPDATAPCLKDCLKDIO C131 4.7pF + C13.3uF C1733nF ANT S H E E T OF SIZE FILE B TITLE SUPERSEDESDRAWING NO. 1 2 3 4 ABCD ABCD 1 2 3 4 SEE SHEET 1 FOR NOTES AND APPROVALS PRINT DATE TIME 115 West 30th Street 6th FL., New York, NY 10001 (646) 674 - 3000 BOO THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR HEREWITH IS THE PROPERTY OF XANBOO AND IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART WITHOUT THE PERMISSION OF XANBOO. AL L PATENT, PROPRIETARY, DESIGN, USE, SALE, MANUFACTURING AND REPRODUCTION RIGHTS THERETO ARE RESERVED BY XANBOO. 22 XAN0408 Rev1.4-02 XAN0408_1_4 2004-01-14 10:06:51 MICROCONTROLLER C5 0.1uF Y1 4Mhz C6 33pF C7 33pF PIC_VCC RF_DATARF_BUSYRF_RXRF_TX R24.7K R4000 R31K LED1GREEN RF_RTSRF_CTS +3.3V MCLR2DIAG PIC_VCC RA2/AN2/Vref 1 RA3/AN3/CMP1 2 RA4/TOCKI/CMP2 3 RA5/MCLR/THV 4 Vss 5 RB0/INT 7 RB1/RX/DT 8 RB2/TX/CK 9 RB3/CCP1 10 RB4/PGM 11 RB5 12 RB6/T1OSO/T1CKI 13 RB7/T1OSI 14 VDD 15 RA6/OSC2/CLKOUT 17 RA7/OSC1/CLKIN 18 RA0/AN0 19 RA1/AN1 20 Vss 6 VDD 16 U2PIC16LF628 XAN0408_1_4 R5100k PIC_VCC D1 DIO5711WS MCLR2 VPP 1234567891011 P1CON11 RSSI DCLKPDATAPCLKPALEDIO RF_RXRF_TXDIAGRF_BUSYRF_DATARF_RTSRF_CTS

FCC TEST REPORT FCC ID : OU4XWS350 Applicant : Xanboo Inc 115 WEST 30 TH STREET,6 TH FLOOR NEW YORK, NY10001 Equipment Under Test (EUT) : Product description : Wireless Siren Model No. : XWS350 Standards : FCC 15 Paragraph 15.205, Paragraph 15.209, Paragraph 15.231, Paragraph 15.31, Paragraph 15.33, Paragraph 15.35. Date of Test : March 28, 2005 Test Engineer : Peter Lin Reviewed By : PERPARED BY: Shenzhen Academy Of Metrology and Quality Inspection EMC Laboratory Bldg, of Metrology and Quality Inspection ,Longzhu Road ,Nanshan District ,Shenzhen ,Guangdong ,China FCC Registration Number: 97379 Industry Canada Registration Number: IC4174 Page 1 of 30 Xanboo Inc FCC ID:OU4XWS350 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................5 4 GENERAL INFORMATION..................................................................................................................................6 4.1 CLIENT INFORMATION............................................................................................................................................6 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................6 4.3 DETAILS OF E.U.T..................................................................................................................................................6 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................6 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................6 4.6 TEST FACILITY........................................................................................................................................................7 4.7 TEST LOCATION......................................................................................................................................................7 5 EQUIPMENT USED DURING TEST...................................................................................................................8 6 CONDUCTED EMISSION TEST..........................................................................................................................9 6.1 TEST EQUIPMENT....................................................................................................................................................9 6.2 TEST PROCEDURE...................................................................................................................................................9 6.3 CONDUCTED TEST SETUP.....................................................................................................................................10 6.4 EUT OPERATING CONDITION...............................................................................................................................10 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................11 6.6 CONDUCTED EMISSION TEST DATA......................................................................................................................12 6.7 CONDUCTIED EMISSIONS TEST DATA...................................................................................................................14 7 RADIATION EMISSION TEST...........................................................................................................................15 7.1 TEST EQUIPMENT..................................................................................................................................................15 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................15 7.3 TEST PROCEDURE.................................................................................................................................................15 7.4 RADIATED TEST SETUP.........................................................................................................................................16 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................16 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................17 7.7 SUMMARY OF TEST RESULTS................................................................................................................................17 7.8 EUT OPERATING CONDITION...............................................................................................................................18 7.9 RADIATED EMISSIONS LIMIT.................................................................................................................................18 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................20 8 PERIODIC OPERATION.....................................................................................................................................22 9 BAND EDGE..........................................................................................................................................................23 9.1 TEST PROCEDURE...............................…

Text truncated - open the document above for the full version.

Test Setup Photos 1. Conduction Emission Test Setup 2. Radiation Emission Test setup 2.1 Radiation Emission Test View For 30MHz-1000MHz 2.2 Radiation Emission Test View For 1GHz-5GHz
