OUR-XBEEPROXBEE-PRO OEM RF MODULE

XBee™/XBee‐PRO OEM RF Modules – Product Manual v1.07c BETA [2005.10.19] © 2005 MaxStream, Inc., Confidential & Proprietary ‐ All Rights Reserved 48 FCC-Approved Antennas (2.4 GHz) The XBee/XBee-Pro OEM RF Module can be installed utilizing antennas and cables constructed with standard connectors (Type-N, SMA, TNC, etc.) if the installation is performed professionally and according to FCC guidelines. For installations not performed by a professional, non-standard con- nectors (RPSMA, RPTNC, etc.) must be used. The modules are pre-FCC approved for fixed base station and mobile applications on channels 0x0B - 0x18. As long as the antenna is mounted at least 20 cm (8 in) from nearby persons, the application is considered a mobile application. Antennas not listed in the table must be tested to comply with FCC Section 15.203 (unique antenna connectors) and Section 15.247 (emissions). Table A‐02. Antennas approved for use with the XBee/XBee‐PRO OEM RF Modules (Channels 0x0B ‐ 0x17) * Antennas can be approved for portable applications if integrator gains approval through SAR testing. If the antenna will be mounted closer than 20 cm to nearby persons, then the application is considered ʺportableʺ and requires additional testing. The required SAR (Specific Absorption Rate) testing measures emissions from the module and how they affect the person. ** Required cable loss only applies to the higher power output “XBee‐PRO” modules and not to the “XBee” modules. RF Exposure WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. The preceding statement must be included as a CAUTION statement in manuals for OEM products to alert users on FCC RF Exposure compliance. Table A‐01. Antennas approved for use with the XBee/XBee‐PRO OEM RF Modules (Channels 0x0B ‐ 0x18) Part NumberType (Description) GainApplication*Min. SeparationRequired Cable Loss** A24-HSM-450Dipole (Half-wave articulated RPSMA - 4.5”)2.1 dBiFixed/Mobile20 cm4.2 dB A24-HABSMDipole (Articulated RPSMA)2.1 dBiFixed/Mobile20 cm4.2 dB A24-C1Surface Mount-1.5 dBiFixed/Mobile20 cm- A24-Y4NFYagi (4-element)6.0 dBiFixed2 m8.1 dB A24-Y6NFYagi (6-element)8.8 dBiFixed2 m10.9 dB A24-Y7NFYagi (7-element)9.0 dBiFixed2 m11.1 dB A24-Y9NFYagi (9-element)10.0 dBiFixed2 m12.1 dB A24-Y10NFYagi (10-element)11.0 dBiFixed2 m13.1 dB A24-Y12NFYagi (12-element)12.0 dBiFixed2 m14.1 dB A24-Y13NFYagi (13-element)12.0 dBiFixed2 m14.1 dB A24-Y15NFYagi (15-element)12.5 dBiFixed2 m14.6 dB A24-Y16NFYagi (16-element)13.5 dBiFixed2 m15.6 dB A24-Y16RMYagi (16-element, RPSMA connector)13.5 dBiFixed2 m15.6 dB A24-Y18NFYagi (18-element)15.0 dBiFixed2 m17.1 dB A24-F2NFOmni-directional (Fiberglass base station)2.1 dBiFixed/Mobile20 cm4.2 dB A24-F3NFOmni-directional (Fiberglass base station)3.0 dBiFixed/Mobile20 cm5.1 dB A24-F5NFOmni-directional (Fiberglass base station)5.0 dBiFixed/Mobile20 cm7.1 dB A24-F8NFOmni-directional (Fiberglass base station)8.0 dBiFixed2 m10.1 dB A24-F9NFOmni-directional (Fiberglass base station)9.5 dBiFixed2 m11.6 dB A24-F10NFOmni-directional (Fiberglass base station)10.0 dBiFixed2 m12.1 dB A24-F12NFOmni-directional (Fiberglass base station)12.0 dBiFixed2 m14.1 dB A24-F15NFOmni-directional (Fiberglass base station)15.0 dBiFixed2 m17.1 dB A24-W7NFOmni-directional (Base station)7.2 dBiFixed2 m9.3 dB A24-M7NFOmni-directional (Mag-mount base station)7.2 dBiFixed2 m9.3 dB A24-P8SFFlat Panel8.5 dBiFixed2 m8.6 dB A24-P8NFFlat Panel8.5 dBiFixed2 m8.6 dB A24-P13NFFlat Panel13.0 dBiFixed2 m13.1 dB A24-P14NFFlat Panel14.0 dBiFixed2 m14.1 dB A24-P15NFFlat Panel15.0 dBiFixed2 m15.1 dB A24-P16NFFlat Panel16.0 dBiFixed2 m16.1 dB A24-P19NFFlat Panel19.0 dBiFixed2 m19.1 dB Part NumberType (Description) GainApplication*Min. Separation A24-HSM-450Dipole (Half-wave articulated RPSMA - 4.5”)2.1 dBiFixed/Mobile20 cm A24-HABSMDipole (Articulated RPSMA)2.1 dBiFixed20 cm A24-HABUF-P5IDipole (Half-wave articulated bulkhead mount U.FL. w/ 5” pigtail)2.1 dBiFixed20 cm A24-QIMonopole (Integrated whip - XBee 0x0B-0x18, XBee-PRO 0x0B-0x17)1.5 dBiFixed20 cm

355 South 520 West, Suite 180 Lindon, UT 84042 Phone: (801) 765-9885 Fax: (801) 765-9895 [email protected] www.MaxStream.net (live chat suport) XBee™/XBee-PRO™ OEM RF Modules XBee/XBee-PRO OEM RF Modules RF Module Operation RF Module Configuration Appendices Product Manual v1.x7C BETA For OEM RF Module Part Numbers: XB24-...-001, XB24-...-002 XBP24-...-001, XBP24-...-002 ZigBee™/IEEE ® 802.15.4 OEM RF Modules by MaxStream, Inc. M100232 2005.12.02 XBee™/XBee‐PRO™ OEM RF Modules ‐ Product Manual v1.x7C BETA [2005.12.02] © 2005 MaxStream, Inc., Confidential & Proprietary ‐ All Rights Reserved ii © 2005 MaxStream, Inc. All rights reserved No part of the contents of this manual may be transmitted or reproduced in any form or by any means without the written permission of MaxStream, Inc. XBee™ and XBee‐PRO™ are trademarks of MaxStream, Inc. ZigBee™ is a registered trademark of the ZigBee Alliance. Technical Support: Phone: (801) 765‐9885 Live Chat: www.maxstream.net E‐mail: rf‐[email protected] Contents XBee™/XBee‐PRO™ OEM RF Modules – Product Manual v1.x7C BETA [2005.12.02] © 2005 MaxStream, Inc., Confidential & Proprietary ‐ All Rights Reserved iii 1. XBee/XBee-PRO OEM RF Modules4 1.1. Key Features 4 1.1.1. Worldwide Acceptance 4 1.2. Specifications 5 1.3. Mechanical Drawings 5 1.4. Pin Signals 6 1.5. Electrical Characteristics 6 2. RF Module Operation7 2.1. Serial Communications 7 2.1.1. UART Data Flow 7 2.1.2. Flow Control 8 2.1.3. Transparent Operation 9 2.1.4. API Operation 9 2.2. Networking Systems 10 2.2.1. NonBeacon 10 2.2.2. NonBeacon (w/ Coordinator) 10 2.2.3. Beacon-enabled 11 2.2.4. Association 12 2.3. Modes of Operation 15 2.3.1. Idle Mode 15 2.3.2. Transmit & Receive Modes 15 2.3.3. Sleep Mode 18 2.3.4. Command Mode 20 3. RF Module Configuration21 3.1. Programming the RF Module 21 3.1.1. Programming Examples 21 3.2. Command Reference Tables 22 3.3. Command Descriptions 28 3.4. API Operation 43 3.4.1. API Frame Specifications 43 3.4.2. API Types 44 Appendix A: Agency Certifications48 FCC Certification 48 OEM Labeling Requirements 48 FCC Notices 48 FCC-Approved Antennas (2.4 GHz) 49 European Certification 50 OEM Labeling Requirements 50 Restrictions 50 Declarations of Conformity 50 Appendix B: Development Guide51 Development Kit Contents 51 Interfacing Options 51 RS-232 Interface Board 52 Physical Interface 52 RS-232 Pin Signals 53 Wiring Diagrams 54 Adapters 55 USB Interface Board 56 Physical Interface 56 USB Pin Signals 56 Appendix C: Additional Information57 1-Year Warranty 57 Ordering Information 57 Contact MaxStream 58 XBee™/XBee‐PRO OEM RF Modules – Product Manual v1.x7C BETA [2005.12.02] © 2005 MaxStream, Inc., Confidential & Proprietary ‐ All Rights Reserved 4 1. XBee/XBee‐PRO OEM RF Modules XBee and XBee-PRO Modules were engineered to meet ZigBee/IEEE 802.15.4 standards and support the unique needs of low-cost, low-power wireless sensor networks. The modules require minimal power and provide reliable delivery of critical data between devices. The modules operate within the ISM 2.4 GHz frequency band and are pin-for-pin compatible with each other. 1.1. Key Features High Performance, Low Cost XBee • Indoor/Urban: up to 100’ (30 m) • Outdoor line-of-sight: up to 300’ (100 m) • Transmit Power: 1 mW (0 dBm) • Receiver Sensitivity: -92 dBm XBee-PRO • Indoor/Urban: up to 300’ (100 m) • Outdoor line-of-sight: up to 1 mile (1500 m) • Transmit Power: 100 mW (20 dBm) EIRP • Receiver Sensitivity: -100 dBm RF Data Rate: 250,000 bps Advanced Networking & Security Retries and Acknowledgements DSSS (Direct Sequence Spread Spectrum) Each direct sequence channels has over 65,000 unique network addresses available Point-to-point, point-to-multipoint and peer-to-peer topologies supported 128-bit Encryption (downloadable firmware version coming soon) Self-routing/Self-healing mesh networking (downloadable firmware version coming soon) Low Power XBee • TX Current: 45 mA (@3.3 V) • RX Current: 50 mA (@3.3 V) • Power-down Current: < 10 μA XBee-PRO • TX Current: 270 mA (@3.3 V) • RX Current: 55 mA (@3.3 V) • Power-down Current: < 10 μA Easy-to-Use No configuration necessary for out-of box RF communications Free X-CTU Software (Testing and configuration software) AT and API Command Modes for configuring module parameters Small form factor Network compatible with other ZigBee/802.15.4 devices Free & Unlimited Technical Support 1.1.1. Worldwide Acceptance FCC Approval (USA) Refer to Appendix A [p48] for FCC Requirements. Systems that include XBee/XBee-PRO Modules inherit MaxStream’s Certifications. ISM (Industrial, Scientific & Medical) 2.4 GHz frequency band Manufactured under ISO 9001:2000 registered standards XBee/XBee-PRO RF Modules are optimized for use in US, Canada, Australia, Israel and Europe (contact MaxStream for complete list of approvals). XBee™/XBee‐PRO OEM RF Modules – Product Manual v1.x7C BETA [2005.12.02] © 2005 MaxStream, Inc., Confidential & Proprietary ‐ All Rights Reserved 5 1.2. Specifications 1.3. Mechanical Drawings Figure 1‐01. Mechanical drawings of the XBee/XBee‐PRO OEM RF Modules (antenna options not shown) XBee and XBee‐PRO RF Modules are pin‐for‐pin compatible. Table 1‐01. Specifications of the XBee/XBee‐PRO OEM RF Modules SpecificationXBeeXBee-Pro Performance Indoor/Urban Rangeup to 100 ft. (30 m)Up to 300’ (100 m) Outdoor RF line-of-sight Rangeup to 300 ft. (100 m)Up to 1 mile (1500 m) Transmit Power Output1mW (0 dBm)60 mW (18 dBm) conducted, 100 mW (20 dBm) EIRP RF Data Rate250,000 bps250,000 bps Interface Data Rate (software selectable) 1200 - 115200 bps (non-standard baud rates also supported) 1200 - 115200 bps (non-standard baud rates also supported) Receiver Sensitivity-92 dBm (1% packet error rate)-100 dBm (1% packet error rate) Power Requirements Supply Voltage2.8 – 3.4 V2.8 – 3.4 V Transmit Current (typical)45 mA (@ 3.3 V)270 mA (@ 3.3 V) Receive Current (typical)50 mA (@ 3.3 V)55 mA (@ 3.3 V) Power-down Current< 10 μA< 10 μA General Operating Freque…

Text truncated - open the document above for the full version.

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 3 5 5 5 5 S S o o u u t t h h 5 5 2 2 0 0 W W e e s s t t S S u u i i t t e e 1 1 8 8 0 0 • • L L i i n n d d o o n n , , U U t t a a h h 8 8 4 4 0 0 4 4 2 2 P P H H 8 8 0 0 1 1 - - 7 7 6 6 5 5 - - 9 9 8 8 8 8 5 5 • • F F X X 8 8 0 0 1 1 - - 7 7 6 6 5 5 - - 9 9 8 8 9 9 5 5 • • w w w w w w . . m m a a x x s s t t r r e e a a m m . . n n e e t t Monday, September 12, 2005 To Whom It May Concern: MaxStream, Inc would like to apply for Modular FCC approval. This letter is our application for such according to FCC public notice DA 00-1407. XBEEPRO Modular Transmitter Requirements Modular Transmitter Requirements Manufacturer Clarification A – In order to be considered a transmitter module, the device must be a complete RF transmitter, i.e., it must have its own reference oscillator (e.g., VCO), antenna, etc. The only connectors to the module, if any, may be the power supply and modulation/data inputs. The transmitter is complete with its own reference oscillator, antenna. The only connectors provided are the DC supply, Data, and RF ports. B – Compliance with FCC RF Exposure requirements may, in some instances, limit the output power of a module and/or the final applications in which the approved module may be employed. The radio complies with MPE per 2.1091 for use with mobile or fixed base stations. C – While the applicant for a device into which an authorized module is installed is not required to obtain a new authorization for the module, this does not preclude the possibility that some other form of authorization or testing may be required for the device (e.g., a WLAN into which an authorized module is installed must still be authorized as a PC peripheral, subject to the appropriate equipment authorization). The equipment complies with FCC Part 15, Subpart B, Class B – Unintentional radiators. D – In the case of a modular transceiver, the modular approval policy only applies to the transmitter portion of such devices. Pursuant to Section 15.101(b), the receiver portion will either be subject to Verification, or it will not be subject to any authorization requirements (unless it is a Scanning Receiver, in which case it is also subject to Certification, pursuant to Section The receiver operates in the 2.400-2.485 GHz band and complies with FCC Part 15, Subpart B – Radio Receivers. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 3 5 5 5 5 S S o o u u t t h h 5 5 2 2 0 0 W W e e s s t t S S u u i i t t e e 1 1 8 8 0 0 • • L L i i n n d d o o n n , , U U t t a a h h 8 8 4 4 0 0 4 4 2 2 P P H H 8 8 0 0 1 1 - - 7 7 6 6 5 5 - - 9 9 8 8 8 8 5 5 • • F F X X 8 8 0 0 1 1 - - 7 7 6 6 5 5 - - 9 9 8 8 9 9 5 5 • • w w w w w w . . m m a a x x s s t t r r e e a a m m . . n n e e t t Modular Transmitter Requirements Manufacturer Clarification 15.101(a)). E – The holder of the grant of equipment authorization (Grantee) of the module is responsible for the compliance of the module in its final configuration, provided that the OEM, integrator, and/or end user has complied with all of the instructions provided by the Grantee which indicate installation and/or operating conditions necessary for compliance. End users must conform with the following instructions stated in the users’ manual: - Labeling requirement for equipment using this modular transmitter. - RF Exposure information for compliance with FCC Rules 2.1091 or 2.1093 are specified in the user manual for OEM, integrator, and/or end user. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits... Such coupling may result in non-compliant operation. The modular transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter has buffered modulation/data inputs. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. The modular transmitter has its own power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c. The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna The radio complies with Rules 15.203 and 15.204c. The radio will have a unique antenna coupler (IPX or U.FL) for all approved antennas. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 3 5 5 5 5 S S o o u u t t h h 5 5 2 2 0 0 W W e e s s t t S S u u i i t t e e 1 1 8 8 0 0 • • L L i i n n d d o o n n , , U U t t a a h h 8 8 4 4 0 0 4 4 2 2 P P H H 8 8 0 0 1 1 - - 7 7 6 6 5 5 - - 9 9 8 8 8 8 5 5 • • F F X X 8 8 0 0 1 1 - - 7 7 6 6 5 5 - - 9 9 8 8 9 9 5 5 • • w w w w w w . . m m a a x x s s t t r r e e a a m m . . n n e e t t Modular Transmitter Requirements Manufacturer Clarification used with the module must be approved with the module; either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. 5. The modular transmitter must be tested in a st…

Text truncated - open the document above for the full version.

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 3 5 5 5 5 S S o o u u t t h h 5 5 2 2 0 0 W W e e s s t t S S u u i i t t e e 1 1 8 8 0 0 • • L L i i n n d d o o n n , , U U t t a a h h 8 8 4 4 0 0 4 4 2 2 P P H H 8 8 0 0 1 1 - - 7 7 6 6 5 5 - - 9 9 8 8 8 8 5 5 • • F F X X 8 8 0 0 1 1 - - 7 7 6 6 5 5 - - 9 9 8 8 9 9 5 5 • • w w w w w w . . m m a a x x s s t t r r e e a a m m . . n n e e t t Monday, August 29, 2005 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: MaxStream, Inc. Product: XBee-PRO Model: XBP24 FCC ID: OUR-XBEEPRO Dear Sir/Madam, We, MaxStream, Inc., would like to request that the schematic diagrams, system block diagrams, parts list and operational description, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any queries, please do not hesitate to contact us at the telephone number listed above. Yours truly, David Steed, Jr. Vice President, Engineering

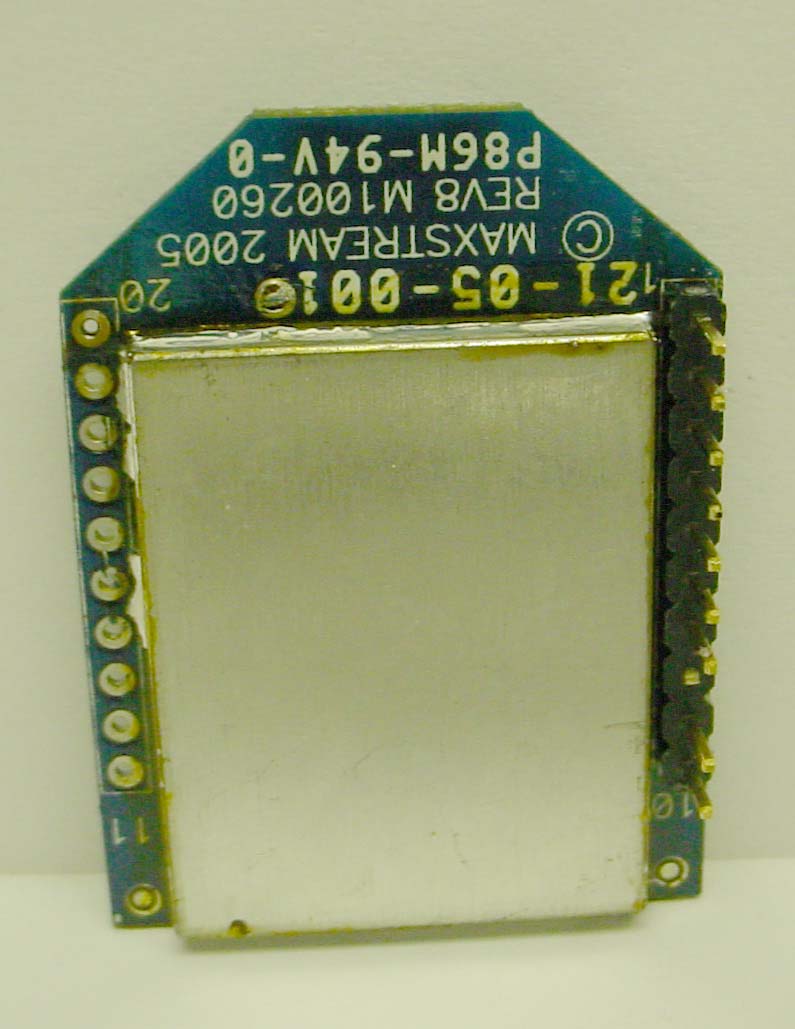

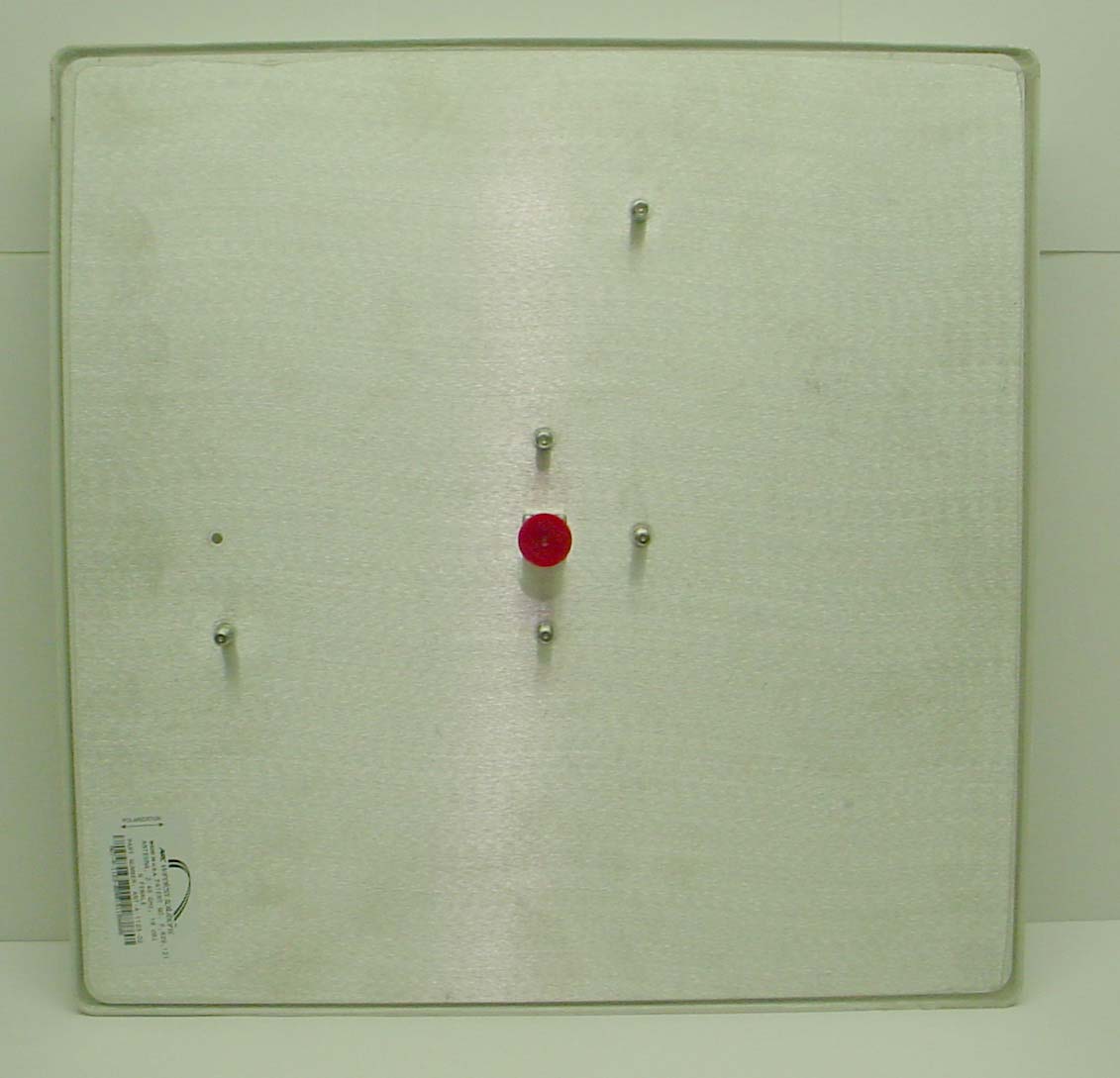

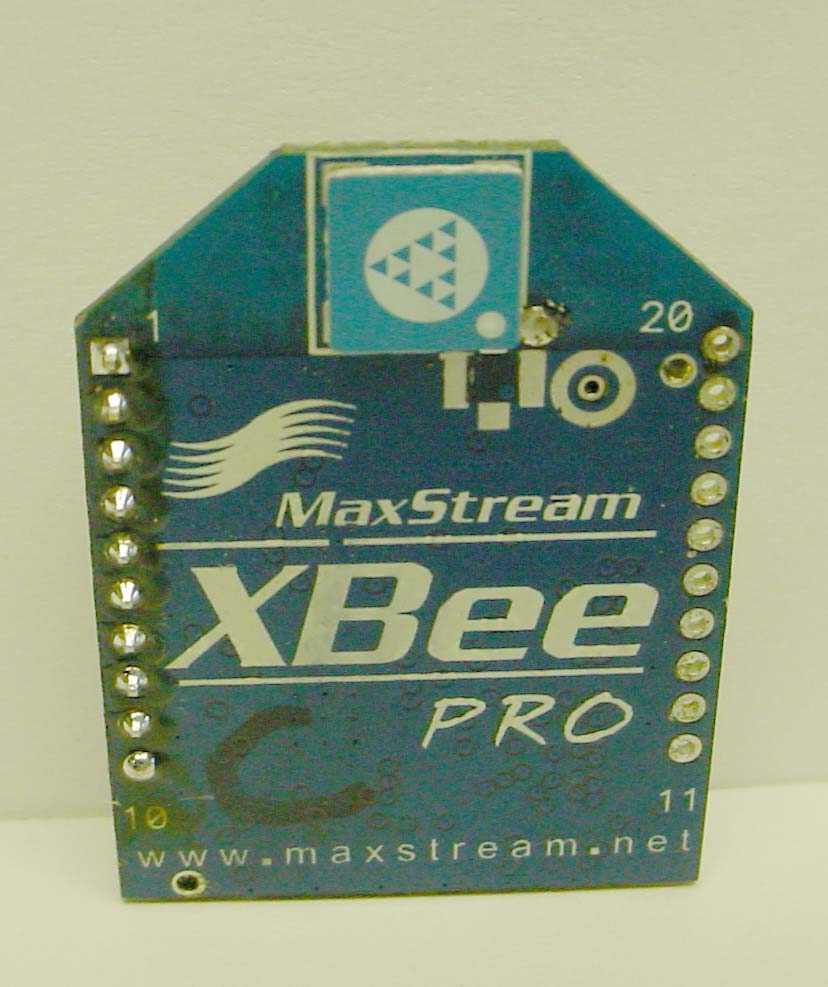

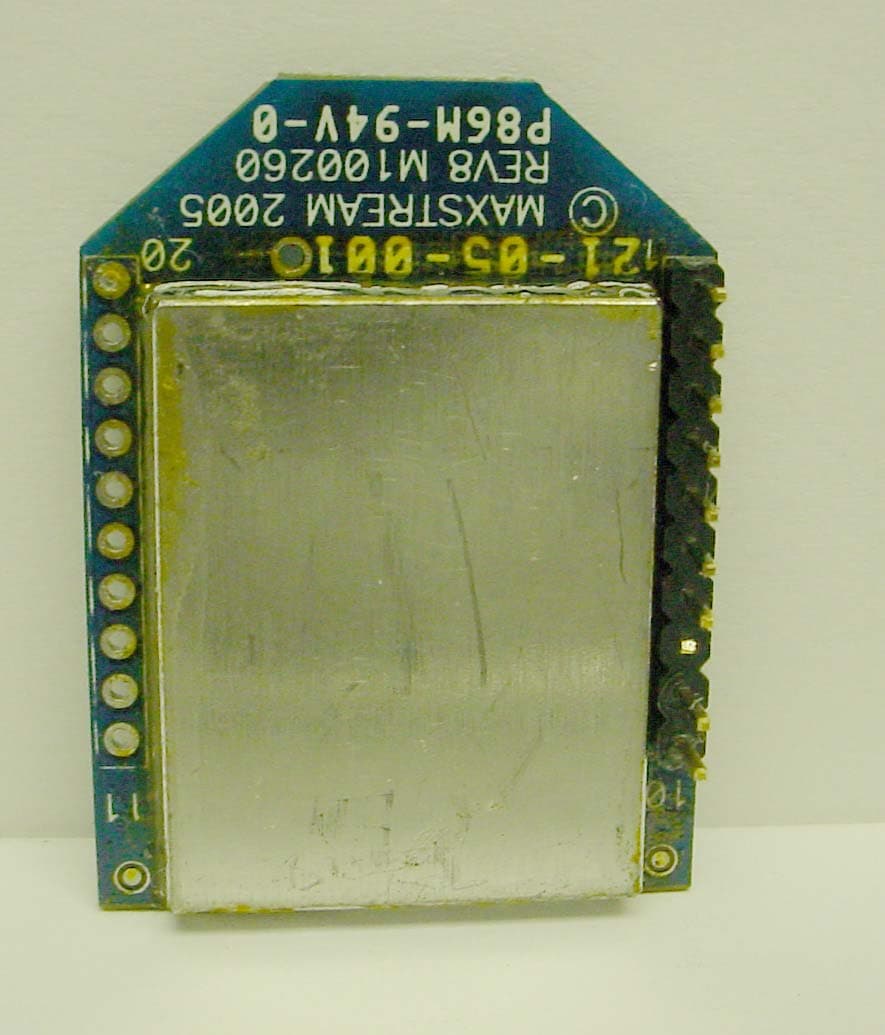

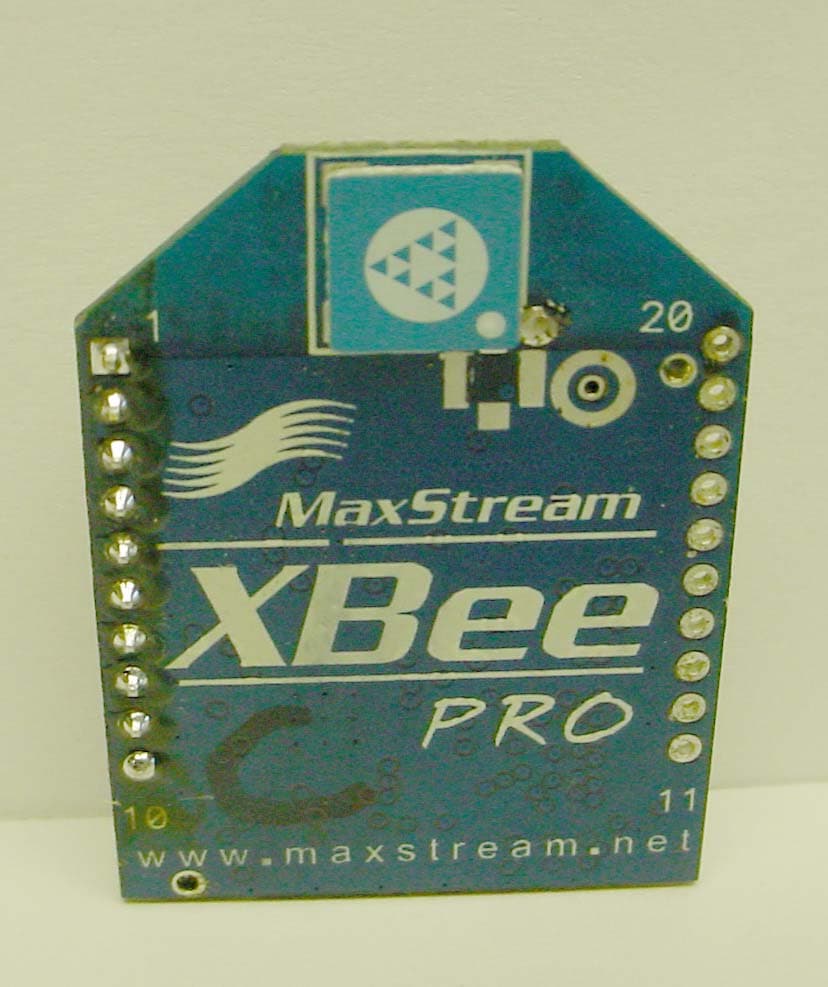

ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 1 EUT with integral antenna (Chip Antenna) (P/N: A24-C1; Max. Antenna Gain = - 1.5 dBi) ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 2 ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 3 EUT with U.FL connector ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 4 ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 5 Maxrad Yagi Antenna (P/N: A24-Y18NF; Max. Antenna Gain = 15 dBi) ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 6 ARC Panel Antenna (P/N: A24-P19NF; Max. Antenna Gain = 19 dBi) ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 7 ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 8 D-Link Antenna (P/N: A24-F15NF; Max. Antenna Gain = 15 dBi) ANNEX 2 – EXTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A2 - 9 Rubber Duck Antenna (P/N: A24-HABSM; Max. Antenna Gain = 2.1 dBi dBi)







    XBee™/XBee‐PRO™ OEM RF Modules – Product Manual v1.0 © 2005 MaxStream, Inc., Confidential & Proprietary ‐ All Rights Reserved 21 Appendix A: Agency Certifications FCC Certification (pending) The XBee/XBee-PRO RF Module complies with Part 15 of the FCC rules and regulations. Compli- ance with the labeling requirements, FCC notices and antenna usage guidelines is required. To fulfill FCC Certification requirements, the OEM must comply with the following regulations: OEM Labeling Requirements Figure A‐01. Required FCC Label for OEM products containing the XBee/XBee‐PRO RF Module FCC Notices IMPORTANT: The XBee/XBee-PRO OEM RF Module has been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Changes or modifica- tions not expressly approved by MaxStream could void the user's authority to operate the equip- ment. IMPORTANT: OEMs must test final product to comply with unintentional radiators (FCC section 15.107 & 15.109) before declaring compliance of their final product to Part 15 of the FCC Rules. IMPORTANT: The RF module has been certified for remote and base radio applications. If the module will be used for portable applications, the device must undergo SAR testing. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: Re-orient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect equipment and receiver to outlets on different circuits, or Consult the dealer or an experienced radio/TV technician for help. 1. The system integrator must ensure that the text on the external label provided with this device is placed on the outside of the final product [Figure A-01]. 2. The XBee/XBee-PRO RF Module may be used only with approved antennas that have been tested with this modem. WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC labeling requirements are met. This includes a clearly visible label on the outside of the final product enclosure that displays the contents shown in the figure below. Contains FCC ID: pending The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. XBee™/XBee‐PRO™ OEM RF Modules – Product Manual v1.0 © 2005 MaxStream, Inc., Confidential & Proprietary ‐ All Rights Reserved 22 FCC-Approved Antennas (2.4 GHz) The XBee/XBee-Pro OEM RF Module can be installed utilizing antennas and cables constructed with standard connectors (Type-N, SMA, TNC, etc.) if the installation is performed professionally and according to FCC guidelines. For installations not performed by a professional, non-standard con- nectors (RPSMA, RPTNC, etc.) must be used. The modules are pre-FCC approved for use in fixed base station and mobile applications [refer to table below]. As long as the antenna is mounted at least 20 cm (8 in) from nearby persons, the application is considered a mobile application. Antennas not listed in the table must be tested to comply with FCC Section 15.203 (unique antenna connectors) and Section 15.247 (emissions). * Antennas can be approved for portable applications if integrator gains approval through SAR testing. If the antenna will be mounted closer than 20 cm to nearby persons, then the application is considered ʺportableʺ and requires an additional test performed on the final product. This test is called the Specific Absorption Rate (SAR) testing and measures the emissions from the module and how they affect the person. RF Exposure The preceding statement must be included as a CAUTION statement in manuals for OEM products to alert users on FCC RF Exposure compliance. Table A‐02. Antennas approved for use with the XBee/XBee‐PRO OEM RF Modules (all 2.4 GHz) Part NumberType (Description)GainApplication Min. Separation A24-HABMM-PSI Dipole (Half-wave bulkhead mount articulated MMCX w/ pigtail)2.1 dBiFixed/Mobile*20 cm A24-HBMM-PSIDipole (Half-wave bulkhead mount MMCX w/ pigtail)2.1 dBiFixed/Mobile*20 cm A24-HABSMDipole (Articulated RPSMA)2.1 dBiFixed/Mobile*20 cm A24-QBMM-PSIMonopole (Quarter-wave bulkhead mount MMCX w/pigtail)1.9 dBiFixed/Mobile*20 cm A24-QABMM-PSI Monopole (Quarter-wave bulkhead mount articulated MMCX w/pigtail) 1.9 dBiFixed/Mobile*20 cm A24-QIMonopole (Integrated whip)1.9 dBiFixed/Mobile*20 cm A24-C1Surface Mount-1.5 dBiFixed/Mobile*20 cm A24-Y4NFYagi (4-element)6.0 dBiFixed*2 m A24-Y6NFYagi (6-element)8.8 dBiFixed*2 m A24-Y7NFYagi (7-element)9.0 dBiFixed*2 m A24-Y9NFYagi (9-element)10.0 dBi Fixed*2 m A24-Y10NFYagi (10-element)11.0 dBiFixed*2 m A24-Y12NFYagi (12-element)12.0 dBi Fixed*2 m A24-Y13NFYagi (13-element)12.0 dBi Fixed*2 m A24-Y15NFYagi (15-element)12.5 dBi Fixed*2 m A24-Y16NFYagi (16-element)13.5 dBi Fixed*2 m A24-Y16RMYagi (16-element, RPSMA connector)13.5 dBi Fixed*2 m A24-Y18NFYagi (18-element)15.0 dBi Fixed*2 m A24-F2NFOmni-directional (Fiberglass base station)2.1 dBiFixed/Mobile*20 cm…

Text truncated - open the document above for the full version.

ANNEX 3 – INTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A3 - 1 ANNEX 3 – INTERNAL EUT PHOTOS MaxStream, Inc. XBee-PRO, Model XBP24 FCC ID: OUR-XBEEPRO IC: 4214A-XBEEPRO A3 - 2

RF EXPOSURE REQUIREMENTS @ 1.1310 & 2.1091 FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). MPE Evaluation for RF distance of 20 cm S = PG/4Πr 2 =EIRP/4Πr 2 Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm The power density is calculated using the following formula: S = EIRP/4Πr², where: EIRP = 19.24 dBm = 83.95 mW (max. EIRP = worst case) r = 20 cm S = 83.95/4Π20² = 0.017 mW/cm² The power density limit for General Population/Uncontrolled Exposure is S = 1.0 mW/cm² Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated power density for General Population / Uncontrolled Exposure: S = 0.017 mW/cm² The power density limit for General Population/Uncontrolled Exposure: S = 1.0 mW/cm²
