OUR9XSTREAM9XSTREAM Wireless OEM Module

MaxStream 9XStream™ Wireless OEM Module Manual v2.8 1 Confidential and Proprietary, ©MaxStream, Inc. 2001 9XStream™ Wireless OEM Module Operation Manual v 2.8 MaxStream 9XStream™ Wireless OEM Module Manual v2.8 2 Confidential and Proprietary, ©MaxStream, Inc. 2001 Table of Contents FCC Compliance...............................................................................4 FCC Qualifications ...........................................................................4 Warranty ...........................................................................................6 Overview ............................................................................................7 Features............................................................................................................8 Simple Product Integration............................................................................8 Serial Port Operation .......................................................................9 Serial Pins ........................................................................................................9 DI (Data In) – Pin 4 (Input) .....................................................................10 DO (Data Out) – Pin 3 (Output) ..............................................................11 CTS – Pin 1 (Output) ................................................................................11 RTS/CMD – Pin 5 (Input) ........................................................................12 CONFIG – Pin 9 (Input)...........................................................................12 Modes of Operation ........................................................................13 Idle Mode .......................................................................................................13 Transmit Mode..............................................................................................13 Data Validity..............................................................................................15 Transmission Latency...............................................................................15 Receive Mode.................................................................................................16 Sleep Mode.....................................................................................................17 Pin Sleep (SM=1)......................................................................................17 Serial Port Sleep (SM=2) .........................................................................17 Cyclic Sleep (SM=3-7) .............................................................................18 Cyclic Scanning ......................................................................................18 Command Mode..............................................................................19 AT Commands ..............................................................................................20 Exiting AT Command Mode....................................................................21 Binary Commands ........................................................................................21 Networking and Addressing ..........................................................23 Vendor Identification Number (VID) .........................................................23 Networks ........................................................................................................24 Module Address ............................................................................................24 Module Address Mask ..................................................................................24 MaxStream 9XStream™ Wireless OEM Module Manual v2.8 3 Confidential and Proprietary, ©MaxStream, Inc. 2001 Glossary ...........................................................................................26 Application Notes............................................................................30 Appendix A – Packaging Information ........................................................34 Appendix B – J1/J2 Pin Descriptions ..........................................................35 Appendix C – Specifications ........................................................................36 Appendix D – Product Listing .....................................................................37 Appendix E – 9XStream Commands ..........................................................39 Appendix F – Timing Diagrams ..................................................................42 Appendix G – Electrical Characteristics ....................................................43 Appendix H – Sleep Mode Settings .............................................................48 Appendix I – Module Part Numbers ...........................................................49 Using the 9XStream Development Kit..........................................51 Introduction: .................................................................................................51 Contents: ........................................................................................................51 Instructions:...................................................................................................52 Index.................................................................................................55 MaxStream 9XStream™ Wireless OEM Module Manual v2.8 4 Confidential and Proprietary, ©MaxStream, Inc. 2001 FCC Compliance FCC N OTICE L ABELING R EQUIREMENTS A NTENNA W ARNING WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: This device has been tested with Reverse Polarity SMA and MMCX connectors with the antennas listed below. When integrated in…

Text truncated - open the document above for the full version.

June 6, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Certification Authorization Application Under FCC PART 15, Subpart C, Section 15.247 - Frequency Hopping Spread Spectrum Transmitters Operating in the Frequency Band 902 - 928 MHz. Product: 900 MHz Frequency Hopping OEM Module Model No.: 9XSTREAM FCC ID: OUR9XSTREAM Dear Sir/Madam As appointed agent for MaxStream Inc., we would like to submit the application to the Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site. ¾ This application is subject to FCC certification for a modular transceiver, please kindly refers to Section 6.5 of the submitted test report for clarification of compliance for this modular transceiver with FCC Public Notice DA 00-1407. ¾ Limitation of the FCC Modular Certification for Model 9XSTREAM: The radio module is approved for used only with antennas filed with FCC and in compliance with FCC RF Exposure Requirements per FCC Rules at section 2.1091 with the minimum RF safety distance of 20 cm (see section 6.9 of the Test Report for MPE evaluation and User’s Manual for RF Exposure Information to Installers or End Users). The approved antennas list is specified in the Operation Manual (page 5). If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of La bs 31040/SIT A96/TH/0093 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Authority to Act as an Agent to FCC Applicant: MaxStream, Inc Product: 900 MHz Frequency Hopping OEM Module Model: 9XSTREAM FCC ID: OUR9XSTREAM Feb 11, 2002 Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application to F.C.C. for authorization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authorization is required. Regards David Steed, Jr. Vice President –Engineering MaxStream, Inc PO Box 1508 / 1215 South 1680 West, Orem, UT 84058 Tel. (801)765-9885 Fax. (801)765-9895 www.maxstream.net

FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: OUR9XSTREAM To Whom It May Concern: In accordance with § 0.459 of 47 CFR, MaxStream, Inc. requests confidentiality for the following items: 1. Block Diagram 2. Schematic Diagrams 3. Theory of Operation 4. Parts List These items contain detailed system and equipment description and related information about the product which MaxStream, Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, MaxStream, Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, Typed Name: David Steed Title: Vice President of Engineering

ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 1 9XSTREAM with Integrated A09-QI Antenna ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 2 9XSTREAM (Top View) ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 3 9XSTREAM (Bottom View) ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 4 9XSTREAM with MMCX Antenna Connector (Top View) ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 5 9XSTREAM with MMCX Antenna Connector (Bottom View) ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 6 9XSTREAM with Reversed SMA Antenna Connector (Top View) ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 7 9XSTREAM with Reversed SMA Antenna Connector (Bottom View) ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 8 Maxstream, Inc. Half Wave Antenna Part Number: A09-HBMM-P6I Gain: 2.1 dBi Connector Type: MMCX ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 9 Maxstream, Inc. Quarter Wave Antenna Part Number: A09-QBMM-P6I Gain: 1.9 dBi Connector Type: MMCX ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 10 Maxstream, Inc. Quarter Wave Integrated Wire Antenna Part Number: A09-QI Gain: 1.9 dBi Connector Type: Integrated ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 11 Maxstream, Inc. Yagi Antenna Part Number: A09-Y15 Gain: 15.2 dBi Connector Type: Reversed SMA ANNEX 3 – EXTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A3 - 12 Maxstream, Inc. Base Station Antenna Part Number: A09-F9 Gain: 9.2 dBi Connector Type: Reversed SMA

FCC ID: OUR9XSTREAM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains transmitter module: FCC ID: OUR9XSTREAM The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ANNEX 4 – INTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A4 - 1 9XSTREAM with RF Can Installed (Top View) ANNEX 4 – INTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A4 - 2 9XSTREAM without RF Can Removed (Top View) ANNEX 4 – INTERNAL EUT PHOTOS Maxstream, Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A4 - 3 9XSTREAM (Bottom View)

900 MHz Frequency Hopping OEM Module Model No.: 9XSTREAM FCC ID: OUR9XSTREAM Applicant: MaxStream Inc. PO Box 1508 / 1215 South 1680 West Orem, UT USA, 84058 In Accordance With FEDERAL COMMUNICATIONS COMMISSION (FCC) PART 15, SUBPART C, SECTION 15.247 Frequency Hopping Spread Spectrum Transmitters Operating in the Frequency Band 902 - 928 MHz UltraTech's File No.: MXS015-FTX This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: June 6, 2002 Report Prepared by: Dan Huynh Tested by: Mr. Hung Trinh, EMI/RFI Technician Issued Date: June 6, 2002 Test Dates: December 6 - 12, 2001 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultrat4ech-labs.com Email: [email protected] FCC PART 15, SUBPART C, SEC. 15.247 - FREQUENCY HOPPING SPREAD SPECTRUM TRANSMITTERS Contents i 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM ULTRATECH GROUP OF LABS File #: MXS015-FTX 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 June 6, 2002 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com Accreditation: FCC & NVLAP (USA), ACA (Australia), VCCI (Japan), ITI (UK), ACC-LAB (Canada, Europe/APEC/Canada MRA) All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST...................................................................................................................... 1 EXHIBIT 2. INTRODUCTION ...................................................................................................................................... 2 2.1. SCOPE...................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................... 2 2.3. NORMATIVE REFERENCES........................................................................................................................................ 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................ 3 3.1. CLIENT INFORMATION.............................................................................................................................................. 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION......................................................................................................... 3 3.3. EUT’S TECHNICAL SPECIFICATIONS.......................................................................................................................... 4 3.4. LIST OF EUT’S PORTS................................................................................................................................................ 4 3.5. ASSOCIATED ANTENNA DESCRIPTIONS..................................................................................................................... 5 3.5.1. Yagi Antenna Family, Manufacturer: MaxStream, Inc .................................................................................. 5 3.5.2. Base Station Antenna Family, Manufacturer: MaxStream, Inc......................................................................5 3.5.3. Half-wave Whip Antenna Family, Manufacturer: MaxStream, Inc................................................................ 6 3.5.4. Quarter-Wave Whip Antenna Family, Manufacturer: MaxStream, Inc ......................................................... 6 3.6. ANCILLARY EQUIPMENT........................................................................................................................................... 6 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS................................. 7 4.1. CLIMATE TEST CONDITIONS...................................................................................................................................... 7 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS............................................................................... 7 EXHIBIT 5. SUMMARY OF TEST RESULTS............................................................................................................. 8 5.1. LOCATION OF TESTS................................................................................................................................................. 8 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS................................................................................ 8 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES............................................................... 8 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ................................ 9 6.1. TEST PROCEDURES................................................................................................................................................... 9 6.2. MEASUREMENT UNCERTAINTIES.............................................................................................................................. 9 6.3. MEASUREMENT EQUIPMENT USED............................................................................................................................ 9 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER................................................................ 9 6.5. UNLICENSED MODULAR TRANSMITTER APPROVAL REQUIREMENTS @ FCC PUBLIC NOTICE DA 00-1407 (JUNE 26, 2000).................................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 1 Plot # 1 20 dB Occupied Bandwidth Carrier Frequency: 902.6 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 2 Plot # 2 20 dB Occupied Bandwidth Carrier Frequency: 914.9 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 3 Plot # 3 20 dB Occupied Bandwidth Carrier Frequency: 927.2 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 4 Plot # 4 Channel Hopping Frequency Separation Low End of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 5 Plot # 5 Channel Hopping Frequency Separation Middle of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 6 Plot # 6 Channel Hopping Frequency Separation High End of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 7 Plot # 7 Average Time of Occupancy Low End of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 8 Plot # 8 Average Time of Occupancy Low End of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 9 Plot # 9 Average Time of Occupancy Middle of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 10 Plot # 10 Average Time of Occupancy Middle of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 11 Plot # 11 Average Time of Occupancy High End of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 12 Plot # 12 Average Time of Occupancy High End of Frequency Band ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 13 Plot # 13 Band-Edge Spurious Emissions at Antenna Terminals Low End of Frequency Band Operation Mode: Transmits at low frequency (902.6 MHz) ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 14 Plot # 14 Band-Edge Spurious Emissions at Antenna Terminals Low End of Frequency Band Operation Mode: Pseudorandom channel hopping ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 15 Plot # 15 Band-Edge Spurious Emissions at Antenna Terminals High End of Frequency Band Operation Mode: Transmits at high frequency (927.2 MHz) ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 16 Plot # 16 Band-Edge Spurious Emissions at Antenna Terminals High End of Frequency Band Operation Mode: Pseudorandom channel hopping ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 17 Plot # 17 Spurious Emissions at Antenna Terminals Carrier Frequency: 902.6 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 18 Plot # 18 Spurious Emissions at Antenna Terminals Carrier Frequency: 902.6 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 19 Plot # 19 Spurious Emissions at Antenna Terminals Carrier Frequency: 902.6 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 20 Plot # 20 Spurious Emissions at Antenna Terminals Carrier Frequency: 914.9 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 21 Plot # 21 Spurious Emissions at Antenna Terminals Carrier Frequency: 914.9 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 22 Plot # 22 Spurious Emissions at Antenna Terminals Carrier Frequency: 914.9 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 23 Plot # 23 Spurious Emissions at Antenna Terminals Carrier Frequency: 927.2 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 24 Plot # 24 Spurious Emissions at Antenna Terminals Carrier Frequency: 927.2 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 25 Plot # 25 Spurious Emissions at Antenna Terminals Carrier Frequency: 927.2 MHz ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 26 Plot # 26 Radiated Emissions Test Configuration # 1 Carrier Frequency: 902.6 MHz Antenna Polarization: Vertical ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 27 Plot # 27 Radiated Emissions Test Configuration # 1 Carrier Frequency: 902.6 MHz Antenna Polarization: Horizontal ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 28 Plot # 28 Radiated Emissions Test Configuration # 1 Carrier Frequency: 914.9 MHz Antenna Polarization: Vertical ANNEX 1 - TEST DATA PLOTS MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A1 - 29 Plot # 29 Radiated Emissions Test Configuration # 1 Carrier Frequency: 914.9 MHz Antenna Polarization…

Text truncated - open the document above for the full version.

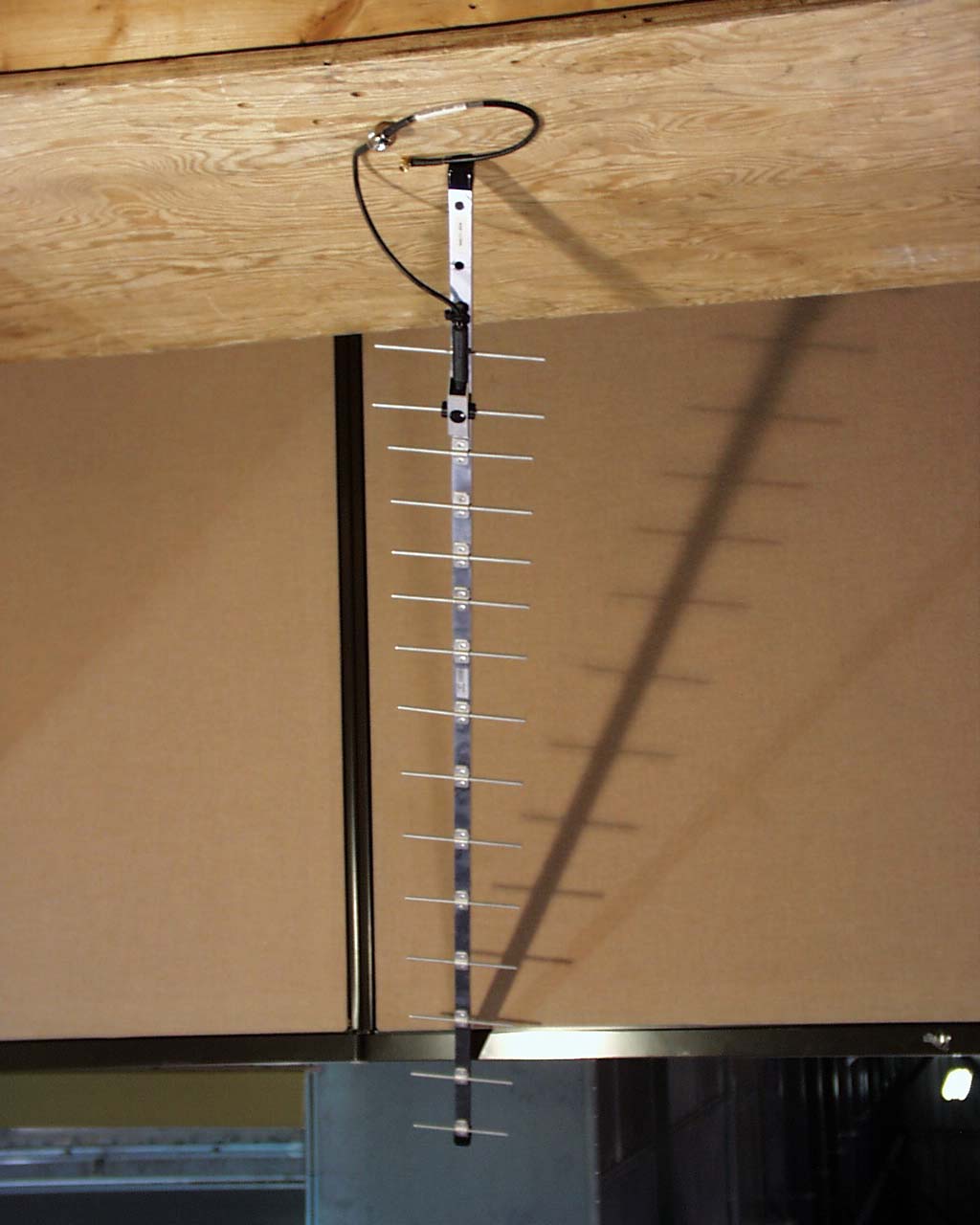

ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 1 Test Configuration #1: EUT with A09-HBMM-P6I Half-wave antenna (2.1 dBi gain) ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 2 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 3 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 4 Test Configuration #2: EUT with A09-QBMM-P6I Quarter-wave antenna (1.9 dBi gain) ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 5 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 6 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 7 Test Configuration #3: EUT with A09-QI Quarter-wave Integrated Wire antenna (1.9 dBi gain) ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 8 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 9 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 10 Test Configuration #4: EUT with A09-Y15 Yagi antenna (15.2 dBi gain) ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 11 ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 12 Test Configuration #5: EUT with A09-F9 Base Station antenna (9.2 dBi gain) ANNEX 1 - TEST SETUP PHOTOGRAPHS (Radiated Emissions at 3 Meters Distance) MaxStream Inc. 900 MHz Frequency Hopping OEM Module, Model 9XSTREAM FCC ID: OUR9XSTREAM A2 - 13
