T184367 DeereTrax  VCA10023 INSTALLATION INSTRUCTIONS All 1600 C, F, U John Deere Dubuque Works DeereTrax (03FEB00) ENGLISH COPYRIGHT2000 DEERE & COMPANY Moline, Illinois All rights reserved A John Deere ILLUSTRUCTION  Manual DeereTrax-19-03FEB00 Installation Instruction DX,LIVE –19–25SEP92–1/1 LIVE WITH SAFETY TS231 –19–07OCT88 Before returning machine to customer, make sure machine is functioning properly, especially the safety systems. Install all guards and shields. DeereTrax (03FEB00)1Installation Instruction 020300 PN=3 Installation Instruction CED,TX13067,2386 –19–02FEB99–1/2 PARTS LIST Part numbers may change without notice. Replacement parts are available through your John Deere dealer. •Installation Kit VCA10023 •VCA10000 Communications Controller Harness •VCA10001 Communications Controller •VCA10002 Power Harness •VCA10003 LED Light Harness •VCA10029 Cellular Antenna Whip and Ferrule •VCU10028 Cellular Antenna Cable •VCA10005 Antenna Mounting Bracket and Clamp •VCU10008 GPS (Global Positioning System) Antenna And Cable •VCU10009 Alcohol Wipe •VCU10010 Hook and Hook Fastener (Type 400) •VCU10011 Hook and Hook Fastener (Type 250) •VCU10012 Primer 97 (For Hook and Hook Fastener) (3 used) •VCU0013 Self Tapping Screw 6mm x 75mm (4 Used) •VCU10014 Installation Instructions T184367 •VCU10017 U-bolt (2 used) •VCU10019 Wire 16 ga. 12 ft. •VCU10020 Convoluted Tubing 12 ft. •VCU10022 6mm Lock Washer (4 used) •VCU10031 Flat Washer Stainless Steel .250 in. (2 used) •VCU10035 Cellular Antenna And Cable •VCU10034 Cellular Antenna Cable •AT180705 Ground Strap •H159144 Grommets (3 used) •R105388 Tie Band (25 used) •T178552 Connectors (6 used) •Heat Shrink Tubing T178552 (6 used) •Template (Hole Location For Controller) •14M7194 Nut Hex 6mm (2 used) •14M7229 Nut Hex 5mm (3 used) •14M7151 Nut Hex 8mm (2 used) •19H1648 Cap Screw 3/8-16 x 3/4 •24M7138 Washer 5mm (3 used) •24M3739 Washer 8mm (2 used) •24M7105 Washer 6mm (2 used) DeereTrax (03FEB00)2Installation Instruction 020300 PN=4 Continued on next page Installation Instruction CED,TX13067,2386 –19–02FEB99–2/2 •24H1136 Washer 5/16 x .734 x .065 •24H1622 Washer 3/8 x .870 x .083 •37H37 Self Tapping Screw 5/16 x 0.75 CED,TX13067,2662 –19–31JAN00–1/12 PARTS INCLUDED IN KIT T128007B T128007B –UN– 1—VCA10002 Power Harness POWER HARNESS Continued on next page DeereTrax (03FEB00)3Installation Instruction 020300 PN=5 Installation Instruction CED,TX13067,2662 –19–31JAN00–2/12 T128008B T128008B –UN– 1—VCA100002—VCA10003 LED Light CommunicationsHarness Controller Harness COMMUNICATIONS CONTROLLER AND LED HARNESSES Continued on next page DeereTrax (03FEB00)4Installation Instruction 020300 PN=6 Installation Instruction CED,TX13067,2662 –19–31JAN00–3/12 T127991B –UN–02FEB00 1—VCA10001 Communications Controller 2—VCU10010 and VCU10011 Hook and Loop Fastener COMMUNICATIONS CONTROLLER Continued on next page DeereTrax (03FEB00)5Installation Instruction 020300 PN=7 Installation Instruction CED,TX13067,2662 –19–31JAN00–4/12 T127992B –UN–02FEB00 1—AT180705 Ground Strap 2—VCU10013 6mm x 75mm Self Tapping Screws (4) 3—24H1622 Washer 3/8 x .870 .083 4—19H1648 Cap Screw 3/8-16 x 3/4 5—24H1136 Washer 5/16 x .734 x .065 6—37H37 5/16 x .75 Self Tapping Screw 7—VCU10009 Alcohol Wipe (2) 8—VCU10012 Primer 97 (3) COMMUNICATIONS COMMUNICATOR MOUNTING HARDWARE CED,TX13067,2662 –19–31JAN00–5/12 T127993B –UN–02FEB00 1—24M3739 8mm Flat Washer (2) 2—14M7151 8mm Hex Nut (2) 3—24M7105 6mm Flat Washer (2) 4—14M7194 6mm Hex Nut (2) 5—24M7138 5mm Flat Washer (3) 6—14M7229 5mm Hex Nut (3) ALTERNATOR HARDWARE DeereTrax (03FEB00)6Installation Instruction 020300 PN=8 Continued on next page Installation Instruction CED,TX13067,2662 –19–31JAN00–6/12 T128067B –UN–03FEB00 Installation and Operating Instructions INSTALLATION AND OPERATING INSTRUCTIONS Continued on next page DeereTrax (03FEB00)7Installation Instruction 020300 PN=9 Installation Instruction CED,TX13067,2662 –19–31JAN00–7/12 T127996B –UN–02FEB00 1—VCU10020 Convoluted Tubing and VCU10019 Wire 2—T178552 Connectors (6) 3—T178552 Heat Shrink Tubing (6) 4—AT159144 Grommet (3) 5—R105388 Tie Band (25) HARNESS ROUTING HARDWARE Continued on next page DeereTrax (03FEB00)8Installation Instruction 020300 PN=10 Installation Instruction CED,TX13067,2662 –19–31JAN00–8/12 T128082B –UN–03FEB00 1—VCU10005 Antenna Mounting Bracket ANTENNA MOUNT BRACKET Continued on next page DeereTrax (03FEB00)9Installation Instruction 020300 PN=11 Installation Instruction CED,TX13067,2662 –19–31JAN00–9/12 T128002B –UN–02FEB00 1—14H387 1/4-20 Hex Nut (4) 2—VCU10022 6mm Lock Washer (4) 3—VCU10017 U-Bolts (2) ANTENNA MOUNTING U-BOLTS CED,TX13067,2662 –19–31JAN00–10/12 T127999B –UN–02FEB00 1—Antenna 2—Rubber Washer CELLULAR ANTENNA VCU10035 Cellular antenna includes all parts shown. DeereTrax (03FEB00)10Installation Instruction 020300 PN=12 Continued on next page Installation Instruction CED,TX13067,2662 –19–31JAN00–11/12 T128068B –UN–03FEB00 1—Cable 2—Nut 3—O-Ring CELLULAR ANTENNA CABLE VCU10034 Cellular antenna cable includes all parts shown. CED,TX13067,2662 –19–31JAN00–12/12 T128001B –UN–02FEB00 1—Antenna and cable 2—O-Ring 3—Nut GPS ANTENNA AND CABLE VCU10008 GPS antenna includes all parts shown. DeereTrax (03FEB00)11Installation Instruction 020300 PN=13 Installation Instruction CED,TX13067,2455 –19–03AUG99–1/1 TOOLS AND EQUIPMENT Not Supplied With Kit •Drill Bits •#4 or 7/32 in. •17/64 in. •3/8 in. •1/2 in. •3/4 in. •Uni-Bit  •Volt-Ohmmeter •Electric Drill •Duct Tape •Electrical Tape •Screw Drivers •Metric and SAE Wrenches •Fish Tape •Utility Knife •Wire Crimping Tool •Weatherpack Tool JDG364 CED,TX13067,2452 –19–03AUG99–1/1 CUSTOMER SUPPORT CENTER The Customer Support Center will assist dealers or customers having problems installing or operating. Customer Support Center phone number: 1-800-939-0805. DeereTrax (03FEB00)12Installation Instruction 020300 PN=14 Installation Instruction CED,TX13067,2453 –19–03AUG99–1/1 CUSTOMER PERSONAL SERVICE (CPS) Note to cust…

Text truncated - open the document above for the full version.

T184367 DeereTrax  VCU10014 INSTALLATION INSTRUCTIONS All 1600 C, F, U John Deere Dubuque Works DeereTrax (13APR00) ENGLISH COPYRIGHT2000 DEERE & COMPANY Moline, Illinois All rights reserved A John Deere ILLUSTRUCTION  Manual DeereTrax-19-13APR00 P R O O F P R O O F Installation Instructions DX,LIVE –19–25SEP92–1/1 Live With Safety TS231 –19–07OCT88 Before returning machine to customer, make sure machine is functioning properly, especially the safety systems. Install all guards and shields. DeereTrax (13APR00)1Installation Instructions 041300 PN=3 P R O O F P R O O F Installation Instructions CED,TX13067,2386 –19–02FEB99–1/2 Parts List Part numbers may change without notice. Replacement parts are available through your John Deere dealer. •Installation Kit VCA10023 – VCA10000 Communications Controller Harness – VCA10001 Communications Controller – VCA10002 Power Harness – VCA10003 LED Light Harness – VCA10005 Antenna Mounting Bracket and Clamp – VCU10009 Alcohol Wipes (2 used) – VCU10012 Hook and Hook Primer (3 used) – VCU0013 Self Tapping Screw 6 mm x 70 mm (4 used) – VCU10014 Installation Instructions T184367 – VCU10017 U-bolt (2 used) – VCU10018 Metal Butt Splice (6 used) – VCU10019 Wire 18 ga. 12 ft. – VCU10020 Convoluted Tubing 12 ft. – VCU10030 Lock Washer Stainless Steel 0.250 in. (4 used) – VCU10031 Flat Washer Stainless Steel 0.250 in. (4 used) – VCU10032 Ground Strap – VCU10034 Cellular Antenna Cable – VCU10035 Cellular Antenna – VCU10036 Ground Plate – VCU10037 GPS (Global Positioning System) Antenna – VCU10038 GPS Antenna Cable – H159144 Grommets (3 used) – R105388 Tie Band (25 used) – T178552 Heat Shrink Tubing (6 used) – 14M7194 Nut Hex 6mm (2 used) – 14M7229 Nut Hex 5 mm (3 used) – 14M7151 Nut Hex 8 mm (2 used) – 19H1648 Cap Screw 3/8-16 x 3/4 – 24M7138 Washer 5 mm (3 used) – 24M3739 Washer 8 mm (2 used) – 24M7105 Washer 6 mm (2 used) – 24H1136 Washer 5/16 x .734 x .065 – 24H1622 Washer 3/8 x .870 x .083 – 37H87 Self Tapping Screw 5/16 x 0.75 DeereTrax (13APR00)2Installation Instructions 041300 PN=4 P R O O F P R O O F Continued on next page Installation Instructions CED,TX13067,2386 –19–02FEB99–2/2 – 907-0077 Installation Record DeereTrax (13APR00)3Installation Instructions 041300 PN=5 P R O O F P R O O F Installation Instructions CED,TX13067,2673 –19–15FEB00–1/1 Service Parts Below listed parts can be ordered as replacement or repair parts. Service Part numbers may be different than original kit part numbers. •AT180705 Ground Strap •VCA10000 Communications Controller Harness •VCA10001 Communications Controller •VCA10002 Power Harness •VCA10003 LED Light Harness •VCA10039 Hook and Hook Fastener Kit (Includes Hook and Hook Fastener and Primer) •VCA10005 Antenna Mounting Bracket and Clamp •VCU10034 Cellular Antenna Cable •VCU10035 Cellular Antenna •VCU10036 Ground Plate •VCU10037 GPS (Global Positioning System) Antenna •VCU10038 GPS Antenna Cable •14M7194 Nut Hex 6mm, Alternator Terminals (2 used) •14M7229 Nut Hex 5 mm, Alternator Terminals (3 used) •14M7151 Nut Hex 8 mm, Alternator Terminals (2 used) •24M7138 Washer 5 mm, Alternator Terminals (3 used) •24M3739 Washer 8 mm, Alternator Terminals (2 used) •24M7105 Washer 6 mm, Alternator Terminals (2 used) •R105388 Tie Band (25 used) •37M7233 Self Tapping Screw 6 mm x 75 mm, Controller Mounting (4 used) •19H1648 Cap Screw 3/8-16 x 3/4 Ground Strap to Controller •24H1136 Washer 5/16 x .734 x .065 Ground Strap to Controller •24H1622 Washer 3/8 x .870 x .083 Ground Strap to Controller •37H87 Self Tapping Screw 5/16 x 0.75 Ground Strap to Ground •CC20572 U-bolt (2 used) Antenna Mount •12H302 Lock Washer .250 in. (4 used) Antenna Mount •24M7035 Flat Washer .250 in. (4 used) Antenna Mount •H159144 Grommets (3 used) •T178552 Heat Shrink Tubing (6 used) DeereTrax (13APR00)4Installation Instructions 041300 PN=6 P R O O F P R O O F Installation Instructions CED,TX13067,2662 –19–31JAN00–1/14 Parts Included In Kit T128007B –UN–04FEB00 1—VCA10002 Power Harness Power Harness Continued on next page DeereTrax (13APR00)5Installation Instructions 041300 PN=7 P R O O F P R O O F Installation Instructions CED,TX13067,2662 –19–31JAN00–2/14 T128008B –UN–04FEB00 1—VCA10000 Communications2—VCA10003 LED Light Controller HarnessHarness Communications Controller and LED Harnesses Continued on next page DeereTrax (13APR00)6Installation Instructions 041300 PN=8 P R O O F P R O O F Installation Instructions CED,TX13067,2662 –19–31JAN00–3/14 T127991B –UN–02FEB00 1—VCA10001 Communications Controller 2—Hook and Hook Fastener Strips, part of VCA10039 Hook and Hook Fastener Kit Communications Controller CED,TX13067,2662 –19–31JAN00–4/14 T127992B –UN–02FEB00 1—VCU10032 Ground Strap 2—VCU10013 6mm x 75 mm Self Tapping Screws (4) 3—24H1622 Washer 3/8 x .870 .083 4—19H1648 Cap Screw 3/8-16 x 3/4 5—24H1136 Washer 5/16 x .734 x .065 6—37H87 5/16 x .75 Self Tapping Screw 7—Alcohol Wipe (2), part of VCA10039 Hook and Hook Fastener Kit 8—Primer (3), part of VCA10039 Hook and Hook Fastener Kit Communications Communicator Mounting Hardware Continued on next page DeereTrax (13APR00)7Installation Instructions 041300 PN=9 P R O O F P R O O F Installation Instructions CED,TX13067,2662 –19–31JAN00–5/14 T127993B –UN–02FEB00 1—24M3739 8 mm Flat Washer (2) 2—14M7151 8 mm Hex Nut (2) 3—24M7105 6 mm Flat Washer (2) 4—14M7194 6 mm Hex Nut (2) 5—24M7138 5 mm Flat Washer (3) 6—14M7229 5 mm Hex Nut (3) Alternator Hardware CED,TX13067,2662 –19–31JAN00–6/14 T128067B –UN–03FEB00 Installation and Operating Instructions Installation And Operating Instructions VCU10014 Installation and Operating Instructions Continued on next page DeereTrax (13APR00)8Installation Instructions 041300 PN=10 P R O O F P R O O F Installation Instructions CED,TX13067,2662 –19–31JAN00–7/14 T127996B –UN–23FEB00 1—VCU10020 Convoluted Tubing and VCU10019 Wire 2—VCU10018 Metal Butt Splice (6) 3—T178552 Heat Shrink Tubing (6) 4—H159144 Grommet (3) 5—R105388 Tie Band (25) Harness Routing Hardware CED,TX13067,2662 –19…

Text truncated - open the document above for the full version.

T184367 DeereTrax  VCU10014 INSTALLATION INSTRUCTIONS All 1600 C, F, U John Deere Dubuque Works DeereTrax (25FEB00) ENGLISH COPYRIGHT2000 DEERE & COMPANY Moline, Illinois All rights reserved A John Deere ILLUSTRUCTION  Manual DeereTrax-19-25FEB00 Installation Instructions DX,LIVE –19–25SEP92–1/1 Live With Safety TS231 –19–07OCT88 Before returning machine to customer, make sure machine is functioning properly, especially the safety systems. Install all guards and shields. DeereTrax (25FEB00)1Installation Instructions 022500 PN=3 Installation Instructions CED,TX13067,2386 –19–02FEB99–1/1 Parts List Part numbers may change without notice. Replacement parts are available through your John Deere dealer. •Installation Kit VCA10023 – VCA10000 Communications Controller Harness – VCA10001 Communications Controller – VCA10002 Power Harness – VCA10003 LED Light Harness – VCA10005 Antenna Mounting Bracket and Clamp – VCA10039 Hook and Hook Fastener Kit – VCU0013 Self Tapping Screw 6 mm x 75 mm (4 used) – VCU10014 Installation Instructions T184367 – VCU10017 U-bolt (2 used) – VCU10018 Metal Butt Splice (6 used) – VCU10019 Wire 16 ga. 12 ft. – VCU10020 Convoluted Tubing 12 ft. – VCU10030 Lock Washer Stainless Steel 250 in. (4 used) – VCU10031 Flat Washer Stainless Steel .250 in. (4 used) – VCU10032 Ground Strap – VCU10034 Cellular Antenna Cable – VCU10035 Cellular Antenna – VCU10036 Ground Plate – VCU10037 GPS (Global Positioning System) Antenna – VCU10038 GPS Antenna Cable – H159144 Grommets (3 used) – R105388 Tie Band (25 used) – T178552 Heat Shrink Tubing (6 used) – 14M7194 Nut Hex 6mm (2 used) – 14M7229 Nut Hex 5 mm (3 used) – 14M7151 Nut Hex 8 mm (2 used) – 19H1648 Cap Screw 3/8-16 x 3/4 – 24M7138 Washer 5 mm (3 used) – 24M3739 Washer 8 mm (2 used) – 24M7105 Washer 6 mm (2 used) – 24H1136 Washer 5/16 x .734 x .065 – 24H1622 Washer 3/8 x .870 x .083 – 37H87 Self Tapping Screw 5/16 x 0.75 – 907-0077 Installation Record DeereTrax (25FEB00)2Installation Instructions 022500 PN=4 Installation Instructions CED,TX13067,2673 –19–15FEB00–1/1 Service Parts Below listed parts can be ordered as replacement or repair parts. Service Part numbers may be different than original kit part numbers. •AT180705 Ground Strap •VCA10000 Communications Controller Harness •VCA10001 Communications Controller •VCA10002 Power Harness •VCA10003 LED Light Harness •VCA10039 Hook and Hook Fastener Kit •VCA10005 Antenna Mounting Bracket and Clamp •VCU10034 Cellular Antenna Cable •VCU10035 Cellular Antenna •VCU10036 Ground Plate •VCU10037 GPS (Global Positioning System) Antenna •VCU10038 GPS Antenna Cable •14M7194 Nut Hex 6mm (2 used) •14M7229 Nut Hex 5 mm (3 used) •14M7151 Nut Hex 8 mm (2 used) •24M7138 Washer 5 mm (3 used) •24M3739 Washer 8 mm (2 used) •24M7105 Washer 6 mm (2 used) •R105388 Tie Band (25 used) •37M7233 Self Tapping Screw 6 mm x 75 mm (4 used) •19H1648 Cap Screw 3/8-16 x 3/4 •24H1136 Washer 5/16 x .734 x .065 •24H1622 Washer 3/8 x .870 x .083 •37H87 Self Tapping Screw 5/16 x 0.75 •CC20572 U-bolt (2 used) •12H302 Lock Washer .250 in. (4 used) •24M7035 Flat Washer .250 in. (4 used) •H159144 Grommets (3 used) •T178552 Heat Shrink Tubing (6 used) DeereTrax (25FEB00)3Installation Instructions 022500 PN=5 Installation Instructions CED,TX13067,2662 –19–31JAN00–1/14 Parts Included In Kit T128007B –UN–04FEB00 1—VCA10002 Power Harness Power Harness Continued on next page DeereTrax (25FEB00)4Installation Instructions 022500 PN=6 Installation Instructions CED,TX13067,2662 –19–31JAN00–2/14 T128008B –UN–04FEB00 1—VCA10000 Communications2—VCA10003 LED Light Controller HarnessHarness Communications Controller and LED Harnesses Continued on next page DeereTrax (25FEB00)5Installation Instructions 022500 PN=7 Installation Instructions CED,TX13067,2662 –19–31JAN00–3/14 T127991B –UN–02FEB00 1—VCA10001 Communications Controller 2—Hook and Hook Fastener Strips, part of VCA10039 Hook and Hook Fastener Kit Communications Controller CED,TX13067,2662 –19–31JAN00–4/14 T127992B –UN–02FEB00 1—VCU10032 Ground Strap 2—VCU10013 6mm x 75 mm Self Tapping Screws (4) 3—24H1622 Washer 3/8 x .870 .083 4—19H1648 Cap Screw 3/8-16 x 3/4 5—24H1136 Washer 5/16 x .734 x .065 6—37H87 5/16 x .75 Self Tapping Screw 7—Alcohol Wipe (2), part of VCA10039 Hook and Hook Fastener Kit 8—Primer 97 (3), part of VCA10039 Hook and Hook Fastener Kit Communications Communicator Mounting Hardware Continued on next page DeereTrax (25FEB00)6Installation Instructions 022500 PN=8 Installation Instructions CED,TX13067,2662 –19–31JAN00–5/14 T127993B –UN–02FEB00 1—24M3739 8 mm Flat Washer (2) 2—14M7151 8 mm Hex Nut (2) 3—24M7105 6 mm Flat Washer (2) 4—14M7194 6 mm Hex Nut (2) 5—24M7138 5 mm Flat Washer (3) 6—14M7229 5 mm Hex Nut (3) Alternator Hardware CED,TX13067,2662 –19–31JAN00–6/14 T128067B –UN–03FEB00 Installation and Operating Instructions Installation And Operating Instructions VCU10014 Installation and Operating Instructions Continued on next page DeereTrax (25FEB00)7Installation Instructions 022500 PN=9 Installation Instructions CED,TX13067,2662 –19–31JAN00–7/14 T127996B –UN–23FEB00 1—VCU10020 Convoluted Tubing and VCU10019 Wire 2—VCU10018 Metal Butt Splice (6) 3—T178552 Heat Shrink Tubing (6) 4—H159144 Grommet (3) 5—R105388 Tie Band (25) Harness Routing Hardware CED,TX13067,2662 –19–31JAN00–8/14 T128082B –UN–03FEB00 1—VCU10005 Antenna Mounting Bracket Antenna Mount Bracket DeereTrax (25FEB00)8Installation Instructions 022500 PN=10 Continued on next page Installation Instructions CED,TX13067,2662 –19–31JAN00–9/14 T128453B –UN–17FEB00 1—14H387 1/4-20 Hex Nut (4) 2—12H302 Lock Washer .250 in. (4) 3—24M7035 Flat Washer .250 in. (4) 4—CC20572 U-Bolts (2) Antenna Mounting U-Bolts CED,TX13067,2662 –19–31JAN00–10/14 T127999B –UN–02FEB00 1—Antenna 2—Rubber Washer Cellular Antenna VCU10035 Cellular antenna includes all parts shown. Continued on next page DeereTrax (25FEB00)9Installation Instructions 022500 PN=11 Installation Instructions CED,TX13067,2662 –19–31JAN00–11/14 T128304B…

Text truncated - open the document above for the full version.

Comm1_RXD Comm1_TXD GND 4.3V ALT W+ IGNITIONswitch Comm2_TXD Comm2_RXD HS_AUD_OUT HS_AUD_IN ISO_B+ ISO_B- HANDSET_PWR Comm2_RXD Comm2_TXD HS_AUD_IN CAN_1 CAN_2 J1708_1 J1708_2 Aux_Batt+ Thermistor_In Spare Analog_5 Thermistor_Out OC_Output_1 CCD_1 CCD_2 Vehicle_Batt+ Analog_6 OC_Output_0 HS_AUD_OUT Analog_6 Analog_5 Aux_Batt- OC_Output_0 Vehicle_Batt+ Aux_Batt- Aux_Batt+ OC_Output_1 ALT W+ Thermistor_Out ISO_B- ISO_B+ J1708_1CAN_1 CCD_1 CCD_2 CAN_2J1708_2 HANDSET_PWR uPWR IGNpwr uPWR IGNITIONswitch IGNpwr Comm1_RXD Comm1_TXD Thermistor_In ALT W+ J1 G1 A1 F1 B1 A3 G3 G2 A2 B2 B3 F2 E3 D2 C1 D1 C2 F3 C3 D3 K1 K2 E1 H2 E2 H1 H3 J1 J2 J3 E12 E13 E14 E15 E10 E16 E9 E38 E39 E31 E32 E11-6 E11-5 E11-7 Vehicle_Batt- HANDSET_GND 470K R26 K3 1.2K-1/2W-5%- R14 1.2K-1/2W-5%- R13 1.2K-1/2W-5%- R12 1.2K-1/2W-5%- R11 1.2K-1/2W-5%- R10 1.2K-1/2W-5%- R9 OMIT 1/2W R56 OMIT R55 1/2W OMIT 1/2W R24 OMIT 1/2W R25 MLL4742 Z3 12V MLL4742 Z6 12V MLL4742 Z2 12V MLL4742 Z5 12V MTD3055EL- Q5 1/2W R43 1K 1/2W 750 R42 E11-1 MTD3055EL- Q4 R37 1K 1/2W R36 750 1/2W E11-2 OMIT Q3 Q2 BSS123L OMIT R7 30K 1/2W R3 E11-3 HANDSET_GND E40 OMIT R8 PTC_.5A_SMT PTC3 PTC_.5A_SMT PTC4 1.00K-1/10W-1%- R45 S-80745AN-D9-T- U3 C8 OMIT C7 OMIT RFD8P05SM Q1 RLR4004- D3 D2 RLR4004- RLR4004- D5 RLR4004- D4 10V C47 22uF E20 E21 E18 E36 Vehicle_Batt- E37 OMIT R6 470K-1/10W-5%- R28 R57 470K-1/10W-5%- 4.3V RS_20K_1/2W R21 RS_20K_1/2W R20 RS_20K_1/2W R54 RS_20K_1/2W R53 GND=GND VCC=uPWR AT90LS2343 1 2 3 5 6 7 U2 1.00K-1/10W-1%- R47 1.00K-1/10W-1%- R62 1.00K-1/10W-1%- R48 E25 100ohms R31 R58 100ohms 470K R27 47K-1/10W-5%- R4 MLL4742 Z7 12V 12V Z11 MLL4742 MLL4742 Z1 12V PZTA42- Q6 0 ohm R46 6.2K 1/4W R49 Q7 LM317LBD- OMIT RLR4004- D6 OMIT OMIT C48 22uF 10V OMIT R52 1% 649 1% 215 OMIT R51 Z10 MLL5233 6V 1 J2 J2 2 J2 3 J2 4 J2 8 J2 7 J2 6 J2 5 1uF-16V C10 1uF-16V C15 1uF-16V C12 1uF-16V C14 1uF-16V C13 1uF-16V C6 RS_20K_1/2W R63 680pF C2 50V 680pF C1 50V 1 2 3 4 56 89 10 11 1213 14 GND=GND VCC=4.3V 7 MAX232EEWE- U1 RS_300K_1206 R1 1.00K-1/10W-1%- R65 .01UF-100V-08- C19 C20 .01UF-100V-08- C3 .01UF-100V-08- C24 .01UF-100V-08- .01UF-100V-08- C32 OMIT .01UF-100V-08- C39 OMIT .01UF-100V-08- C31 OMIT .01UF-100V-08- C30 OMIT OMIT C28 .01UF-100V-08- C11 .01UF-100V-08- OMIT C29 .01UF-100V-08- .01UF-100V-08- C43 .01UF-100V-08- C44 C49 .01UF-100V-08- C41 .01UF-100V-08- C35 .01UF-100V-08- C38 .01UF-100V-08- C34 .01UF-100V-08- .01UF-100V-08- C46 C45 .01UF-100V-08- .01UF-100V-08- C37 C36 .01UF-100V-08- C42 .01UF-100V-08- C26 .01UF-100V-08- C17 .01UF-100V-08- C16 .01UF-100V-08- C21 .01UF-100V-08- C22 .01UF-100V-08- C23 .01UF-100V-08- C18 .01UF-100V-08- H=8ND; V=4LA BSS123L Q10 Q11 RFD8P05SM Z14 MLL4742 12V C52 .01UF-100V-08- .01UF-100V-08- C51 C53 .01UF-100V-08- R73 47K-1/10W-5%- 1.00K-1/10W-1%- R68 D10 RLR4004- D8 RLR4004- Z8 39V ZMM5259B- ZMM5259B- 39V Z9 65 U4 GND=GND VCC=uPWR 1/6-74HC14AD- 1011 U4 GND=GND VCC=uPWR 1/6-74HC14AD- 43 U4 GND=GND VCC=uPWR 1/6-74HC14AD- 89 U4 GND=GND VCC=uPWR 1/6-74HC14AD- 1213 U4 GND=GND VCC=uPWR 1/6-74HC14AD- 21 U4 GND=GND VCC=uPWR 1/6-74HC14AD- R69 1.00K-1/10W-1%- R77 1.00M-1/10W-1%- C59 OMITOMIT C57 .01UF-100V-08- by-pass cap C58 C55 OMIT C56 OMIT E100 D7 RLR4004- 47K-1/10W-5%- R5 E11-8 47K-1/10W-5%- R50 R16 47K-1/10W-5%- 47K-1/10W-5%- R64 47K-1/10W-5%- R75 1 Q8 OMIT BSS123L Q9 OMIT BSS123L OMIT 470K-1/10W-5%- R66 OMIT 1uF-16V C50 OMIT 12V Z13 MLL4742 D9 RLR4004- OMIT OMIT .01UF-100V-08- C54 Z15 OMIT MLL4742 12V RS_20K_1/2W OMIT R70 OMIT RS_20K_1/2W R72 X1 CSTC2.00MG- OMIT X2 OMIT 47K-1/10W-5%- R76 RS_20K_1/2W OMIT R71 10K-1/8W-5%- R44 47K-1/10W-5%- R74 10K-1/8W-5%- R67 10K-1/8W-5%- R61 MLL5231A-5.1V- Z12 D11 OMIT Z4 OMIT RS_20K_1/2W R59 RS_20K_1/2W R29 R78 680-1/10W-5%- E11-4 RLR4004- D12 E43 Comm1_GND 4 Cinch 30-Way 581-01-30-001 ENGINE RUNNING I/O Open Collector Outputs RS232 Level Shifter Spare Opto AUXILLARY BATTERY Handset Connections 1 002-0417 EGVC Vehicle Interface (not implemented) (not implemented) (not implemented) (not implemented) (not implemented) (not implemented) 1-7-00B. Smith 1 1/7/00 DIAGNOSTIC CHECK IN WL: I/O 6 NOT USED WL: I/O 5 HIGH RPM WL: I/O 7 EOP INPUT WL: I/O 4 IGN Switch + WL: ISOA_POS (I/O 9) GND WL: GND IGN Switch - WL: ISOA_Neg Latch On Signal WL: I/O 2 Handset Power Control Signal WL: Voltage Source Positive 12V Handset Power WL: Aux Batt + Latch On Power WL: Asset Power Handset Ground WL: Gnd Handset Audio In WL: AUD_IN Handset RXD WL: RXD Handset Audio Out WL: AUD_OUT Handset TXD WL: TXD Spare Opto Negative WL: ISO-B Negative Spare Opto Positive WL: ISO-B Positive (I/O 8) Comm 1 TXD WL: TXD Comm 1 RXD WL: RXD Comm 1 Vcc WL: Voltage Source Positive 4.3V Comm 1 Gnd WL: Gnd Aux_Batt+ WL: Battery Positive Aux_Batt- WL: Battery Negative Thermistor In WL: Thermistor Thermistor Out WL: Thermistor OC Out 1 WL: I/O 1 OC Out 0 WL: I/O 0 EngRunSig WL: I/O 3 Enlarged Wire Holes

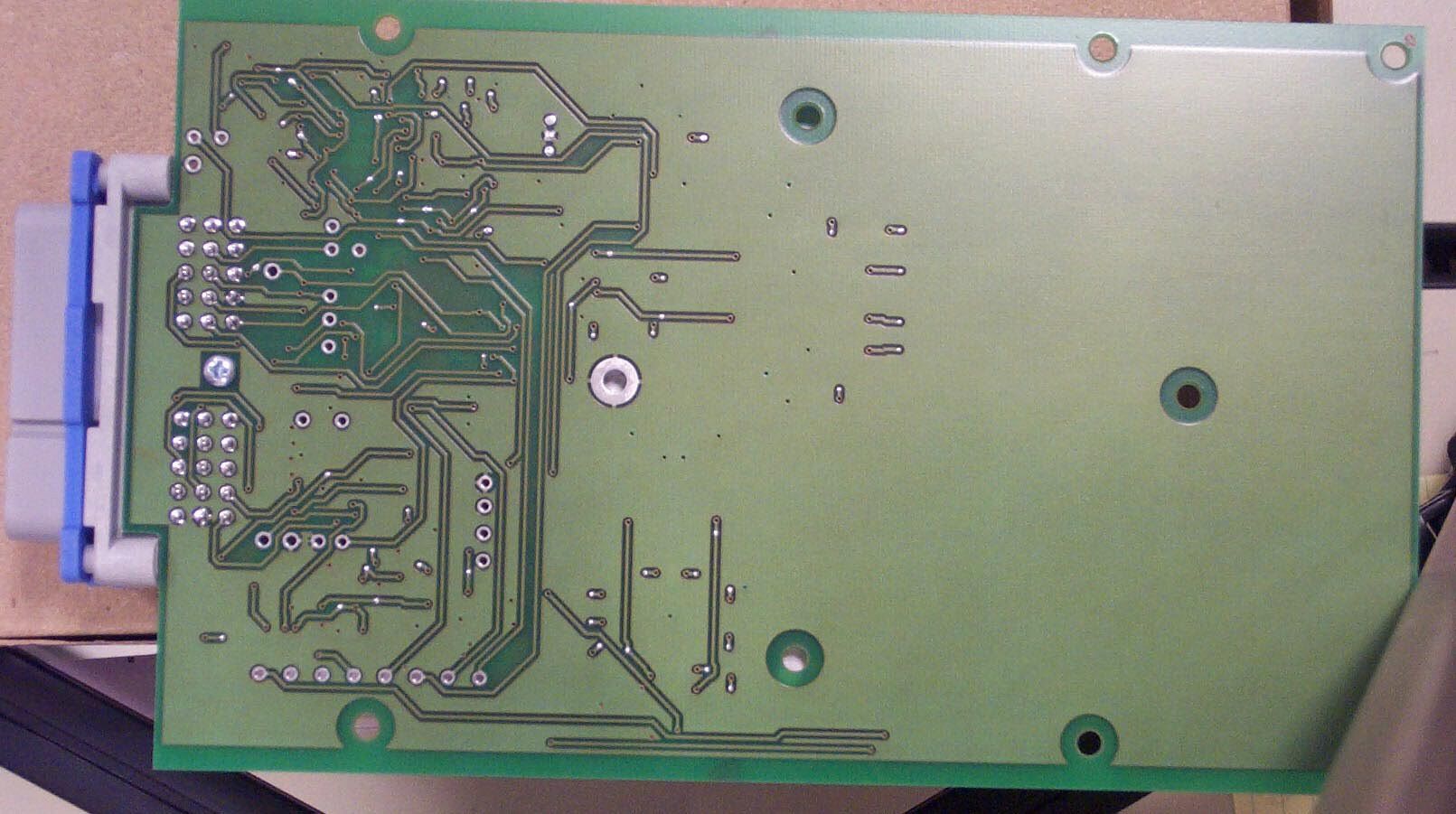

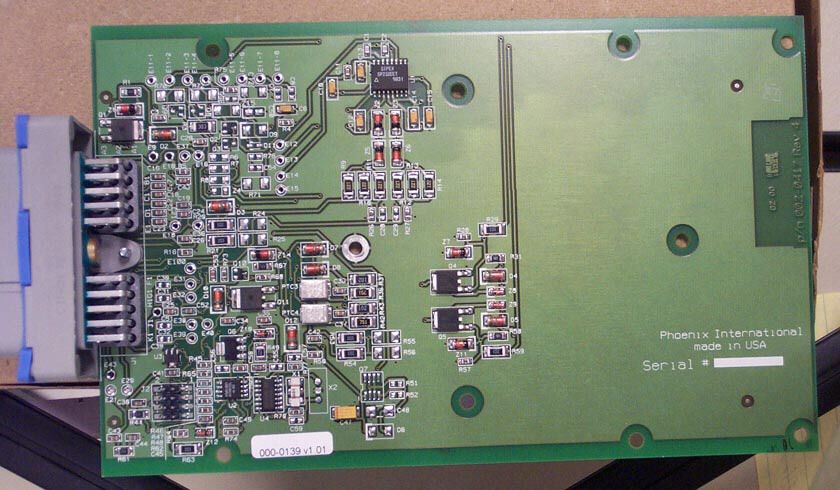

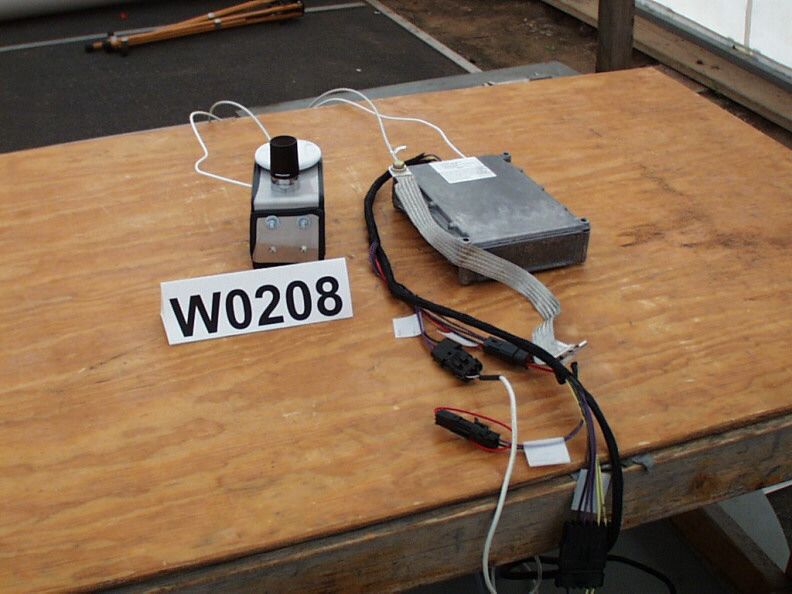

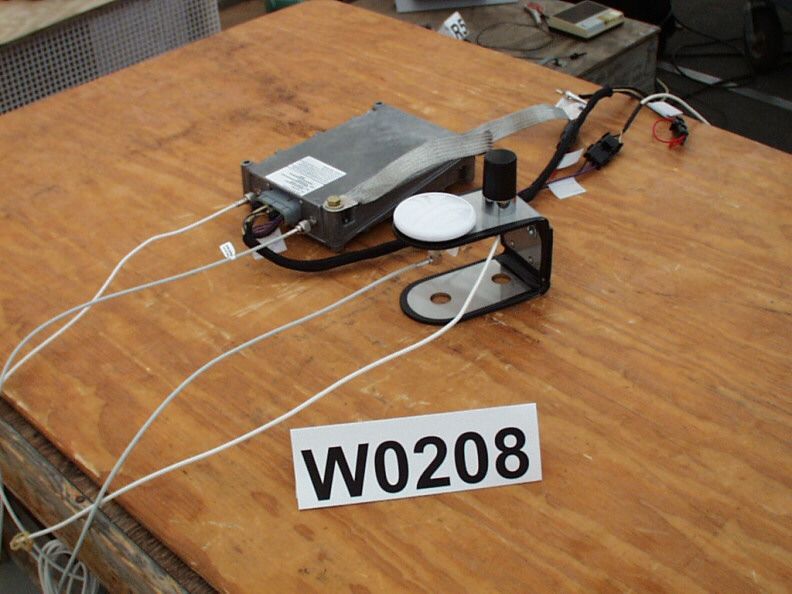

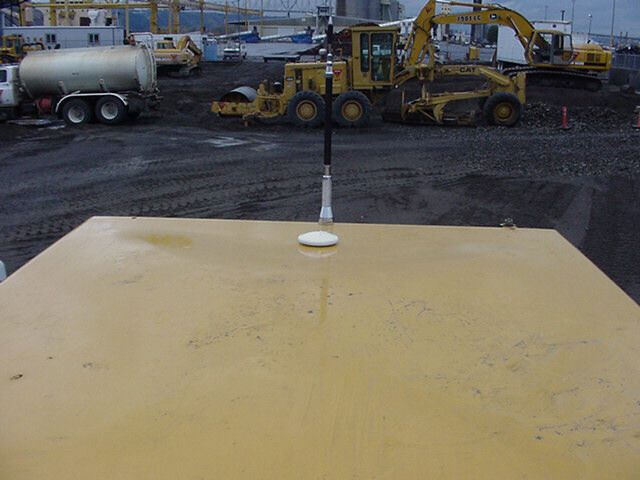

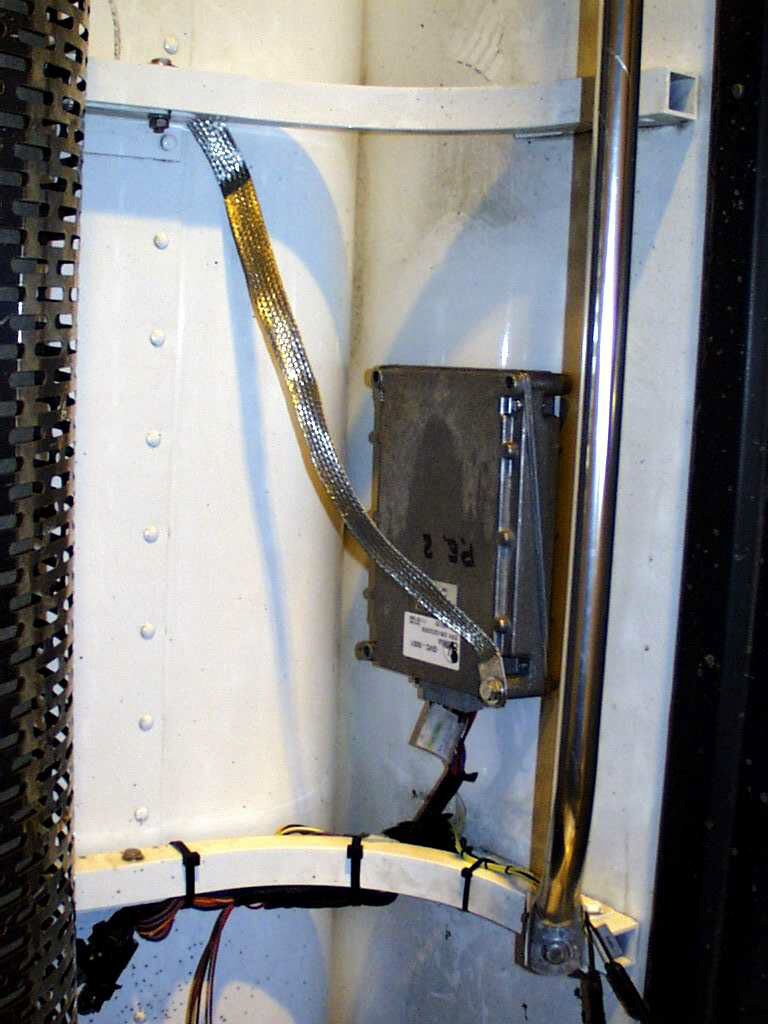

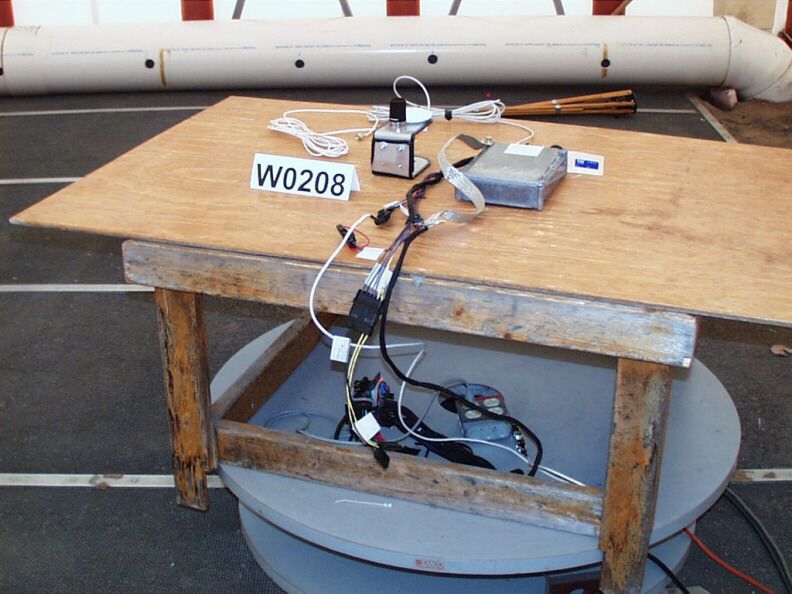

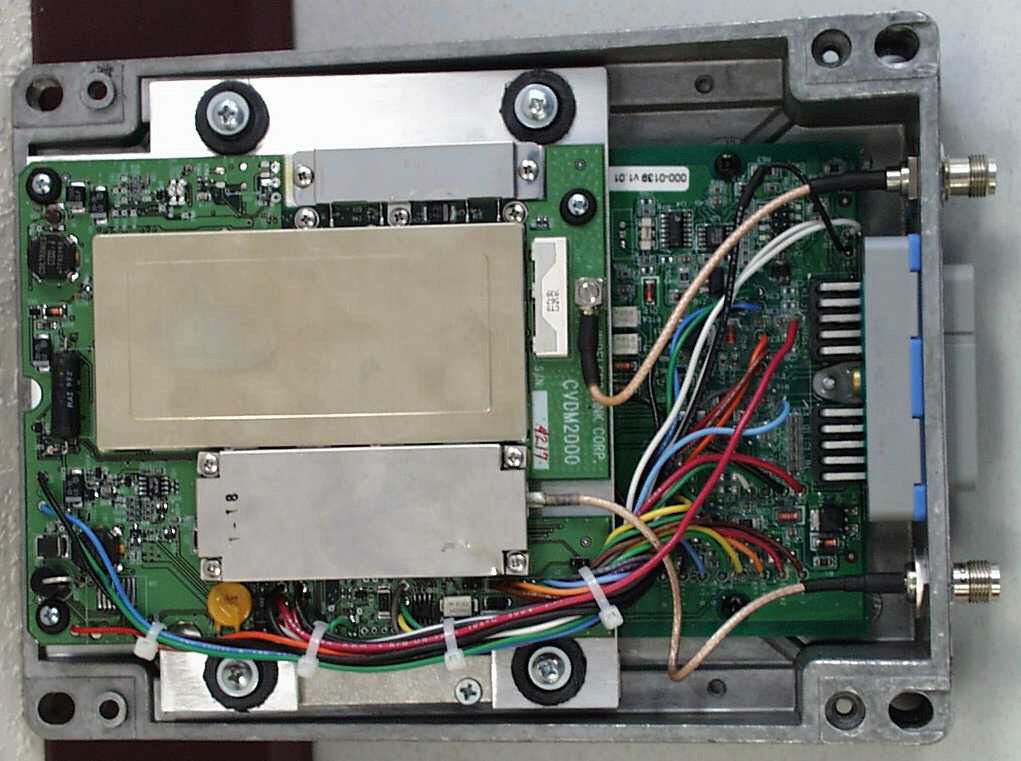

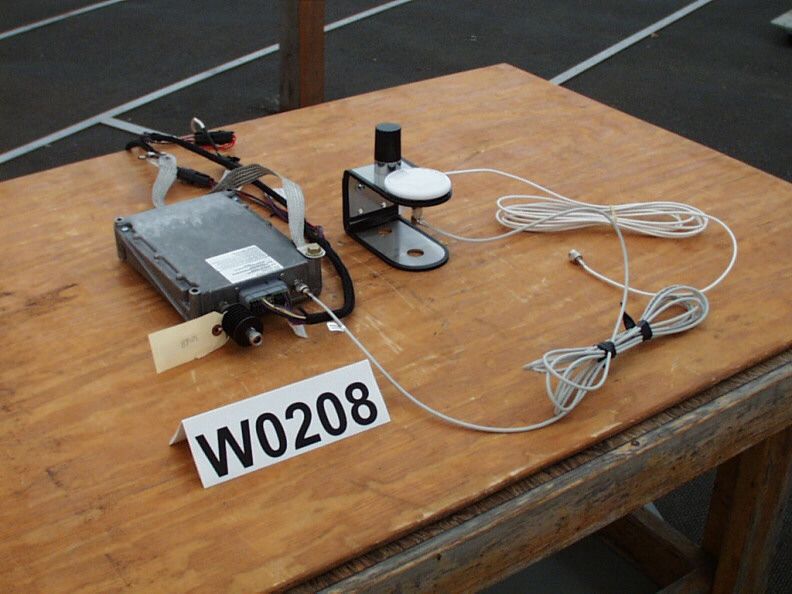

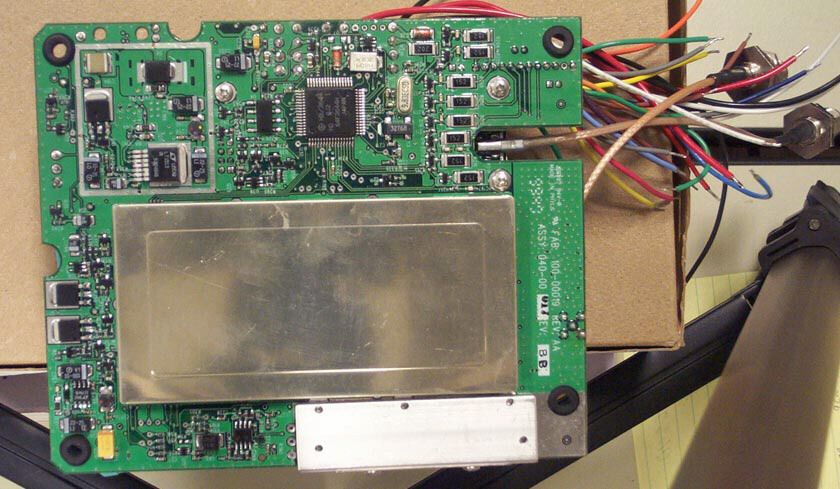

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 22 SUBPART H Sections 22.913, 22.917 FCC Part 15 - Receiver MANUFACTURER'S NAME Phoenix International a John Deere Company NAME OF EQUIPMENTGPS receiver with cellular transmitter that reports location and engine hours MODEL NUMBER VCA10001 MANUFACTURER'S ADDRESS5300 Rising Moon Road Springfield IL 62707 TEST REPORT NUMBERW0051 TEST DATE27 January 2000 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 22. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 22. TUV Product Service’s test site is on file with the FCC under Registration number 90983. Date:28 January 2000 Location:Taylors Falls MNR. M. JohnsonJ. T. Schneider USATest TechnicianLead Engineer Not Transferable File No. WC1G005101, Page 1 of 10 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No.: WC1G005101 Date of issue:29 January 2000 Model / Serial No.: VCA10001 / s/n VCAA001000035 Product Type: GPS receiver with cellular transmitter that reports location and engine hours Applicant: Phoenix International a John Deere Company Manufacturer: Phoenix International a John Deere Company License holder: Phoenix International a John Deere Company Address: 5300 Rising Moon Road : Springfield IL 62707 Test Result: nn Positiveoo Negative Test Project Number: Reference(s) W0051 Total pages including Appendices31 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. WC1G005101, Page 2 of 10 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE D I R E C T O R Y - EMISSIONS Page(s) A)Documentation Test report1 - 10 Directory2 Test Regulations3 Effective Radiated Power5 Out of Band Spurious Emissions (Radiated)6 Radiated Emissions (Receive mode verification)7 Test setup photographs10 B)Appendix A Test Data Sheets and Test Setup Drawing(s) A2 - A7 C)Appendix B Constructional Data Form B2 – B10 Product Information Form(s) N/A D)Appendix C Measurement ProtocolC1 - C2 File No. WC1G005101, Page 3 of 10 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- o - EN 50081-1 / 1991 o - EN 55011 / 1991o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B o - EN 55022 / 1994o - Class Ao - Class B o - BS n - FCC Part 15o- Class An - Class B n - FCC Part 22 Subpart H Section 22.913, 22.917 o - AS 3548 (1992)o - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B o - CISPR 22 (1993) o - Class Ao - Class B File No. WC1G005101, Page 4 of 10 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Environmental conditions in the lab: Actual Temperature: 16 °C Relative Humidity: 16 % Atmospheric pressure: 100.8 kPa Power supply system: Vehicle battery Sign Explanations: o - not applicable n - applicable File No. WC1G005101, Page 5 of 10 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Effective Radiated Power Limits – Section 22.913 The Effective Radiated Power measurements were performed at the following test location: o - Test not applicable o - Wild River Lab Large Test Site (Open Area Test Site) n - Wild River Lab Small Test Site (Open Area Test Site) o - Oakwood Lab (Open Area Test Site) o - Wild River Lab Screen Room o - New Brighton Lab Shielded Room at a test distance of : n - 3 meters o - 10 meters o - 30 meters The ERP of mobile transmitters and auxiliary test transmitters must not exceed 7 Watts. The ERP of the EUT was measured to be +28 dBm, or 630 milliwatts, at the 836.01 MHz (mid-range) channel. Test …
