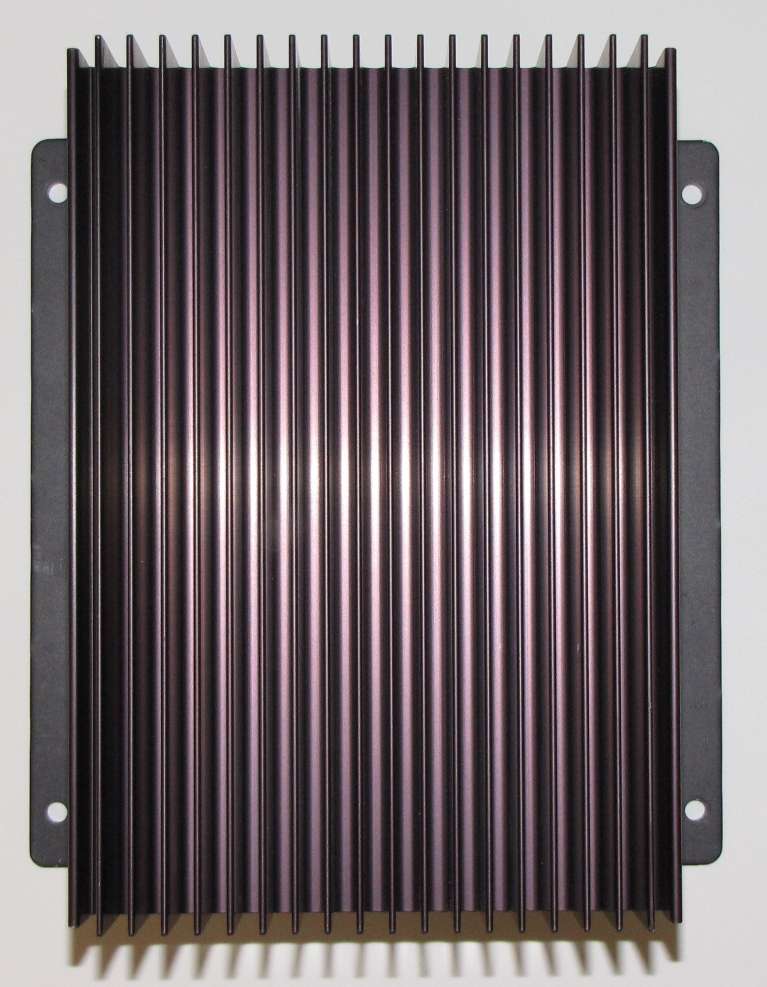

OV5PCSRAMP450AUHF 450 - 470 MHz RTK Amplifier

                                  ! "   #        $ %   $     &  '         (  )           ! "   #        $ %       &  ' ) #    *   % & " " '  !!"! # $$#!%!& '(&)* "& %!")+$ ,!"*)  )+  ),+ -'#'' DCY OMPFP10070 Introduction OUO6050,0000FB1 ­19­12MAY09­1/1 www.StellarSupport.com NOTE: Product functionality may not be fully represented in this document due to product changes occurring after the time of printing. Read the latest Operator’s Manual and Quick Reference Guide prior to operation. To obtain a copy, see your dealer or visit www.StellarSupport.com 121509 PN=2 Contents Page Safety........................................................ 05­ 1 Safety Sign Antenna Front View Decal................................07­ 1 Licensing of 450 MHz RTK Base Licensing of 450 MHz RTK Base......................10­ 1 RTK Base Station Setup System Overview..............................................15­ 1 Vehicle Receiver...............................................15­ 2 Base Station Setup...........................................15­ 3 Base Station Setup—Amplifier Option..............15­ 4 Base Station Setup—Dual Radio .....................15­ 6 Radio Power Setting to Meet Licensed ERP....15­10 GS2 Display iTC—450 MHz RTK RTK SoftKey.....................................................20­ 1 Screens Common to Standard and 450 MHz RTK......................................................20­ 2 RTK Main Page ................................................20­ 3 RTK Configure Page ........................................20­ 6 Diagnostic LEDs Diagnostic LEDs...............................................25­ 1 450 MHz RTK Radio LEDs...............................25­ 1 Amplifier LEDs..................................................25­ 2 450 RTK Performance 450 MHz RTK Accuracy ...................................30­ 1 Line of Sight......................................................30­ 2 12.5 kHz versus 25 kHz Bandwidth..................30­ 3 L2 versus L4 GFSK Modulation........................30­ 3 Operation of Vehicle Next to Base....................30­ 3 Original Instructions. All information, illustrations and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice. COPYRIGHT © 2010 DEERE & COMPANY Moline, Illinois All rights reserved. A John Deere ILLUSTRUCTION ® Manual i 121509 PN=1 Contents ii 121509 PN=2 Safety DX,ALERT ­19­29SEP98­1/1 DX,SIGNAL ­19­03MAR93­1/1 DX,READ ­19­16JUN09­1/1 Recognize Safety Information This is a safety­alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices. T81389 —UN—07DEC88 Understand Signal Words A signal word—DANGER, WARNING, or CAUTION—is used with the safety­alert symbol. DANGER identifies the most serious hazards. DANGER or WARNING safety signs are located near specific hazards. General precautions are listed on CAUTION safety signs. CAUTION also calls attention to safety messages in this manual. TS187 —19—30SEP88 Follow Safety Instructions Carefully read all safety messages in this manual and on your machine safety signs. Keep safety signs in good condition. Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from your John Deere dealer. There can be additional safety information contained on parts and components sourced from suppliers that is not reproduced in this operator’s manual. Learn how to operate the machine and how to use controls properly. Do not let anyone operate without instruction. Keep your machine in proper working condition. Unauthorized modifications to the machine may impair the function and/or safety and affect machine life. TS201 —UN—23AUG88 If you do not understand any part of this manual and need assistance, contact your John Deere dealer. 05­1 121509 PN=5 Safety DX,FIRE2 ­19­03MAR93­1/1 DX,SERV ­19­17FEB99­1/1 Prepare for Emergencies Be prepared if a fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service, hospital, and fire department near your telephone. TS291 —UN—23AUG88 Practice Safe Maintenance Understand service procedure before doing work. Keep area clean and dry. Never lubricate, service, or adjust machine while it is moving. Keep hands, feet , and clothing from power­driven parts. Disengage all power and operate controls to relieve pressure. Lower equipment to the ground. Stop the engine. Remove the key. Allow machine to cool. Securely support any machine elements that must be raised for service work. Keep all parts in good condition and properly installed. Fix damage immediately. Replace worn or broken parts. Remove any buildup of grease, oil, or debris. On self­propelled equipment, disconnect battery ground cable (­) before making adjustments on electrical systems or welding on machine. On towed implements, disconnect wiring harnesses from tractor before servicing electrical system components or welding on machine. TS218 —UN—23AUG88 05­2 121509 PN=6 Safety SH20560,0000116 ­19­05DEC09­1/1 SH20560,0000115 ­19­09DEC09­1/1 SH20560,0000117 ­19­05DEC09­1/1 Handle Global Positioning Receivers and Brackets Safely Falling while installing or removing a global positioning receiver can cause serious injury. Use a ladder or platform to easily reach a mounting location. Use sturdy and secure footholds and handholds. Do not install or remove the receiver in wet or icy conditions. The receiver mast used on i…

Text truncated - open the document above for the full version.

Label Location

JOHN DEERE COMPONENT S/N: PCSR60A005001 PART NO: PF81443 DATE CODE: 1004 CANADA IC: 3595B-PCSR450A FCC ID: OV5PCSRAMP450A DEERE & COMPANY MOLINE, IL MADE IN THE USA 450-470 MHz AMPLIFIER INPUT PWR: 0-2 W OUTPUT PWR: 0-50W This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

Control Board PCB for AMP460-1 FRONT Control Board PCB for AMP460-1 BACK PA PCB for AMP460-1 FRONT PA PCB for AMP460-1 BACK

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 TEST RESULT SUMMARY FCC Part 90 MANUFACTURER'S NAME Deere and Company d.b.a. Intellegent Solutions Group 4140 NW 114th Street Urbandale IA 50322 PRODUCT NAME 450 MHz RTK amplifier MODEL NUMBER(S) TESTED PF81443 SERIAL NUMBER(S) TESTED PCSR60A003030 PRODUCT DESCRIPTION 450-470 MHz amplifier TEST REPORT NUMBER WC909605 Rev D TEST DATE(S) 15 December 2009 – 19 June 2010 TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the applicable EMC requirements of FCC Part 90. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. Date: 25 June 2010 Location: Taylors Falls MN Greg S Jakubowski Joel T Schneider USA Senior EMC Technician Senior EMC Engineer Not Transferable TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 EMC TEST REPORT Test Report No. WC909605 Rev D Date of issue: 25 June 2010 Product Name 450 MHz RTK amplifier Model(s) Tested PF81443 Serial No(s) Tested PCSR60A003030 Product Description 450-470 MHz amplifier Manufacturer Deere and Company d.b.a. Intellegent Solutions Group 4140 NW 114th Street Urbandale IA 50322 Test Result  Positive  Negative TÜV SÜD America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the US government. TÜV SÜD America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report WC909605 Rev DPage 1 of 39 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 30 26 April 2010 Initial Release A 32 25 May 2010 Revisions include:  Adding new output power readings with the newest amp. B 40 15 June 2010  Adding 14 June 2010 test data. C 39 21 June 2010  Adding 19 June 2010 test data. D 39 25 June 2010 Updated pages 15 and 21 to more clearly reflect the substitution method. Test Report WC909605 Rev DPage 2 of 39 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 D I R E C T O R Y Contents Revision Record 2 Directory 3 Test Regulations 4 Environmental Conditions 4 Power Supply 4 Test Equipment Traceability 4 Test Information Power Section 90.205 5 - 13 Emission Bandwidth Section 90.209 14 Emission Mask/Spurious Emissions Section 90.210 15 - 21 Frequency Stability Section 90.213 22 Transient Frequency Behavior Section 90.214 23 Test area diagram 24 Test-setup Photos 25 - 26 Equipment Under Test Information 27 General Remarks, Deviations, Summary 28 Appendix A EMC Test Plan 29 - 36 Appendix B Measurement Protocol 37 - 39 Test Report WC909605 Rev DPage 3 of 39 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 EMC TEST REGULATIONS: The tests were performed according to the following regulations: FCC Part 90 ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 21-24° C Atmospheric pressure : 98-99 kPa Relative Humidity : 19-52% POWER SUPPLY UTILIZED Power supply system : 12 VDC TEST EQUIPMENT All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. SIGN EXPLANATIONS  - not applicable  - applicable Test Report WC909605 Rev DPage 4 of 39 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Output Power FCC Section 90.205 Test summary The requirements are:  - MET  - NOT MET Testing was performed in accordance with the test procedure of ANSI TIA-603-C, clause 2.2.1 Maximum peak conducted output power of the fundamental is 46.88 dBm, 48.8 W Maximum peak ERP of the fundamental is 46.88 dBm + 7 dBi (max antenna gain) = 53.88 dBm, 245 W. Maximum peak conducted output power into the amplifier is 33 dBm, 2 W. The gain of the amplifier is 16 dB. Test location  - Aero Antenna Technology  - Wild River Lab Small Test Site (Open Area Test Site) Test distance  - 3 meters Test limit The maximum allowable station effective radiated power (ERP) is dependent upon the station's antenna HAAT and required service area and will be authorized in accordance with table 2. Test Data See AeroAntenna Technology Inc document AMP460-1 SN:3120 on following pages Test Report WC909605 Rev DPage 5 of 39 an AS9100 Certified Company 20732 Lassen Street, Chatsworth, CA 91311 Phone: (818) 993-3842 Fax: (818) 993-4525 AMP460-1 SN:3120 SIMULATED FSK STIMULUS TEST RESULTS FSK Source Source:Agilent N5181A Conditioning:Variable Gain Amplifier (VGA)/2W Baseband Bit Rate: 9600 bps Passband modulation: GFSK, 12kHz spacing Agilent N5181A analog signal generator was used as a source. The signal generator output was connected into the input of a variable gai…

Text truncated - open the document above for the full version.

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA Test Report WC90960514 of 30 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC90960515 of 30 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC90960516 of 30 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Test Report WC90960517 of 30
