OW5BST1900GSM/GPRS PCS Band Amplifier

Dual Band Glass Mount 15” Antenna AC/DC Power Supply (Optional)Allows Use of Booster In Home Or Office Adapter Cables (Order Separately) Specifications: Model:BST11900 Frequency Range (Mhz) Antenna Gain Only Uplink 824-849 Downlink 869-894 Output Power max 2 Watt N/A Gain Antenna Gain Only Uplink +12dB 6dB max Downlink +12dB 6dB max DC Input Power Stand By DC 12V/0.2A Max In Use DC12V/600mAh Max RFConnector MCT-Male Weight 350g Dimensions 125 x 82 x 25mm 1850-1910 1930-1990 SmoothTalker Dual Band Mag Mount Antenna Maximum Power Dual Band Glass Mag Antenna (Optional) Dual Band Glass Mount 4” Antenna User Instruction Manual Model BST1900 Maximum Power Mobile Communication Technologies Inc. Contact Us On The Internet At www.smoothtalker.com SmoothTalker MCT Cellular Band Booster Amplifier GSM /GPRS/EDGE/TDMA User Instructions Typical Car Installation Cellular Phone Hands Free In-car Kit Antenna Car Kit Ant Out Cellular Antenna Adapter Car Booster Car Antenna Car Booster Instructions: 1 ) Instructions for m **This device should be installed with the antenna supplied. It is required that the antenna is mounted is a suitable location which is a minimum distance of 20cm(8 inches)away from the user or nearby persons in order to comply with FCC rules concerning MPE (Maximum Permissible Exposure) safety limits** Magnetic Mount: Place centered, only on vehicle roof or 8 inches(20cm) away from any vehicle occupant or nearby persons. Glass mount: The antenna base should be placed on the front or rear windshield and centered as close to the vehicle roof as possible. It should be positioned to provide a minimum distance of 8 inches (20 cm) from any of the vehicle occupants or nearby persons. Run the co-ax cable along the head liner or along the floor under the carpet and bring up to the position of the booster. Connect co-ax cable to side of booster marked “Antenna”. Trunk mount: When mounting on trunk the antenna should be placed in the center of the trunk closest to the rear windshield of the vehicle. 3) Connect the 100cm cable from cell phone to side of booster marked “Signal Adapter”. When using with Cell Phone :connect cell phone adapter cable from cell phone to 100cm cable. When using with Car Kit: connect Car Kit antenna out, to 100cm cable. ) Place the Booster in a suitable location under the dashboard and plug in power cord to cigarette lighter socket of vehicle. 2ounting antenna to vehicle: It should be positioned to provide a minimum distance of 8 inches (20 cm) from any of the vehicle occupants or nearby persons. 4) Tighten all connections securely and move the switch located at the side of the booster to the “on” position. A green light will indicate that the unit is now ready for use. PLEASE NOTE: It is normal for the booster to be quite warm while the phone is in use. NOTE: This equipment has been tested and found to comply with the limits for a Class AB digital devices, pursuant to Part 24 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: Reorient or relocate the receiving antenna · Increase the separation between the equipment and receiver · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. "Changes or modifications not expressly approved by MCT, Inc., the party responsible for compliance, could void the user's authority to operate the equipment." www.smoothtalker.com Must be centered on Roof , Windsheild or Trunk Antenna

Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 58 of 78 APPENDIX B: CONFIDENTIALITY REQUEST Please see the following page. 360 Industrial Pkwy South Unit#1&2 Aurora, Ont. Canada L4G 3V7 Phone:(905)726-3444 Fax:(905)726-4233 Email [email protected] April 29/03. American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Block Diagram • Parts List • Operational Description Sincerely, Tom Vagenas Director

Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 57 of 78 APPENDIX A: AGENCY AUTHORIZATION LETTER Please see the following page. MCT- - , .;:' f ~ -~.. CoIrun~,cIon TtCllltOlogiellnc, ~.. J6O Jnd.-rJaJ PkWJ ~ Unlc#1U AA.-ola, 0"'. can"- UG JV7 Phone:/9D5/7Z6.J444 F..:f90517Z6~~ EM'" [email protected] September 18102. American TCB. I"c. 8731 Whittier Avenue Suite C1 10 McLean, VA 22101 Re Agent Authorization To Whom It May Concern: Tom Vagenas hereby authorizes Rhein Tech LabOratories, Inc (RTL), 360 Herndon Parkw~y. Suite 1400, Herndon, VA 20170 to act as agent. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant cer1ifles thst. in the case of an individual applicant, he or she is not subject to ~ denial of federal benefits, that includes FCC benefits. pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988. 21 U.S.C. 853(1), or, in the case of a I'lon-individual applicant. No party to the application IS subject to a denial of federal benefits that includes FCC benefits. pursuant to that section, For the definition of a .party. for these purposes, see 47 CFR 1.2002(b). Sincerely TO~' Director

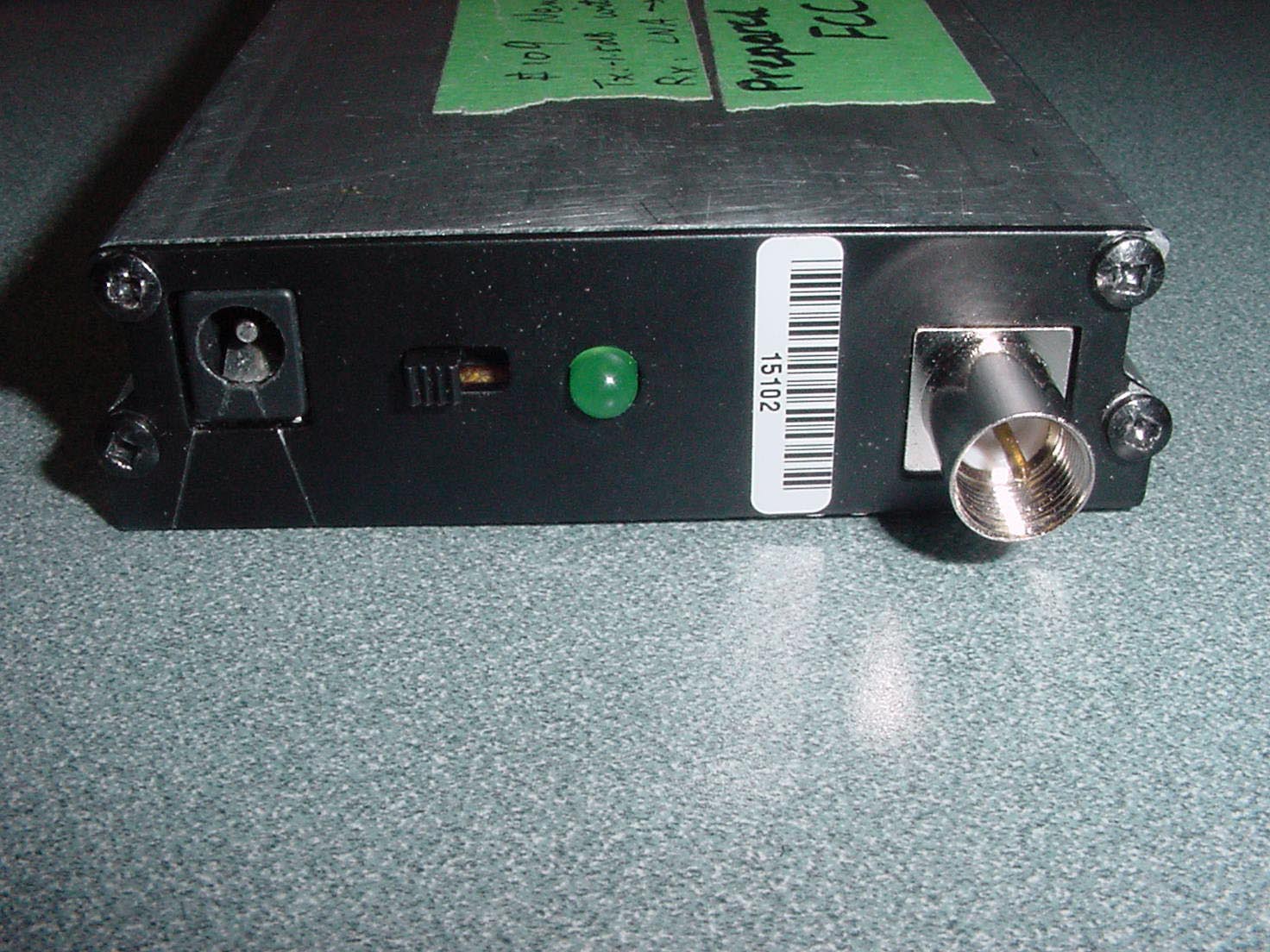

Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 69 of 78 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 4: EUT TOP VIEW Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 70 of 78 PHOTOGRAPH 5: EUT BOTTOM VIEW Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 71 of 78 PHOTOGRAPH 6: EUT OUTPUT SIDE Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 72 of 78 PHOTOGRAPH 7: EUT SIDE VIEW PHOTOGRAPH 8: EUT SIDE VIEW PHOTOGRAPH 9: EUT END VIEW Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 73 of 78 PHOTOGRAPH 10: MAGNETIC MOUNT ANTENNA WITH CONNECTOR Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 74 of 78 PHOTOGRAPH 11: 0DB GLASS MOUNT ANTENNA WITH CABLES AND CONNECTORS

Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 59 of 78 APPENDIX C: LABEL AND LOCATION PHOTOGRAPH 1: LABEL LOCATION ON EUT BOTTOM Please see the following page for a sample of the label. FCC and Industry Canada Label Here FCC ID / IC ID Label Sample

Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 75 of 79 APPENDIX L: INTERNAL PHOTOGRAPHS PHOTOGRAPH 12: PCB BOTTOM VIEW PHOTOGRAPH 13: PCB TOP VIEW Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 76 of 79 PHOTOGRAPH 14: BOTTOM OF AMP PCB WITHOUT SHIELDS

Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 75 of 78 APPENDIX L: INTERNAL PHOTOGRAPHS PHOTOGRAPH 12: PCB BOTTOM VIEW PHOTOGRAPH 13: PCB TOP VIEW

Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 65 of 78 APPENDIX I: MAXIMUM PERMISSIBLE EXPOSURE FCC RULES AND REGULATIONS PART 1.1307, 1.1310, 2.1091, 2.1093: RF EXPOSURE COMPLIANCE 1. GENERAL INFORMATION: • FCC ID: OW5BST1900 • Environment: General Population/Uncontrolled Exposure • Device category: Mobile per Part 2.1093 2. OPERATING CONFIGURATIONS AND TEST CONDITIONS: 2.1 ANTENNA TYPE(S): Antenna Type EIRP(W) Gain MOBILE COMMUNICATIONS TECHNOLOGIES, INC. M AGNETIC MOUNT ANTENNA 1.977 2.0 MOBILE COMMUNICATIONS TECHNOLOGIES, INC G LASS MOUNT ANTENNA 0.528 -3.7 3. OPERATING CONDITIONS: The BST1900 Booster is an automobile cellular band amplifier for uplink frequencies 1850-1910 MHz; the peak radiated (EIRP) output power does not exceed 2 W. 4. TEST SIGNAL, TIME-AVERAGING, MAX. MEASURED OUTPUT POWER: Modulation Type/Modes: TDMA IS136 Frequency Range Frequency Tolerance (ppm) Emission Designator 1850-1910 MHz N/A AMP Antenna Type) EIRP Highest value (Watt) Time averaging (__% Duty Cycle) Magnetic mount antenna 1.977 N/A Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 66 of 78 From FCC 1.1310 Table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/cm 2 . The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: S = E 2 /Z where: S = Power density E = Electric field Z = Impedance. ZSE⋅= 1 mW/cm 2 = 10 W/m 2 The impedance of free space is 377 ohms, where E and H fields are perpendicular. Thus: 37710⋅=E = 46.4 V/m which is equivalent to 0.57mW/cm 2 Using the relationship between Electric field E, Power in watts P, and distance in meters d, the corresponding Antenna numeric gain G and the transmitter output power: d GP mVE ×× = 30 )/( Power density: 3770 )/( 2 2 E cmmWP d = MPE Calculation: The maximum distance from the antenna at which MPE is met or exceeded is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G, and separation distance in meters above, and solving for d below: E GP d ×× = 30 4.46 977.130 17.0 × =m The limit for general population/uncontrolled exposure environment from 300 to 1500MHz is f/1500 2 /cmmW. SEPARATION DISTANCE: Highest EIRP Power = 1.977W Separation Distance (in) (m) 6.7 0.17

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 CERTIFICATION APPLICATION REPORT FCC PART 24 CERTIFICATION & INDUSTRY CANADA RSS-131 CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant Information: Mobile Communications Technologies Inc. (MCT, Inc.) Contact: John Vagas Phone: 905-726-3444 ext. 202 360 Industrial Pkwy South Fax: 905-726-4233 Unit 1 Aurora, Ontario L4G 3V7 Canada E-Mail: [email protected] FCC ID: OW5BST1900 GRANTEE FRN NUMBER: 0007702509 PLAT FORM: N/A RTL WORK ORDER NUMBER: 2003051 MODEL(S): BST1900 RTL QUOTE NUMBER: QRTL02-669 DATE OF TEST REPORT: July 9, 2003 American National Standard Institute: ANSI C63.4: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI/TIA/EIA603- 1992 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards ANSI/TIA/EIA 603-1-1998 Addendum to ANSI/TIA/EIA 603-1992 TIA/EIA /IS-98-A Recommended Minimum Performance standards for Dual-Mode Wideband Spectrum Cellular Mobile Stations FCC Classification: AMP - Amplifier FCC Rule Part(s): Part 24: Personal Communications Services Industry Canada Standard: RSS-131: Land and Subscriber Stations: Voice, Data and Tone Modulated, Angle Modulation Radiotelephone Transmitters and Receivers Operating in the Cellular Mobile Bands 1810-489 MHz and 869-894 MHz Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 1850-1910 2 N/A AMP I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 24, Industry Canada RSS-131, and ANSI C63.4. Signature: Date: July 9, 2003 Typed/Printed Name: Desmond A. Fraser Position: President No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. Rhein Tech Laboratories Client: Mobile Communication Technologies, Inc. 360 Herndon Parkway Model: BST1900 Suite 1400 Standards: FCC Part 24 & IC RSS-131 Herndon, VA 20170 FCC ID: OW5BST1900 http://www.rheintech.com RTL WO: 2003051 Page 2 of 78 TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................................................................ 6 1.1 TEST FACILITY ................................................................................................................................................................... 6 1.2 RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................................................ 6 2 TESTED SYSTEM DETAILS...................................................................................................................................................... 7 2.1 SYSTEM COMPONENTS.................................................................................................................................................... 7 2.2 CONFIGURATION OF TESTED SYSTEM .......................................................................................................................... 7 3 FCC PART 2.1033(C)(8); DC VOLTAGES AND CURRENTS................................................................................................... 8 4 FCC RULES AND REGULATIONS PART 2.1046 (A): RF POWER OUTPUT: CONDUCTED ................................................ 9 4.1 TEST PROCEDURE ............................................................................................................................................................ 9 4.2 TEST DATA ......................................................................................................................................................................... 9 4.3 TEST EQUIPMENT............................................................................................................................................................ 16 5 FCC RULES AND REGULATIONS PART 2.1046 (A); CONDUCTED RF INPUT VS OUTPUT POWER .............................. 17 5.1 TEST PROCEDURE .......................................................................................................................................................... 17 5.2 TEST DATA ....................................................................................................................................................................... 17 5.3 TEST EQUIPMENT............................................................................................................................................................ 18 6 NON-LINEARITY RSS-131 §5.3 .............................................................................................................................................. 19 6.1 TEST PROCEDURE .......................................................................................................................................................... 19 6.2 TEST DATA ....................................................................................................................................................................... 20 7 FCC RULES AND REGULATIONS PART 2.1046 (A); RF POWER OUTPUT: RADIATED EIRP PER PART 24.913 .......... 21 7.1 TEST PROCEDURE ...............................................................................…
