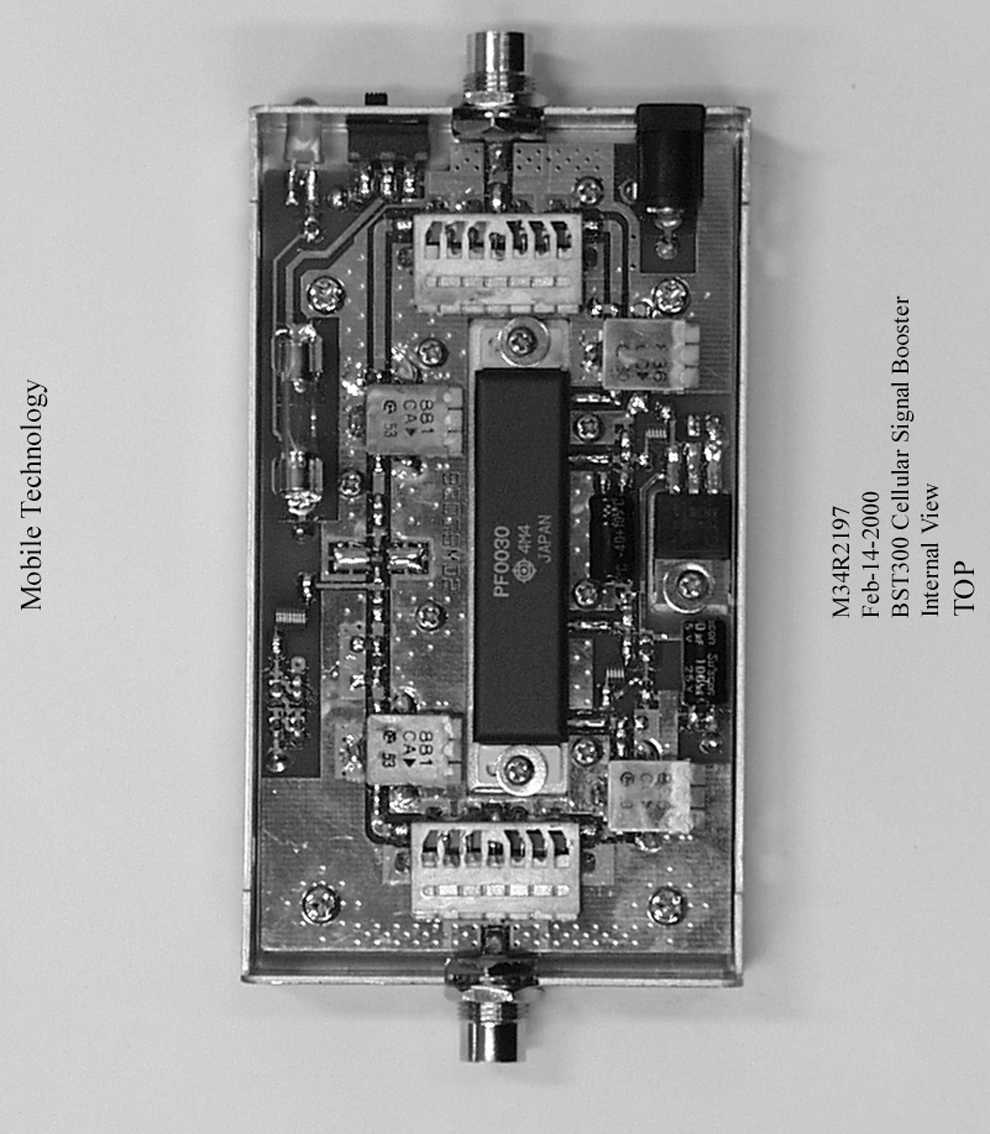

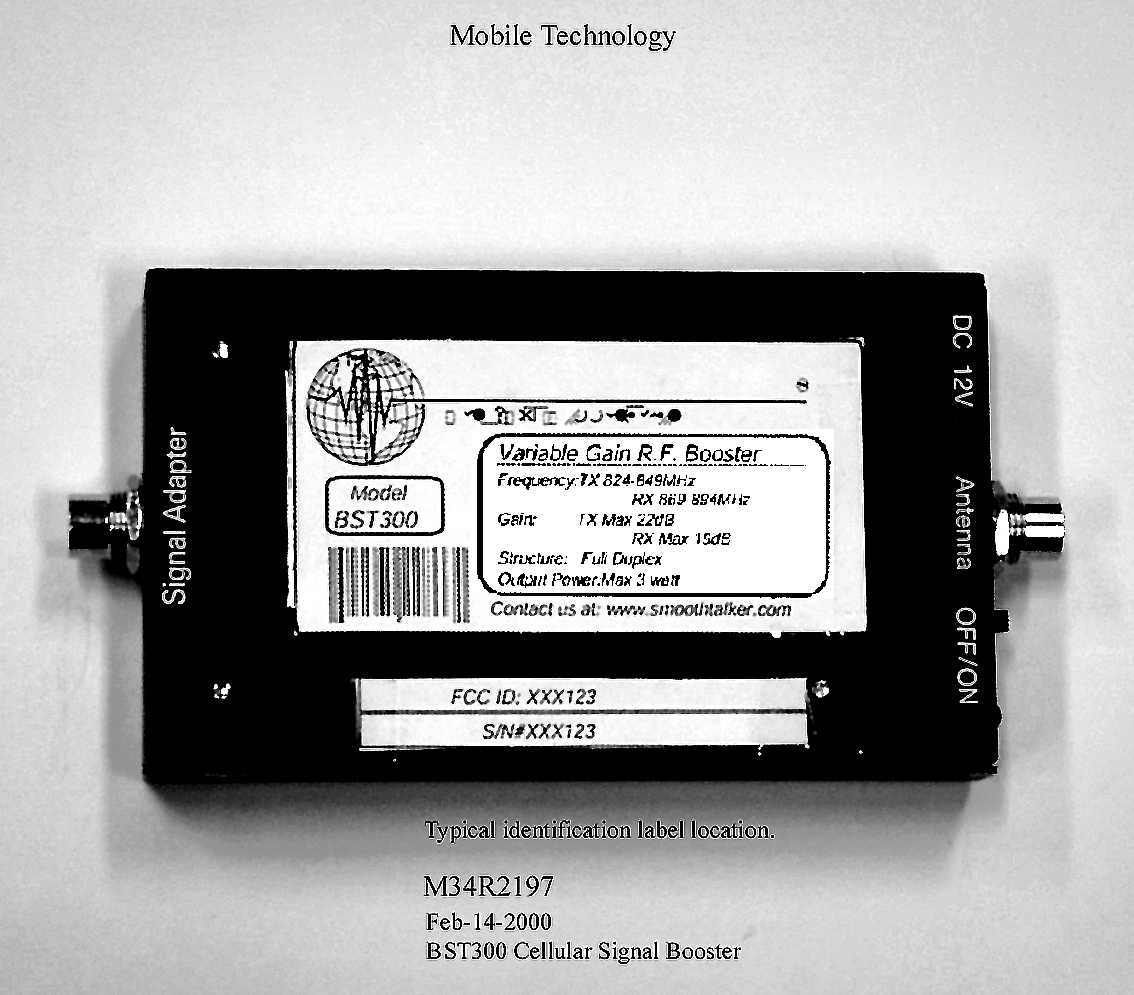

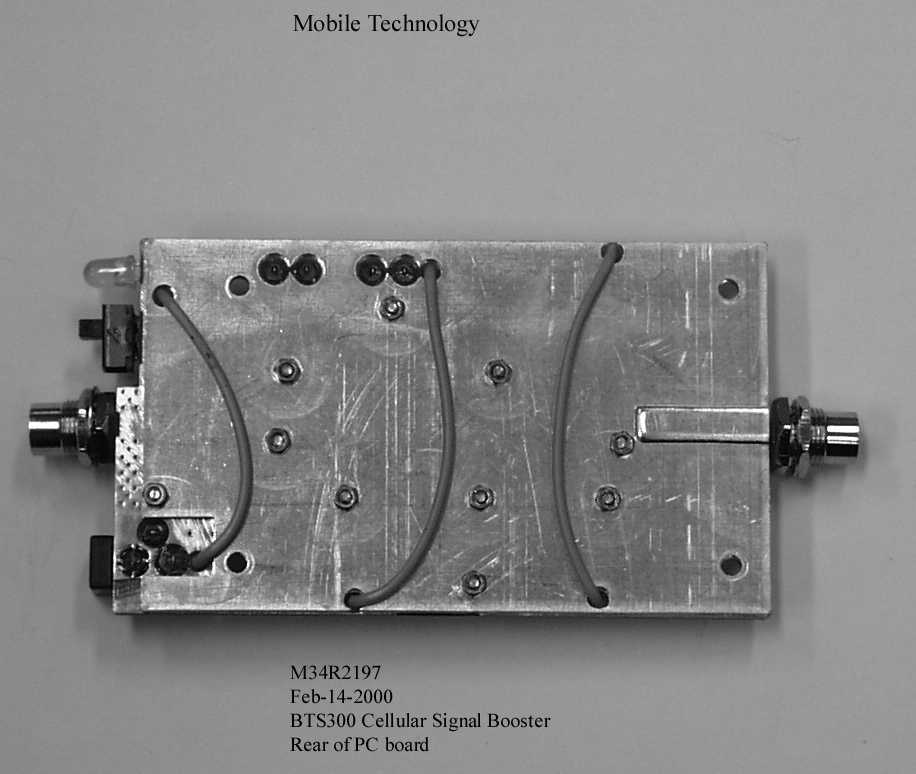

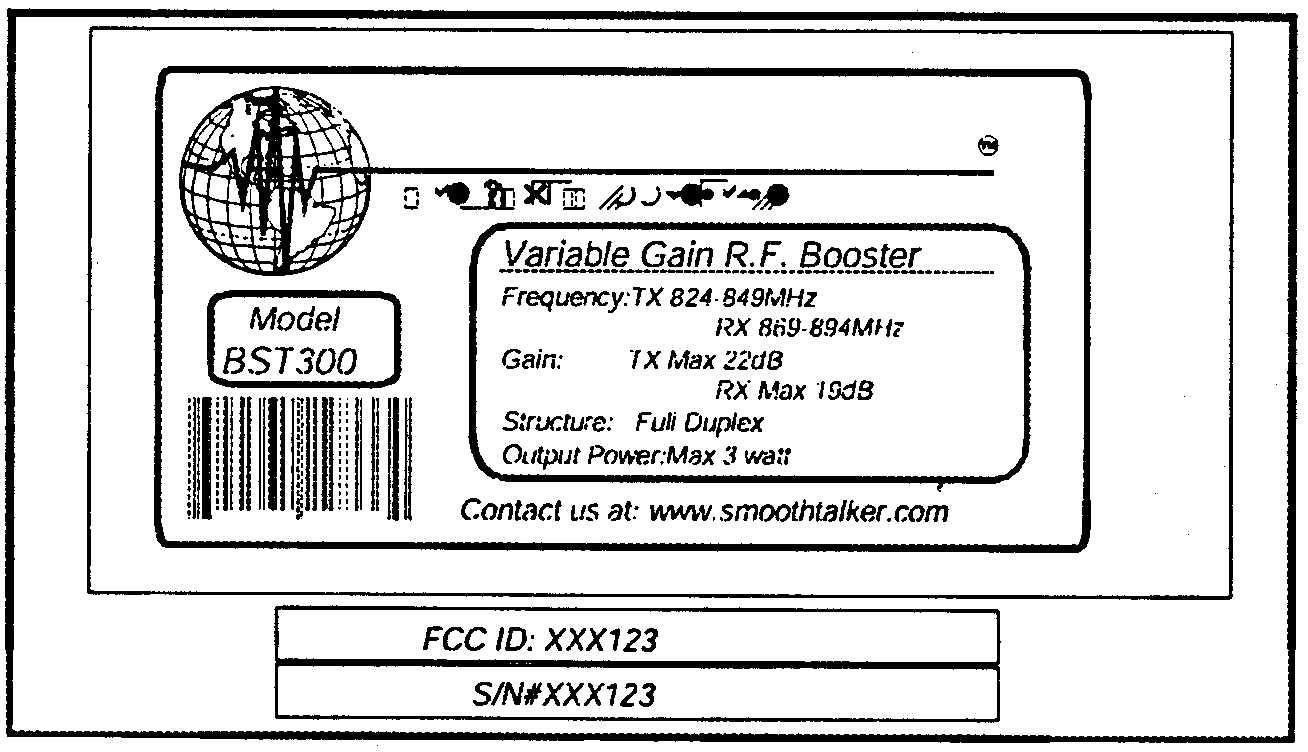

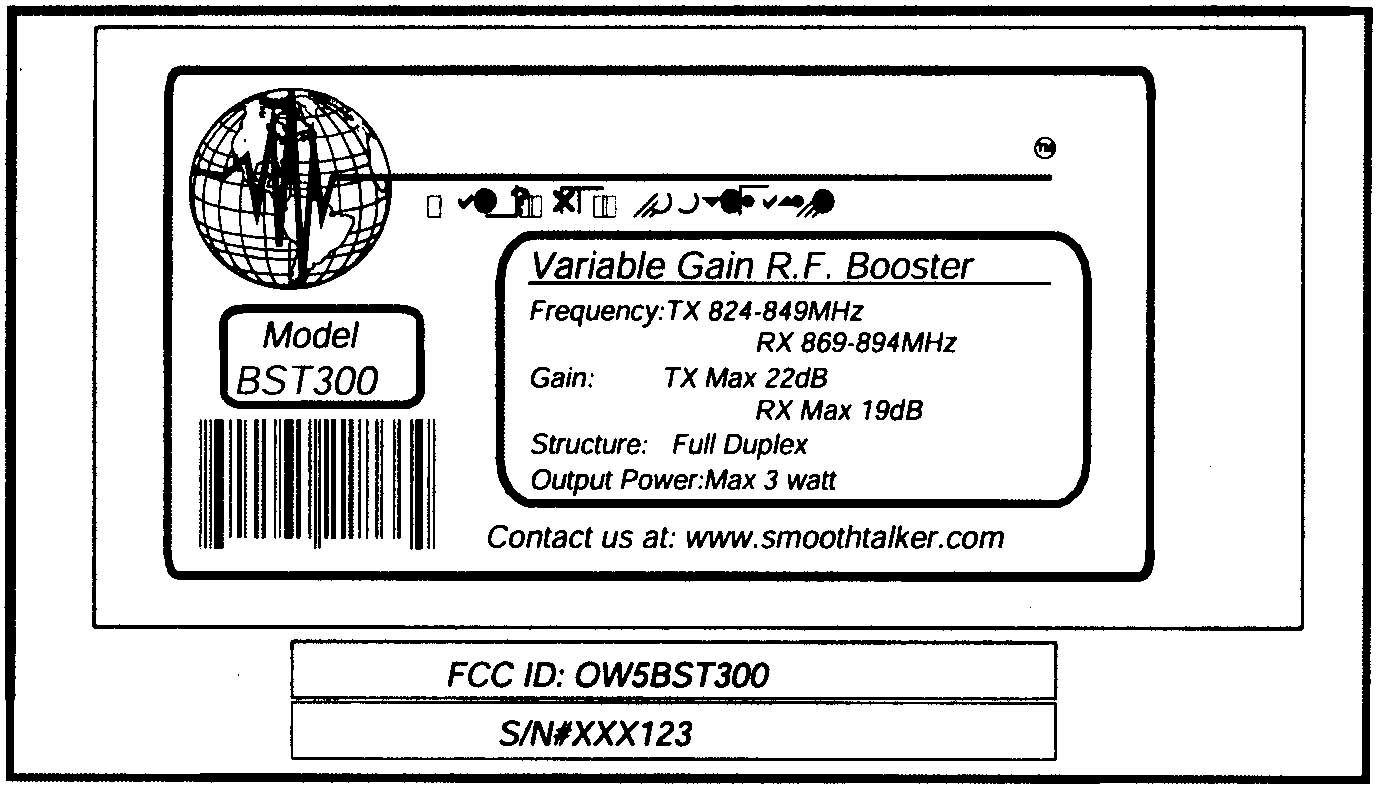

OW5BST300Mobile T.D.M.A Cellular Booster

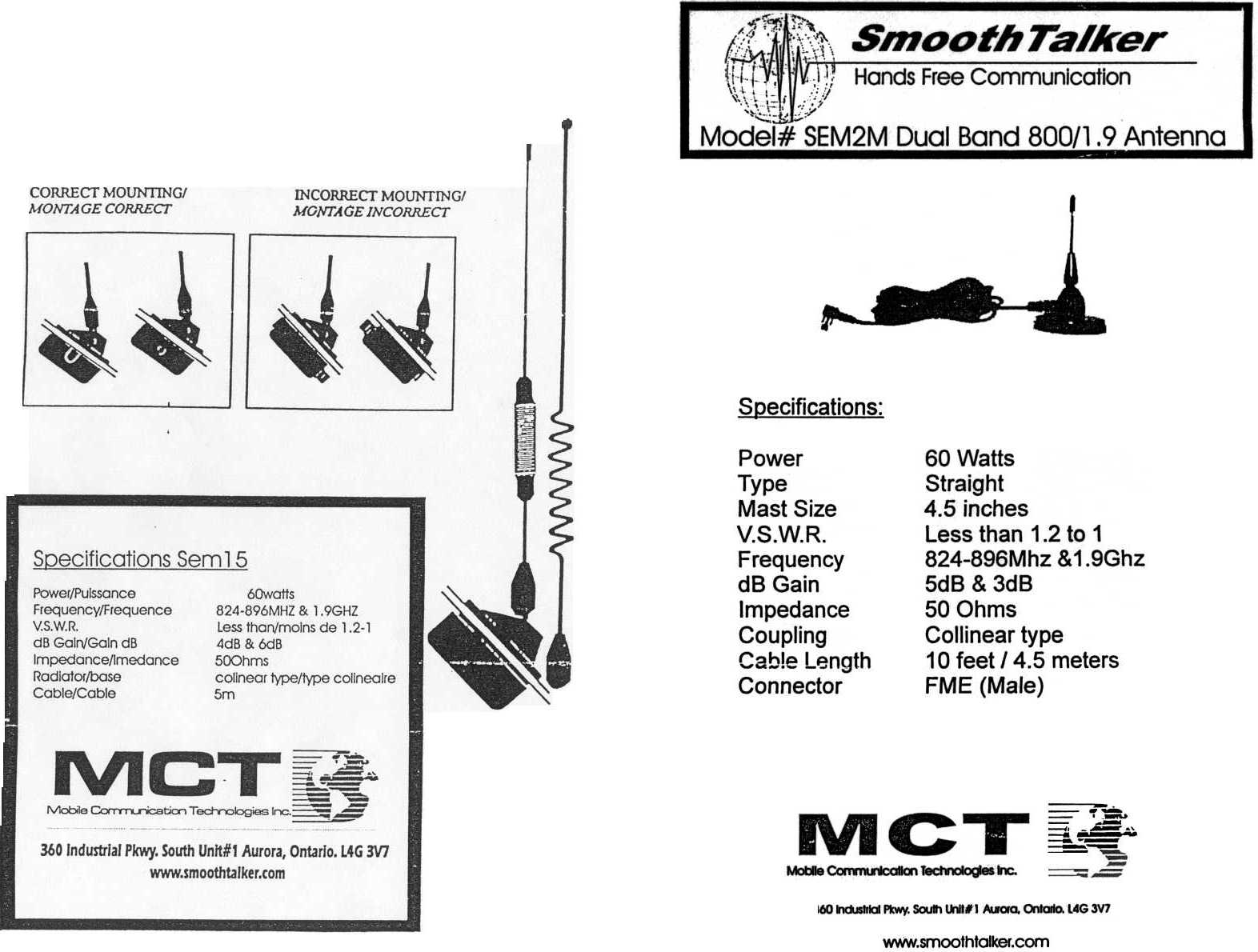

MP B Technologies Inc.April 28, 2000 M34R2197 Page 39 of 50 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. 2.6MAXIMUM PERMISSIBLE EXPOSURE (MPE) Test Summary Test Lab: MPB Technologies Inc. Ottawa Test Personnel: D. Zanette Test Date: February 4, 2000 Product: BST300 Cellular Booster Test Description Objectives/CriteriaSpecifications For devices to be operated more then 20 cm from the users body, the equipment shall not exceed that listed in the table. Power Density Requirements,FCC Part 1.1310 Frequency mW/cm² 0.3 – 1.34 (100) 1.24 – 30 (180/f²) 30-300 0.2 300-1500 f/1500 1500-10000 1 Test Result: PASS Comments: Limit distance is at 8.8 inches (20 cm) from antenna. Statement to be incorporated shall read as follows: Both magnetic and glass mount antenna were evaluated. The glass mount antenna being worst case must be mounted in a location that will provide a minimum of 12 inches (30 cm) separation between it and vehicle occupants in order to meet the MPE (Maximum Permissible Exposure) limit and requirements in accordance with FCC CFR 47 Part 1.1301. The maximum permissible power output limit is at 8 inches (20 cm) from the antenna, this is equivalent to 0.549 mW/cm 2 . Max Output measured at 824 MHz was 0.194 mW/cm 2 at 12 inches (30 cm) . Refer to Test Report Data sheets for more detail. All measurements were performed while the EUT was transmitting a CW signal which is deemed to be worst case. No duty cycle correction factors for TDMA (DWX) were applied. MP B Technologies Inc.April 28, 2000 M34R2197 Page 39 of 50 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. TEST REPORT DATA Customer No: 1129MPBT No.: M34R2197Test Date: February 4, 2000 T EST C OMP ./P ART : S AMPLE 642 T EST D ESCRIPTIO N : M AXIMUM P ERMISSIBLE E XPOSURE T EST C RITERIA : GENERAL EXPO SURE LIMITS MIL-SPECS./STDS.:FCC PART 1 S UBPART I, S ECTIO N 1.1310Q UAL ! E NG .: F ACILITY : MPB T ECHNOLOGIES I NC . T EST E N GIN EER : D. Z AN ETTE I N TERN AL : QA P ERSONNEL :O THER : T EMP .: 15 C H UMIDITY : 20% T EST P ROCEDURES D ETAILS /D EVIATIO N S P ASS F AIL I NIT FCC Part 1 Subpart I Frequency mW/cm² Section 1.1310 0.3 – 1.34 (100) 1.24 – 30 (180/f²) 30-300 0.2 300-1500 f/1500 = 0.550 mW/cm 2 or 27.4dBm/ cm 2 ! D.Z. 1500-10000 1 Note: Points and respective readings shown on next page. Averaging time is 30 minutes. f = 824 (Lowest Tx Frequency) Limit = 27.4 NOTE: Glass Mount Cable loss = 3.6 dB, Magnetic mount cable loss = 8db at test frequency Amplifier output : 2.5 watts or 33.99 dBm With a cable loss of 3.6dB, drive power into antenna is 1.09 watts or 30.39 dBm MPBT: D. Z AN ETTE C USTOMER : M.C.T. INC. 5 OF 6 MP B Technologies Inc.April 28, 2000 M34R2197 Page 40 of 50 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. Antenna – Magnetic Mount With High Gain, Model SEM15 (4 D B I ) PointReading (V/m)INT./EXT. 1 –HEAD8.0INT. 2 – HEAD9.1INT. 3 – HEAD5.4INT. 4 – HEAD6.6INT. 1 – PELVIC11.6INT. 2 – PELVIC10.1INT. 3 – PELVIC10.2INT. 4 – PELVIC7.6INT. 57.0EXT. 66.2EXT. 75.6EXT. 814.6EXT. 913.4EXT. 106.6EXT. 117.4EXT. 128.0EXT. N OTE : “ X” REFERS TO POSITION OF ANTENNA . C AR WAS A H ONDA C IVIC D X . P OINT 8 (W ORST C ASE ) WAS ACHIEVED AT 20 CM FROM ANTENNA . Limit = 0.549 mw/cm 2 Max Output = 14.6V/m = 0.135mw/cm 2 @ 20cm being below maximum safety limit The EUT complies with maximum permissible exposure requirements. HOOD TRUNK 1 2 34 67 8 9 1211 10 X MP B Technologies Inc.April 28, 2000 M34R2197 Page 41 of 50 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. Antenna – Glass mount, Model SEM2, (5 D Bi) PointReading (V/m)INT./EXT. 15.4EXT. 24.4EXT. 33.8EXT. 4 – HEAD21.2INT. 5 – HEAD21.8INT. 6 – HEAD23.1INT. 7 – HEAD18.4INT. 4 – PELVIC17.2INT. 5 – PELVIC11.6INT. 6 – PELVIC19.6INT. 7 – PELVIC12.8INT. 87.2EXT. 927.0EXT. 107.4EXT. 118.0EXT. 124.6EXT. N OTE : “ X” REFERS TO POSITION OF ANTENNA . C AR WAS A H ONDA C IVIC D X . P OINT 9 (W ORST C ASE ) WAS ACHIEVED AT 12 INCHES (30 CM ) FROM GLASS MOUNT ANTENNA . Limit = 0.549 mw/cm 2 at 20cm Max Output = 27.0V/m = 0.195 mw/cm 2 @ 12 inches (30cm) being user recommended minimum safety distance The EUT complies with maximum permissible exposure requirements. 5 HOOD TRUNK 4 5 67 1 2 3 9 8 1011 12 X

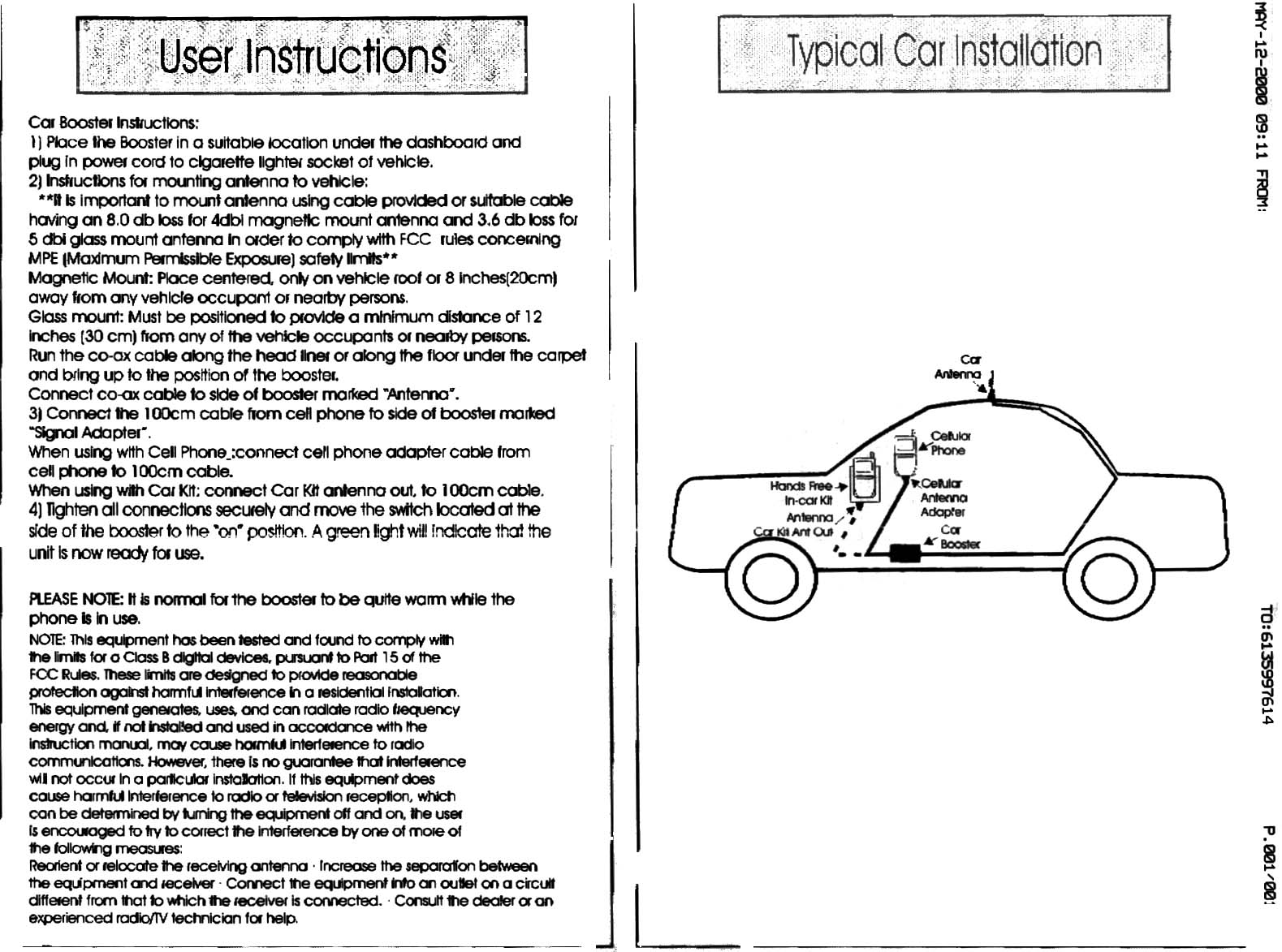

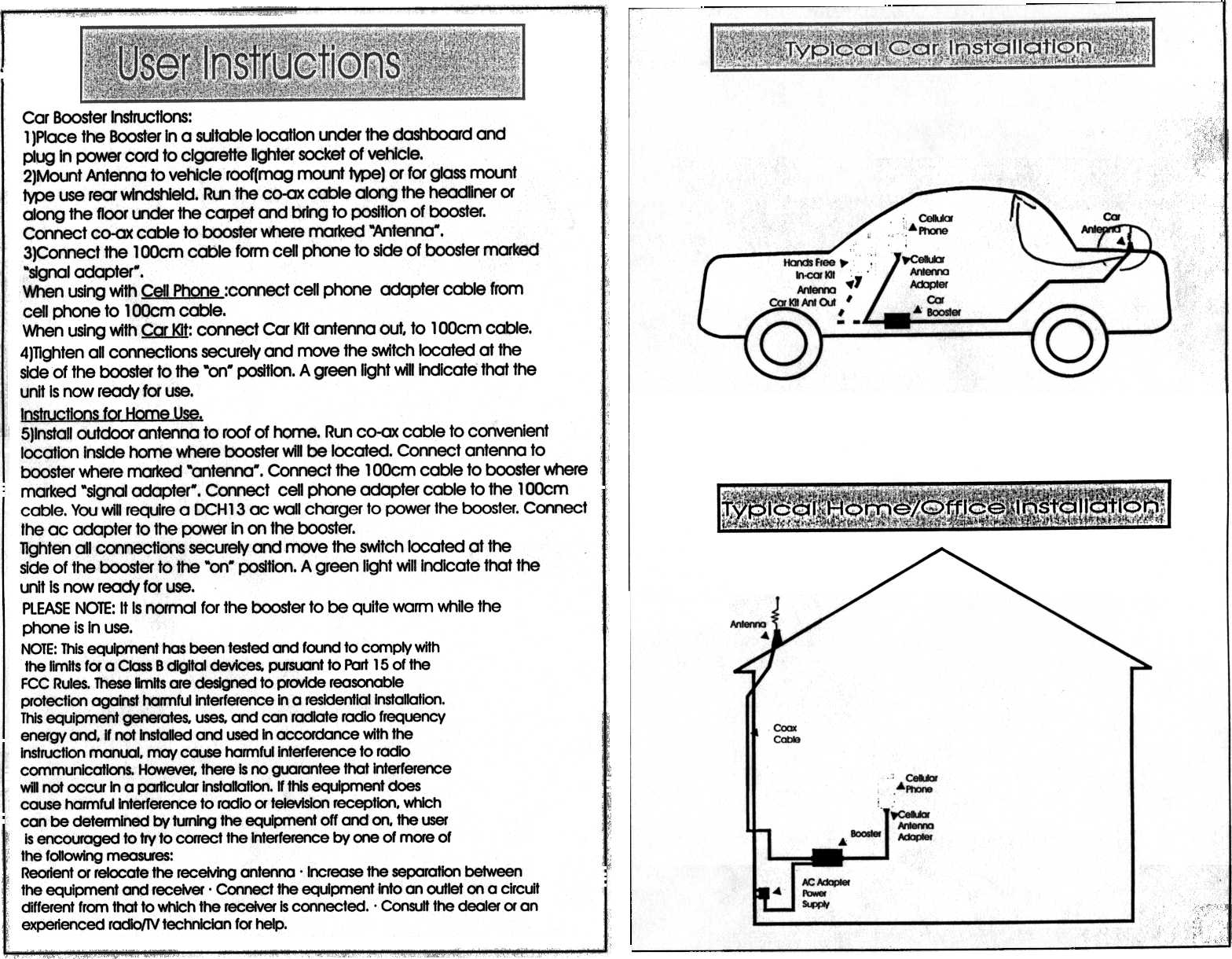

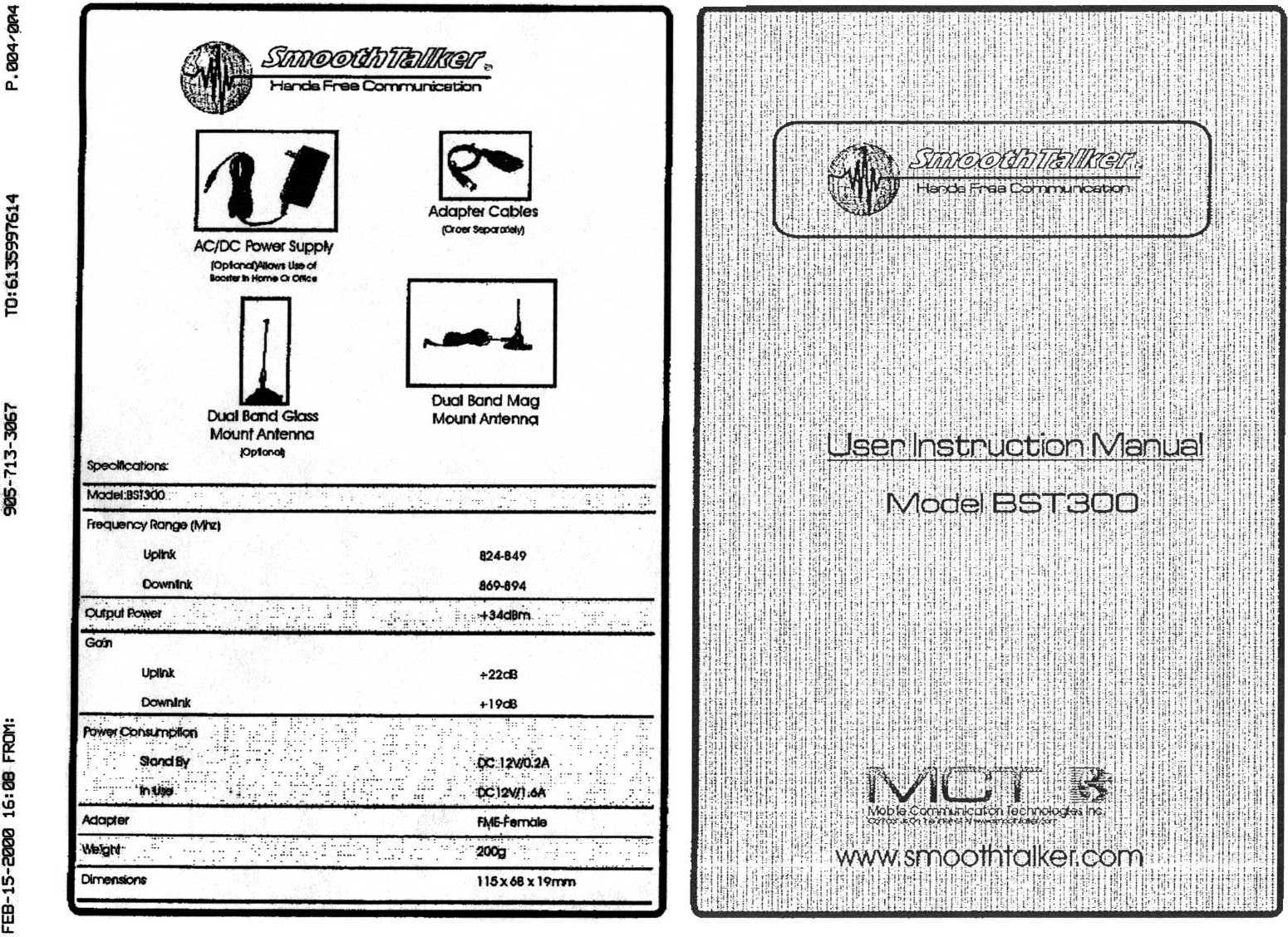

User Instructions Car Booster Instructions:1 ) Instructions for m **It is important to mount antenna using cable provided as follows in order to comply with FCC rules concerning MPE (Maximum PermissibleExposure) safety limits**Magnetic Mount: Place centered, only on vehicle roof or 8 inches(20cm)away from any vehicle occupant.Glass mount: Must be positioned to provide a minimum distance of 12 inches (30 cm) from any of the vehicle occupants.Run the co-ax cable along the head liner or along the floor under the ca rpet and bring up to the position of the booster.Connect co-ax cable to side of booster marked ìAntennaî.3) Connect the 100cm cable from cell phone to side of booster marked ìSignal Adapterî. When using with Cell Phone:connect cell phone adapter cable from cell phone to 100cm cable. When using with Car Kit: connect Car Kit antenna out, to 100cm cable. ) Place the Booster in a suitable location under the dashboard and plug in power cord to cigarette lighter socket of vehicle.2ounting antenna to vehicle: 4) Tighten all connections securely and move the switch located at the side of the booster to the ìonî position. A green light will indicate that the unit is now ready for use.PLEASE NOTE: It is normal for the booster to be quite warm while the phone is in use. NOTE: This equipment has been tested and found to comply withthe limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that int erference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the useris encouraged to try to correct the interference by one of more of the following measures:Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is c onnected. Consult the dealer or an experienced radio/TV technician for help. Typical Car Installation Cellular Phone Hands Free In-car Kit Antenna Car Kit Ant Out Cellular AntennaAdapter Car Booster Car Antenna

MP B Technologies Inc. N33R2177 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. ISO/IECGuide25: 1990 ISO 9002: 1987 Test Report Prepared By: Electronics Test Centre MPB Technologies Inc. Unit 100 302 Legget Drive Kanata Ontario K2K 1Y5 MPBT Report No.: M34R2197Customer No.: PO#1129 Report for FCC Part 1 Subpart I (1996) FCC Part 15 Subpart B (1996) FCC Part 22 Subpart H (1996) For Mobile Transmitter Amplifiers for T.D.M.A. Cellular Radio-Telephone Service Testing of the BST300 Cellular Booster Test Personnel: S. Drysdale Prepared for: Mobile Communications Technologies INC. 360 Industrial Parkway South, Unit #1 Aurora, ON L4G 3V7 _________________________ Client Acceptance Authorized Signatory January 21, 2000 M34R2197 _________________________ Dan Zanette Lab Supervisor Electromagnetic Services Electromagnetics Division Authorized Signatory Test Sample: BST300 Cellular Booster Report No.: M34R2197 MP B Technologies Inc.March 06, 2000 M34R2197 Page 2 of 50 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. T ABLE OF C ONTENTS 1.0 INTRODUCTION 1.1SCOPE 1.2APPLICANT 1.3APPLICABILITY 1.4TEST SAMPLE DESCRIPTION 1.5GENERAL TEST CONDITIONS AND ASSUMPTIONS 1.6SCOPE OF TESTING 1.6.1 VARIATIONS IN TEST METHODS 1.6.2 TEST SAMPLE MODIFICATIONS 2.0 TEST CONCLUSION 2.1EMISSIONS – AC PORT CONDUCTED 2.2DIGITAL EMISSIONS, RADIATED 2.3EFFECTIVE RADIATED POWER (ERP) LIMIT 2.4EMISSION LIMITATIONS FOR CELLULAR – OCCUPIED BANDWIDTH 2.5EMISSION LIMITATIONS FOR CELLULAR – OUT OF BAND 2.6MAXIMUM PERMISSIBLE EXPOSURE (MPE) 3.0 TEST FACILITY 3.1LOCATION 3.2GROUNDING PLANE 3.3POWER 3.4EMISSIONS PROFILE 3.5TEST CONFIGURATION 4.0 TEST EQUIPMENT 4.1RADIATED EMISSIONS 4.2CONDUCTED EMISSIONS 4.3EMI SPECTRUM ANALYZER AND RECEIVER 4.3.1 Spectrum Analyzer 4.3.2 Receiver A PPENDICES APPENDIX A:SAMPLE DESCRIPTION APPENDIX B:TEST REPORT DATA SHEETS & PLOTS APPENDIX C:TEST EQUIPMENT REPORT APPENDIX D:PHOTOGRAPHS APPENDIX E:SUPPLEMENTARY DATA Test Sample: BST300 Cellular Booster Report No.: M34R2197 MP B Technologies Inc.March 06, 2000 M34R2197 Page 3 of 50 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. 1.0 INTRODUCTION 1.1SCOPE The purpose of this report is to present the findings and results of compliance testing performed in accordance with FCC Part(s) 1, 15, 22 (1996). 1.2APPLICANT This test report has been prepared for MCT Inc. 1.3APPLICABILITY All test procedures, limits, and results defined in this document apply to the, which shall be referred to herein as the Equipment Under Test ( EUT ). The results contained in this report relate only to the item(s) tested. This re port doe s not imply product e ndorse me nt by NVLAP or the Canadian or US governments. If multiple units, the test samples provided for testing were intended for use together. 1.4TEST SAMPLE DESCRIPTION ProductPart NumberSerial Number Power Requirements Peripheral Equipment (T.D.M.A.) BST300 Cellular Booster BST 300 (Sample# 642) ACB1064212 VDC Signal Generator/ Cellular Phone Tx Gain (dB): 22.0 Measured at: 849 MHz Tx Maximum Power Output (dBm): 33.7 = 2.5 Watts Band of operation Tx: 824-849 MHz Measured at: 836.5 MHz Rx Gain (dB): 19.0 Measured at: 869MHz Band of operation Rx: 869 – 894 MHz Test Sample: BST300 Cellular Booster Report No.: M34R2197 MP B Technologies Inc.March 06, 2000 M34R2197 Page 4 of 50 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. 1.5GENERAL TEST CONDITIONS AND ASSUMPTIONS The EUT was setup and exercised using the configurations, modes of operation and arrangements defined in this report only. All inputs and outputs to and from other equipment associated with the EUT were adequately simulated. Where relevant, the EUT was only tested using the monitoring methods and test criteria defined in this report. All testing, unless otherwise noted, was performed under the following environmental conditions: Temperature:17 to 23 ° C Humidity:45 to 75 % Barometric Pressure: 68 to 106 kPa 1.6SCOPE OF TESTING Tests were performed in accordance with FCC Parts 1,15,22 (1996). 1.6.1 VARIATIONS IN TEST METHODS There were no variations from the test procedures outlined above. 1.6.2 TEST SAMPLE MODIFICATIONS No test sample modifications were made Test Sample: BST300 Cellular Booster Report No.: M34R2197 MP B Technologies Inc.March 06, 2000 M34R2197 Page 5 of 50 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. 2.0 TEST CONCLUSION The EUT was subjected to the following tests. Compliance status is assessed as PASS, FAIL, or MARGINAL PASS The following table summarizes the test results and details the tests performed in terms of the specification and class or level applied, the unique test sample identification, and the EUT modification state, the mode of operation, and configuration. Te s t Case Test TypeSpecificationClass/ Level CriteriaTest Sample ConfigEngineering / Qualification Resul t 2.1AC Port Conducted Emissions FCC Part 15, (Subpart B) BNA Sample #642 TestQualification PASS 2.2Radiated Emissions (Field Strength Spurious) FCC Part 15, (Subpart B) BNA Sample #642 TestQualification PASS 2.3ERPFCC Part 22 (Subpart H) NANA Sample #642 TestQualification PASS 2.4Emission Mask (OCC BW) FCC Part 22 (Subpart H) NANA Sample #642 TestQualification PASS 2.5Emission Mask (Out of band/Spurious) FCC Part 22 (Subpart H) NANA Sample #642 TestQualification PASS 2.6MPEFCC Part 1.1310 BNA Sample #642 TestQualification PASS STATEMENT OF COMPLIANCE The clie nt e quipme nt re fe rre d to in this re port was found to comply with the re quire me nts of FCC regulations as summarized above. Test Sample: BST300 Cellular Booster Report No.: M34R2197 MP B Technologies Inc.March 06, 2000 M34R2197 Page 6 of 50 This report shall not be reproduced, except in full, without prior wri…
