OWRICODE-SLEV900RFID Tag

FCC-ID: OWRICODE-SLEV900Page 1 of 5 Pages


   External photos of EUT FCC-ID: OWRICODE-SLEV900Page 2 of 5 Pages

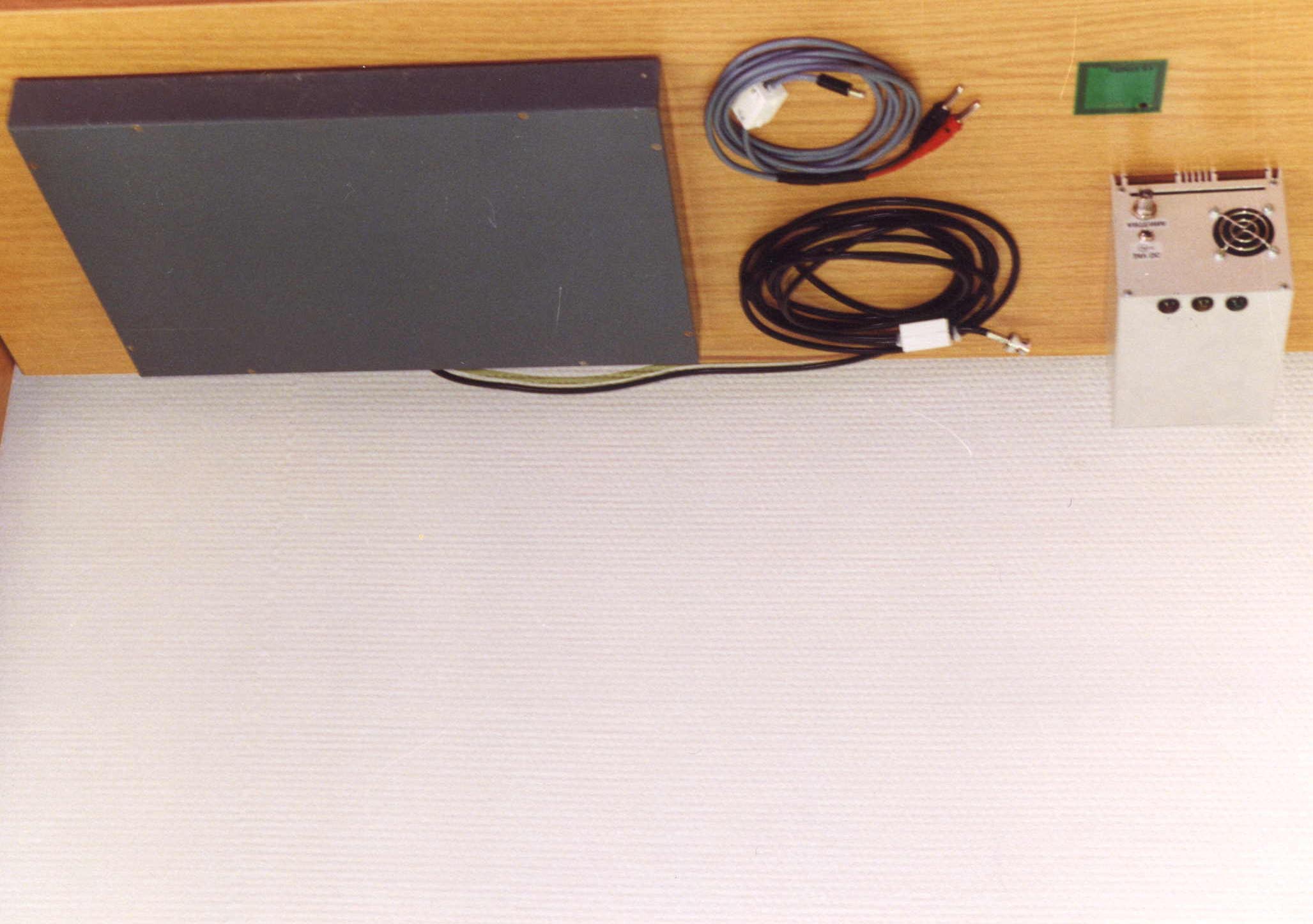

   Assembly of units or parts, including antennas FCC-ID: OWRICODE-SLEV900Page 3 of 5 Pages


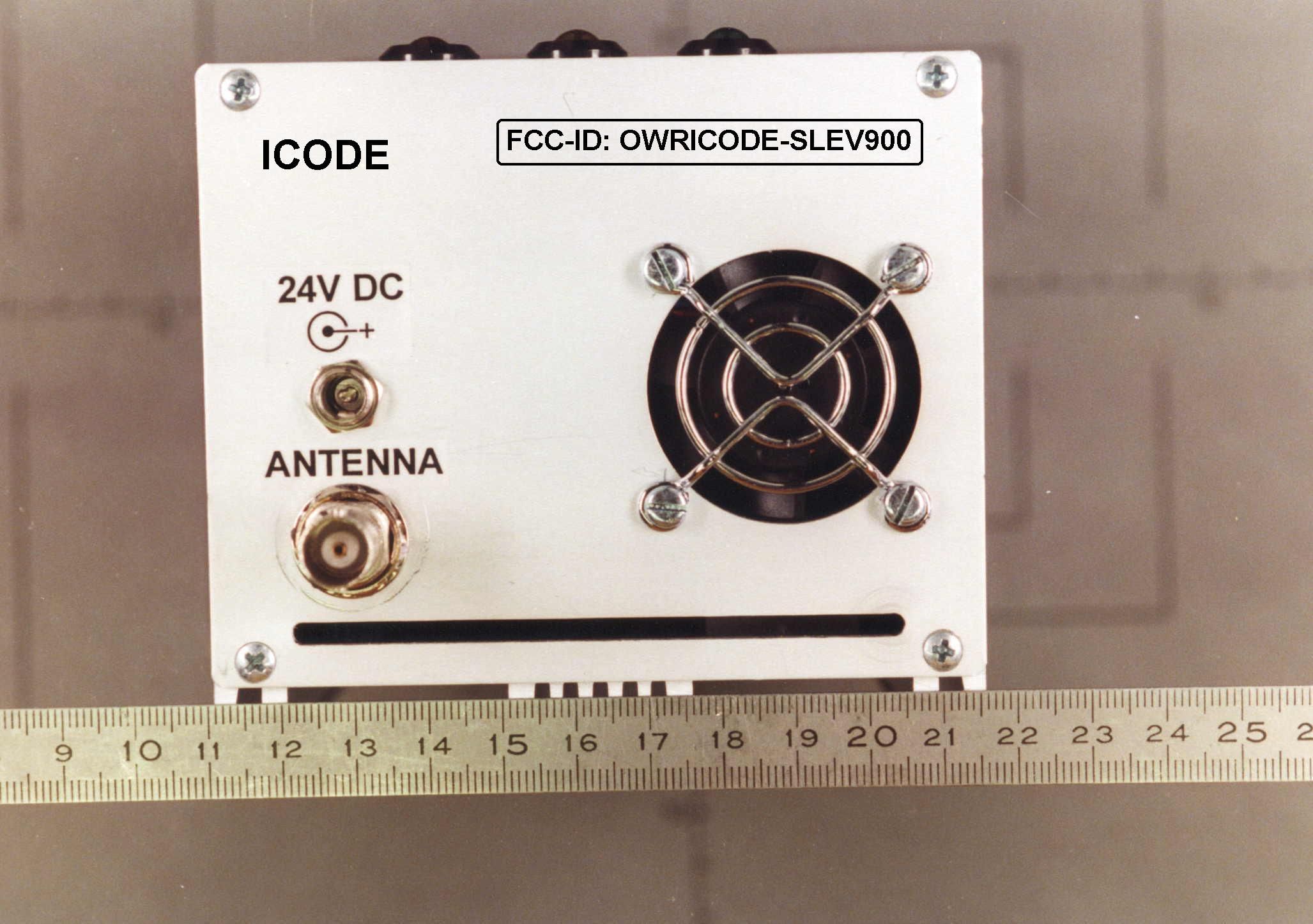

   Front view of unit FCC-ID: OWRICODE-SLEV900Page 4 of 5 Pages


   Rear view of unit FCC-ID: OWRICODE-SLEV900Page 5 of 5 Pages


   Top view of unit

FCC-ID: OWRICODE-SLEV900Page 1 of 8 Pages


   Internal photos of EUT FCC-ID: OWRICODE-SLEV900Page 2 of 8 Pages


   EUT disassembled FCC-ID: OWRICODE-SLEV900Page 3 of 8 Pages


   Top view of printed board 1 FCC-ID: OWRICODE-SLEV900Page 4 of 8 Pages


   Bottom view of printed board 1

FCC-ID: OWRICODE-SLEV900Page 5 of 8 Pages


   Top view of printed board 2 FCC-ID: OWRICODE-SLEV900Page 6 of 8 Pages


   Bottom view of printed board 2 FCC-ID: OWRICODE-SLEV900Page 7 of 8 Pages


   Transponder card FCC-ID: OWRICODE-SLEV900Page 8 of 8 Pages


   View of disassembled antenna

Page 1 of 43 Pages


   Straubing, August 12, 1999 T E S T - R E P O R T No. 55435-90493 for ICODE Evaluation Kit Inductive Tag System Applicant:Philips Semiconductors Gratkorn GmbH Purpose of testing:To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Sections §15.205, §15.209 and §15.225 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 2 of 43 Pages


   Table of Contents 1. Administrative Data ....................................................................................3 2. Summary of Test Results ...........................................................................4 3. Operation Mode of EUT..............................................................................5 4. Configuration of EUT and Peripheral Devices............................................6 5. Measuring Methods ....................................................................................7 5.1. Radiated Emission 9 kHz - 30 MHz (§15.209, §15.205 a,b) ..................8 5.2. Radiated Emission 30 MHz - 1 GHz (§15.209) ....................................10 5.3. Frequency tolerance for operation within the band 13.553 - 13.567 MHz (§15.225)..........................................................................12 6. Equipment List..........................................................................................14 7. Photographs Taken During Testing..........................................................16 8. List of Measurements ...............................................................................20 9. Test Results..............................................................................................21 FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 3 of 43 Pages


   1.Administrative Data Equipment Under Test (EUT): ICODE Evaluation Kit Serial number:Prototype no. 1 Type of equipment:RF-identification system Parts/accessories:Base unit:ICODE Evaluation Kit RF-antenna:ICODE Demo Antenne Tag:526801-21 FCC-ID:OWRICODE-SLEV900 Applicant:Philips Semiconductors Gratkorn GmbH (full address)Mikron-Weg 1 A-8101 Gratkorn AUSTRIA Contract identification: Contact person:Mr. Franz Amtmann Manufacturer:Philips Semiconductors Gratkorn GmbH Receipt of EUT:July 26, 1999 Date of test:July 29 to August 03, 1999 Note: Responsible for testing:Rupert Kohlhäufl Responsible for test report:Rupert Kohlhäufl FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 4 of 43 Pages


   2.Summary of Test Results The tested sample (including accessories) complies with the requirements set forth in the Code of Regulations Part 15 Subpart C, Sections §15.205, §15.207, §15.209 and §15.225 (intentional radiators) of the Federal Communication Commission (FCC). Johann RoidtRupert Kohlhäufl Technical ManagerTest Engineer FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 5 of 43 Pages


   3.Operation Mode of EUT Continuously reading a transponder FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 6 of 43 Pages


   4.Configuration of EUT and Peripheral Devices Configuration of cables of EUT and peripheral devices • Interface cable RS232 Configuration of peripheral devices connected to EUT Not applicable FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 7 of 43 Pages


   5.Measuring Methods FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 8 of 43 Pages


   5.1. Radiated Emission 9 kHz - 30 MHz (§15.209, §15.205 a,b) Radiated emissions were measured over the frequency range from 9 kHz to 30 MHz. The bandwidth of the EMI-receiver was set to 200 Hz below 150 kHz and to 10 kHz above 150 kHz. According to section §15.209 (d) final measurements were performed with the detector set to CISPR quasi-peak except for the frequency bands 9 - 90 kHz and 110 - 490 kHz where average detector is employed. The test setup was made in accordance with ANSI C63.4-1992. Preliminary scans were taken in a shielded room with a test-distance of 3 meters and detector-function of EMI-receiver set to peak to determine the radiated EMI- profile of the EUT. EUT was rotated all around and cables and equipment were placed and moved within the range of positions likely to find their maximum emissions. Final test was performed using an open-area test-site with a test- distance of 30 meters. In cases the regulation requires testing at 300 meters distance the results will be extrapolated by using either an inverse linear distance extrapolation factor of 40 dB/decade or the extrapolation factor will be determined by making a second measurement at 10 meters distance. The provisions of §15.31 (d) and §15.31 (f) apply. See figure 1 for the measurement setup. Test equipment used (see equipment list for details): 03, 04, 37, 60, 63, 66 FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 9 of 43 Pages


   test-distance 30 m (3 m with prescan) 24 V DC 1 2 3 4 5 Figure 1: Measurement setup for radiated emission test below 30 MHz 1 Base unit (EUT) 2 RF-antenna (EUT) 3 Wooden table 4 Measurement antenna 5 Test receiver FCC-ID: OWRICODE-SLEV900Test Report No. 55435-90493 Page 10 of 43 Pages


   5.2. Radiated Emission 30 MHz - 1 GHz (§15.209) Radiated emissions were measured over the frequency range from 30 MHz to 1 GHz. The bandwidth of the EMI-receiver was set to 120 kHz and the detector- function was set to CISPR quasi-peak. The test setup was made in accordance with ANSI C63.4-1992. Measurements were made in both the horizontal and vertical planes of polarization. Preliminary scans were taken in a semi-anechoic room using a spectrum analyze…
