OXTLSE041PCMCIA card for host enabled Bluetooth devices

USER’S MANUAL LSE041 BlueCard Disclaimer: This manual is published by Wireless Solutions Sweden AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information or improvements to equipment may be made by Wireless Solutions Sweden AB at any time and without notice. Such changes will however be incorporated into new editions of this manual. Copyright  2000 Wireless Solutions Sweden AB TABLE OF CONTENTS 1ABBREVIATIONS............................................................................................................................3 2DESCRIPTION..................................................................................................................................4 2.1INTRODUCTION..................................................................................................................................................................................4 2.2PRODUCT DESCRIPTION.....................................................................................................................................................................4 2.3KIT CONTENTS....................................................................................................................................................................................4 3BLUETOOTH STANDARD INFORMATION....................................................................................4 3.1BLUETOOTH CAPABILITY STATEMENT...........................................................................................................................................5 4INSTALLATION AND CONNECTION PROCESS FOR THE BLUECARD.......................................6 4.1INSTRUCTIONS FOR INSTALLING THE BLUECARD BLUETOOTH SOFTWARE...............................................................................6 4.1.1Installation of the LSE041 BlueCard device driver...........................................................................................................6 4.1.2Installation of the LSE041 BlueCard software...................................................................................................................8 4.1.3Configuration of the printer driver for Wireless printing.................................................................................................9 4.1.3.1Installation instructions for how to associate an already installed Windows (LPT) driver with the Wireless printer (RPT) in Windows 98.....................................................................................................................................................................9 4.1.3.2Installation instructions for how to associate a new printer driver with the Wireless printer (Windows 98)...10 4.1.3.3Installation instructions how to associate the Windows 98 printer driver with the Wireless printer when changing printer..........................................................................................................................................................................................10 4.1.4Instructions for setting a friendly name for the LSE019 Printer Module.....................................................................11 4.1.5Instructions for running the File Transfer Application....................................................................................................11 4.2LED INDICATORS............................................................................................................................................................................15 4.3TROUBLE SHOOTING........................................................................................................................................................................15 5TECHNICAL SPECIFICATIONS.....................................................................................................16 6REGULATIONS..............................................................................................................................18 6.1EUROPEAN COMPLIANCE................................................................................................................................................................18 6.2FCC (US) COMPLIANCE.................................................................................................................................................................19 6.3EXPOSURE TO RADIO FREQUENCY RADIATION..........................................................................................................................19 6.4IMPORTANT SAFETY INFORMATION..............................................................................................................................................19 6.4.1SAFETY WARNINGS !.......................................................................................................................................................19 6.4.2Operating Environment.........................................................................................................................................................20 1 ABBREVIATIONS ISM Industrial, Scientific and Medical AC Alternate Current DC Direct Current LED Light Emitting diode PWM Pulse Width Modulation PCM Pulse Code Modulation FCC Federal Communications Commission ETS European Telecommunications Standard UL Underwriters Laboratories CTR Common Technical Regulations ETL Edison Testing Laboratory ETSI European Telecommunications Standards Institute EEC European Economic Community EMC Electromagnetic Compatibility LVDLow Voltage Directive SIGSpecial Interest Group 2 DESCRIPTION 2.1 INTRODUCTION This user’s manual covers the LSE041 BlueCard adapter for Bluetooth applications certified by the Bluetooth SIG and compliant with the Bluetooth 1.0B specification. The LSE041 BlueCard supports file transfer and wireless printing (when used in conjunction with the LSE019 Printer module). The LSE041 BlueCard is design…

Text truncated - open the document above for the full version.

Hop Selection29 November 1999127 BLUETOOTH SPECIFICATION Version 1.0 Bpage 127 of 1082 Baseband Specification 11 HOP SELECTION In total, 10 types of hopping sequences are defined − five for the 79-hop and five for the 23-hop system, respectively. Using the notation of parentheses () for figures related to the 23-hop system, these sequences are: •A page hopping sequence with 32 (16) unique wake-up frequencies dis- tributed equally over the 79 (23) MHz, with a period length of 32 (16); •A page response sequence covering 32 (16) unique response frequencies that all are in an one-to-one correspondence to the current page hopping sequence. The master and slave use different rules to obtain the same sequence; •An inquiry sequence with 32 (16) unique wake-up frequencies distributed equally over the 79 (23) MHz, with a period length of 32 (16); •A inquiry response sequence covering 32 (16) unique response frequen- cies that all are in an one-to-one correspondence to the current inquiry hop- ping sequence. •A channel hopping sequence which has a very long period length, which does not show repetitive patterns over a short time interval, but which dis- tributes the hop frequencies equally over the 79 (23) MHz during a short time interval; For the page hopping sequence, it is important that we can easily shift the phase forward or backward, so we need a 1-1 mapping from a counter to the hop frequencies. For each case, both a hop sequence from master to slave and from slave to master are required. The inquiry and inquiry response sequences always utilizes the GIAC LAP as lower address part and the DCI (Section 5.4 on page 73) as upper address part in deriving the hopping sequence, even if it concerns a DIAC inquiry. 11.1 GENERAL SELECTION SCHEME The selection scheme consists of two parts: • selecting a sequence; • mapping this sequence on the hop frequencies; The general block diagram of the hop selection scheme is shown in Figure 11.1 on page 128. The mapping from the input to a particular hop frequency is per- formed in the selection box. Basically, the input is the native clock and the cur- rent address. In CONNECTION state, the native clock (CLKN) is modified by an offset to equal the master clock (CLK). Only the 27 MSBs of the clock are used. In the page and inquiry substates, all 28 bits of the clock are used. How- ever, in page substate the native clock will be modified to the master’s estimate of the paged unit. 12829 November 1999Hop Selection BLUETOOTH SPECIFICATION Version 1.0 Bpage 128 of 1082 Baseband Specification The address input consists of 28 bits, i.e., the entire LAP and the 4 LSBs of the UAP. In CONNECTION state, the address of the master is used. In page sub- state the address of the paged unit is used. When in inquiry substate, the UAP/LAP corresponding to the GIAC is used. The output constitutes a pseudo- random sequence, either covering 79 hop or 23 hops, depending on the state. Figure 11.1: General block diagram of hop selection scheme. For the 79-hop system, the selection scheme chooses a segment of 32 hop frequencies spanning about 64 MHz and visits these hops once in a random order. Next, a different 32-hop segment is chosen, etc. In case of the page, page scan, or page response substates, the same 32-hop segment is used all the time (the segment is selected by the address; different units will have dif- ferent paging segments). In connection state, the output constitutes a pseudo- random sequence that slides through the 79 hops or 23 hops, depending on the selected hop system. For the 23-hop systems, the segment size is 16. The principle is depicted in Figure 11.2 . Figure 11.2: Hop selection scheme in CONNECTION state. SELECTION BOX hop frequency UAP/LAP 23/79 mode CLOCK 27 28 04662642 781 737577 segment 1 segment 2 segment 3 ∆ Europe/US Japan/France/Spain 79 23 32 16 16 8 segment length# of hops ∆ Hop Selection29 November 1999129 BLUETOOTH SPECIFICATION Version 1.0 Bpage 129 of 1082 Baseband Specification 11.2 SELECTION KERNEL The hop selection kernels for the 79 hop system and the 23 hop system are shown in Figure 11.3 on page 129 and Figure 11.4 on page 129, respectively. The X input determines the phase in the 32-hop segment, whereas Y1 and Y2 selects between master-to-slave and slave-to-master transmission. The inputs A to D determine the ordering within the segment, the inputs E and F determine the mapping onto the hop frequencies. The kernel addresses a register containing the hop frequencies. This list should be created such that first all even hop fre- quencies are listed and then all odd hop frequencies. In this way, a 32-hop seg- ment spans about 64 MHz, whereas a 16-hop segment spans the entire 23-MHz. Figure 11.3: Block diagram of hop selection kernel for the 79-hop system. Figure 11.4: Block diagram of hop selection kernel for the 23-hop system. X O R XOR 55 XADD mod32 AB 4 5 5 5 ADD EF 7 7 7 0 2 4 CD 5 9 5 Y1 Y2 mod 79 1 78 3 77 PERM5 X O R XOR ADD AB 45 ADD EF 77 0 2 4 CD 5 9 5 Y1 Y2 X 4 mod16 mod 23 22 1 3 21 4445 PERM4 13029 November 1999Hop Selection BLUETOOTH SPECIFICATION Version 1.0 Bpage 130 of 1082 Baseband Specification The selection procedure consists of an addition, an XOR operation, a permuta- tion operation, an addition, and finally a register selection. In the remainder of this chapter, the notation A i is used for bit i of the BD_ADDR. 11.2.1 First addition operation The first addition operation only adds a constant to the phase and applies a modulo 32 or a modulo 16 operation. For the page hopping sequence, the first addition is redundant since it only changes the phase within the segment. How- ever, when different segments are concatenated (as in the channel hopping sequence), the first addition operation will have an impact on the resulting sequence. 11.2.2 XOR operation Let Z’ denote the output of the first addition. In the XOR operation, the four LSBs of Z’ are modulo-2 added to the address bits A 22-19 . The operation is illustrated…

Text truncated - open the document above for the full version.

2.1033(b)(10) Receiver input bandwidth, synchronization and repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection, one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence. The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multi-slot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing is according to the packet type of the connection. Also, the slave of the connection uses these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence

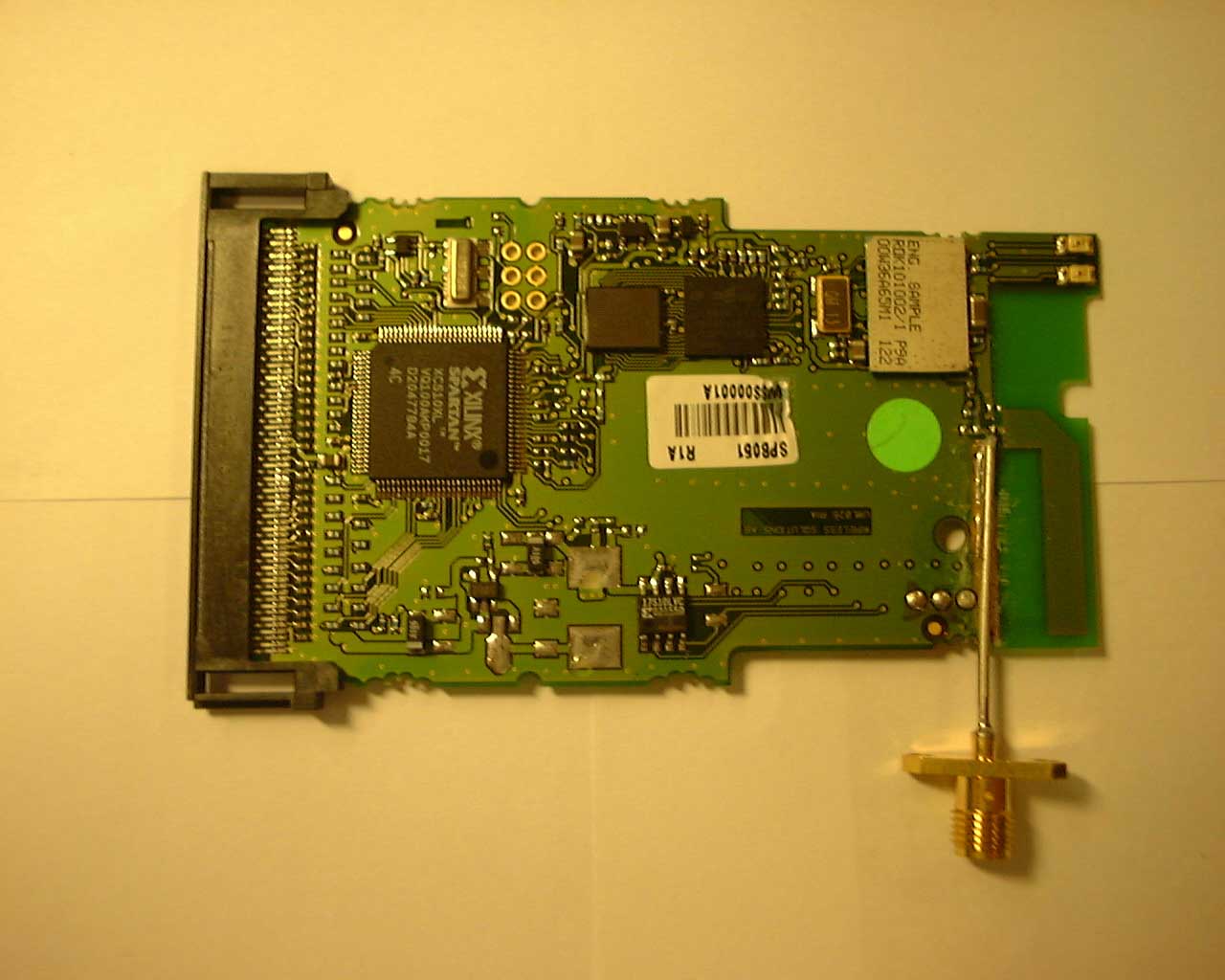

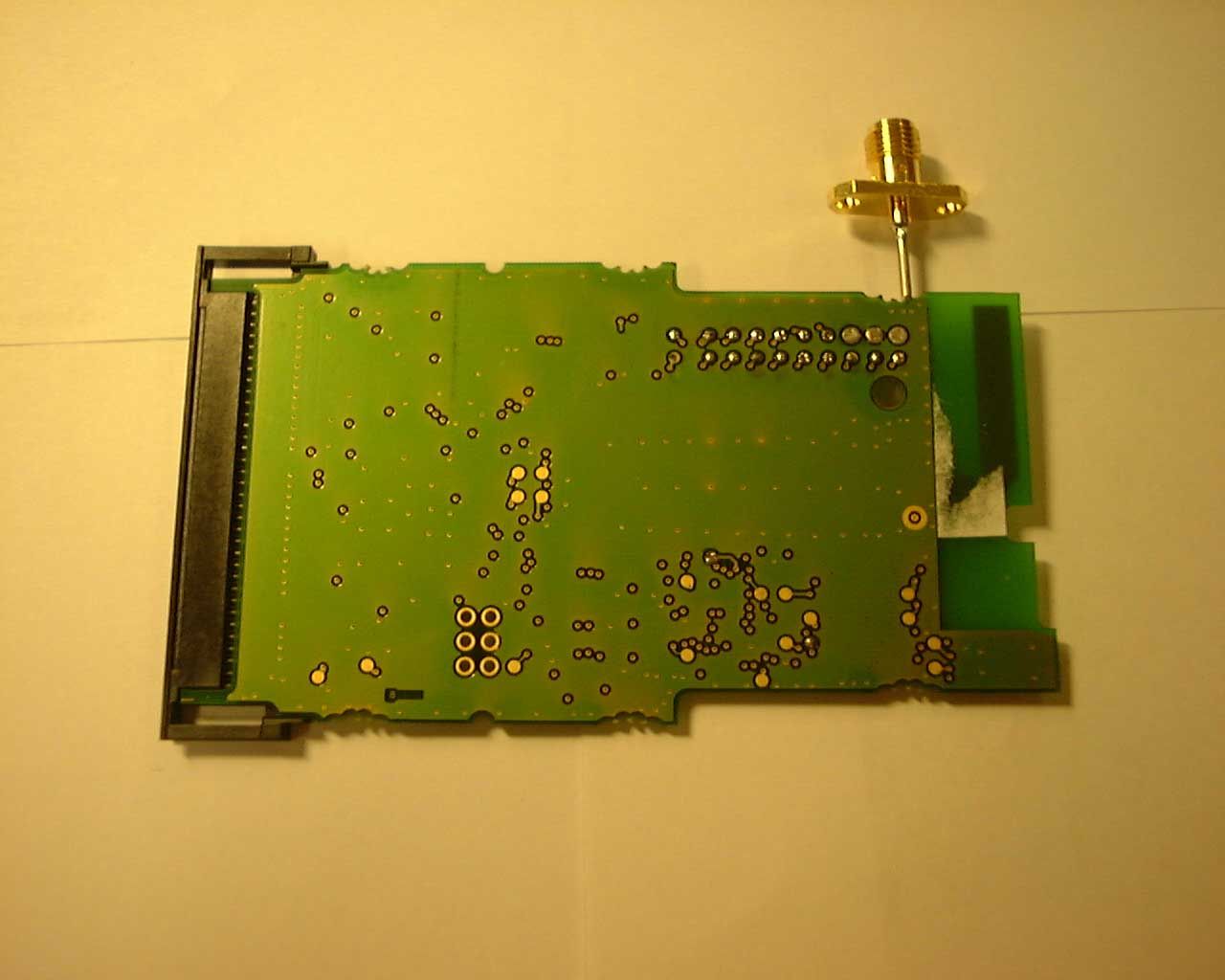

CONFIDENTIAL Description1(2) Uppgjord (även faktaansvarig om annan) -Nr – No WSS Tomas Blom1551-SPB051 Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile WSS Tomas Blom2001-02-28 A1551_SPB051_B \\ASESU001\PROJECTS\P010_BT_Application\documents\1551 Product Description\1551_SPB051_B.doc 1 Block Diagram IC6 Radio IC7 Baseband IC5 Flash PC-Card Connector IC1 PCMCIA Interface IC3 PROM 3.3V Supply 2.8V Supply 5V X1/ IC2 X2 2.402- 2.480GHz 13MHz 3.68MHz 2 Circuit Description There is a 3.68 MHz clock generated by IC2 and X1 used by IC1. The radio IC6 is using the 13MHZ reference X2. Power to the card is supplied via P1 pin 17 and 51 at 5.0 volt. Supply voltage is regulated in IC4 to 3.3 volts for IC1, IC2 and IC3. IC8 regulates from 3.3 to 2.8 volts for the BT-radio parts IC5, IC6 and IC7. All control logic, PC Card interface and BT interface (UART) is placed in IC1 a Xilinx FPGA. IC1 automatically loads its configuration from IC3 during the first 200 ms after power is applied. The UART has signals RxD and TxD for receive and transmit data, signals RTS and CTS for “hardware” flow control. The signal “BTON” controls the BT power on/off from IC1. The antenna is a quarter wave type PCB antenna with 0dBi gain. CONFIDENTIAL Description2(2) Uppgjord (även faktaansvarig om annan) -Nr – No WSS Tomas Blom1551-SPB051 Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile WSS Tomas Blom2001-02-28 A1551_SPB051_B \\ASESU001\PROJECTS\P010_BT_Application\documents\1551 Product Description\1551_SPB051_B.doc

Block Diagram of the ROK 101 007 Ericsson Bluetooth Module (Grey part is the Radio module, PBA 313 01/ 2)

FCC Response Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. WSS Mikael Ohlsson Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile 2001-02-28A FCC Approval, LSE019 and LSE041 Response to the review remarks for OXTLSE019 and OXTLSE041. 1. Block diagram including circuit description attached. 2. Block diagram attached. The block diagram in the Ericsson description is separately attached. 3. According to the Ericsson data sheet, ROK 101 007, page 5, the 15.247 input bandwidth requirement is specified under RF-Specifications as “Double-sided IF Bandwidth” and equal with the input bandwidth (Spec. 1 MHz). The information received from Ericsson is that the ROK 101 007 Bluetooth Module is an alternative to the FCC-approved Bluetooth module, FCC-identifier: CGK8001001, and will be FCC approved soon, with the above mentined Bluetooth module approval as basis. 4. Description of the antenna type for each device are provided in the Block diagram/Circuit Description. 5. The “part 15” on the marking is deleted. Revised marking doc. Is attached. Since the devices/marking labels are to small to place the required text according to part 15.19(a) (3),The information required by this paragraph is already placed in the users manual. This will be FCC accepted according to part 15.19(a) (5). The following text can be seen in the User’s Manual for OXTLSE019 and OXTLSE041: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 6. The hypen between OXT-LSE019 and OXT-LSE041 is deleted on the marking labels. 7. The PC-card, OXTLSE041 have to be seen as a modular approval, it is not intended for only the Toshiba computer, it was only used as test platform. As far as I can see, the PC-card fulfills the criteria for modular approval (own RF-shielding, own power supply regulation, permanently affixed antenna, stand-alone test report, own FCC-label etc.) The PC-card tested with the Toshiba computer as a platform must not be seen as a system. The PC-cars is a unique product. Best regards, Mikael Ohlsson Product Certification Wireless Solutions Sweden AB Rissneleden 138, plan 6 S-174 02 Sundbyberg, Sweden Phone: +46 8 7337651 Mobile: +46 733 604044 E-mail: [email protected]

From: Raymond Laforge [[email protected]] Sent: Monday, January 22, 2001 10:53 AM To: [email protected] Subject: Re: TCB review of 15.247 device more Both of the devices described would be approved by the Commission as a limited modular transmitter. By limited, I mean it would have some restrictions/conditions listed on the Grant of Equipment Authorization. The TCB may process these devices if they believe there are no RF safety issues involved in the processing of the devices. >>> <[email protected]> 12/22/00 03:29PM >>> Dear Sir: We have been asked to review two 1 mW EIRP Bluetooth devices: 1) PC adapter, for wireless connection to remote printer. It is a PC card for an internal PC card slot, with built-in antenna. 2) Printer adapter, attaches to a printer's parallel port. It has an integral antenna. Both devices are below the EIRP limits in the TCB exclusion list of December 18, 2000 (section VI, paragraph e.vii.1). However, the same exclusion list disqualifies 15.247 transmitters which "operate as a module, including those that are installed in, or attached, to another product" (section VI, paragraph e.iii). While neither of these devices qualifies as a module per FCC Interpretation Letter #1105, each is intended to be "installed in, or attached to, another product." May a TCB certify these devices? Thank you, Roland Gubisch ITS

FCC ID: OXTLSE041 Part 15 Unlicensed Modular Transmitter Approval Justification per DA 00-1407, released: June 26, 2000 re quire me ntre fe re nce 1The modular transmitter must have its ow n RF shielding. Relevant emission requirements are met without additional shielding Enclosure is metal PCMCIA for mat. See external photos . 2The mod ular trans mitter must have b uffered mod ulation/data i np uts All inputs to the modules are buffered through logic or microprocessor inputs. S e e sc he ma t ic d ia g ra ms . 3The modular transmitter must have its own pow er supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the EUT. Se e sche matic diag ra ms. 4The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The EUT has a built-in antenna, which is inaccessible to the user. See Internal Photos . 5The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. EUT was tested on a open Bluetooth test bed which provides no shielding. See description in Test Re port . 6The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed mod ule. The EUT carries an FCC ID label whose artwork and label position are clearly indicated; see Ma rking and Label Position exhibits. The EUT is visible when installed. 7The modular transmitter must comply with any specific rule or operating requirements applicable to the trans mi tter a nd the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The EUT incorporates a certified Bluetooth module FCC ID: CGK8001001, whose 15.247 spread spectrum frequency hopping functional parameters cannot be altered by the user. The EUT was tested at its ma xi mum da ta rate. Se e Blue tooth mo dule de scri ptio n . 8The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). RF output is 1 mW, w hich complies with the conditions of use of FCC ID: CGK8001001, and constitutes no RF e xpos ure ha zard w he n not co- located with another transmitter. User precautions are provided in the User Manual to avoid contact with the EUT during operation.

Marking Label for Wireless Solutions Sweden AB “Blue Card”, Model No. LSE 041 Marking Label for Wireless Solutions Sweden AB “Printer Module”, Model No. LSE 019 E TL- Lis te d. C onfo rms to A N SI/U L 1950 FCC ID(P art 15): OX T- LS E 041 B D address xxxxxxxx Model. No. LS E 041 RRR xxxxxxx Serial.N o. xxxxxxxxxxxx ETL-Listed. Conforms to ANSI/UL 1950 FCC ID(Part 15): OXT-LSE019 BD address xxxxxxxx Model. No. LSE 019 RRR x xxxx xx Serial.No. xx xxxxxxxx

Marking instruction1(1) Uppgjord (även faktaansvarig om annan) -Nr – No WSS Mikael Ohlsson19817-LSE041 Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile 2000-12-07 PA1 D:\Ready _To_Convert\Doc\141482.DOC Label marking instruction LSE 041 1 Revision history DateRevNote 2000-09-07PA1Creation 2 Abstract • This document gives instruction on how to mark the LSE 041 product. 3 Front Label The type label shall be mounted according to the picture below: 4 TEXT PLACE THE LABEL CENTERED IN THE AREA MARKED ON THE TOP COVER. THE TEXT ORIENTATION SHALL BE AS IN THE PICTURE PC CARD TOP VIEW

Bluetooth LSE 041 Blue Card LSE 041 Blue Card, Revision R1B: The “LSE 041 Blue Card” is an external adapter, for enabling of laptop PC’s, Desktop PC’s and other PCMCIA Host enabled devices to interface to Bluetooth. This device includes all the hardware , drivers and software applications to enable a Windows 95/98 and NT4 PCMCIA enabled platform with per-to-per file transfer. In addition the card also supports WSS proprietary wireless printing in combination with the LSE019 Printer Adapter. Easy installation and configuration with Windows 95/98 and NT4. Features: • Bluetooth V1.0B + Critical Errata compliant • Upgradeable to V1.1 specification • Data rates up to 460 kbs • WSS Proprietary wireless printing supported (requires LSE019 Printer Adapter) • The antenna is integrated into the Blue Card Application Profiles: • Generic Access profile • File Transfer profile • Serial port profile • WSS Proprietary wireless printing The LSE 041 Blue Card is certified by the Bluetooth SIG and compliant with the Bluetooth 1.0B specification. The Blue Card is designed to comply with the Bluetooth 1.1 Draft specification. Further more, the product complies with the regulatory national requirements (safety, EMC and radio type approval) according to the “Wireless Solutions Product Approval sheet” appendix A. WSS stands for Wireless Solutions Sweden AB Note! Bluetooth is a trade mark owned by Telefonaktiebolaget L M Ericsson, Sweden and licensed to Wireless Solutions Sweden AB. www.wireless.se [email protected] Technical Specification, LSE 041 Blue Card: Radio Specifications: Frequency range2.402 – 2.4800 GHz Programmable for specific national regulations Supported SpecificationBluetooth 1.0B specification RF output power0 dBm, Power Class 3 Power managementActive and passive power saving modes Receiver sensitivityBetter than -70 dBm at 0.1% BER Frequency spectrum utilizationFrequency Hopping Spread Spectrum (FHSS) ModulationGaussian Frequency Shift Keying (GFSK) Bit-rate1 Mbs AntennaIntegrated Regulative complianceFCC part 15, UL 1950 (US), ETS 300 328, ETS 300 826, EN 60950 (EUROPE). Electrical Characteristics: Power supply5V from PC Card slot Max power consumption70 mA Min power consumption10 mA Physical interfaceType II PC Card slot Visual indicatorsData traffic (LED) Power (LED) Security: Initialization4 digit PIN code AuthenticationSecurity mode 2 supported EncryptionSupported Mechanical Specifications: Physical dimensions92 x 54 x 5 mm Environment: Operating temperature0 to 55°C Storage temperature-20 to 70°C Humidity5 – 95% non condensing Configuration: Drivers, set-up and configurationDrivers for Windows 95/98 and NT4. Software maintainability: PC Card software upgradeVia Host Computer Appendix A Wireless Solutions Sweden AB Product Approval Sheet The LSE 041 Blue Card is tested and compliant with the national regulatory requirements according to the standards mentioned below. European Union: • EMCETS 300 826 (EMC standard for 2,4 GHz wide band transmission systems and hiperlan) • RadioETSI EN 300 328-1 (EMC and radio spectrum matters for 2,4 GHz ISM band) • SafetyEN 60 950 (Safety of Information technology equipment) Compliance with this standards covering essential requirements under the 1999/5/EG R&TTE directive is necessary for placing the product on the EU market. U.S / Canadian market: • EMCFCC CFR47 part 15.C (Emission requirements for product operating within 2.4 GHz ISM band) • RadioFCC CFR47 part 15.247 (Radio spectrum requirements for FHSS systems operating within the 2.4 GHz ISM band) • SafetyUL 1950 (Safety of information technology equipment) Compliance with this standards, UL-listing and FCC-registration is necessary for placing the product on the U.S / Canadian market.

ROK 101 007 Bluetooth Module Description ROK 101 007 is a short-range module for implementing Bluetooth function- ality into various electronic devices. The module consists of three major parts; a baseband controller, a flash memory, and a radio that operates in the globally available 2.4–2.5 GHz free ISM band. Both data and voice transmission is supported by the module. Communica- tion between the module and the host controller is carried out using a high- speed USB interface compliant with USB Specifications 1.1 or an UART/ PCM interface. When using the USB interface, the module appears as a USB slave device and therefore requires no PC resources. ROK 101 007, which is compliant with Bluetooth version 1.0B, is a Class 2 Bluetooth Module (0 dBm) and is type-approved. The module supports all Bluetooth profiles. Key Features • Pre-qualified Bluetooth 1.0B Module • RF output power class 2 • FCC and ETSI approved • 460 kb/s max data rate over UART • Multiple interface for different applications -UART for data -PCM for voice -USB for voice and data •I 2 C interface • Internal crystal oscillator • HCI firmware included • Multi Point Operation • Built-in shielding Suggested Applications • Computers and peripherals • Handheld devices and accessories • Access points ROK 101 007 ROK 101 007 2 Preliminary Figure 1. Block Diagram Figure 2. Actual size of the Ericsson Bluetooth Module, and also showing the HW and FW stack. RX- Balun Radio ASIC ANT T2 TX- Balun Switch Antenna Filter Loop Filter VCO Tank FLASH Memory 13MHz Crystal Voltage Regulation WAKE_UP DETACH GND B3 R1 R2 T1 C6 VCC C4 VCC_IO C2 ON RESET# POR NC NC NC NC NC R4 R5 R6 T4 T5 T6 C3 Radio Module B4 C1 ADDR DATA CTRL R3 C5 NC PBA 313 01/2 Baseband B1 D- D+ B2 USB TXD RTS RXD CTS A5 A6 B5 B6 UART PCM_OUT PCM_CLK PCM_IN PCM_SYNC A1 A2 A3 A4 PCM T3 GND GND GND GND I2C_DATA I2C_CLK 0123 cm Radio Baseband Audio Link Manager HCI ROK 101 007 3 Preliminary Absolute Maximum Ratings ParameterSymbolMinTypMaxUnit Temperature Storage temperatureT Stg -30+85°C Operating temperatureT Amb 0+75°C Power Supply V CC V CC -0.3+5.25V V CC_IO V CC_IO -0.8+3.6V Digital Inputs Input low voltageV IL -0.5V Input high voltageV IH V CC_IO +0.3V Recommended Operating Conditions Temperature Ambient temperature, TestT amb +23°C Power Supply Positive Supply VoltageV CC +3.3V I/O Ports Supply VoltageV CC_IO +3.3V Electrical Characteristics DC Specifications Unless otherwise noted, the specification applies for T Amb = 0 to +75°C, 3.175 < V CC < 5.25V ParameterConditionSymbolMinTypMaxUnit Power Supply Supply VoltageV CC 3.1753.35.25V I/O Ports Supply VoltageSee note 10V CC_IO 2.73.33.6V Digital Inputs Logical Input HighExcept ON signalV IH1 0.7 x V CC_IO V CC_IO V Logical Input LowExcept ON signalV IL2 00.3 x V CC_IO V Logical Input HighON signal onlyV IH2 2.0V CC V Logical Input LowON signal onlyV IL2 00.4V Digital Outputs Logical Output HighV OH 0.9 x V CC_IO V CC_IO V Logical Output LowV OL 00.1 x V CC_IO V ROK 101 007 4 Preliminary 5ParameterConditionSymbolMinTypMaxUnit Average Current ConsumptionAverage I CC + I CC_IO StandbyI STA 5.95mA Shutdown - SWI SSW 2.35mA Shutdown – HWSee note 1I SHW 1μA Page Scan Mode R0Page Scan EnableI PSM1 50mA Page scan window: continuous Page scan interval : n/a (0s) Page Scan Mode R1Page Scan EnableI PSM2 6.35mA Page scan window: 11.25ms Page scan interval : 1.28s Page Scan Mode R2Page Scan EnableI PSM3 6.15mA Page scan window: 11.25ms Page scan interval : 2.56s Inquiry ScanInquiry Scan EnableI ISM1 50mA with Page Scan Mode R0.Page Scan Window : 2.56s –11.25ms Page Scan Interval : 2.56s Inquiry Scan Window : 11.25ms Inquiry Scan Interval : 2.56s Inquiry ScanInquiry Scan EnableI ISM2 6.55mA with Page Scan Mode R1.Page Scan Window : 11.25ms Page Scan …

Text truncated - open the document above for the full version.
