OXTLSE044Bluetooth Adapter for Palm V Handhelds

Users Manual LSE0441 (4) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. Mikael Ohlsson Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile 2001-08-10 1 REGULATIONS LSE044 PALM ADAPTER 1.1 BLUETOOTH CAPABILITY STATEMENT This product is manufactured to meet the Bluetooth specification 1.1. The following Bluetooth profiles are supported: • Generic Access Profile • Serial Port Profile • Dial Up Networking Profile 1.2 EUROPEAN COMPLIANCE Limitation on Use of Wireless Technology (R&TTE 1999/5/EC) The use of Bluetooth equipment is not allowed/limited in some countries, due to limitations on the use of the frequency band 2400 - 2483,5 MHz. If radio frequency interference occurs, please stop using this equipment immediately. EMC, Electrical Safety and Radio EC Directive Compliance The CE mark is affixed to this product to confirm compliance with the following European Community Directives: • Council Directive 1999/5/EC of the European Parliament and the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. • Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of Member States relating to electromagnetic compatibility (EMC). • Council Directive 73/23/EEC of 19 february 1973 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. Each of the above mentioned directives amended by • Council Directive 93/68/EEC of 22 July 1993 on the harmonization of the CE marking requirements. Users Manual LSE0442 (4) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. Mikael Ohlsson Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile 2001-08-10 A “Declaration of Conformity” in accordance with the relevant standards to confirm compliance with the above mentioned directives has been made and is on file at Wireless Solutions Sweden AB, Sundbyberg, Sweden. 1.3 FCC (US) COMPLIANCE FCC R.F. Interference Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for class B Digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by Wireless Solutions Sweden AB could void the user’s authority to operate the equipment. 1.4 EXPOSURE TO RADIO FREQUENCY RADIATION The radiated output power of the equipment is far below the FCC radio frequency exposure limits. Neverthless, it is advised to use the equipment in such a manner that the potential for human contact during normal operation is minimized. Users Manual LSE0443 (4) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. Mikael Ohlsson Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile 2001-08-10 1.5 IMPORTANT SAFETY INFORMATION 1.5.1 SAFETY WARNINGS ! Interference All wireless devices may get interference, which could affect performance. Switch off in aircraft Wireless devices can cause interference. Using them on aircraft is illegal. Switch off when refueling Do not use the wireless Palm Adapter at a refueling point. Do not use near fuel or chemicals. Switch off near blasting Do not use the Palm Adapter where blasting is in progress. Observe restrictions, and follow any regulations or rules. Switch off near medical equipment. Follow all regulations and rules in hospitals. Do not use the Palm Adapter near medical equipment. Use qualified service Only qualified service personnel must repair equipment. Accessories Use only approved accessories. Do not connect incompatible products. Connecting to other devices When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect incompatible products. Chemicals Do not store or use the Palm Adapter in places where it may be exposed to chemicals or chemical vapors. Doing so will lead to fires or electric chocks. Prohibited areas Do not use the Palm Adapter when the use of a Bluetooth application is prohibited or when it may cause interference or danger. Humid or dusty places Do not store or use the Palm Adapter in humid or dusty places. Doing so could lead to fires or electric chocks. Do not disassemble or modify the Palm Adapter in any way Users Manual LSE0444 (4) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. Mikael Ohlsson Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile 2001-08-10 Do not disassemble or modify the Compact Flash in any way. Doing so without the express approval by the manufacturer will void user authority to operate the equipment and may lead to fires or electric shocks. Switch off near a microwave oven i…

Text truncated - open the document above for the full version.

BLUETOOTH APPROVALS (re FCC ID: OXTLSE044) 1(4) The following exhibit indicates the FCC Spread Spectrum requirements in Sectio n 15.247 for devices meeting the Bluetooth Specifications in the 2.4 GHz band as of February 2001 operating in the USA. The purpose of this exhibit is to help expedite the approval process for Bluetooth devices. This exhibit provides items that vary for each device and also provides a list of items that are commo n to Bluetooth devices that explains the remaining requirements. The list of common items can be submitted for each application for equipment authorizatio n. This exhibit o nly specifies requirements in Section 15.247, requirements in other rule Sections for intentional radiators such as in Section 15.203 or 15.207 must be also be addressed. For each individual device, the follo wing items, 1-7 will vary from one device to another and must be submitted. 1) The occupied bandwidth in Section 15.247(a)(1)(ii). Supplied 2) Conducted output power specified in Section 15.247(b)(1). Supplied 3) EIRP limit in Section 15.247(b)(3). Supplied 4) RF safety requirement in Section 15.247(b)(4) Supplied 5) Spurio us emission limits in Sectio n 15.247(c). Supplied 6) Processing gain and requirements for Hybrids in Section 15.247(f) in the acquisition mode. Supplied 7) Power spectral density requirement in Sectio n 15.247(f) in the acquisitio n mode. Supplied For all devices, the following items, 1-12, are commo n to all Bluetooth devices and will not vary from one device to another. This list can be copied into the filing. 1 Output pow er and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output po wer and the channel spacing. There is only one transmitter which is driven by identical input parameters co ncerning these two parameters. Only a different hopping sequence will be used. For this reason, the RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth dev ice: The maximum frequency of the device is: 2402 – 2480 M Hz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification must not be supported by the device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupanc y by multiple tra ns mitters : Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This pico net co nsist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new pico nets wi ll a lways us e dif f erent ho p se q ue nces . BLUETOOTH APPROVALS (re FCC ID: OXTLSE044) 2(4) 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and short transmissions: The generation of the hopping sequence in co nnectio n mode depends essentially o n two input values: 1. LAP/UAP of the master of the co nnectio n 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguo us number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchro nization with other units, o nly the offsets are used. It has no relation to the time of the day. Its resolutio n is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be do ne at the beginning of every new transmission. Regarding short transmissions, the Bluetooth system has the following behavior: The first connection between the two devices is established, a hopping sequence is generated. For transmitting the wanted data, the complete hopping sequence is not used and the co nnectio n ends. The seco nd connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandw idth, synchronization and repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every co nnectio n, one Bluetooth device is the master and the other o ne is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multi-slot packet) is set up at the beginning of the co nnectio n. The master adapts its hopping frequency and its TX/RX timing is according to the packet type of the co nnectio n. Also, the slave of the connection uses these settings. Repeating of a packet has no influence on the hopping sequence. Th…

Text truncated - open the document above for the full version.

Bluetooth Component Listing Notice BQB: Andreas Grünwaldt 7 layers AG, Borsigstrasse 11, 40880 Ratingen, Germany page 1 of 2 pages applicants details:member private label product applicant:Infineon Technologies AG person responsible: Marten Seth phone:+49 89 234 26132 fax:+49 89 234 23510 1 address :St.-Martin-Str. 53 81541 München Germany email:[email protected] manufacturers details (if not the applicant): manufacturer:see above 2 address : equipment: brand name:BlueMoon RF IC PMB 6625/27 product type:Bluetooth Component 3 identifier:PMB 6625/27 Bluetooth product identification: Bluetooth ref no. : - 4 ref no. of QPN: GRA 003 01 date of QPN: 2001-01-20 This listing notice is an essential part of the Bluetooth qualification program and shows the acceptance of this component as a qualified Bluetooth™ component. Herewith I certify that the above named component has passed all mapped test cases based on TCRL dated 2000-07-11 as listed in Annex A. Ratingen, 2001-01-20 place, datesignature Bluetooth Component Listing Notice BQB: Andreas Grünwaldt 7 layers AG, Borsigstrasse 11, 40880 Ratingen, Germany page 2 of 2 pages Annex A (pre-qualified test cases): reference document RF Conformance – Provisional, vers. 0.9 20.B.152/0.9 test case identifierdescriptiontest case category TRM/CA/01/EOutput powerB TRM/CA/02/EPower DensityB TRM/CA/03/EPower ControlN.A. TRM/CA/04/ETX Output Spectrum – Frequency rangeB TRM/CA/05/ETX Output Spectrum – 20 dB BandwidthB TRM/CA/06/ETX Output Spectrum – Adjacent channel power B TRM/CA/07/EModulation CharacteristicsB TRM/CA/08/EInitial Carrier Frequency ToleranceB TRM/CA/09/ECarrier Frequency DriftB TRC/CA/01/EOut-of-Band Spurious EmissionsB RCV/CA/01/ESensitivity – single slot packetsB RCV/CA/02/ESensitivity - multi-slot packetsB RCV/CA/03/EC/I performanceB RCV/CA/04/EBlocking performanceB RCV/CA/05/EIntermodulation PerformanceB RCV/CA/06/EMaximum Input LevelB Please find in the above lists all pre-qualified test cases for the “PMB 6625/27“ . As hardware/software reference platform the BlueMoonI Component (HW: ES V1.2 / ES G2, SW: ProBlue FW 3.1.4 ) was used.

Qualified Product Listing Notice BQB: Andreas Grünwaldt 7 layers AG, Borsigstrasse 11, 40880 Ratingen, Germany The BLUETOOTH trademarks are owned by Bluetooth SIG, INC., U.S.A. and licensed to the member whose qualified product is listed in this certificate. Third-party brands and names are the property of their respected owners. page 1 of 3 pages applicants details:member private label product applicant:Infineon Technologies person responsible: Andre Neubauer phone:+49 203 7498 194 fax:+49 203 7498 225 1 address :St.-Martin-Str. 53 81541 München Germany email:[email protected] manufacturers details (if not the applicant): manufacturer:see above 2 address :N.A. equipment: brand name:BlueMoon I Bluetooth 1.1 Baseband Component product type:Integrated Component HW sup. profiles:N.A. identifier:BB IC PMB 6752 / PMB 6754, ProBlue FW3.4.4 3 HW version:see Annex BSW version:see Annex B reference documents: Test Case Reference List:2001-02-26 Test Case Reference List Addendum:2001-02-27 Core Specification:1.1 4 Program Reference Document:0.9 QPLN identification: 5 ref no. of QPLN:GRA 011d 01listing date:2001-04-27 Hereby I certify that the above named product is qualified in accordance with the above reference documents as a pre-tested Bluetooth Integrated Component (BIC) for the Covered Functionality defined in Annex A. Ratingen, 2001-07-17 place, datesignature Qualified Product Listing Notice BQB: Andreas Grünwaldt 7 layers AG, Borsigstrasse 11, 40880 Ratingen, Germany The BLUETOOTH trademarks are owned by Bluetooth SIG, INC., U.S.A. and licensed to the member whose qualified product is listed in this certificate. Third-party brands and names are the property of their respected owners. page 2 of 3 pages Annex A (Covered Functionality): The Covered Functionality of this product is defined as follows: 1. Baseband as defined in Part B of the Bluetooth Core Specification, Version 1.1 including all mandatory features and the following optional features: - SCO links - 79 and 23 channel hopping systems - ACL and SCO links - 3 SCO links to same or different Slaves - 3 SCO links from the same master - all optional ACL and SCO packet types - all paging modes and train repetitions - all inquiry procedures - point-to-multipoint connections with up to 5 Slaves - all voice coding schemes Optional paging scan modes I, II and III are not supported. 2. Link Manager as defined in Part C of the Bluetooth Core Specification version 1.1 including all mandatory features and all optional features with the exception of: - Point to point & broadcast encryption - Timing accuracy - Slot offset - Role switch - Sniff mode - Park mode - channel driven data rate - optional paging schemes 3. Blue Unit interoperability As hardware/software reference platform the Infineon BlueMoon 1 Development Board 1.1 was used. Qualified Product Listing Notice BQB: Andreas Grünwaldt 7 layers AG, Borsigstrasse 11, 40880 Ratingen, Germany The BLUETOOTH trademarks are owned by Bluetooth SIG, INC., U.S.A. and licensed to the member whose qualified product is listed in this certificate. Third-party brands and names are the property of their respected owners. page 3 of 3 pages Annex B (Updates): The HW version was updated from V1.4 to V1.5. The Covered Functionality is not affected. All necessary re-qualification have been done. As result the following HW versions have been qualified: V1.4 and V1.5 The SW version was updated in two steps from V3.4.4 to V3.4.7 and from V3.4.7 to V3.5.1. The Covered Functionality is not affected. All necessary re-qualification have been done. As result the following SW versions have been qualified: V3.4.4, V3.4.7 and V3.5.1 All SW versions can be used together with both HW versions. Annex C (Revision History): DateReferenceComment 2001-04-27GRA 011 01First issue 2001-04-30GRA 011a 01Added prose description of Covered Functionality 2001-05-25GRA 011b 01- HW update from version V1.4 to version V1.5 - add Annex B - changed QPLN layout 2001-06-29GRA 011c 01- SW update from version V3.4.4 to V3.4.7 - SW update from version V3.4.7 to V3.5.1 2001-07-17GRA 011d 01- added Blue Unit interoperability to the Covered Functionality - correction of type mistake * End of document *

Hop Selection29 November 1999127 BLUETOOTH SPECIFICATION Version 1.0 Bpage 127 of 1082 Baseband Specification 11 HOP SELECTION In total, 10 types of hopping sequences are defined − five for the 79-hop and five for the 23-hop system, respectively. Using the notation of parentheses () for figures related to the 23-hop system, these sequences are: •A page hopping sequence with 32 (16) unique wake-up frequencies dis- tributed equally over the 79 (23) MHz, with a period length of 32 (16); •A page response sequence covering 32 (16) unique response frequencies that all are in an one-to-one correspondence to the current page hopping sequence. The master and slave use different rules to obtain the same sequence; •An inquiry sequence with 32 (16) unique wake-up frequencies distributed equally over the 79 (23) MHz, with a period length of 32 (16); •A inquiry response sequence covering 32 (16) unique response frequen- cies that all are in an one-to-one correspondence to the current inquiry hop- ping sequence. •A channel hopping sequence which has a very long period length, which does not show repetitive patterns over a short time interval, but which dis- tributes the hop frequencies equally over the 79 (23) MHz during a short time interval; For the page hopping sequence, it is important that we can easily shift the phase forward or backward, so we need a 1-1 mapping from a counter to the hop frequencies. For each case, both a hop sequence from master to slave and from slave to master are required. The inquiry and inquiry response sequences always utilizes the GIAC LAP as lower address part and the DCI (Section 5.4 on page 73) as upper address part in deriving the hopping sequence, even if it concerns a DIAC inquiry. 11.1 GENERAL SELECTION SCHEME The selection scheme consists of two parts: • selecting a sequence; • mapping this sequence on the hop frequencies; The general block diagram of the hop selection scheme is shown in Figure 11.1 on page 128. The mapping from the input to a particular hop frequency is per- formed in the selection box. Basically, the input is the native clock and the cur- rent address. In CONNECTION state, the native clock (CLKN) is modified by an offset to equal the master clock (CLK). Only the 27 MSBs of the clock are used. In the page and inquiry substates, all 28 bits of the clock are used. How- ever, in page substate the native clock will be modified to the master’s estimate of the paged unit. 12829 November 1999Hop Selection BLUETOOTH SPECIFICATION Version 1.0 Bpage 128 of 1082 Baseband Specification The address input consists of 28 bits, i.e., the entire LAP and the 4 LSBs of the UAP. In CONNECTION state, the address of the master is used. In page sub- state the address of the paged unit is used. When in inquiry substate, the UAP/LAP corresponding to the GIAC is used. The output constitutes a pseudo- random sequence, either covering 79 hop or 23 hops, depending on the state. Figure 11.1: General block diagram of hop selection scheme. For the 79-hop system, the selection scheme chooses a segment of 32 hop frequencies spanning about 64 MHz and visits these hops once in a random order. Next, a different 32-hop segment is chosen, etc. In case of the page, page scan, or page response substates, the same 32-hop segment is used all the time (the segment is selected by the address; different units will have dif- ferent paging segments). In connection state, the output constitutes a pseudo- random sequence that slides through the 79 hops or 23 hops, depending on the selected hop system. For the 23-hop systems, the segment size is 16. The principle is depicted in Figure 11.2 . Figure 11.2: Hop selection scheme in CONNECTION state. SELECTION BOX hop frequency UAP/LAP 23/79 mode CLOCK 27 28 04662642 781 737577 segment 1 segment 2 segment 3 ∆ Europe/US Japan/France/Spain 79 23 32 16 16 8 segment length# of hops ∆ Hop Selection29 November 1999129 BLUETOOTH SPECIFICATION Version 1.0 Bpage 129 of 1082 Baseband Specification 11.2 SELECTION KERNEL The hop selection kernels for the 79 hop system and the 23 hop system are shown in Figure 11.3 on page 129 and Figure 11.4 on page 129, respectively. The X input determines the phase in the 32-hop segment, whereas Y1 and Y2 selects between master-to-slave and slave-to-master transmission. The inputs A to D determine the ordering within the segment, the inputs E and F determine the mapping onto the hop frequencies. The kernel addresses a register containing the hop frequencies. This list should be created such that first all even hop fre- quencies are listed and then all odd hop frequencies. In this way, a 32-hop seg- ment spans about 64 MHz, whereas a 16-hop segment spans the entire 23-MHz. Figure 11.3: Block diagram of hop selection kernel for the 79-hop system. Figure 11.4: Block diagram of hop selection kernel for the 23-hop system. X O R XOR 55 XADD mod32 AB 4 5 5 5 ADD EF 7 7 7 0 2 4 CD 5 9 5 Y1 Y2 mod 79 1 78 3 77 PERM5 X O R XOR ADD AB 45 ADD EF 77 0 2 4 CD 5 9 5 Y1 Y2 X 4 mod16 mod 23 22 1 3 21 4445 PERM4 13029 November 1999Hop Selection BLUETOOTH SPECIFICATION Version 1.0 Bpage 130 of 1082 Baseband Specification The selection procedure consists of an addition, an XOR operation, a permuta- tion operation, an addition, and finally a register selection. In the remainder of this chapter, the notation A i is used for bit i of the BD_ADDR. 11.2.1 First addition operation The first addition operation only adds a constant to the phase and applies a modulo 32 or a modulo 16 operation. For the page hopping sequence, the first addition is redundant since it only changes the phase within the segment. How- ever, when different segments are concatenated (as in the channel hopping sequence), the first addition operation will have an impact on the resulting sequence. 11.2.2 XOR operation Let Z’ denote the output of the first addition. In the XOR operation, the four LSBs of Z’ are modulo-2 added to the address bits A 22-19 . The operation is illustrated…

Text truncated - open the document above for the full version.

Justification for 0.1% ACER Selection for Processing Gain Test Reference: see FCC ID: CGK8001001 The access code is decided as present if the number of correctly decoded symbols in the 64 bit sync word exceeds a certain threshold, T. If the probability of bit error in the access code is denoted by p, and the errors are assumed to be independent, then the FRR can be calculated as 64 - T FRR = 1 - Σ[ 64 t ]p t (1 – p) 64 - t t = 0 We have chosen to determine the PG when the FRR equals 0.1%. The major reason for this being that a smaller number results in a too long testing time. Furthermore, the SNR should preferably be somewhere between 15 and 25 dB. In the Bluetooth specification, 21 dB is the operating point where the raw BER in the payload is required not to exceed 0.1\%. Referring to the equation for the FRR, and choosing T = 61, p becomes 0.3 %. Consequently, for a receiver that is just passing the sensitivity requirement in the Bluetooth specification, this corresponds to an operating point of about 19-20 dB.

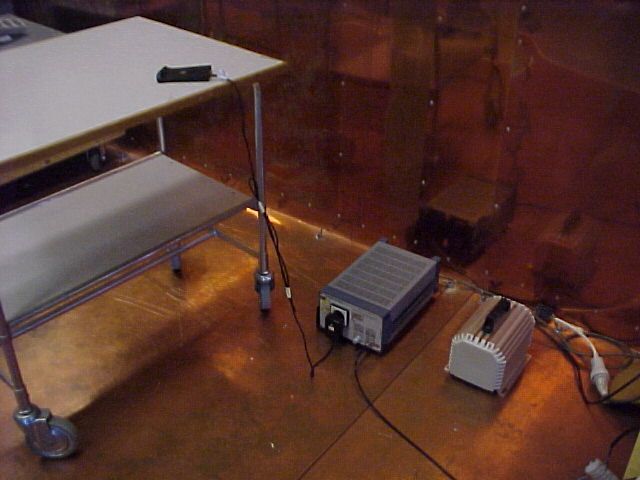

To: Monica Roos ITS/ES-Sto Cc: Björn Rosenquist ITS/ES-Sto; Danielle Gravelle ITS/ES-Box Subject: Wireless Solutions FCC ID: OXTLSE044 Dear Monica: Review of this FCC 15.247 certification is complete, and we note the following: I. TECHNICAL A.Test setup 1. The test report sections 2.2 and 2.3 reference a PC used for support. It does not appear in the test setup photos. If the EUT can be connected to a PC during normal operation, it is a PC peripheral as well as a transmitter. It would be a "composite" device, subject to additional approval. Please clarify the use of the PC. The user documentation indicates that the EUT can only be connected to a Palm device. 2. Test setup photos for conducted emissions cannot be found, although the data is provided. Please indicate where the photos are located, or provide them. B. Processing gain measurement 1. The J/S ratio was chosen to yield 0.1% ACER (Access Code Error Ratio). The FCC criterion for bit error ratio of DSSS data systems is 10E -5. Please relate these two parameters. II. ADMINISTRATIVE A. FCC Label location - not found. Please furnish an external photo with a label callout, an actual label, or a drawing showing the label location. B. Modular approval - the Application Notes file indicates that internal RF shielding of the EUT is provided. There are no internal photos of the enclosure or other parts to substantiate that statement. Please provide such photos or other evidence. III. Grant of Authorization Upon successful resolution of these issues, the Grant of Authorization will list the peak antenna RF conducted output power as 1.5 mW (1.8 dB), as indicated in section 2.1.1 of the test report. If that is not correct, please indicate. Thank you, Roland Gubisch ITS

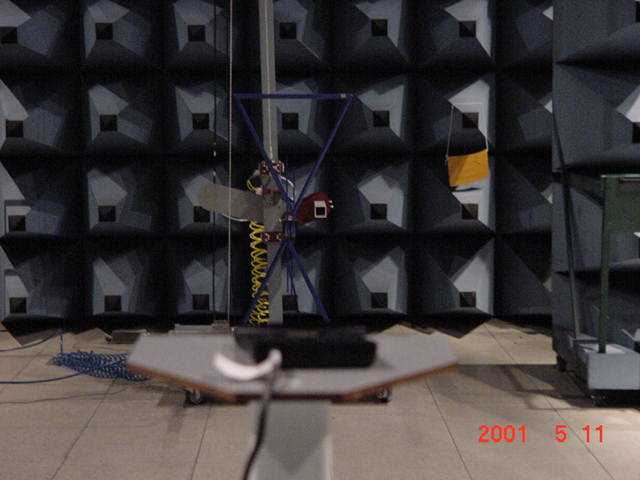

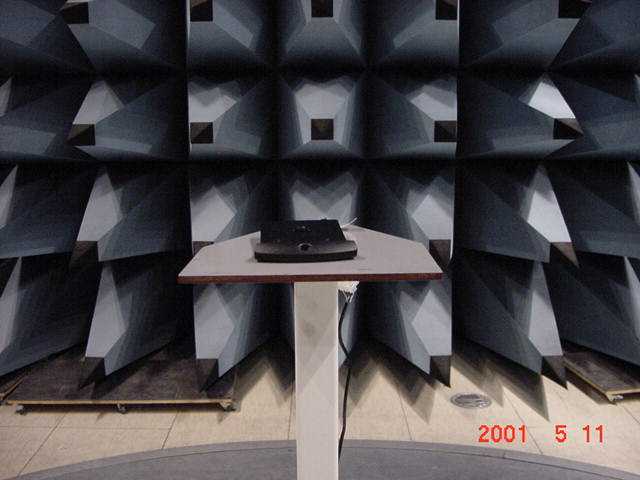

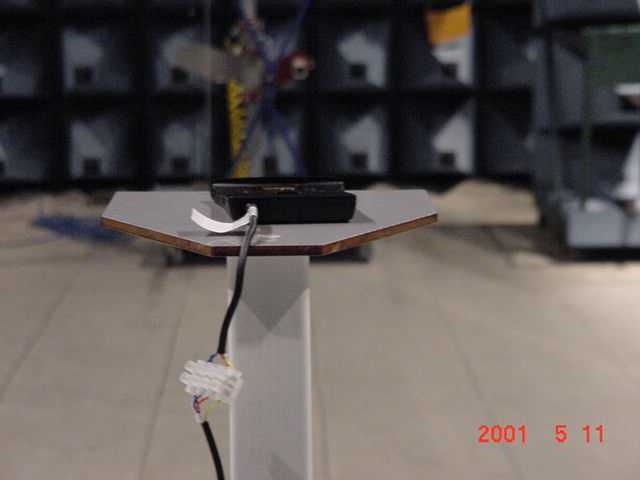

FCC Authorization Answer Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. WSS Mikael Ohlsson Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile 2001-11-20A Reply, FCC Authorization, LSE044 Palm Adapter. 1. The EUT can only be connected to a Palm device. The “peripheral” PC laptop mentioned in the test report was used only as a reciever (via a Bluetooth PC card) for function control over the Bluetooth interface. The EUT can not physically be connected to a PC. The test set up photos are from the “radiated emission” measurements. The “peripheral” PC is not a part of the test set up. 2. Test set up photos for conducted emission measurements – SEMKO will provide you with them. 3. Processing gain measurement – The 0.1% Access Code Error Ratio refer to the BER requirement in the Bluetooth Core RF Specification. Further more we can relate this measurement to several different manufacturers, for example Ericsson, which have use the ACER method in their FCC authorizations as well. 4. FCC label – On our previous FCC authorized products it has, due to the label size, been approved to only state: “FCCID:LSE0xx” on the marking label. Since the devices/marking labels are to small to place the required text according to part 15.19(a) (3), the information required by this paragraph will be placed in the user’s manual. This will be FCC accepted according to part 15.19(a) (5). The following text will be added in the user’s manual for OXTLSE044: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 5. Label location – Please find enclosed photos of “label position” – appendix 1. 6. Modular approval – My interpretation of “modular approval” may be wrong. This product should maybe be seen as a device. . Anyhow, the enclosure itself has no own RF-shielding in that means since it is not necessary for this product in order to meet the emission requirements. The objective for us is anyhow that the product shall achieve FCC authorization for the product intended only for connection to PALM Vx devices. It may be more suitable to classify this product as a device. Best regards, Mikael Ohlsson Product Certification Wireless Solutions Sweden AB Rissneleden 138, plan 6 S-174 02 Sundbyberg, Sweden Phone: +46 8 7337651 Mobile: +46 733 604044 E-mail: [email protected] FCC Authorization Answer Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. WSS Mikael Ohlsson Dokansv/Godk - Doc respons/ApprovedKontr - CheckedDatum - DateRevFile 2001-11-20A Appendix 1 – Label position Label Position

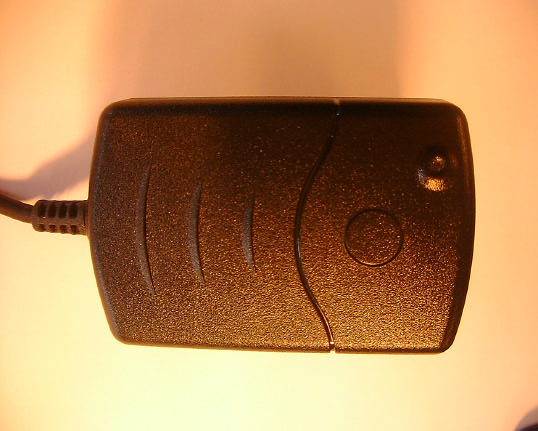

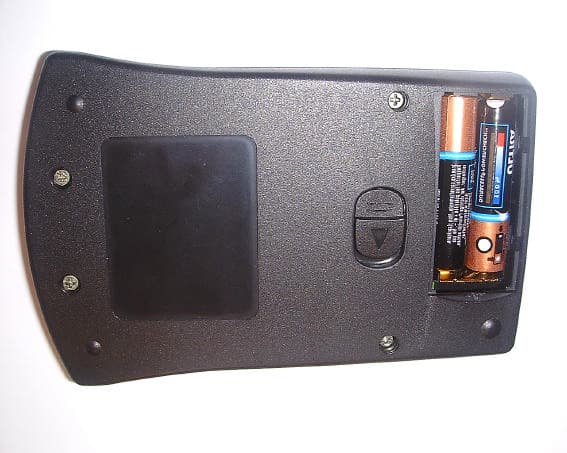

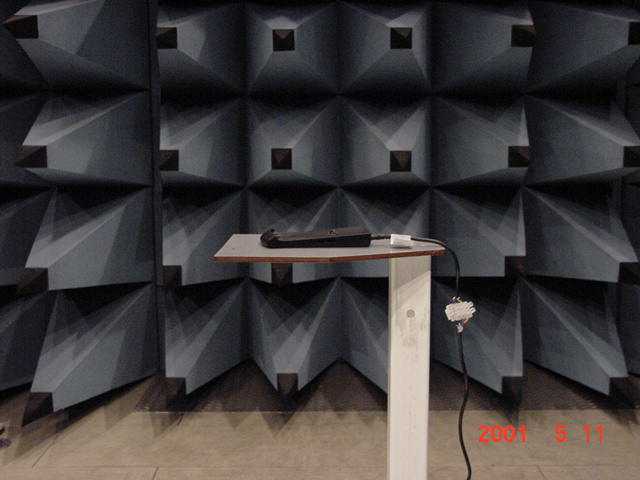

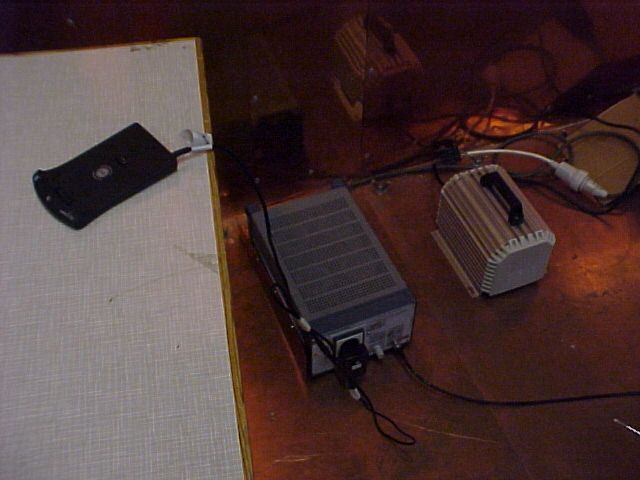

Photos , LSE044, Palm Adapter

Marking plate, LSE 04…
