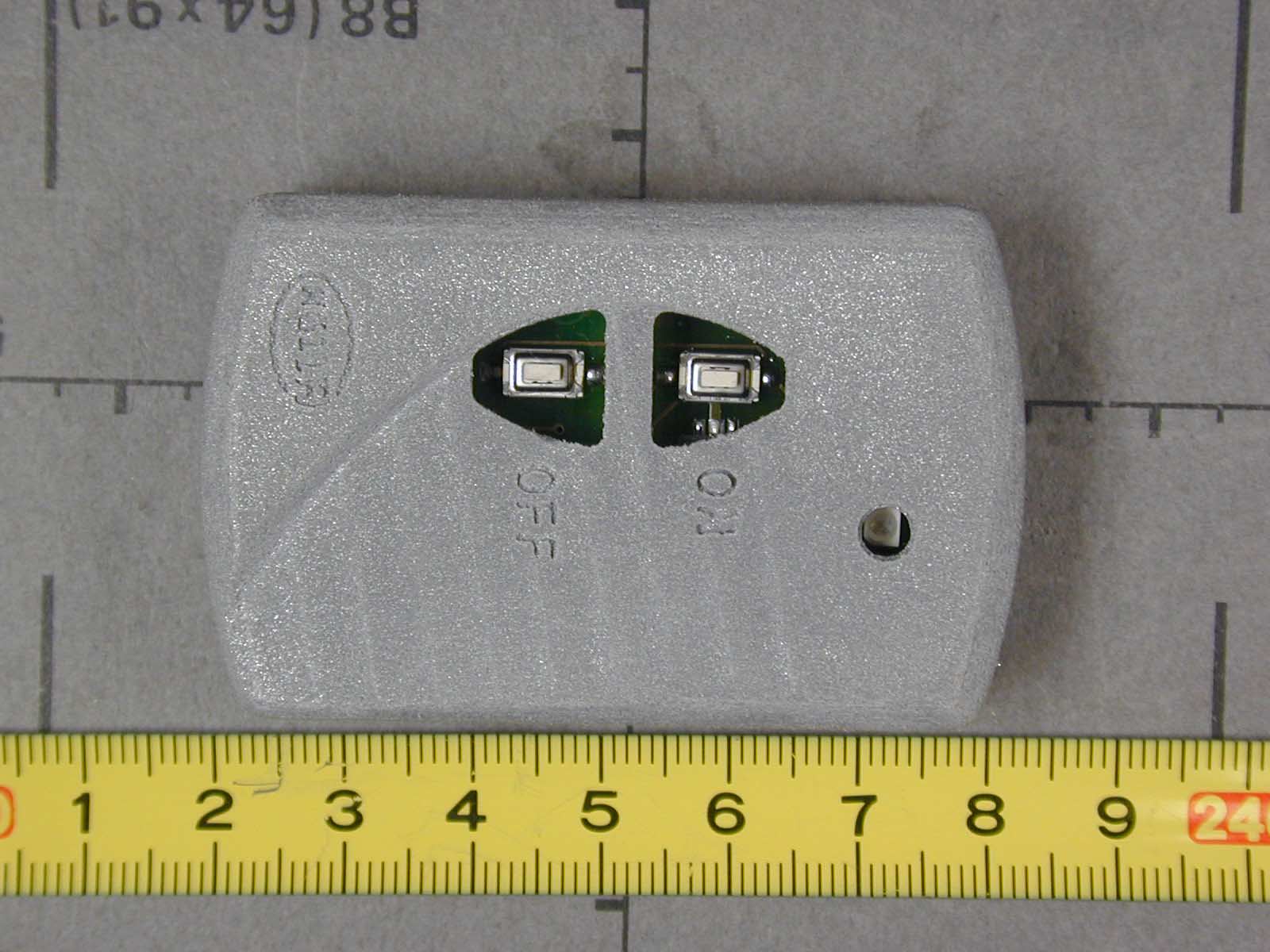

FCC ID: External Photos Page 1 of 2 FCC ID: External Photos Page 2 of 2

FCC-ID: P3OK4678 This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: Internal Photos Page 1 of 3 FCC ID: Internal Photos Page 2 of 3 FCC ID: Internal Photos Page 3 of 3

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Page 1 of 31 Pages Straubing, 13 Januar 2003 T E S T - R E P O R T No. 55106-20635 for TX Hella 2002 Remote Control Transmitter Applicant: Meta System S.p.A. Purpose of testing: To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Section ß15.231 Industry Canada Radio Standards Specification RSS-210 Issue 5, Section 6.1 (Category I Equipment) Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 2 of 31 Pages Table of Contents 1. Administrative Data.................................................................................... 3 2. Identification of Test Laboratory................................................................. 4 3. Summary of Test Results........................................................................... 5 4. Operation Mode of EUT ............................................................................. 6 5. Configuration of EUT and Peripheral Devices ........................................... 7 6. Measuring Methods ................................................................................... 8 6.1. Bandwidth of Emission(FCC ß15.231.c / RSS-210 Section 6.1.1.c).................................................................................... 8 6.2. Radiated Emission 30 MHz - 1 GHz (FCC ß15.205.a,b, ß15.209, ß15.231.b / RSS-210 Sections 6.1.1.b, 6.3) ......................... 9 6.3. Radiated Emission 1 GHz - 10 GHz (FCC ß15.205.a,b, ß15.209, ß15.231.b / RSS-210 Sections 6.1.1.b, 6.3) ....................... 11 7. Equipment List ......................................................................................... 13 8. Photographs Taken During Testing ......................................................... 15 9. List of Measurements............................................................................... 23 9.1. List of Measurements According To FCC Part 15 Subpart C .......................................................................................... 24 9.2. List of Measurements According To Industry Canada RSS-210 ............................................................................................ 24 10. Referenced Regulations .......................................................................... 25 11. Test Results ............................................................................................. 26 EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 3 of 31 Pages 1. Administrative Data Equipment Under Test (EUT): TX Hella 2002 Serial number(s): 0001 Type of equipment: Remote Control Transmitter Parts/accessories: --- FCC-ID: Applicant: (full address) Meta System S.p.A. Via Majakovskij, 10/b/c/d/e I-42100 Reggio Emilia Contract identification: --- Contact person: Mr. Maldini Manufacturer: Meta System S.p.A. Receipt of EUT: 08 October 2002 Date of test: 15 November 2002 to 07 January 2003 Note: --- Responsible for testing: Thomas Eberl Responsible for test report: Thomas Eberl EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 4 of 31 Pages 2. Identification of Test Laboratory Test Laboratory: Senton GmbH EMI/EMC Test Center (full address): Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person: Mr. Johann Roidt Communication: Telephone (+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail: [email protected] FCC registration number: 90926 Industry Canada file number: IC 3050 EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 5 of 31 Pages 3. Summary of Test Results The tested sample complies with the requirements set forth in the Code of Regulations Part 15 Subpart C, Section ß15.231 (intentional radiators) of the Federal Communication Commission (FCC) and the Radio Standards Specification RSS-210 Issue 5, Section 6.1 for Low Power Licence-Exempt Radiocommunication Devices (all frequency bands). Johann Roidt Thomas Eberl Technical Manager Test Engineer EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 6 of 31 Pages 4. Operation Mode of EUT TX continuously active with internal modulation EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 7 of 31 Pages 5. Configuration of EUT and Peripheral Devices Configuration of cables of EUT - Not applicable Configuration of peripheral devices connected to EUT - Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 8 of 31 Pages 6. Measuring Methods 6.1. Bandwidth of Emission(FCC ß15.231.c / RSS-210 Section 6.1.1.c) The Bandwidth of Emission is measured with a spectrum analyzer connected to measuring antenna (radiated measurement) or test fixture while EUT is operating in transmit mode with modulation at the appropriate center frequency. To increase received signal level distance to EUT is reduced (appropriate level offset is included). The spectrum analyzer was set to: RBW = 10 kHz, VBW = 10 kHz, span = 1 MHz, sweep = 40 ms See figure 1 for the measurement setup. Test equipment used (see equipment list for details): 02, 55, 67 5 2 1 4 3 Figure 1: Measurement setup for bandwidth of emission test 1 Transmitter (EUT) 3 Test fixture 2 Wooden table 4 Test cable 5 Spectrum analyzer EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 9 of 31 Pages 6.2. Radiated Emission 30 MHz - 1 GHz (FCC ß15.205.a,b, ß15.209, ß15.231.b / RSS-210 Sections 6.1.1.b, 6.3) Radiated emissions are measured over the frequen…

Text truncated - open the document above for the full version.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 16 of 31 Pages Test setup for radiated emission pre-test 30 MHz - 1 GHz and final test 1 GHz to 5 GHz (semi anechoic room) EUT position: horizontal - rear side on table EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 17 of 31 Pages Test setup for radiated emission pre-test 30 MHz - 1 GHz and final test 1 GHz to 5 GHz (semi anechoic room) EUT position: horizontal - right side on table EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 18 of 31 Pages Test setup for radiated emission pre-test 30 MHz - 1 GHz and final test 1 GHz to 5 GHz (semi anechoic room) EUT position: vertical - upright EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 19 of 31 Pages Test setup for radiated emission final test 30 MHz - 1 GHz (open area test site) EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 20 of 31 Pages Test setup for radiated emission final test 30 MHz - 1 GHz (open area test site) EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 21 of 31 Pages Test setup for radiated emission final test 30 MHz - 1 GHz (open area test site) EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test report for FCC Part 15, section 15.231 Test Report No. 55106-20635 Page 22 of 31 Pages Test setup for radiated emission final test 30 MHz - 1 GHz (open area test site)
