P3OT2PLUSOBD device (On Board Diagnostic device) with Bluetooth 4.0 low energy

T.2+ INSTALLATION MANUAL EN 5040 XXXXXX KIT COMPOSITION INSTALLATION Power Supply: ..................................................................................12Vdc (9V-14V) Working temperature: ..........................................................from -30°C to +80°C IP: .....................................................................................................................................40 Application classifi cation: ...........................................passenger compartment TECHNICAL SPECIFICATIONS WARNINGS • ALL INSTALLATION OPERATIONS MUST BE CARRIED OUT WITH THE MOTOR OFF. • Before starting installation, detect the OBD port location referring to the use and maintenance manual of the vehicle. • If the OBD connector should be used for other purpose, such as maintenance, remove T2+ and, after tempo- rary operation, reconnect the T2+ to OBD connector. • Strictly comply with operations indicated in this manual. • Installation staff are not authorised to remove warranty seals and/or access the inside of the product. • The device must be connected to OBD port on board to the vehicle, provided with protected power supply by means a 5 A fuse maxiumum activation current. • The manufacturer assumes no responsibility for damages caused to property and/or people, caused by the incorrect installation of the product. TELEMATIC CONTROL UNIT 1 2c2b OBD PORT By using user manual of the vehicle fi nd the OBD connector on your car. Typically OBD plug can be located: • near the breaks unit • near the fuse box • under the dashboard • in the middle console Plug the connector into the vehi- cle’s OBD. Lock the Secondary Lock to se- cure the device. 2a Check that the device is fully connected and does not unlock. Hereby, Meta System S.p.A., declares that this T.2+ is in compliance with the essential requirements and other relevant provisions of Directive R&TTE (1999/5). The declaration of conformity may be consulted at http://docs.metasystem.it APPROVAL REMOVING THE PRODUCT 3b The instructions in this manual do not refer to specifi c vehicle models but apply to all vehicles in general. Any information provided by Meta System regarding a type (model) of vehicle is to be considered purely indicative. Installation, positioning, product securing and electrical connections, and possibly the removal, must be carried out in a workmanlike manner on each motor vehicle. The installer is obliged to and bears responsibility for ca- refully verifying the individual vehicle model on which operations are carried out. Failure to comply with that stipulated above can render the warranty of the device null and void. STANDARDS APPLICABLE TO THE VEHICLE 3a Unlock the Secondary Lock to release the device.Remove the device. LEGENDA : Identifi cation number of identify body. : Direct current of power supply. : Conformity mark to European certifi cation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC APPROVAL

FCC ID: P3O T2OBDBT Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: -4,06(dBm) Maximum peak output power at antenna input terminal:0,393(mW) Antenna gain(typical):1,70(dBi) Maximum antenna gain:1,48(numeric) Prediction distance:20(cm) Prediction frequency:2404(MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm 2 ) Power density at prediction frequency:0,0001155 (mW/cm 2 ) Maximum allowable antenna gain:41,1(dBi) Margin of Compliance:39,4 (dB)
=    291054MPE.xlsPage 1 of 1

This Test Report, when bearing the Nemko name and logo is only valid when issued by a Nemko laboratory, or by a laboratory having special agreement with Nemko. Report Reference ID: 291054"1TRFWL Test specification: Title 47 – Telecommunication Chapter I – Federal Communication Commission Subchapter A – General Part 15 – Radio Frequency Devices Subpart C – Unintentional Radiators §15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHZ. Applicant: Meta System S.p.A. Via Galimberti, 5, – 42124" Reggio Emilia (RE) – Italy Apparatus: EOBD device Model: T.2 + FCC ID: P3OT2PLUS Testing laboratory: Nemko Italy Spa Via del Carroccio, 4 20853 Biassono (MB) – Italy Telephone: +39 039 2201201 Facsimile: +39 039 2201221 Name and title Date Tested by: G. Curioni, Wireless/EMC Specialist 2015"11"17 Reviewed by: P. Barbieri, Wireless/EMC Specialist 2015"11"17 © Nemko Spa, 20853 Biassono (MB) - Italy. All rights reserved. This publication may be reproduced in whole for non"commercial purposes as long as Nemko Spa is acknowledged as copyright owner and source of the material. Nemko Spa takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This test report may not be partially reproduced, except with the prior written permission of Nemko Spa. The test report merely corresponds to the test sample. The phase of sampling / collection of equipment under test is carried out by the customer. Product: EOBD Report reference ID: 291054"1TRFWL Page 2 of 58 Table of contents Section 1: Report summary ......................................................................................................................................... 3 1.1 Test specification ......................................................................................................................................... 3 1.2 Statement of compliance ............................................................................................................................. 3 1.3 Exclusions ................................................................................................................................................... 3 1.4 Registration number .................................................................................................................................... 3 1.5 Test report revision history .......................................................................................................................... 3 1.6 Limits of responsibility ................................................................................................................................. 3 Section 2: Summary of test results ............................................................................................................................. 4 2.1 FCC Part 15 Subpart C – Intentional Radiators, test results ....................................................................... 4 Section 3: Equipment under test (EUT) and application details ............................................................................... 5 3.1 Applicant details .......................................................................................................................................... 5 3.2 Modular equipment ...................................................................................................................................... 5 3.3 Product details ............................................................................................................................................. 5 3.4 Application purpose ..................................................................................................................................... 5 3.5 Composite/related equipment ...................................................................................................................... 5 3.6 Sample information ..................................................................................................................................... 6 3.7 EUT technical specifications ........................................................................................................................ 6 3.8 Operation of the EUT during testing ............................................................................................................ 6 3.9 EUT setup diagram ..................................................................................................................................... 6 Section 4: Engineering considerations ...................................................................................................................... 7 4.1 Modifications incorporated in the EUT ......................................................................................................... 7 4.2 Deviations from laboratory tests procedures ............................................................................................... 7 4.3 Technical judgment ..................................................................................................................................... 7 Section 5: Test conditions ........................................................................................................................................... 8 5.1 Power source and ambient temperatures .................................................................................................... 8 Section 6: Measurement uncertainty .......................................................................................................................... 9 Section 7: Test equipment .................................................................................................................................…

Text truncated - open the document above for the full version.

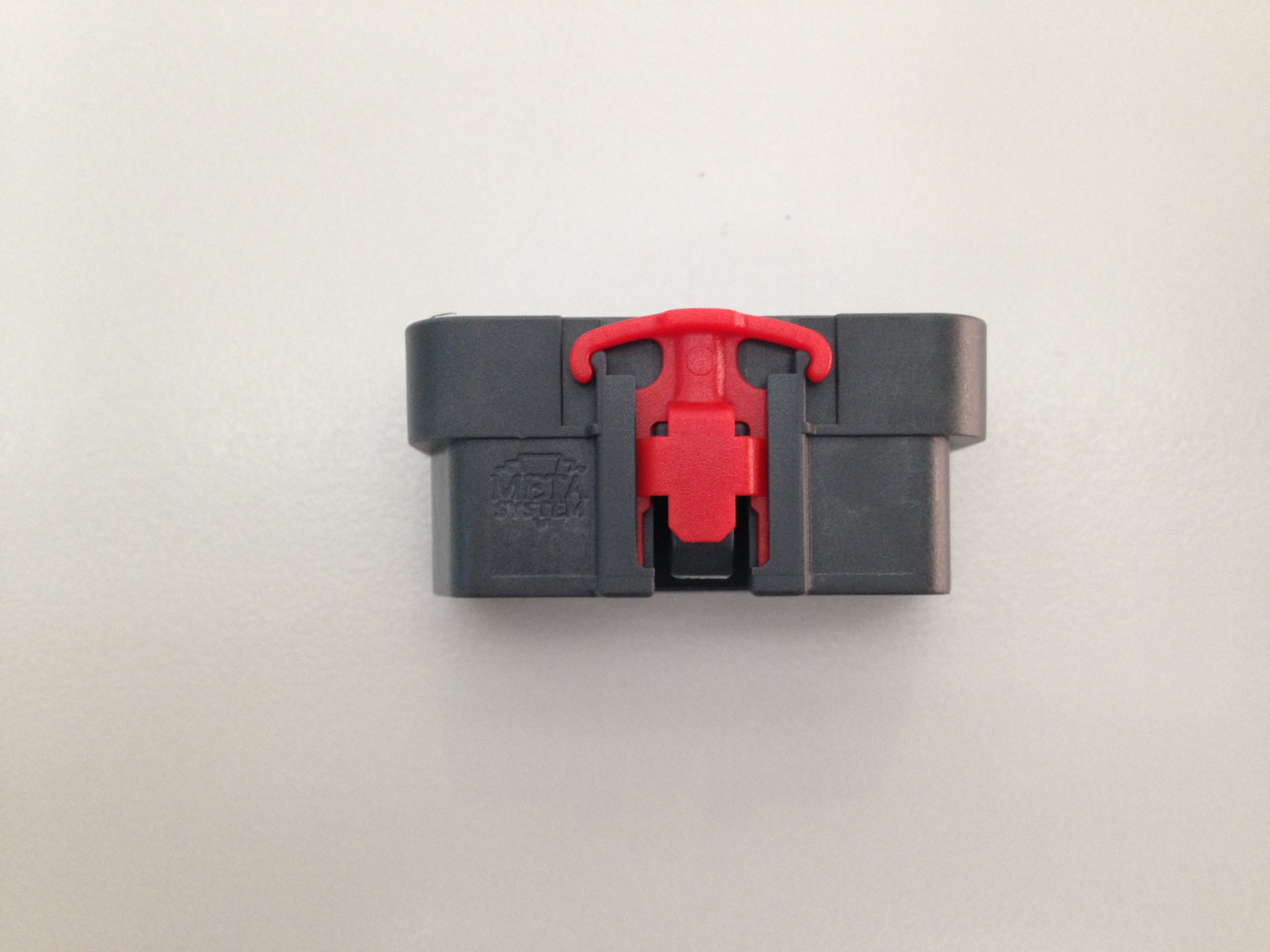

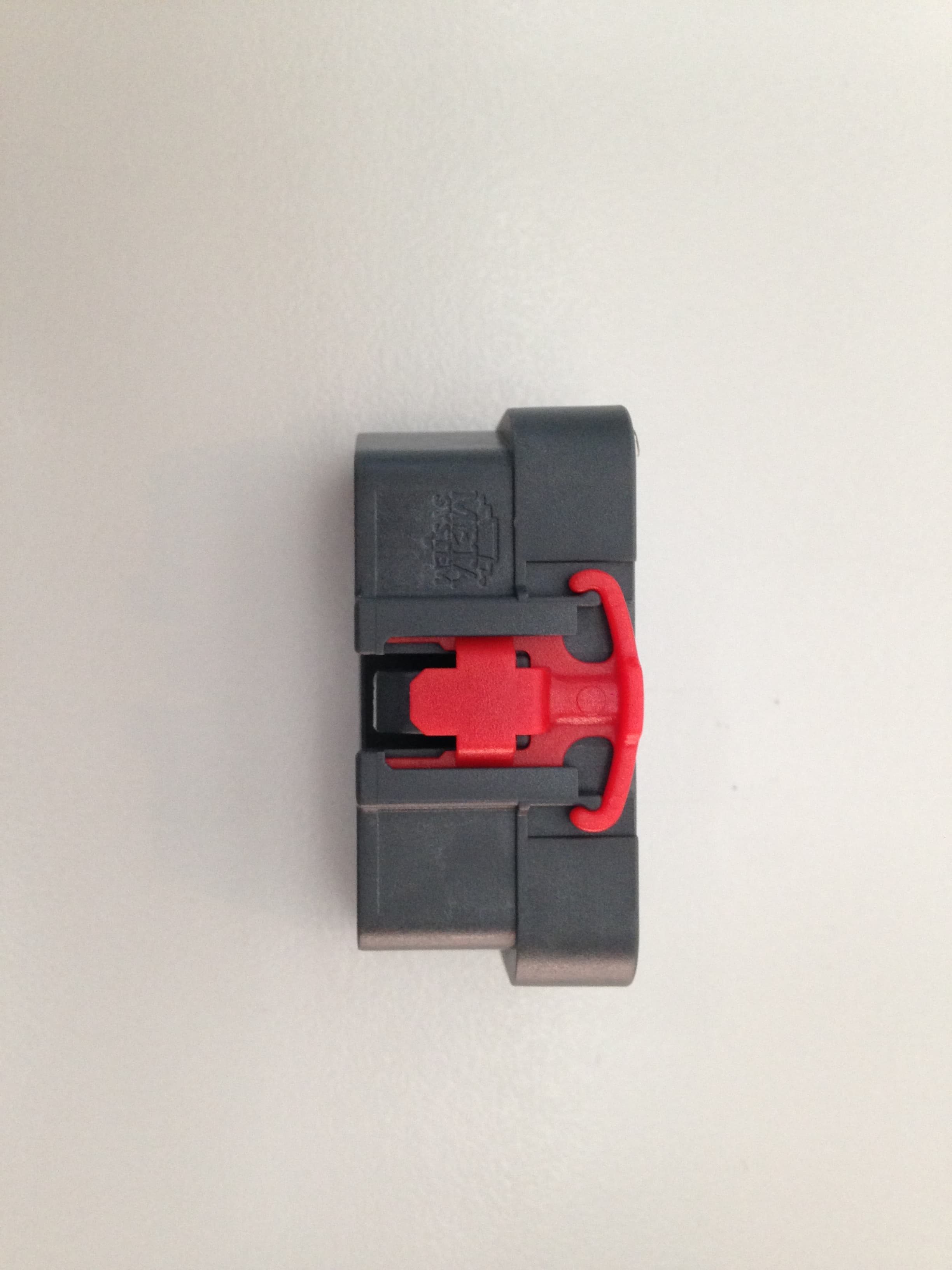

SETUP PHOTOS
